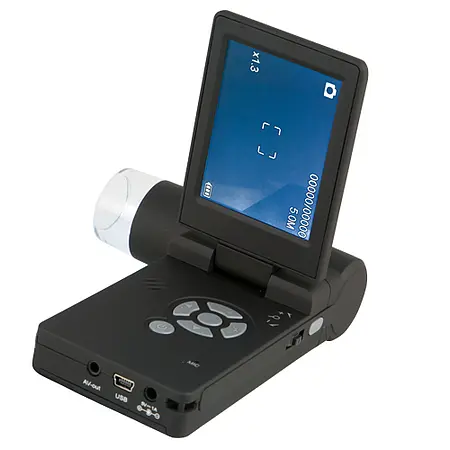

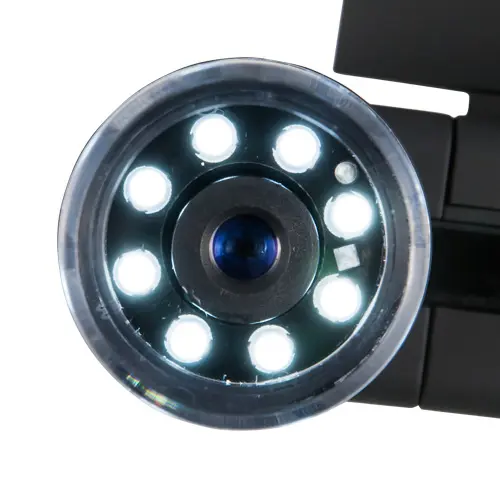

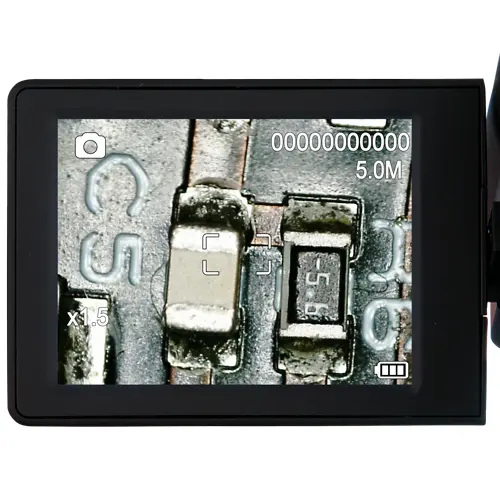

Thanks to the integrated 7.62 cm / 3" TFT color display and Li-Ion batteries, the Videoscope PCE-DHM 10 can be PC-independent and therefore used completely mobile. Being equipped with 8 white LEDs increases the Videoscope up to a 500-fold size and thus captures even the smallest details in image or video. The integrated 5 megapixel camera (12 megapixel interpolated) also provides sharp images of the magnified object. With the zoom button imagedetails can be enlarged directly on the TFT color monitor and videos can be played. As with a conventional digital camera,images captured bythe Videoscope PCE-DHM 10 are stored directly on a MicroSD memory card. The recordings can then be transferredvia the USB 2.0 port on your computer or laptop. With its digital technology, the Videoscope PCE-DHM 10 is very versatile: It is suitable for examining, measuring and photographingthesmallest items at home or traveling, school, university, in research and professional applications, e.g. in industrial surface inspection and in hobbies and leisure. Using the included software, pictures and videos can bestored, archived or sent via e-mail to friends, acquaintances or business partners.
|Dimensions||130 x 112 x 28 mm / 5.1 x 4.4 x 1.1 in|
|Weight||171 g / < 1 lb|
|Colour||Black (Soft Rubber)|
|Image resolution (pixels)||12 million (interpolated), 9 million (interpolated), 5 million, 3 million, 1.3 million, VGA|
|Power supply||Li-Ion Battery 3.7V|
|System requirements||Windows XP SP2, Windows Vista, Windows 7, Mac ab 10.5|
