Order no.: PCE-VT 3700

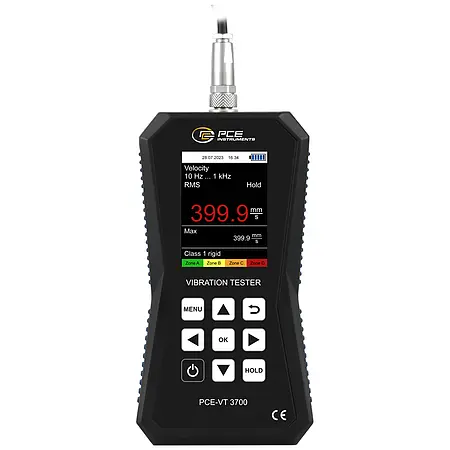

Vibration Meter PCE-VT 3700

Question / Callback

Delivery time: 1-2 working days

Description

Handy entry-level device for vibration monitoring of machines and systems / HOLD function / Peak value measurement / Handheld device for mobile vibration measurement / Automatic ISO 10816-3 evaluation

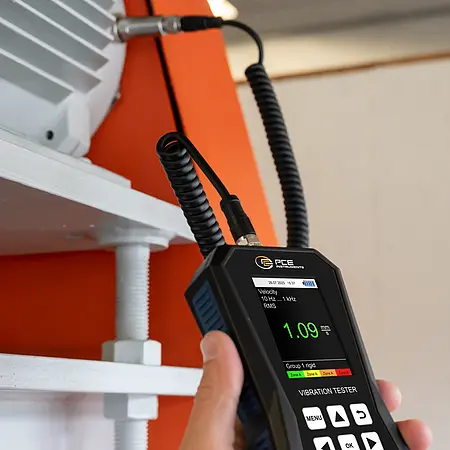

The vibration meter is ideal for maintenance workers to quickly check vibrating parts, machines and systems. This vibration meter shows the vibration acceleration, vibration velocity and vibration displacement directly on the display. You can use the device to quickly and reliably detect machine imbalances which can lead to, for example, bearing damage. The vibration meter is equipped with a mode that allows a measurement according to ISO 10816-3 to be carried out. The vibration meter analyzes the measured values and automatically shows a good / bad evaluation on the display.

The vibration meter is supplied with a sensor on the spiral cable, magnet adapter, service bag and batteries. The ISO factory certificate completes the scope of delivery. The display of the vibration meter is a colored graphic display, which makes operation easier, since all instructions and menu items are shown in plain text. The 12 languages in the menu of the vibration meter are easily switchable.

Highlights

- Automatic ISO 10816-3 evaluation
- Easy to handle
- For mobile vibration measurement
-The measurement unit can be switched between the metric system and imperial units.
- Colored graphic display
- Peak-hold function

Specification

Measuring range	Acceleration
	0.0 - 399.9 m/s² / 0.0 - 15744 in/s²
Resolution	0.1 m/s² / 3.94 in/s²
Accuracy @ 160 Hz	±2 %
Frequency range	1 kHz - 10 kHz
	10 Hz - 10 kHz

Measuring range	Velocity
	0.00 - 399.99 mm/s / 0.00 - 15.74 in/s
Resolution	0.01 mm/s / 0.0039 in/s
Accuracy @ 160 Hz	±2 %
Frequency range	10 Hz - 1 kHz

Measuring range	Displacement
	0.000 - 3.999 mm / 0.000 - 0.154 in
Resolution	1 µm / 39.4 µin
Accuracy @ 160 Hz	±2 %
Frequency range	10 Hz - 200 Hz

Measurement parameters	RMS, Peak, Peak-Peak
	Crest factor
Units	switchable metric / imperial
Display	2.8" LC display
Menu languages	English, German, French
	Spanish, Italian, Dutch
	Portuguese, Turkish, Polish
	Russian, Chinese, Japanese
Power supply	3 x 1.5 V AA batteries
Operating and storage conditions	-20 ... +65 °C / -4 ... 149 °F; 10 ... 95 % r.H.
Dimensions	165 x 85 x 32 mm / 6.4 x 3.3 x 1.2"
Weight	239 g / 8,4 oz

Technical Data Vibration Sensor
Resonance frequency	24 kHz
Transverse sensitivity	≤ 5%
Destruction limit	5000 g (peak)
Operating and storage temperature	-55 ... +150 °C / -67 ... 302 °F
Housing material	stainless steel
Mounting thread	¼ - 28“
Dimensions	Ø 17 x 46 mm / 0.67 x 1.8"
Weight (without cable)	52 g / 1.8 oz
Protection Class:	IP52

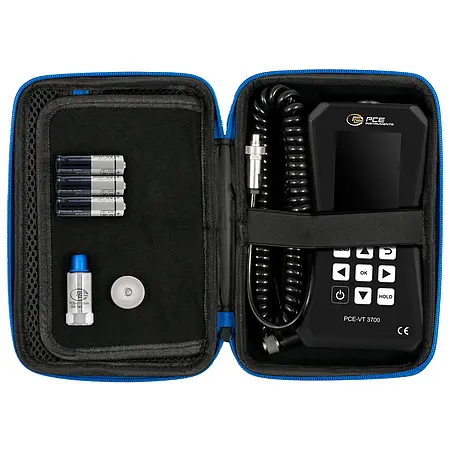

Delivery Scope

1 x Vibration Meter PCE-VT 3700
1 x Sensor with spiral cable PCE-VT 3xxx SENSOR

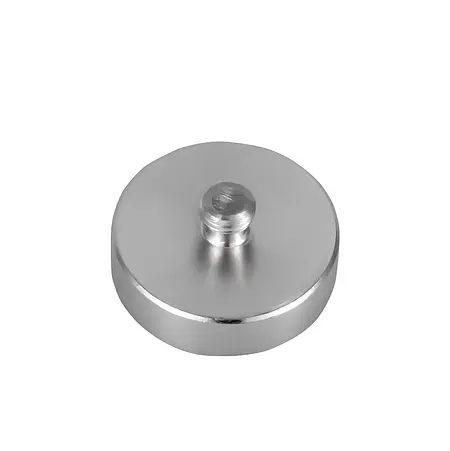

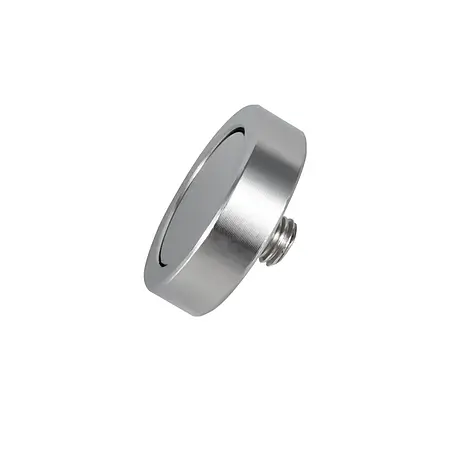

1 x Magnet adapter PCE-VT VMH
3 x 1.5 V AA batteries
1 x Quickstart guide
1 x Service bag

Downloads

man-vibration-meter-pce-vt-3700-de-en.pdf

Manual

Datasheet

Accessories

Magnet Holder PCE-VT 3xxx MAGNET 40

£ 105.00

Price excl. VAT &. delivery
2 year Warranty

Pole shoe magnet adapter for PCE-VT 3xxx series for curved surfaces

- Diameter: Ø35 mm / 1.3"
- Thread: ¼"-28 UNF male
- Pulling force: 40 kg / 88 lb

Magnet Holder PCE-VT 3xxx MAGNET 8.5

£ 105.00

Price excl. VAT &. delivery
2 year Warranty

Pole shoe magnet adapter for PCE-VT 3xxx series for curved surfaces

- Diameter: Ø20 mm / 0.78"
- Thread: ¼"-28 UNF male
- Pulling force: 8.5 kg / 18 lb
- Height: 17mm / 0.67"

Spiral Cable 1.5 m for PCE-VT 3xxx Series

£ 58.00

Price excl. VAT &. delivery
2 year Warranty

- Spiral cable 1.5 m for PCE-VT 3xxx series

Replacement Vibration Sensor PCE-VT 3xxxS SENSOR

£ 242.00

Price excl. VAT &. delivery
2 year Warranty

- Replacement vibration sensor with handle for PCE-VT 3xxxS series
- Premium compact accelerometer, top entry, 100mV / g output, 4 pin M12

Magnet Holder PCE-VT 3xxx MAGNET 35

£ 40.00

Price excl. VAT &. delivery
2 year Warranty

- Pot magnet adapter for PCE-VT 3xxx series for flat surfaces | Ø 35 mm | Thread ¼ “-28
- UNF male | Pulling force: 35 kg | Construction height: 7mm

Magnet Holder PCE-VT 3xxx MAGNET 25

£ 30.00

Price excl. VAT &. delivery
2 year Warranty

- Pot magnet adapter (standard) for PCE-VT 3xxx series for flat surfaces | Ø 25 mm | Thread ¼ “-28
- UNF male | Pulling force: 25 kg | Construction height: 7mm

Magnet Holder PCE-VT 3xxx MAGNET 18

£ 105.00

Price excl. VAT &. delivery
2 year Warranty

Pole shoe magnet adapter for PCE-VT 3xxx series for curved surfaces

- Diameter: Ø25.4 mm / 1"
- Thread: ¼"-28 UNF male
- Pulling force: 18 kg / 39 lb
- Height: 17mm / 0.67"

Needle Sensor PCE-VT 3xxx SPIKE for Vibration Measuring Device

£ 37.00

Price excl. VAT &. delivery
2 year Warranty

1 x Needle sensor PCE-VT 3xxx SPIKE

Replacement vibration sensor PCE-VT 3xxx SENSOR

Vibration Meter / Vibration Tester

Replacement vibration sensor PCE-VT 3xxx SENSOR

£ 164.00

Price excl. VAT &. delivery
2 year Warranty

Replacement vibration sensor for PCE-VT 3xxx series

ISO Calibration Certificate CAL-PCE-VT 3xxx for vibration meter

Vibration Meter / Vibration Tester

ISO Calibration Certificate CAL-PCE-VT 3xxx for vibration meter

£ 192.00

Price excl. VAT &. delivery
2 year Warranty

ISO calibration for vibration meters is often required to comply with DIN ISO 9000.

- 1 Point: 159.2 Hz; 10 mm/s; 14.1 m/s²; 0.028 mm

N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.

Case PCE-VT 3700 CASE with rigid foam insert

Vibration Meter / Vibration Tester

Case PCE-VT 3700 CASE with rigid foam insert

£ 58.00

Price excl. VAT &. delivery
2 year Warranty

Offers protection when transporting and storing the vibration meter and accessories.

- Inlay partly pre-punched
- Foam in the lid
- Material: Plastic
- Color: Black
- External dimensions: 422x299x123mm / 16.6 x 11.7 x 4.8"

Handle PCE-VT-HANDLE for vibration measuring device

Vibration Meter / Vibration Tester

Handle PCE-VT-HANDLE for vibration measuring device

£ 85.00

Price excl. VAT &. delivery
2 year Warranty

- Special handle for needle sensors from the vibration measuring device of the PCE-VT 3xxx series

This ergonomic handle which is attached to the sensor and spiral cable can be used in conjunction with the measuring tip to measure in inaccessible locations.

Vibration Analyzer / Vibration Analyser

Vibration Analyzer Calibrator PCE-VC20

£ 2,225.00

Price excl. VAT &. delivery
2 year Warranty

PCE-VC20 is a vibration analyzer calibrator used to calibrate vibration sensors, meters, analyzers and testers. Suitable for calibrating equipment weighing up to 600 g (1.32 lb), this rechargeable-battery-powered vibration analyzer calibrator generates mechanical vibrations with a quartz-stabilized vibration frequency of 159.15 Hz (radian frequency 1000/s).

Load-independent vibration magnitude with an RMS of:
- 10 m/s² vibration acceleration
- 10 mm/s vibration velocity
- 10 µm vibration displacement

Vibration Meter / Vibration Tester

Vibration Meter Calibrator PCE-VC21

£ 3,471.00

Price excl. VAT &. delivery
2 year Warranty

PCE-VC21 is a vibration meter calibrator used to calibrate vibration sensors, meters, analyzers and testers. Suitable for calibrating equipment weighing up to 600 g (1.32 lb), this rechargeable-battery-powered vibration calibrator generates mechanical vibrations with adjustable quartz-stabilized vibration frequencies between 15.92 and 1280 Hz and adjustable vibration amplitudes between 1 m/s² and 20 m/s².

- Load-independent vibration magnitude
- 7 adjustable vibration frequencies
- 5 adjustable vibration amplitudes
