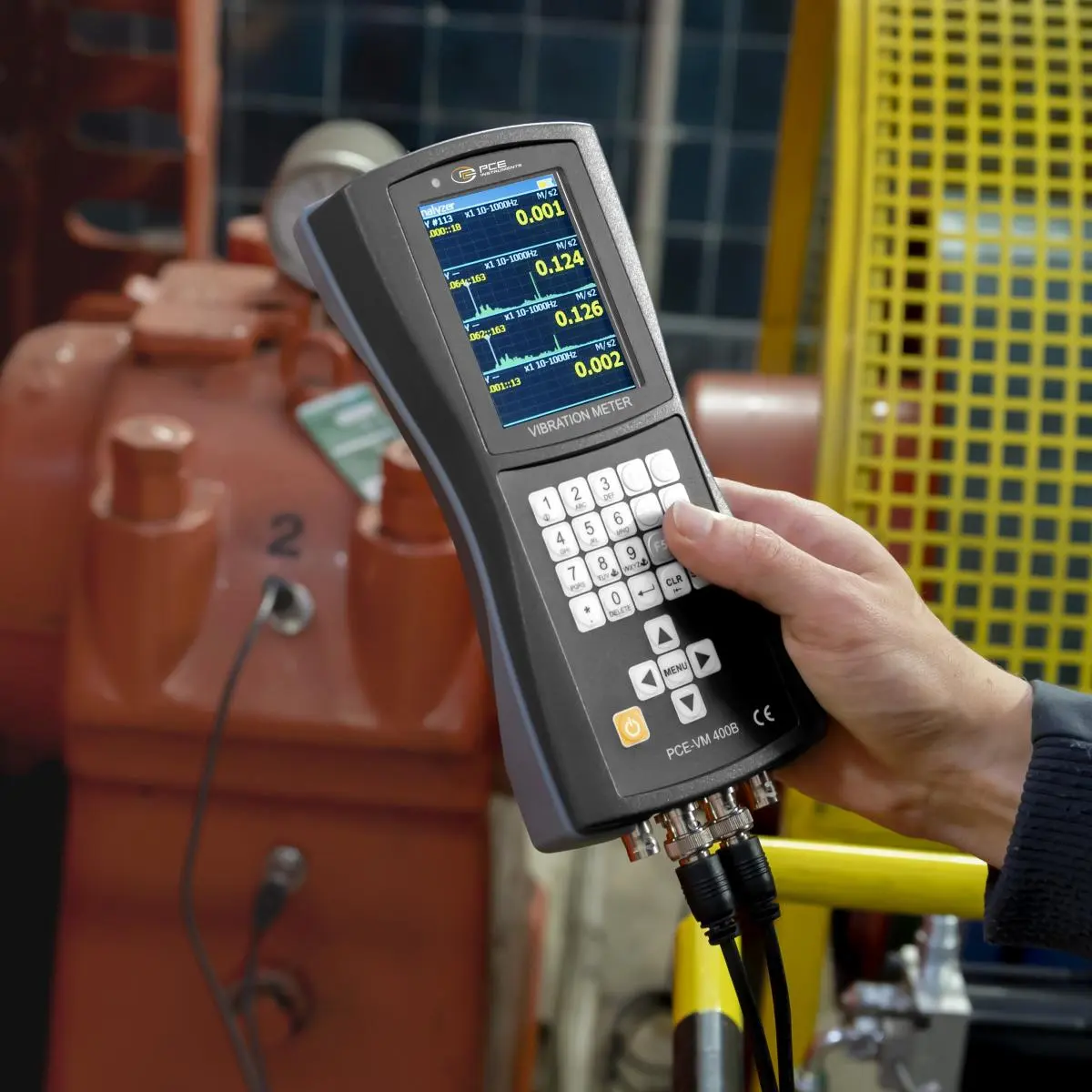

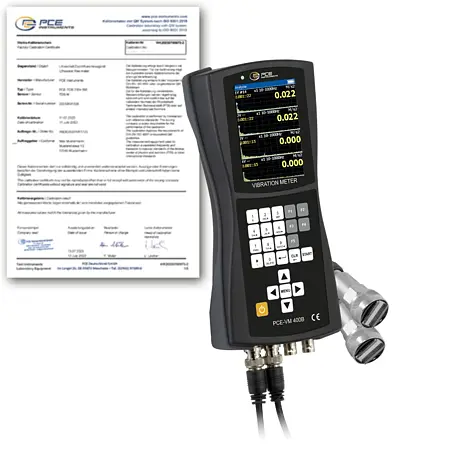

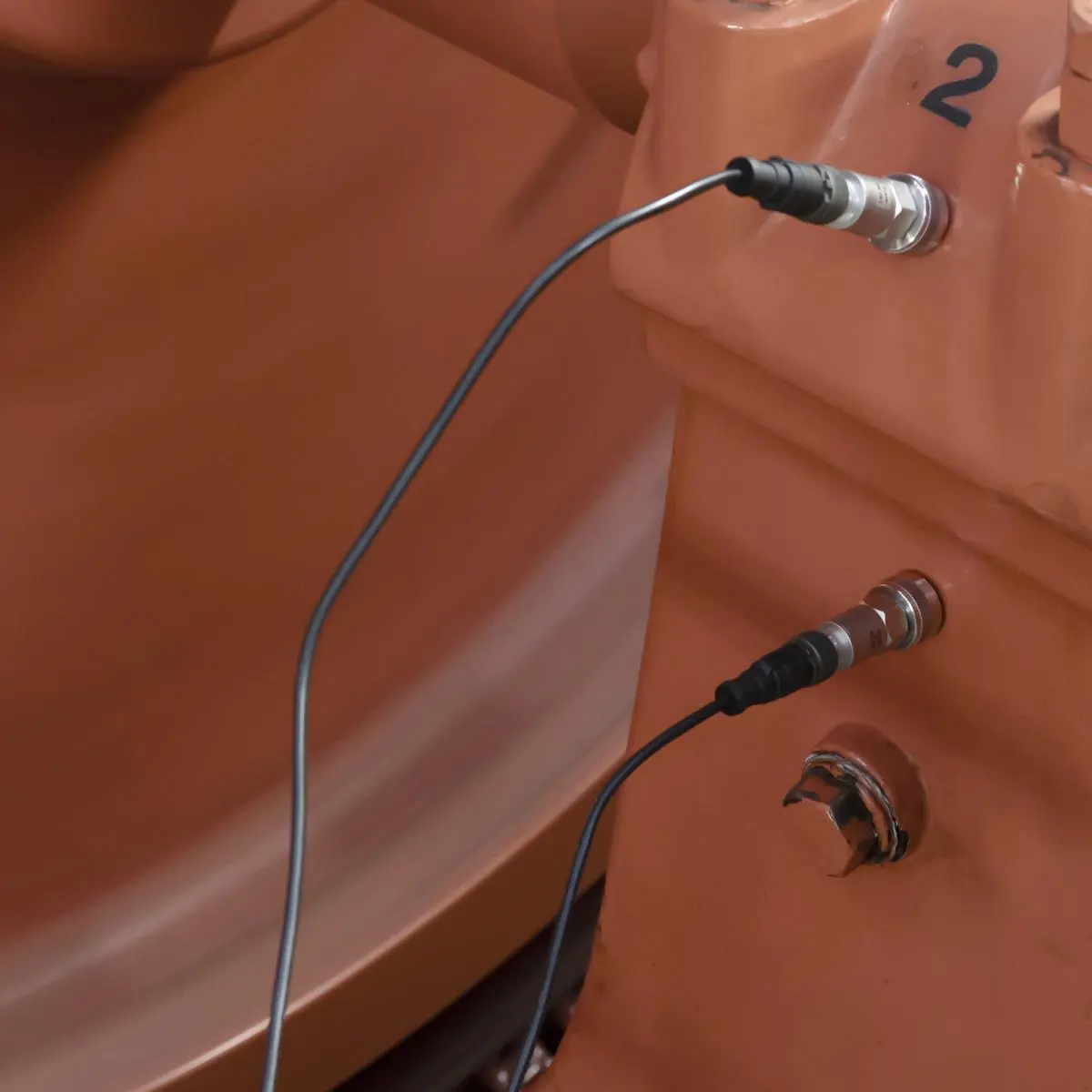

The Vibration Analyzer / Vibration Analyser is a technically advanced instrument for the precise measurement and evaluation of vibrations in industrial applications. It enables the simultaneous measurement of vibrations on shafts and bearings across four independent channels. Equipped with high-quality piezoelectric acceleration sensors, even the smallest vibrations can be accurately captured.
The Vibration Analyzer / Vibration Analyser has various measurement functions, including acceleration, velocity, displacement, and rotational speed, to cover a wide range of applications. It also offers the capability of balancing with up to 8 correction planes to counterbalance imbalances in rotating machinery. Additionally, the Vibration Analyzer / Vibration Analyser allows for route measurement, specifically for recurring measurements at identical measuring points. Evaluation according to ISO 10816 "Evaluation of Mechanical Vibrations" is also possible.

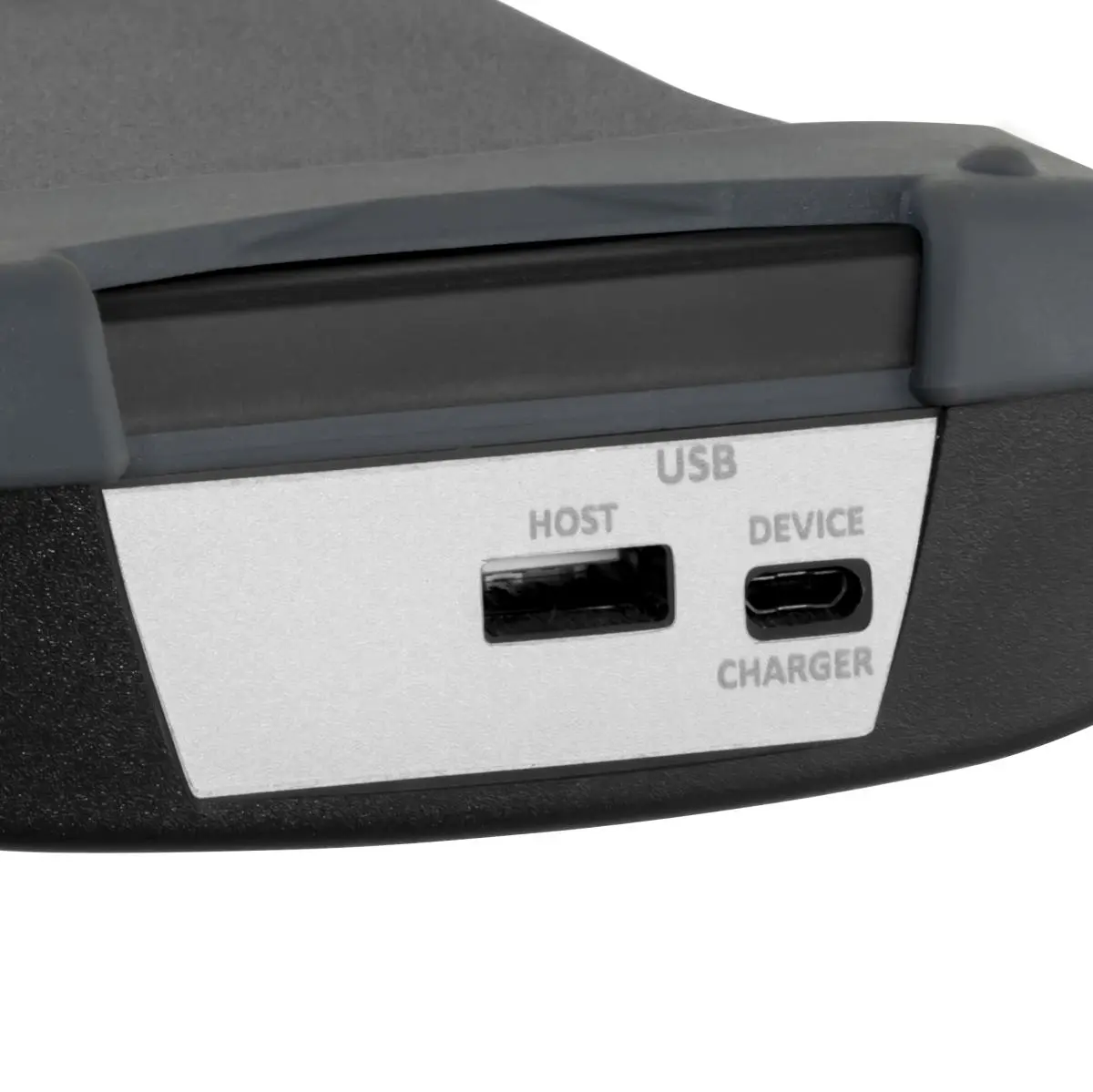

For data transmission and storage, the device is equipped with a USB interface and an internal storage capacity of 4 GB. The Vibration Analyzer / Vibration Analyser is robustly constructed and protected against dust and moisture to ensure its operation in demanding industrial environments.

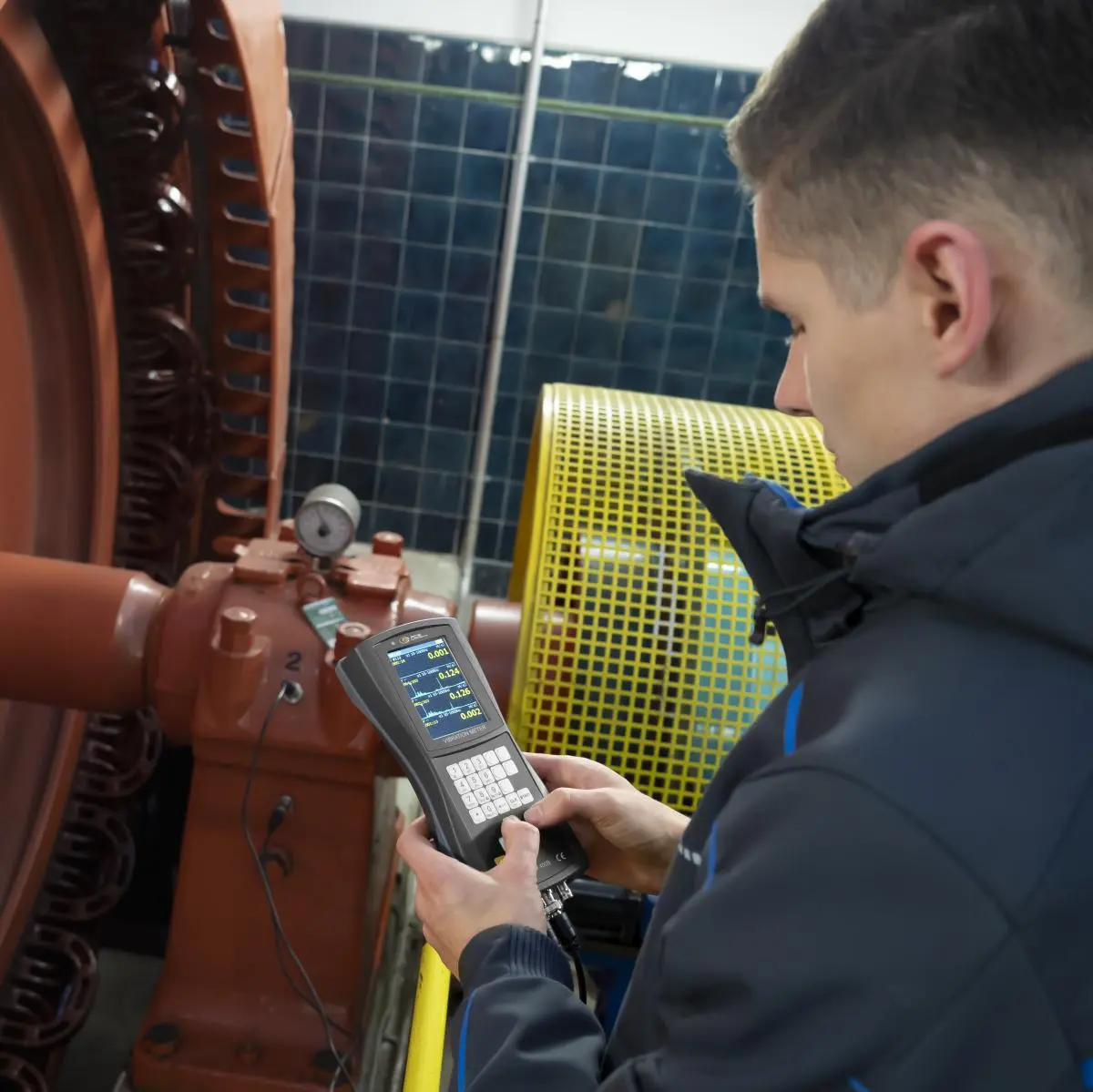

Engineers and technicians can utilize this Vibration Analyzer / Vibration Analyser to precisely monitor and analyze machines, ensuring smooth operation and an extended lifespan.
| Acceleration | |
| Measuring range | 0,001 ... 200 m/s² |
| Resolution | 0,001 m/s² |
| Accuracy | ±5 % |
| Frequency range | 1 ... 25000 Hz |
| Optical speed | |

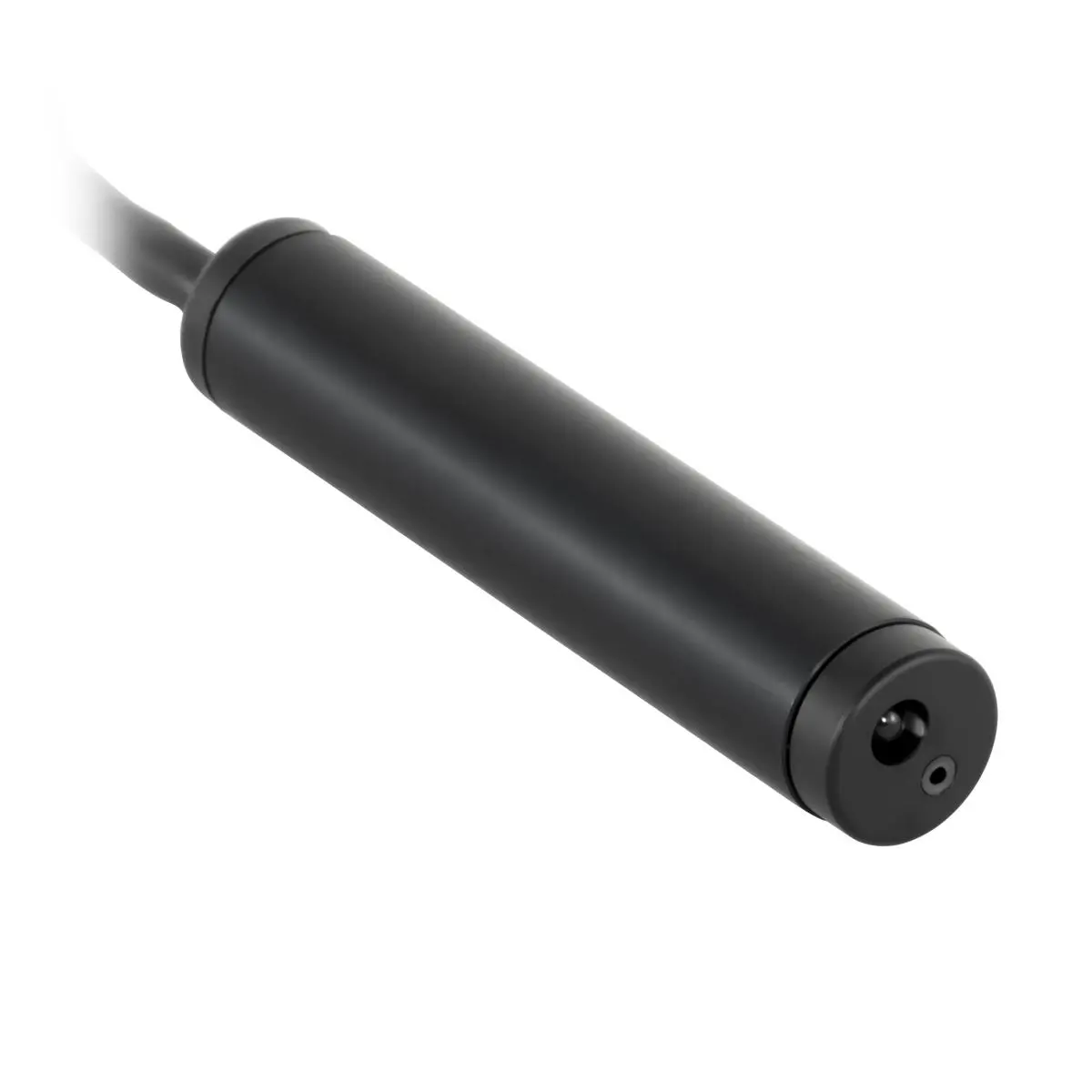

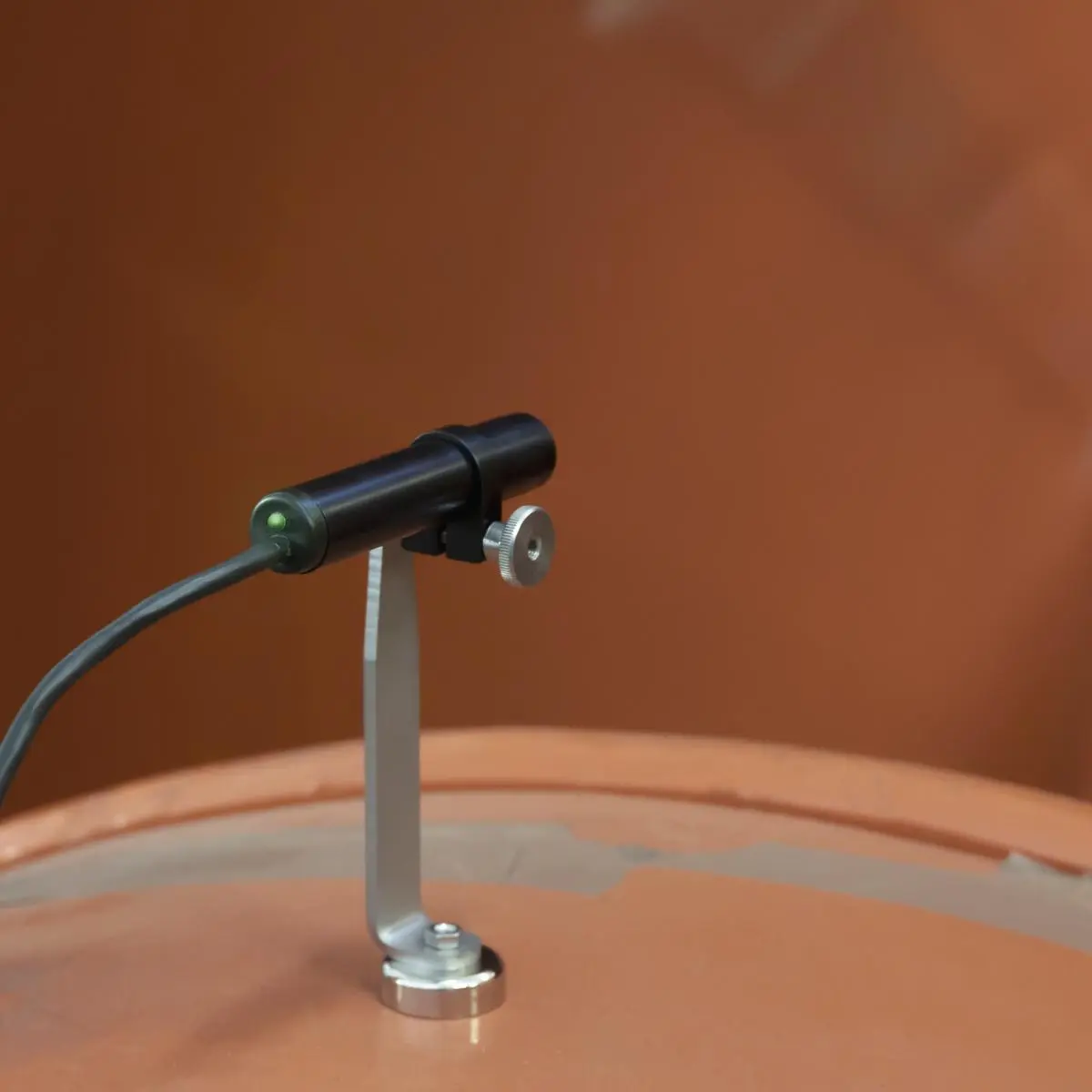

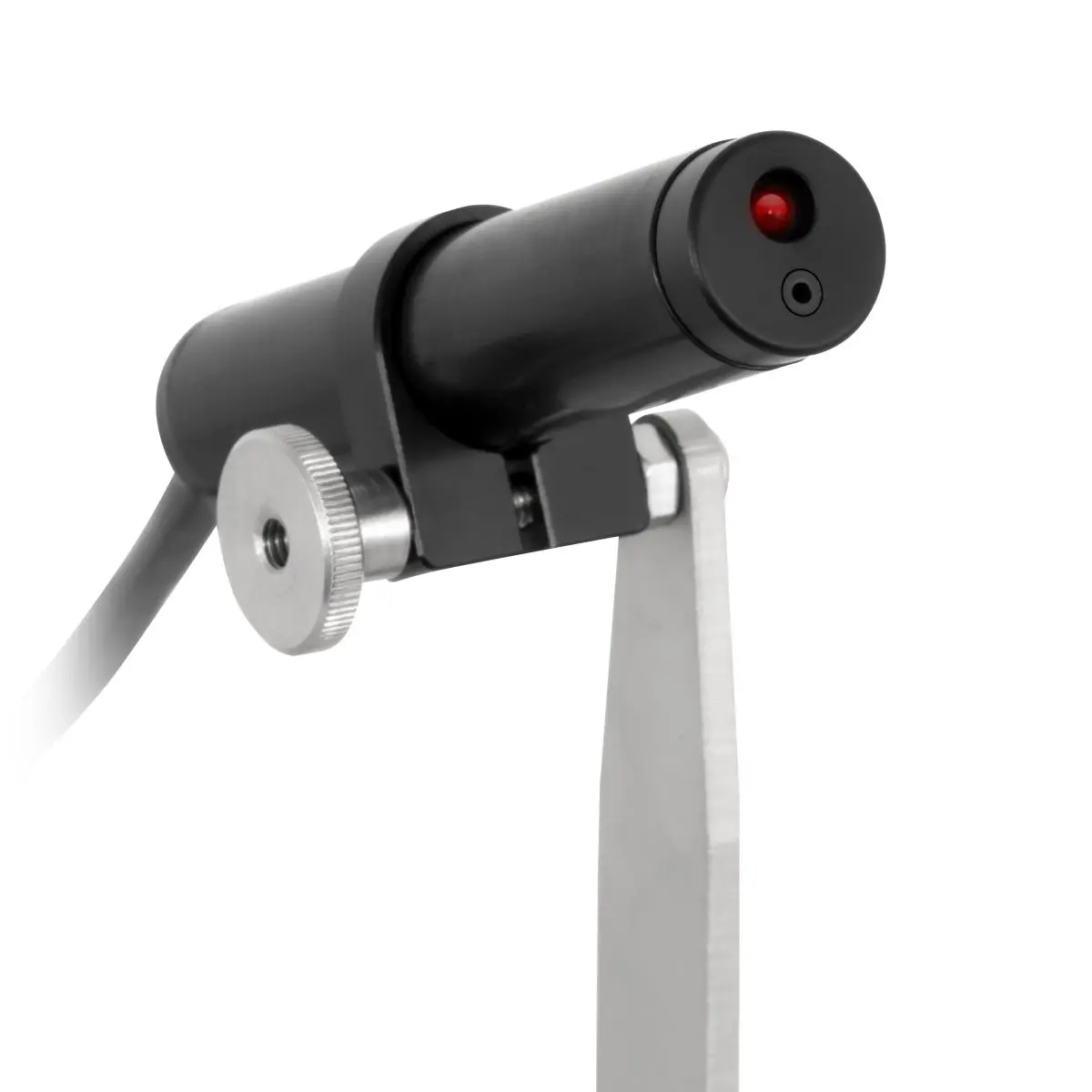

| Measuring range | 10 ... 200000 rpm |
| Resolution | 1 rpm |
| Accuracy | ±5 % |
| Speed | |
| Measuring range | 0,001 ... 200 mm/s |
| Resolution | 0.001 mm/s |
| Accuracy | ±5 % |
| Frequency range | 1 ... 25000 Hz |
| Path | |
| Measuring range | 0,001 ... 2000 µm |
| Resolution | 0,001 µm |
| Accuracy | ±5 % |
| Frequency range | 1 ... 25000 Hz |
| Sensor | |

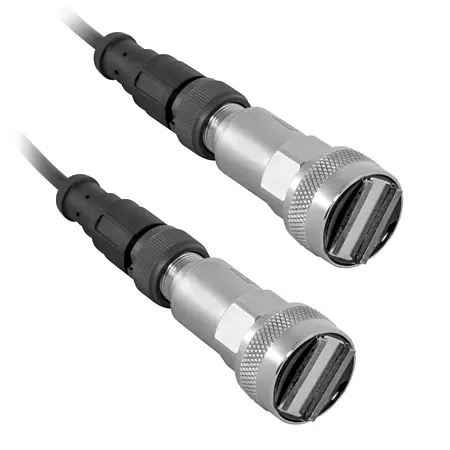

| Designation | PCE-VM 400B-SENS |
| Additional description | additional standard sensor 1.5 m cable magnetic holder |
| General technical data | |
| Number of measuring channels | 4 |
| FFT | 0 |
| Frequency | 1 ... 25000 Hz |
| Display type | VGA colour display |
| Display size | 3,5 Inch |
| Storage medium | Internal memory |
| Storage capacity | 4 GB |
| Interface | USB |
| Operating time | 8 h |
| Automatic power-off from...to | 30 ... 99999 s |
| Menu language | English, Polish, Spanish, German, Chinese, Russian, French, Indonesian |
| Protection class (device) | IP20 |
| Power supply | 5 V DC / 1 A |
| Connector type | Device-europlug |
| (Rechargeable) battery | 1 x 3,6 V 18650 , Lithium-ion battery |
| Capacity | 3200 mAh |
| Performance | 11,52 Wh |
| Operating conditions | -10 ... 50 °C , 0 ... 90 % RH |
| Storage conditions | -10 ... 50 °C , 0 ... 90 % RH |
| Dimensions ( L x W x H ) | 220 x 100 x 42 mm |
| Weight | 460 g |
