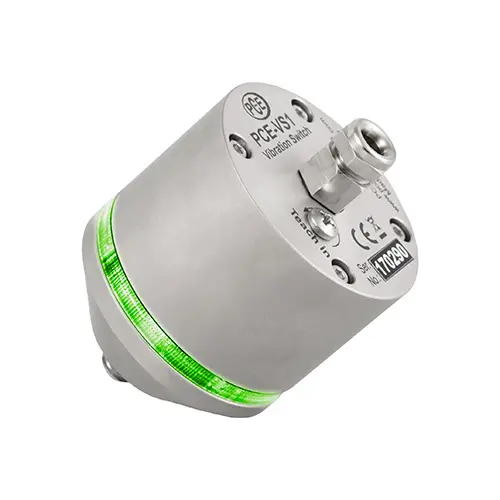

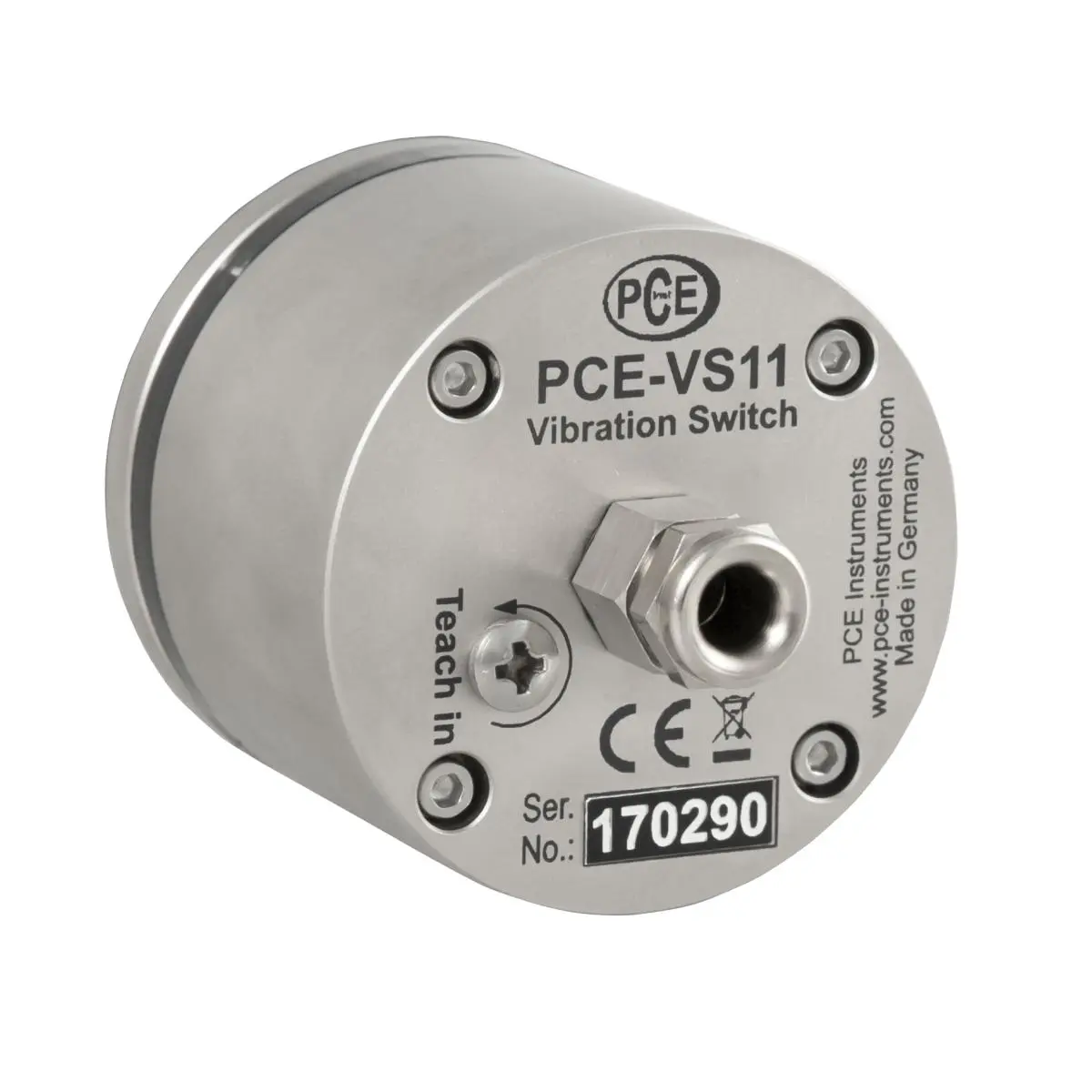

PCE-VS11 Vibration Analyzer Sensor Switch

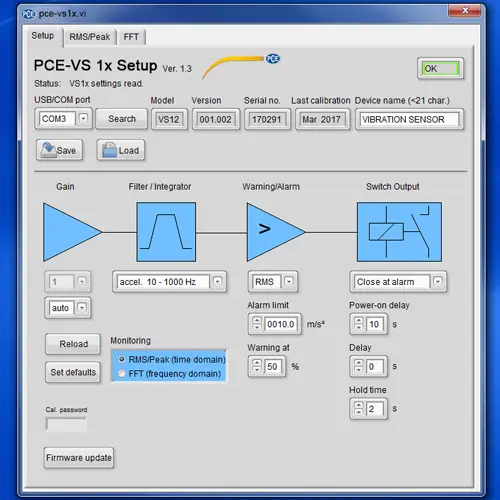

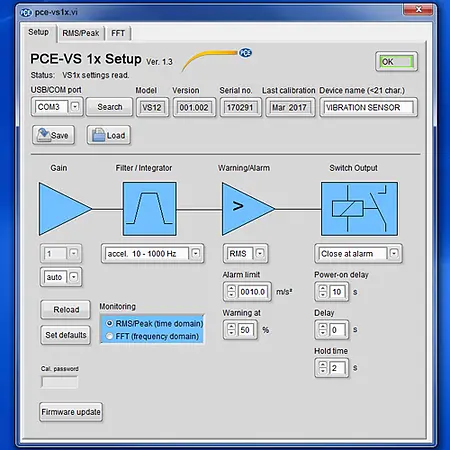

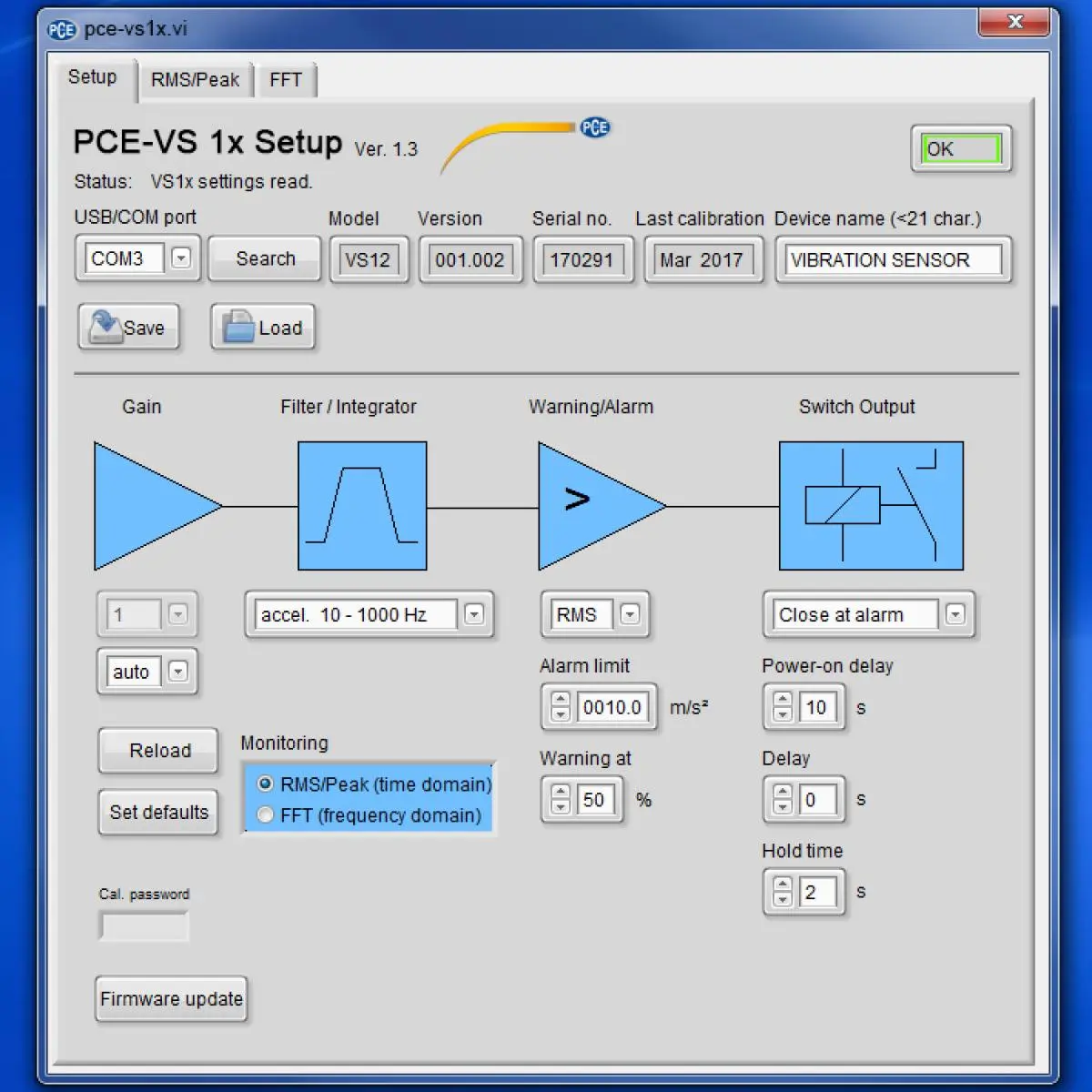

Setup via USB and PC / Includes software for detailed vibration analysis

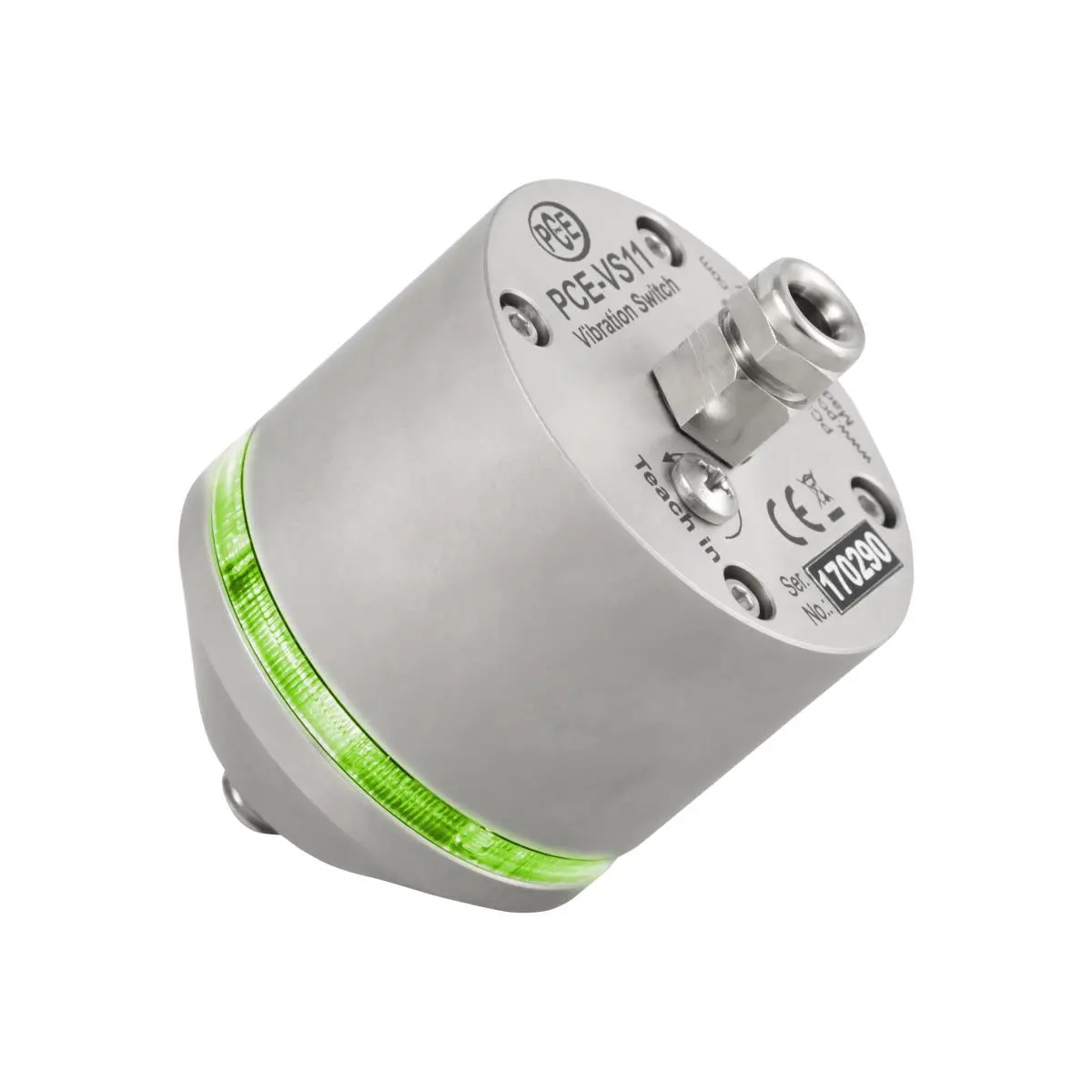

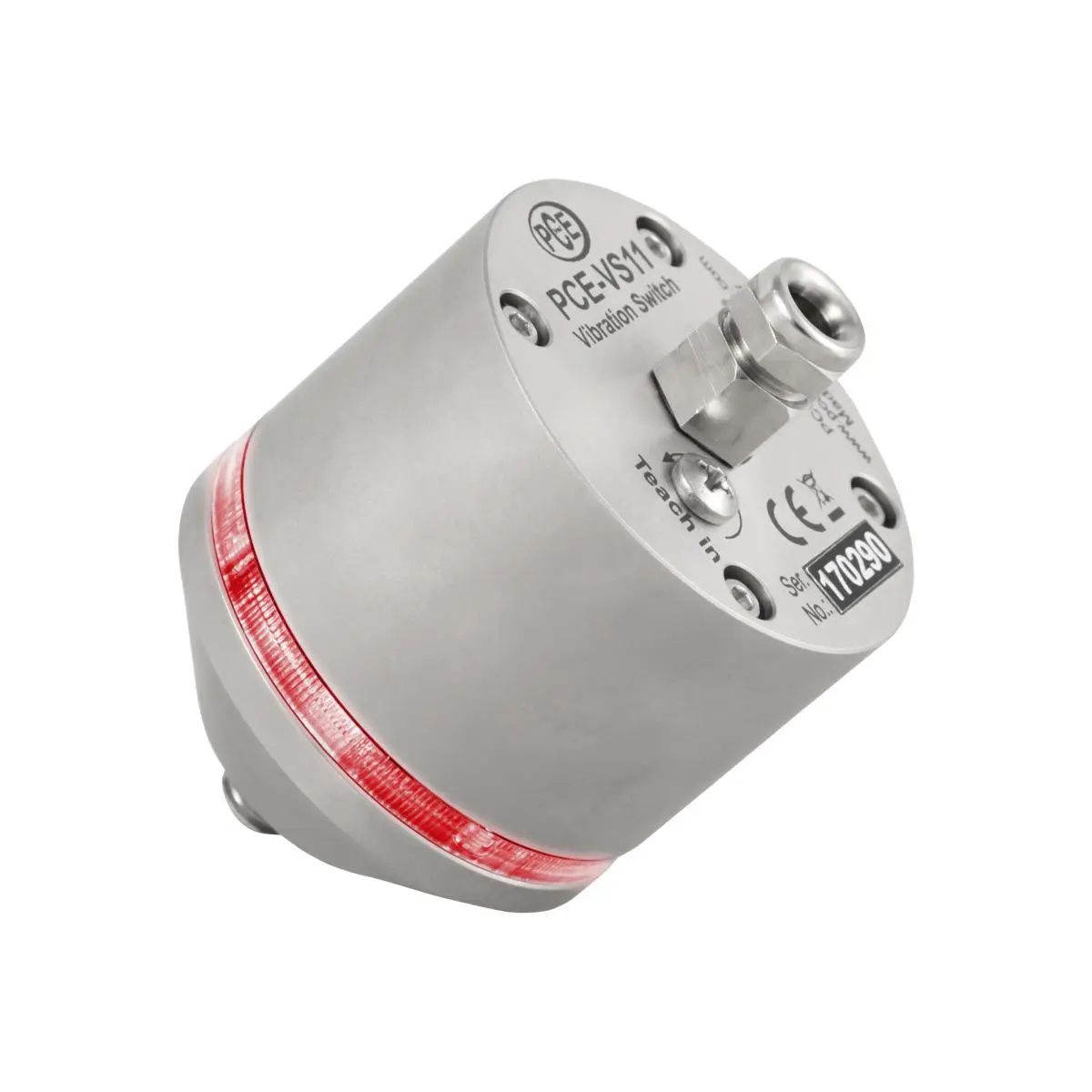

PCE-VS11 is a vibration meter, analyzer or sensor condition monitoring switch used to measure RMS value, peak value and frequency domain (FFT) of vibration velocity or acceleration piezoelectrically. This IP67-rated vibration monitoring switch features a red and green visual warning or alarm with programmable high pass and low pass filters.
| Acceleration | |
| Measuring range | 0,1 ... 1000 m/s² |
| Resolution | 0,01 m/s² |
| Accuracy | ±1% (>10% FS; band centre) |
| Frequency range | 0.1 ... 10,000 Hz, various filters |
| Speed | |
| Measuring range | 0,1 ... 1000 mm/s |
| Resolution | 0.01 mm/s |
| Accuracy | ±1% (>10% FS; band centre) |
| Frequency range | 2 ... 1000 Hz |
| General technical data | |
| Outputs | Relay |

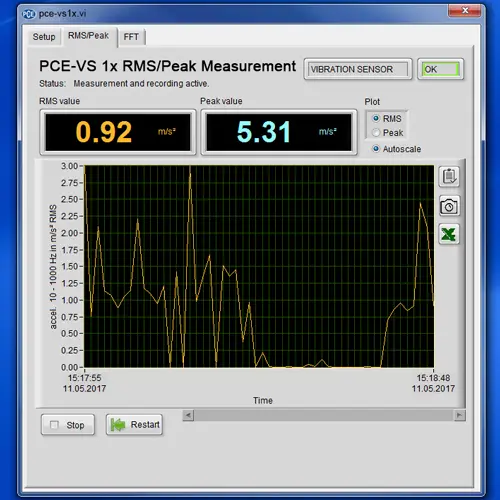

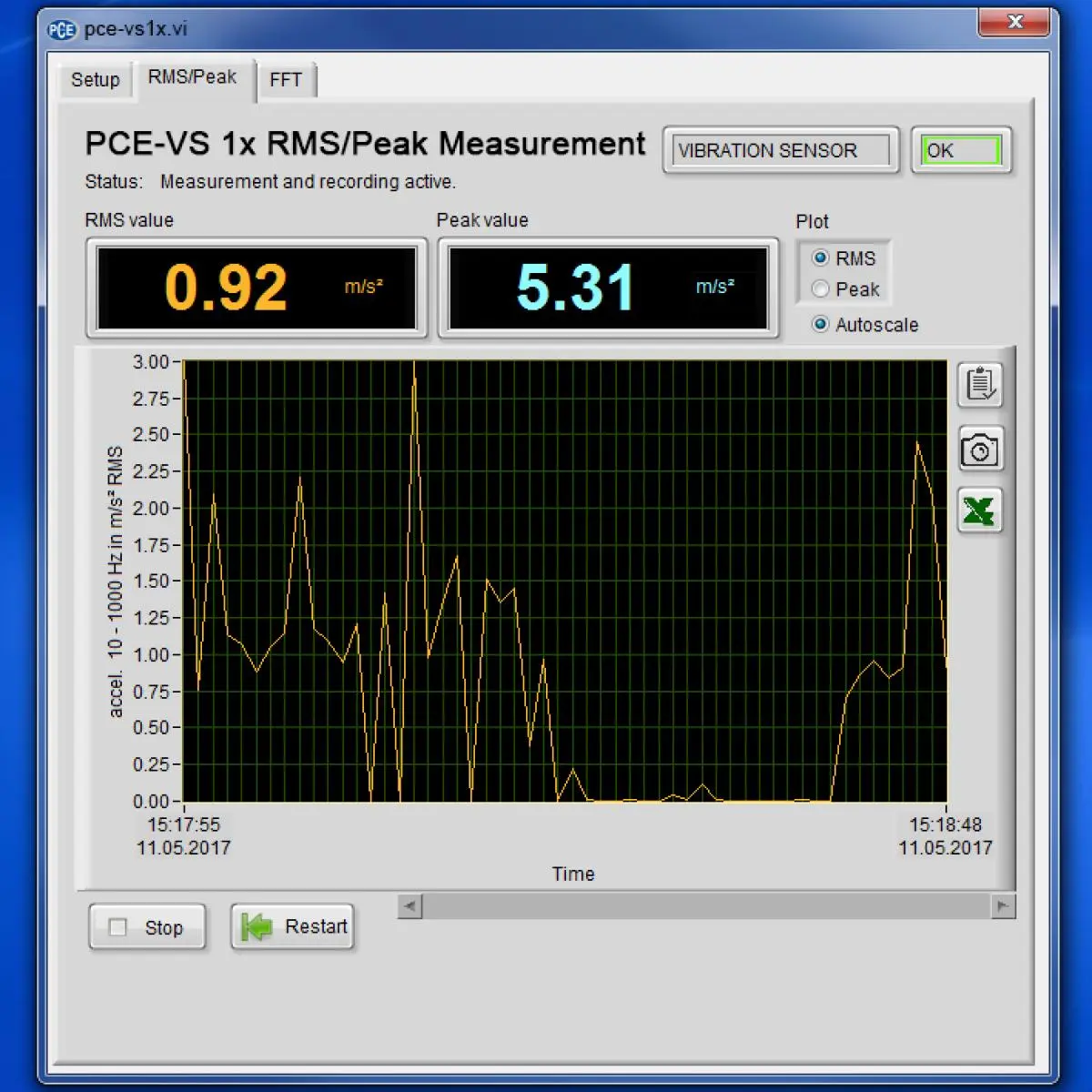

| Measuring functions | True RMS, peak, FFT frequency analysis |
| Connections | Spring terminals |
| Interface | USB 2.0, Micro-USB |
| Housing | Aluminium (nickel-plated) |

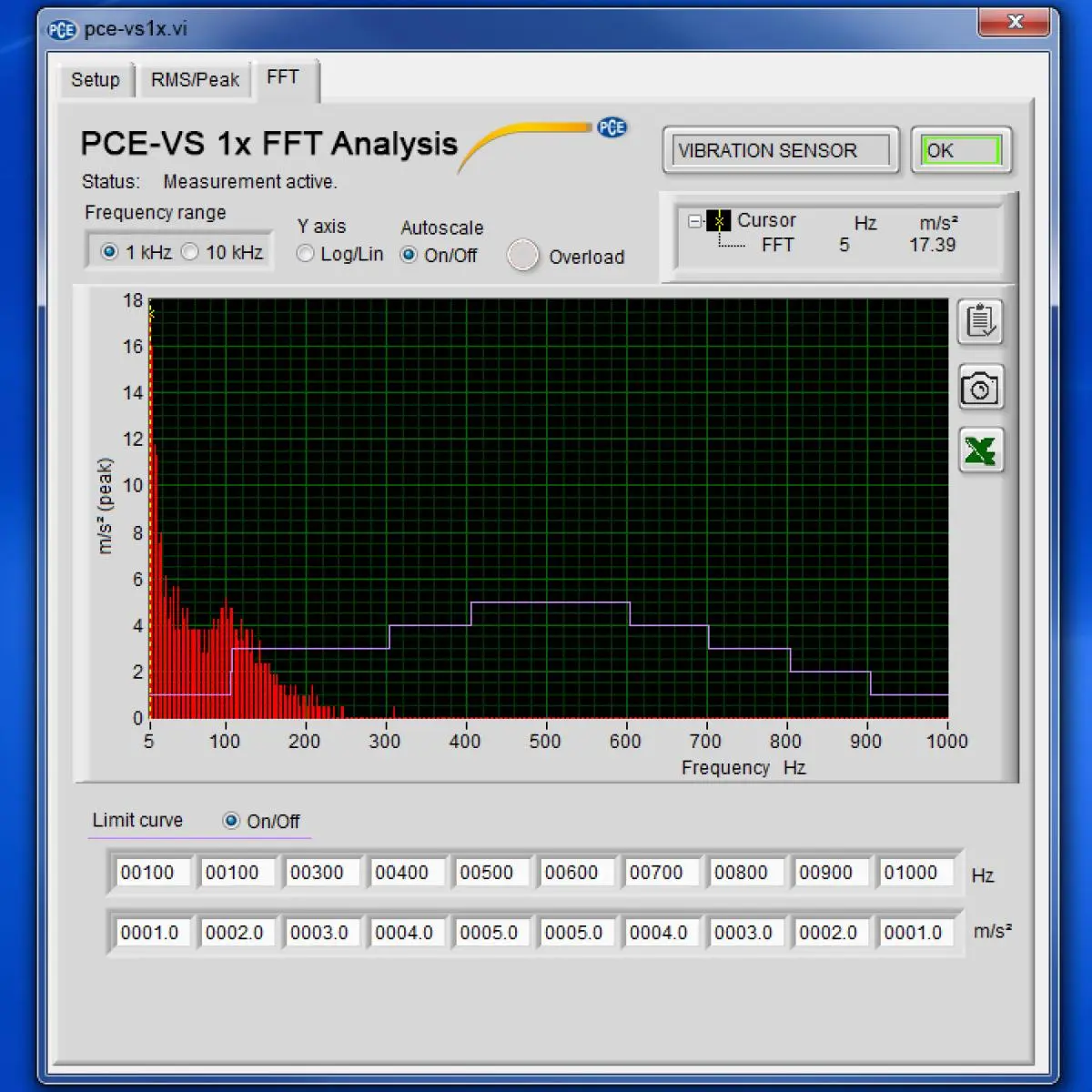

| FFT spectrum (resolution) | 360 lines |
| Alarm | optical |
| Alarm modes | Alarm delay: 0 ... 99 seconds Alarm hold time: 0 ... 9 seconds |

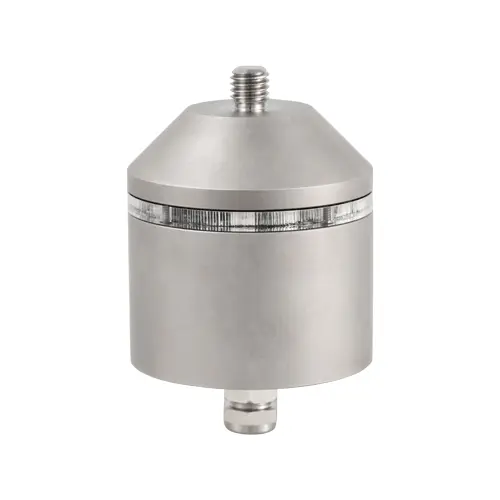

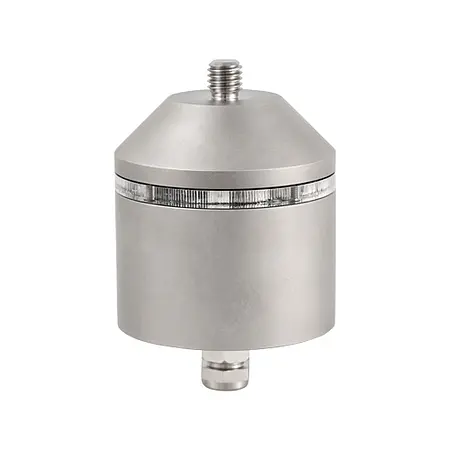

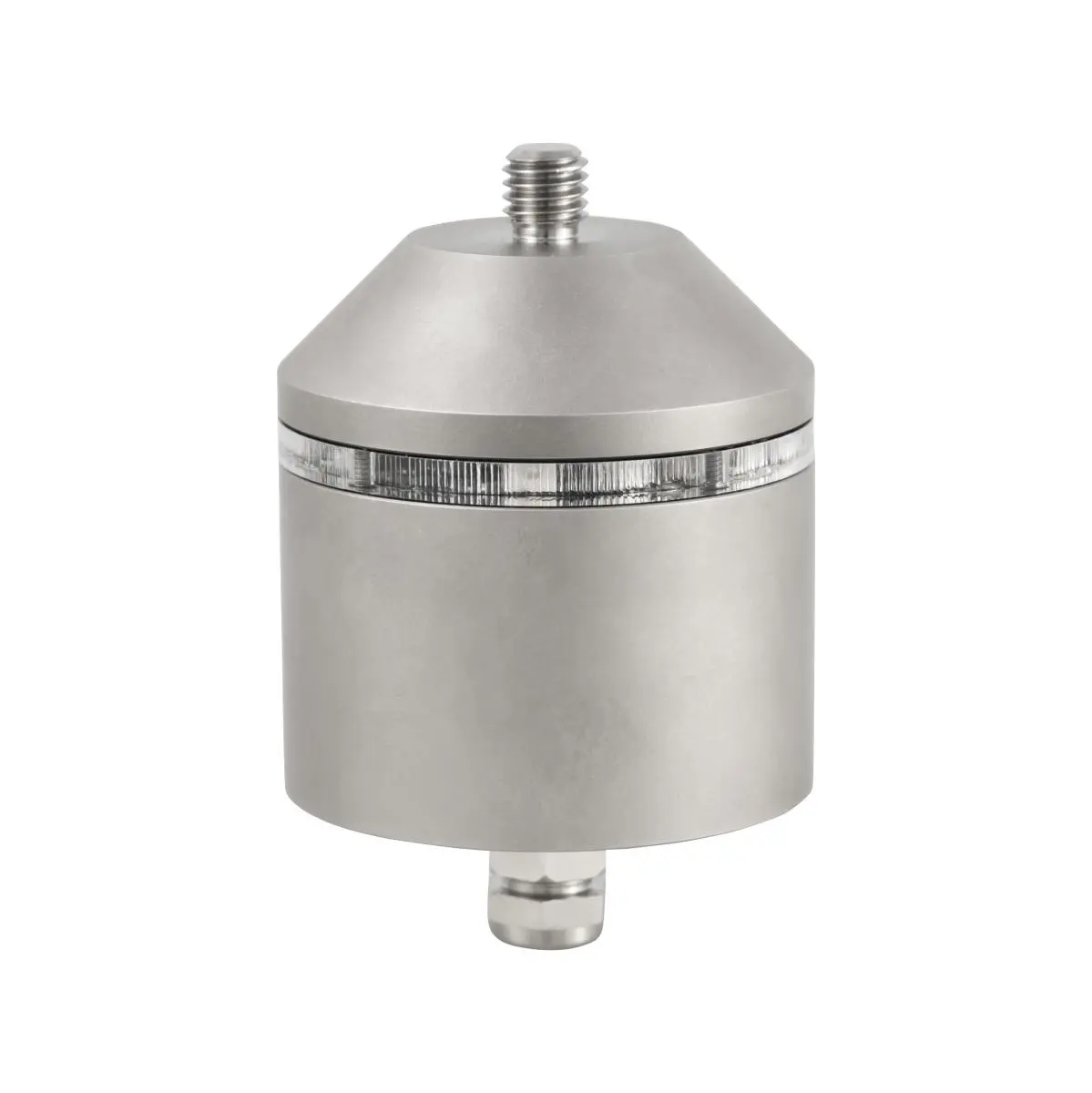

| Mounting | M8 threaded nozzle |
| Protection class (device) | IP67 |
| Power supply | 5 ... 26 V |
| Operating conditions | -40 ... 80 °C , 0 ... 95 (non-condensing)% RH |
| Storage conditions | -40 ... 80 °C , 0 ... 95 (non-condensing)% RH |
| Dimensions ( L x W x H ) | 52 x 50 x 50 mm |
| Weight | 160 g |
