Order no.: PCE-917-ICA

Differential Pressure Vacuum Gauge PCE-917-ICA Incl. ISO Calibration Certificate

ISO Calibration

£ 460.00
£ 552.00
:
4250348725097
PCE-917-ICA
price ex. (VAT / delivery)
Delivery time: 10 - 14 days

Description

PCE-917 Differential Pressure Vacuum Gauge incl. ISO calibration certificate
Portable handheld manometer measures differential pressure from ± 5 to 7000 mbar (± 0.05 / 0.1 to 101.5 psi) / Optional PC software with RS-232 cable sold separately as a data transfer accessory

PCE-917 is a portable handheld digital differential pressure vacuum gauge, meter or manometer used to measure differential pressure in pneumatic, compressor and pump installations, valves, tanks and heating, ventilation and air conditioning (HVAC) systems. The PCE-917 features a dust-proof, splash-resistant housing, allowing the meter to be used under adverse conditions.

The PCE-917 differential pressure manometer comes with 1 x 1 m / 3 ft long silicon tube, 2 x stainless steel tube adapters and 1 x 9V block battery. Optional PC software with RS-232 cable sold separately as a data transfer accessory. The software can be used to transmit the data to a computer for evaluating, documenting and storing pressure fluctuations. Simply connect the differential manometer via RS-232 to your computer for analysis. If your computer doesn't have an RS-232 interface, you may acquire an RS-232 to USB adapter (see accessories tab for details).


Highlights

- ± 5 to 7000 mbar (± 0.05 / 0.1 to 101.5 psi) measuring range
- 10 measurement units: psi, mbar, inH2O, mH2O, inHg, mmHg, Torr, Pa / kPa, atm, kg/cm²
- Designed to measure air, gas and non-corrosive liquid pressures
- Min, max and data hold functions

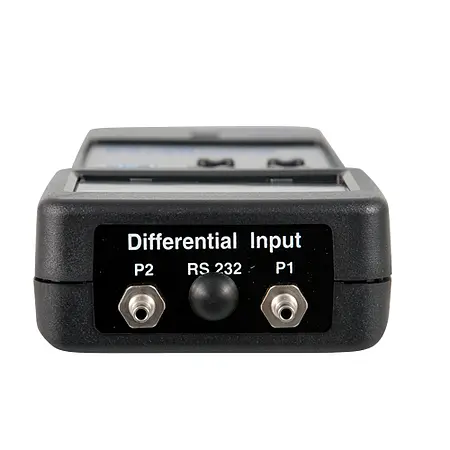

- RS-232 port / interface
- 15 mm / 0.6 in LCD screen
- Optional PC software with RS-232 cable sold separately as a data transfer accessory
- Incl. ISO calibration certificate

Specification

mbar Resolution: 5
Range: ± 7000
psi Resolution: 0.05 / 0.1
Range: ± 101.5
inH2O Resolution: 2
Range: ± 2800
mH2O Resolution: 0.05
Range: ± 70.00
inHg Resolution: 0.1
Range: ± 206.0
mmHg
Resolution: 5
Range: ± 5250
Torr Resolution: -
Range: -
Pa / kPa Resolution: -
Range: -
atm Resolution: 0.005
Range: ± 6.905
kg/cm² Resolution: 0.005
Range: ± 7.000
Accuracy ± 2% (full range)
Reproducibility ± 1%
Response time 0.8 second
Interface RS-232 port
Power supply 1 x 9V block battery
Housing material Plastic
Housing dimensions Approx. 180 x 72 x 32 mm / 7.09 x 2.84 x 1.26 in
Weight Approx. 210 g / < 1 lb
Warning: ***Exceeding the maximum pressure range will destroy the sensor***

Delivery Scope

1 x PCE-917 differential pressure vacuum gauge
1 x 9V block battery
2 x Stainless steel tube adapters
1 x 1 m / 3 ft long silicon tube
1 x User manual
1 x ISO calibration certificate
