Ultrasonic Tester / Ultrasonic Testing PCE-TG 150A F25

Ultrasonic Tester / Ultrasonic Testing PCE-TG 150A F25

Order no.: PCE-TG 150A F25
GTIN (EAN): 4250348735584
£ 534.00
£ 640.80
price ex. (VAT / delivery)
:
4250348735584
PCE-TG 150A F25
Delivery time:1-2 working days

Description

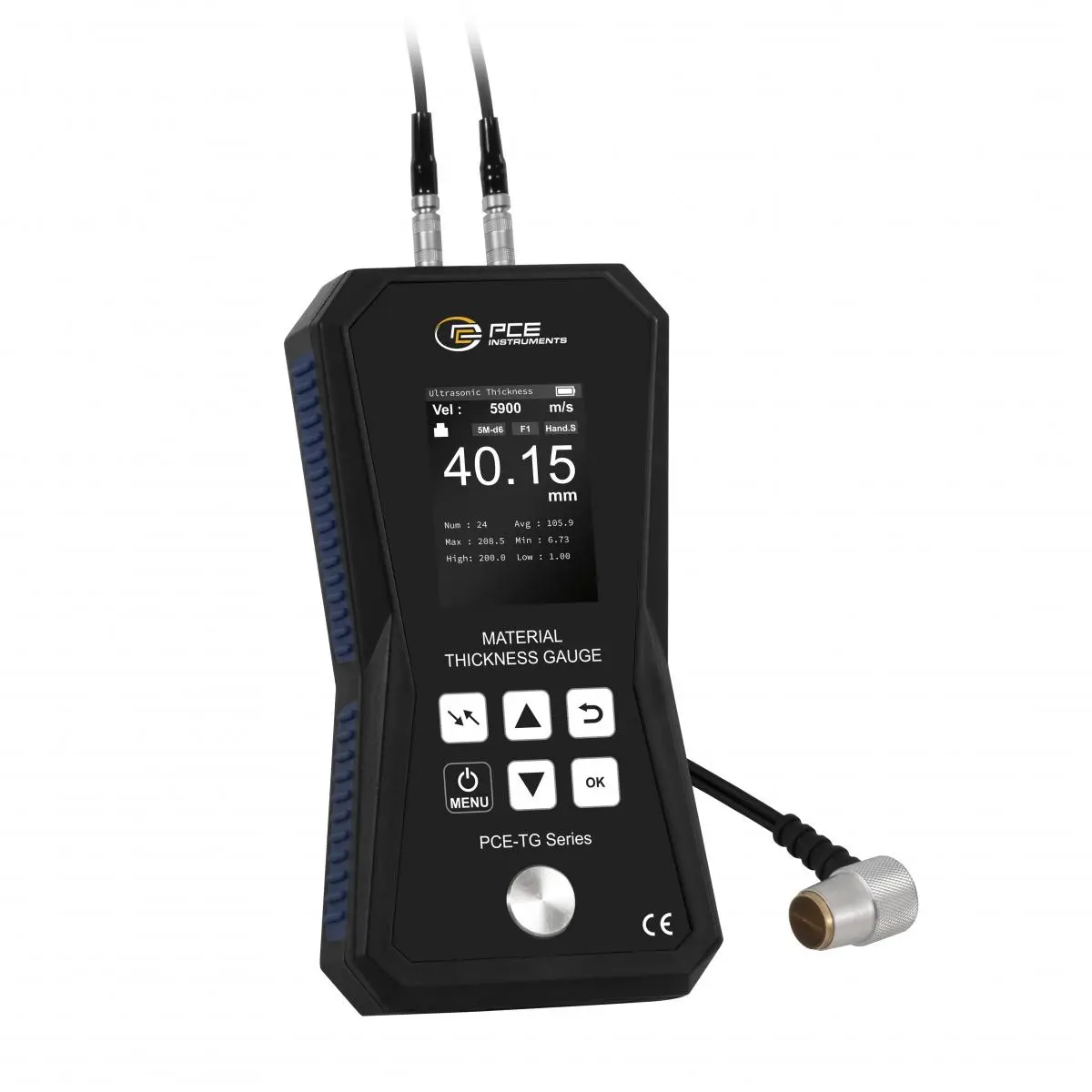

Ultrasonic Tester / Ultrasonic Testing with data memory / adjustable sound velocity / calibration reference mounted on housing / material thickness measurement up to 300 mm / limit value alarm / optionally with ISO calibration certificate

The Ultrasonic Tester / Ultrasonic Testing can measure material thicknesses of up to 300 mm. To ensure that the material thickness of a wide variety of homogeneous materials can be measured, it is possible to save the corresponding sound velocity in the Ultrasonic Tester / Ultrasonic Testing. For materials such as steel, aluminium, zinc, silver and gold, the appropriate sound velocities are already saved in the device library. This means that the Ultrasonic Tester / Ultrasonic Testing can be used universally.

Individual maximum and minimum values can be saved using the Ultrasonic Tester / Ultrasonic Testing's limit value function. If the measured value of the sample is outside the limits, the Ultrasonic Tester / Ultrasonic Testing signals this visually. If required, the Ultrasonic Tester / Ultrasonic Testing can also provide an acoustic signal in addition to the visual display. The Ultrasonic Tester / Ultrasonic Testing is therefore used, for example, in quality assurance and incoming goods inspection.

The Ultrasonic Tester / Ultrasonic Testing has a data memory in which the measured values can be recorded. After a measuring procedure, the saved readings can be analysed directly in the Ultrasonic Tester / Ultrasonic Testing. The saved data is displayed as a graph on the Ultrasonic Tester / Ultrasonic Testing. In addition, each individual measuring point can be approached and read in the graph of the Ultrasonic Tester / Ultrasonic Testing. To simplify the analysis of the measured values, the average, the highest and lowest measured values are displayed on the Ultrasonic Tester / Ultrasonic Testing. The Ultrasonic Tester / Ultrasonic Testing can optionally be supplied with an ISO calibration certificate.


Highlights

- measured value memory
- calibration reference on housing
- automatic power off
- material thickness measurement up to 300 mm
- battery status display
- optional ISO calibration certificate

Specification

Material thickness
Measurement range up to  1,2 ... 99,99 mm
Resolution  0,01 mm
Accuracy  ±0.5 % of Rd +0.05 mm

Material thickness
Measurement range up to  100 ... 300 mm
Resolution  0,1 mm
Accuracy  ±0.5 % of Rd +0.05 mm

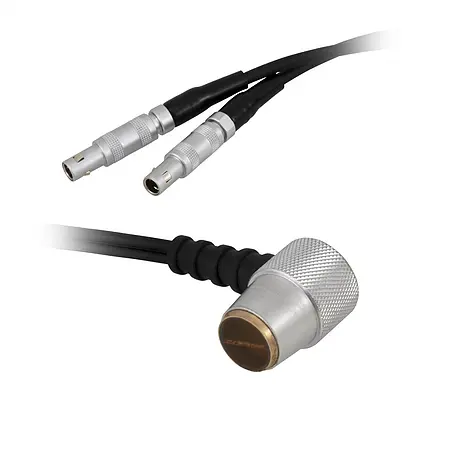

Sensor
Designation  PCE-TG 2.5M
Frequency  2.5 MHz
Temperature range  -10 ... 60 °C
Measurable materials  Steel, aluminium, zinc, silver, gold, metal, plastic, ceramic, glass, other homogeneous materials
Minimum diameter of pipes  50 mm
Dimension  Ø 12 mm x 28.3 mm
Additional description  Thickness measurement of cast materials

General technical data
Units  mm
Display type  TFT colour display
Display size  2,4 Inch
Storage medium  Internal memory
Storage capacity  1500 Values
Automatic power-off from...to  2 ... 30 min.
Automatic power-off can be deactivated  Yes
Adjustable sound velocity  1000 ... 9999 m/s
Menu language  English, Chinese
Protection class (device)  IP52

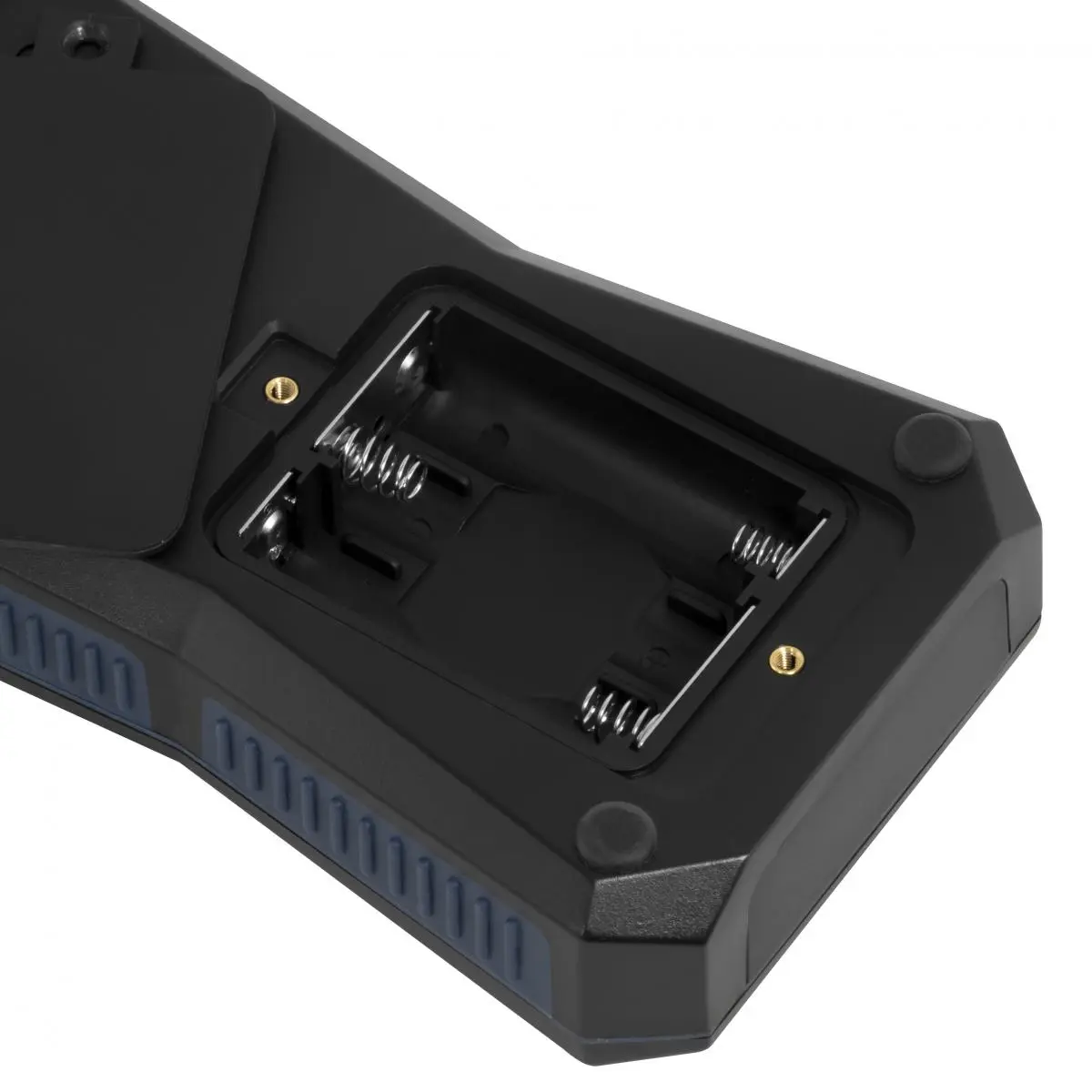

(Rechargeable) battery  3 x 1,5 V AA battery , Alkali-manganese
Capacity  3000 mAh
Operating conditions  0 ... 40 °C , 0 ... 90 % RH
Storage conditions  0 ... 40 °C , 0 ... 90 % RH
Dimensions ( L x W x H )  168 x 87 x 35 mm
Weight  230 g

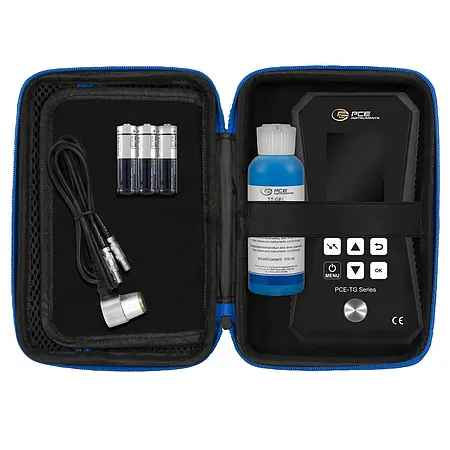

Delivery Scope

1 x PCE-TG 150A F25 Ultrasonic Tester / Ultrasonic Testing
1 x coupling gel (TT-GEL)
3 x 1.5 V AA batteries
1 x PCE-TG 2.5M sensor
1 x transport bag
1 x quick start guide
