Ultrasonic Tester / Ultrasonic Testing

Order no.: PCE-TG 50

PCE-TG 50 is a compact ultrasonic thickness tester or gauge used to measure the thickness of metal, glass, plastic and other homogeneous materials. This portable handheld material thickness gauge operates with an external ultrasonic contact transducer sensor probe and requires the use of coupling gel or paste.

- Measurement range: 1.2 ... 200 mm / 0.05 ... 7.87 " (steel)
- Accuracy: ± 0.5% v. Mw. ± 0.1 mm / ± 0.0039 inch
- Resolution: 0.1 mm / 0.001 "
- Ultrasound velocity (adjustable): 800 ... 9950 m/s / 2624 ... 32644 ft/s
- External sensor
- RS-232 interface
- Includes factory calibration certificate

Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-TG 100

The PCE-TG 100 is a compact ultrasonic thickness tester for homogeneous materials. This ultrasonic thickness tester PCE-TG 100 works with an external ultrasonic probe; this probe conducts ultrasonic waves into the material to be tested. Different materials conduct ultrasound at different speeds, so you can choose different ultrasonic speeds on the PCE-TG 100 Ultrasonic Thickness Tester.


- Measurement range: 0.8 mm ... 225 mm / 0.03 in ... 8.86 in
- Adjustable sound velocity
- Suitable for metals, glass, plastics
- 5 MHz probe
- External sensor
- Material thickness

Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-TG 120

The Ultrasonic Thickness Tester PCE-TG120 is a very easy-to-use wall thickness gauge for all materials. This ultrasonic thickness tester works to accurately measure the material thickness / wall thickness with ultrasound.


- Measurement range: 1 mm ... 30 mm / 0.04 in ... 1.18 in
- Resolution: 0.1 mm / 3.94 mil
- Accuracy: ± 0.1 mm
- Integrated test block

Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-TG 110

The Ultrasonic Thickness Tester PCE-TG 110 is a thickness gauge with external high-temperature probe for ferrous and non-ferrous metals etc. The PCE-TG 110 is an ideal ultrasonic thickness tester for water pipes, steam pipes and pipes for chemicals.


- Measurement range: 2.5 mm ... 200 mm / 0.10 in ... 7.87 in
- Suitable for homogeneous materials such as metals, glass, ...
- Including special coated 5 MHz probe (usable up to 400°C / 752°F)
- External sensor

Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-TG 250

PCE-TG 250 is a portable Ultrasonic Thickness Tester with an easy-to-read 4-digit display. This ultrasound-based Thickness Tester uses a contact transducer (included) to measure the thickness of coated and uncoated ferrous and non-ferrous metal, glass, plastic, and other homogeneous materials including aluminum, brass, copper, iron, lead, nickel, steel, gold, titanium, pyrex and quartz glass, nylon, polyethylene, and silicone rubber.


- Measurement range: 1 mm ... 250 mm / 0.04 in ... 9.84 in (steel), 2.5 mm ... 20 mm / 0.1 in ... 0.79 in (coated surfaces)
- Accuracy: ± 0.01 mm / ± 3.94 mil
- Resolution: 0.01 mm / 0.1 mm, 0.39 mil / 3.94 mil
- Sound velocity: 1000 m/s ... 9999 m/s / 3280 ft/s ... 32805 ft/s



Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-TDS 100H

PCE-TDS 100H is a portable handheld clamp-on ultrasonic flow tester or meter used for non-invasive, unobstructed and highly accurate measurements of the flow velocity of liquids in metal, plastic and rubber pipes and tubes with a diameter of 57 … 720 mm / approx. 2 ... 28 in.  Software sold separately - see accessories for details.





- Measuring range: -32 ... +32 m/s
- Resolution: 0.0001 m/s
- Pipe size: DN 50 … 700, 57 … 720 mm (approx. 2 … 28")
- Sensor temperature range: 0 ... +160 °C
- Sensor installation: V, Z
- incl. ISO Calibration Certificate

Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-TDS 100HS

PCE-TDS 100HS is a portable handheld clamp-on ultrasonic flow tester or meter used for non-invasive, unobstructed and highly accurate measurements of the flow velocity of liquids in metal, plastic and rubber pipes and tubes with a diameter of 20 … 108 mm / approx. 3/4 ... 4in. Software sold separately - see accessories for details.



- Measuring range: -32 ... +32 m/s
- Resolution: 0.0001 m/s
- Pipe size: DN 15 … 100, 20 … 108 mm (approx. 3/4 … 4")
- Sensor temperature range: 0 ... +160 °C
- Sensor installation: V, (N,W)
- incl. ISO Calibration Certificate

Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-TDS 100HSH

PCE-TDS 100HSH is a portable handheld clamp-on ultrasonic flow tester kit used for non-invasive, unobstructed and highly accurate measurements of the flow velocity of liquids in metal, plastic and rubber pipes and tubes with a diameter of 20 … 720 mm / approx. 3/4" ... 28". Software sold separately - see accessories for details.


- Measuring range: -32 ... +32 m/s
- Resolution: 0.0001 m/s
- Accuracy: ±1 % of measured value
- Linearity: 0.5 %
- Repeatability: 0.2 %
- Incl. factory calibration certificate for complete kit

Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-LDC 10

The ultrasonic tester leak detector PCE-LDC 10 is used in a wide range of industries. For example, the ultrasonic leak detector can help identify leaks in compressed air, gas, steam, vacuum and refrigeration systems as well as around door seals. The noise-cancelling headphones of the ultrasonic leak detector ensure that the device can be used successfully even in noisy environments.


- Working frequency: 40 KHz ± 2 KHz
- Leak detection using sound
- Rechargeable Li-ion battery

Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-3000U

The UCI ultrasonic tester PCE-3000U can be used for quickly checking the hardness of components even after installation. The device offers a wide measurement range, easy handling, robust design and a temperature resistance up to 40 °C or 104 °F. In addition to the hardness scales in Rockwell, Brinell and Vickers, the UCI ultrasonic tester can test the tensile strength of steels up to 1740 MPa or 70 HRC.


- Ultrasonic non-destructive hardness testing (UCI)
- Different hardness scales selectable
- 5 materials testable
- One 50 N UCI probe included



Manufacturer: Novotest Ltd.
Test Instruments manufacturer
Order no.: PCE-3000UL

The UCI hardness tester PCE-3000UL can be used for quickly checking the hardness of components even after installation, two probes are included. The device offers a wide measurement range, easy handling, robust design, and a temperature resistance up to 40 °C (104 °F). Measures hardness in Rockwell, Brinell and Vickers, the UCI hardness tester can test the tensile strength of steels up to 1740 MPa or 70 HRC. The tester comes with two probes, one UCI probe for non-destructive testing and one Leeb probe for rebound testing.


- Non-destructive hardness testing
- Ultrasonic + Leeb hardness test method
- Different hardness scales selectable
- 5 materials testable
- 2 probes for UCI and Leeb rebound testing



Manufacturer: Novotest Ltd.
Test Instruments manufacturer
Order no.: PCE-3500

The Ultrasonic Contact Impedance (UCI) durometer PCE-3500 has been designed for the non-destructive hardness measurement of metallic components. A 136° Vickers diamond at the probe is stimulated with its self-resonance to allow the user to very accurately measure hardness of small items, thin-walled items (>1 mm), and surface-hardened layers. Small imprint after measuring for mirrored surfaces.


- Probe is 50 Newtons / 11.2 lbf force, 10 and 98 N probes are options
- Tests HRC, HRB, HV, HB, MPa
- Memory function via SD card and included PC software
- Large color LCD display with back lighting



Manufacturer: Novotest Ltd.
Test Instruments manufacturer
Order no.: PCE-3500-10

The Ultrasonic Contact Impedance (UCI) durometer PCE-3500 has been designed for the non-destructive hardness measurement of metallic components. A 136° Vickers diamond at the probe is stimulated with its self-resonance to allow the user to very accurately measure hardness of small items, thin-walled items (>1 mm), and surface-hardened layers. Small imprint after measuring for mirrored surfaces and nitrided surfaces.


- Probe is 10 Newtons / 2.2 lbf force, 50 and 98 N probes are options
- Tests HRC, HRB, HV, HB, MPa
- Memory function via SD card and included PC software
- Large color LCD display with back lighting



Manufacturer: Novotest Ltd.
Test Instruments manufacturer

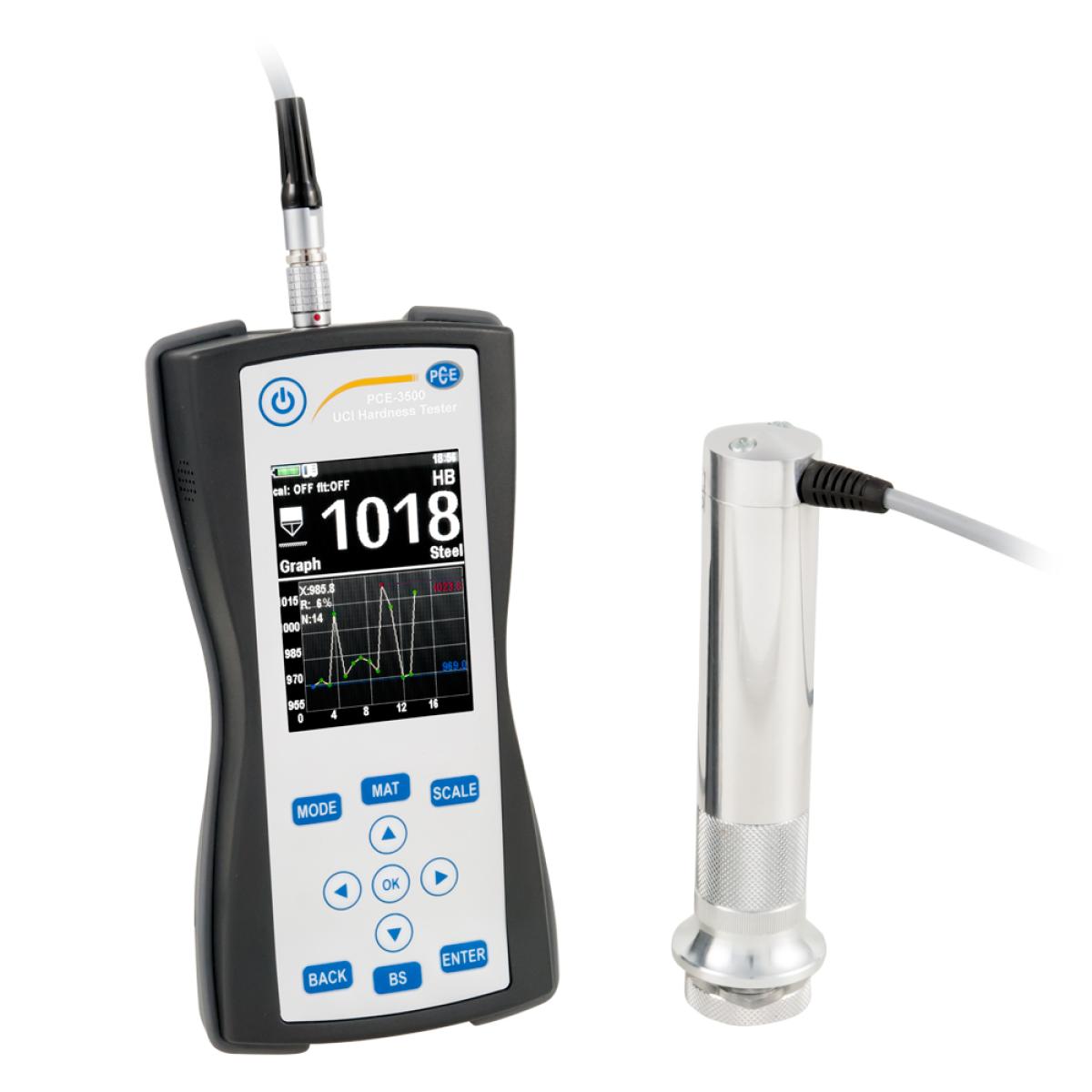

Order no.: PCE-3500-98

The Ultrasonic Contact Impedance (UCI) durometer PCE-3500 has been designed for the non-destructive hardness measurement of metallic components. A 136° Vickers diamond at the probe is stimulated with its self-resonance to allow the user to very accurately measure hardness of small items, thin-walled items (>1 mm), and surface-hardened layers. Small imprint after measuring for mirrored surfaces and nitrided surfaces.


- Probe is 98 Newtons / 22 lbf force, 10 and 50 N probes are options
- Tests HRC, HRB, HV, HB, MPa
- Memory function via SD card and included PC software
- Large color LCD display with back lighting



Manufacturer: Novotest Ltd.
Test Instruments manufacturer
Order no.: PCE-FD 20

PCE-FD 20 is a portable ultrasonic thickness tester or ultrasonic thickness gauge with a large LCD screen that displays A-scan maps of ultrasonic signals as well as B-scan cross sections. Ideal for use in mechanical engineering, aerospace and metallurgical applications, this high-frequency ultrasound-based thickness meter uses a contact transducer (two different probes included; 45° and 90°) to measure material thickness and identify flaws and defects such as discontinuity in welds.


- Operating frequency range: 1 ... 10 MHz
- Measured time interval range: 6 ... 1000 microseconds (µs)
- Sound velocity: 1000 ... 9999 m/s



Manufacturer: Novotest Ltd.
Test Instruments manufacturer
Order no.: PCE-5000

PCE-5000 is a portable hardness tester that uses the ASTM A1038 ultrasonic contact impedance (UCI) method to measure the hardness of metals and alloys with a minimum thickness of 2 mm / .08 in. Non-destructive testing produces microscopic indentation.


- Displays measurements in Rockwell A (HRA), Rockwell B (HRB), Rockwell C
  (HRC), Brinell (HB), Vickers (HV) and MPa (N/mm²) SI units
- Measurement ranges:
  61 … 85.6 HRA, 41 … 100 HRB, 20.3 … 68 HRC,
  85 … 650 HB, 50 … 999 HV, 255 … 2180 MPa (N/mm²)

- Accuracy: ± 1.5 HR, ± 3% HB, ± 3 % HV
- Memory size: 1,000 groups for measurement data and 20 groups for
  calibration data
- Different probe types (also automatic probes) available



Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-USC 20

PCE-USC 20 is a portable or benchtop ultrasonic thickness tester or ultrasonic thickness gauge with a 5.7" TFT color LCD screen. This ultrasound-based thickness meter uses one or two contact transducers (four different probes included; 90 °, 70 °, 60 °, 45 °) to measure material or wall thickness, detect flaws or defects in welds, and monitor the effects of corrosion on pipes and tanks.


- Measurement range: 0.5 ... 9999 mm (steel; longitudinal wave)
- Operating frequency range: 0.5 ... 20 MHz
- Sound velocity: 1000 ... 15000 m/s (continuously adjustable)
- AVG and DAC evaluation methods, display and probes delay, damping and
  reinforcing functions, export and reporting functions



Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PT-200-S1

PT-200-S1 is a portable, handheld, battery-powered ultrasonic coating thickness gauge used to measure the total thickness of a coating system over wood, concrete, plastics, composites, some metals, non-metal substrates and more.


- Measurement range: 13 ... 1000 μm / 0.5 ... 40 mils
- Accuracy: + (2 μm + 3% of reading), + (0.1 mil + 3% of reading)
- Resolution: 2 µm / 0.1 mil
- Memory: Stores up to 250 readings
- Display: Backlit monochrome with transflective technology



Manufacturer: DeFelsko Corporation
Test Instruments manufacturer
Order no.: PT-200-S3

PT-200-S3 is a portable, handheld, battery-powered ultrasonic coating thickness gauge used to measure up to 3 individual layer thicknesses in a multi-layer system over wood, concrete, plastics, composites, some metals, non-metal substrates and more.


- Measurement range: 13 ... 1000 μm / 0.5 ... 40 mils
- Accuracy: + (2 μm + 3% of reading), + (0.1 mil + 3% of reading)
- Resolution: 2 µm / 0.1 mil
- Memory: Stores up to 100,000 readings
- Display: Full-color LCD



Manufacturer: DeFelsko Corporation
Test Instruments manufacturer
Order no.: PT-PC

PT-PC is a portable, handheld, battery-operated ultrasonic thickness gauge that measures uncured powder coatings to predict cured coating thicknesses. Thickness measurement results are conveniently displayed on both the gauge and the wireless probe.


- Measurement range: 20 ... 110 µm / 0.8 ... 4.3 mils
- Resolution: 1 µm / 0.05 mils
- Accuracy: ± 5 µm / ± 0.2 mil
- Measurement time: 2 ... 5 seconds
- Measurement area: 2 mm / 0.08"
- Memory: Stores up to 1000 readings



Manufacturer: DeFelsko Corporation
