Torque Meter / Torque Tester PCE-TWT 2500

Torque Meter / Torque Tester PCE-TWT 2500

Order no.: PCE-TWT 2500
GTIN (EAN): 4250348703392
£ 6,938.00
£ 8,325.60
price ex. (VAT / delivery)
:
4250348703392
PCE-TWT 2500
Delivery time:1-2 working days

Description

Torque Meter / Torque Tester / Color display / Various operating modes / Internal memory / Software / Heat protection

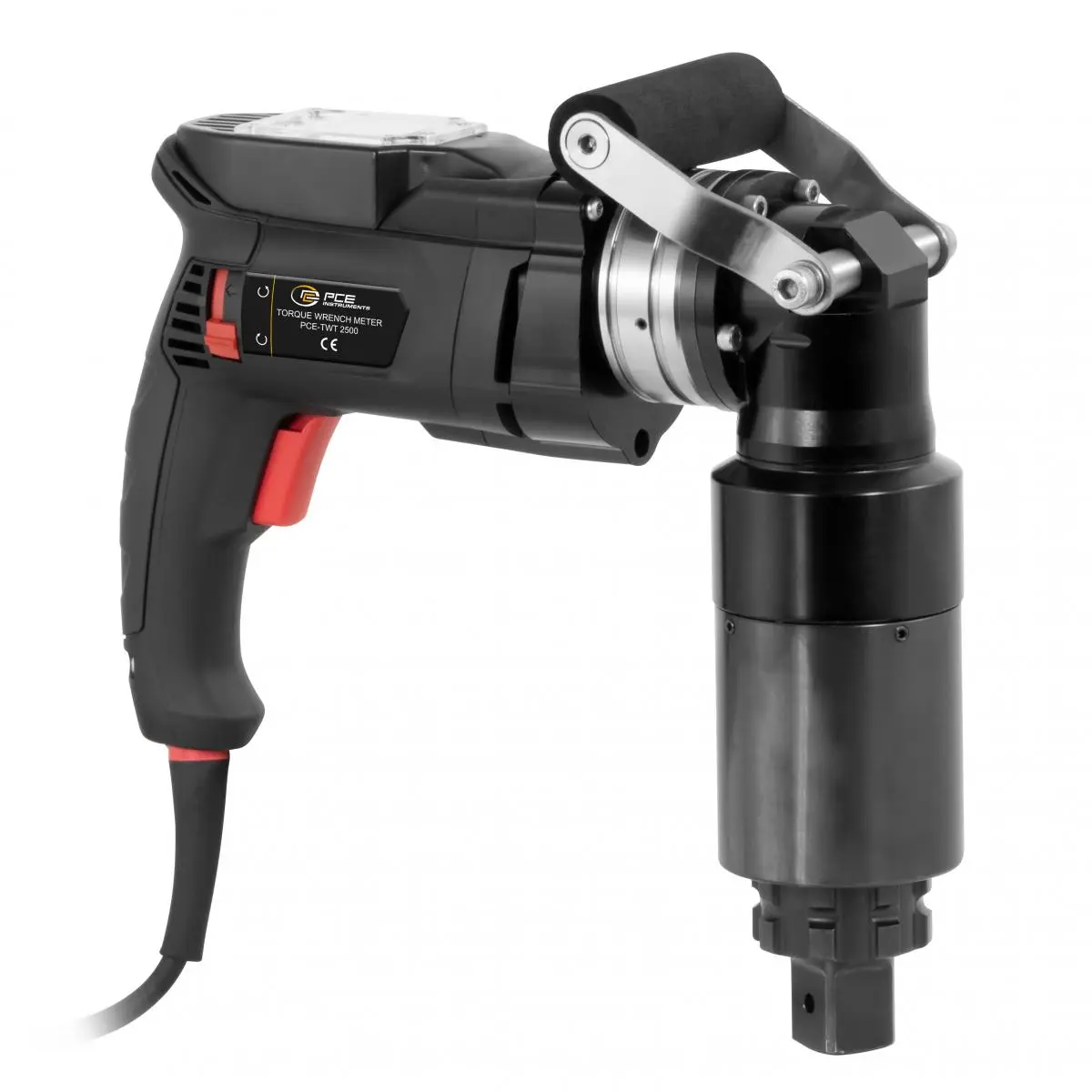

The digital Torque Meter / Torque Tester combines state-of-the-art technology with a robust design and guarantees maximum precision for a wide range of assembly tasks. With its two intelligent operating modes, comprehensive protective functions and reliable 220 V power supply, this Torque Meter / Torque Tester is the ideal solution for industrial, workshop and assembly applications.

In torque mode, the desired torque can be set quickly and continuously. The value can be conveniently adjusted using the operating buttons and the screwdriving process begins with a simple pull of the trigger. Torque + Angle Mode enables controlled tightening not only via the torque, but also via the angle of rotation - perfect for applications that require maximum precision.

Other highlights of the Torque Meter / Torque Tester include precise torque adjustment with high repeat accuracy, a multi-stage gearbox for reliable power transmission and alarm and control functions that help the user to assess the tightening result. Integrated protective functions such as temperature monitoring prevent overheating and extend the service life of the tool. Thanks to the mains-powered design, continuous work is possible without charging breaks.

Another highlight is the software supplied, which can be used to conveniently read out all the recorded screwdriving data. This allows users to document and analyze torque values, results and process data. The software also allows centralized settings to be made directly on the device.

The torque screwdriver is ideal for precise screw connections in mechanical and plant engineering. It also ensures reliable results when assembling wind turbines and steel structures. In the automotive sector, it is an indispensable tool for maintenance and repairs. It can also be used in a wide range of applications in heavy industry and construction.


Highlights

- Operating modes: Torque, angle of rotation
- Precise torque adjustment
- Multi-stage gearbox
- PC software
- Connection cable 3.2 m / 10.5 ft

Specification

Torque
Measurement range up to  400 ... 2500 Nm
Resolution  1 Nm
Accuracy  ±5 % of Rd

General technical data
Cable length  3,2 m
Units  Nm
Connections  1 inch

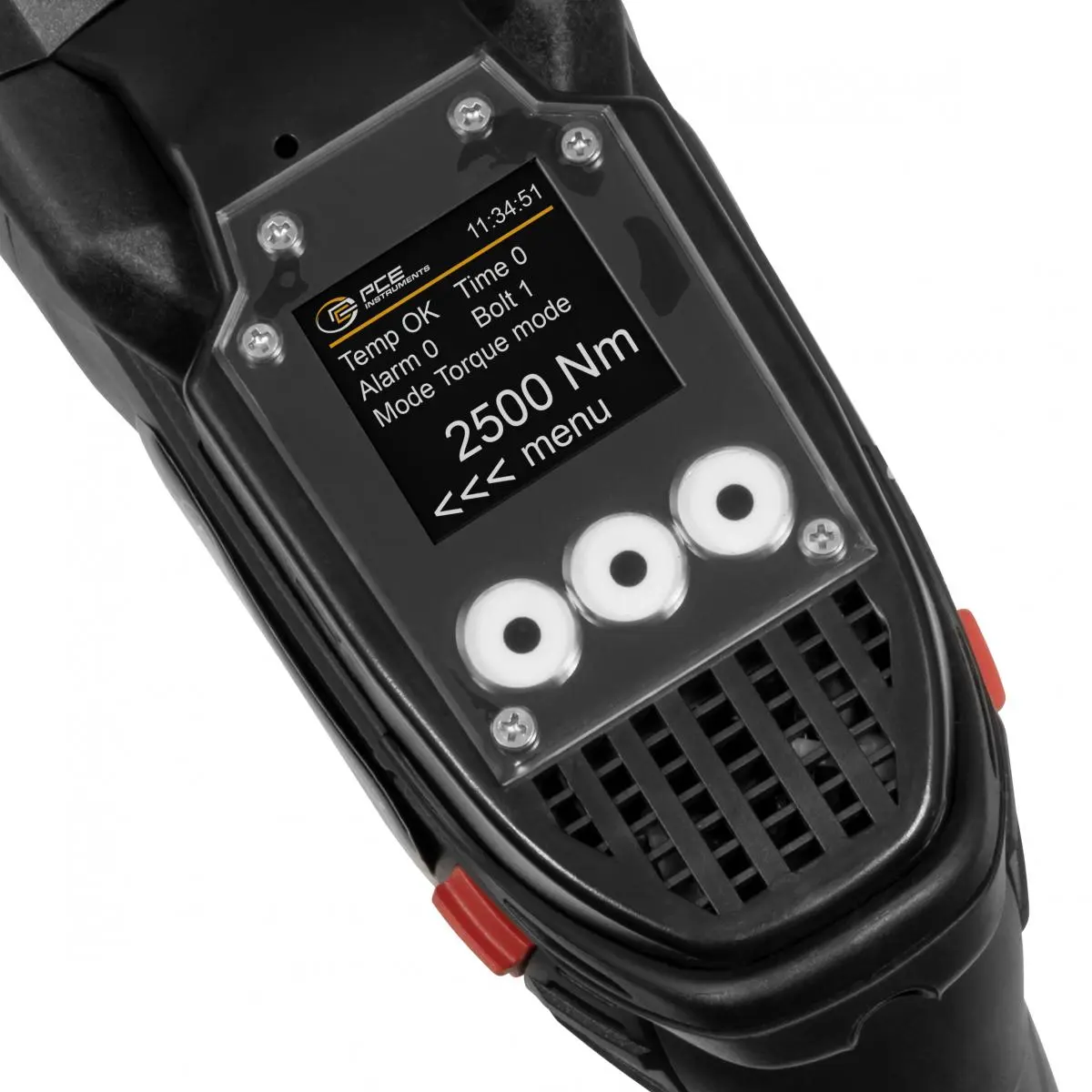

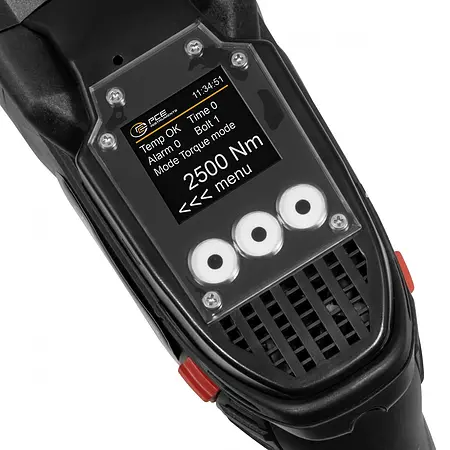

Display type  TFT colour display
Display size  1,1 Inch
Storage medium  Internal memory
Storage capacity  66536 Values

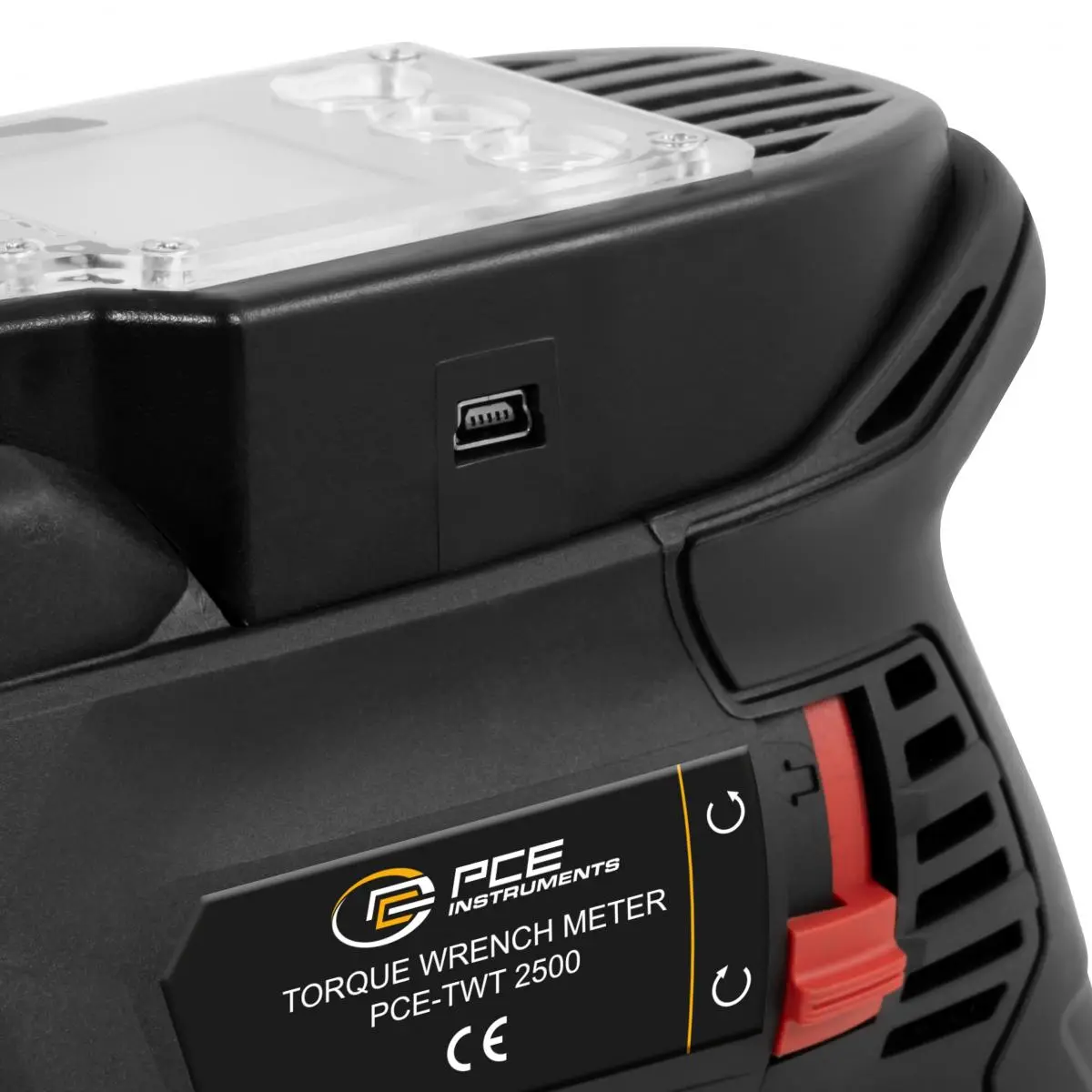

Interface  Mini-USB
Max. current consumption  6 A
Speed  7,5 RPM
Menu language  English (GB), English, Chinese
Protection class (device)  IP20
Power supply  110 ... 220V AC
Connector type  Euro plug
(Rechargeable) battery  2 x 18 V Battery pack , Lithium-ion battery
Capacity  5200 mAh
Operating conditions  -20 ... 50 °C , 10 ... 90 % RH
Storage conditions  -20 ... 50 °C , 10 ... 90 % RH
Dimensions ( L x W x H )  310 x 85 x 250 mm
Weight  8000 g

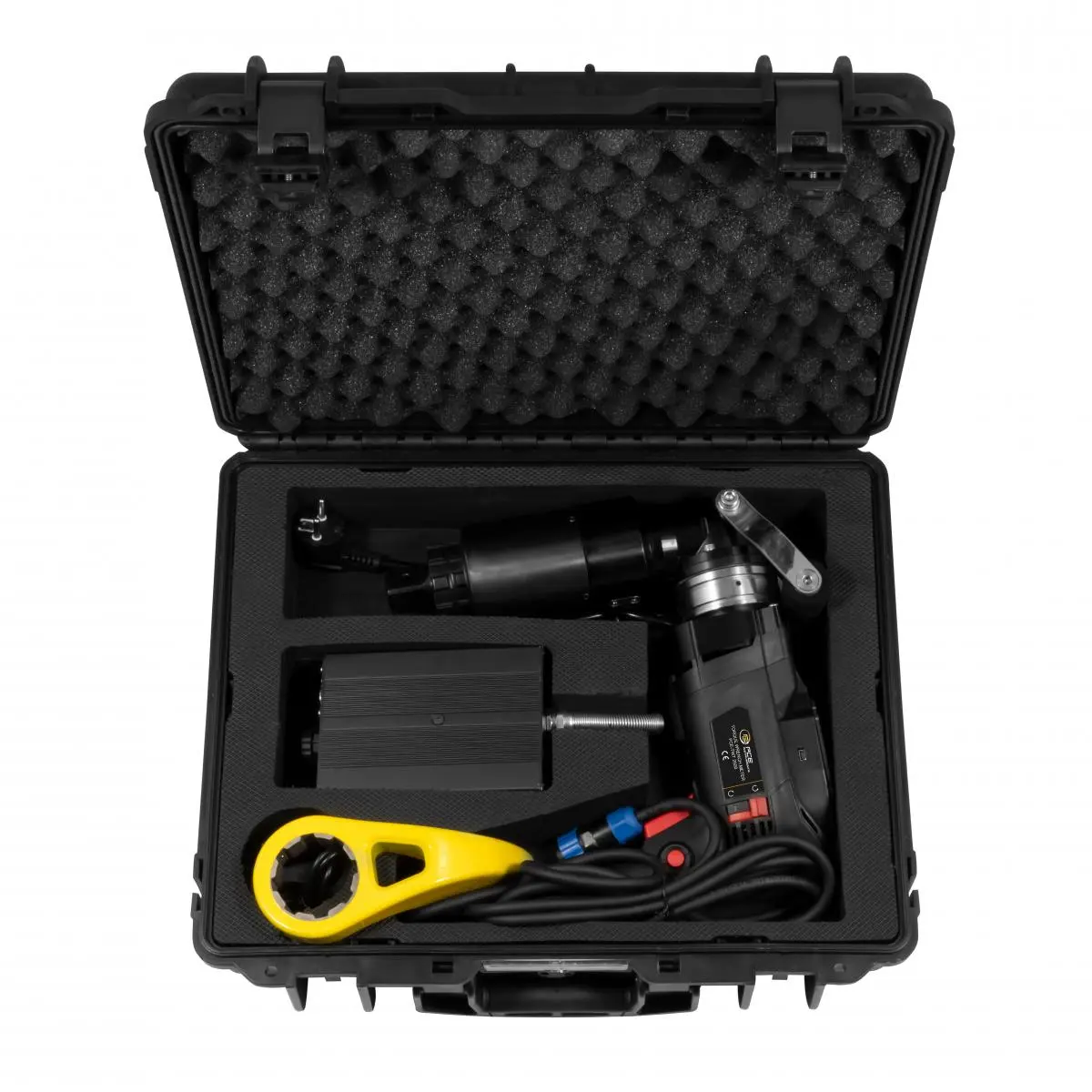

Delivery Scope

1 x PCE-TWT 2500 Torque Meter / Torque Tester

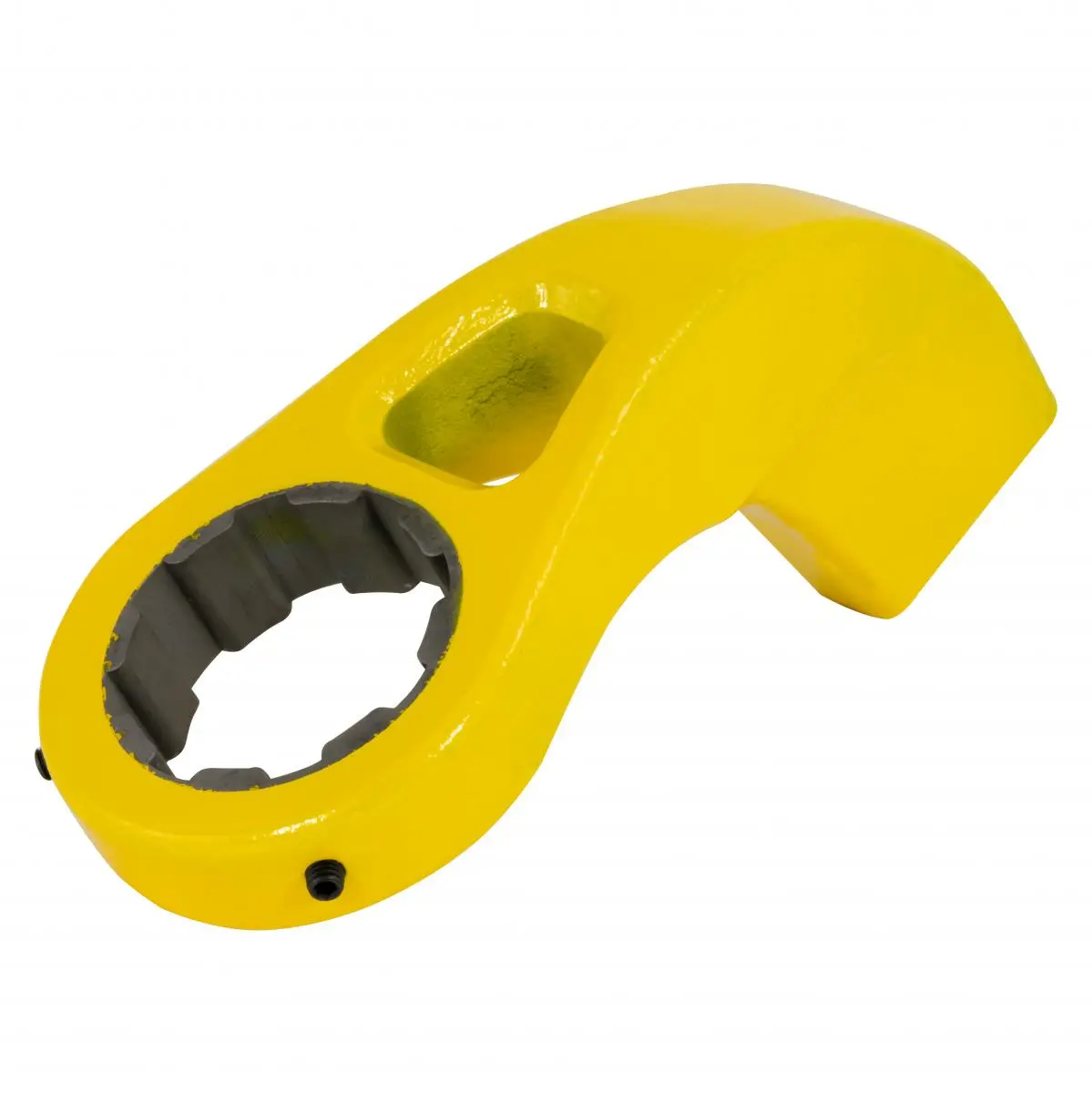

1 x Support
1 x Mini-USB cable
1 x Carrying case
1 x Software (in the download area)
