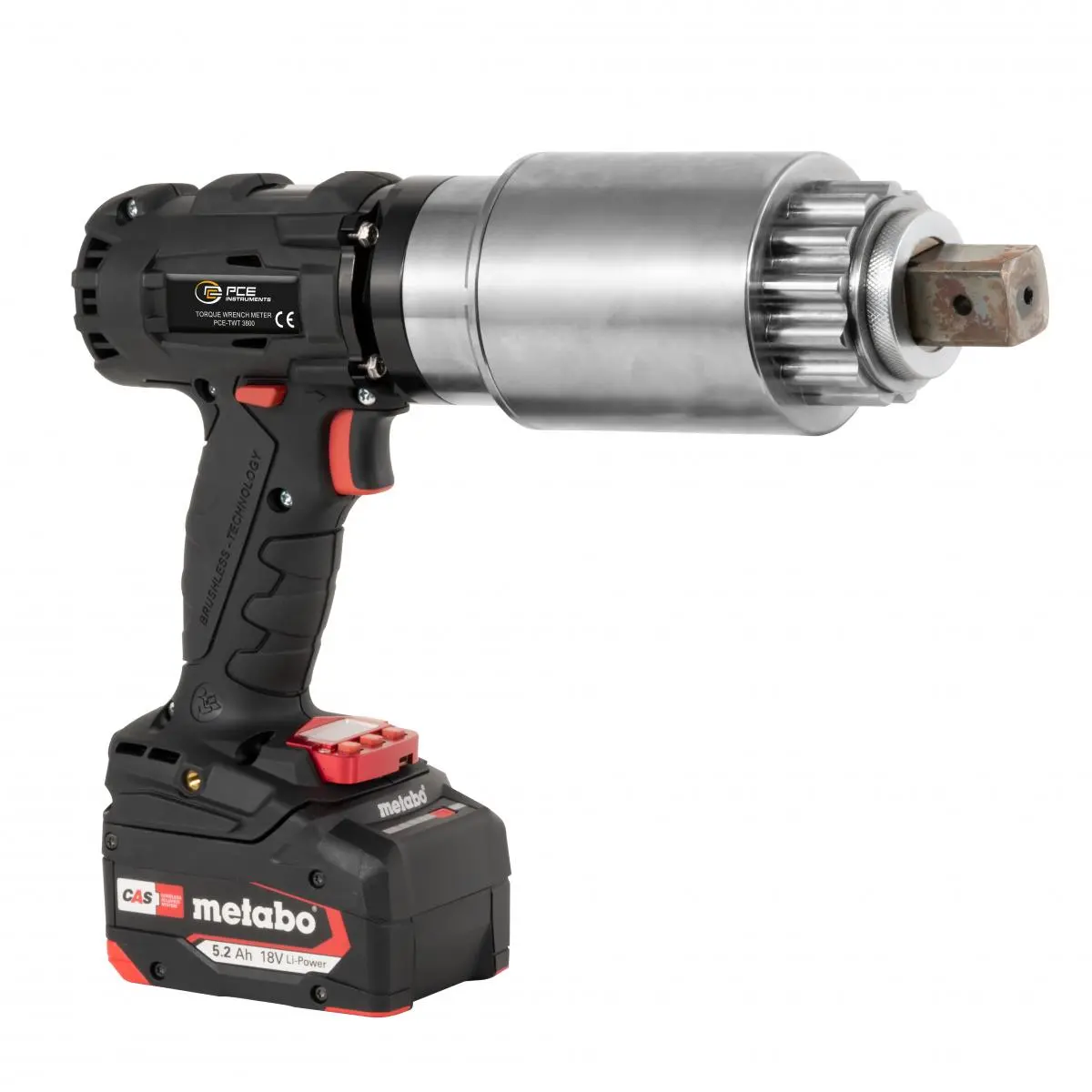

The Torque Meter combines state-of-the-art technology with a robust design and guarantees maximum precision for a wide range of assembly tasks. With its three intelligent operating modes, comprehensive protective functions and practical replaceable battery pack, this Torque Meter is the ideal solution for industrial, workshop and assembly applications.
In torque mode, the desired torque can be set quickly and continuously. The value can be conveniently adjusted using the operating buttons and the screwdriving process begins with a simple pull of the trigger. Angle mode enables controlled tightening not only via the torque, but also via the angle of rotation - perfect for applications that require maximum precision. In addition, Point Mode offers up to six memorizable presets for frequently used torque values. These can be individually configured and called up at the touch of a button during operation - ideal for recurring assembly tasks.

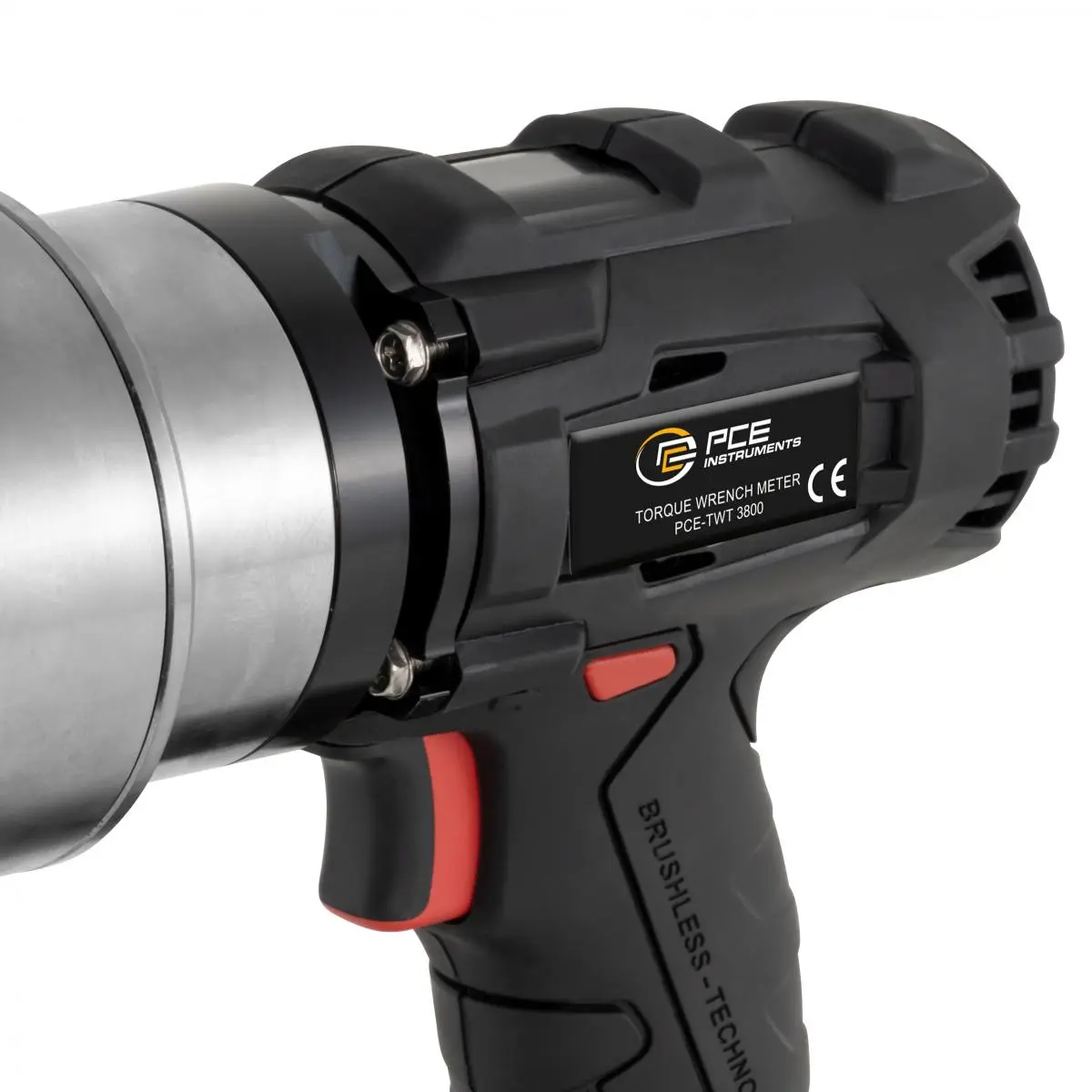

Other highlights of the torque screwdriver include precise torque adjustment with high repeat accuracy, a multi-stage gearbox for reliable power transmission and alarm and monitoring functions that help the user to assess the tightening result. Integrated protective functions such as temperature monitoring prevent overheating and extend the service life of the tool. Thanks to the replaceable battery, uninterrupted work is also guaranteed. Another highlight is the software supplied, which can be used to conveniently read out all the recorded screwdriving data. This allows users to document and analyze torque values, results and process data. The software also allows centralized settings to be made directly on the device.

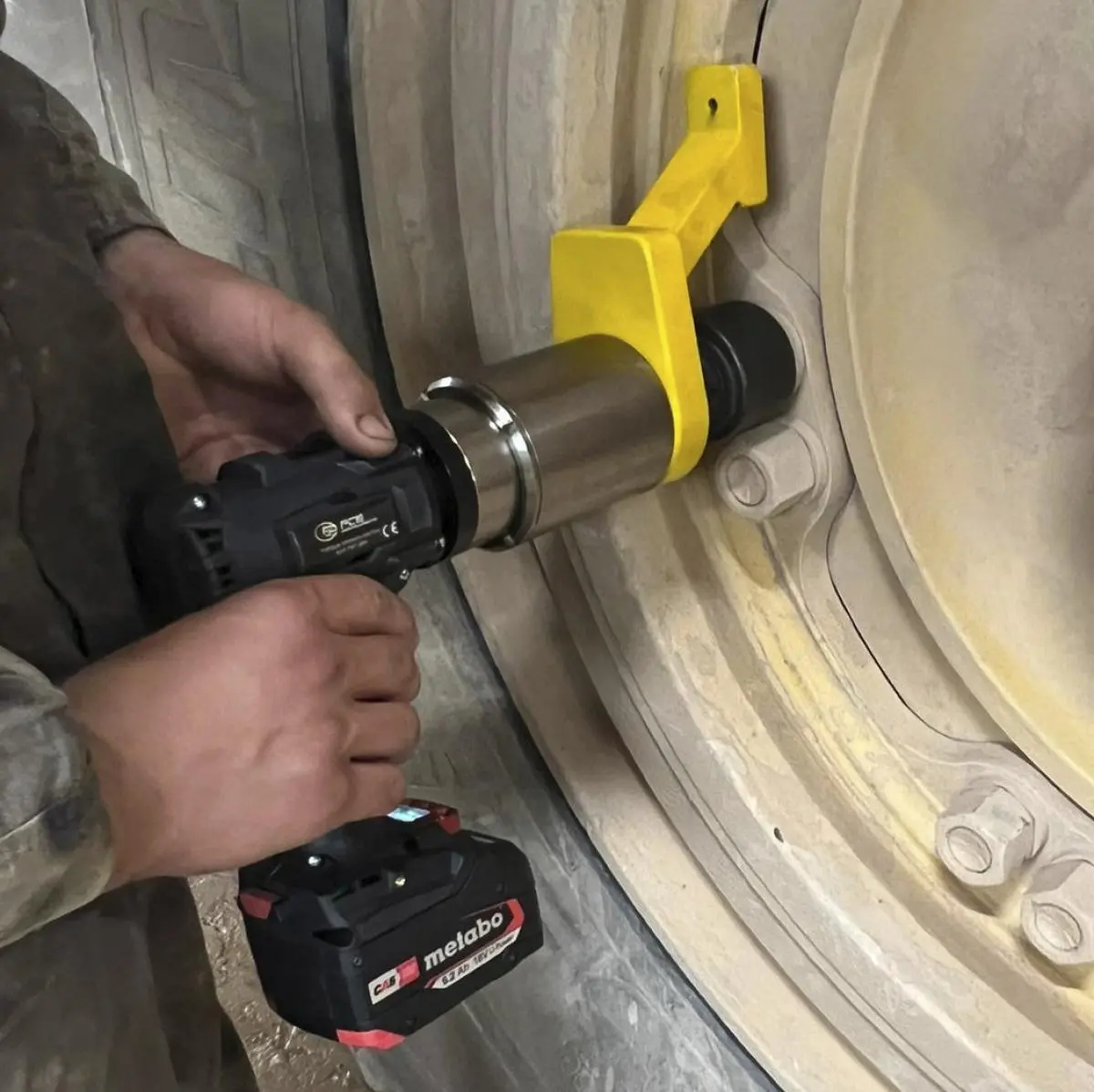

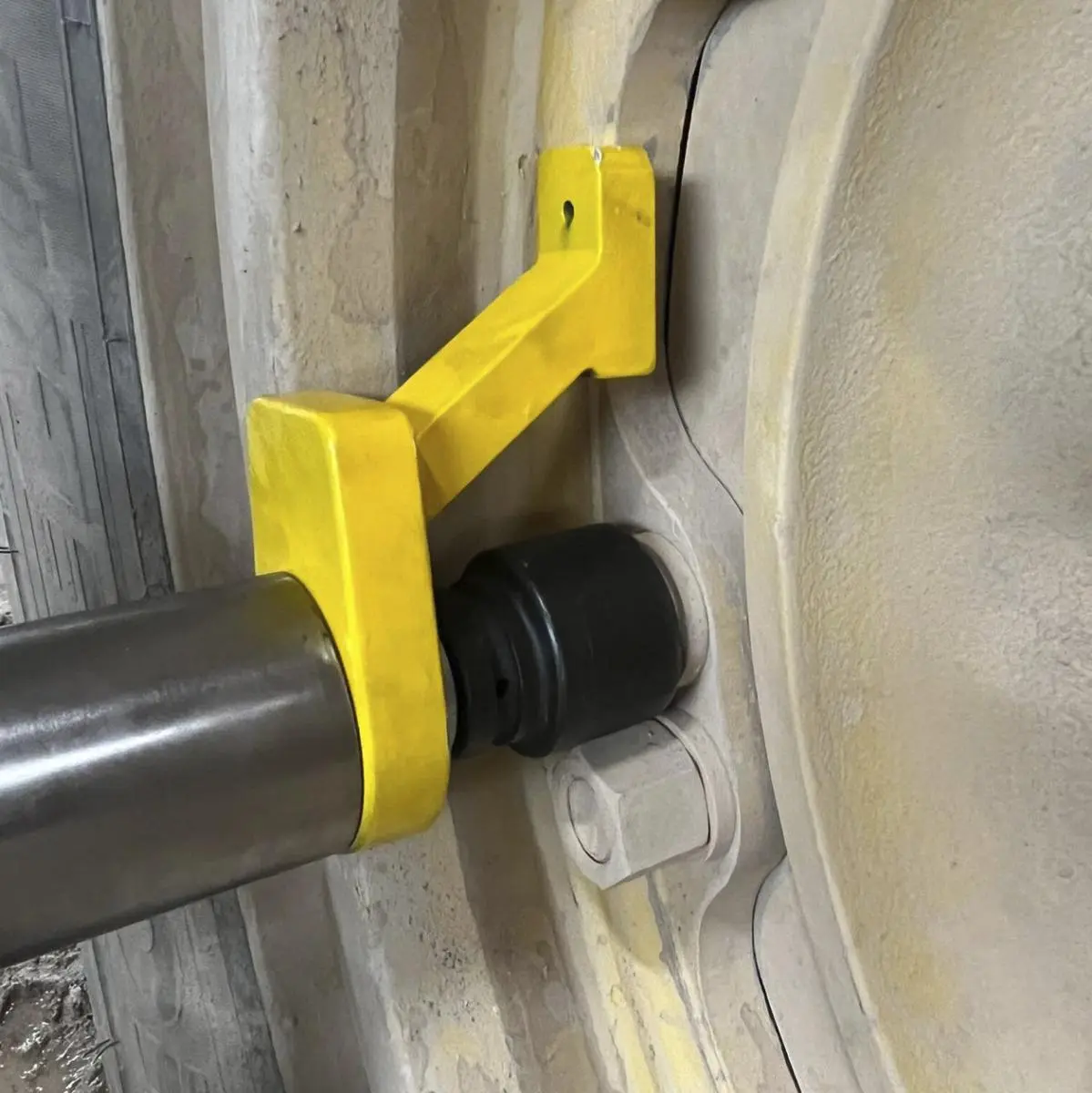

The Torque Meter is ideal for precise screw connections in mechanical and plant engineering. It also ensures reliable results when assembling wind turbines and steel structures. In the automotive sector, it is an indispensable tool for maintenance and repairs. It can also be used in a wide range of applications in heavy industry and construction.
Torque | |
Measurement range up to | 600 ... 3800 Nm |
Resolution | 1 Nm |
Accuracy | ±5 % of Rd |
General technical data | |
Units | Nm, lbfft |

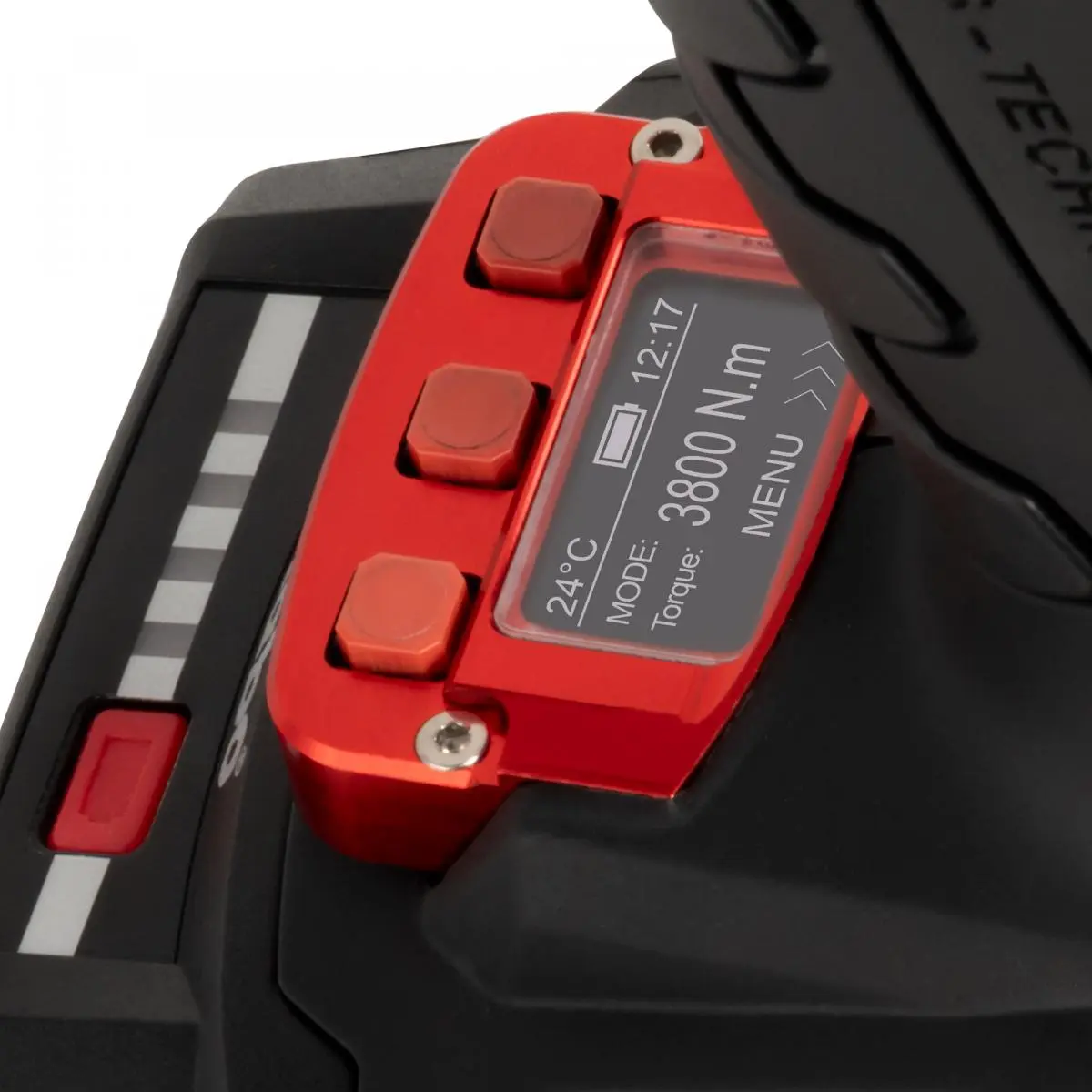

Display type | TFT colour display |
Display size | 1,1 Inch |
Storage medium | Internal memory |
Storage capacity | 66536 Values |

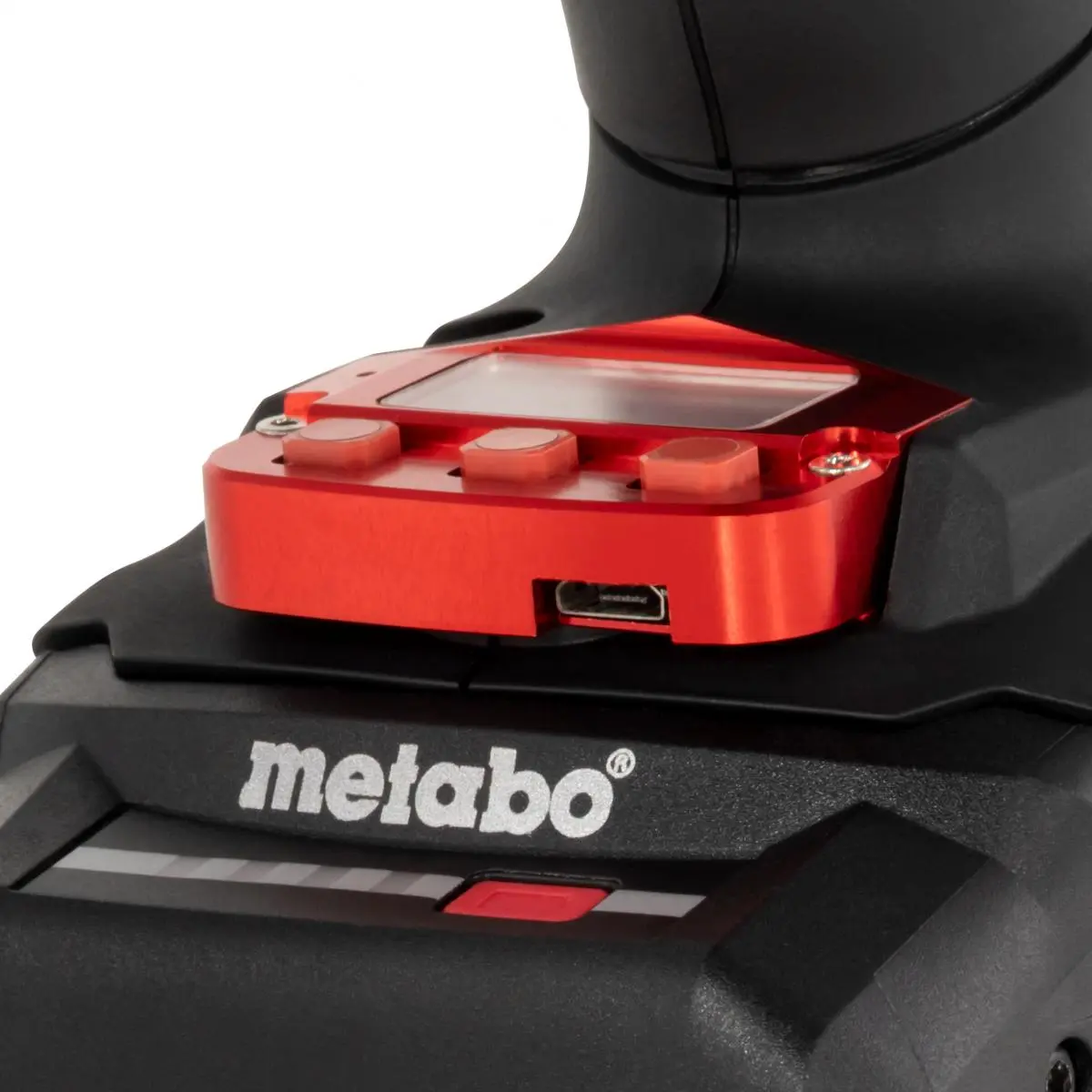

Interface | Micro-USB |
Automatic power-off | 200 s |
Repeatability | 2 % |
Menu language | English (GB), English, Chinese |
Protection class (device) | IP20 |
Power supply | Battery pack incl. charger |
Connector type | Euro plug |

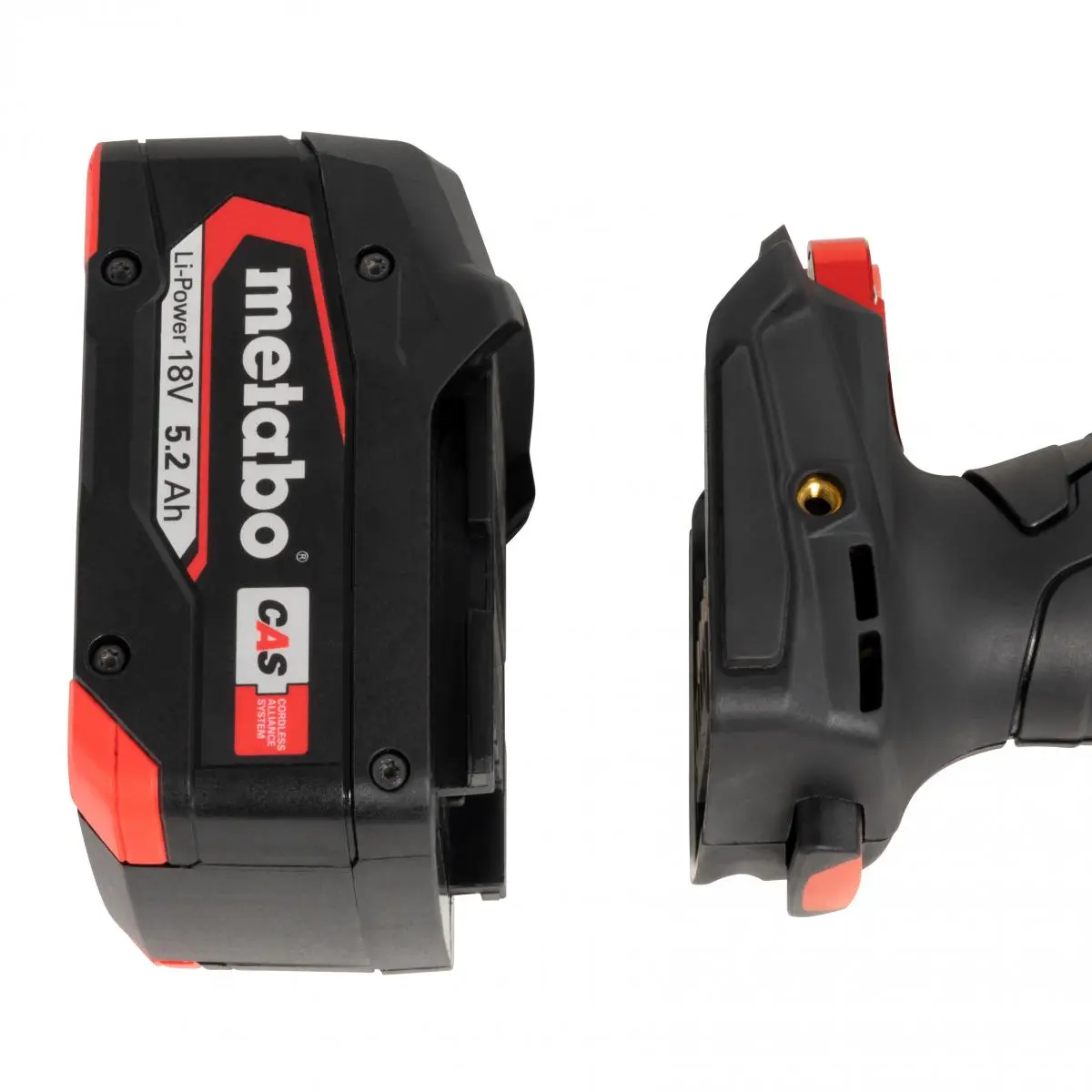

(Rechargeable) battery | 2 x 18 V Battery pack , Lithium-ion battery |
Capacity | 5200 mAh |
Operating conditions | -20 ... 50 °C , 10 ... 90 % RH |
Storage conditions | -20 ... 50 °C , 10 ... 90 % RH |
Dimensions ( L x W x H ) | 310 x 85 x 250 mm |
Weight | 6,4 kg |
