Torque Meter / Torque Tester PCE-TM 80

Torque Meter PCE-TM 80

Order no.: PCE-TM 80
GTIN (EAN): 4250348707512
£ 734.00
£ 880.80
price ex. (VAT / delivery)
:
4250348707512
PCE-TM 80
Delivery time:1-2 working days
Digital
Handheld
147 Ncm
Yes (via PC)
Yes (RS-232)
Ncm, kgfcm, lbfin

Description

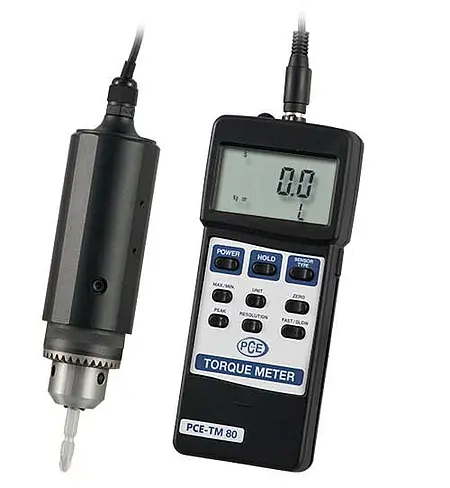

Digital Torque Meter PCE-TM 80
meter to determine the “torque moment” up to 147 Ncm / PC interface and software (optional) / Peak-Hold function / external torque sensor / selection of diverse units / selection of resolution

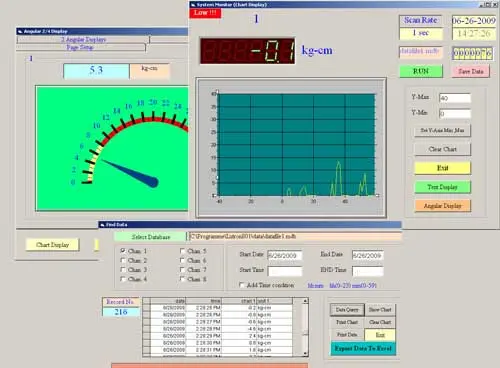

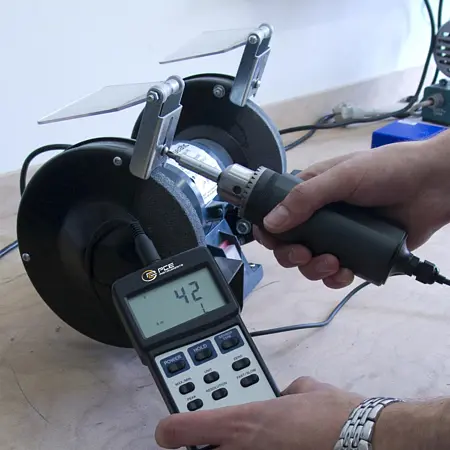

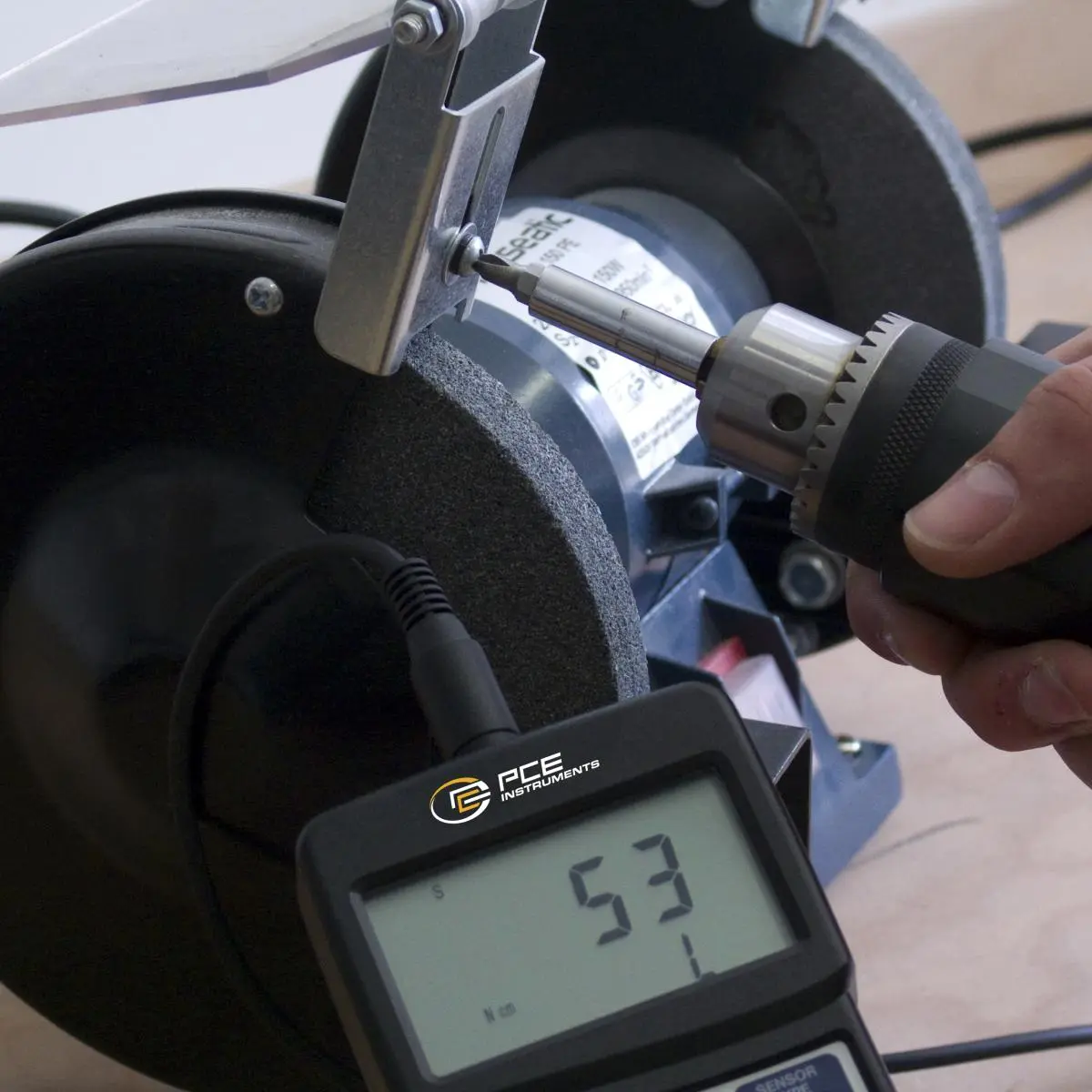

The Digital Torque Meter PCE-TM 80 with external sensor to measure the static or startup torque moment in screws, components, switches, transmission shafts, etc. The Digital Torque Meter PCE-TM 80 is an affordable solution to easily perform static torque measurements. The Digital Torque Meter PCE-TM 80 operates by rotatory movements to the left and right and it is ideal for the torque moment. The Digital Torque Meter PCE-TM 80 offers the option to enlarge the 1 digit resolution. The Digital Torque Meter PCE-TM 80 shows the Peak value as well as the max. and min. values. Use of the optional software allows real-time data can be continuously transferred to a PC or portable computer. The Digital Torque Meter PCE-TM 80 is very robust to ensure both long duration and reliability.

**Note the chuck does not rotate, the force is static or "startup" force


Highlights

- Range 0 ... 147 Ncm
- Selection of 3 units (Ncm, kgfcm, lbfin)

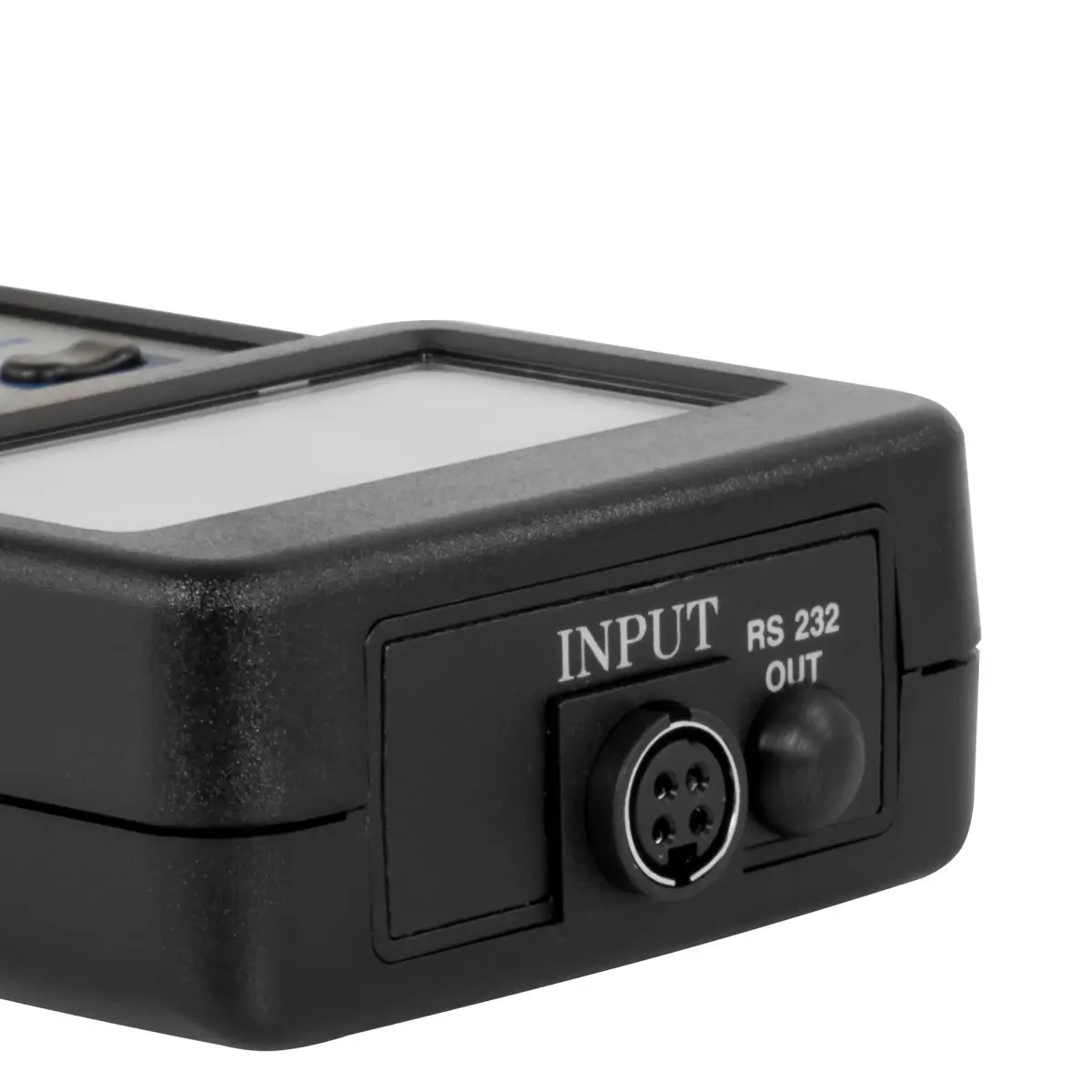

- Digital output RS-232
- External rotational torque sensor

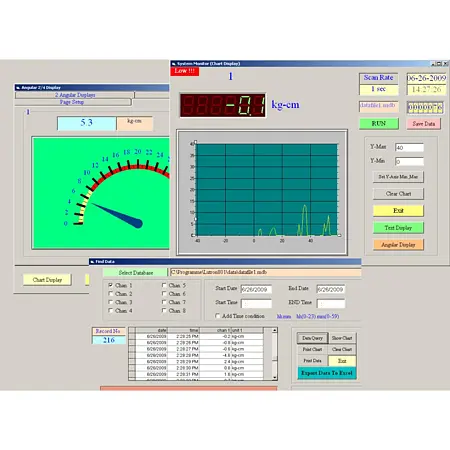

- Optional software
- Selection of the resolution - Automatic shut-off

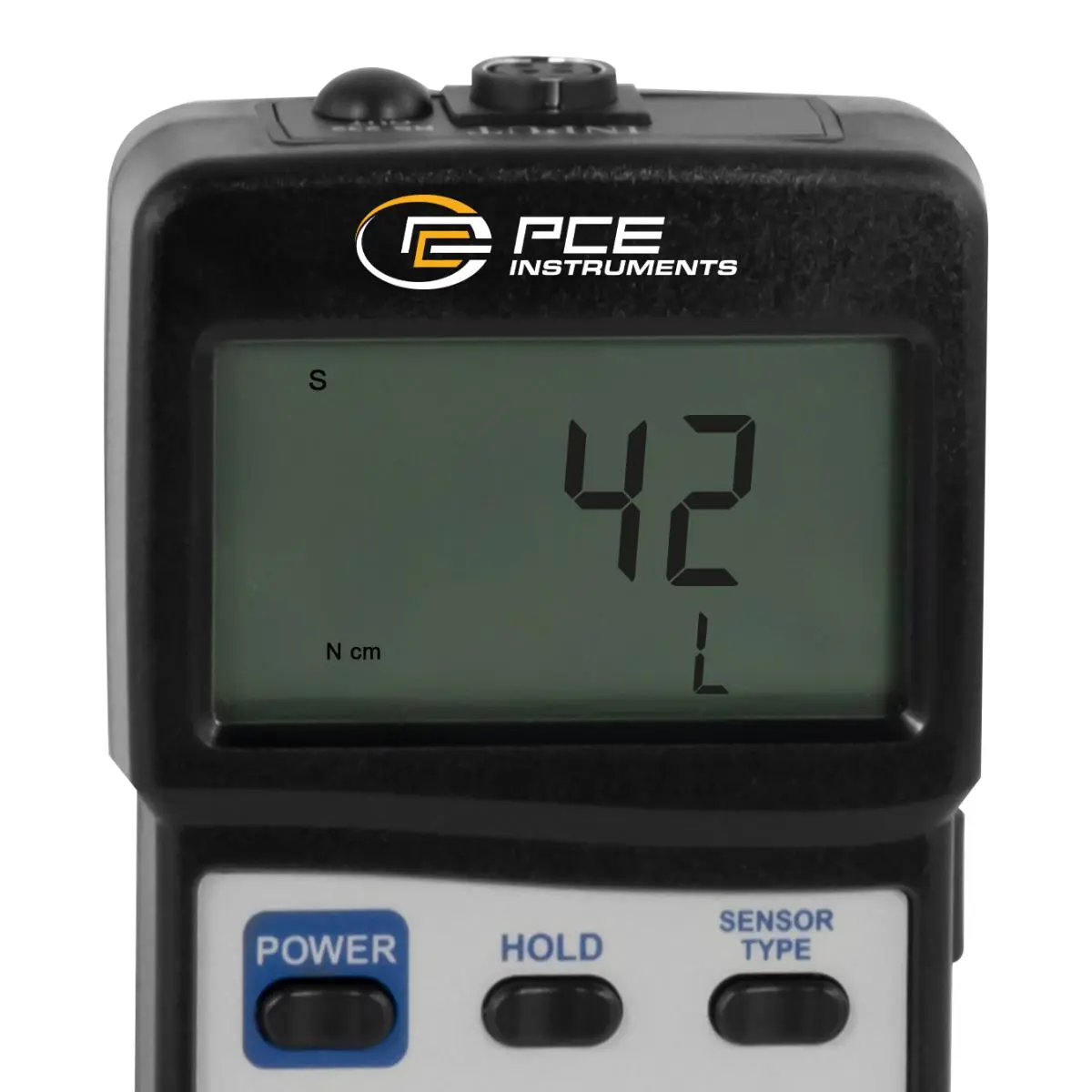

- Peak-Hold function
- ISO Calibration certificate (optional)

Specification

Torque
Measuring range  0 ... 147,1 Ncm
Resolution  0,1 Ncm
Accuracy  ±1.5% v.Mw. +5 Digits

Torque
Measuring range  0 ... 13,02 lbf-in
Resolution  0,01 lbf-in
Accuracy  ±1.5% v.Mw. +5 Digits

Torque
Measuring range  0 ... 15 kgfcm
Resolution  0,01 kgfcm
Accuracy  ±1.5% v.Mw. +5 Digits

General technical data
Measuring functions  MIN, MAX, HOLD, peak
Display type  LCD
Interface  RS232
Automatic power-off  10 min
Dimensions  Force transducer: Ø 48 x 160 mm
Menu language  English, English (GB)
Protection class (device)  IP20
Power supply  Battery
(Rechargeable) battery  1 x 9 V 9V block , Alkali-manganese
Capacity  640 mAh
Operating conditions  0 ... 50 °C , 0 ... 80 % RH
Storage conditions  0 ... 50 °C , 0 ... 80 % RH
Dimensions ( L x W x H )  180 x 72 x 32 mm
Weight  225 g

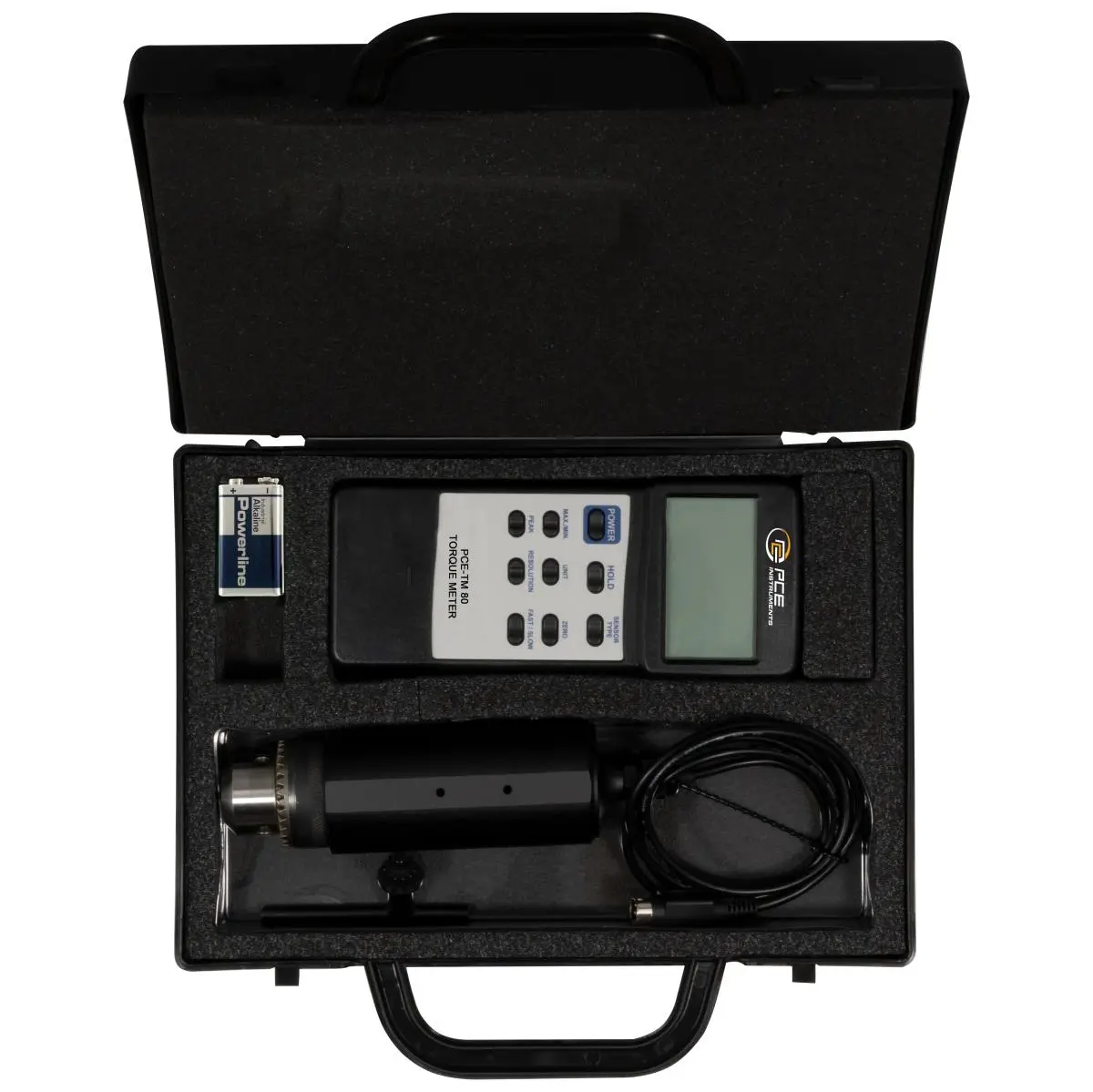

Delivery Scope

Delivery contents
1 x PCE-TM 80 Torque Meter / Torque Tester
1 x external torque sensor
1 x chuck key
1 x plastic carrying case
1 x user manual
