The Surface Testing is ideal for precisely determining the electrical resistance of materials and surfaces in electronics manufacturing, ESD protection, laboratories and quality control. It is used to reliably determine whether a material is conductive, static dissipative or insulating, thus making a decisive contribution to the prevention of electrostatic discharge. Thanks to its compact design and ease of use, the device is ideal for both mobile use and stationary measurements and also serves as an ESD measuring device and electrostatic measuring device. Our measuring device covers a wide measuring range from 10³ Ω to 10¹⁰ Ω and offers a measuring accuracy of 1 decade. The maximum display value is 20 GΩ; values above this indicate that the measuring range has been exceeded. The temperature measuring range is 0 ... 50°C / 32 °F ... 122°F with a deviation of ±2°C / ±3.6°F. An automatic switch-off after approximately five minutes ensures energy-saving operation, while the integrated backlight and data hold function allow for convenient reading of the measured values.

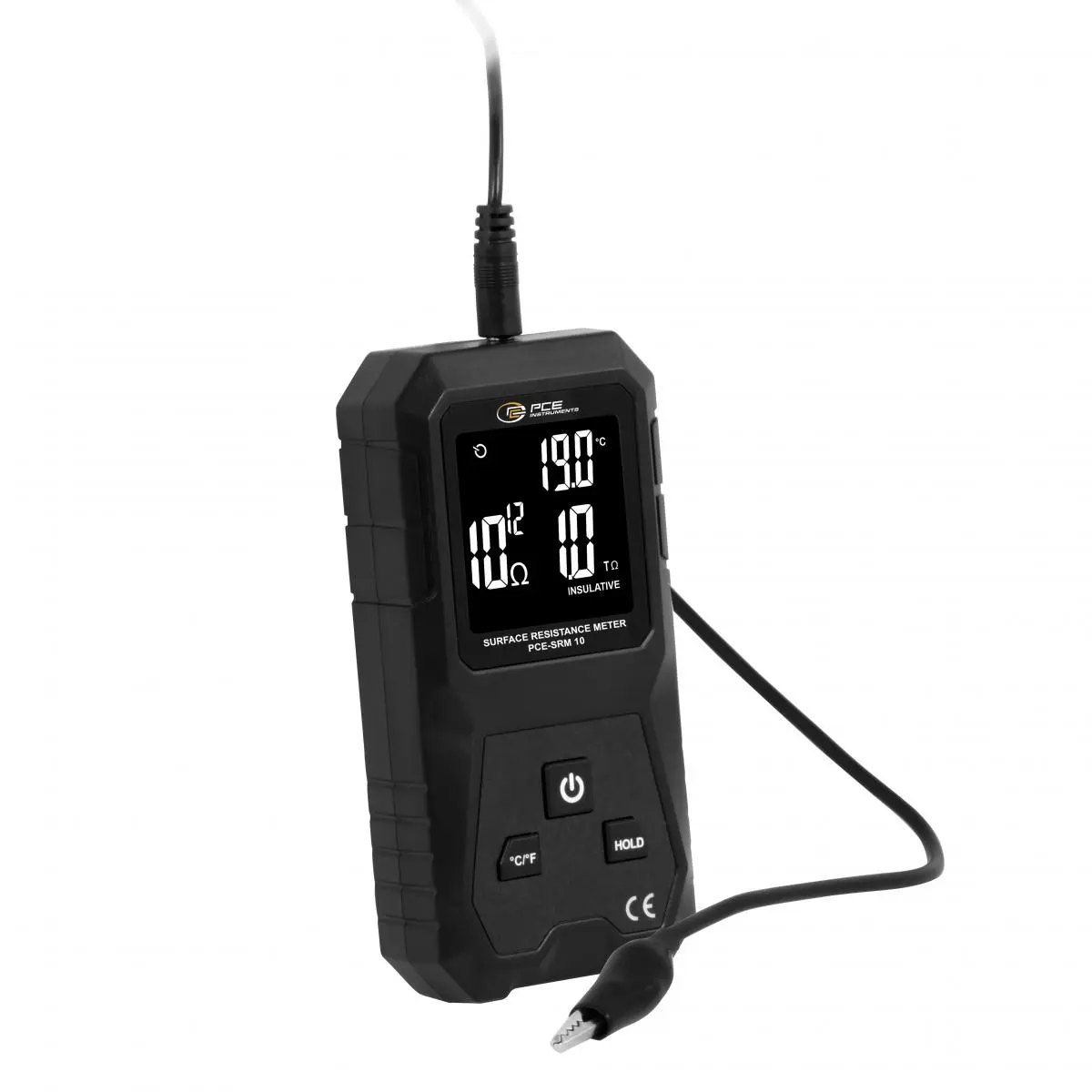

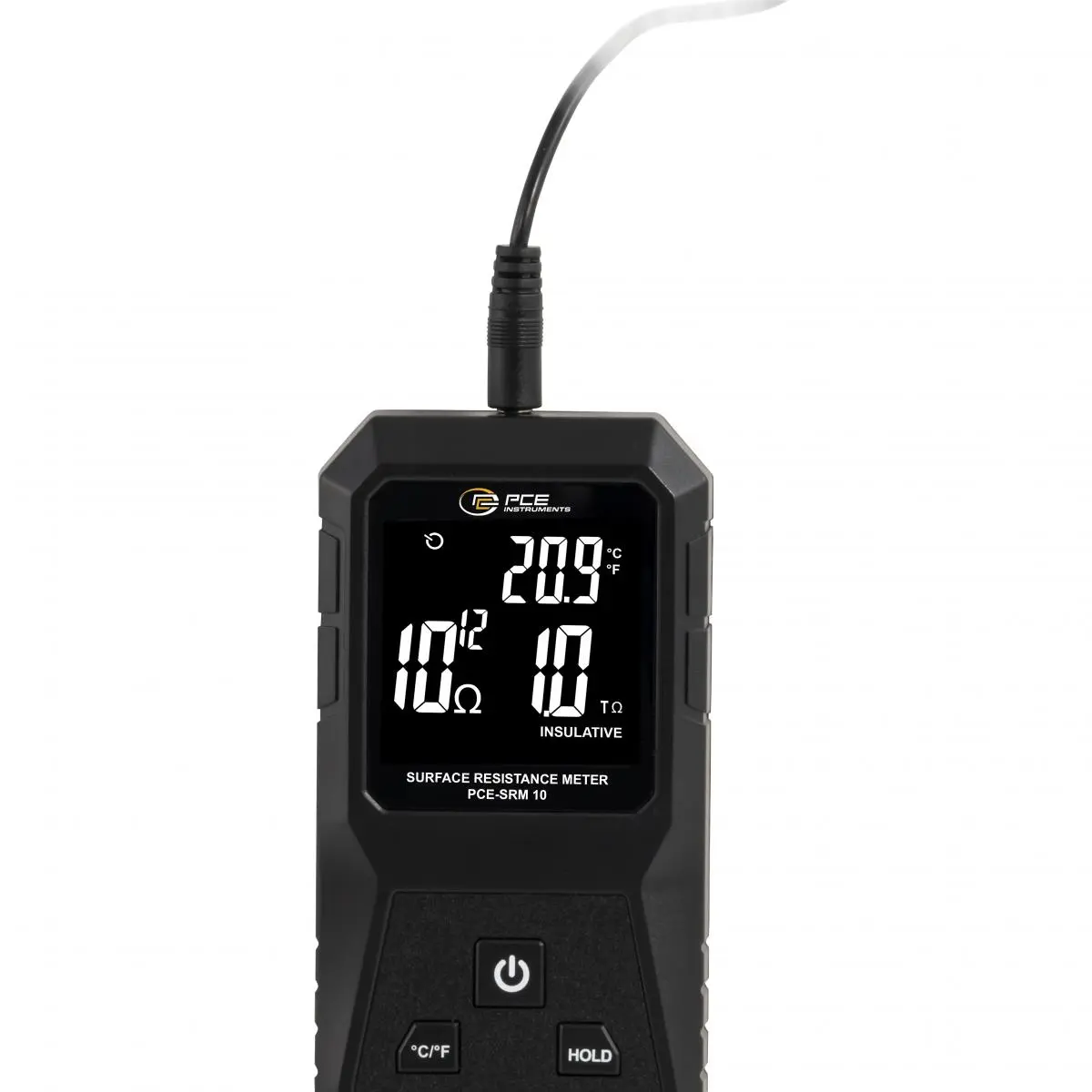

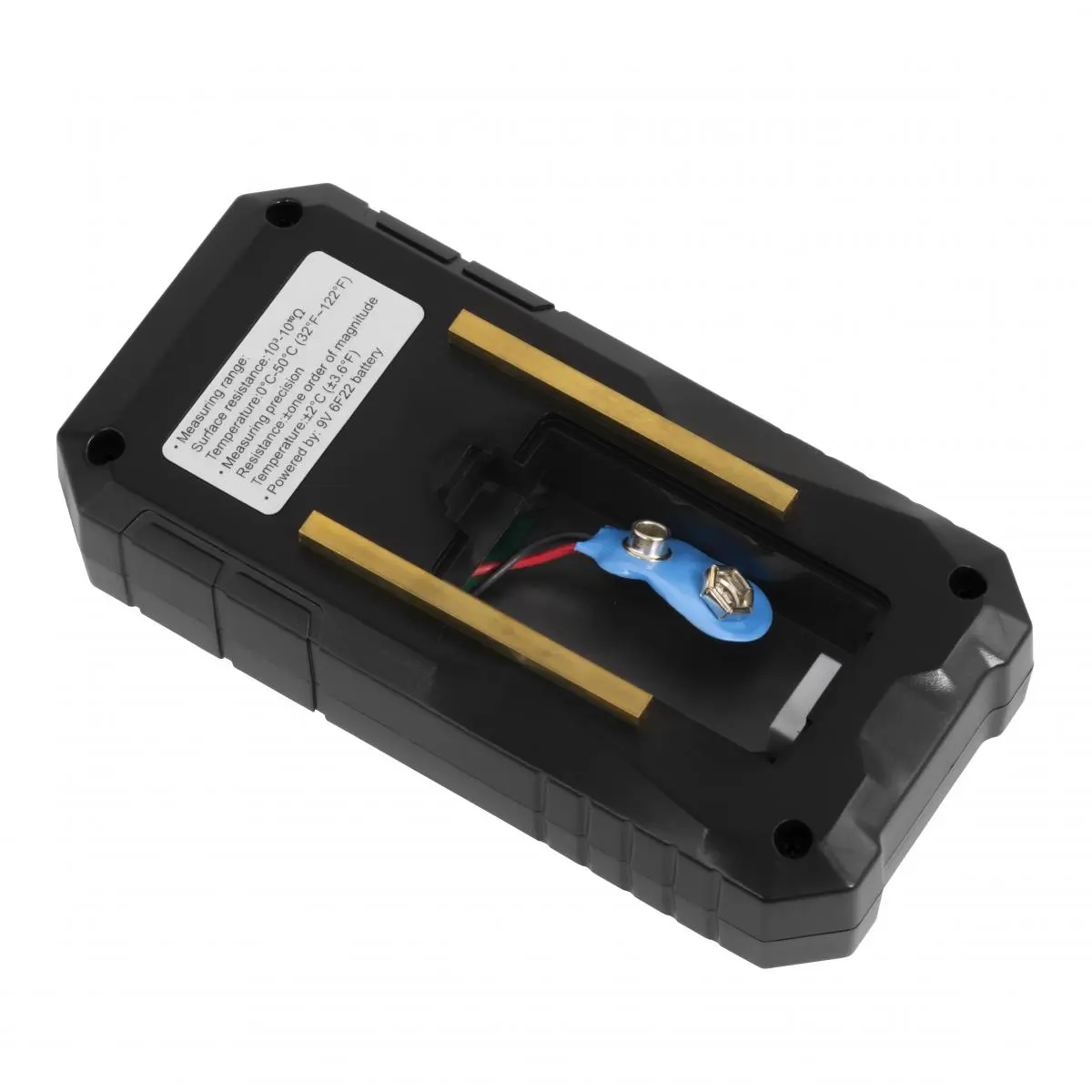

This Surface Testing has an easy-to-read 2.2-inch LCD display showing temperature, resistance, battery status and measurement mode. Three easy-to-use buttons control all functions, such as power on/off, temperature unit switching and data hold. Power is supplied by a 9 V block battery, allowing the Surface Testing to be operated independently of the mains. The Surface Testing also allows measurements to be taken on irregularly shaped objects and provides a clear evaluation of the measurement results: Values from 10³ to 10⁵ Ω indicate conductive materials, 10⁶ to 10¹¹ Ω indicate static dissipative properties, and from 10¹² Ω onwards, surfaces are considered insulating. The device thus provides a quick and precise assessment of electrostatic properties and ensures greater safety and quality in sensitive production environments.

This measuring device is ideal for specialists in electronics manufacturing, ESD officers, technicians, engineers, testing laboratories and anyone who needs to check surfaces for electrical conductivity. As an ESD measuring device and electrostatic measuring device, it also provides reliable support in complying with electrostatic protection measures.
