£ 396.00

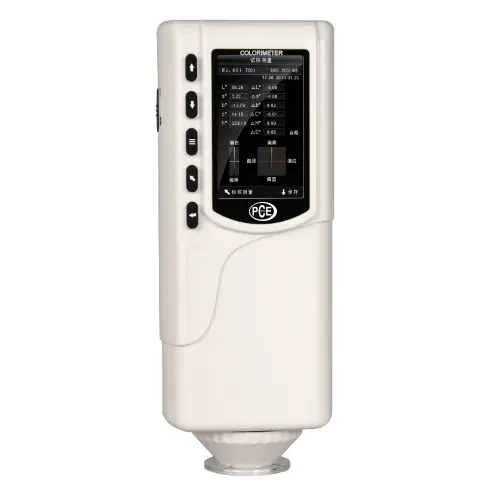

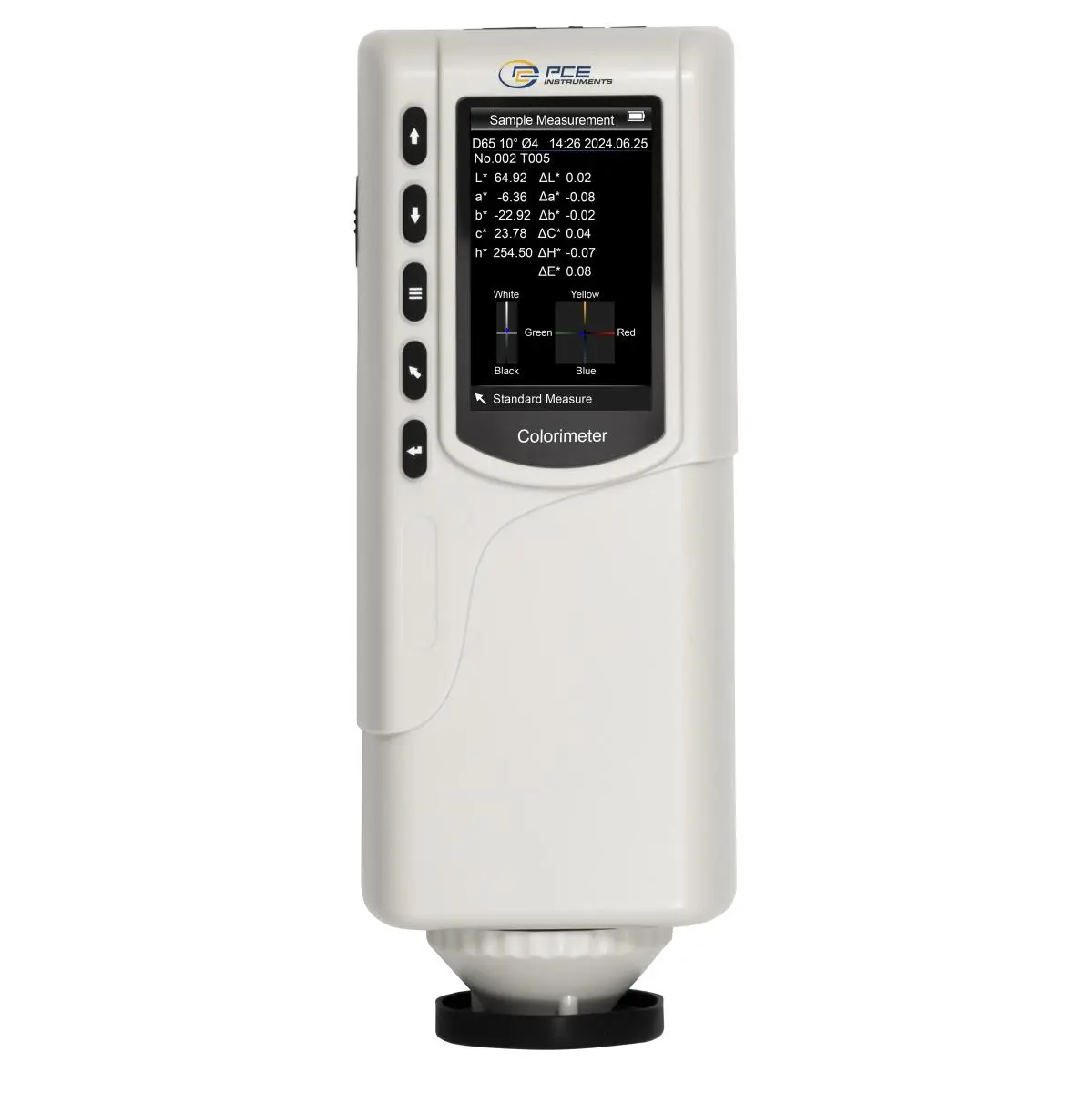

The colorimeter PCE-CSM 5 was developed for quality control and offers a high accuracy. When using the colorimeter, you can choose between different color spaces (CIE LAB, XYZ, LCh, RGB, LUV). In addition, the colorimeter PCE-CSM 5 comes with two different measuring apertures (Ø4 mm and Ø8 mm). After a measurement with the colorimeter, the reading can be used as a reference value while other readings can be recorded as a sample and later be compared to the reference value easily.
In addition to the individual color space coordinates, the deviation between the reading is also displayed. When using the colorimeter, it is possible to store up to 100 reference values and up to 20,000 samples on the device. The measured data can also be transferred to a PC via the USB interface. A special PC software is included in the package.
| General technical data | |
| Display type | TFT colour display |
| Display size | 2,8 Inch |
| Storage medium | Internal memory |
| Storage capacity | 20000 Values |
| Memory capacity (additional information) | 100 reference values, 20000 samples |
| Interface | Mini-USB, RS232 |
| Sensor | Silicon photodiode |
| Repeatability | 0,03 ΔE*ab |
| Light source | D65, A, C, D50, F2, F6, F7, F8, F10, F11, F12 |
| Measurement time | 0,4 s |
| Colour spaces | XYZ, LCh, CIE RGB, CIEL u* v*, CIEL a* b*, WI (whiteness), YI (yellowness) |
| Colour difference | ΔE* ab ΔE( h) ΔE* uv ΔE* 94 ΔE*cmc(2:1) ΔE*cmc(1:1) ΔE* 00 |

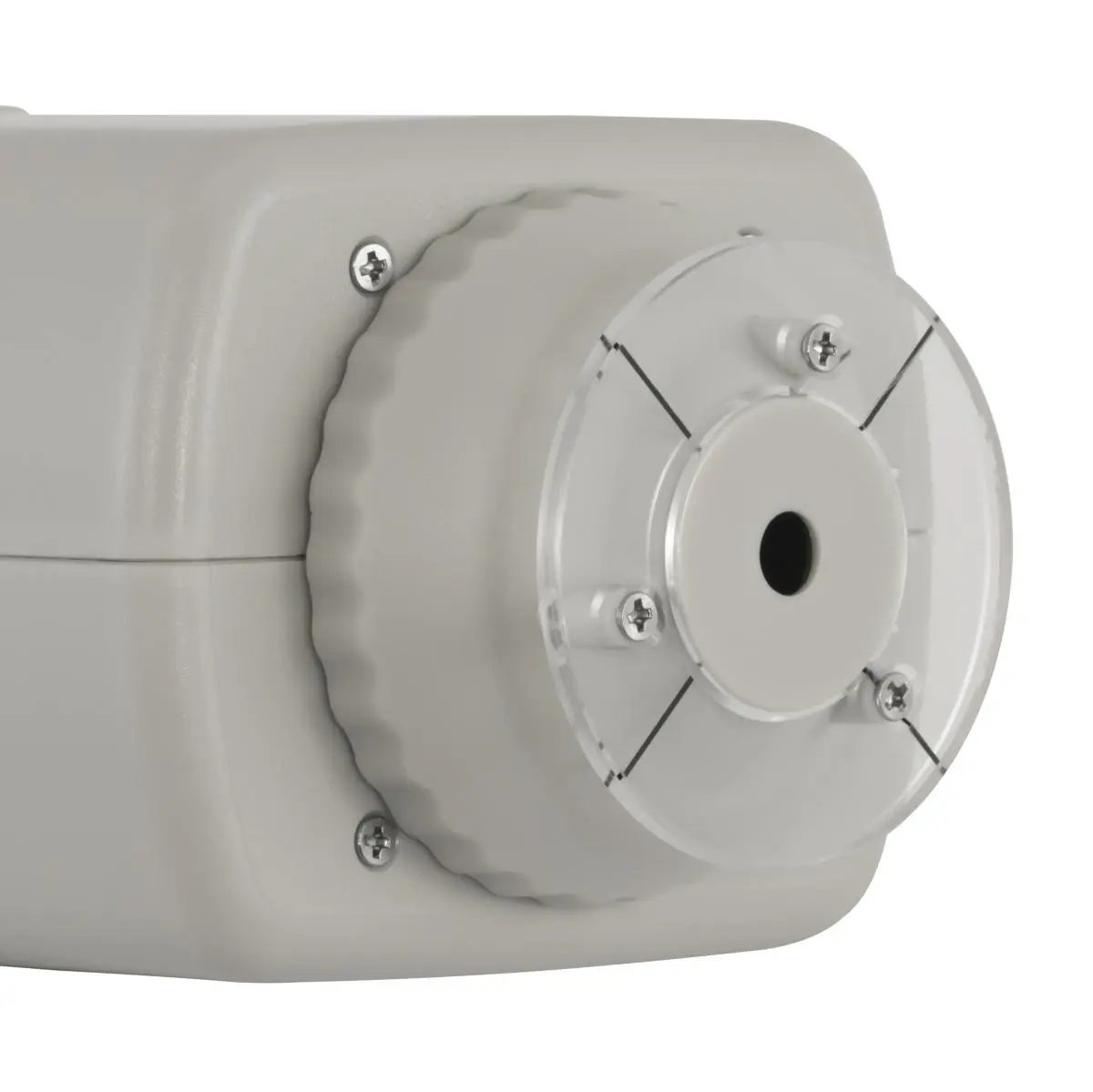

| Measuring aperature | Ø 4 mm, Ø 8 mm (interchangeable) |
| Measuring geometry | 8°/d |
| Observer | 10° |
| Calibration | White or black calibration selectable |
| Menu language | English, Chinese |
| Protection class (device) | IP20 |
| Power supply | 5 V DC, 2 A |
| Connector type | Device-europlug |
| (Rechargeable) battery | 1 x 3,7 V internal , Lithium-ion battery |
| Capacity | 3200 mAh |
| Operating conditions | 0 ... 40 °C , 0 ... 85 % RH |
| Storage conditions | -20 ... 50 °C , 0 ... 85 % RH |
| Dimensions ( L x W x H ) | 205 x 67 x 80 mm |
| Weight | 500 g |
