Surface Testing PCE-VE 333HR

Surface Testing - Automotive Tester / Borescope PCE-VE 333HR

Order no.: PCE-VE 333HR
GTIN (EAN): 4250348715661
£ 864.00
£ 1,036.80
price ex. (VAT / delivery)
:
4250348715661
PCE-VE 333HR
Delivery time:1-2 working days

Description

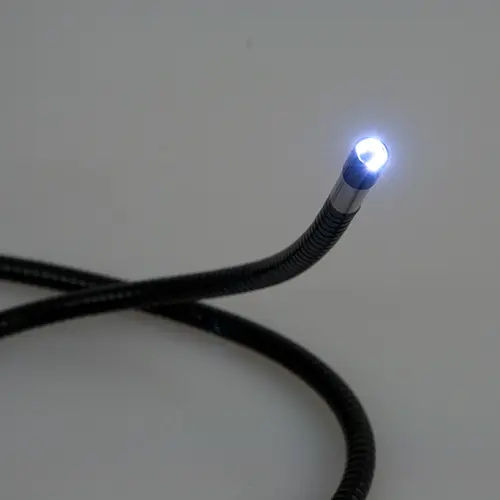

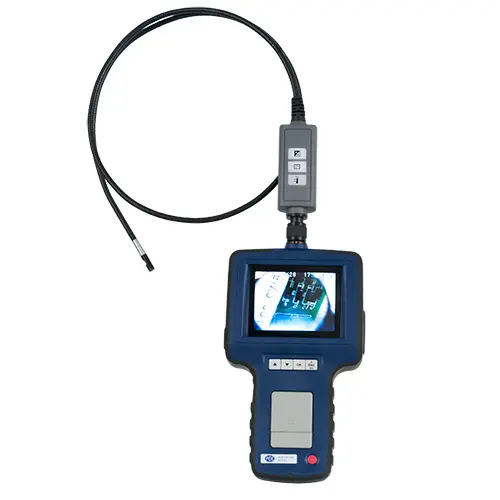

PCE-VE 333HR is an automotive tester, borescope, inspection camera or endoscope for the non-destructive inspection (NDI) of engines, machines and more. This automotive tester is an ideal tool for diagnosing issues in hard-to-reach places. The waterproof camera head features 6 LED lights (4 front, 2 side) for better illumination when using the mirrors. In addition, digital image magnification or zoom of up to 2 times is available, plus boost function for improved image quality in the dark.

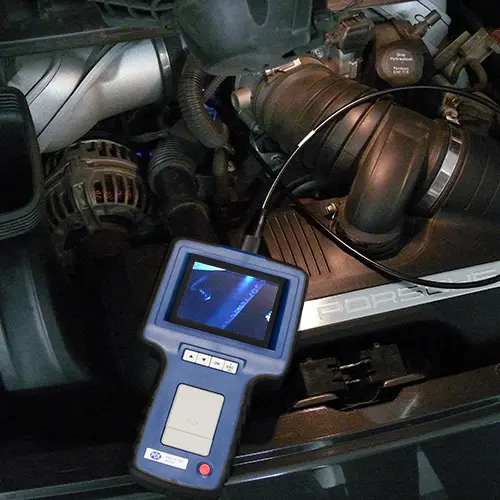

The automotive tester stores the recorded images and videos directly to an SD card memory (included), allowing easy transfer to a PC. The 3 m / 9.8 ft cable length and 5.5 mm / 0.22 in diameter allow the automotive tester unique access to view the insides of walls, pipes, vents, ducts, engines and machinery, thus eliminating the need for costly and time-consuming dismantling. Mechanical engineering, manufacturing, automotive, aviation, construction, plumbing and heating, ventilation, air conditioning and refrigeration (HVACR) professionals alike find this automotive tester useful in a variety of applications.

***Not for medical use***

Highlights

- With boost function: better images in dark surroundings
- Image rotation possible
- Storage of images and videos
- 8 GB SD memory card (incl.)
- LED lighting (2 additional side LEDs for better lighting)
- Robust carrying case included
- Additional camera cables optional

Specification

General technical data
Resolution  Image format: JPEG (640 x 480)
Video format: ASF (320 x 240)
Cable length  3 m
Display type  TFT colour display
Display size  3,5 in
Display refresh rate  30 x per second
Storage medium  SD card
Storage capacity  32 GB
Memory capacity (additional information)  Images and videos can be saved
Interface  Mini-USB, AV out, SD card
Sensor  CMOS
Camera resolution  320 x 240 pixels
Camera orientation  frontal 0°
Operating time  4 h
Camera head length  20 mm
Camera head diameter  5,5 mm
Camera probe movement  semi-rigid
Protection class camera probe  IP67
Other dimensions  Handle width 79 mm
Field of vision  60,7 °
Depth of field of vision  10 ... 60 mm
Luminous intensity  4 LEDs at the front, 2 LEDs at the side
Menu language  English, German, French, Italian, Spanish, Dutch, Portuguese, Danish, Turkish, Polish, Russian, Chinese, Japanese, Korean, Czech, Hungarian, Romanian, Swedish, Greek, Norwegian
Protection class (device)  IP52
Power supply  AC 100 ... 240 V | / 50 / 60 Hz
Connector type  Device-europlug
Capacity  2300 mAh
Operating conditions  0 ... 45 °C , 0 ... 95 % RH
Storage conditions  0 ... 45 °C , 0 ... 95 % RH
Dimensions ( L x W x H )  207 x 118 x 37 mm
Weight  390 g

Delivery Scope

1 x Surface Testing PCE-VE 333HR
1 x 8 GB SD memory card
1 x USB cable
1 x Carrying case
1 x Mains power adapter
1 x User manual
Please note: Not to be used for medical applications!
