Surface Tester PCE-HT 224E with Digital Display

Order no.: PCE-HT 224E
£ 610.00
£ 732.00
price ex. (VAT / delivery)
Delivery time: 1-2 working days

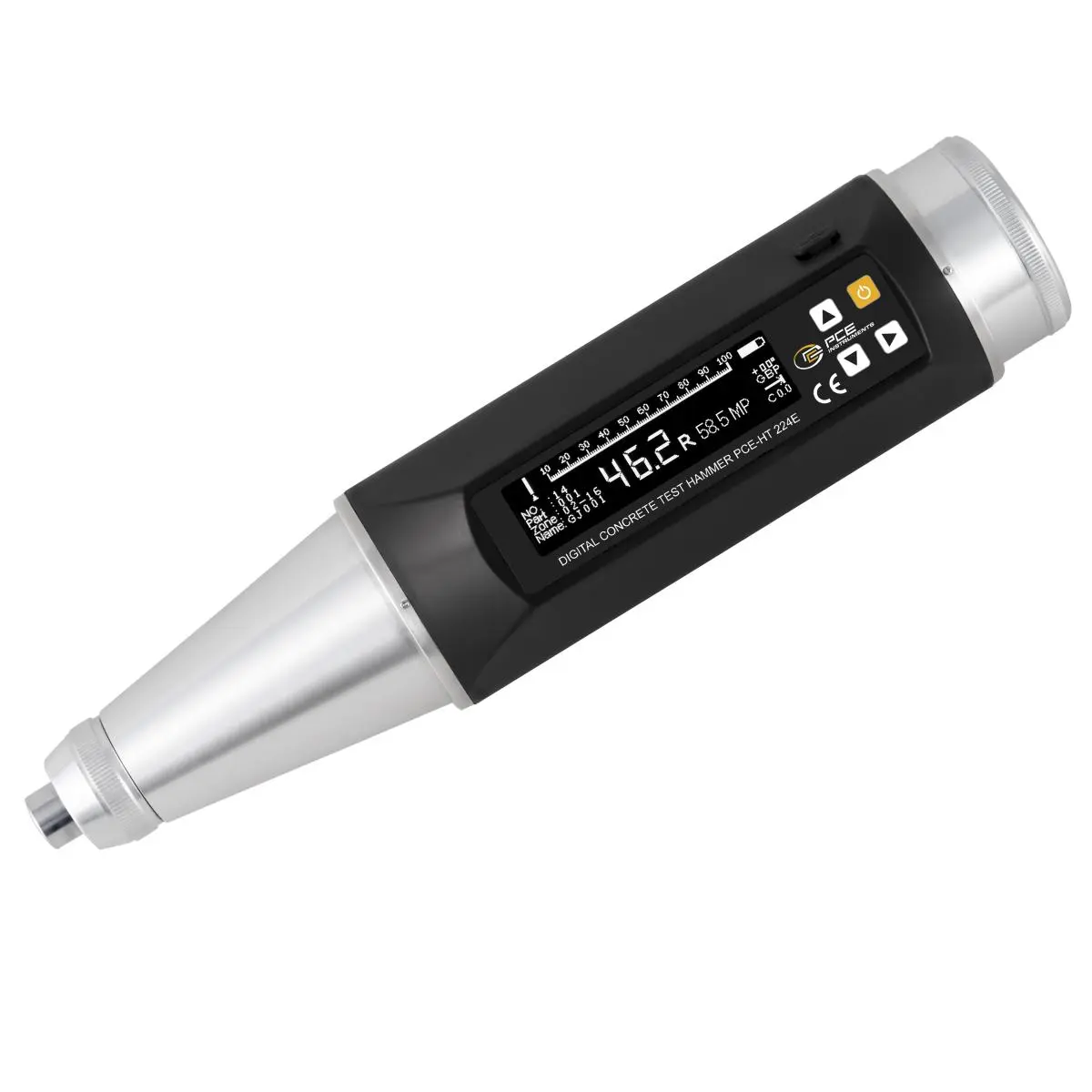

Surface Tester PCE-HT 224E with Digital Display
Mechanical concrete hardness tester with OLED / Measuring range 10 ... 100 N/in²  or 1500 ... 8500 PSI or lbs/in² / Built-in battery for mobile use / Test load 2.207 J / For measuring the quality of concrete surfaces

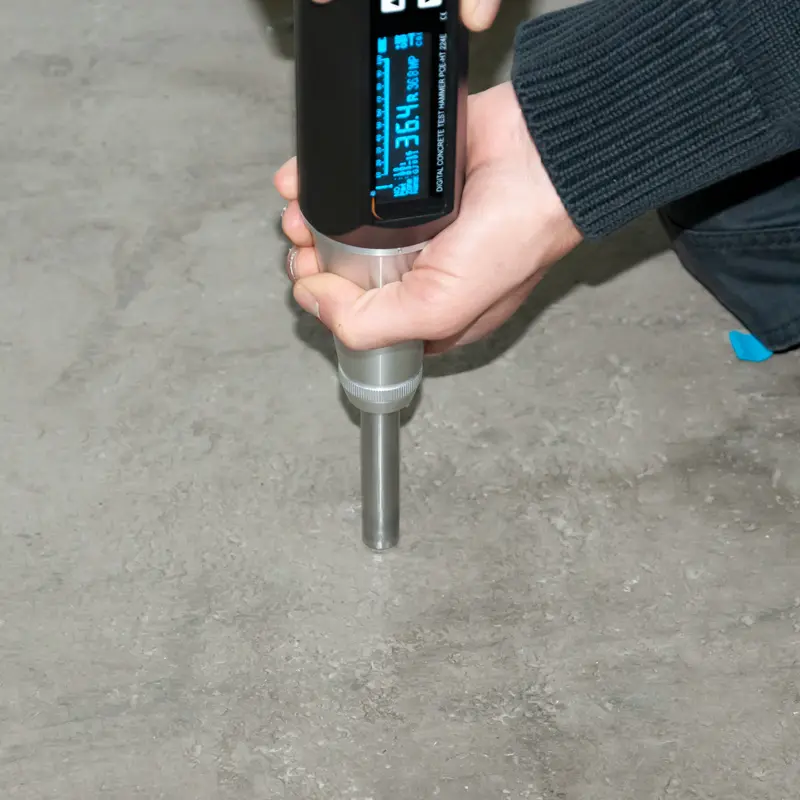

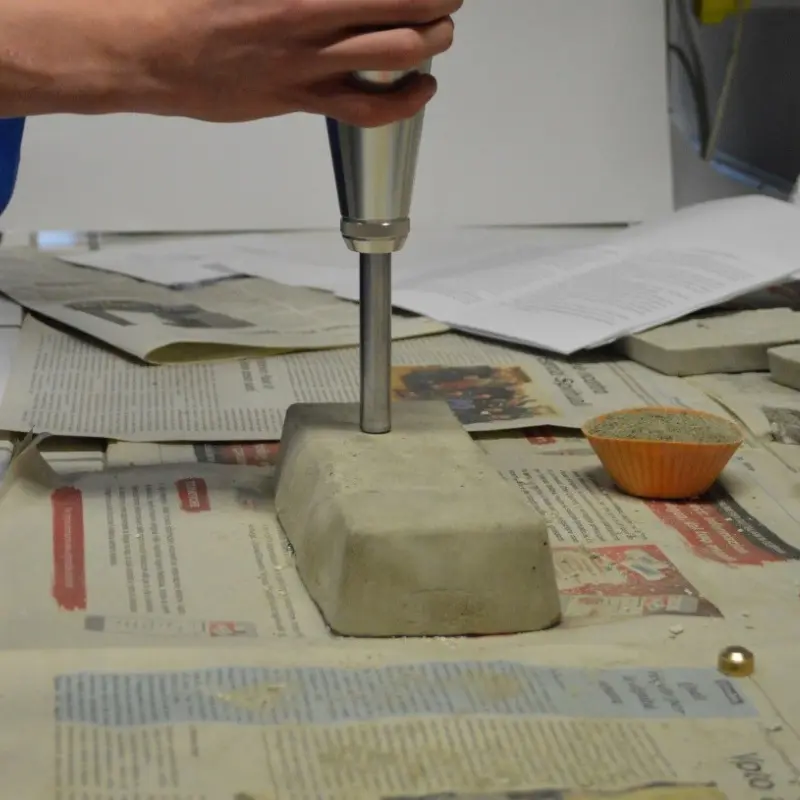

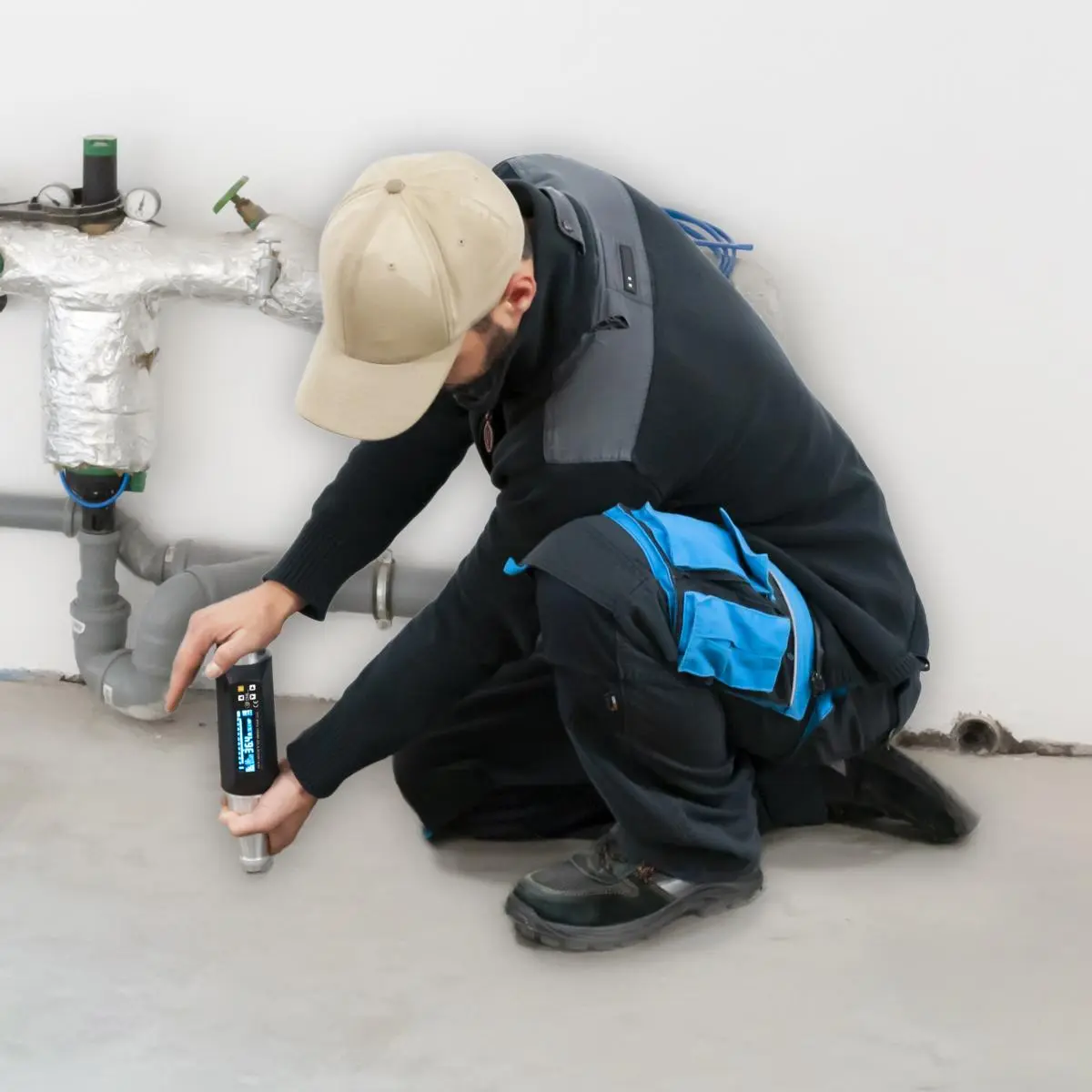

The Surface Tester is a measuring tool for testing the strength of concrete. The Surface Tester measures strength according to the Schmidt principle. According to this measurement method, the quality of concrete can be measured with the Surface Tester. Thus, the Surface Tester finds its essential application in the construction and in the construction sector. The Surface Tester is also suitable for measuring the hardness of rolled paper.  The built-in mechanism on the Surface Tester always ensures the same impact energy of 2.207 Nm.

The Surface Tester displays measurements Rebound Value and can display force in PSI, MPa, kgF/cm², or N/mm². The Surface Tester can be setup to measure at test angles of downward(-90°), downward(-45°), horizontal (0°), upward(45°), or upward(90°).

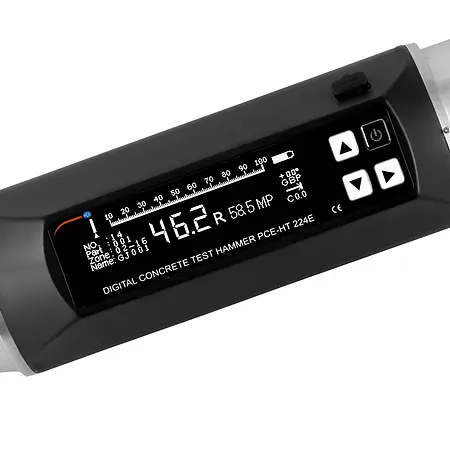

- OLED for reading the measured values

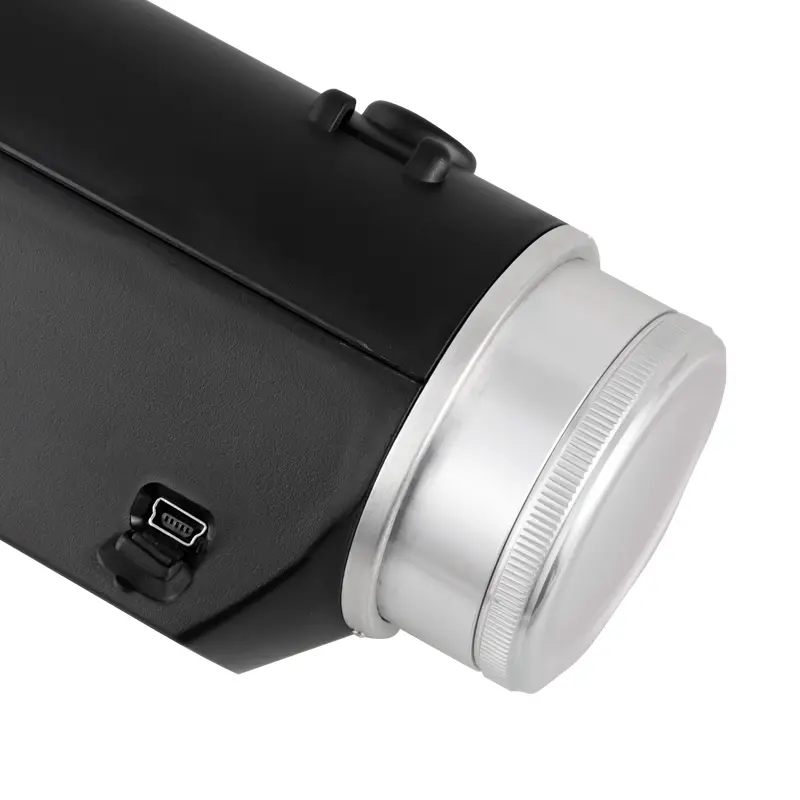

- USB interface for connection to a PC
- Measuring range 10 ... 100 N/mm², 1500 ... 8500 lbs/in² or PSI
- Measurement of the hardness of concrete
- Data storage for later analysis
- Rechargeable battery for mobile use
Measuring range10 ... 100 N/mm², 1500 ... 8500 PSI (lbs/in²)
Accuracy± 0.1 R
Nominal kinetic energy2.207 Nm, 0.225 kgm

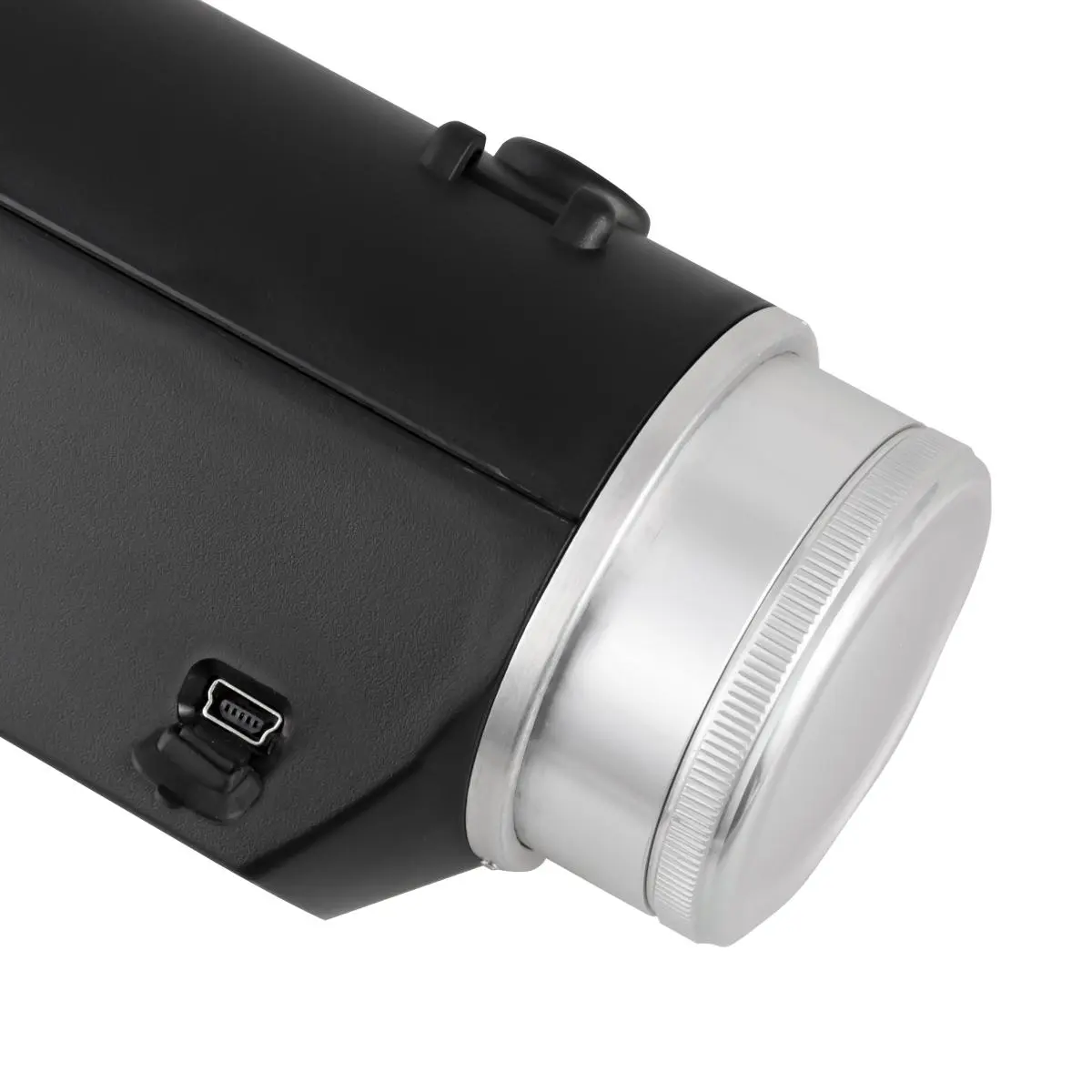

Interfacemicro USB
Storage1,000 data units with 256 measurements each
Operating conditions-40 ... 60°C / -40 ... 140°F
Power supply3.7V Li-ion battery
Power supply (mains adapter)         Primary: 100 ... 240V AC, 50/60 Hz
 Secondary: 5V DC, 1 A
Dimensions280 x 75 x 60 mm / 11 x 3 x 2.4 in
WeightAbout 1.2 kg / 2.6 lbs

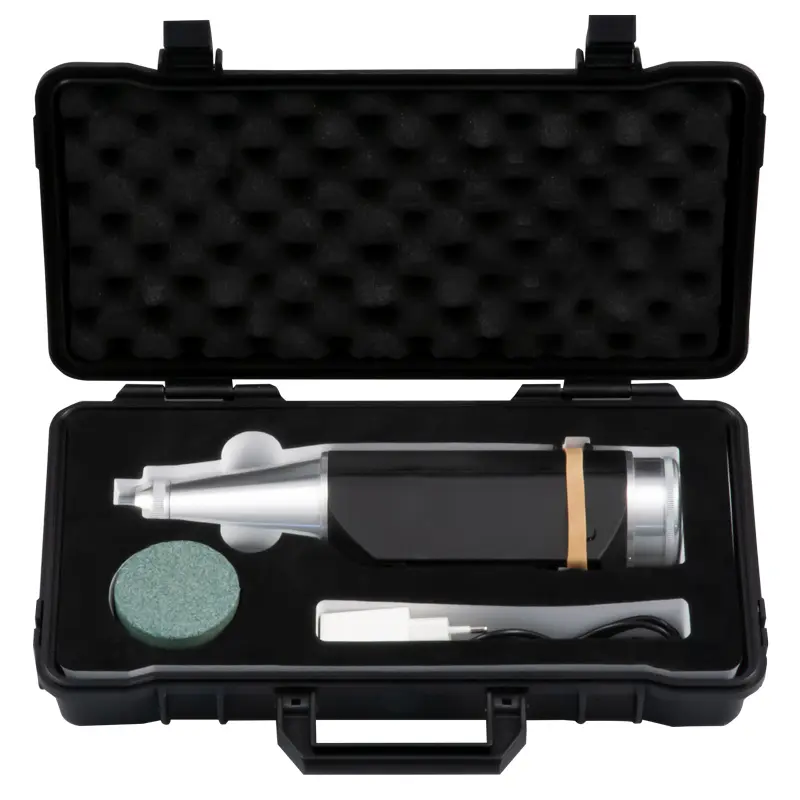

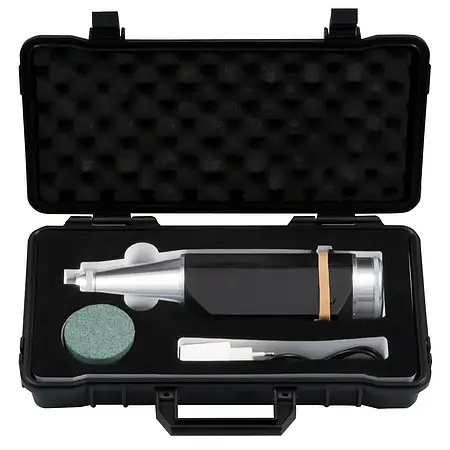

1 x Surface Tester PCE-HT 224E
1 x Mini USB cable

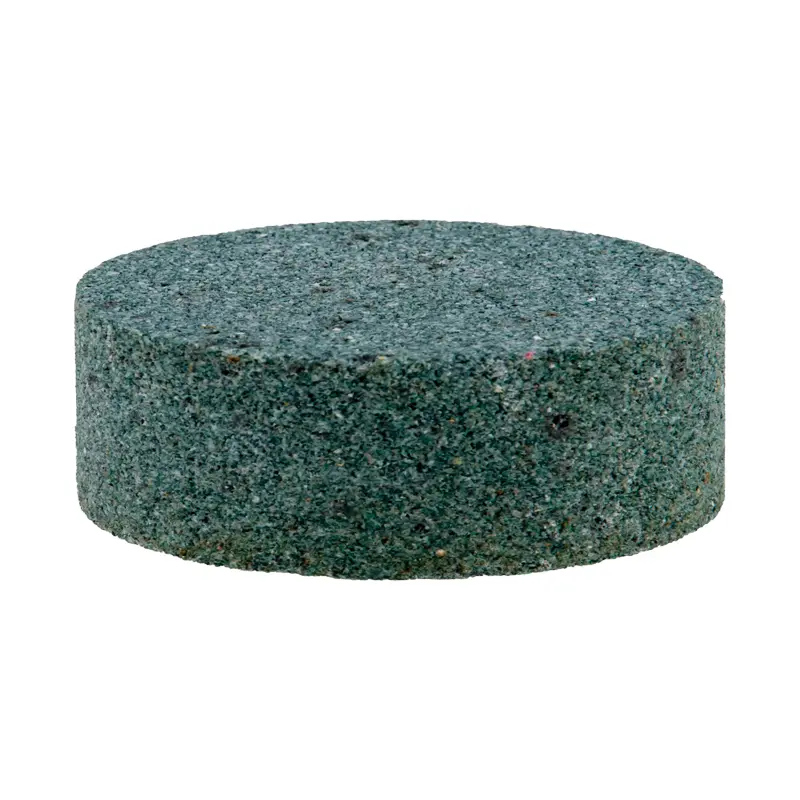

1 x Emery stone

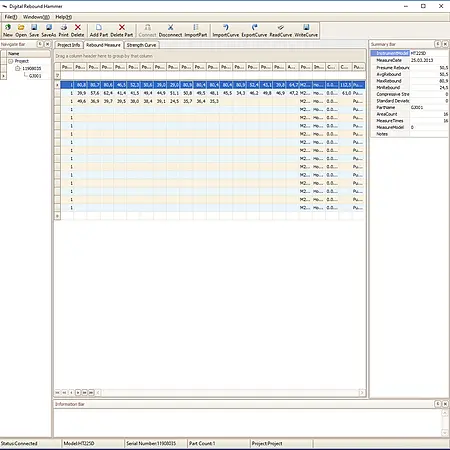

1 x Software in the download area
1 x Charger
1 x Transport case
1 x Instruction manual
