Order no.: PCE-T 260

Stroboscope PCE-T 260

£ 337.00
£ 404.40
:
4250348716835
PCE-T 260
price ex. (VAT / delivery)
Delivery time: 1-2 working days

Description

Stroboscope PCE-T 260 with Optical & Contact speed measurement /
Temperature measurement with IR, PT 1000 or Type K sensors
 / Robust ABS housing / RS232 interface / Storage of the last measured value as well as Min. and Max. memory

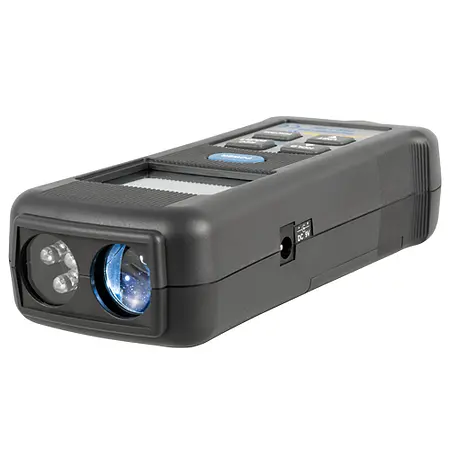

The combined tachometer-stroboscope is a measuring device for use in maintenance and production. In addition to the stroboscope function, the tachometer-stroboscope is also able to mesure temperature by an infrared beam. Thus, the tachometer-stroboscope is ideal for testing the rotational speeds and temperatures of centrifuges, motors, fans, and many other machines and systems used in industry and research. The special feature is the combination of these measurement parameters in a single housing.

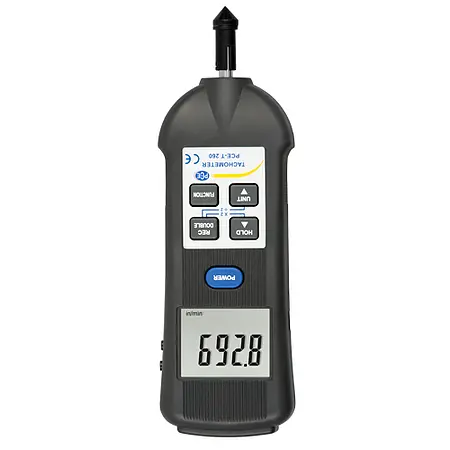

The tachometer-stroboscope has a measuring range of 0.5 ... 99.990 rpm, and the IC circuit in conjunction with a bright red LED lamp ensure the device has a low power consumption and is almost maintenance-free. The setting for the tachometer-stroboscope is made by means of a push button (for coarse and fine adjustment). The tachometer-stroboscope also enables the contactless measurement of the rotational speed from 0.5 to 99.990 rpm with a resolution of up to 0.5 (at n <1000 rpm). When setting the speed measurement, the display is rotated by 180 ° so that the values can be easily read.

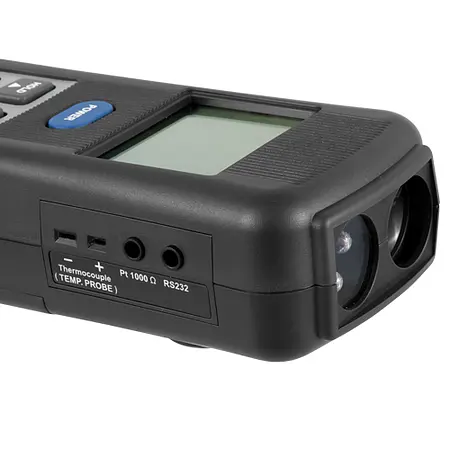

For temperature measurement with the tachometer-stroboscope, you can carry out the measurement by infrared contactless as well as with temperature sensor type K or PT 1000. The RS 232 interface allows the measured values to be displayed or logged directly on a PC with the corresponding software.


Highlights

- Easy to handle
- Powerful LEDs
- Non-contact temperature measurement
- Temp. measurement with sensor type K o. PT 1000
- Robust ABS plastic housing

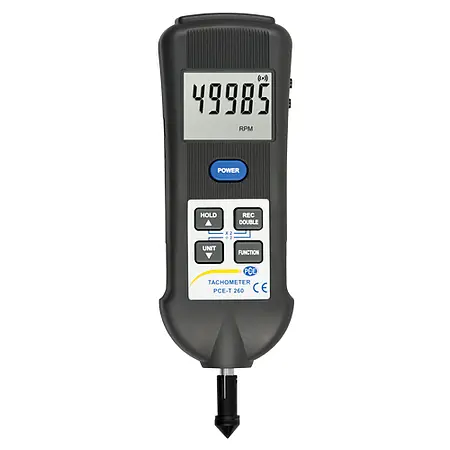

- 5-digit 10 mm LCD display
- Last measured value, min / max memory
- Red strobe light

Specification

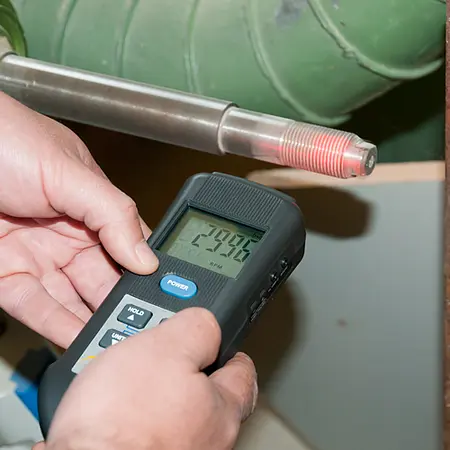

Technical Data of Tachometer Stroboscope PCE-T 260 Optical Tachometer

Measuring range 5 ... 99999 rpm
Resolution 0.5 rpm (< 1000 rpm) 1 rpm (>1000 rpm)
Accuracy  ±0.05% + 1 Digit
Distance to the measuring object 50 ... 150 mm / 2 x 5.9 in, max. 300 mm / 12 in (depending on ambient light)

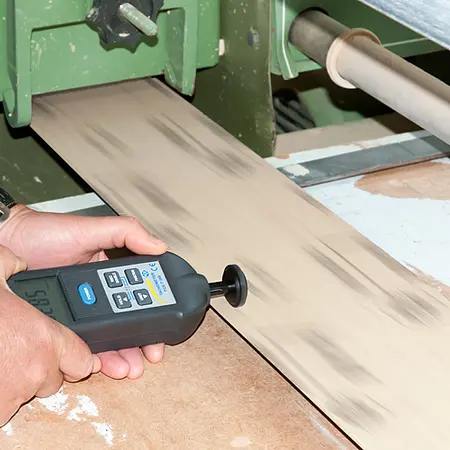

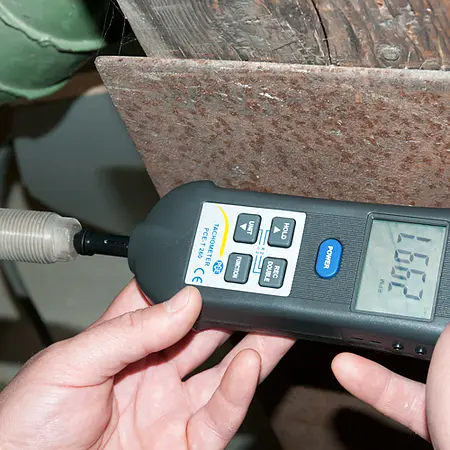

Technical Data of Tachometer Stroboscope PCE-T 260 Contact Tachometer

Measuring range 0.5 ... 19999 rpm
Resolution 0.5 rpm (< 1000 rpm)
1 rpm (>1000 rpm)
0.05 m/min (<100 m/min)
0.1 m/min (>100 m/min)
Accuracy  ±0.05% + 1 Digit

Technical Data of Tachometer Stroboscope PCE-T 260 Stroboscope

Measuring range 100 ... 99990 FPM
Resolution 0.1 FPM (< 1000 FPM)
1 FPM (1000 ... 30000 FPM)
5 FPM (30000 ... 50000 FPM)
1 FPM (50000 ... 99990 FPM)
Accuracy  ±0.1% + 2 Digit

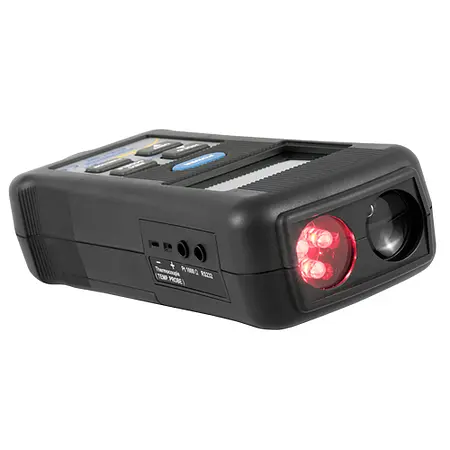

Flash lamp 3 x LED (red)

Technical Data of Tachometer Stroboscope PCE-T 260 Temperature Type K

Measuring range -100 ... 1300°C / -148 ... 2372°F
Resolution 0.1°C
Accuracy (device only) ±0.4% + 1°C / 33°F (-100 ... -50°C / -148 ... -58°F)
±0.4% + 0.5°C / 32°F (-50 ... 1300°C / -148 ... 2372°F)

Technical Data of Tachometer-Stroboscope PCE-T 260 Temperature PT 1000


Measuring range -10 ... 70°C / 14 ... 158°F
Resolution 0.1°C / 32°F
Accuracy (device only) ±1.2°C / 34°F

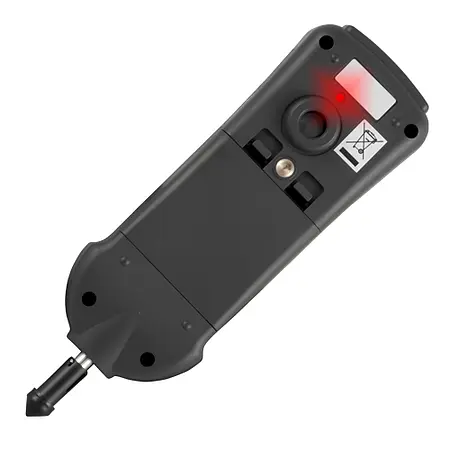

Technical Data of Tachometer-Stroboscope PCE-T 260 Temperature IR

Measuring range -30 ... 305°C / -22 ... 581°F
Resolution 0.5°C / 33°F
Accuracy  ±3% or ±3°C / ±37°F
Emissivity 0.95 fixed
Spectral range 6 ... 14 µm
Optical resolution 3:1

General Specifications of Tachometer Stroboscope PCE-T 260

Display 5 Digits LCD
Interface RS 232
Power supply 4 x 1.5V AA (UM-3) / Power supply DC 9V
Power consumption ca. 52-mA
Environmental conditions 0 ... 50°C / 122°F < 80 % rH.
Memory Last value, Min, Max
Dimensions 207 x 67 x 39 mm / 8.1 x 2.6 x 1.5 in
Weight 255 g / < 1 lb without batteries

Delivery Scope

1 x Stroboscope PCE-T 260
1 x Measuring adapter
2 x Measuring tip (internal and external cone)
1 x Measuring wheel
1 x Reflective tape (600 mm)
1 x Carrying case
1 x Instruction manual
