Spectrophotometer PCE-CSM 8

Spectrophotometer PCE-CSM 8 [zoom]
Spectrophotometer PCE-CSM 8

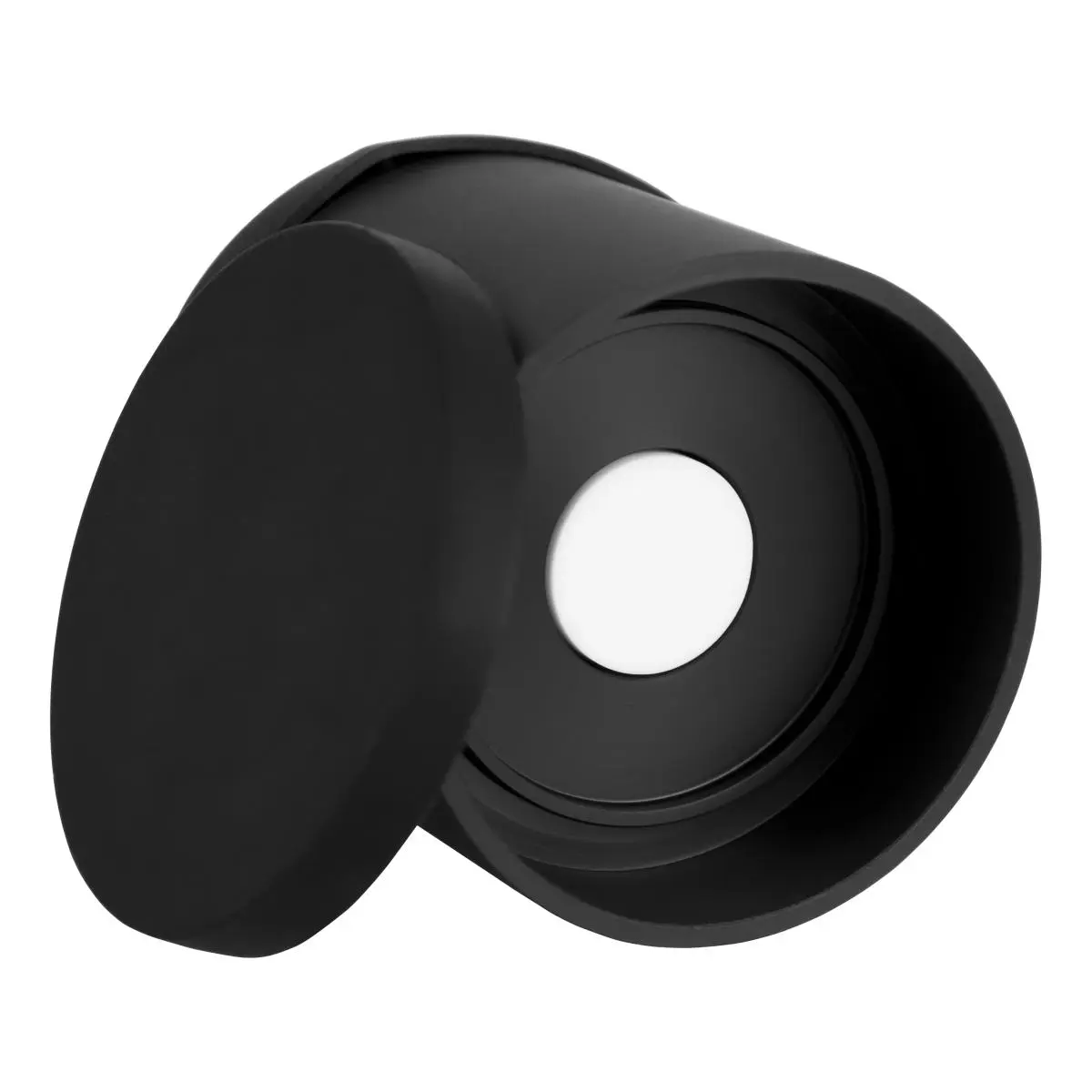

Spectrophotometer Calibration standard
Spectrophotometer Calibration standard

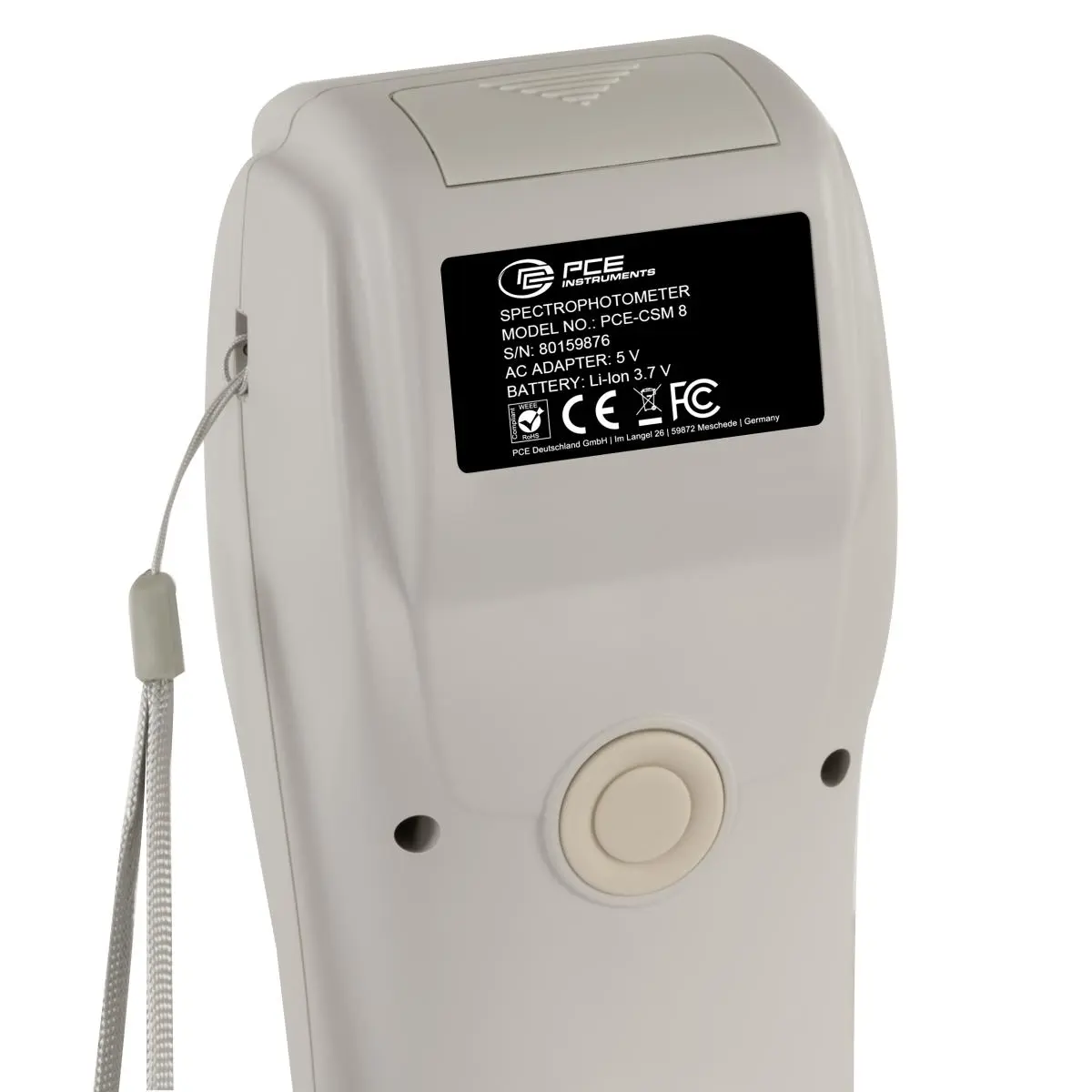

Spectrophotometer Rear side

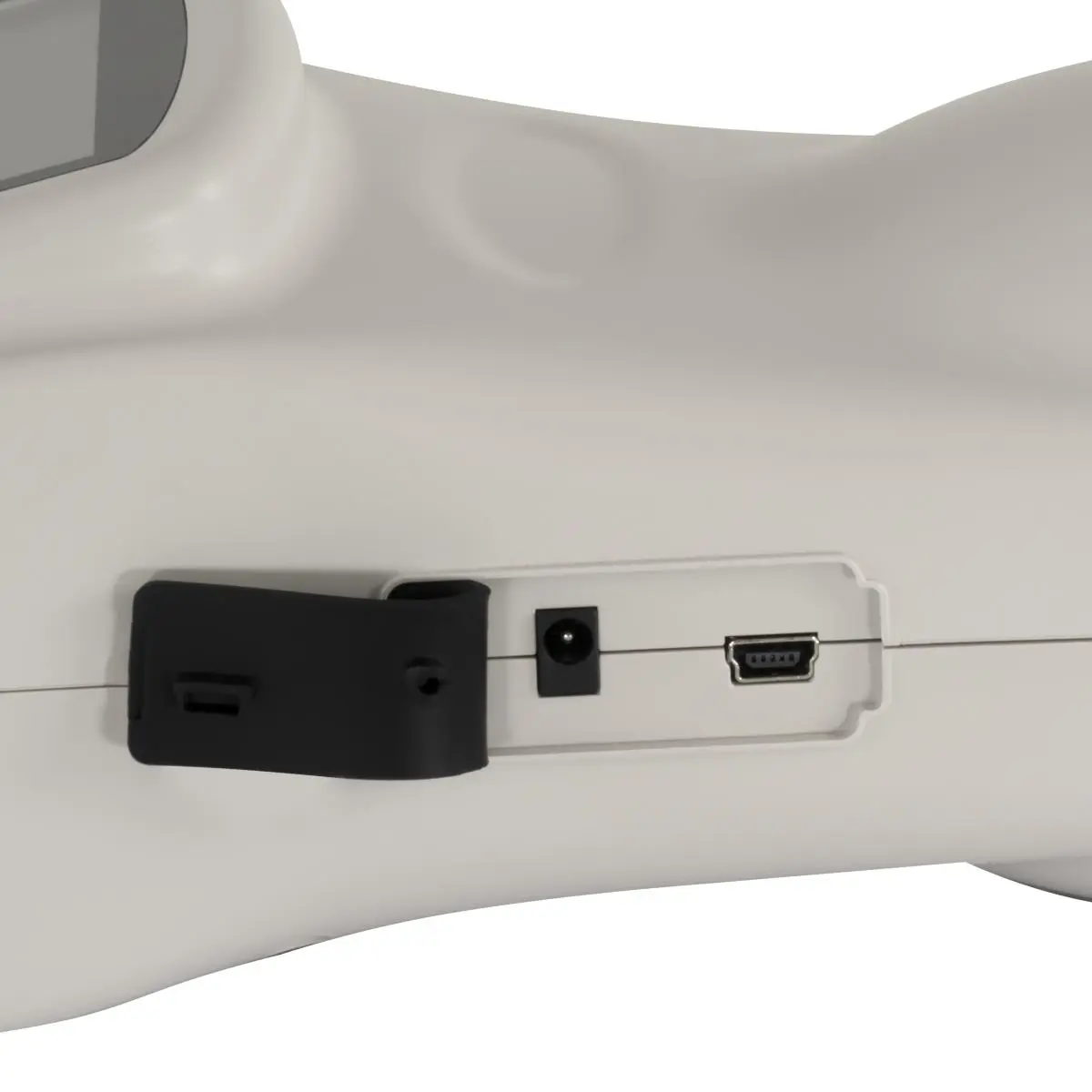

Spectrophotometer Connections

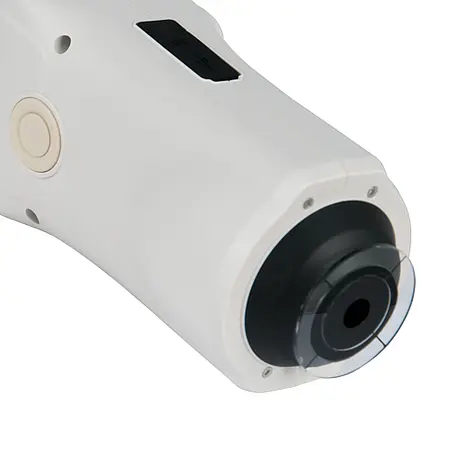

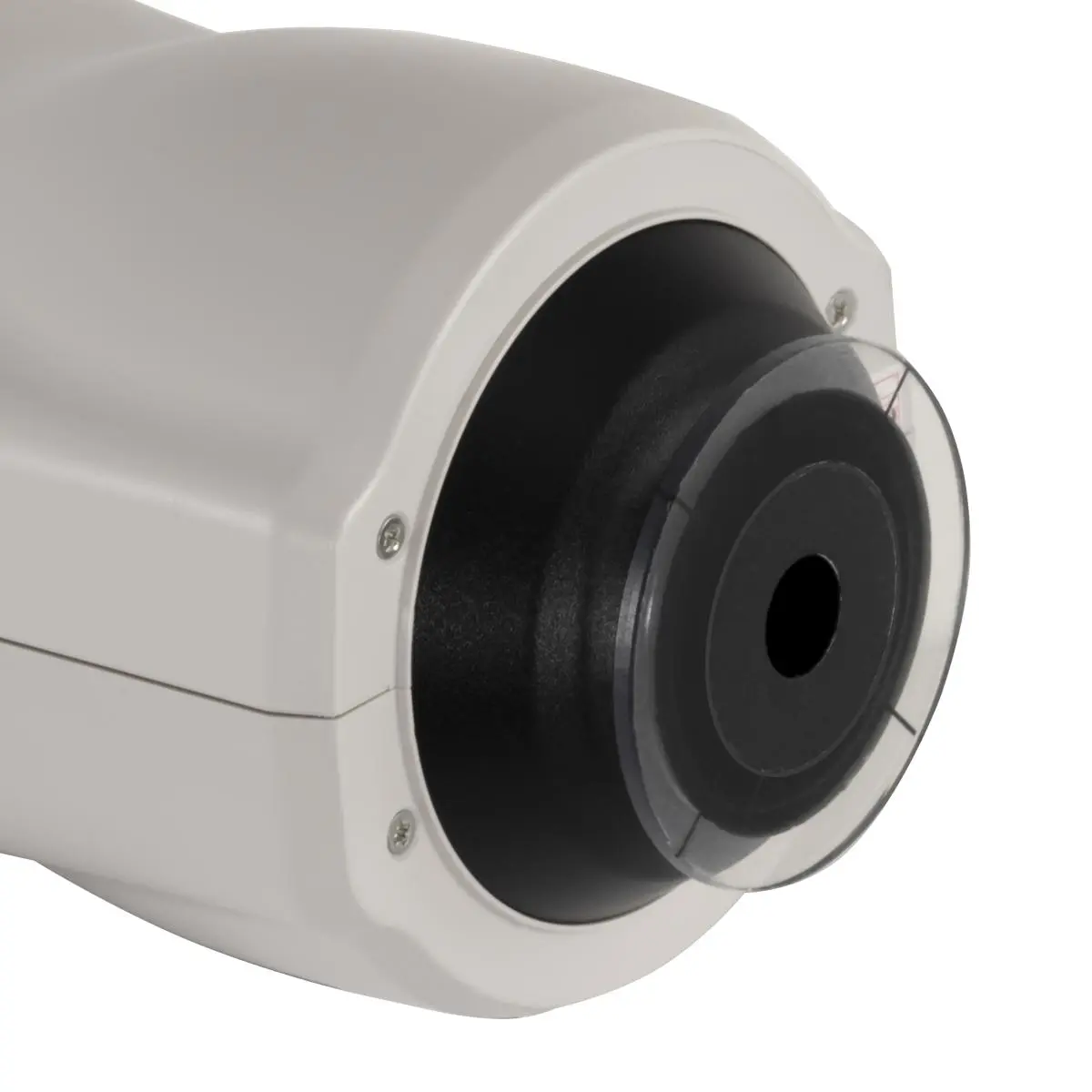

Spectrophotometer Sensor
Spectrophotometer Calibration standard

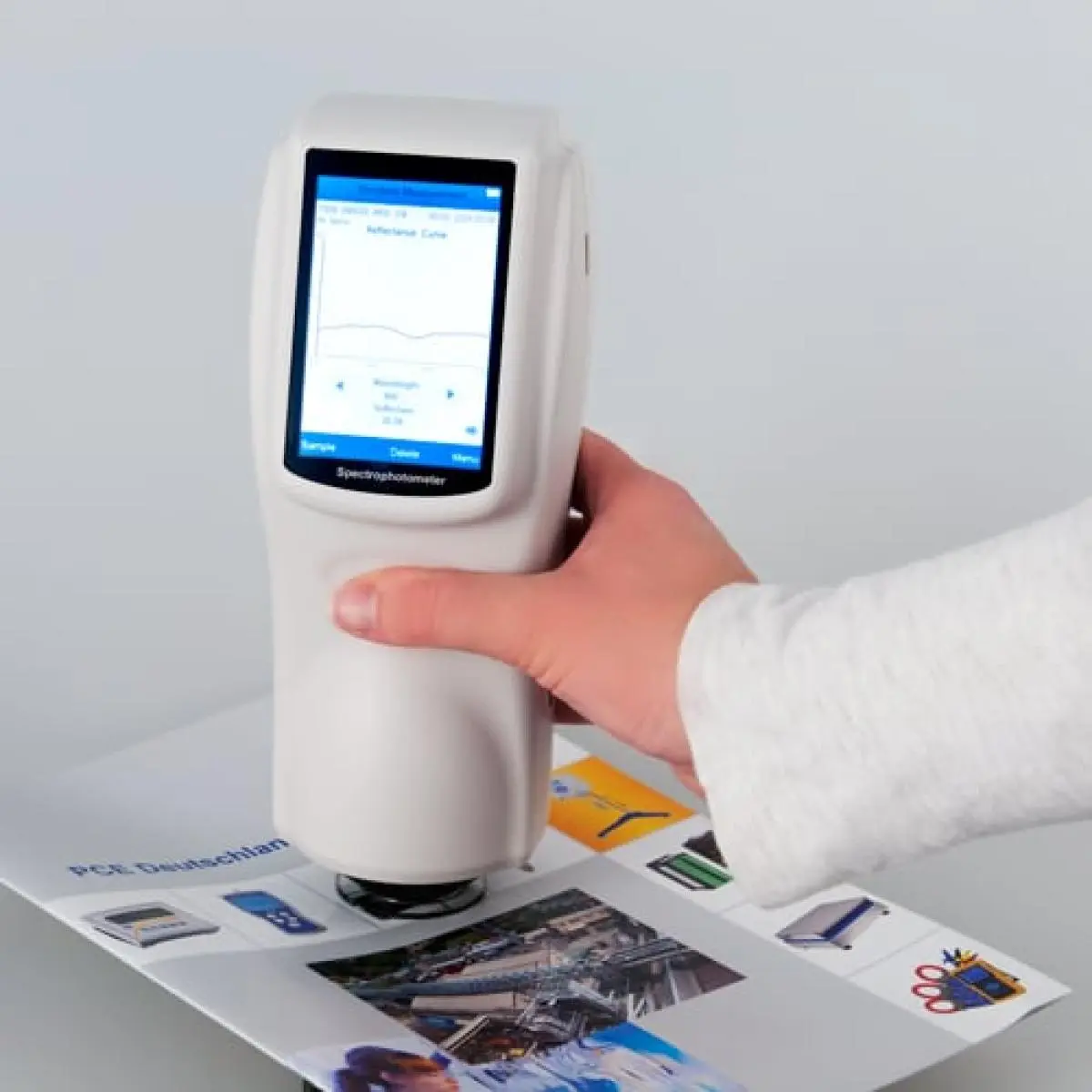

Spectrophotometer Application picture

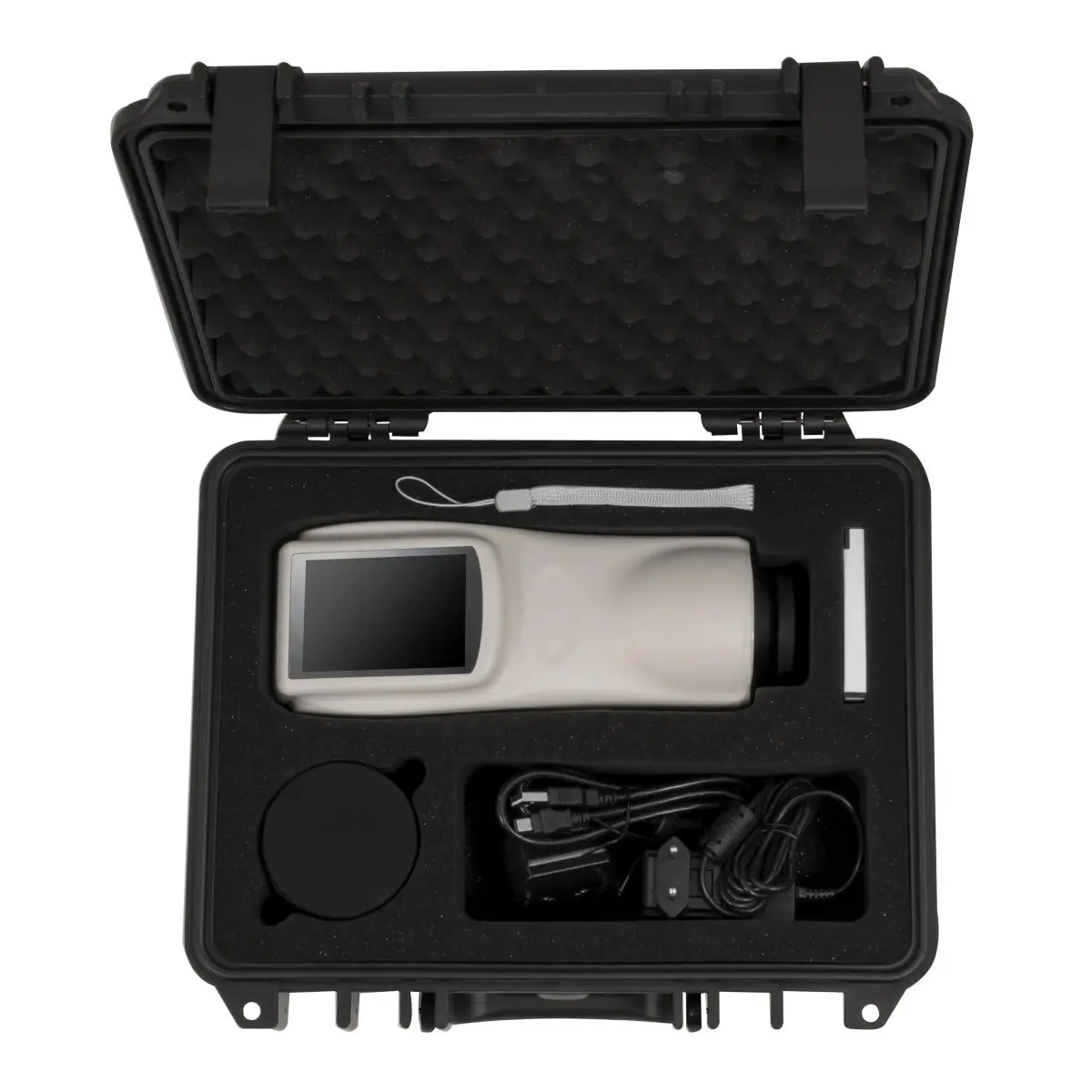

Spectrophotometer Delivery scope

Spectrophotometer PCE-CSM 8

Order no.: PCE-CSM 8
GTIN (EAN): 4250348716521
£ 4,433.00
£ 5,319.60
price ex. (VAT / delivery)
:
4250348716521
PCE-CSM 8
Delivery time:1-2 working days

Accessory

Description

Spectrophotometer PCE-CSM 8 for quality control
PC software included / Li-ion battery / different colour spaces / black and white calibration
determination of reference values and samples / white calibration / 3.5" touch screen

The spectrophotometer PCE-CSM 8 was developed for quality control, offers a high accuracy and comes with a 3.5" touch screen display. When using the spectrophotometer, you can choose between different colour spaces (CIE LAB, XYZ, Yxy, LCh, LUV) and 45/0 optics geometry. After a measurement with the spectrophotometer, the reading can be used as a reference value while other readings can be recorded as a sample and later be compared to the reference value easily.

In addition to the individual colour space coordinates, the deviation between the reading is also displayed. When using the spectrophotometer, it is possible to store up to 1000 reference values and up to 10,000 samples on the device. The measured data can also be transferred to a PC via the USB interface. A special PC software is included in the package.

Highlights

- CIE LAB, XYZ, Yxy, LCh, and LUV
- SCI and SCE (specular excluded)
- 3.5" touch screen display
- 13 light source options
- white and black calibration
- 1000 alphanumeric reference values and up to 10,000 sample values memory
- WI, YI, TI, Mt, Color Stain, Color Fastness, SCI and SCE option (specular
included and excluded)
- Measuring aperture of 8 mm and 45°/0° illumination/viewing angle
- rechargeable lithium-ion battery
- high accuracy with Delta E*ab 0.04
- incl. PC software

Specification

General technical data
Display type  TFT touchscreen
Display size  3,5 Inch
Storage medium  Internal memory
Storage capacity  10000 Values
Memory capacity (additional information)  1000 standard values, 10000 sample values
Interface  Mini-USB
Sensor  Silicon photodiode array
Light source  combined LED
Illuminant: D65, A,C,D50, D55, D75, F2, F6, F7, F8, F10, F11, F12
Measurement time  1,5 s
Colour spaces  CIEL a* b*, XYZ, Yxy, LCh, CIE VUV, HunterLAB
Colour difference  ΔE*ab
ΔE*uv
ΔE*94
ΔE*cmc(2:1)
ΔE*cmc(1:1)
ΔE*00
ΔE(h)
Measuring aperature  Ø 8 mm
Wavelength range  400 ... 700 Nm
Observer  2°, 10°
Calibration  White or black calibration selectable
Menu language  English, Chinese
Protection class (device)  IP20
Power supply  5 V DC, 2 A
Connector type  Device-europlug
(Rechargeable) battery  1 x 3,7 V internal , Lithium-ion battery
Capacity  3200 mAh
Operating conditions  0 ... 40 °C , 0 ... 85 % RH
Storage conditions  -20 ... 50 °C , 0 ... 85 % RH
Dimensions ( L x W x H )  230 x 90 x 77 mm
Weight  600 g

Delivery Scope

1 x Colorimeter PCE-CSM 8
1 x Aluminium carrying case
1 x AC adapter
1 x Lithium-ion battery
1 x Calibration plate (white)
1 x Calibration plate (black)
1 x Protective cover
1 x USB cable
1 x Wrist band
1 x PC software
1 x Instruction manual
