£ 68.00

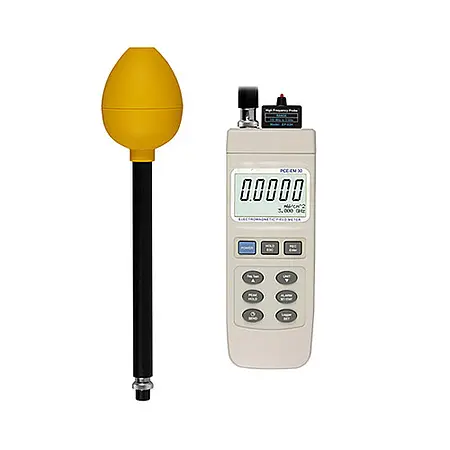

PCE-EM 30 Electromagnetic Radiation Detector
Triple-axis electromagnetic field (EMF) detector with data-logging functionality / Comes with two external sensor probes (for low and high frequency ranges)
PCE-EM 30 is a digital portable 3-axis environmental electromagnetic radiation detector or EMF detector used to measure electromagnetic radiation generated by electronic devices and electric installations. This triple-axis EMF meter provides greater precision than single-axis models as well as affords the ability to assess EMFs from more than one source at a time.
Note: USB data cable Incl. software VT-204-SW required for data transfer to PC - please see accessories tab for details.
| Electric field strength | |
| Measuring range | 0 ... 199,99 V/m |
| Resolution | 0,01 V/m |
| Accuracy | ±2 dB |
| Power flux density | |
| Measuring range | 0 ... 99,999 W/m² |
| Resolution | 0,001 W/m² |
| Accuracy | ±2 dB |
| Power flux density | |
| Measuring range | 0 ... 9,9999 mW/cm² |
| Resolution | 0,0001 mW/cm² |
| Accuracy | ±2 dB |

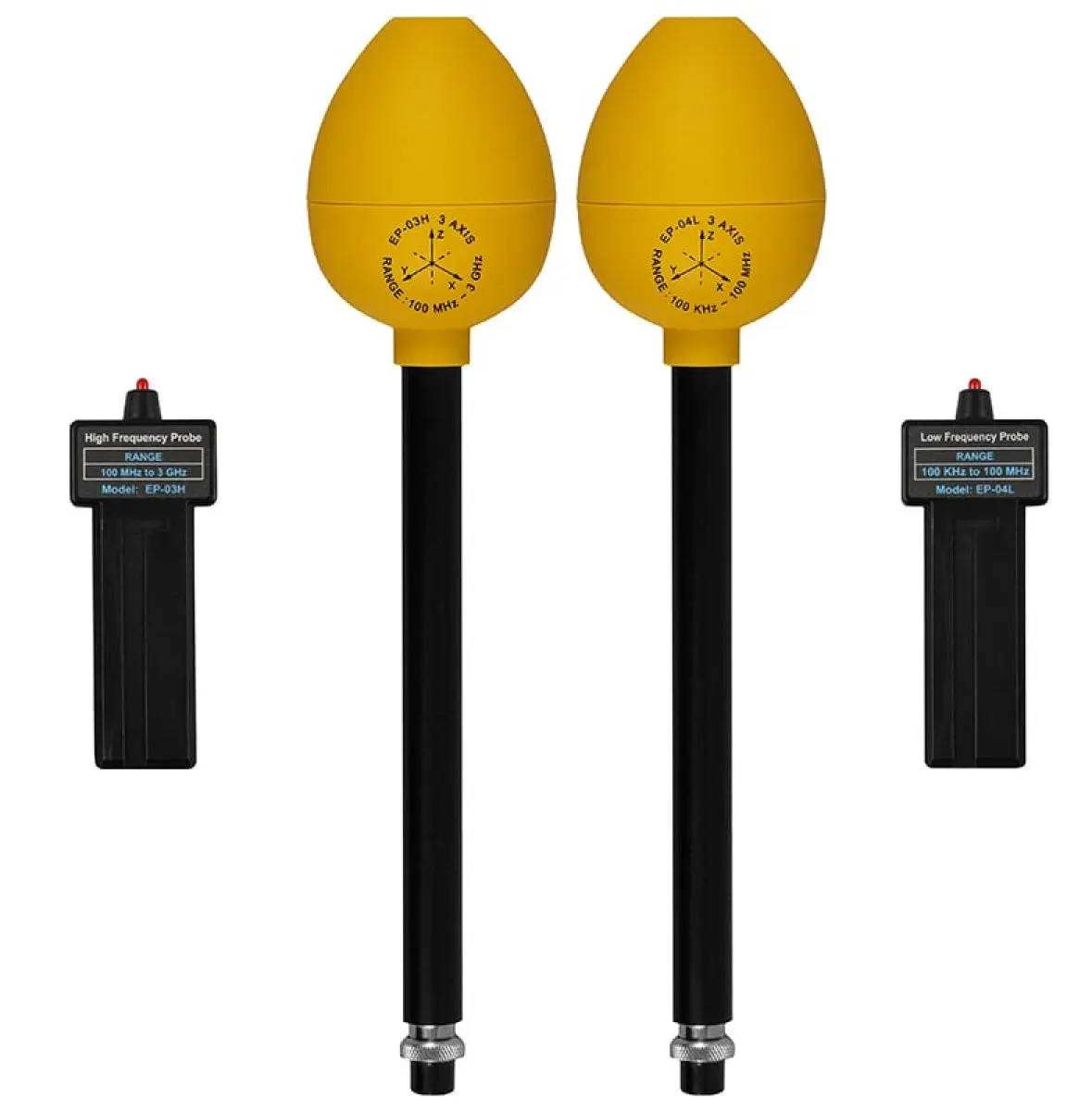

| Sensor | |
| Designation | EP-03H |
| Measuring range | 100 MHz ... 3 GHz |
| Battery type | Semiconductors |
| Additional description | 3-axis probe |
| Dimension | Ø 70 x 240 mm |
| Sensor | |
| Designation | EP-04L |
| Measuring range | 100 kHz ... 100 MHz |
| Battery type | Semiconductors |
| Additional description | 3-axis probe |
| Dimension | Ø 70 x 240 mm |
| General technical data | |
| Measuring functions | MIN, MAX, HOLD |
| Display type | LCD |
| Display size | 2,8 Inch |
| Storage medium | Internal memory |
| Storage capacity | 16000 Values |
| Response time | 1 s |
| Automatic power-off | 10 min |
| Alarm | Acoustic |
| Sensitivity | Lower detection limit: > 1 V/m, > 0.03 W/m² > 0.0003 mW/cm² |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| Power supply | 9 V DC |
| (Rechargeable) battery | 1 x 9 V 9V block , Zinc carbon |
| Capacity | 640 mAh |
| Operating conditions | 0 ... 50 °C , 0 ... 80 % RH |
| Storage conditions | 0 ... 50 °C , 0 ... 80 % RH |
| Dimensions ( L x W x H ) | 200 x 76,2 x 36,8 mm |
| Weight | 523 g |
