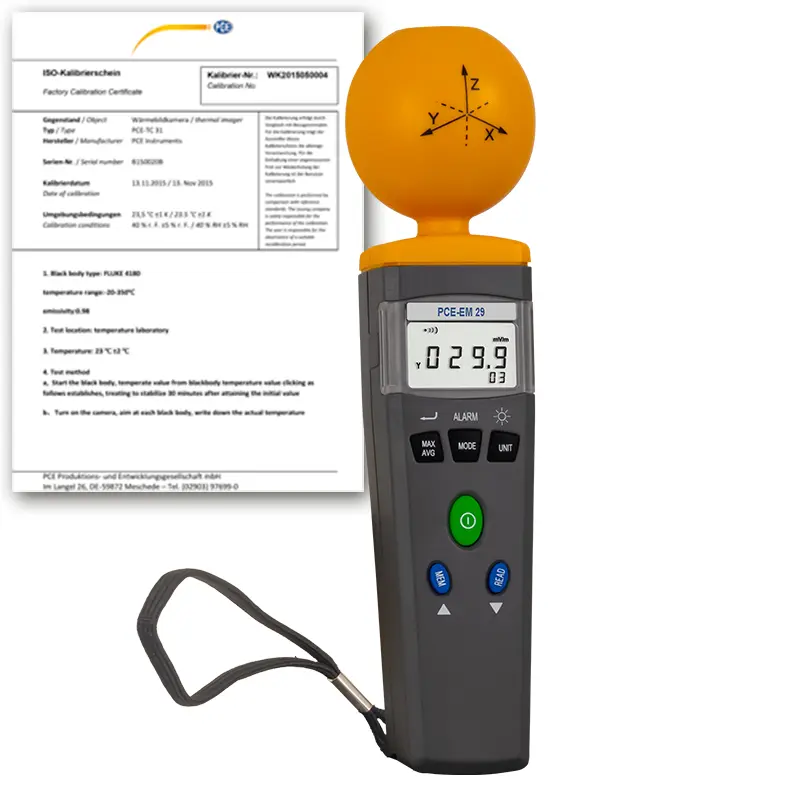

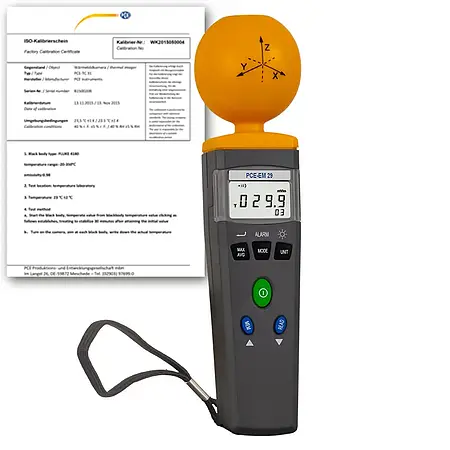

Radiation Detector PCE-EM 29-ICA

Radiation Detector PCE-EM 29-ICA [zoom]
Radiation Detector PCE-EM 29-ICA

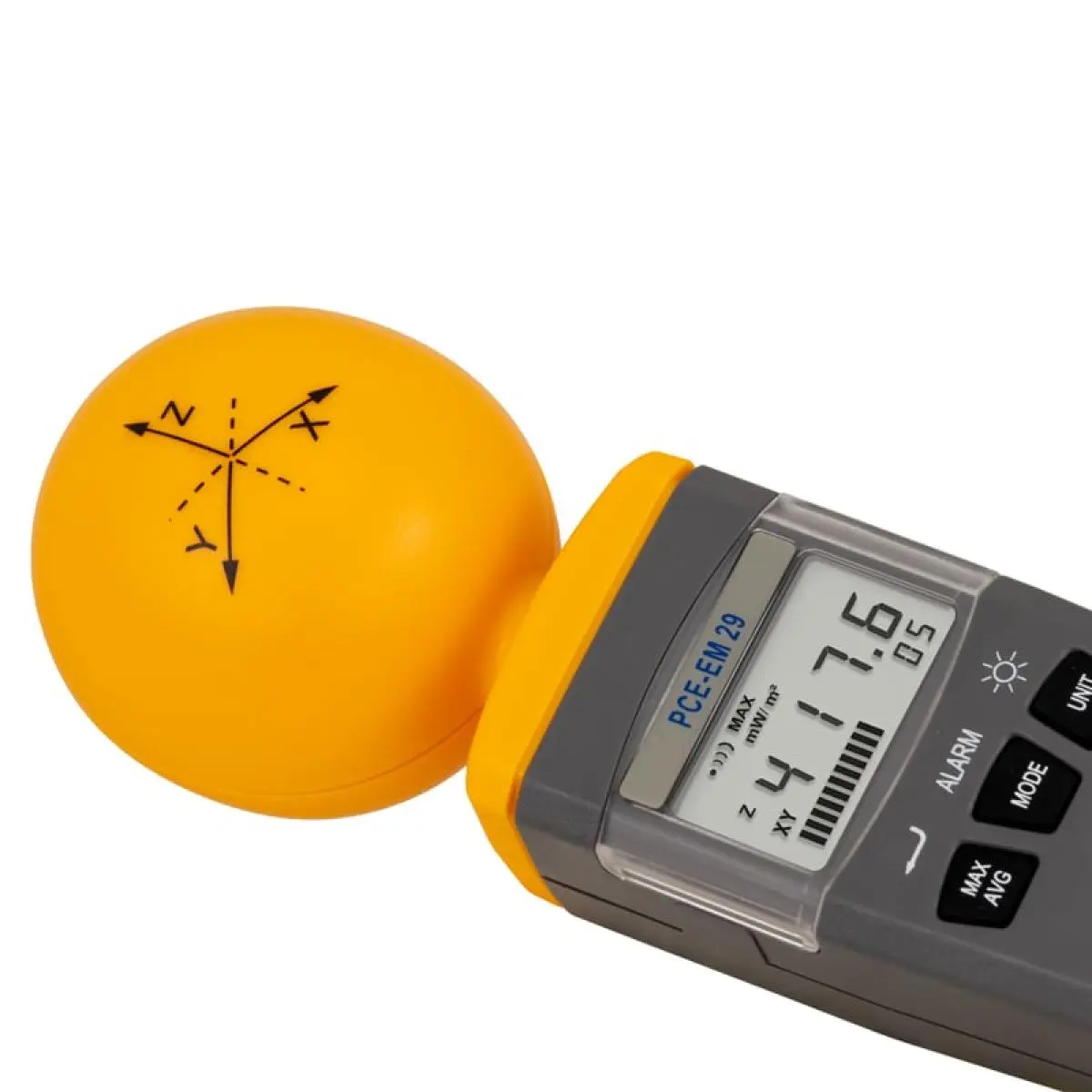

Radiation Detector Sensor
Radiation Detector Rechargeable battery

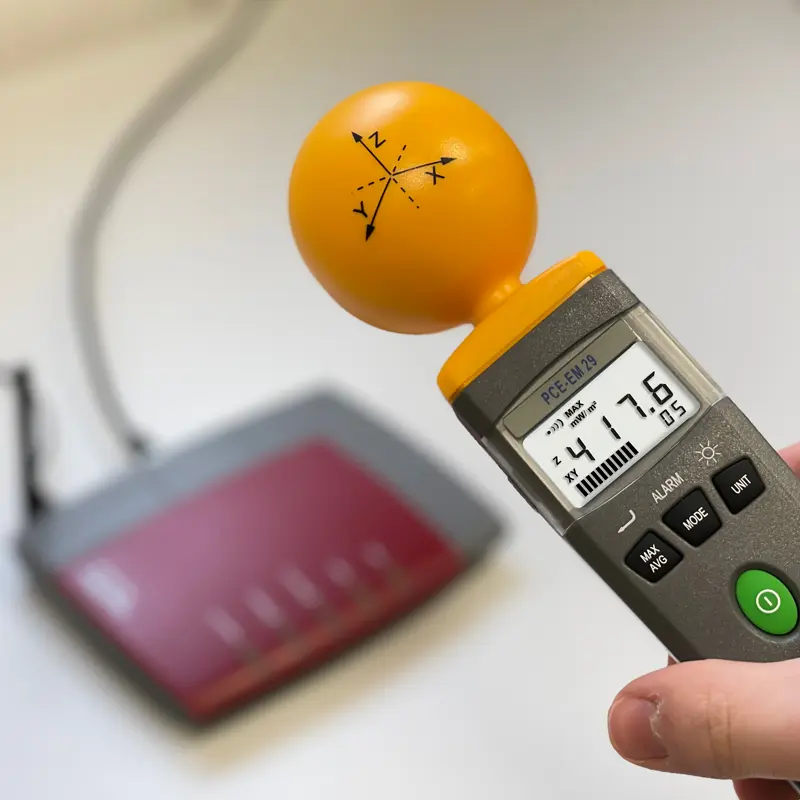

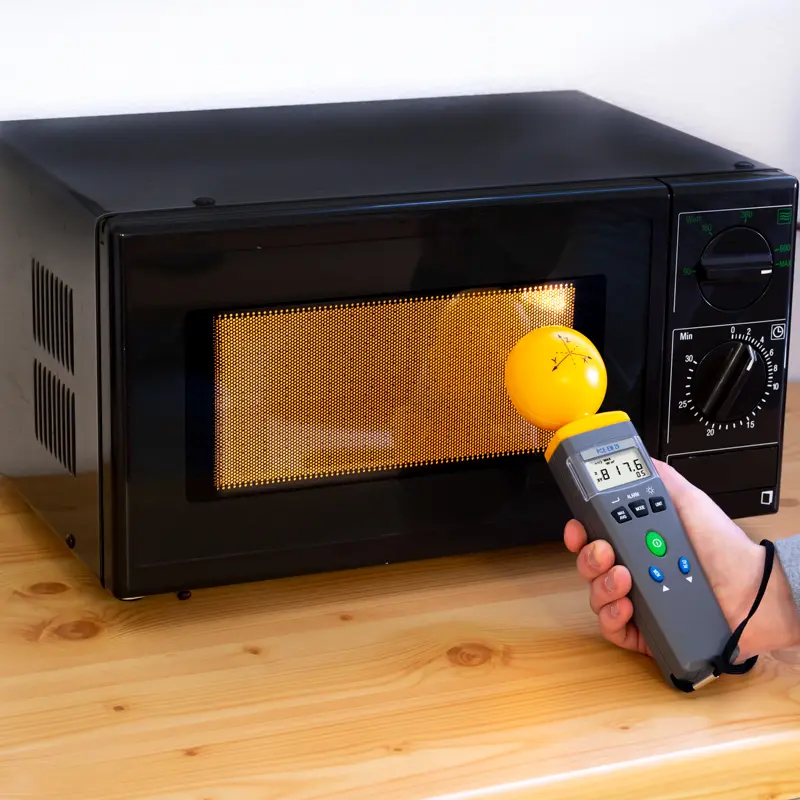

Radiation Detector Application picture
Radiation Detector Application picture

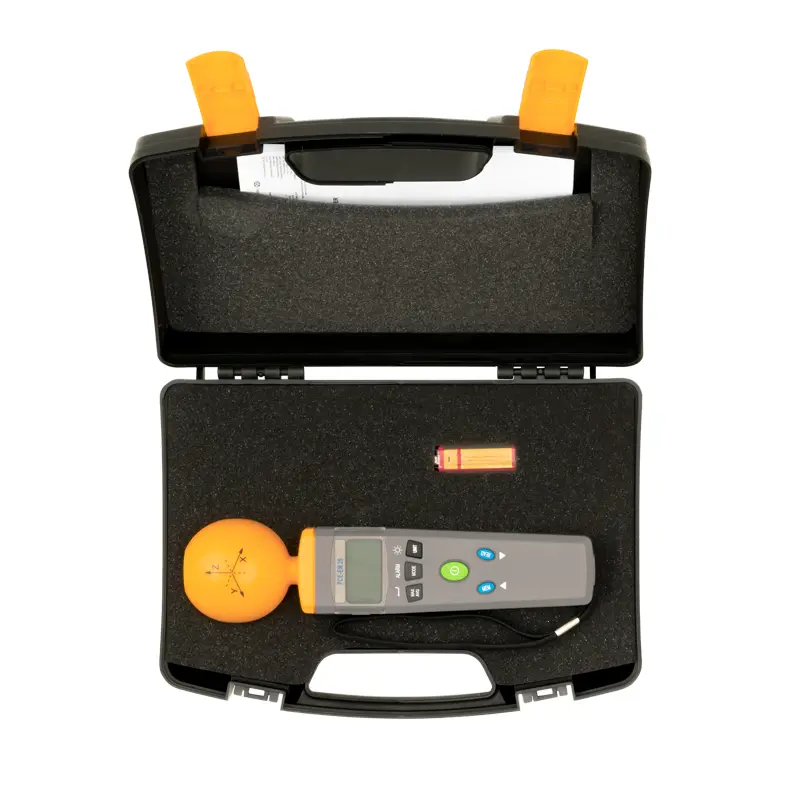

Radiation Detector Delivery scope

Electromagnetic Radiation Detector PCE-EM 29-ICA inc ISO Calibration Certificate

Order no.: PCE-EM 29-ICA
GTIN (EAN): 4250348729880
£ 949.00
£ 1,138.80
price ex. (VAT / delivery)
:
4250348729880
PCE-EM 29-ICA
Delivery time:5-7 working days

Accessory

Description

Electromagnetic Radiation Detector incl. ISO Calibration Certificate
3-axis measuring spherical probe up to 3.5 GHz / Measured value memory /
Maximum value storage / Averaging

The electromagnetic radiation detector has a 3-axis circular probe for detecting electromagnetic radiation. The EMF meter is therefore equally suitable for assessing magnetic fields generated by computer monitors, televisions, industrial equipment (magnetic separators, electric motors, inert gas welding equipment...).

In addition, it is used to detect radiation in the field of wireless LAN, GSM or, for example, microwave radiation. With frequencies up to 3.5 GHz, it can also be used well in the HF range. The three-axis probe saves conversions for the individual axes. Due to its special characteristics, the small, compact radiation measuring device is also suitable for use in industrial environments as well as in the laboratory. Simple, fast and accurate.

Highlights

- Triaxial field probe (spherical shape)
- Average function
- Memory for 99 measured values (can be called up again on the device display)
- Various measuring units
- Adjustable limit value with alarm

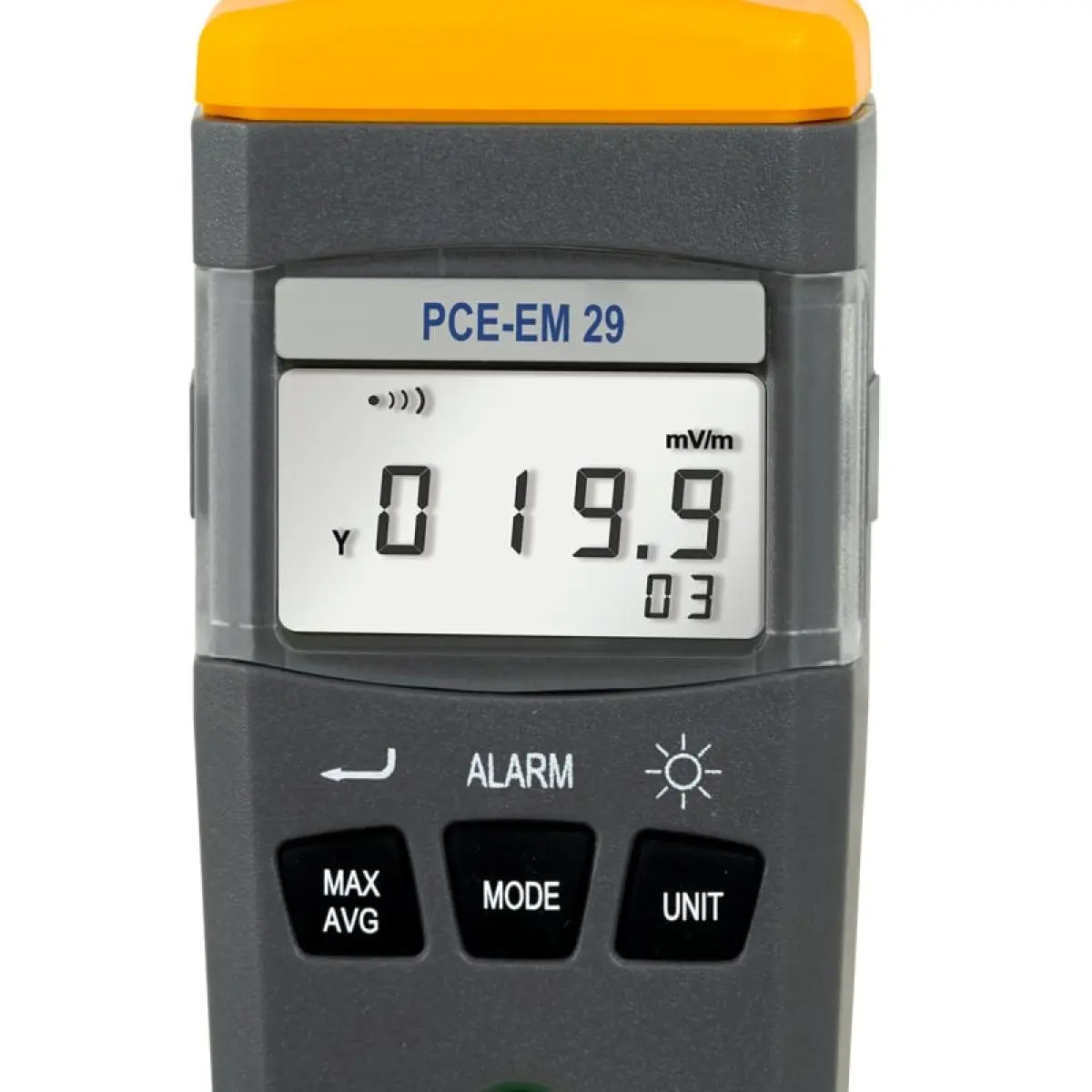

- Large LCD display
- Frequency range up to 3.5 GHz
- Easy handling
- Battery operation
- Suitable for work environment analysis
- incl. ISO-Calibration Certificate

Specification

Electric field strength
Measuring range  20 ... 108 mV/m
Resolution  0,1 mV/m
Accuracy  ±1.0 dB (50 MHz ... 1.9 GHz)
±2.4 dB (1.9 GHz ... 3.5 GHz)
±1.0 dB (for frequency >50 MHz)

Magnetic field strength
Measuring range  53 ... 286,4 µA/m
Resolution  0,1 µA/m
Accuracy  ±1.0 dB (50 MHz ... 1.9 GHz)
±2.4 dB (1.9 GHz ... 3.5 GHz)
±1.0 dB (for frequency >50 MHz)

Power flux density
Measuring range  1 µw/m² ... 30,93 W/m²
Resolution  0,01 µw/m²
Accuracy  ±1.0 dB (50 MHz ... 1.9 GHz)
±2.4 dB (1.9 GHz ... 3.5 GHz)
±1.0 dB (for frequency >50 MHz)

Power flux density
Measuring range  0 µW/cm² ... 3,093 mW/cm²
Resolution  0,01 µw/m²
Accuracy  ±1.0 dB (50 MHz ... 1.9 GHz)
±2.4 dB (1.9 GHz ... 3.5 GHz)
±1.0 dB (for frequency >50 MHz)

General technical data
Measuring functions  AVG, MIN, MAX
Units  mV/m, V/m, µA/m, mA/m, µW/m², mW/m².
Frequency  50 ... 3500 MHz
Display type  LCD
Storage medium  Internal memory
Storage capacity  99 Data records
Sensor  Electric field
Response time  1 s
Response time Additional information  until 90% of the final value is reached
Automatic power-off  15 min
Alarm  optical, Acoustic
Measuring range selection  Automatic
Measurement error  absolute, at 1 V/m and 50 MHz: ±1.0 dB
Isotropic deviation  ±1.0 dB (at frequency >50 MHz)
Maximum overrange  4.2 W/m² (40 V/m)
Temperature-related deviation  ±1.5 dB
Menu language  English, English (GB)
Protection class (device)  IP20
(Rechargeable) battery  1 x 9 V 9V block , Zinc carbon
Capacity  640 mAh
Operating conditions  -10 ... 60 °C , 0 ... 80 % RH
Storage conditions  -10 ... 60 °C , 0 ... 80 % RH
Dimensions ( L x W x H )  237 x 60 x 60 mm
Weight  350 g

Delivery Scope

1 x PCE-EM 29-ICA Radiation Detector
1 x Spherical triaxial sensor
1 x Battery
1 x User manual
1 x Carrying case
1 x ISO-Calibration Certificate
