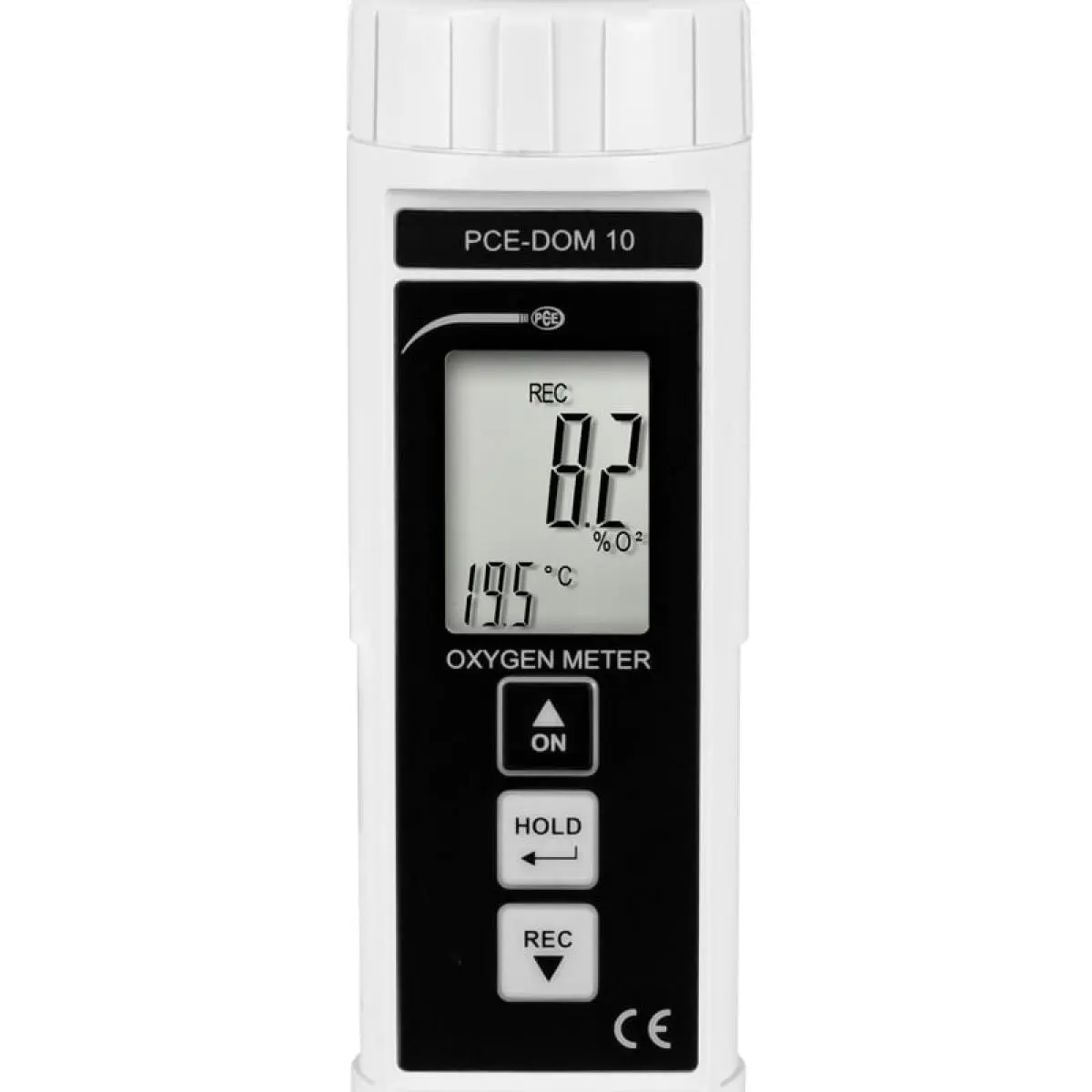

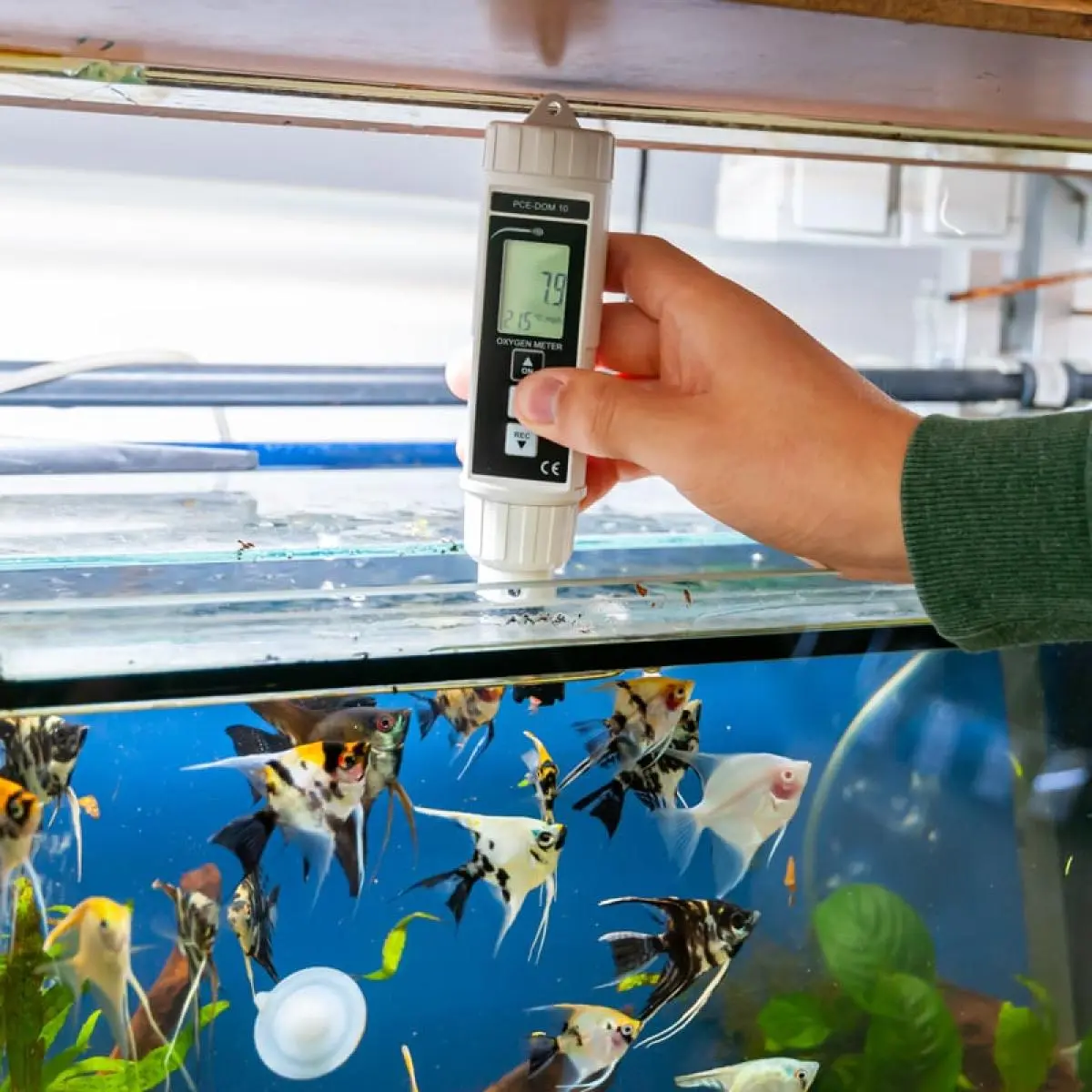

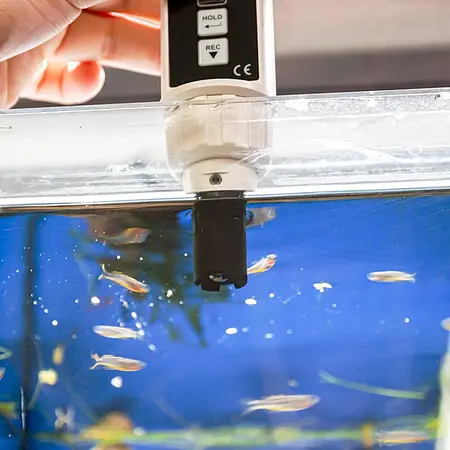

The pH Meter / pH Tester PCE-DOM 10 is a measuring device to determine the oxygen content both in liquids and in the ambient air. With this pH Meter / pH Tester, water analysis can be carried out on the oxygen content in a very short time and, with an integrated temperature sensor, the pH Meter / pH Tester is able to carry out automatic temperature compensation. As a result, the pH Meter / pH Tester is also used for analyzing the oxygen content of lakes or streams, as strong temperature fluctuations can occur here, which falsify the measurement result. This pH Meter / pH Tester is also used, for example, in fish farming.
Before the initial start-up, the sensors on the pH Meter / pH Tester are initially dry. In order to carry out a measurement, the sensors of the pH Meter / pH Tester must be provided with the electrolyte supplied. Even if the membrane is possibly damaged, it can be replaced with the pH Meter / pH Tester in just a few steps. This ensures that the pH Meter / pH Tester is ready for use again within a very short time.
| Oxygen | |
| Measuring range | 0 ... 20 mg/l |
| Resolution | 0,1 mg/l |
| Accuracy | ±0.4 mg/l |
| Oxygen | |
| Measuring range | 0 ... 100 % |
| Resolution | 0,1 % |
| Accuracy | ±0.7% |
| Temperature | |
| Measuring range | 0 ... 50 °C |
| Resolution | 0,1 °C |
| Accuracy | ±0.8 °C |
| Temperature | |
| Measuring range | 32 ... 122 °F |
| Resolution | 0,18 °F |
| Accuracy | ±1.44 °F |
| General technical data | |
| Measuring functions | MIN, MAX, HOLD |
| Temperature compensation | automatic |
| Display type | LCD |
| Display size | 1,6 in |
| Automatic power-off | 15 min |
| Protection class (device) | IP21 |
| (Rechargeable) battery | 4 x 1,5 V AAA battery , Alkali-manganese |
| Capacity | 1200 mAh |
| Operating conditions | 0 ... 50 °C , 0 ... 80 % RH |
| Storage conditions | 0 ... 50 °C , 0 ... 80 % RH |
| Dimensions ( L x W x H ) | 180 x 40 x 40 mm |
| Weight | 176 g |
