Paint Thickness Gauge PCE-TG 150 HT-ICA incl. ISO Calibration Certificate

Order no.: PCE-TG 150 HT-ICA
ISO Calibration

£ 845.00
£ 1,014.00
4250348729620
PCE-TG 150 HT-ICA
price ex. (VAT / delivery)
Delivery time: 10 - 14 days
Paint thickness gauge with data memory / Adjustable speed of sound /
Calibration reference mounted on the housing / Material thickness measurement up to 300 mm /
Limit alarm / Optional ISO calibration certificate

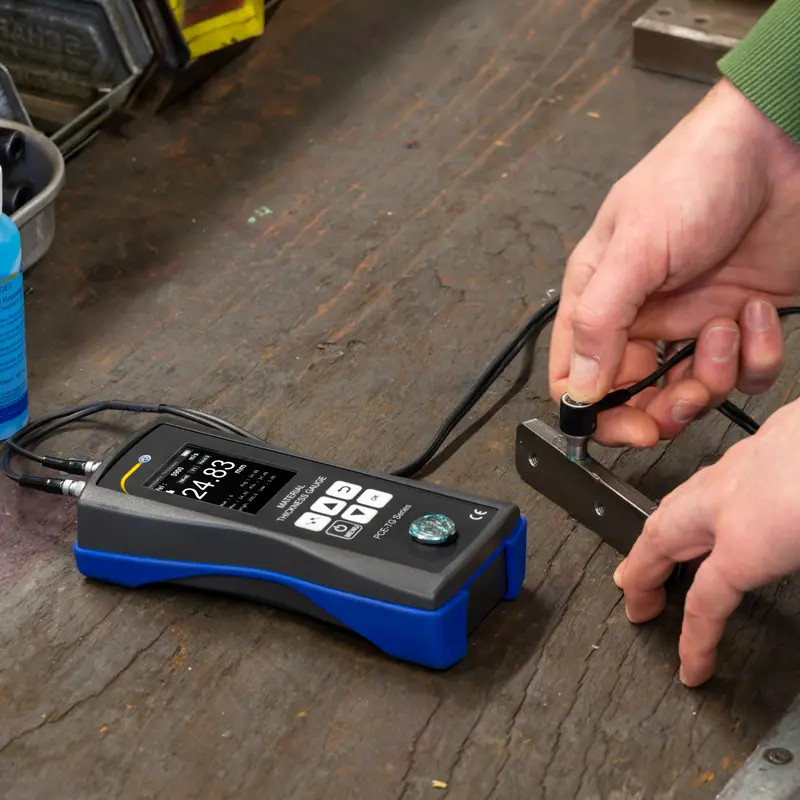

The paint thickness gauge can measure material thicknesses up to 300 mm / 11.81". So that the material thickness of a wide variety of homogeneous materials can be measured, it is possible to store the corresponding speed of sound in the paint thickness gauge. For materials such as steel, aluminum, zinc, silver and gold, the appropriate sound speeds are already stored in the device library. This means that the paint thickness gauge can be used universally.

With the limit value function in the paint thickness gauge, individual maximum and minimum values ​​can be stored. If the measured value of the test piece is outside the limits, the paint thickness gauge signals this visually. If necessary, the signaling can also be done acoustically by the paint thickness gauge in addition to the visual display. This is why the paint thickness gauge is used, for example, in quality assurance and in incoming goods inspections.

The paint thickness gauge has a data memory on which the measured values ​​can be recorded. After a measurement sequence, the stored measurement values ​​can be analyzed directly on the paint thickness gauge. The stored data are graphically displayed by the paint thickness gauge. In addition, each individual measuring point can be approached and read in the graphics of the paint thickness gauge. For a simplified analysis of the measured values, the average, the largest and smallest measured value is displayed on the paint thickness gauge.

- Measured value memory
- Calibration reference on the housing
- Automatic shutdown
- Material thickness measurement up to 300 mm / 11.81"
- Battery status indicator
Measuring range 1.20 ... 300.0 mm  / 0.04 ... 11.81"
Resolution 0.01 mm at ≤99.99 mm
  0.1 mm at ≥100.0 mm
Accuracy ±0.5 % of measured value + 0.05 mm

Storage space 1500 measured values
Standard sensor PCE-TG HT
Temperature range sensor
-10 ... 350 °C / 14 ...  662 °F
Probe frequency 5 MHz
Diameter Ø12mm

Further specifications
Adjustable speed of sound
1000 ... 9999 m/s
Smallest pipe diameter Ø20 x 3 mm (steel)
Material library 15 memory locations
Calibration reference 4 mm
Display 2.4 inch TFT LCD color display
  with brightness adjustment
Power supply 3 x 1.5 V AA batteries
Automatic switch-off switched off, 2, 5, 10, 30 minutes
Ambient conditions 0 ... 40 °C / 32 ... 104 °F, <90 % RH, non-condensing
Dimensions 163 x 82 x 38 mm / 6.4 x 3.2 x 1.5"
Weight 320 g / 11.2 oz

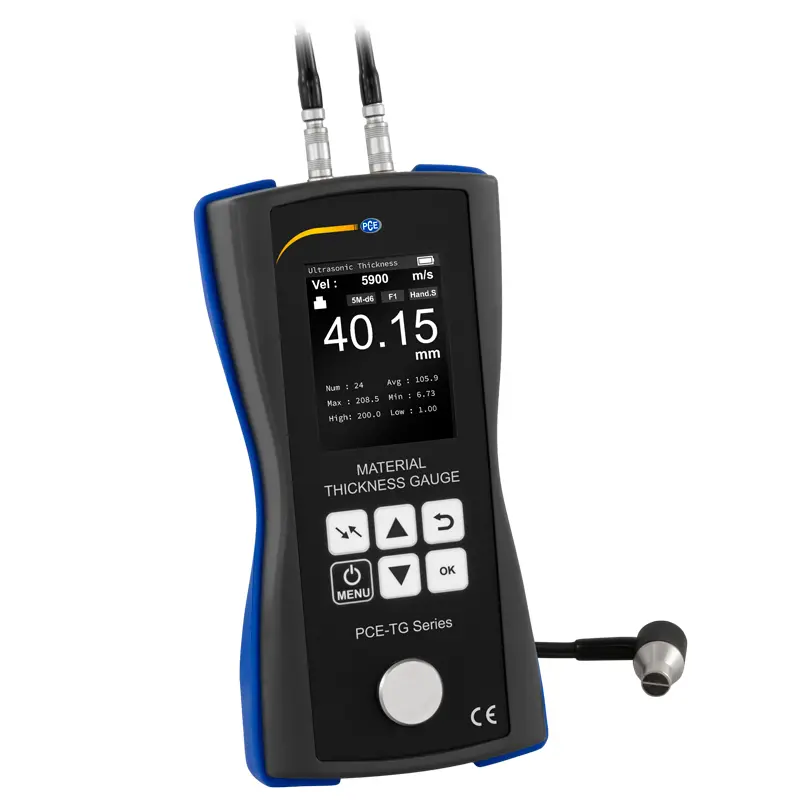

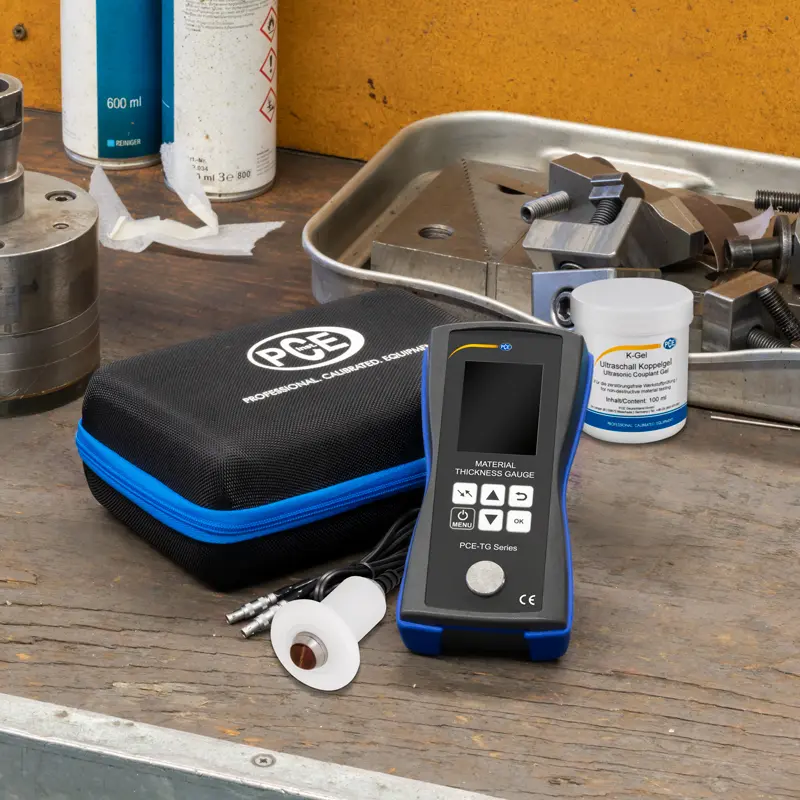

1 x Paint Thickness Gauge PCE-TG 150 HT

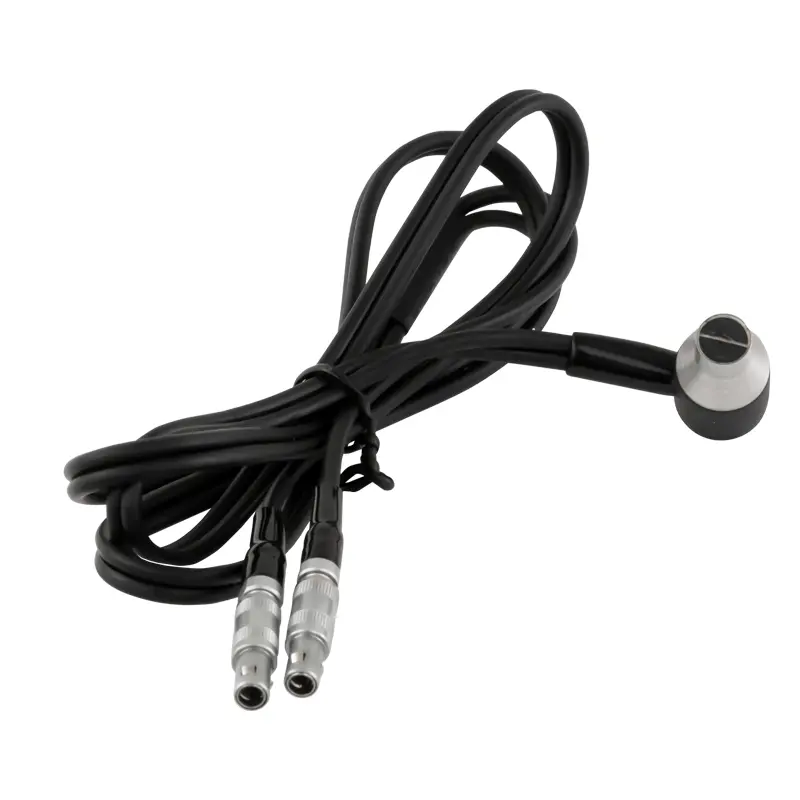

1 x Sensor PCE-TG HT

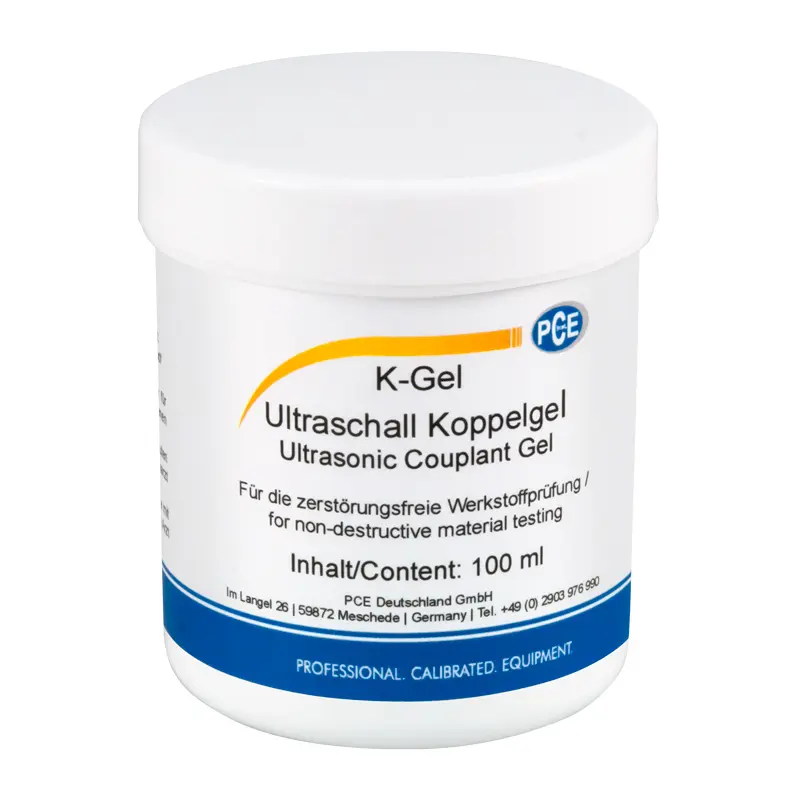

1 x Coupling gel (K-GEL)

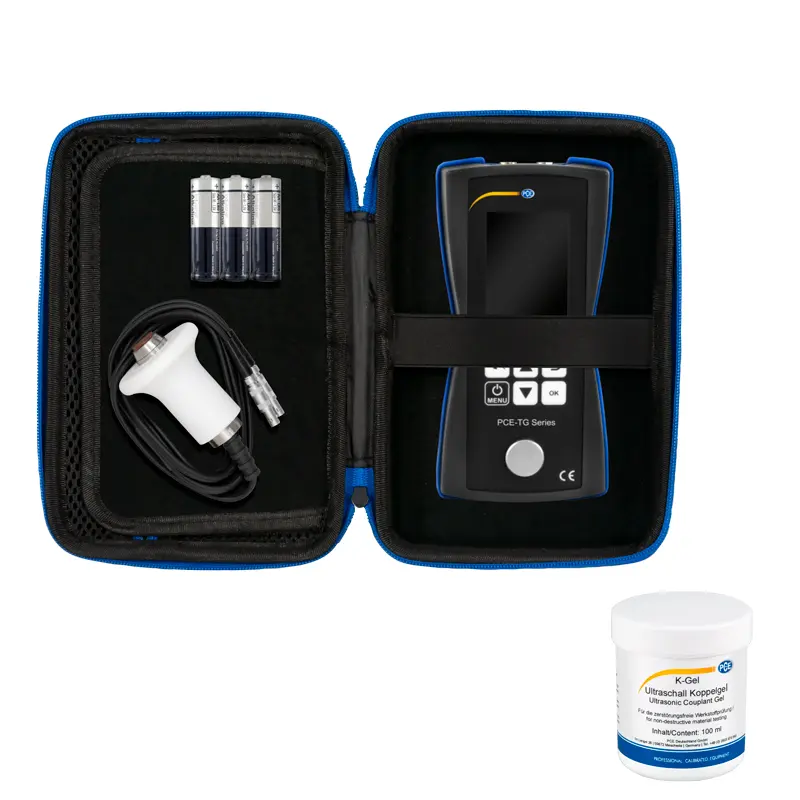

1 x Transport bag
3 x 1.5 V AA batteries
1 x Quick start guide

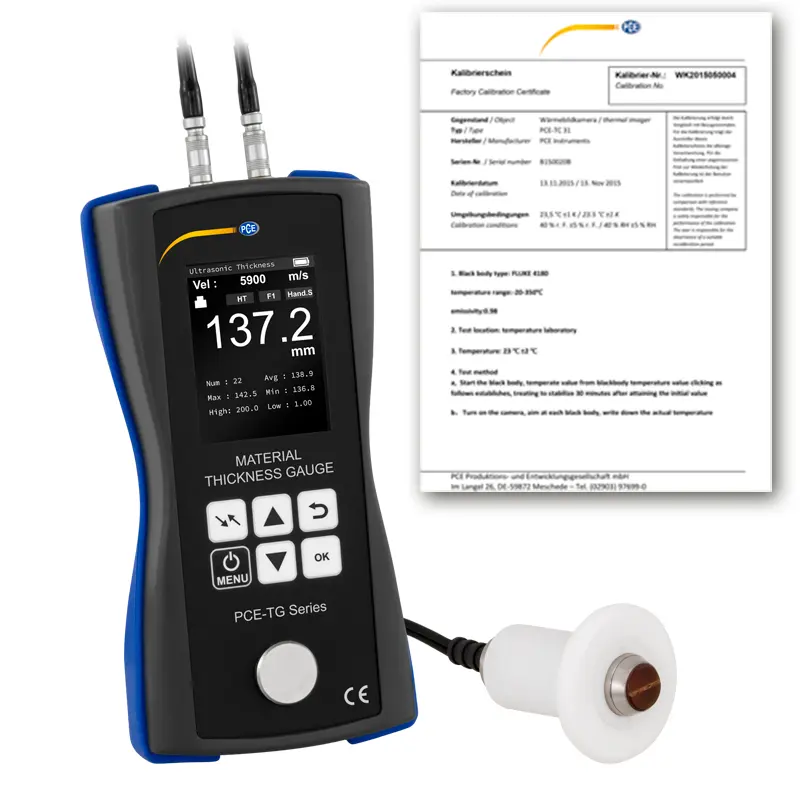

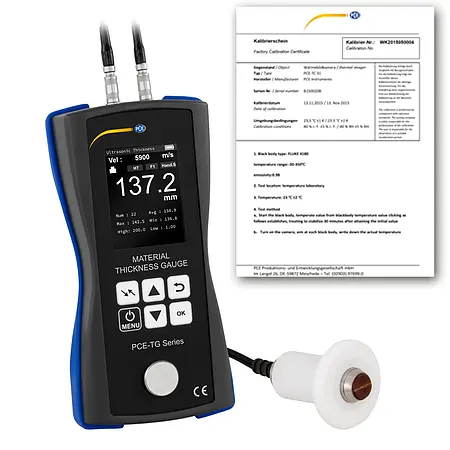

1 x ISO Calibration Certificate


N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
