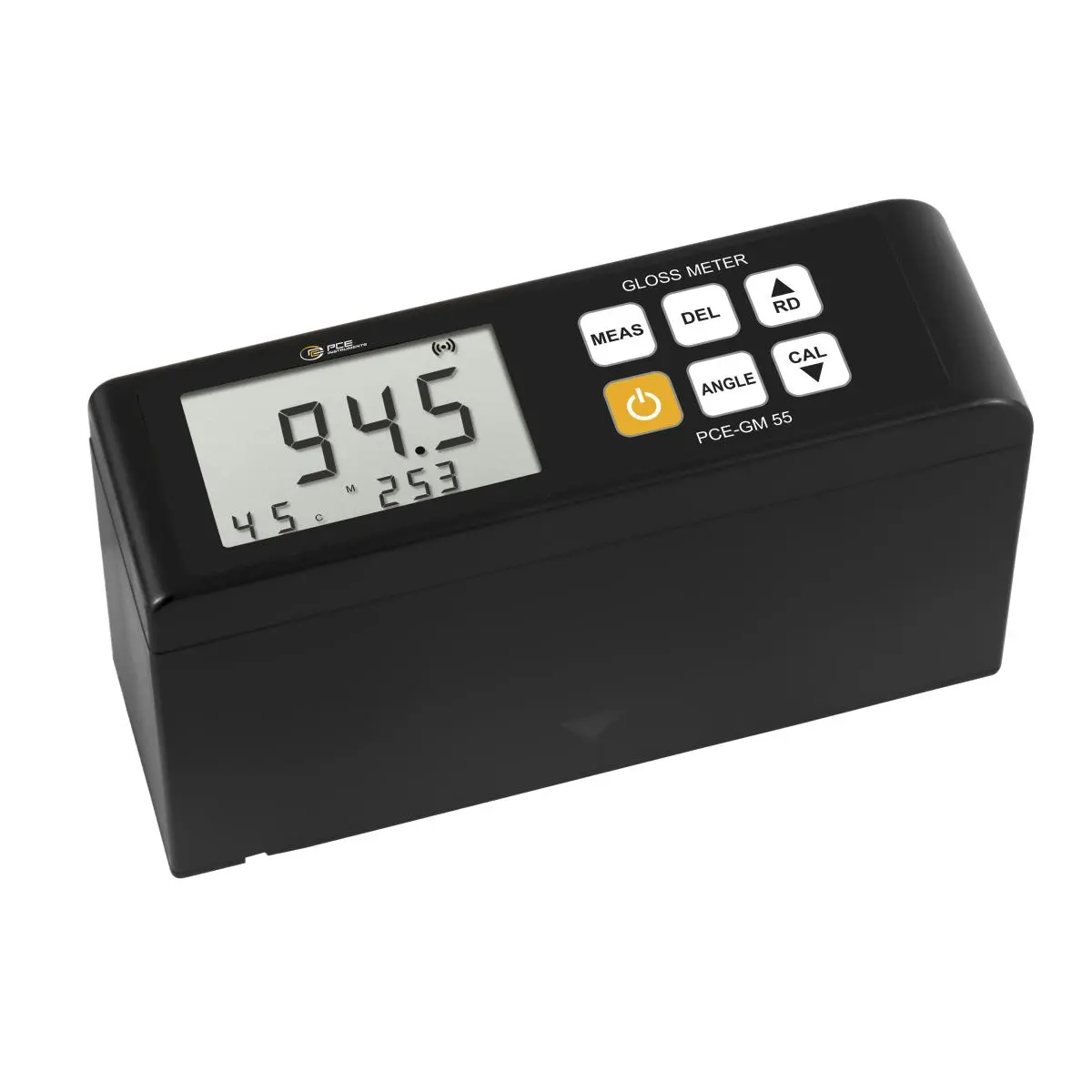

NDT Test Instruments PCE-GM 55

NDT Test Instruments PCE-GM 55 [zoom]

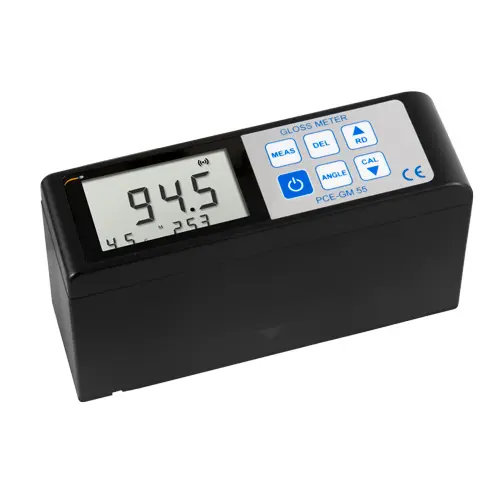

NDT Test Instruments PCE-GM 55

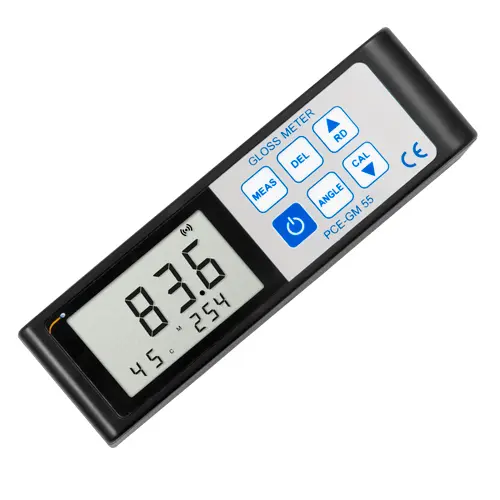

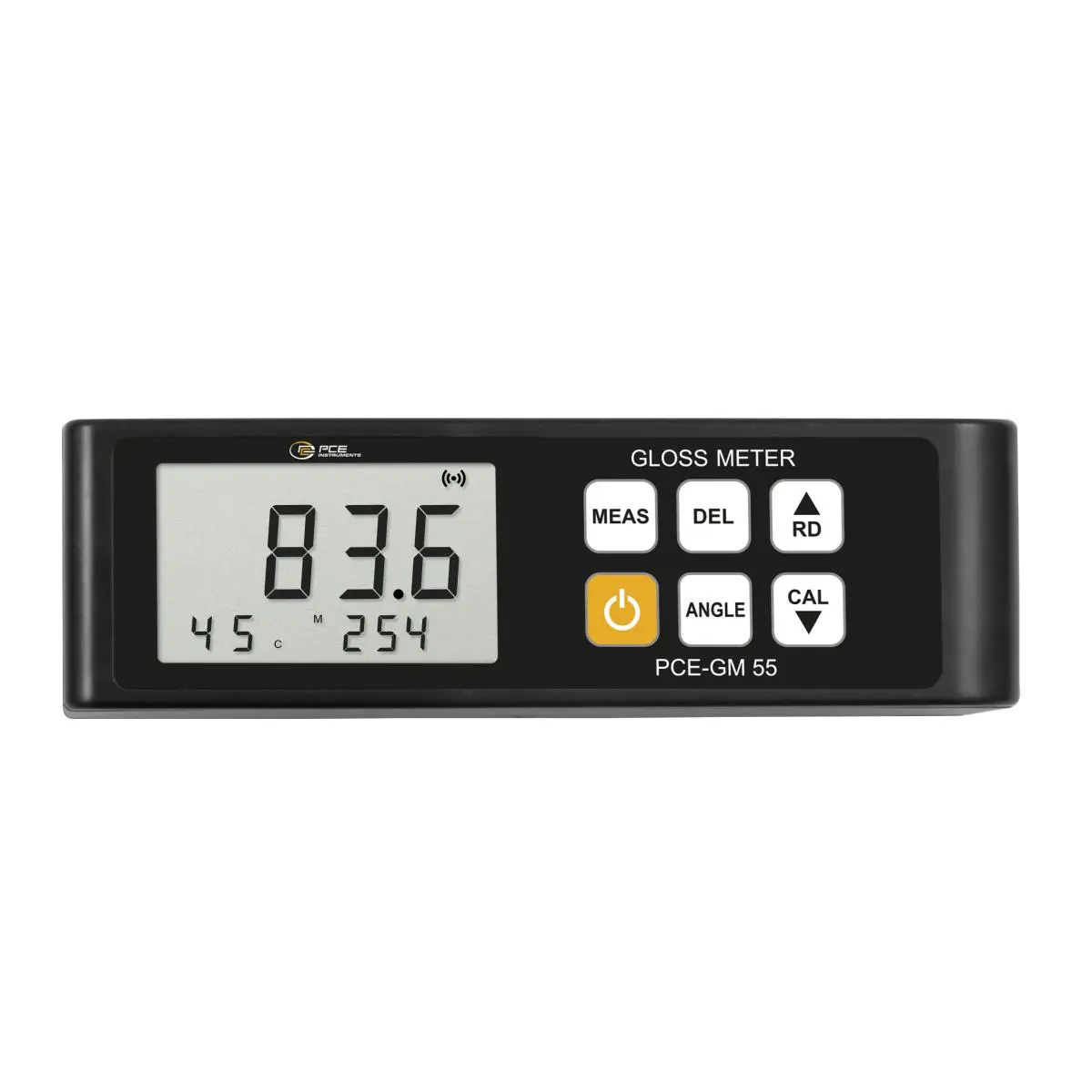

NDT Test Instruments Frontal

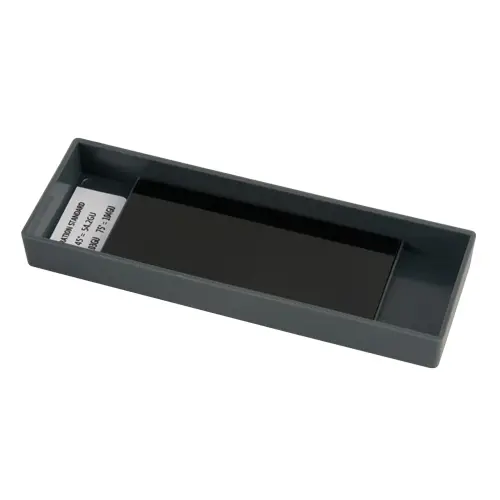

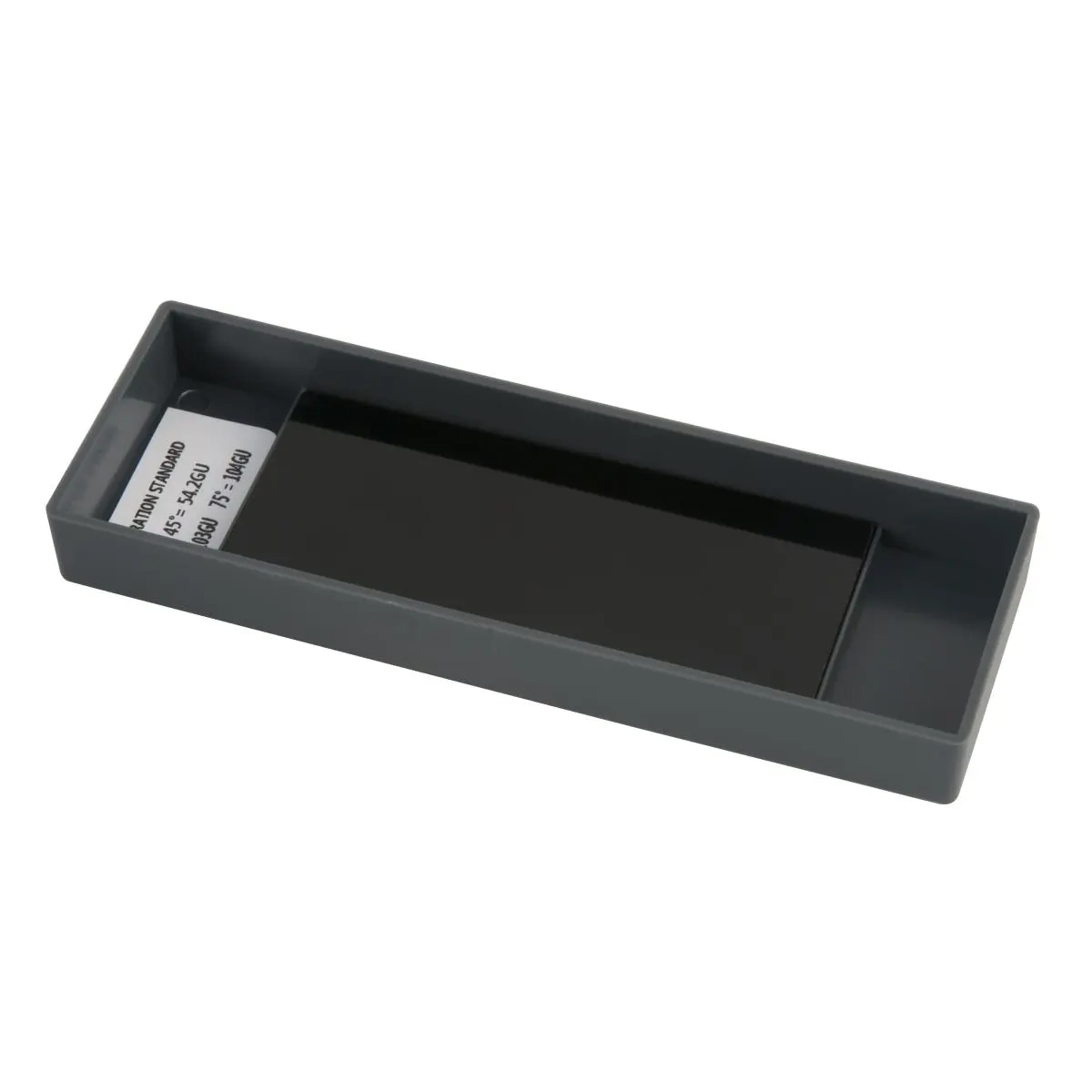

NDT Test Instruments Calibration standard

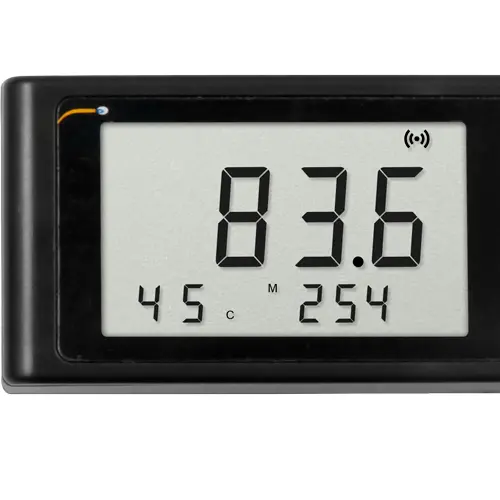

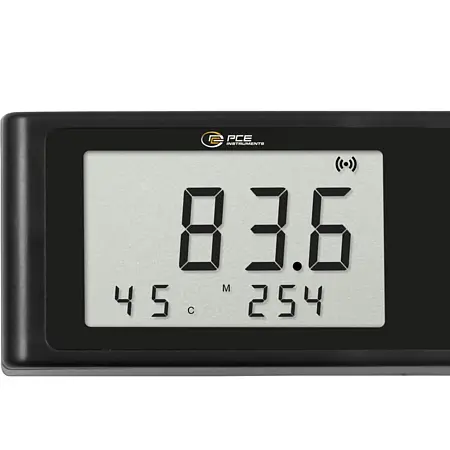

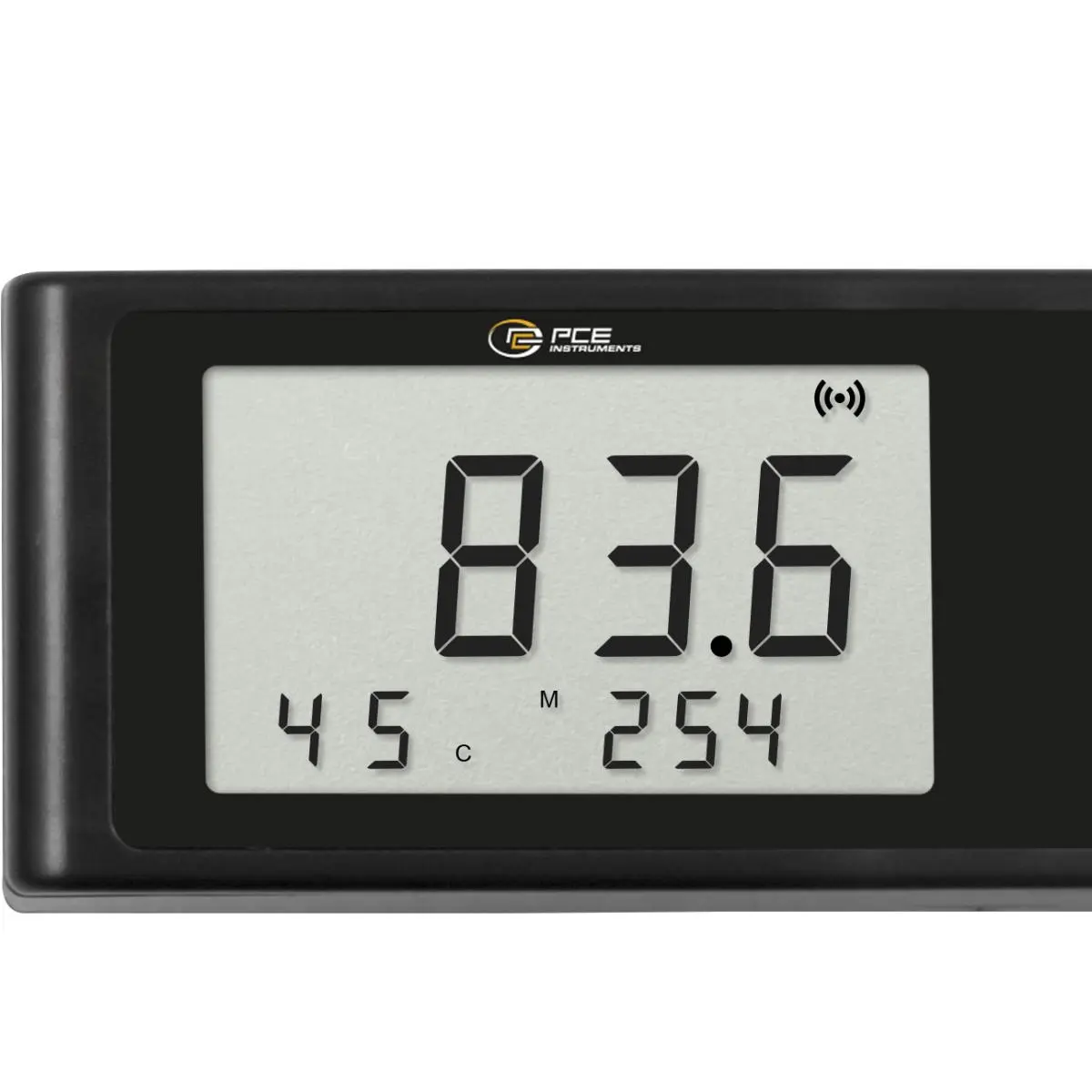

NDT Test Instruments Display

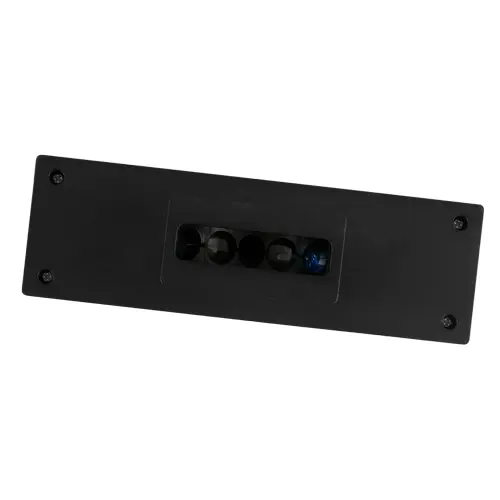

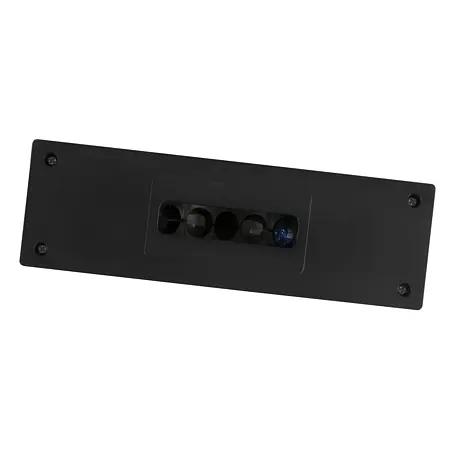

NDT Test Instruments Sensor

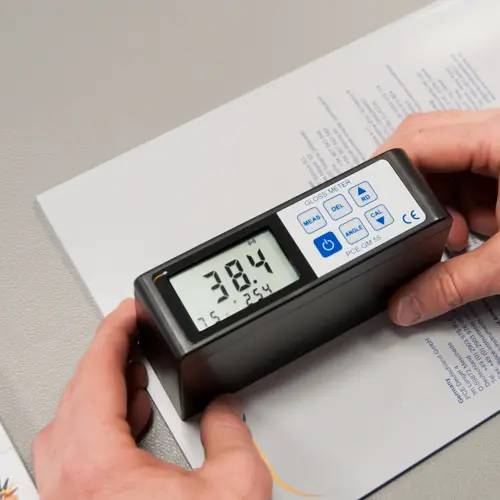

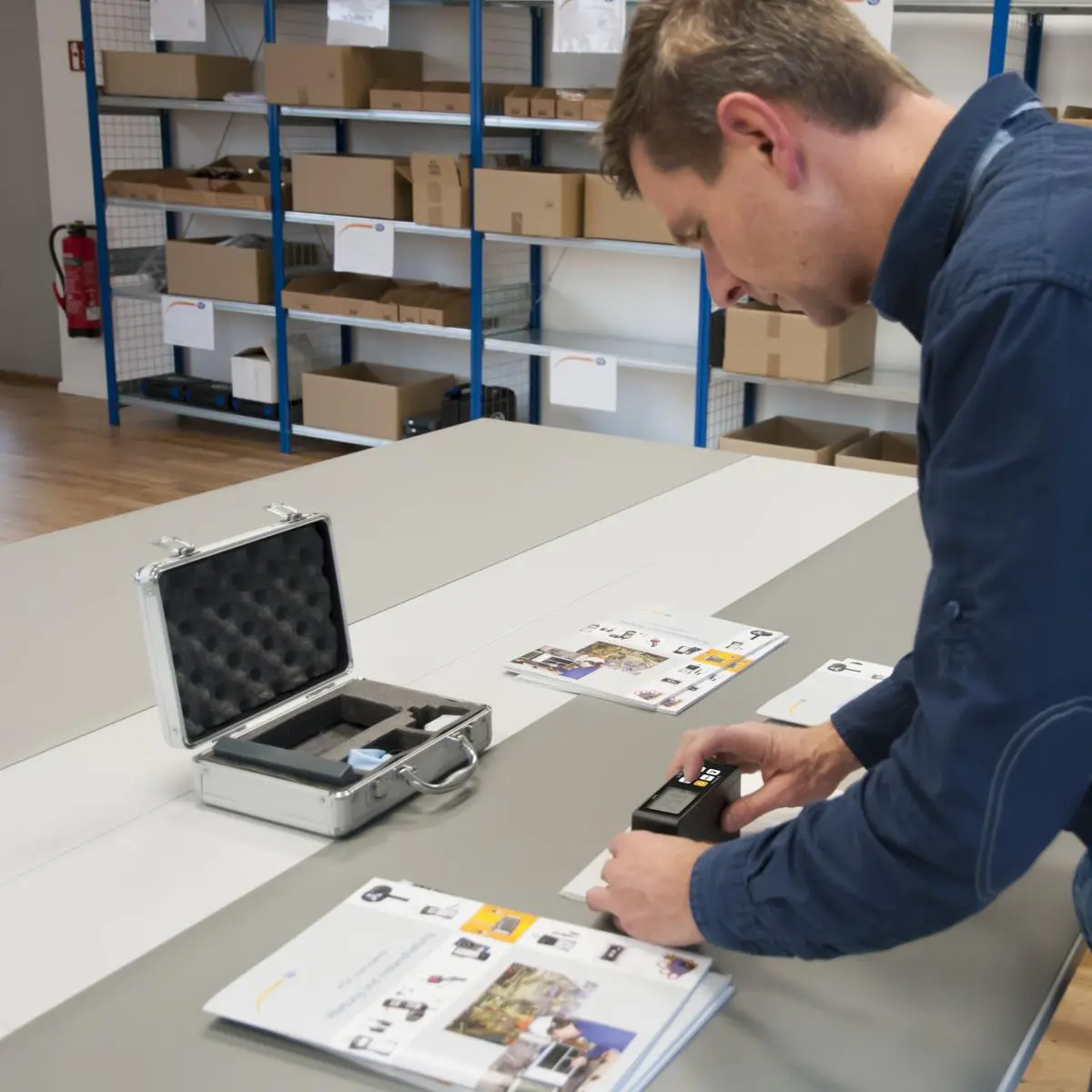

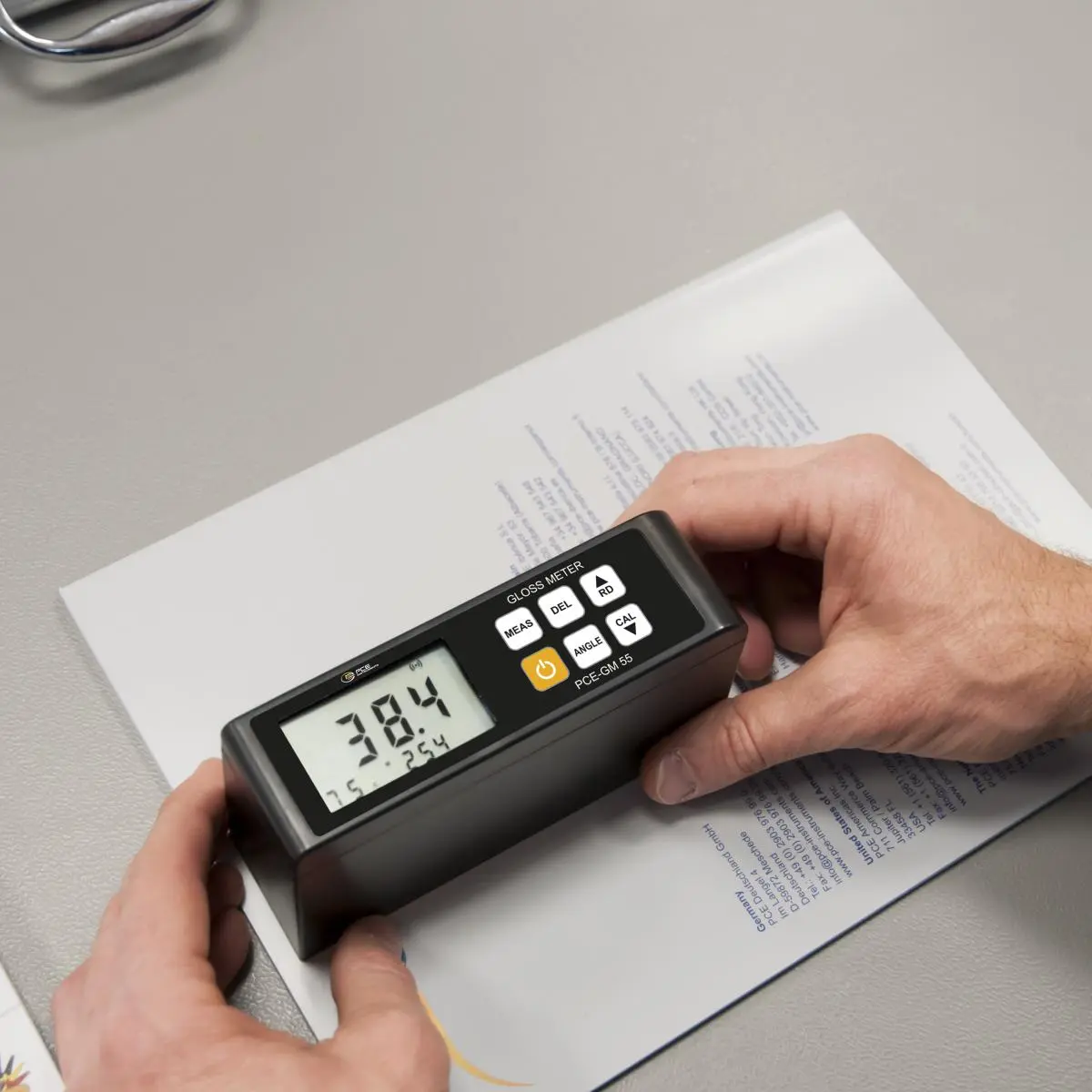

NDT Test Instruments Application picture

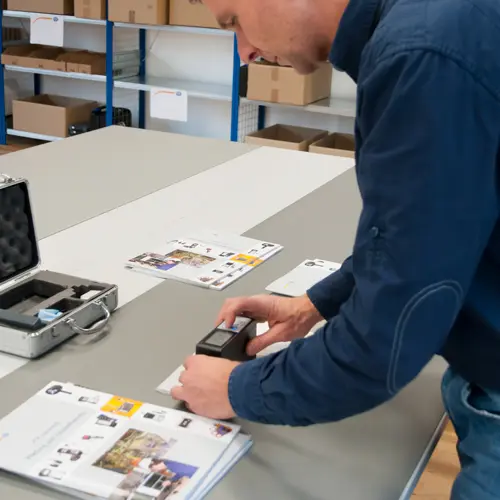

NDT Test Instruments Application picture

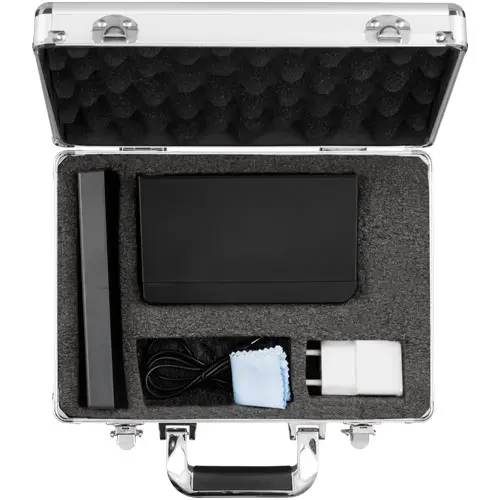

NDT Test Instruments Delivery scope

NDT Tester PCE-GM 55

Order no.: PCE-GM 55
GTIN (EAN): 4250348718600
£ 890.00
£ 1,068.00
price ex. (VAT / delivery)
:
4250348718600
PCE-GM 55
Delivery time:1-2 working days

Description

NDT Tester PCE-GM 55
Gloss meter with three measuring angles / 20°, 45° and 75° / For medium and high gloss / Interface and software / Li-ion battery

The NDT tester PCE-GM 55 is a 3-angle gloss meter. The measuring angles of the gloss meter are 20°, 45° and 75°. This allows the NDT tester to be used for gloss measurements in the high gloss and medium gloss ranges. The special measuring angle of 75° allows, among other things, measurements of the degree of gloss on paper and textiles. The NDT tester is based on the ASTM, DIN and EN ISO standards. The measuring range of the gloss meter ranges from 0 ... 200 gloss units.

The measurement of the gloss level with the NDT tester is made by the reflection of light from the surface to be measured. The gloss level is continuously measured and simultaneously displayed on the LC display of the NDT tester. Via the integrated interface, the measured values ​​can be transferred from the gloss meter to a PC. To power a Li-Ion battery is used. This can be charged via a 5V power supply.

Highlights

- 20°, 45° and 75° measurement angle
- Measuring range up to 200 gloss units
- LC display
- Serial interface
- For medium and high gloss
- Measurement on textiles and paper possible

Specification

Gloss
Measuring range  0 ... 200 GU
Resolution  0,1 GU
Accuracy  ±1 gloss units (on reference standard)

General technical data
Repeat accuracy  ±0.5 gloss units (0 ... 99.9 GE)
Display type  LCD
Display size  2,2 Inch
Storage medium  Internal memory
Storage capacity  254 Values
Interface  RS232
Measuring surface additional information  7 x 14 mm (elliptical)
Measuring geometry  20°, 45°, 75°
Protection class (device)  IP20
Power supply  100 ... 240V AC | 50 ... 60 Hz
Connector type  Device-europlug
(Rechargeable) battery  1 x 3,7 V ZY523450 , Lithium-ion battery
Capacity  1000 mAh
Operating conditions  0 ... 40 °C , 0 ... 85 % RH
Storage conditions  0 ... 40 °C , 0 ... 85 % RH
Dimensions ( L x W x H )  140 x 45 x 75 mm
Weight  305 g

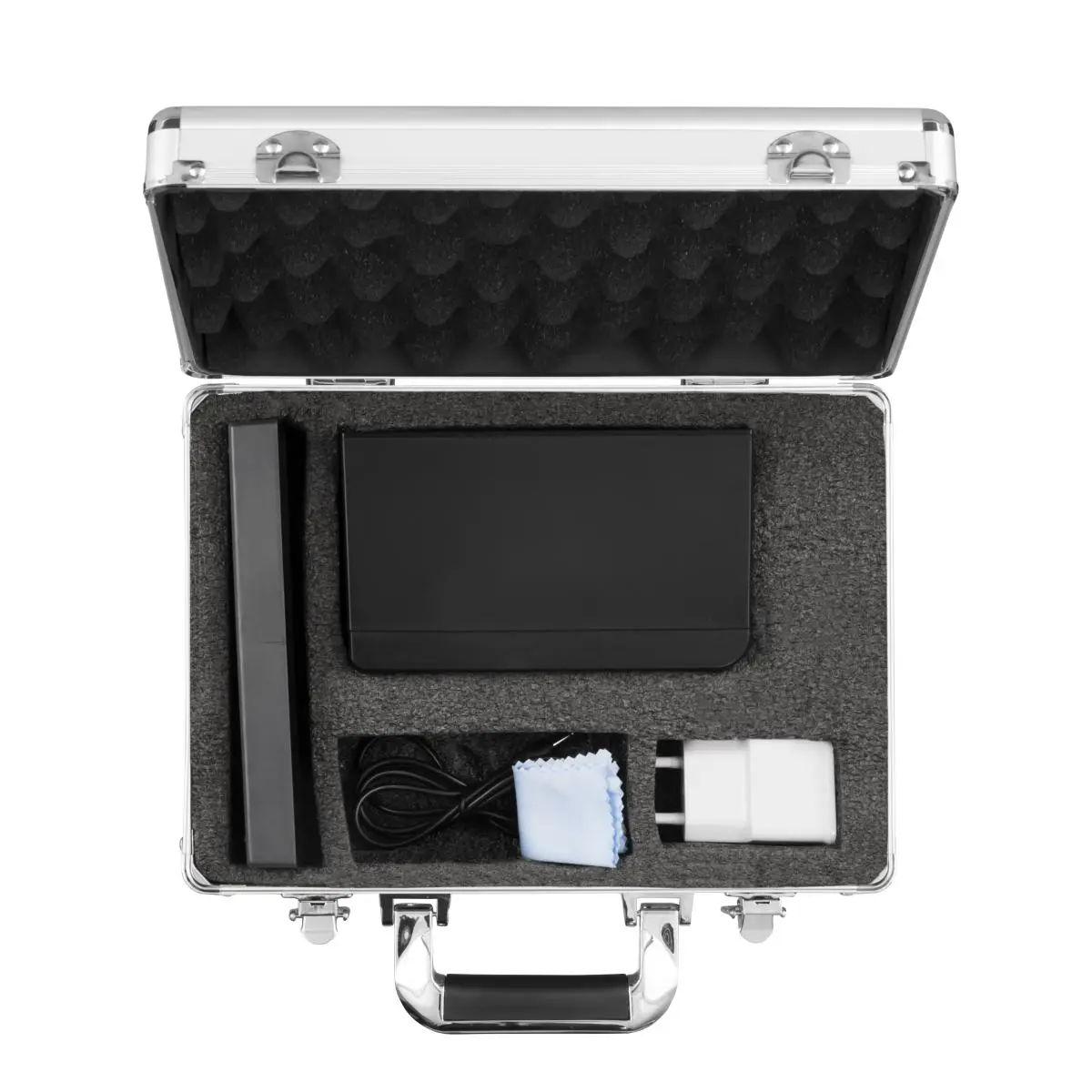

Delivery Scope

1 x Glossmeter PCE-GM 55
1 x Reference standard
1 x Cleaning cloth
1 x Carrying case
1 x User manual
