Order no.: PCE-2900

NDT Tester Instruments PCE-2900

Question / Callback

Delivery time: 1-2 working days

Description

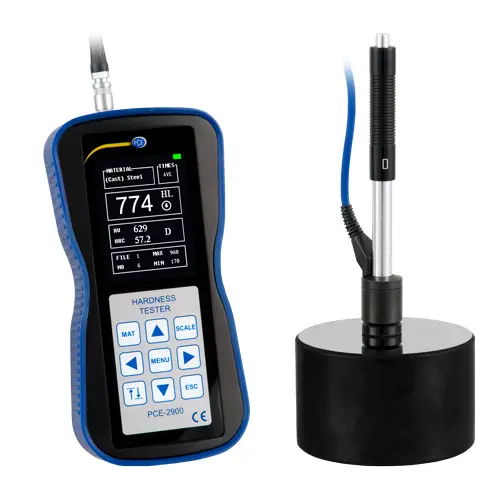

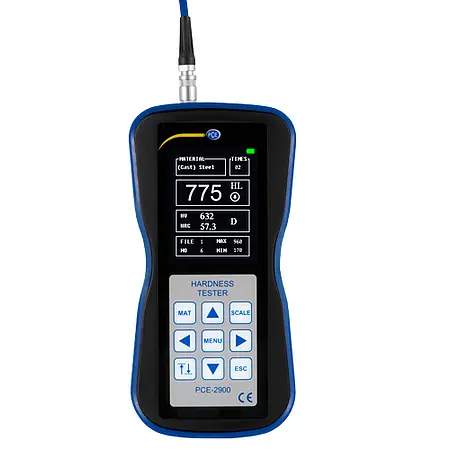

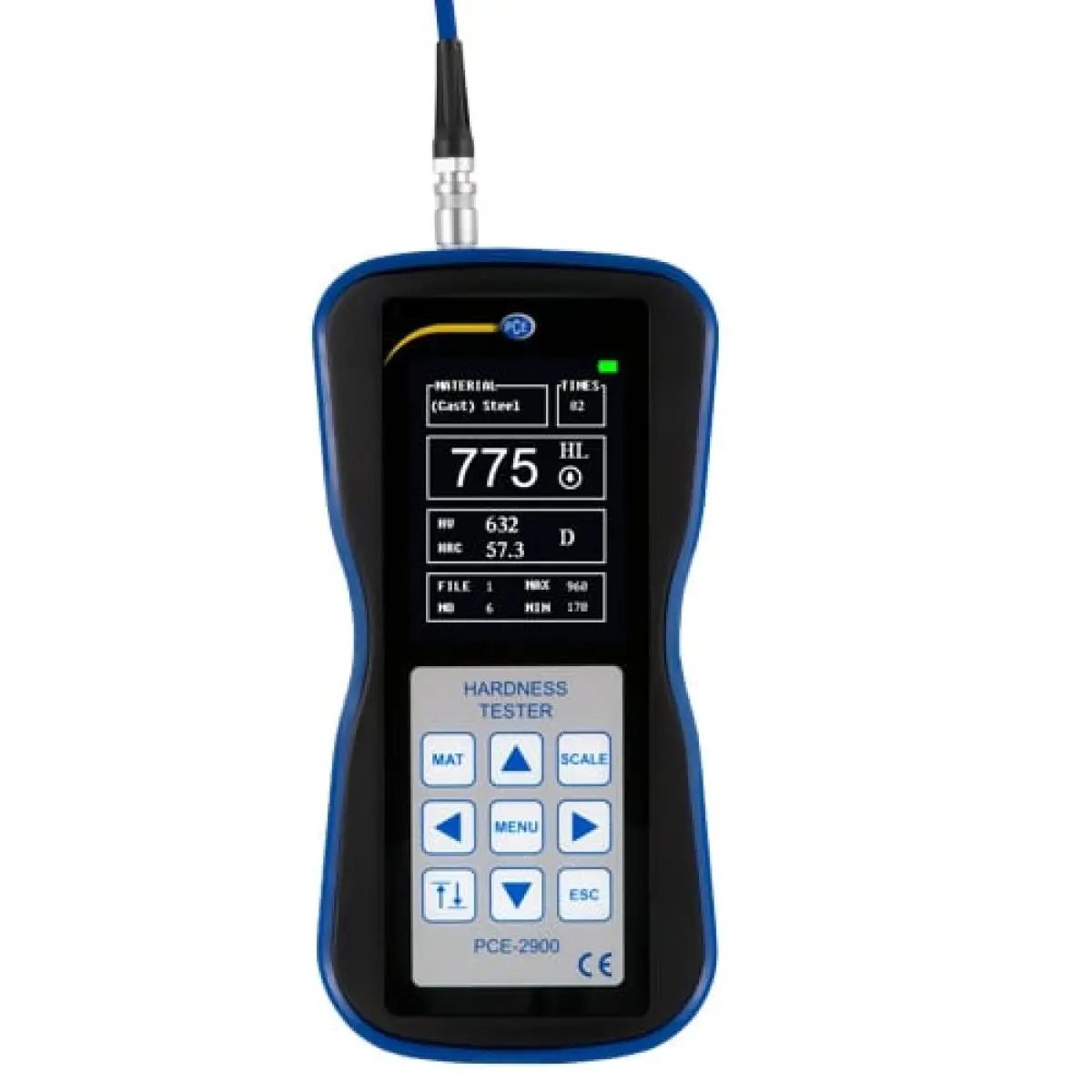

Hardness Tester PCE-2900

Modern, dynamic hardness tester with colour display / Memory / For metallic materials with hardness scales such as Vickers, Rockwell, Brinell, Leeb, Shore and Tensile

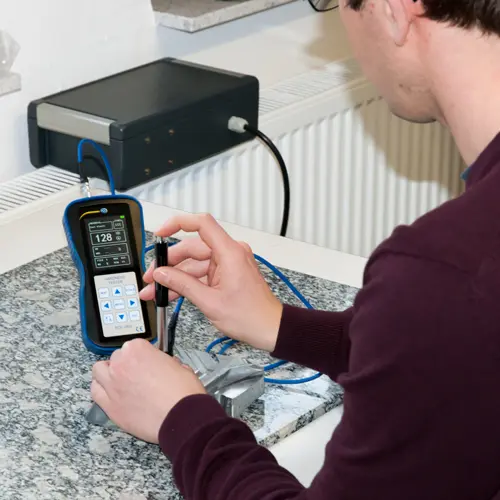

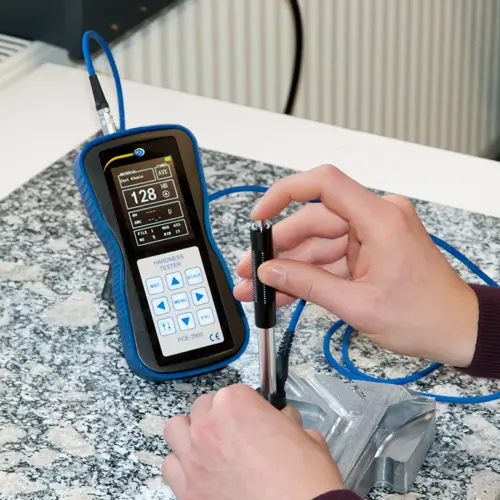

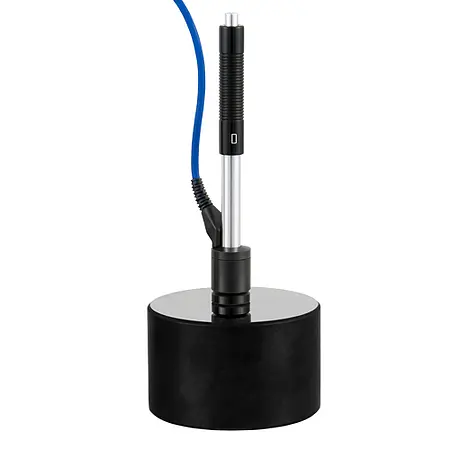

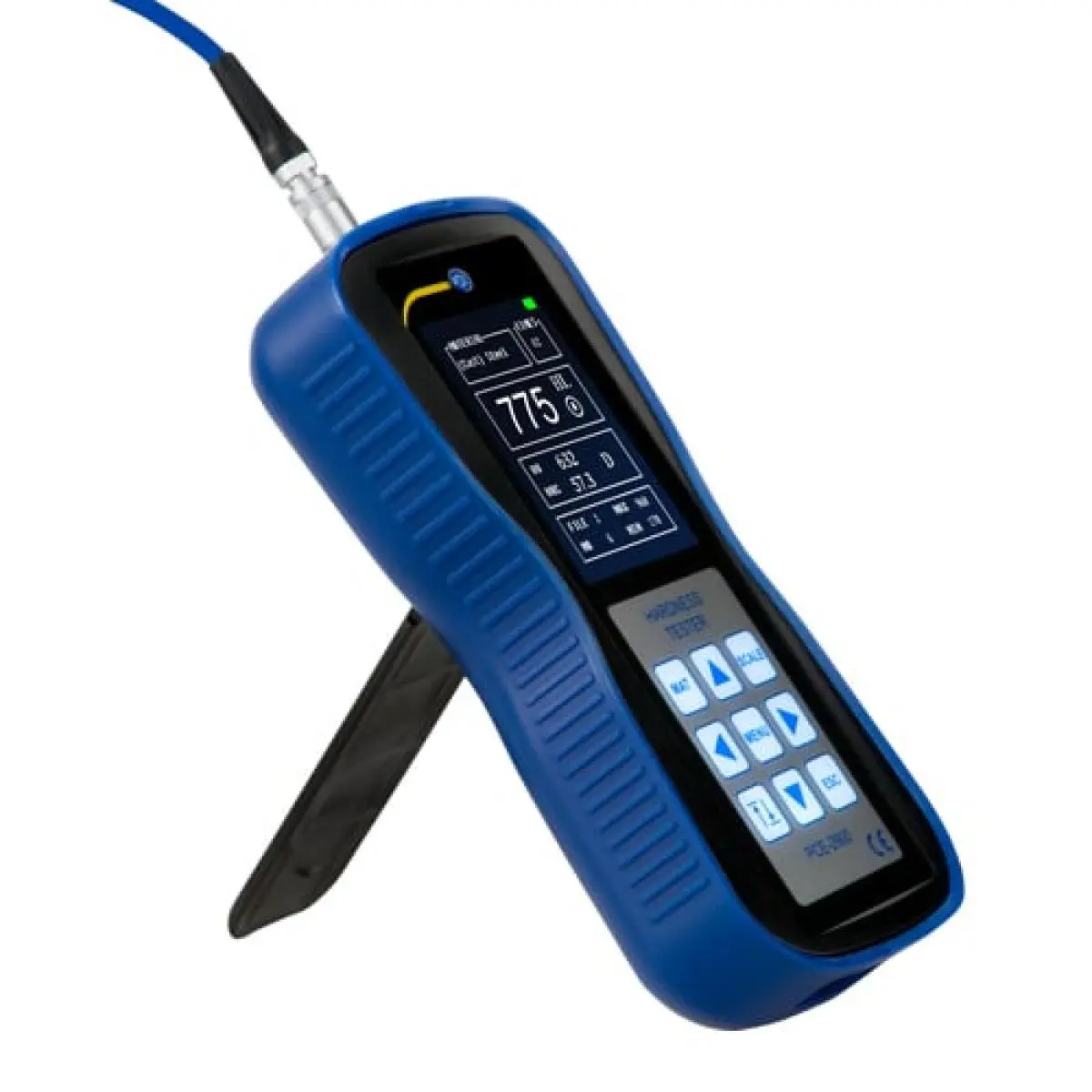

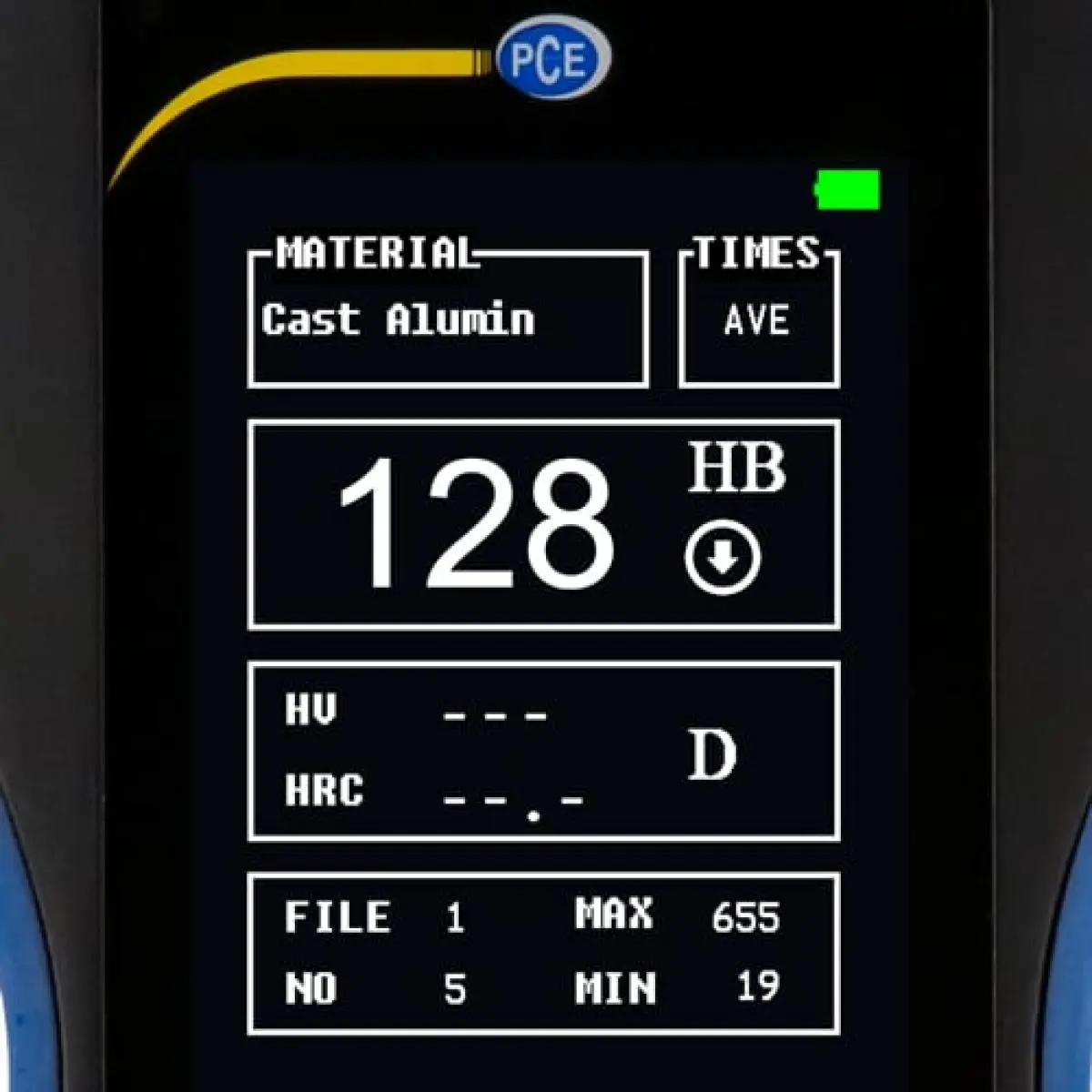

The hardness tester PCE-2900 has been developed for hardness measurements on metallic materials. The hardness tester measures the material hardness in Vickers, Brinell, Rockwell, Leeb and Shore. The hardness tester PCE-2900 measures the hardness according to the Leeb rebound principle. An impactor bounces on the workpiece via a firing pin and the metal hardness is measured via the rebound. The PCE-2900 hardness meter is equipped with a backlit colour display.

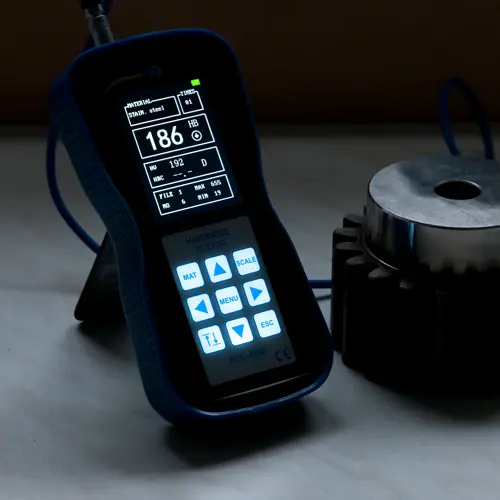

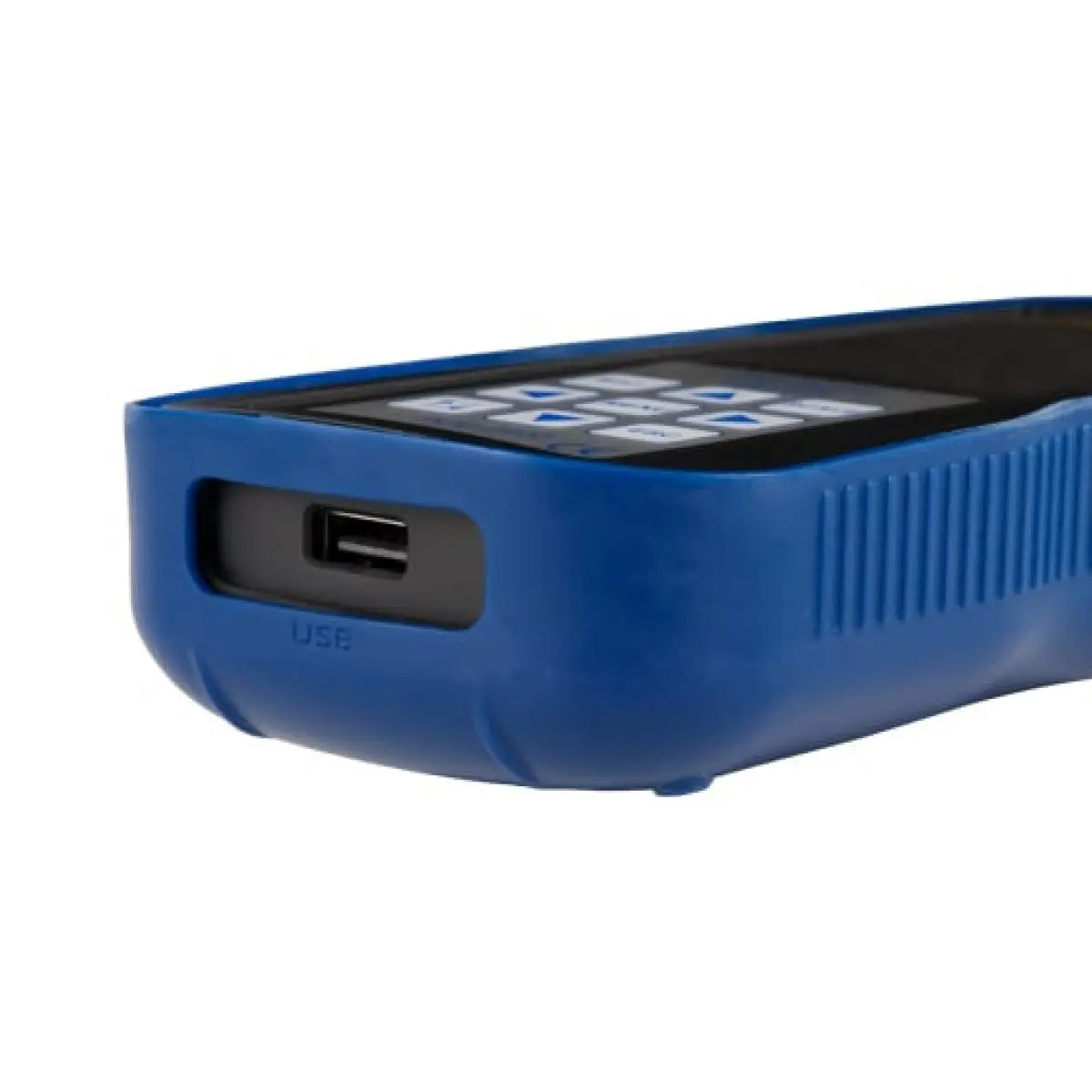

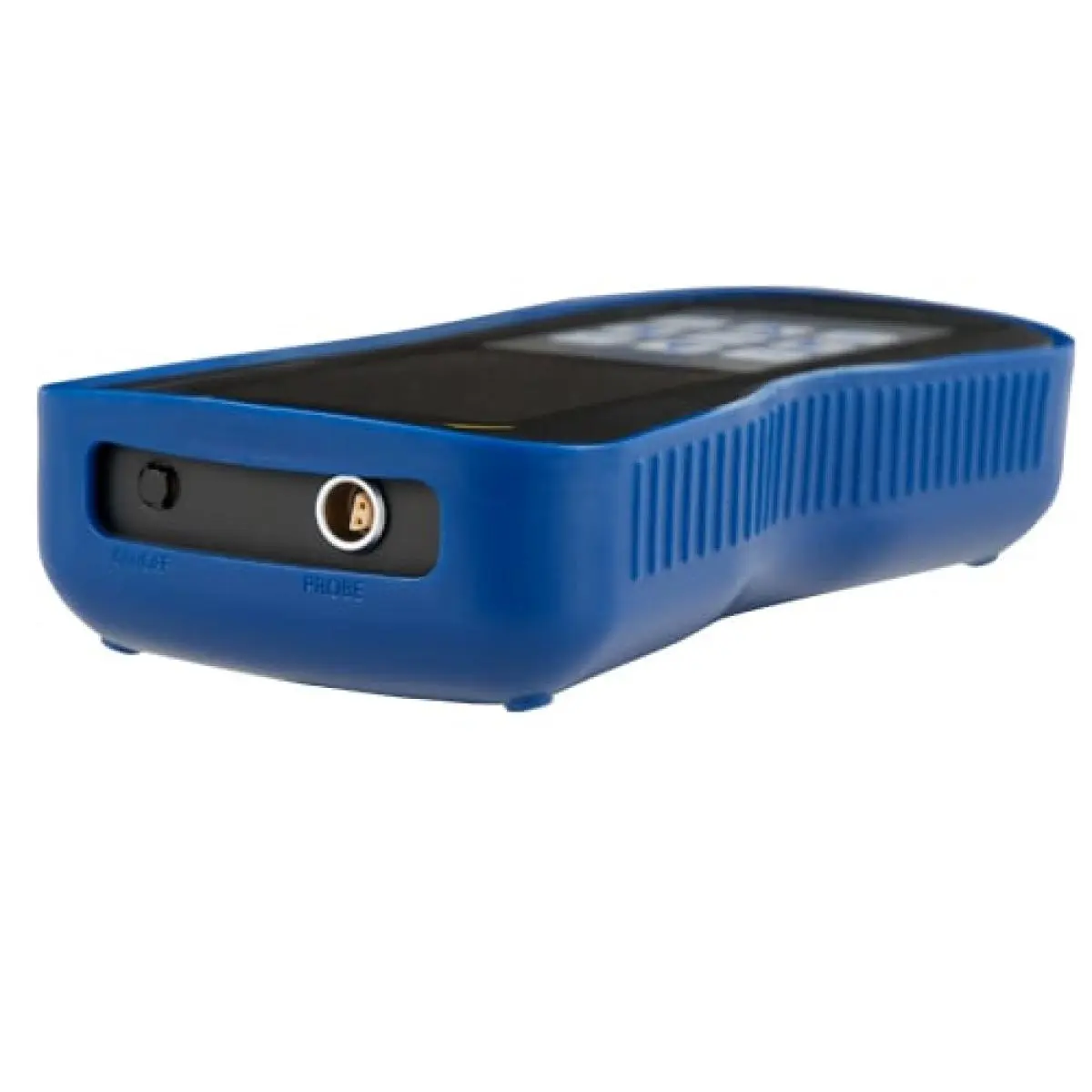

Likewise, the buttons on the PCE-2900 are illuminated. Thus, the display can be read well even in low light conditions. The impact device is connected to the hardness tester via a cable. The hardness tester PCE-2900 has an internal memory of 6 x 100 measurement sets. The memory thus allows a documentation of the measured values. Via the integrated USB and WiFi interface, the measured values can be transferred from the hardness tester via software to a PC. The hardness tester is powered by commercially available 1.5V AA batteries and has a battery life of about 50 hours.

Highlights

- USB and WiFi for data transmission

- Large, bright touch-screen LCD display

- Large measuring range

- Measurement possible in every position

- Hardness scales (HRC, HRB, HV, HB, HS)

- For all metallic materials

Specification

Measuring range	170 ... 960 HLD
Reproducibility	± 6 HLD
Impactor	Type D
Measuring direction	360°
Adjustable scales	Leeb, Brinell, Rockwell A, Rockwell B, Rockwell C, Vickers, Shore
Surface quality Ra of the workpiece	2 µm
Minimum weight of the workpiece	Direct measurement: 5 kg / 11 lbs Tied measurement: 2 ... 5 kg / 4.4 ... 11 lbs With coupling gel: 0.05 ... 2 kg / 0.1 ... 4.4 lbs
Minimum thickness of the workpiece	Direct measurement: > 5mm / > 0.19 in With coupling gel: 0.8 ... 5 mm / 0.03 ... 0.19 in

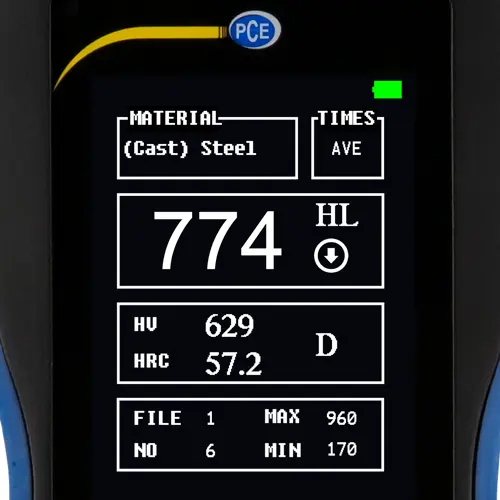

Display	Colour LCD
Internal measured value memory	600 records in 6 files
Interface	USB, WiFi
Power supply	2 x 1.5V AA batteries
Operating time	ca. 50 hours
Operating conditions	10 ... 50°C / 50 ... 122°F max. 90% r.H.
Storage conditions	-30 ... 60°C / -22 ... 140°F max. 90% r.H.
Dimensions	160 x 80 x 35 mm / 6.3 x 3.1 x 1.3 in
Weight	350 g / < 1 lb

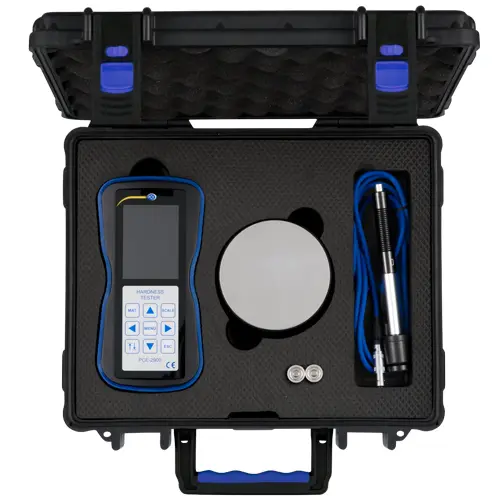

Delivery Scope

1 x Hardness Tester PCE-2900

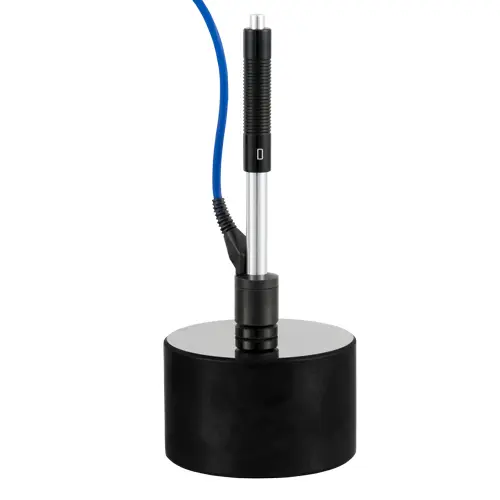

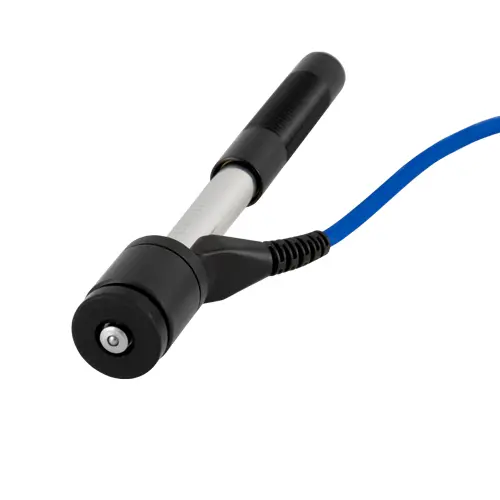

1 x Impactor D
1 x Test block
2 x 1.5V AA batteries
1 x User manual
1 x Carry case

Downloads

Manual

Datasheet

Accessories

Calibration certificate CAL-HT-2

£ 238.00

Price excl. VAT &. delivery
2 year Warranty

Calibration certificate for our hardness testers. This is often required to comply with DIN ISO 9000.

ISO calibration certificate for hardness testers with rebound hardness test according to Leeb / 3 measuring points (about 490 HLD, 660 HLD, 780 HLD)

N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.

Adaptor convex outside vZ25-50

£ 36.00

Price excl. VAT &. delivery
2 year Warranty

Adapters for measuring with external radii, e.g. on round bars and pipes. Allows centering and prevents slipping and thus measuring errors

radius: 25 … 50mm
only for PCE-900, PCE-1000 & PCE-2000

Adaptor concave inside HZ11-13

£ 32.00

Price excl. VAT &. delivery
2 year Warranty

Adaptor for internal diameters in concave surfaces such as pipes and tubes. Allows centering and prevents slipping and thus measuring errors.

radius: 11 … 13mm
only for PCE-900, PCE-1000, PCE-2000

Adaptor concave inside HZ12.5-17

£ 36.00

Price excl. VAT &. delivery
2 year Warranty

Adaptor for internal diameters in concave surfaces such as pipes and tubes. Allows centering and prevents slipping and thus measuring errors.

radius: 12.5 … 17mm
only for PCE-900, PCE-1000, PCE-2000

Adaptor concave inside HZ16.5-30

£ 32.00

Price excl. VAT &. delivery
2 year Warranty

Adaptor for internal diameters in concave surfaces such as pipes and tubes. Allows centering and prevents slipping and thus measuring errors.

radius: 16.5 … 30mm
only for PCE-900, PCE-1000, PCE-2000

Adaptor spherical inside HK11-13

£ 32.00

Price excl. VAT &. delivery
2 year Warranty

Adapter for measuring in spherical surfaces, e.g. in mold making. Allows centering and prevents slipping and thus measuring errors

Radius: 11 … 13mm
Only for PCE-900, PCE-1000 and PCE-2000

Adaptor spherical inside HK12.5-17

£ 32.00

Price excl. VAT &. delivery
2 year Warranty

Adapter for measuring in spherical surfaces, e.g. in mold making. Allows centering and prevents slipping and thus measuring errors

Radius: 12.5 … 17mm
Only for PCE-900, PCE-1000 and PCE-2000

Adaptor spherical inside HK16.5-30

£ 32.00

Price excl. VAT &. delivery
2 year Warranty

Adapter for measuring in spherical surfaces, e.g. in mold making. Allows centering and prevents slipping and thus measuring errors

Radius: 16.5 … 30mm
Only for PCE-900, PCE-1000 and PCE-2000

Impact Sensor G

£ 432.00

Price excl. VAT &. delivery
2 year Warranty

Special feature: Increased impact body with increased impact energy (about nine times the size of type D), eg. in the application of castings.

Technical Data

Impact energy: 90 Nmm
Mass of the impactor: 20g
Max. sample hardness: 650 HB
Depth of impression
At 300 HV: diameter 1.03 mm, depth 53 μm
At 600 HV: diameter 0.90 mm, depth 41 μm

Impact Sensor D

£ 219.00

Price excl. VAT &. delivery
2 year Warranty

Special feature: standard impact device for most hardness testing applications e.g. on flanges, engine blocks, axles, gears, chassis, coil hardness tests, coils, rods, pipes and heat treatments.

Technical Data

Impact energy: 11 Nmm
Mass of the impactor: 5.5g
Max. sample hardness: 940 HV
Depth of impression
At 300 HV: diameter 0.54 mm, depth 24 μm
At 600 HV: diameter 0.45 mm, depth 17 μm
At 800 HV: diameter 0.35 mm, depth 10 μm

Impact Sensor C

£ 219.00

Price excl. VAT &. delivery
2 year Warranty

Special feature: reduced impact energy ca. 1/4 of type D e.g. for surface-hardened elements, sheaths, thin-coated or impact-sensitive parts, e.g. polished parts.

Technical Data

Impact energy: 3 Nmm
Mass of the impactor: 3.0g
Max. sample hardness: 1000 HV
Depth of impression
At 300 HV: diameter 0.38 mm, depth 12 μm
At 600 HV: diameter 0.32 mm, depth 8 μm
At 800 HV: diameter 0.30 mm, depth 7 μm

Impact Sensor DC

£ 219.00

Price excl. VAT &. delivery
2 year Warranty

Special feature: Extremely short impact device e.g. in holes, cylinders or for internal measurements on machine parts. Suitable for limited accessibility

Technical Data
