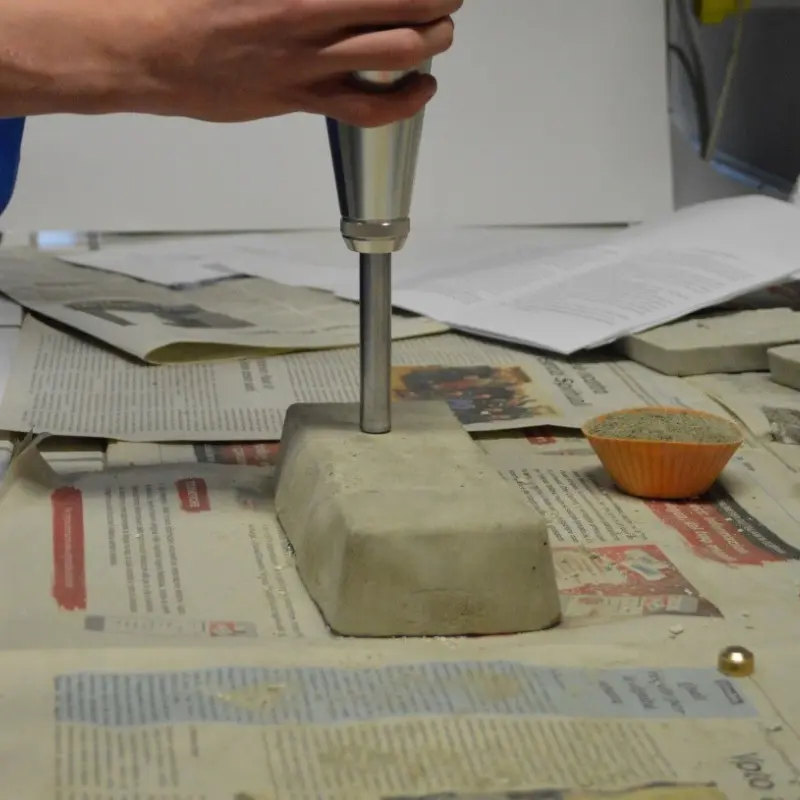

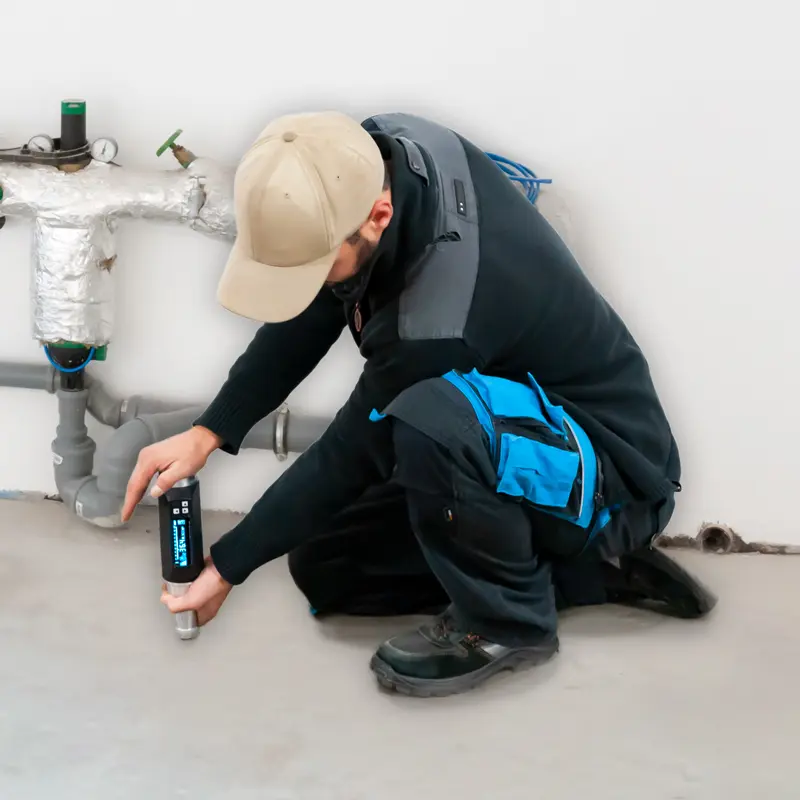

The NDT Tester is a measuring tool for testing the strength of concrete. The NDT Tester measures strength according to the Schmidt principle. According to this measurement method, the quality of concrete can be measured with the NDT Tester. Thus, the NDT Tester finds its essential application in the construction and in the construction sector. The NDT Tester is also suitable for testing the hrdness of rolled paper. The built-in mechanism on the hardness tester always ensures the same impact energy of 2.207 Nm.

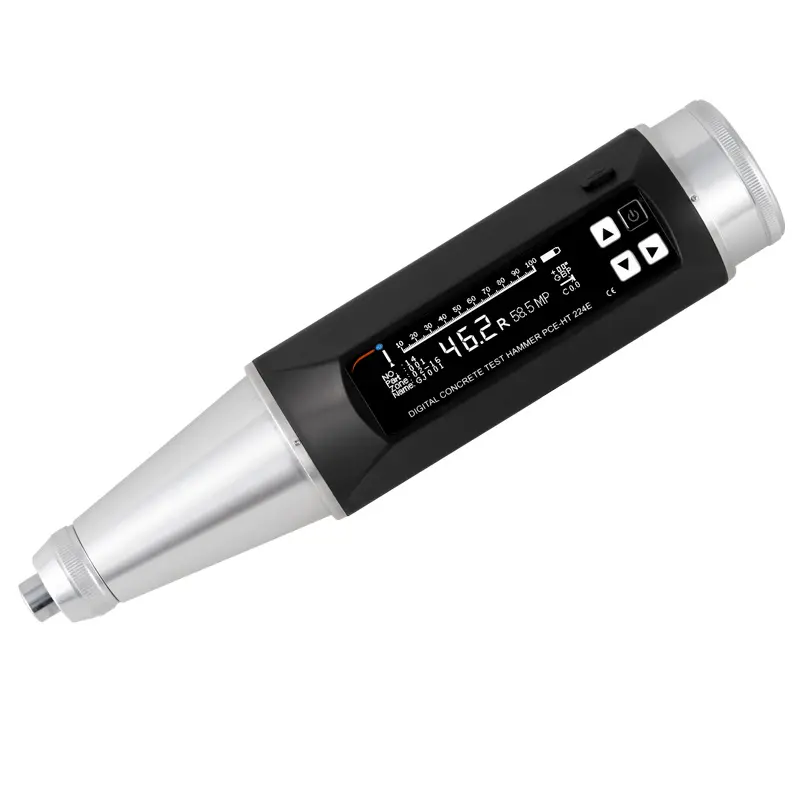

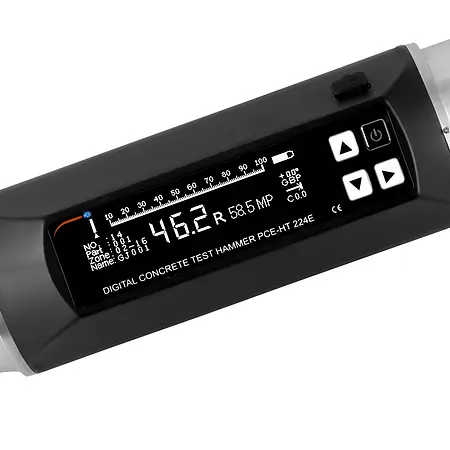

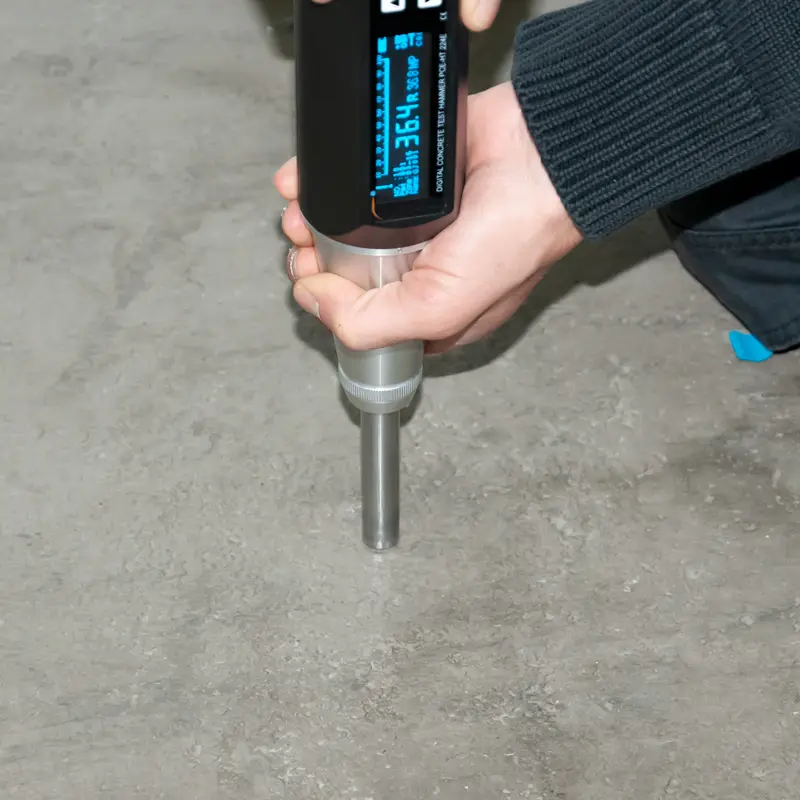

The NDT Tester displays measurements Rebound Value and can display force in PSI, MPa, kgF/cm², or N/mm². The NDT Tester can be setup to measure at test angles of downward(-90°), downward(-45°), horizontal (0°), upward(45°), or upward(90°).
|Measuring range||10 ... 100 N/mm² / 1500 ... 8500 PSI or lbs/in²|
|Accuracy||± 0.1 R|
|Nominal kinetic energy||2.207 Nm, 0.225 kgm|
|Storage||1,000 data units with 256 measurements each|
|Operating conditions||-40 ... 60°C / -40 ... 140°F|
|Power supply||3.7V Li-ion battery|
|Power supply (mains adapter)||Primary: 100 ... 240V AC, 50/60 Hz|
|Secondary: 5V DC, 1 A|
|Dimensions||280 x 75 x 60 mm / 11 x 3 x 2.4 in|
|Weight||About 1.2 kg / 2.6 lbs|
