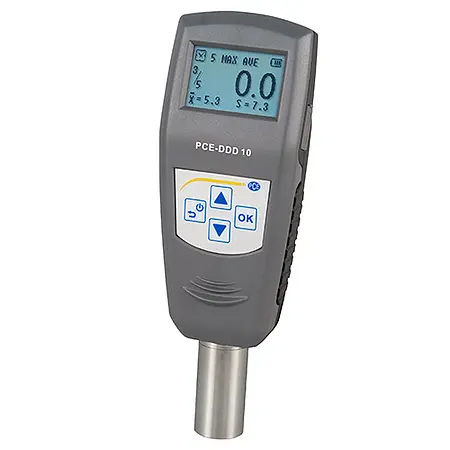

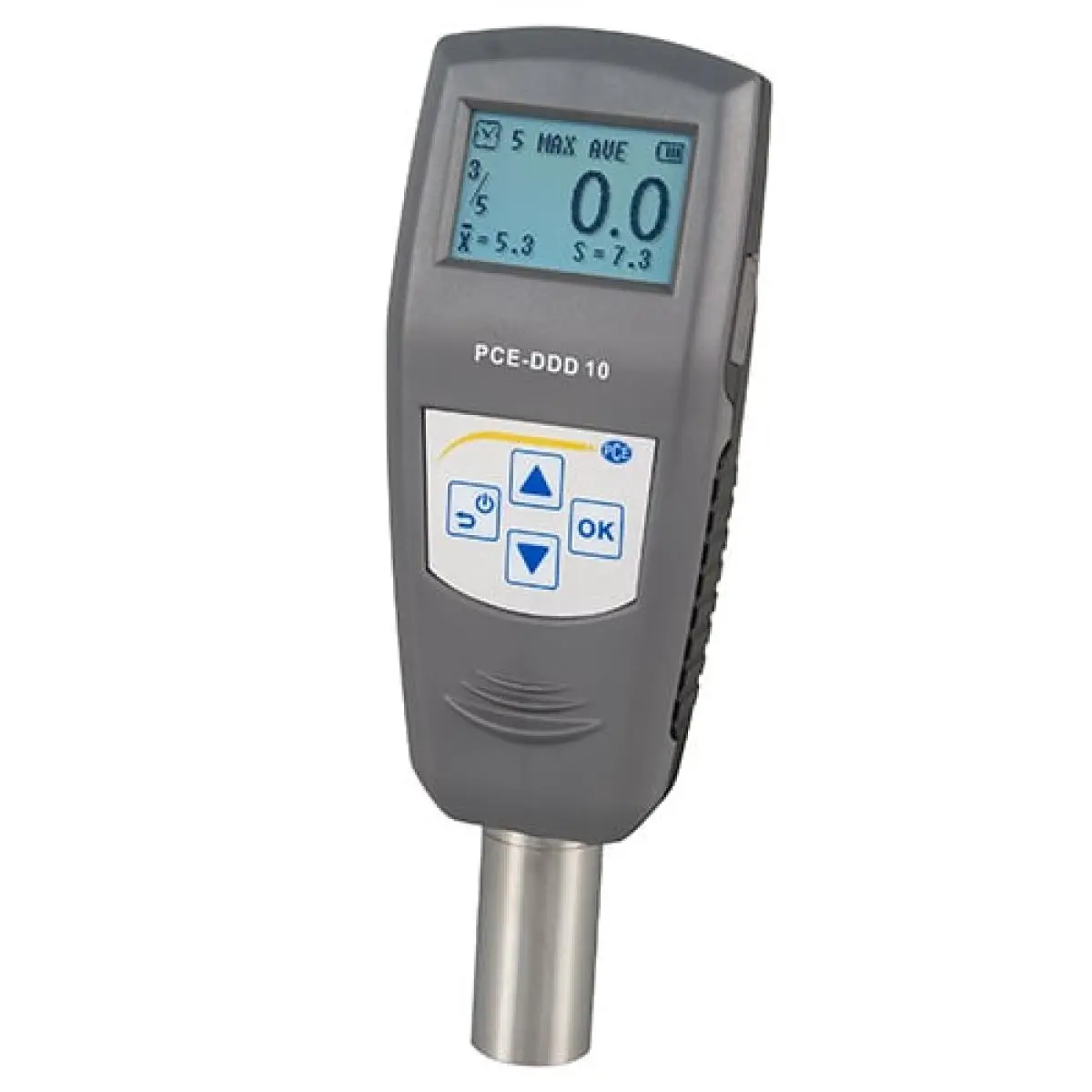

Durometer PCE-DDD 10 Shore D

Durometer PCE-DDD 10 Shore D [zoom]
Durometer PCE-DDD 10 Shore D

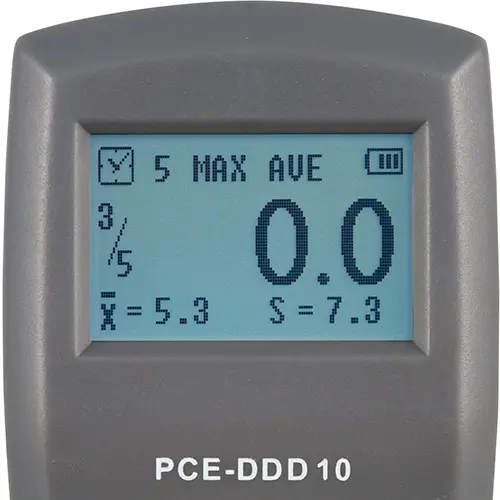

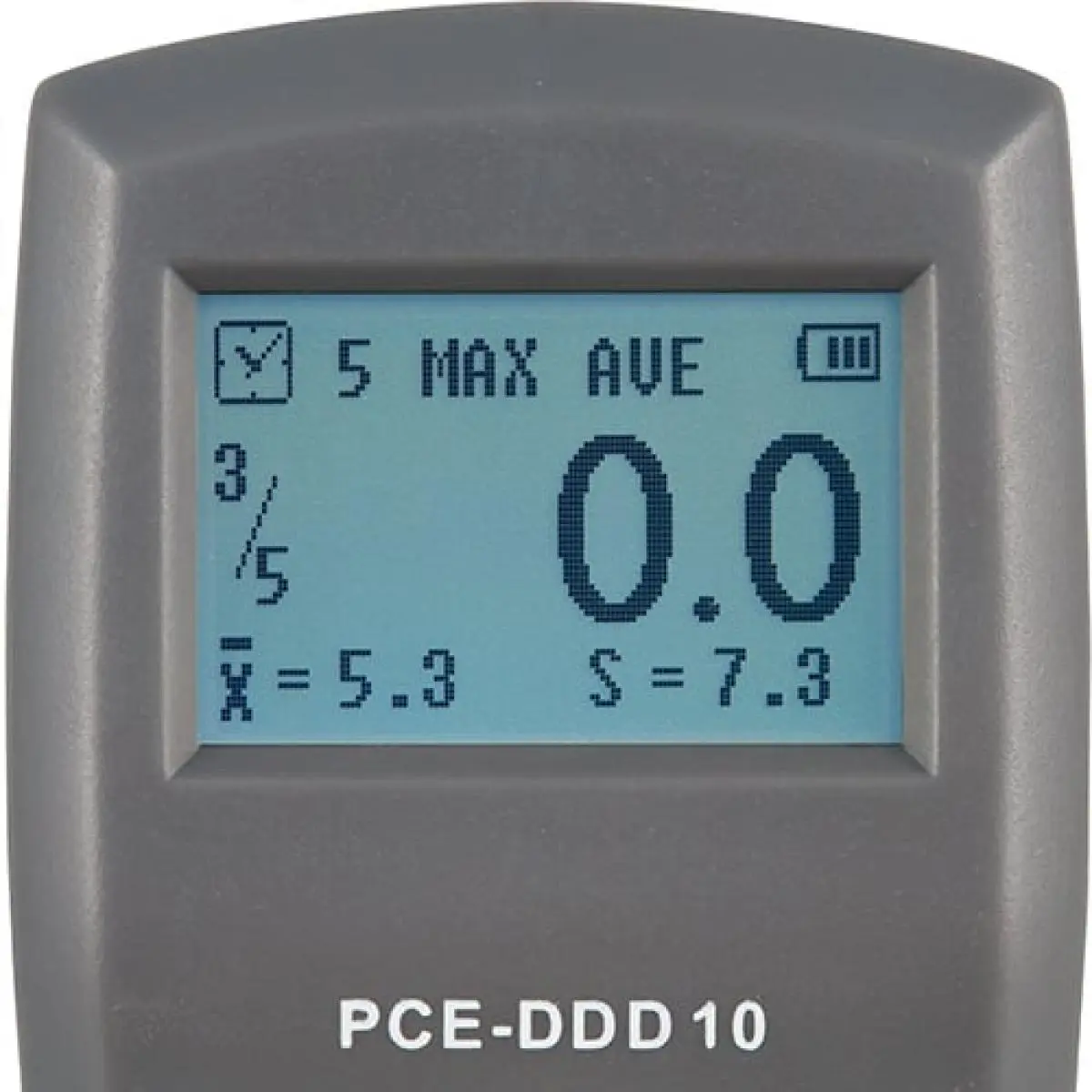

NDT Test Instruments Display

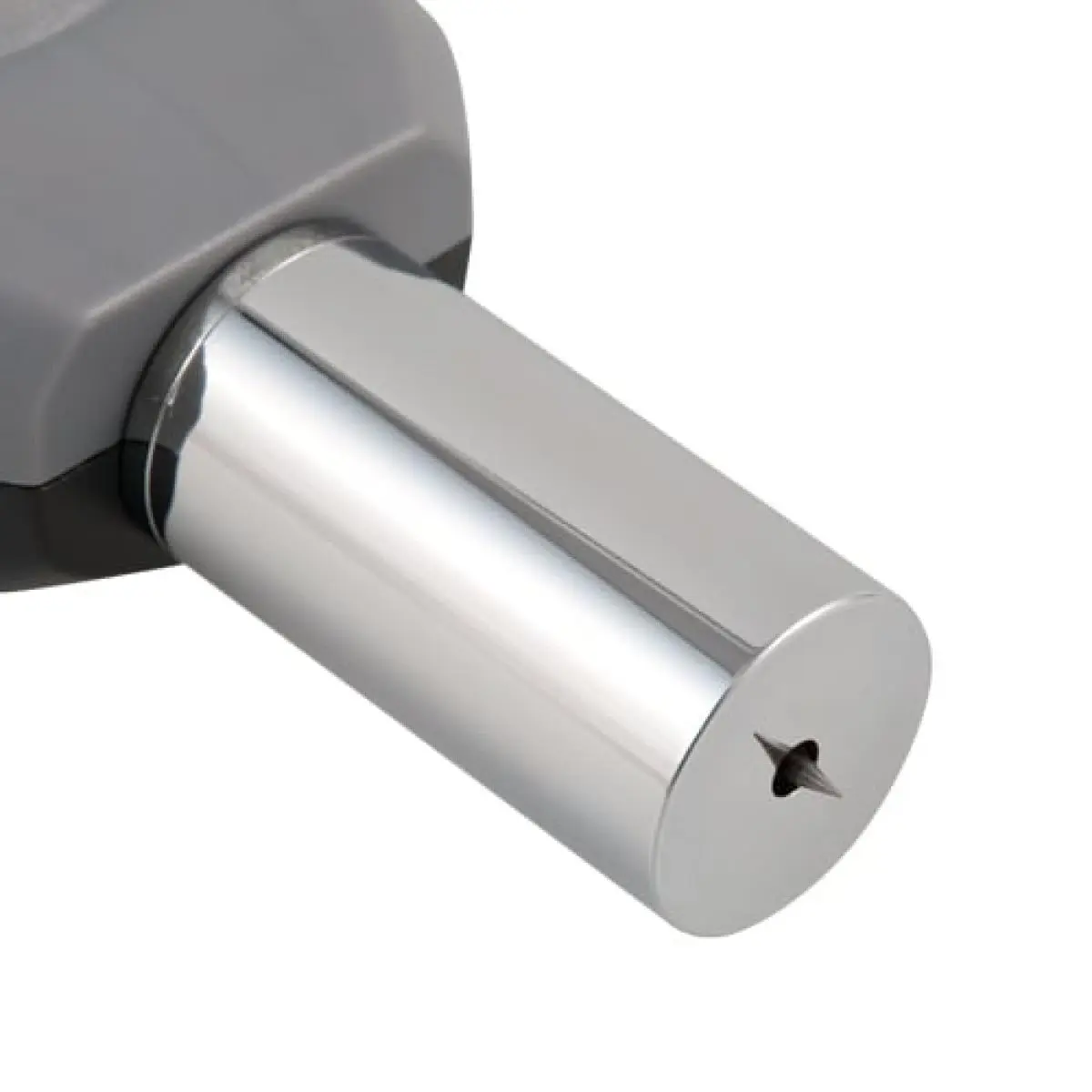

NDT Test Instruments Sensor

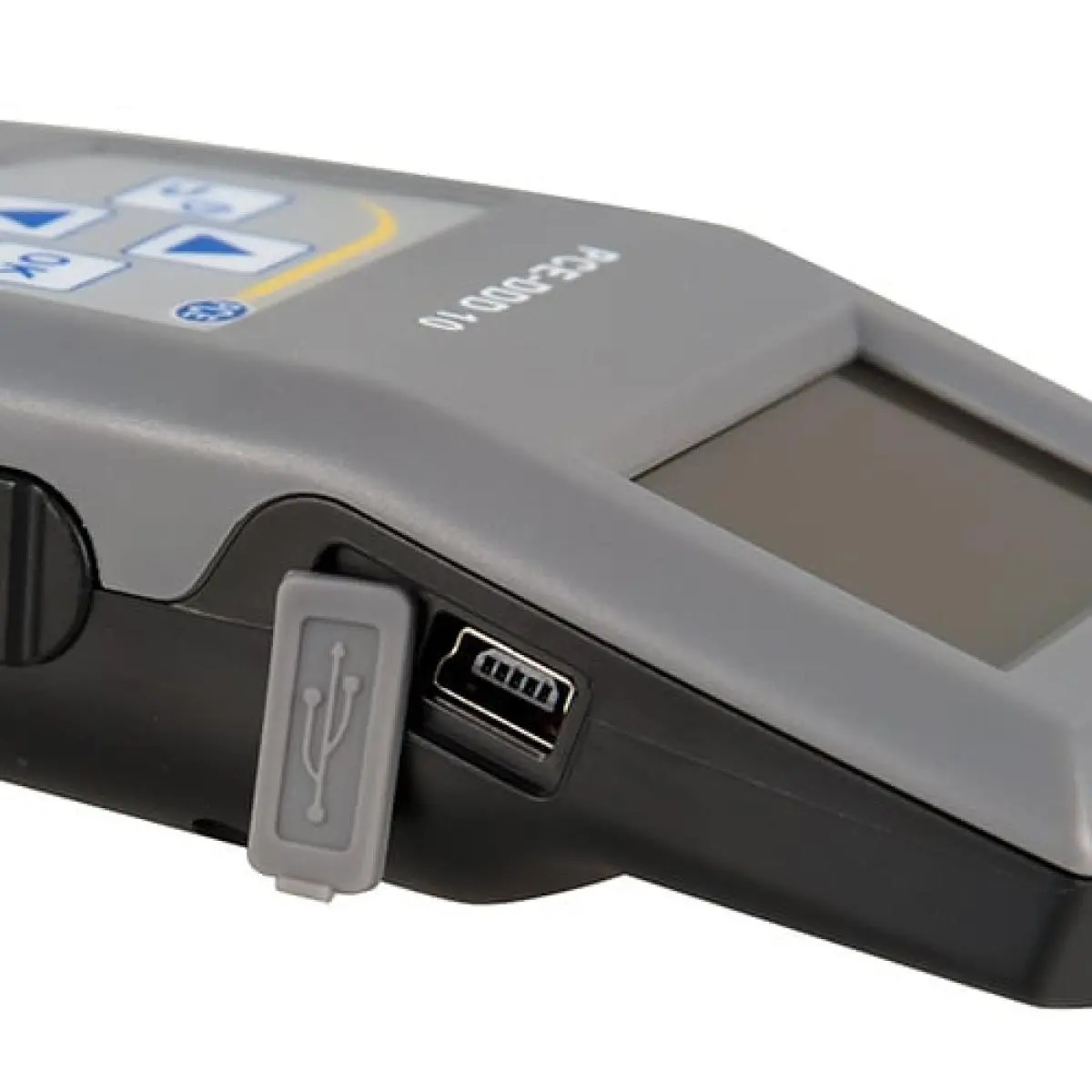

NDT Test Instruments Connections

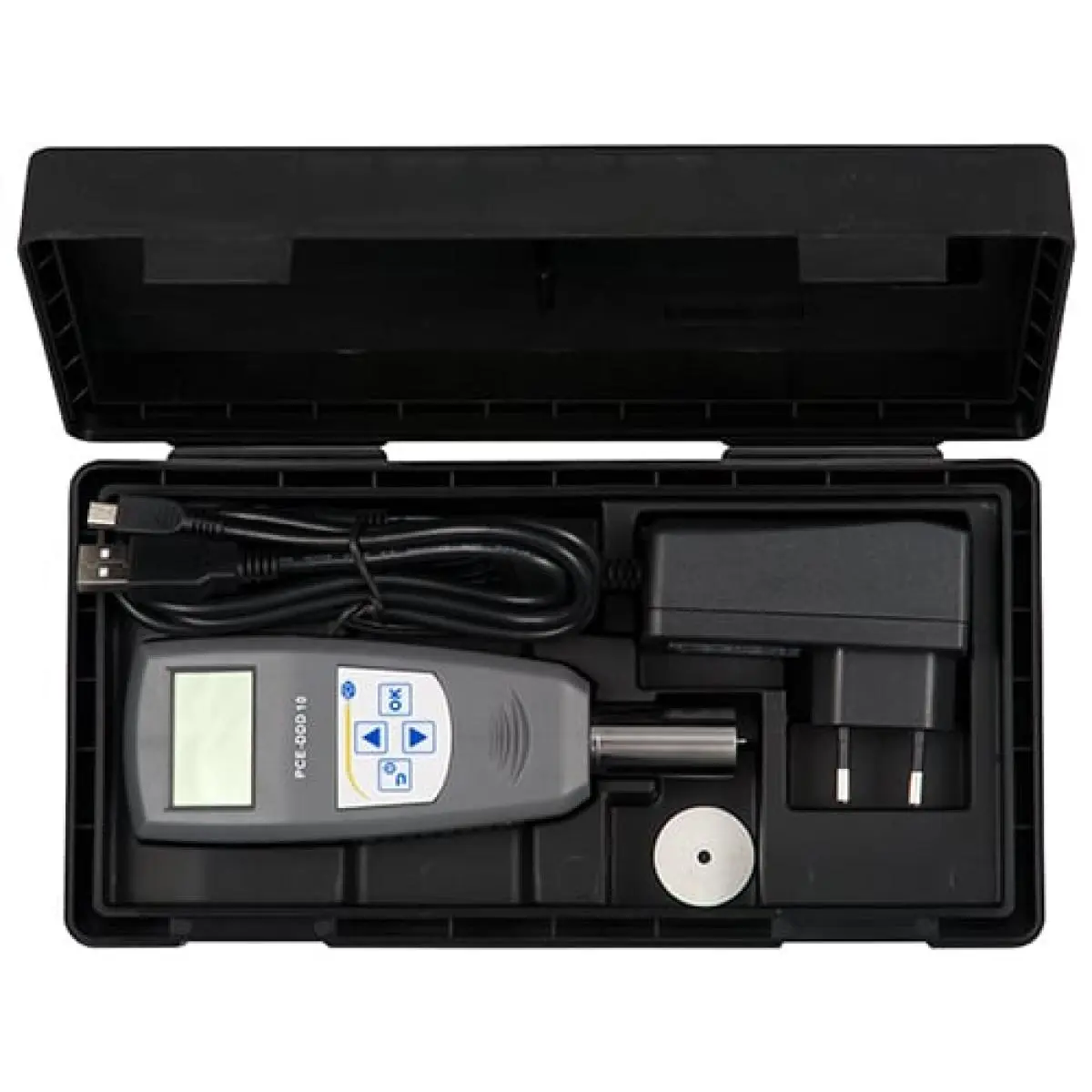

NDT Test Instruments Delivery scope

NDT Test Instruments PCE-DDD 10 Shore D

Order no.: PCE-DDD 10
GTIN (EAN): 4250348713704
£ 574.00
£ 688.80
price ex. (VAT / delivery)
:
4250348713704
PCE-DDD 10
Delivery time:1-2 working days

Accessory

Description

Digital Hardness Tester to measure Shore D hardness in materials such as hard rubber and thermoplastic with USB port and downloadable software

The PCE-DDD 10 hardness tester is an ergonomic device to check Shore D hardness in materials such as hard rubber and thermoplastic. It has been designed with a high quality.  The hardness tester (as all test instruments) comes manufacturer calibrated and can additionally be certified to ISO. If the material thickness is not enough, it should be layered and tightened on the back with the same material in order to increase its thickness.

Highlights

- Portable handheld digital hardness testing device
- Measures Shore D hardness in hard rubber and thermoplastic
- Features a USB port and downloadable PC software for data transfer
- Large, easy-to-read display
- For single and serial measurements

Specification

Hardness
Measuring range  0 ... 100 Shore D
Resolution  0,1 Shore D
Accuracy  <±1 Shore D

General technical data
Measuring functions  MAX, Average value
Measuring principle  Spring load
Storage medium  Internal memory
Storage capacity  500 Measurements
Interface  Mini-USB
Standard(s)  GB/T 531.1, ISO7619-1, ASTM D 2240
Operating time  20 h
Charging time  3 h
Impact device  D-type
Dimensions  Indentor / geometry:

- Spring pin diameter: 1.25 ± 0.1 mm
- Ball diameter: 0.1 mm ± 0.01
- Cone angle (tip angle): 30 ± 0.5°
Menu language  English, English (GB)
Protection class (device)  IP20
Power supply  3.6V
Connector type  Device-europlug
(Rechargeable) battery  3 x 1,2 V AAA rechargeable battery , Nickel-metal hydride battery
Capacity  1200 mAh
Operating conditions  0 ... 50 °C , 20 ... 85 % RH
Storage conditions  0 ... 50 °C , 20 ... 85 % RH
Dimensions ( L x W x H )  153 x 50 x 29 mm
Weight  170 g

Delivery Scope

1 x PCE-DDD 10 Shore D durometer
1 x Calibration plate
1 x Charger / AC power adapter
1 x Mini USB cable
1 x User manual
1 x Carrying case
Note: Software is available for download from this website.
