£ 125.00

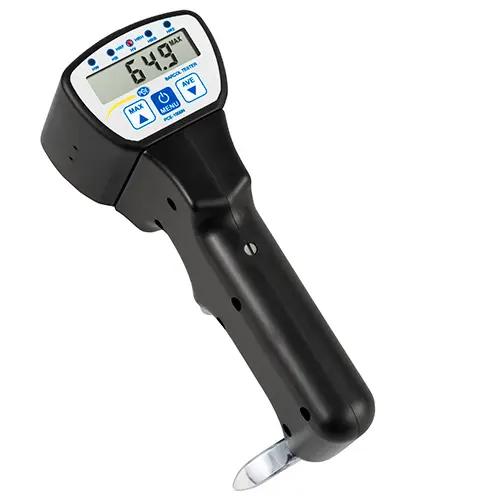

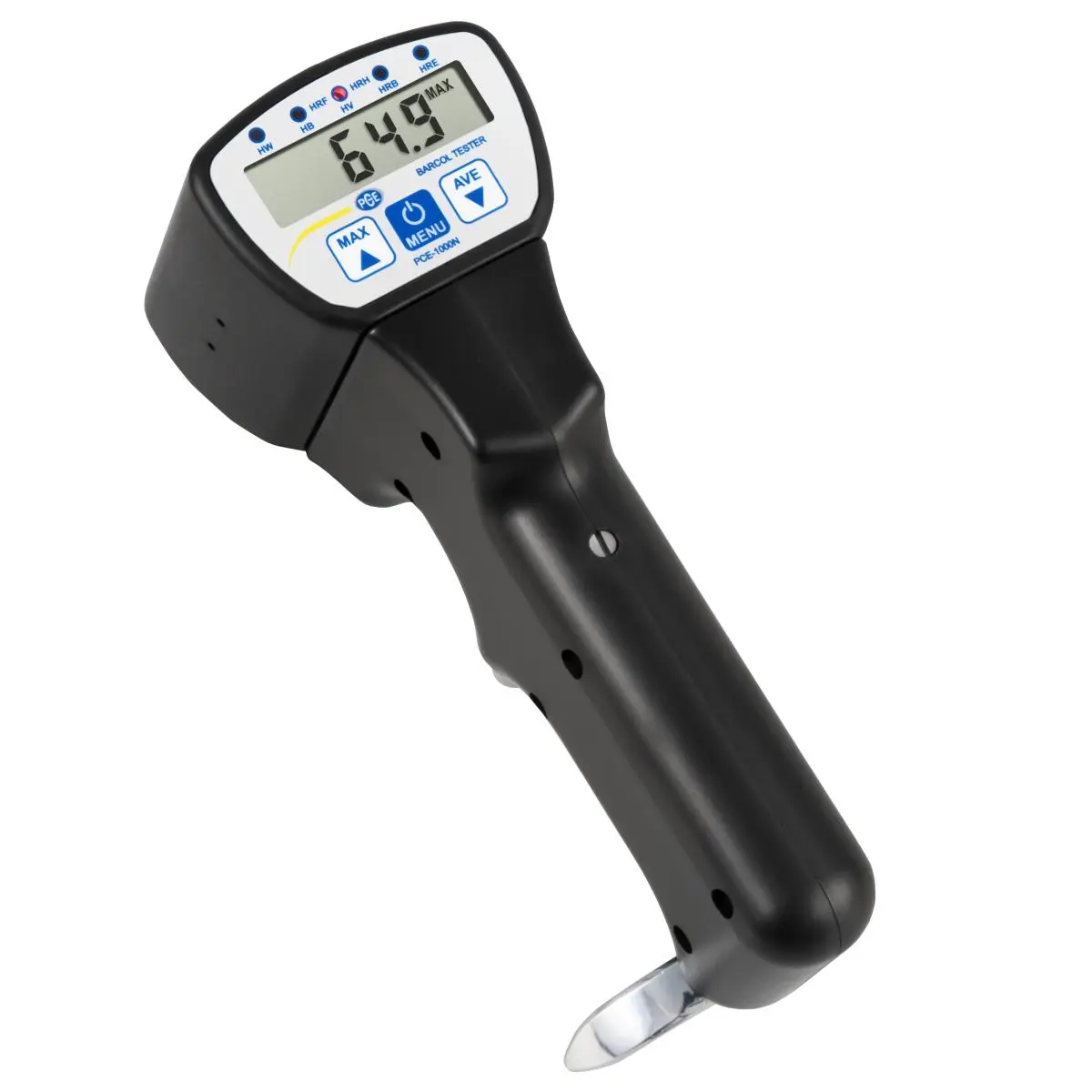

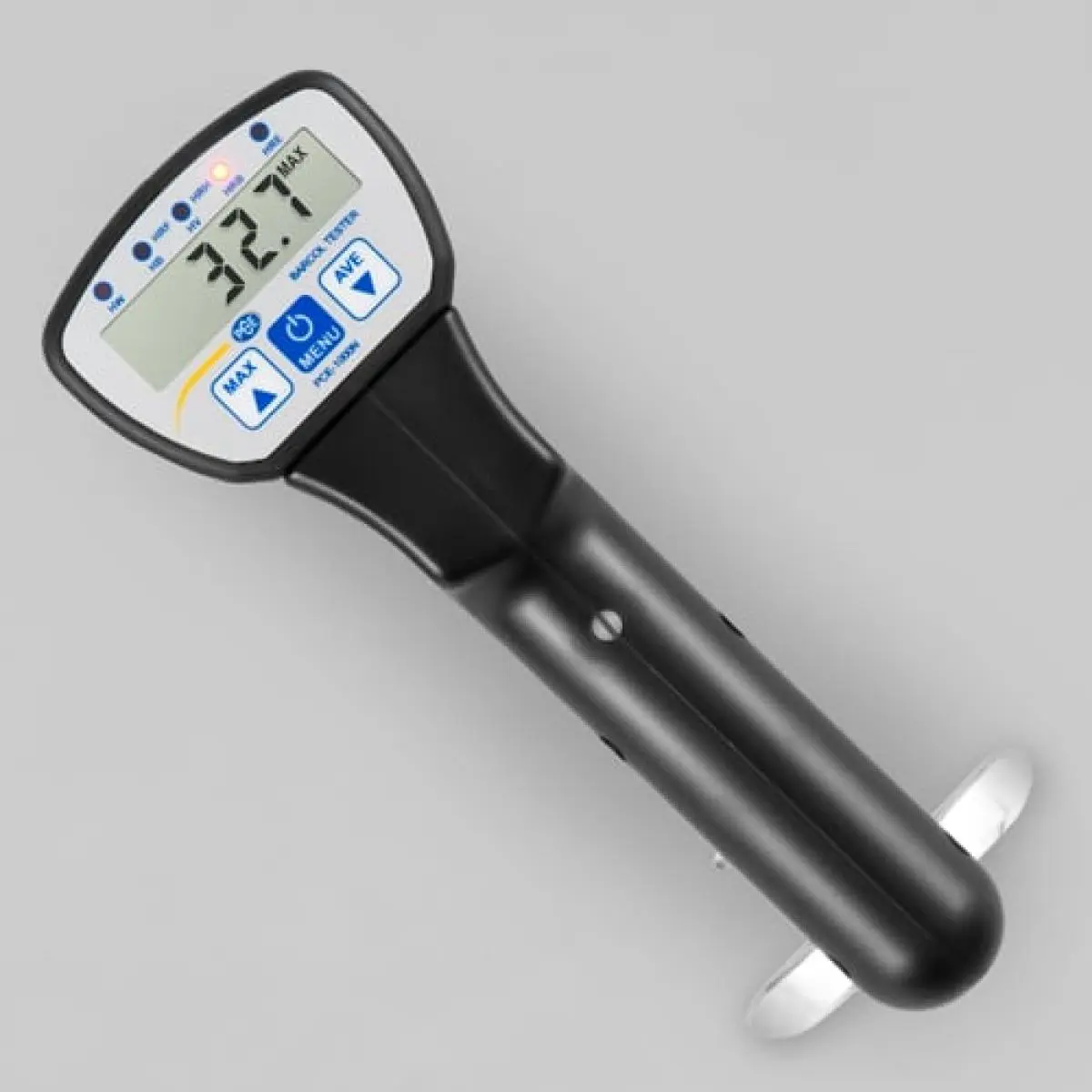

PCE-1000N Barcol Hardness Tester
Barcol impressor hardness meter with backlit LCD, power-saving automatic shutdown, maximum and average functions
PCE-1000N is a portable handheld Barcol hardness tester used to measure the hardness of pure aluminum, soft aluminum, thick aluminum alloy and aluminum sheets, strips, rods, castings and forgings. The hardness of fiber-reinforced (FRP) plastics, glass-reinforced (GRP) plastics, hard plastics and soft metals (such as copper or lead) also can be tested using this battery-powered digital Barcol impressor hardness meter. The digital meter offers a wide measuring range, high accuracy and direct display of the measured values on the built-in backlit LCD. In addition to Barcol (HBA) hardness units, the meter displays hardness measurements in Brinell (HB), Vickers (HV), Webster (HW) and Rockwell (HRB / HRE / HRF / HRH) hardness units. Adding to the meter's versatility is its sleek design, allowing for quick and easy one-handed operation.
| Hardness | |
| Measuring range | 0 ... 100 HBa |
| Resolution | 0,1 HBa |
| Accuracy | 81 ... 88 HBa: ±1 HBa 42 ... 48 HBa: ±2 HBa |
| General technical data | |
| Measuring functions | MAX, HOLD, Average value |

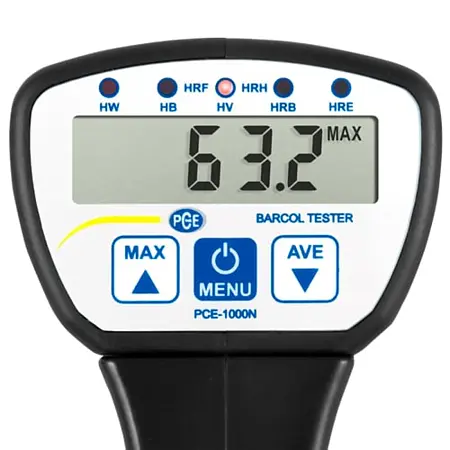

| Display type | LCD with backlight |
| Display size | 1,7 Inch |
| Standard(s) | ASTM B648-00, ASTM HD2583-07, GB/ T 3854-2005 |
| Materials | Copper, Other soft metals |
| Automatic power-off | 10 min |
| Repeatability | 2,5 HBa |
| Impact device | D-type |
| Hardness scales | HBa, HB, HV, HW, HRB, HRE, HRF, HRH |
| Test specimen | Minimum thickness of test specimen: 1.5 mm |
| Menu language | English |
| Protection class (device) | IP20 |
| (Rechargeable) battery | 2 x 1,5 V AAA battery , Alkali-manganese |
| Capacity | 1200 mAh |
| Operating conditions | 0 ... 50 °C , 0 ... 50 % RH |
| Storage conditions | 0 ... 50 °C , 0 ... 50 % RH |
| Dimensions ( L x W x H ) | 170 x 82 x 63 mm |
| Weight | 390 g |
