NDT Test Instruments PCE-CT 25FN

NDT Test Instruments PCE-CT 25FN [zoom]

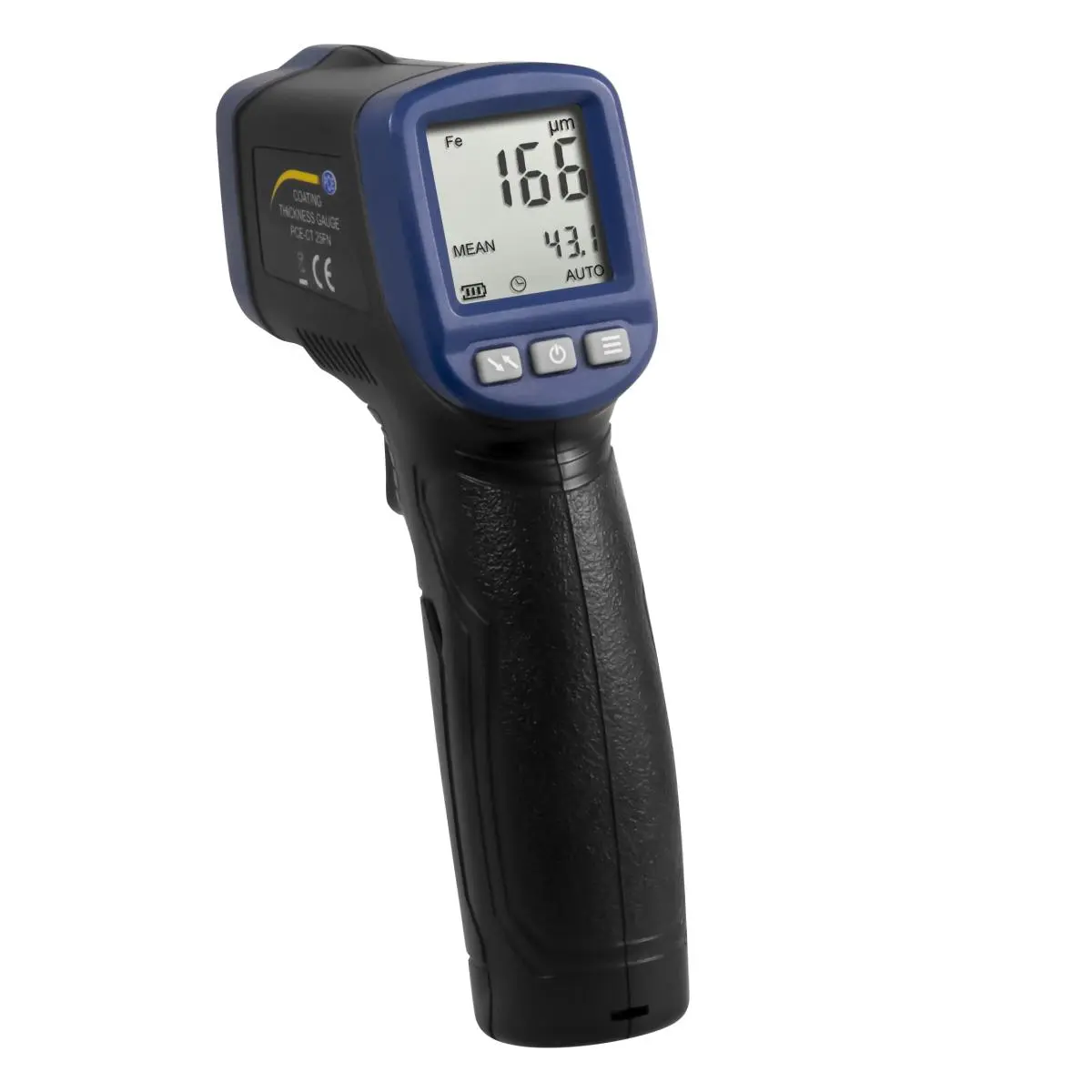

NDT Test Instruments PCE-CT 25FN

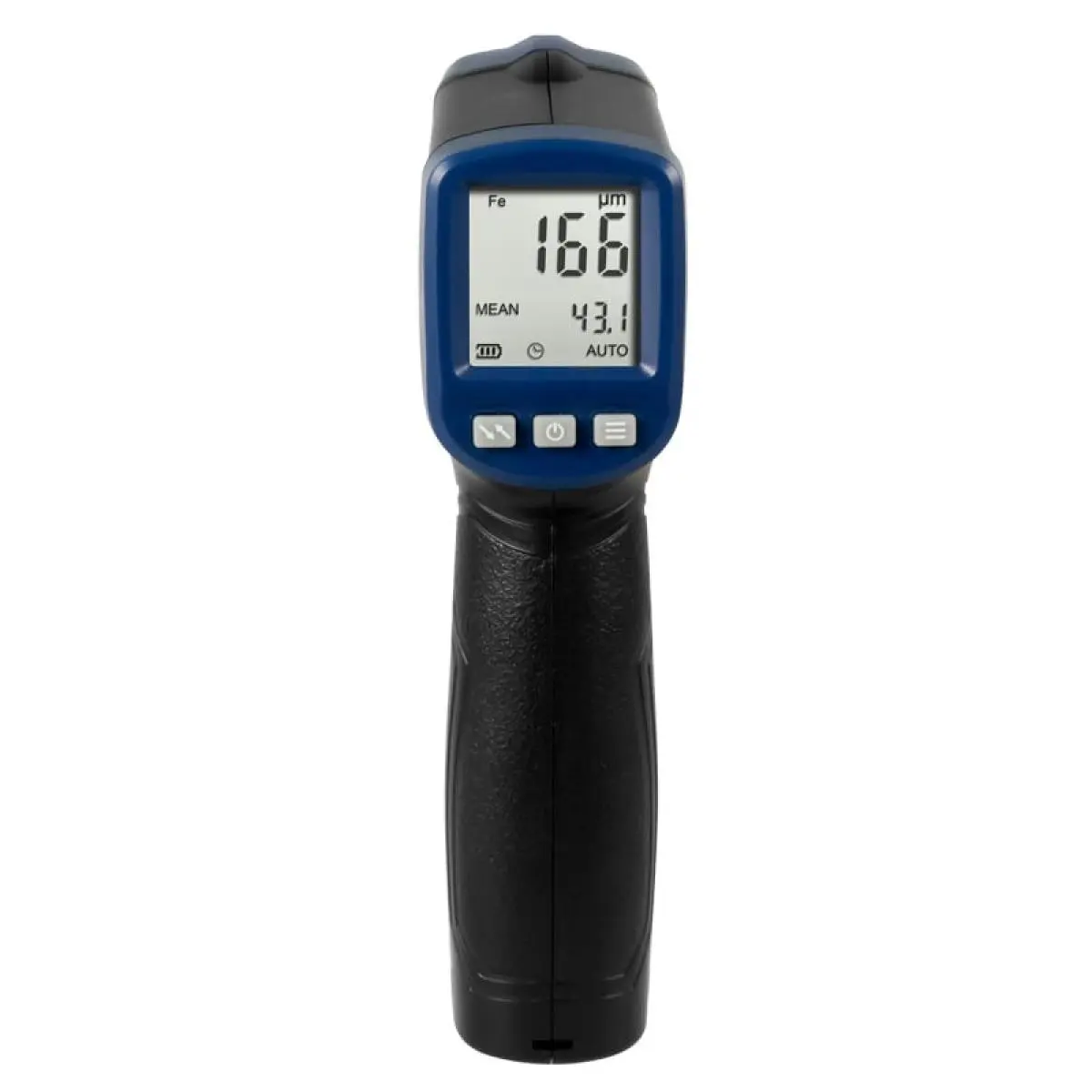

NDT Test Instruments Frontal

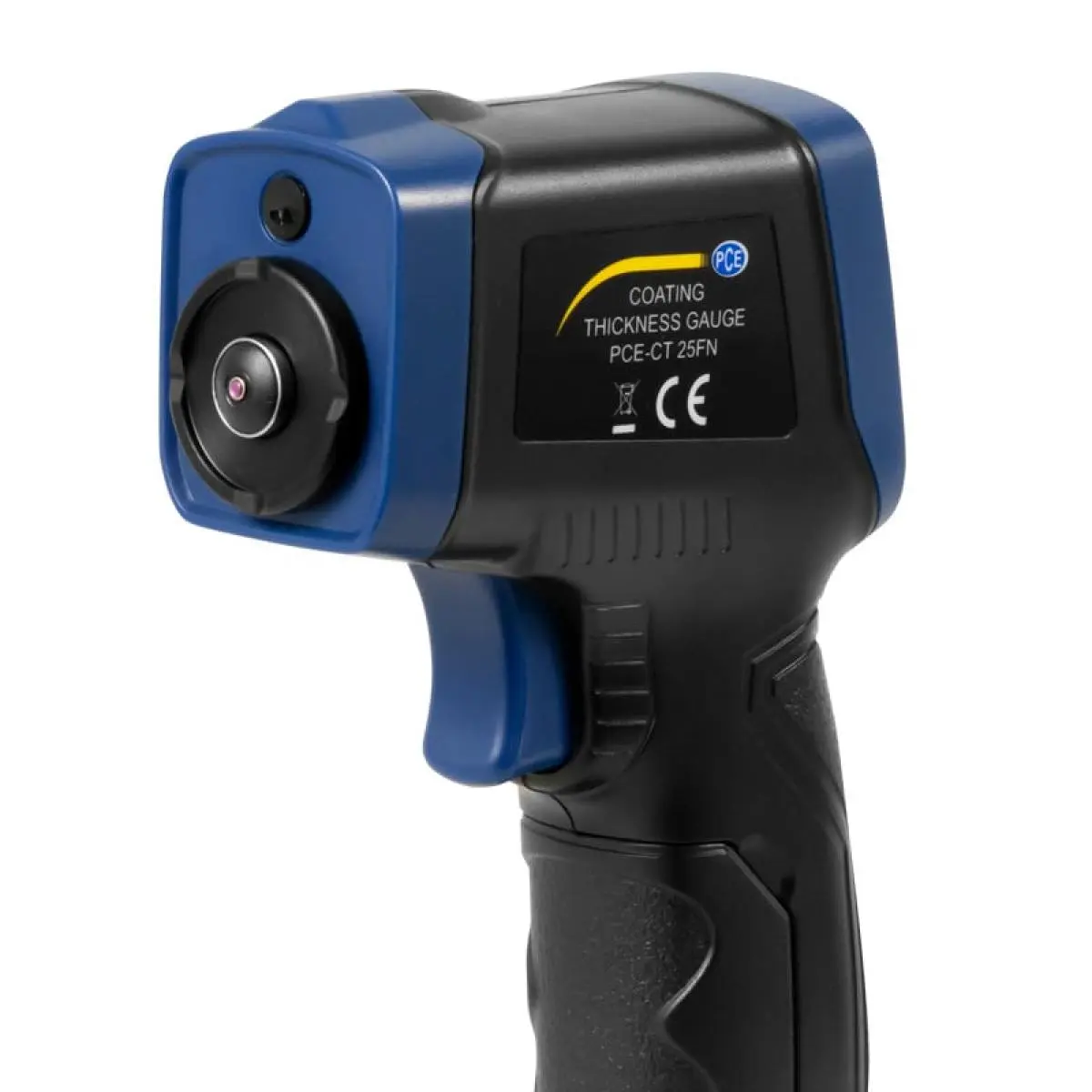

NDT Test Instruments Side view

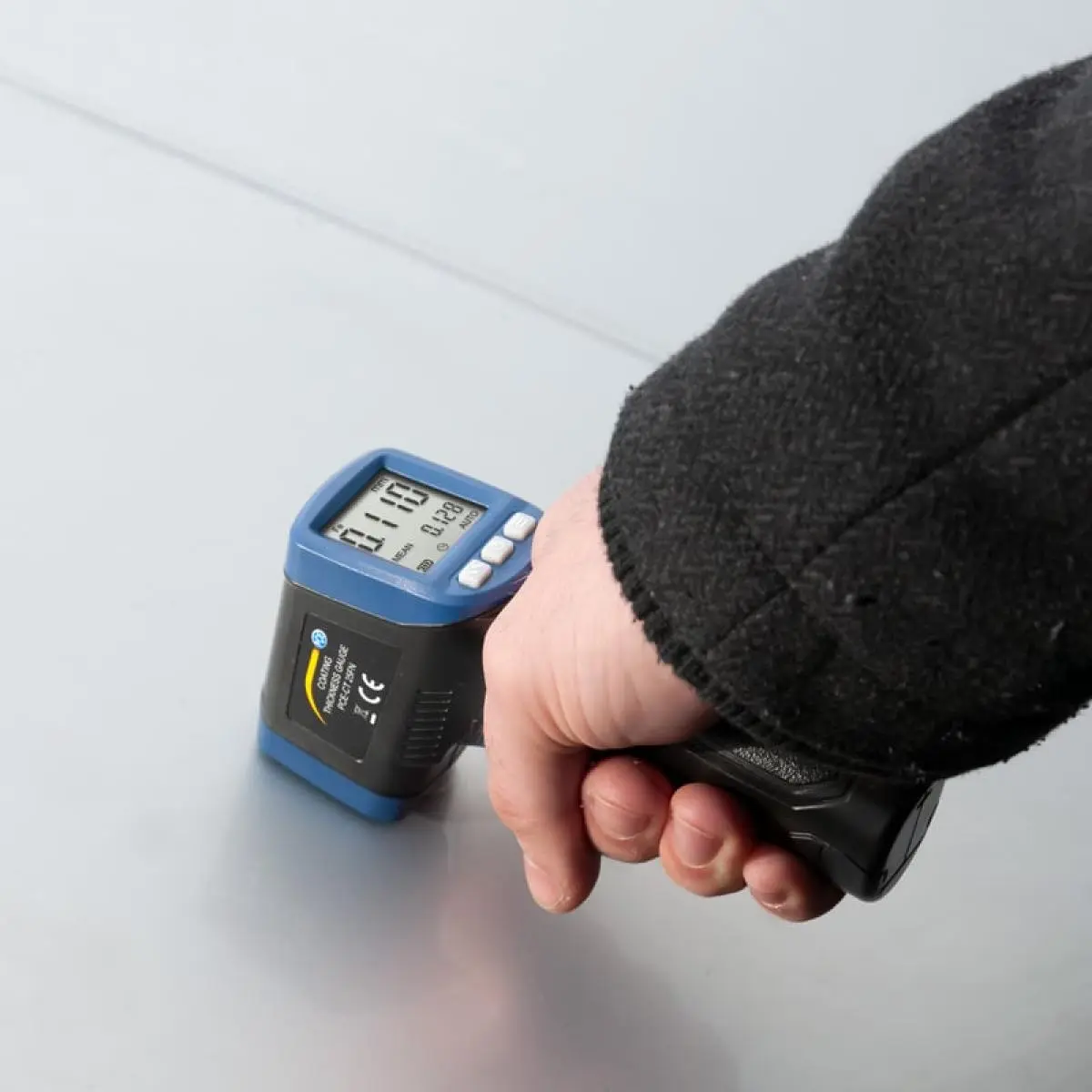

NDT Test Instruments Application picture

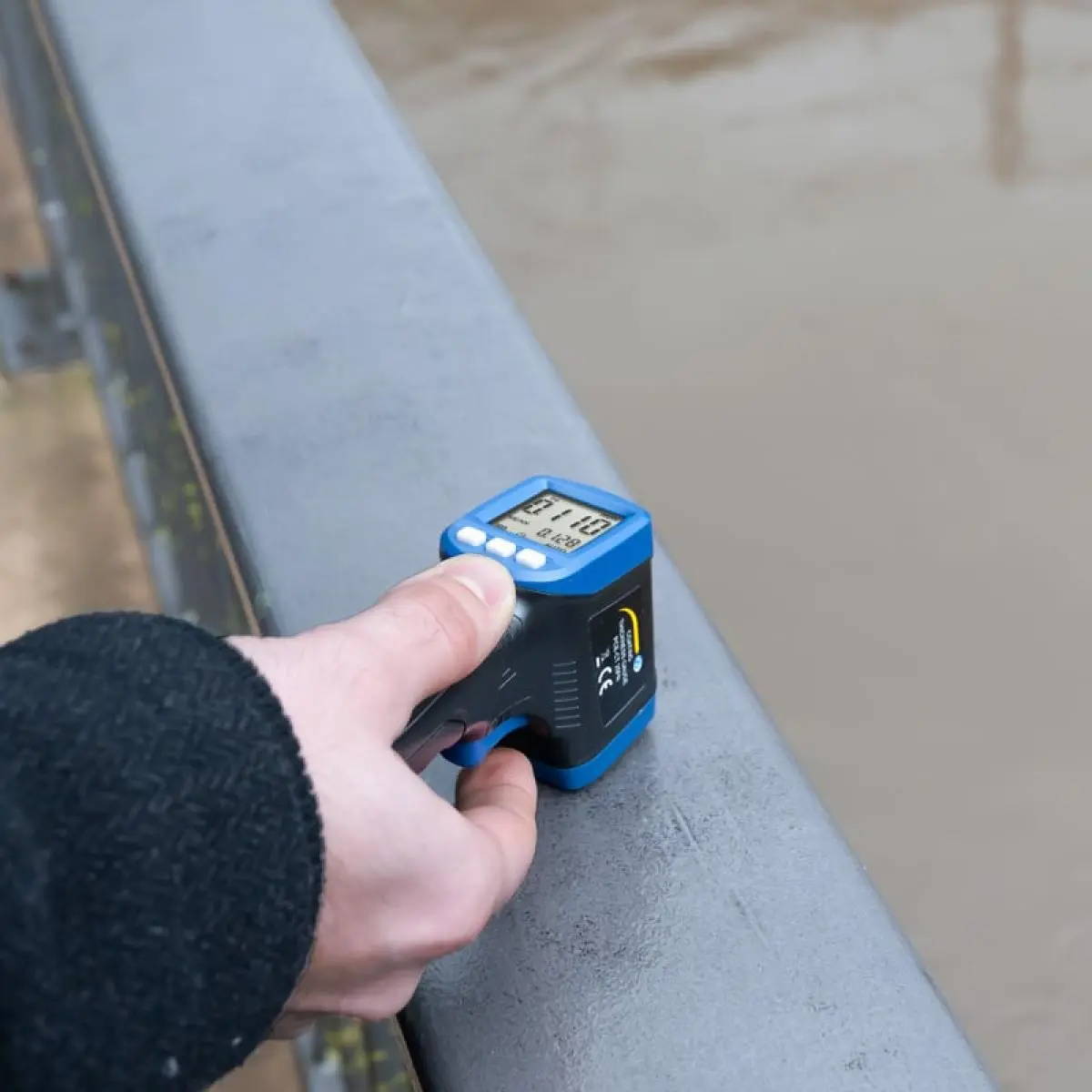

NDT Test Instruments Application picture

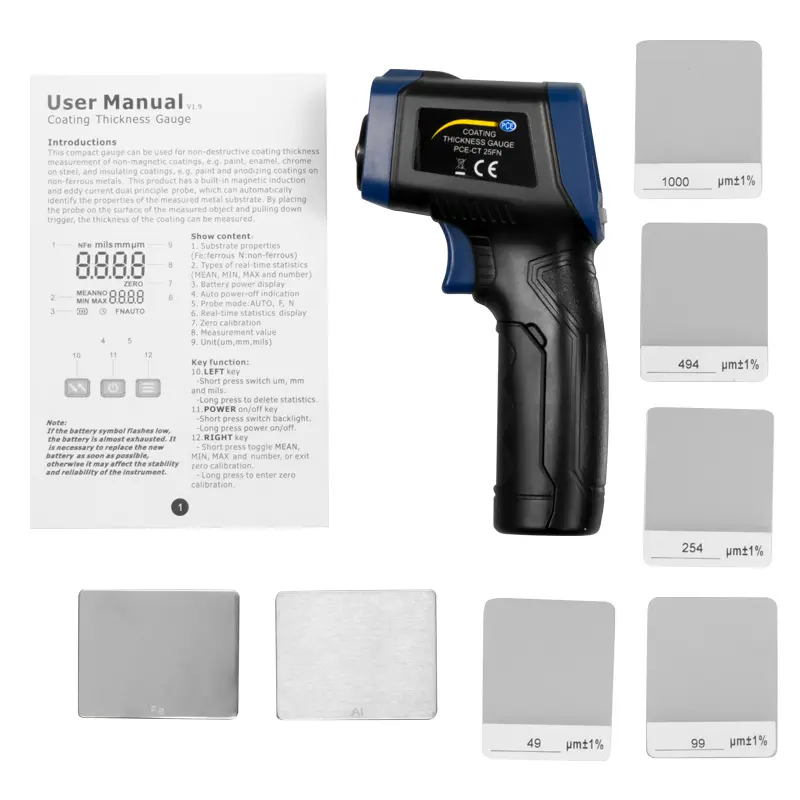

NDT Test Instruments Delivery scope

NDT Test Instrument PCE-CT 25FN

Order no.: PCE-CT 25FN
GTIN (EAN): 4250348721983
£ 130.00
£ 156.00
price ex. (VAT / delivery)
:
4250348721983
PCE-CT 25FN
Delivery time:1-2 working days

Accessory

Description

NDT Test Instrument with convenient one-hand operation / MIN MAX and MEAN display /
Battery indicator / various units / automatic shutdown /
for ferrous and non-ferrous metals / small and compact design

The NDT test instrument is used for the quick and precise detection of layer thicknesses on metals. In comparison to many other NDT test instrument, this NDT test instrument does not have to differentiate between ferrous and non-ferrous metal. With the small and compact design of the NDT test instrument, one-hand operation is possible. Despite its small size, the NDT test instrument has a measuring range of 1500 µm and an accuracy of ± (3% + 1 µm).

The measured values displayed can be output in µm, mm and in mils on the NDT test instrument. In addition to measuring the layer thickness, the NDT test instrument can determine the smallest, the largest and also the mean value from a series of different measurements. The NDT test instrument also has an automatic switch-off function.

Highlights

- small and compact design
- fast measuring frequency
- Calibration set included
- Different units can be selected
- also for continuous measurements
- comfortable one-hand operation

Specification

Layer thickness
Measuring range  0 ... 100 µm
Resolution  0,1 µm
Accuracy  ±(3% +1 µm)

Layer thickness
Measuring range  100 ... 1500 µm
Resolution  1 µm
Accuracy  ±(3% +1 µm)

Sensor
Battery type  Magnetic mode (Fe), Eddy current mode (NFe)
Measurable materials  Fe substrates such as: steel and iron
NFe substrates such as: aluminium and copper
Min. measuring surface  Ø 20 mm
Min. layer thickness  Fe: 0.3 mm
NFe: 0.05 mm
Min. radius of curvature convex  5 mm
Min. radius of curvature concave  25 mm

General technical data
Measuring functions  MIN, MAX, Average value
Units  µm, mm, mils
Display type  LCD with backlight
Display size  1,4 Inch
Measuring rate  2 Hz
Automatic power-off  3 min
Number of calibration points  0
Menu language  English, English (GB)
Protection class (device)  IP20
(Rechargeable) battery  1 x 9 V 9V block , Alkali-manganese
Capacity  550 mAh
Operating conditions  -10 ... 50 °C , 20 ... 90 % RH
Storage conditions  -10 ... 60 °C , 20 ... 90 % RH
Dimensions ( L x W x H )  140 x 80 x 40 mm
Weight  90 g

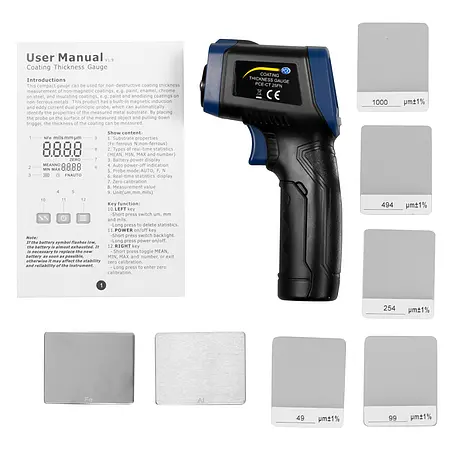

Delivery Scope

1 x NDT Test Instruments PCE-CT 25FN
5 x calibration foil reference
1 x Fe zero standard
1 x NFe zero standard
1 x 9 V block battery
1 x instruction manual
