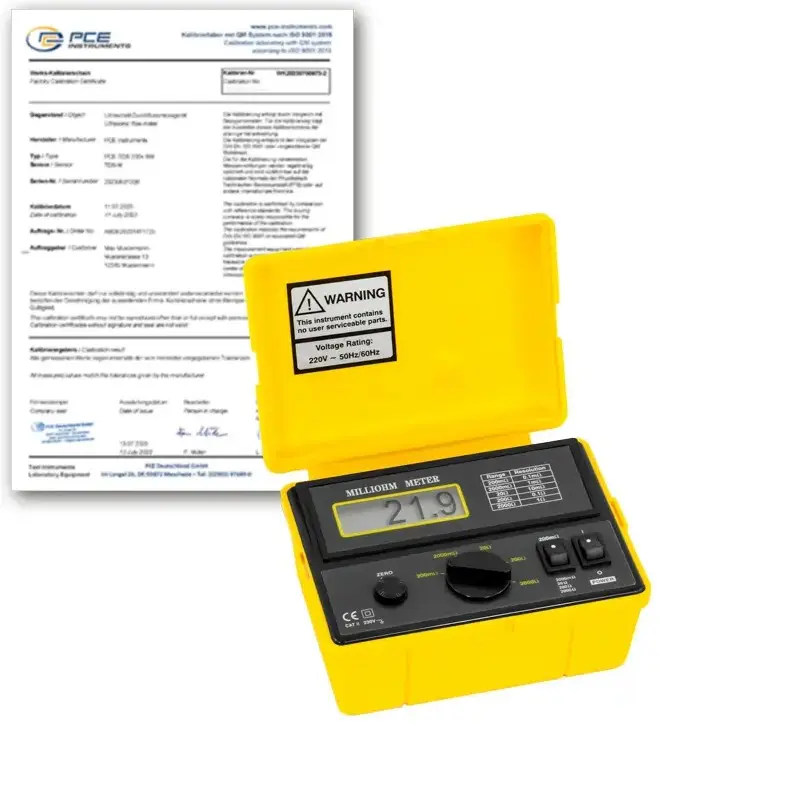

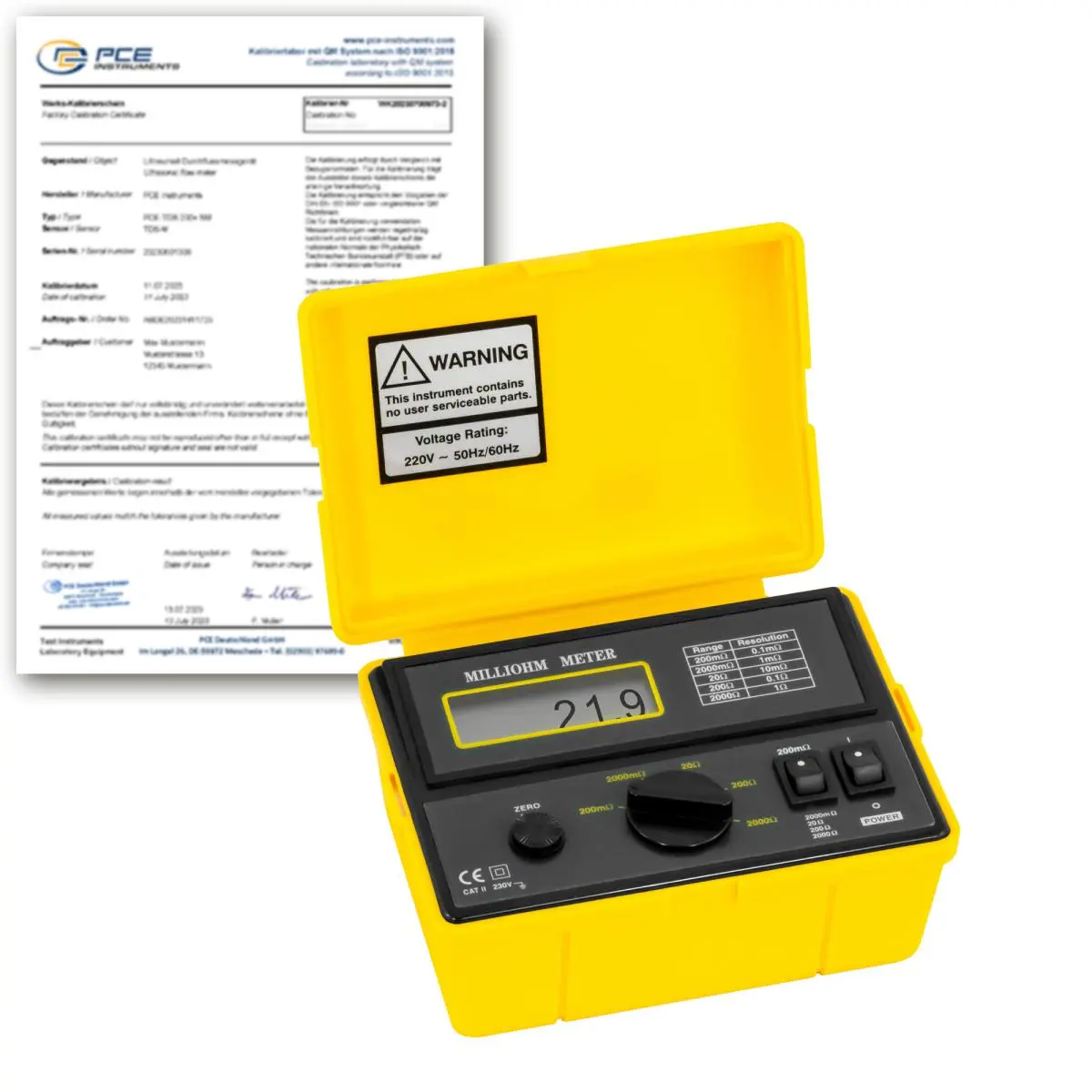

Milliohmmeter PCE-MO 2001-ICA incl. ISO-Calibration Certificate

Order no.: PCE-MO 2001-ICA

GTIN (EAN): 4250348733917

Accessory

Measuring leads PCE-MO2001-ML

£ 47.00

Calibration Certificate for PCE-MO Series

£ 173.00

Description

Milliohmmeter PCE-MO 2001

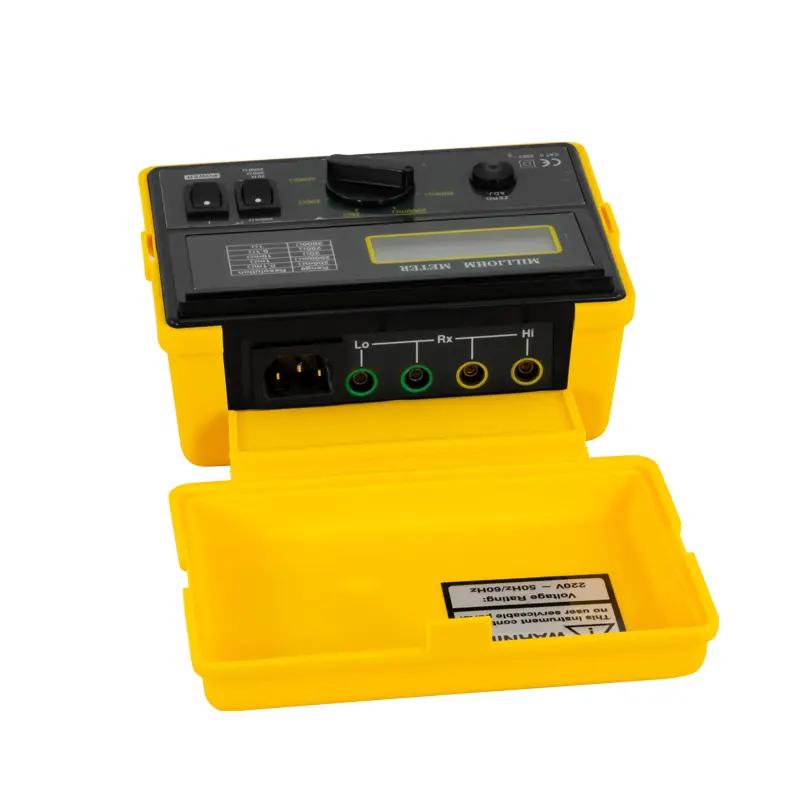

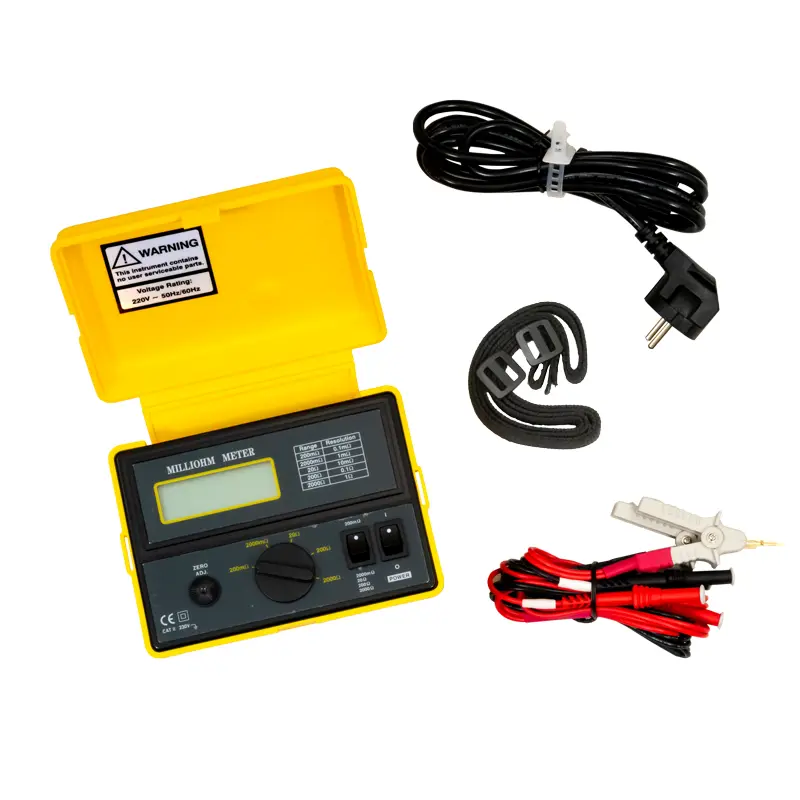

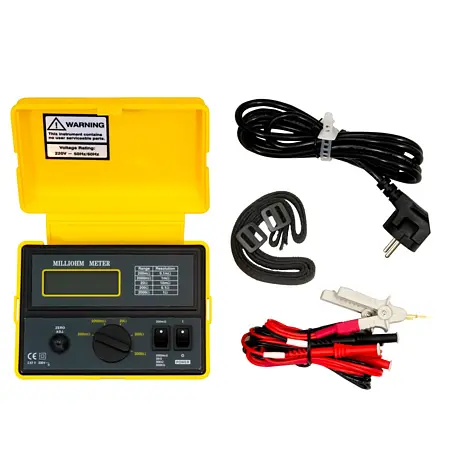

(supplied with a water resistant brief-case, for measuring ranges from 100 μΩ to 2000 Ω)

This Milliohmmeter is supplied with a large 3½ positions LCD display that shows the measurement values, which is very easy to read. With the Milliohmmeter you will be able to measure electric resistance from 100 μΩ to 2000 Ω.To obtain measurement values, a constant electric current is introduced inside an object to test the voltage drop in it. Milliohmmeter has a housing protected against water splash and also it is delivered calibrated. If you wish, an ISO calibration certificate can be requested.

Highlights

- It can be used to measure electric resistance in engine coils, generators, transformers, commutation circuits, for instance in parallel or adjoining commutation circuits, compressed commutation circuits or commutators and relays.
- To measure binding energy in mines, planes, boats and also for both industrial and home installations.
- Pitch control in cyclic systems (Ringbus) to be used in industry and home.
- To test and measure Read contacts.
- Compression elements control in over line current cables, for the control and maintenance of components such as connectors, contacts.
- Security: IEC-1010-1; CAT II 20 V

Specification

Ranges	0 ... 200 mΩ every 100 μΩ/ 0 ... 2000 mΩ: 1 mΩ/ 0 ... 20 Ω: 10 mΩ/ 0 ... 200 Ω: 100 mΩ/ 0 ... 2000 Ω: 1 Ω
Accuracy	±0.75 % of the value +4 pos. (range up to 20 Ω) ±0.75 % of the value +2 pos. (from 20 Ω)
Resolution	0.1/ 1/ 10 mΩ; 0,1/ 1 Ω
Test current	1 mA (2000 Ω/200 Ω range) 10 mA (20 Ω/2 Ω range) 100 mA (200 mΩ range)
Accuracy	±0.1 %
Measuring quota	aprox. 0.4 s
Zero reset	by hand: by means of a rotary wheel (±50)
Overload indicator	In case of overload a ''1'' appears
Power	230/110 VAC, 50/ 60 Hz
Dimension of the tester cable length	250 x 180 x 200 mm 50 cm (between the plug and the gripper)
Weight	680 g
Approval	IEC-1010-1; CAT II
