Milliohmmeter PCE-MO 2002

Milliohm Meter PCE-MO 2002

Order no.: PCE-MO 2002
GTIN (EAN): 4250348701084
£ 734.00
£ 880.80
price ex. (VAT / delivery)
:
4250348701084
PCE-MO 2002
Delivery time:1-2 working days

Description

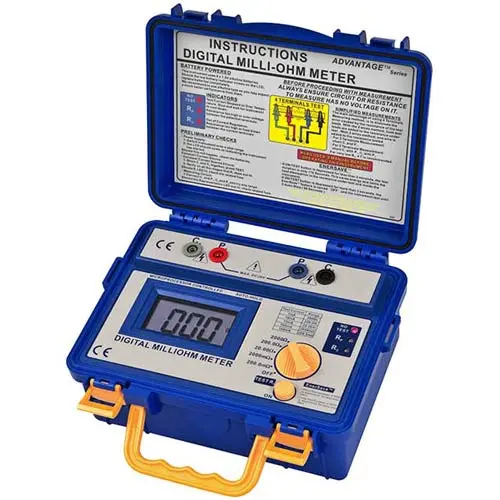

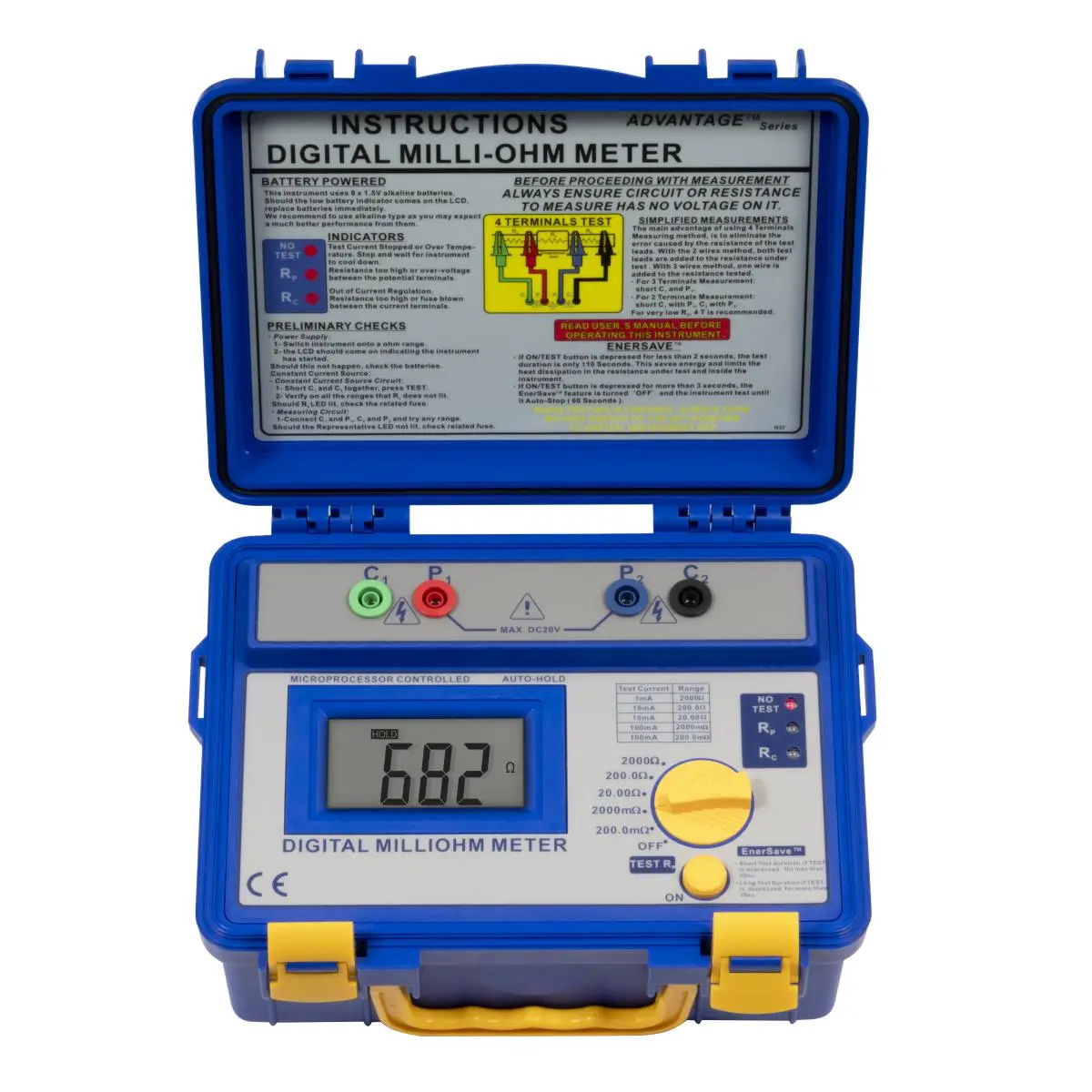

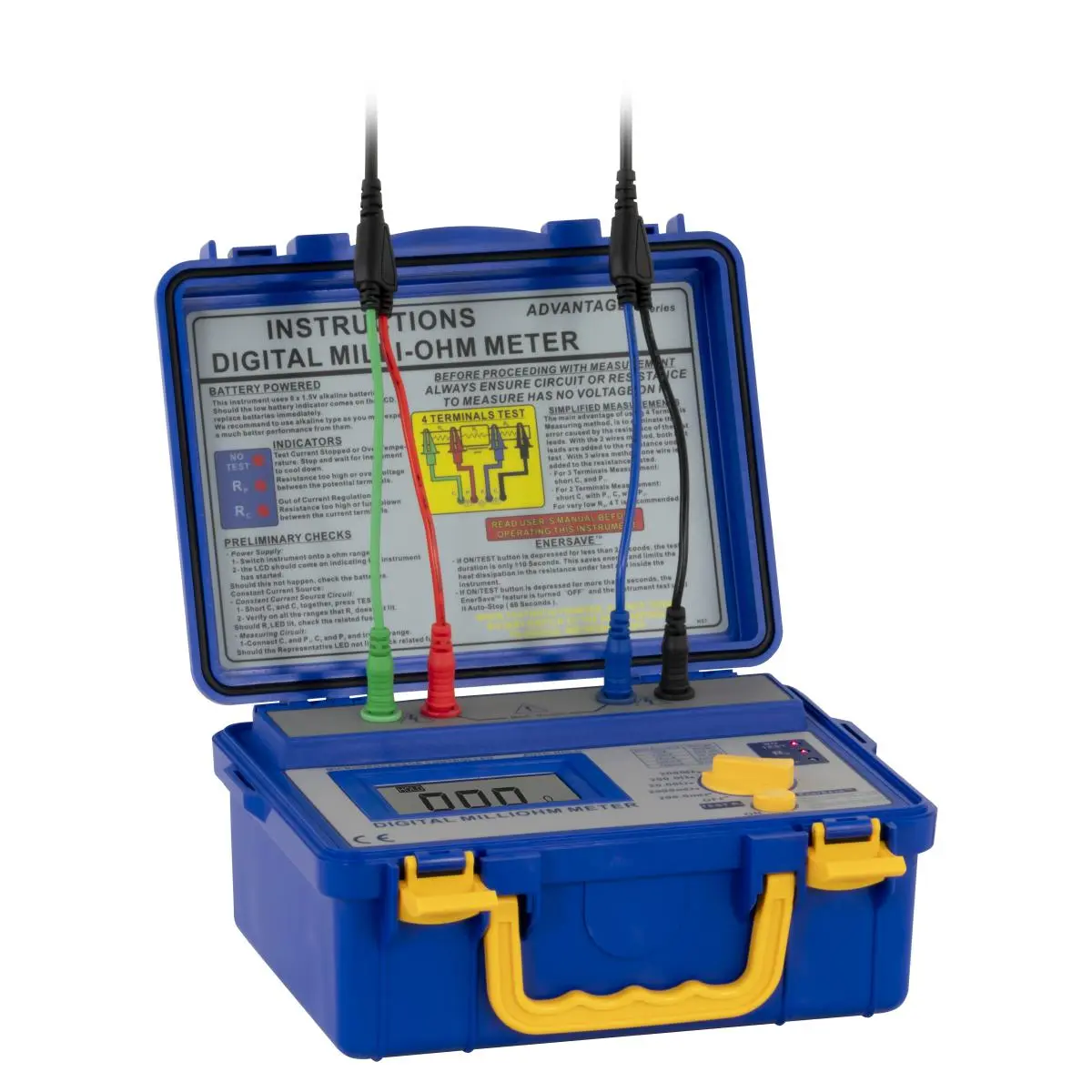

Milliohm Meter PCE-MO 2002
(Milliohm Meter with ruggedized and waterproof carrying case.
With highly accurate measurement range)

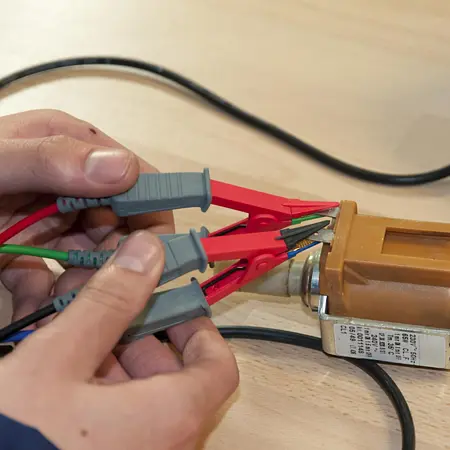

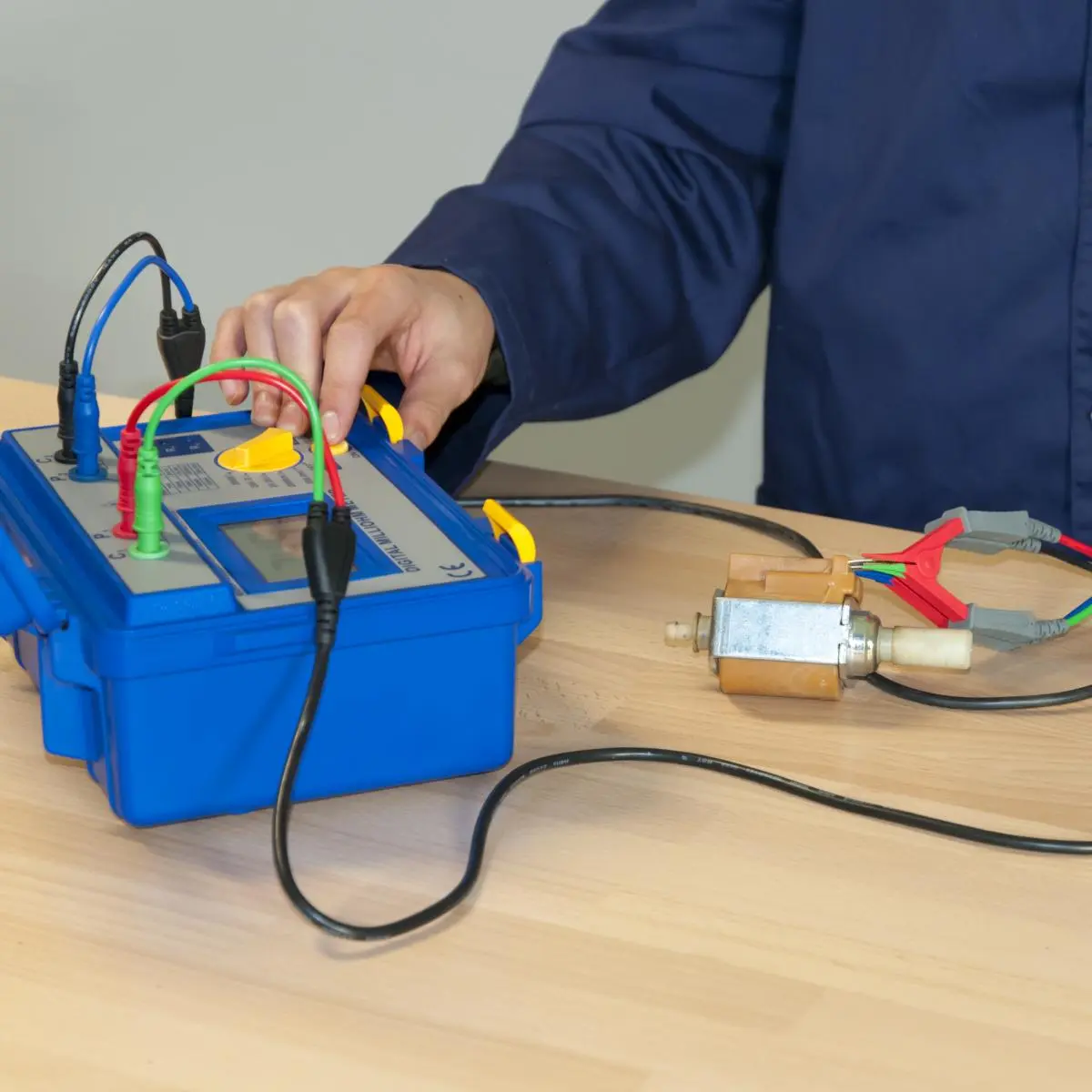

This Milliohm Meter comes with a housing protected against water intrusion. With the Milliohm Meter PCE-MO 2002 Series you can measure from 100 μΩ up to 2000 Ω. With this Milliohm Meter measurement values are displayed by means of a LCD display with 3.5 digits and a good readability. Milliohm Meter detect the measurement value, a constant current is mated on the object is going to be measured and then the voltage drop is tested. It allows to measure resistance in coils, generators, transformers, parallel and secondary circuits, commutators and relays. It measures binding energy in planes, rail systems, boats and electrical installations in both industry and home. It allows continuity tests in circularly systems (ring network) in industry and home. To test compression elements in airlines, testing works and maintenance of electric cupboards and elements such as fuses, connectors, and contacts. It comes calibrated from the manufacturer and an optional laboratory calibration and ISO certificate can be ordered separately for annual recalibrations.

Highlights

- Measurement system with four conductors with alligator clips
- Selection of 5 measurement ranges
- 3 test currents with overheat fuse
- Surge fuse in measurement inputs.

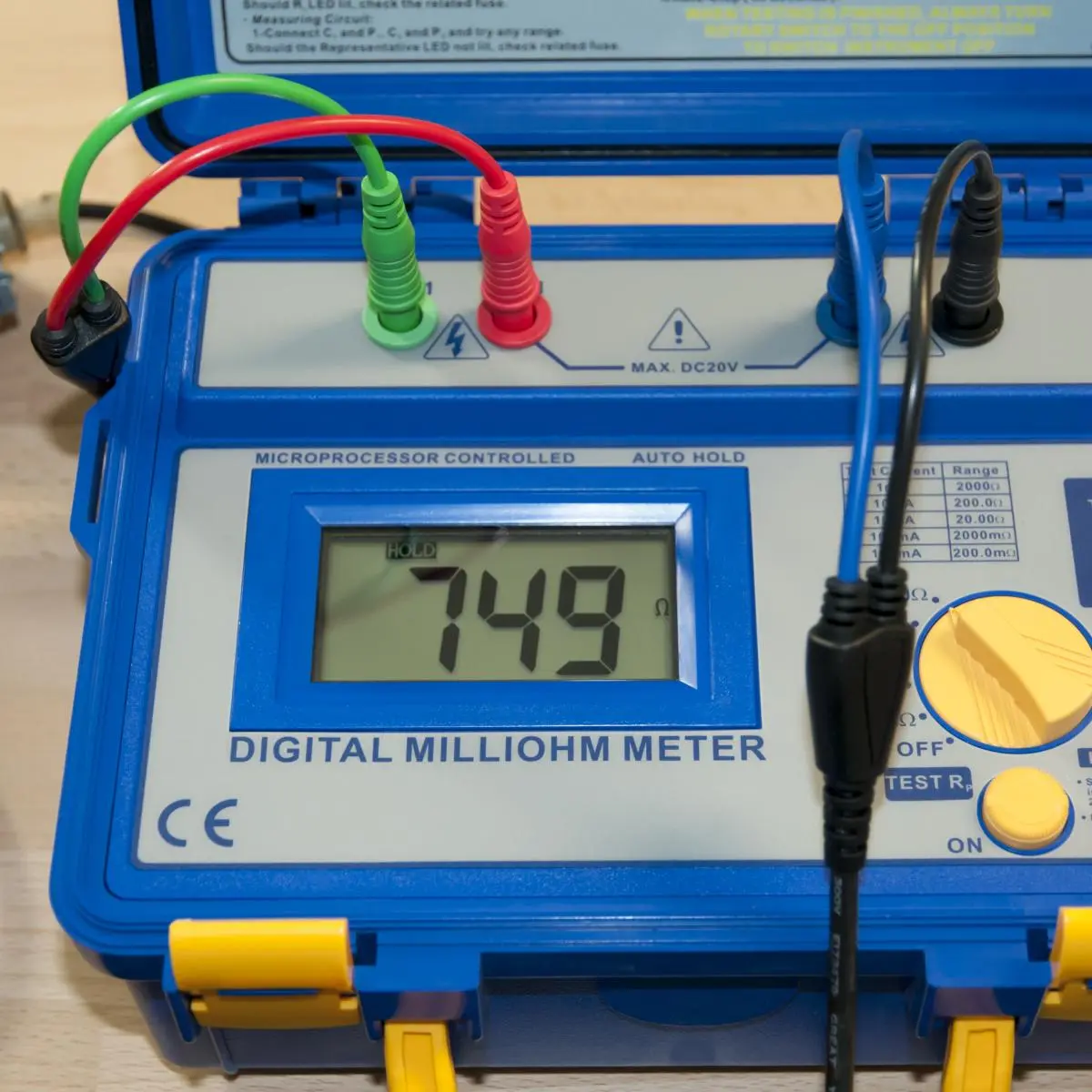

- Big LCD display
- Elimination of the measurement resistance in conducts.
- Auto-Hold and Auto-Off function
- LED indication when the Rp, Rc and temperature permitted values are exceeded.
- Light weight, solid and compact
- Waterproof housing with ring seal
- Security: IEC-1010-1; CAT IV 20 V

Specification

Resistance
Measuring range  100 ... 200 mΩ
Resolution  100 mΩ
Accuracy  ±0.5% of Rd, ±2 digits throughout the entire operating temperature range from -15 ... 55°C /

Resistance
Measuring range  100 ... 2000 mΩ
Resolution  1 mΩ
Accuracy  ±0.5 % of Rd, ±2 digits throughout the entire operating temperature range from -15 ... +55 °C

Resistance
Measuring range  100 ... 20 Ω
Resolution  10 mΩ
Accuracy  ±0.5 % of Rd, ±2 digits throughout the entire operating temperature range from -15 ... +55 °C

Resistance
Measuring range  100 ... 200 Ω
Resolution  100 mΩ
Accuracy  ±0.5 % of Rd, ±2 digits throughout the entire operating temperature range from -15 ... +55 °C

Resistance
Measuring range  100 ... 2000 Ω
Resolution  1 Ω
Accuracy  ±0.5 % of Rd, ±2 digits throughout the entire operating temperature range from -15 ... +55 °C

General technical data
Measuring functions  HOLD
Display type  LCD
Standard(s)  IEC 1010-1
Safety standard  CAT IV 20V
Measuring method  4-wire method for mΩ measurement
Test current  1 mA: 2000 Ω
10 mA: 200 Ω / 20 Ω
100 mA: 2000 mΩ / 200 mΩ
Accuracy: ±0.1 %
Menu language  English, English (GB)
Protection class (device)  IP65
Protection class (additional information)  Only with the lid closed
Power supply  batteries
(Rechargeable) battery  8 x 1,5 V AA battery , Alkali-manganese
Capacity  3000 mAh
Operating conditions  -15 ... 55 °C , 20 ... 93 % RH
Storage conditions  -20 ... 65 °C , 20 ... 93 % RH
Dimensions ( L x W x H )  245 x 190 x 115 mm
Weight  1578 g

Delivery Scope

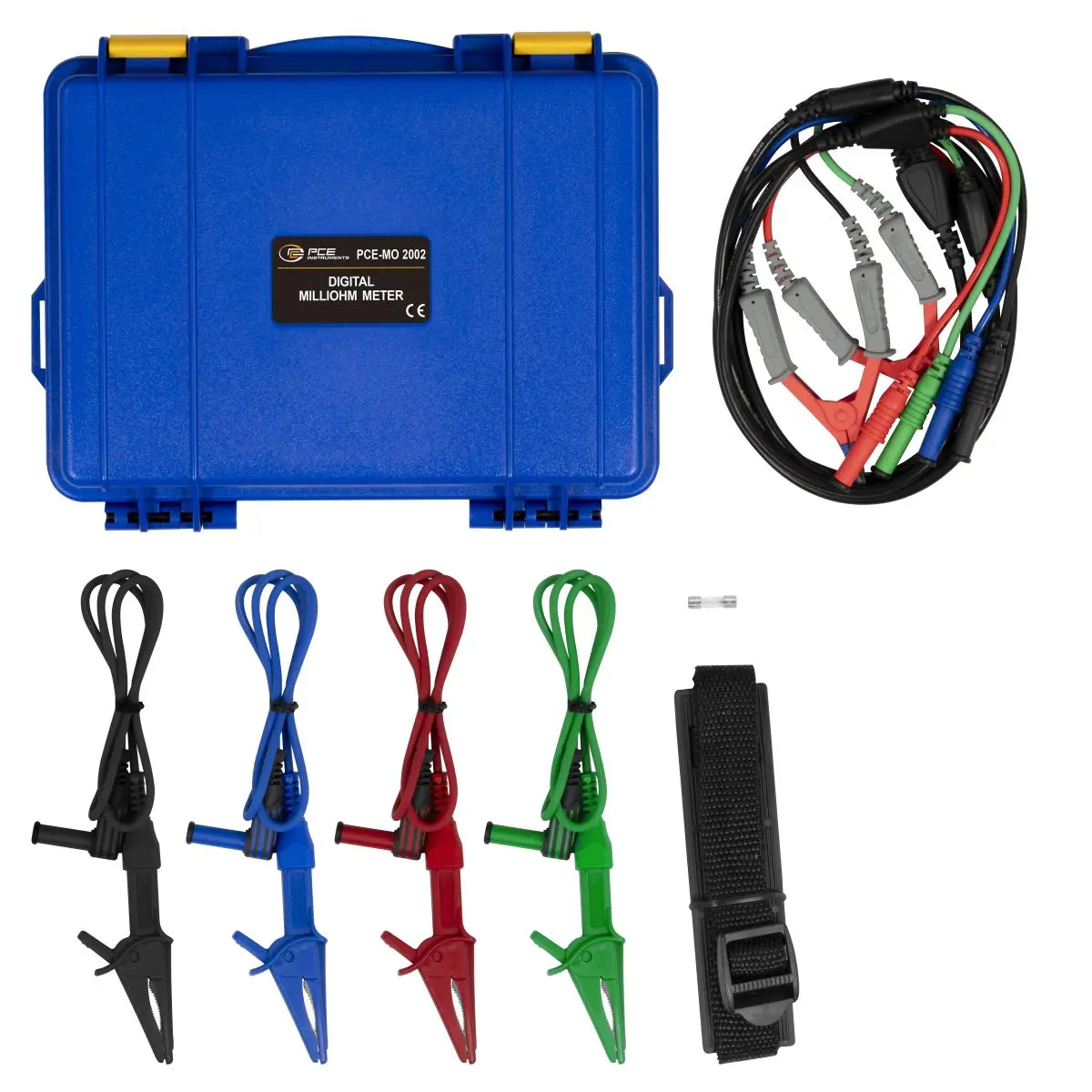

Delivery contents
1x Milliohmmeter PCE-MO 2002,

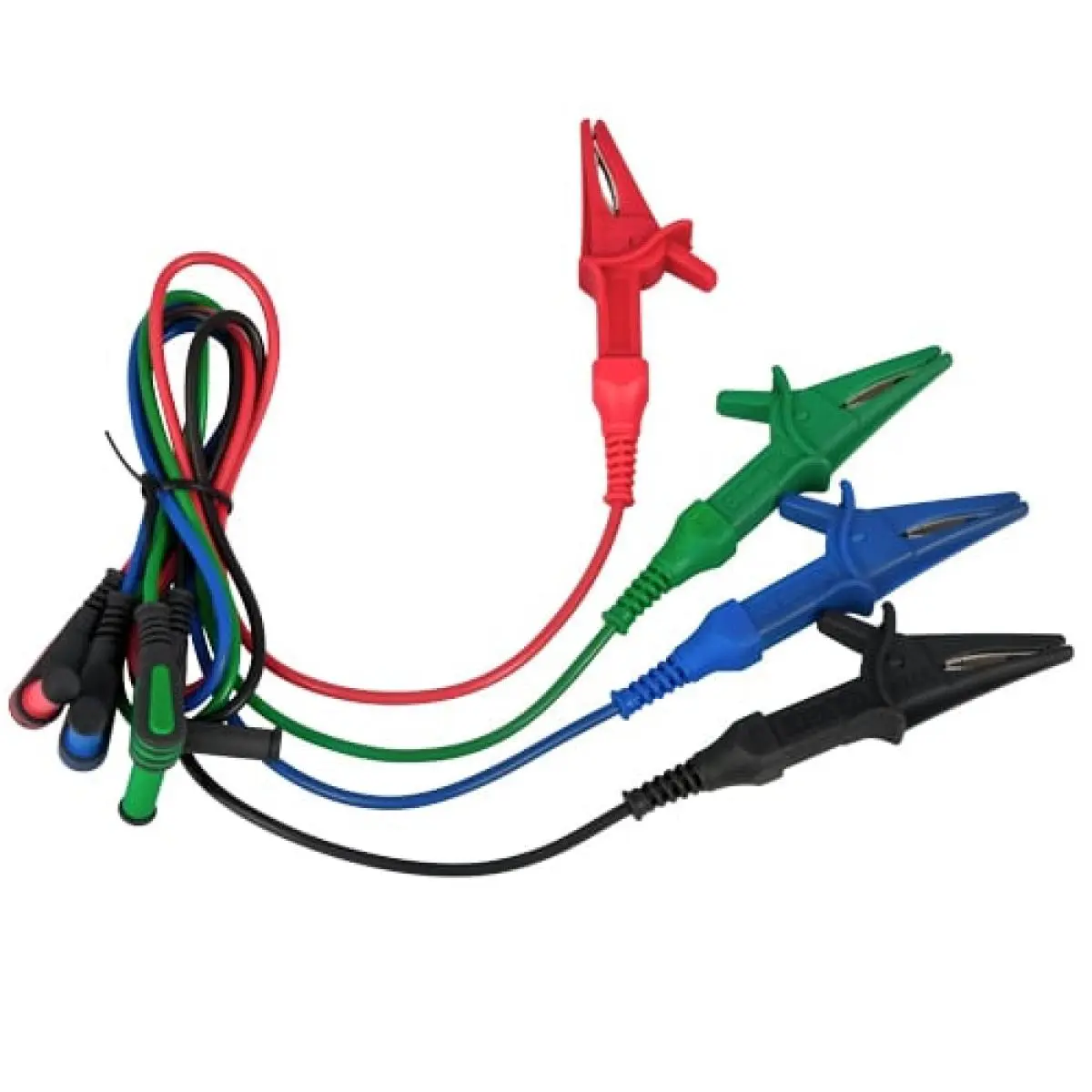

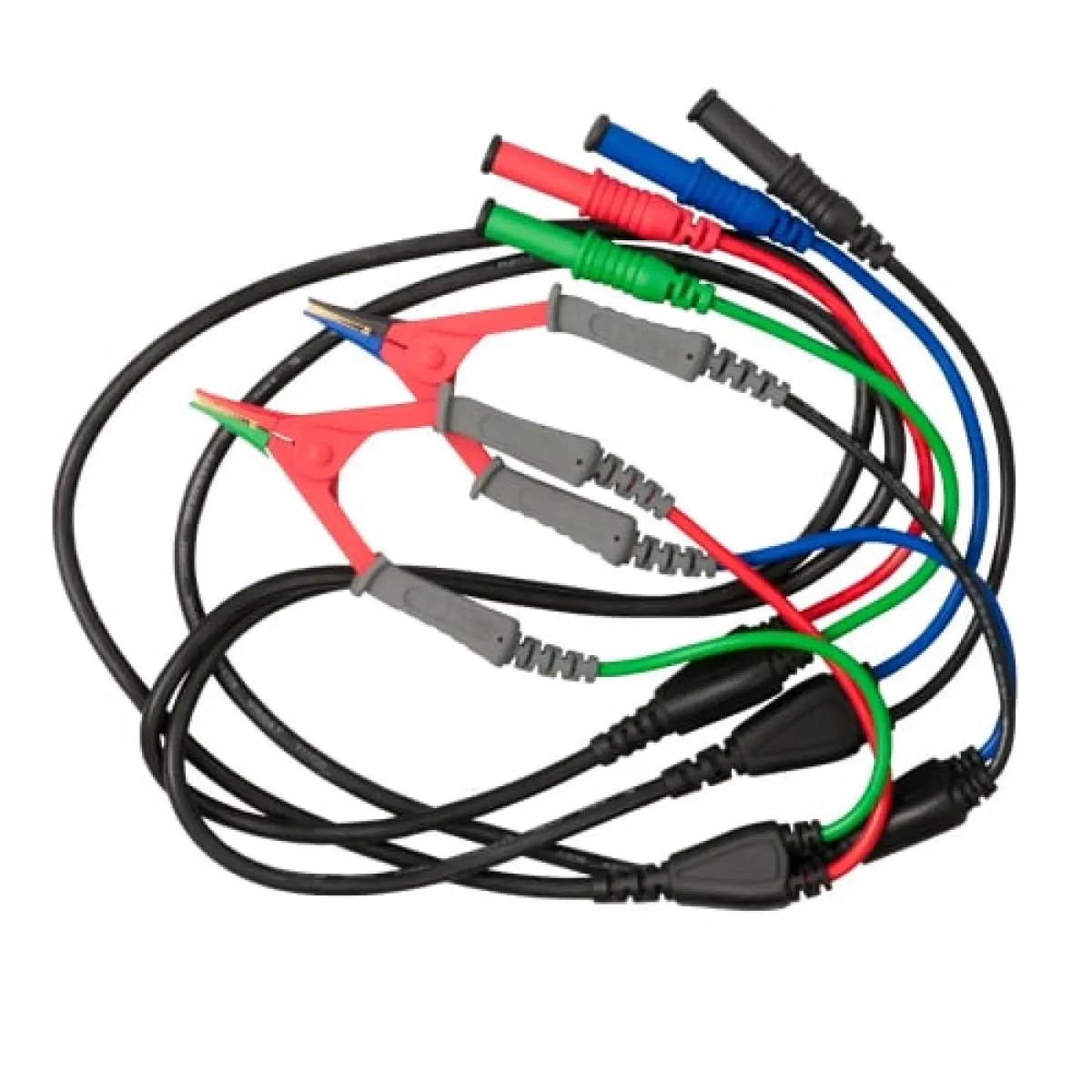

1x testing cable set,
1x supporting strap,
8x batteries
1x user's manual.
