£ 238.00

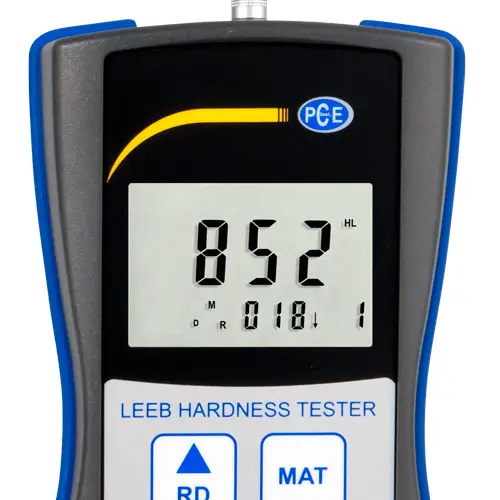

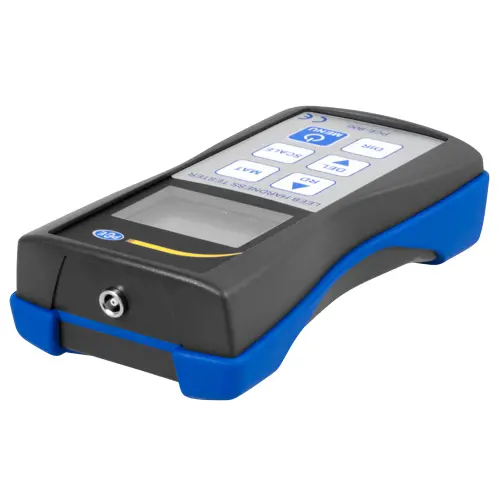

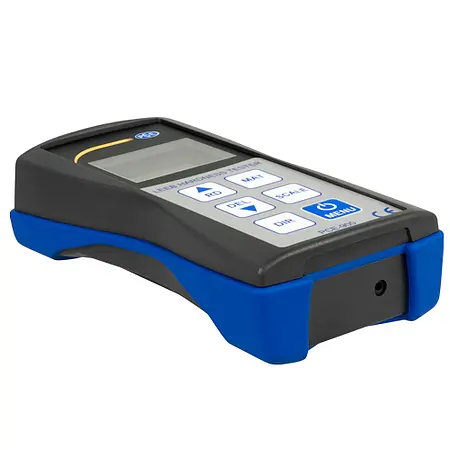

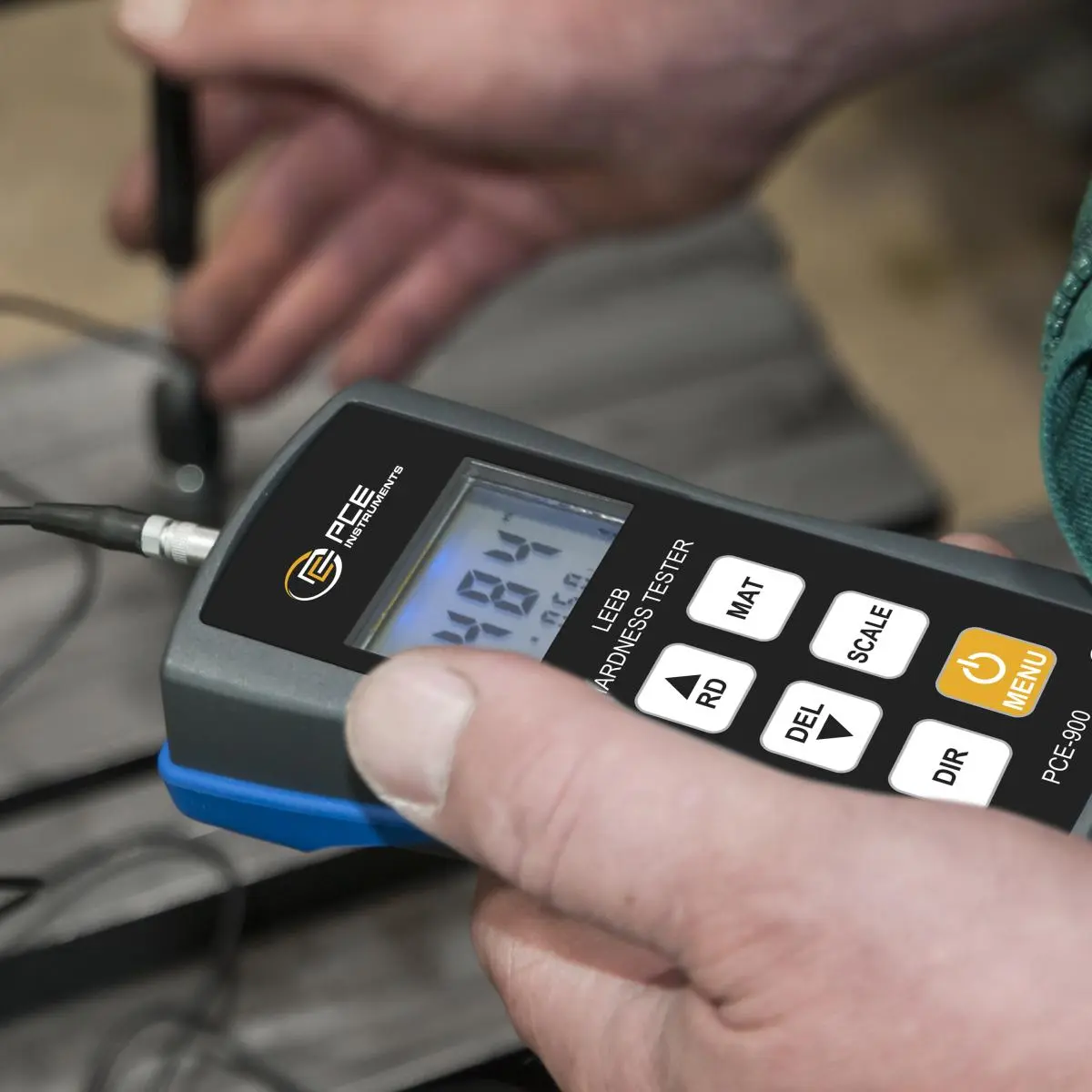

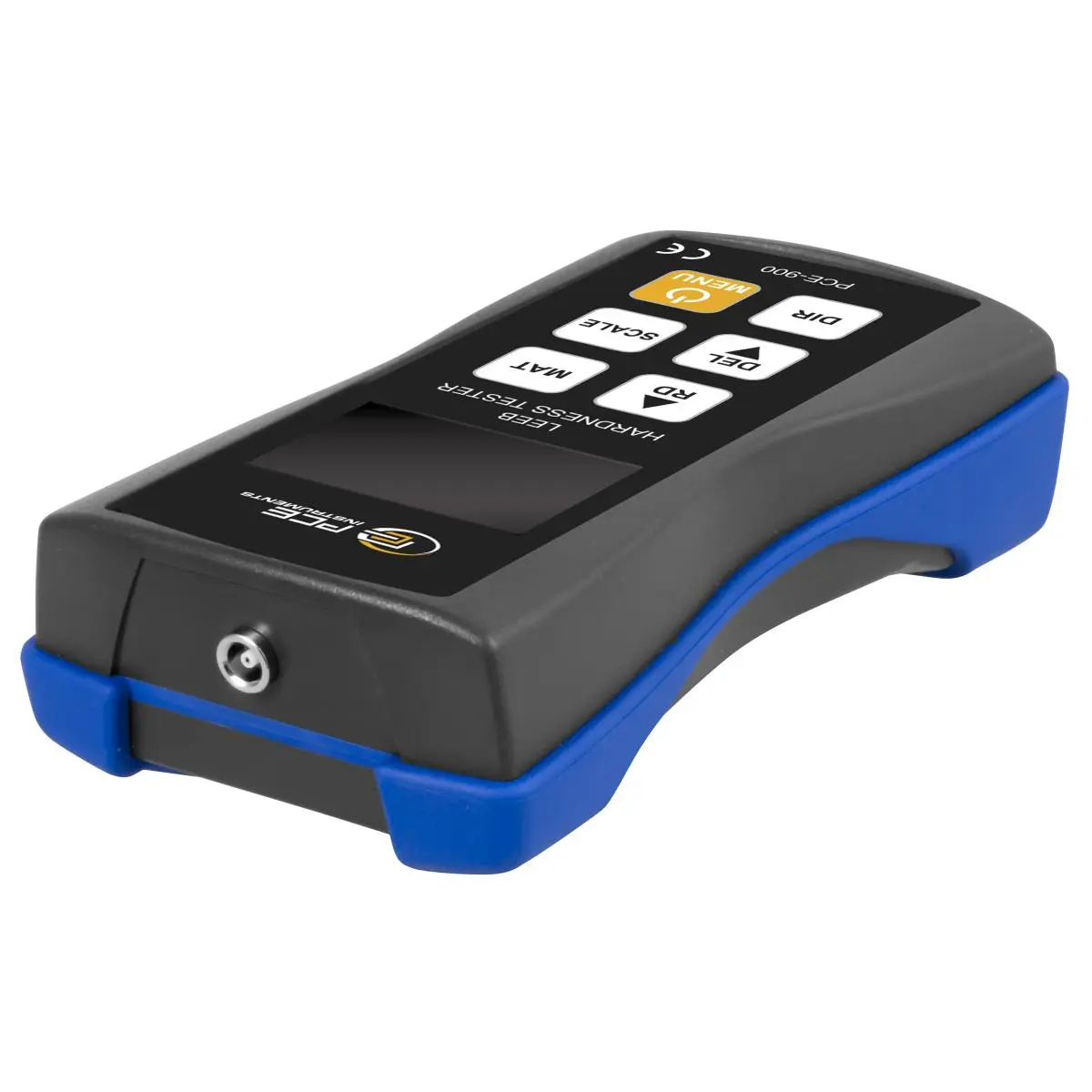

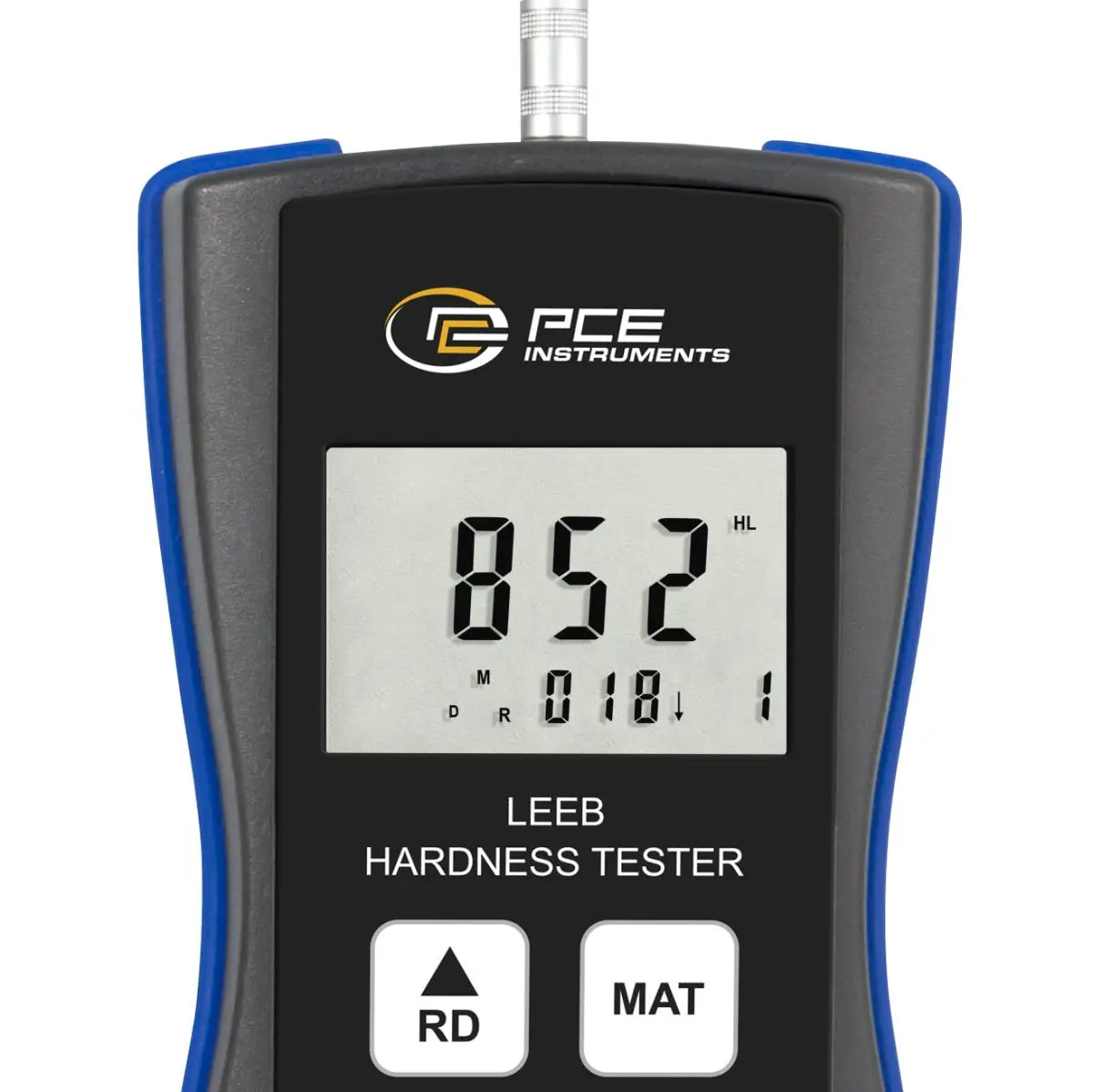

PCE-900 Material hardness tester for metals
9 materials pre-calibrated / Conversion into 6 different hardness scales
/ Type D impact probe

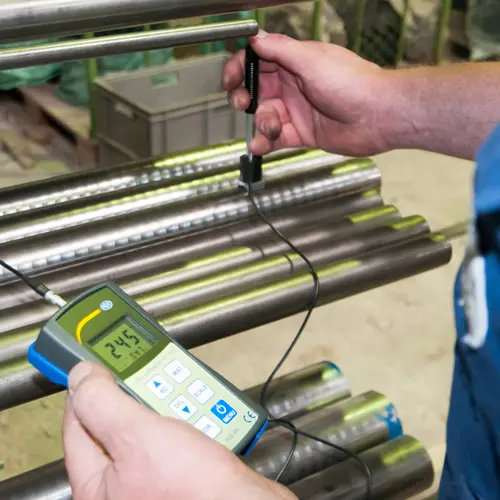

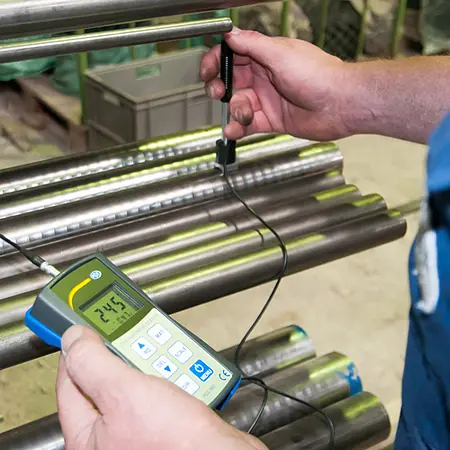

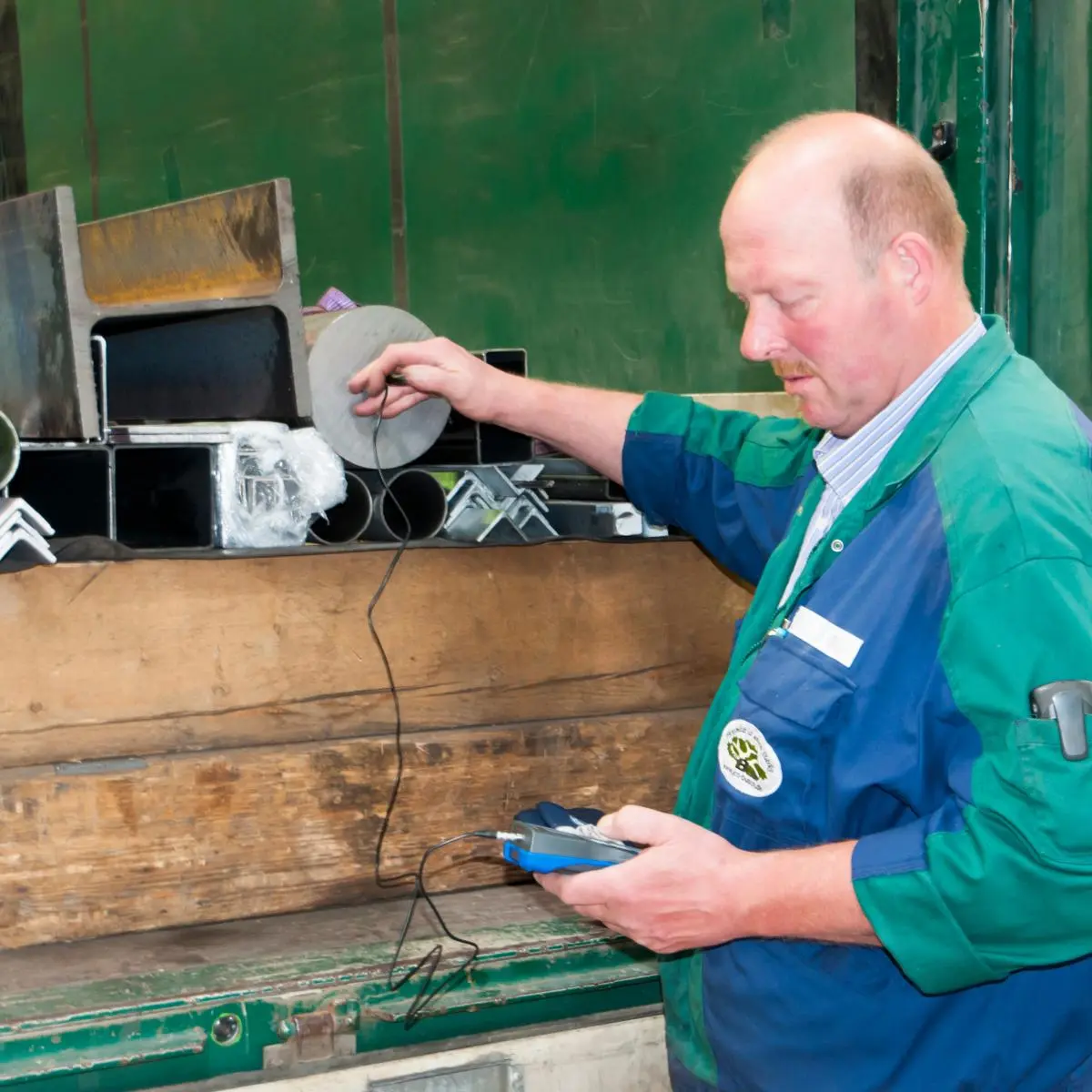

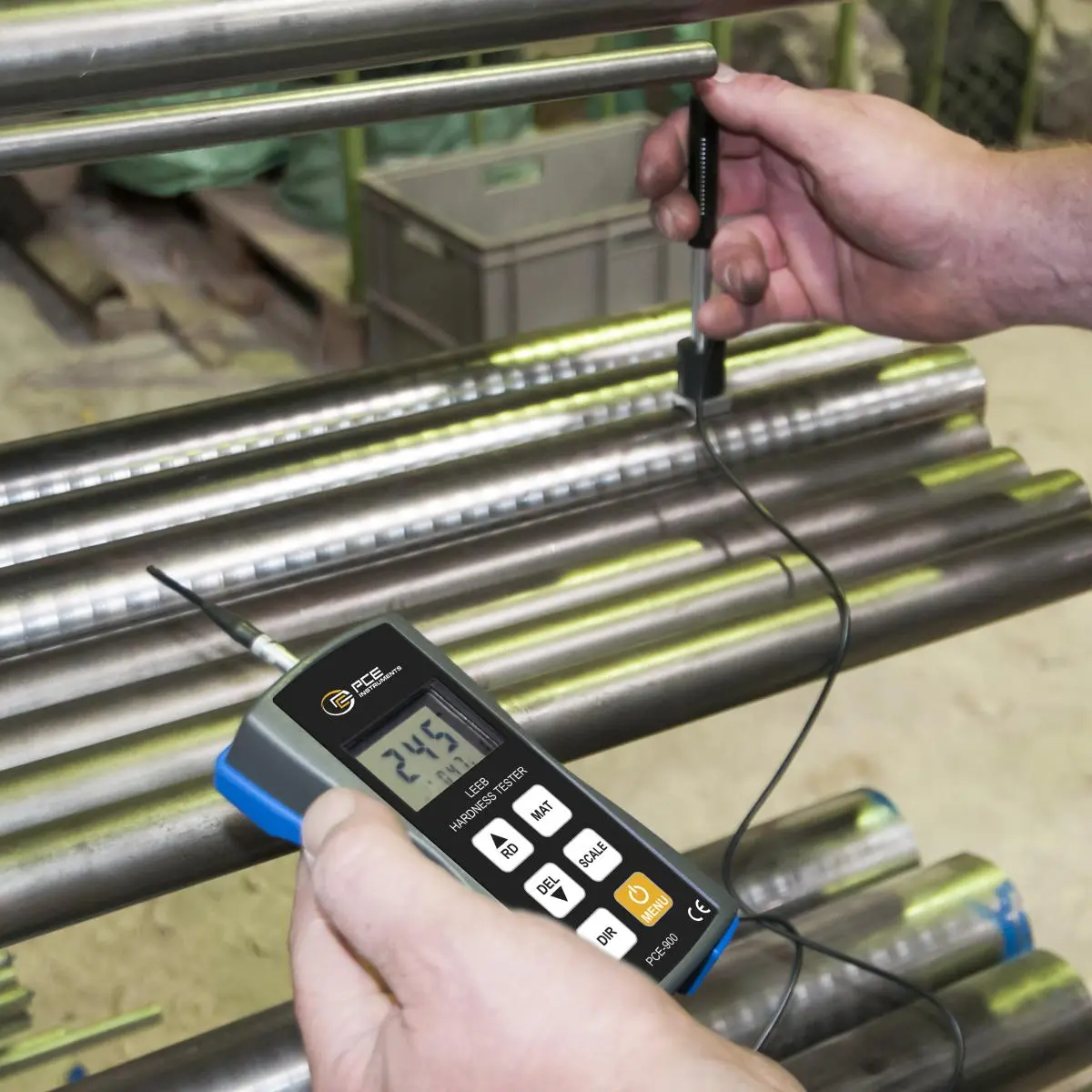

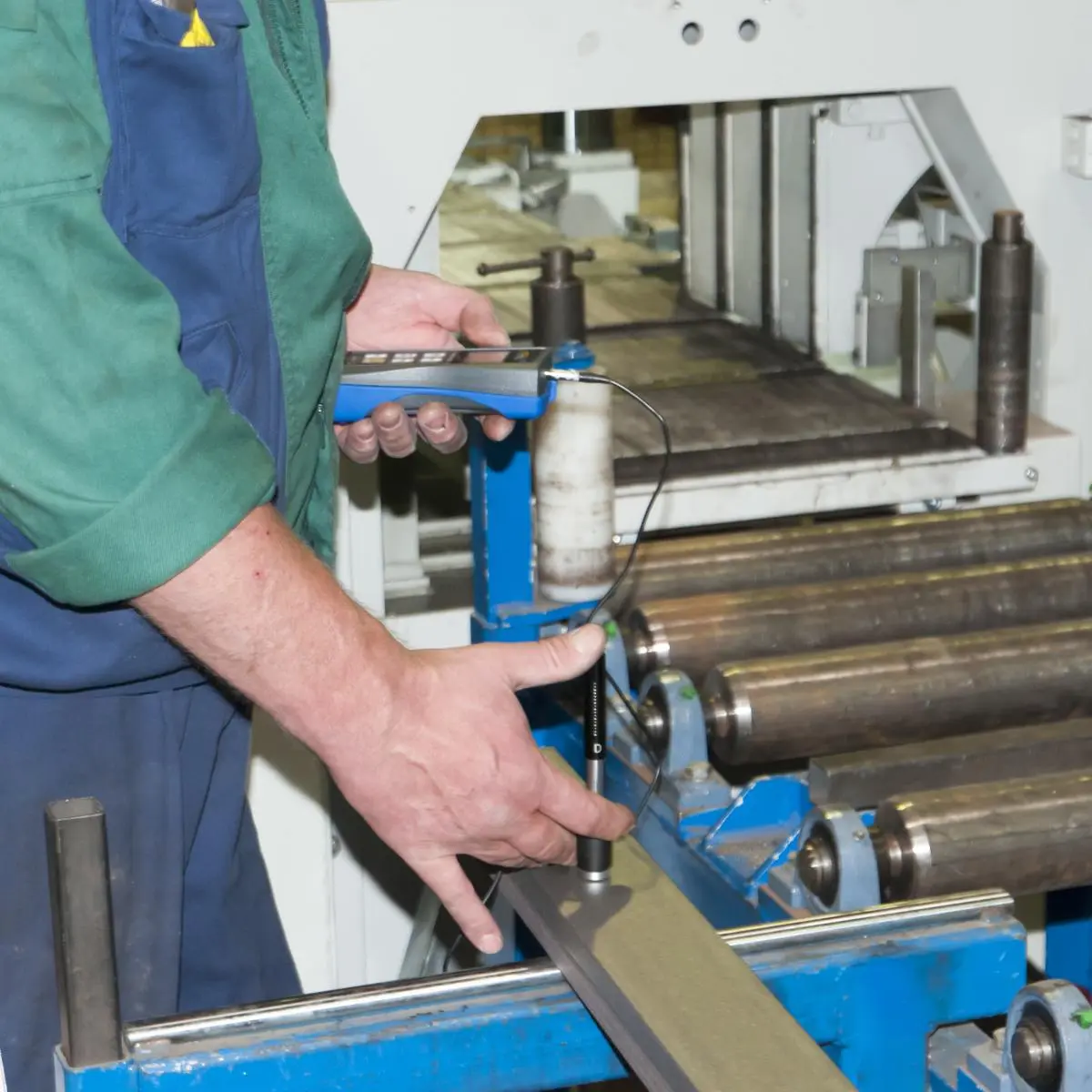

The Leeb Hardness Tester PCE-900 measures the hardness of nine different metals using the Leeb rebound method.

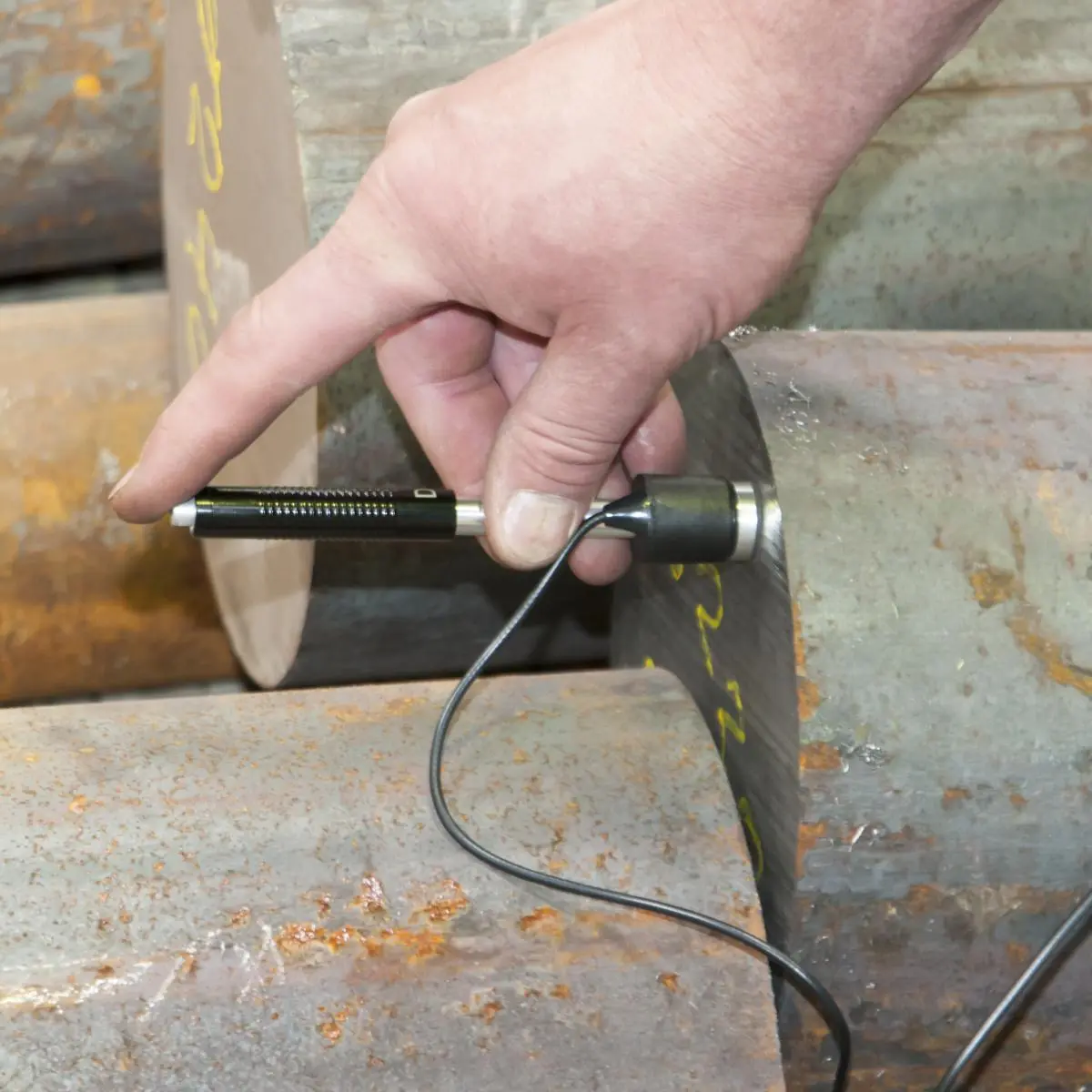

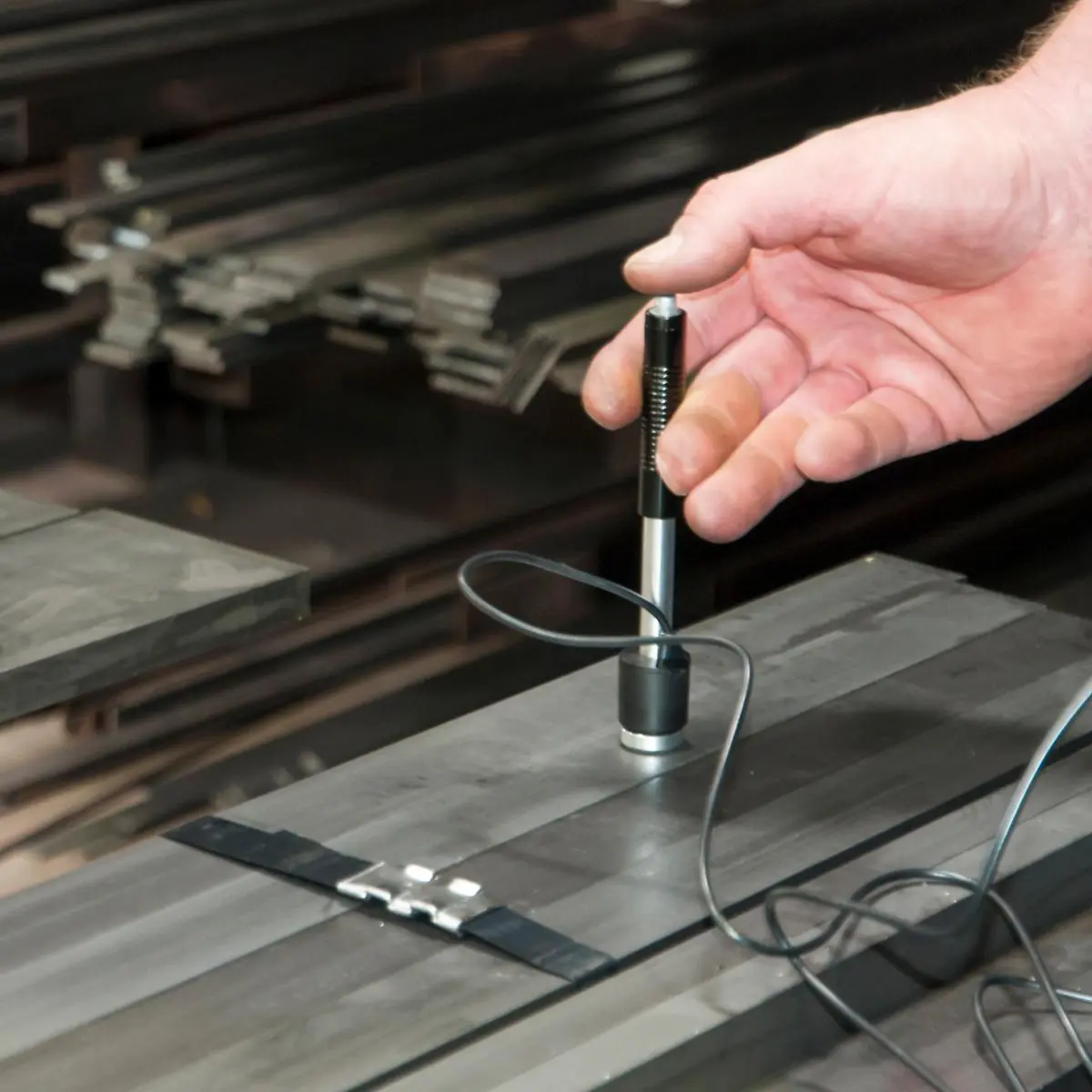

This means that with the hardness tester a firing pin bounces on a metallic surface and the intensity of the rebound is used as an indicator of the material hardness.
The hardness tester PCE-900 measures the metal hardness in 6 different hardness scales, including: Rockwell, Vickers, Leeb, Brinell and Shore.
A distinction is made between Rockwell B and C when measuring in the Rockwell scale.

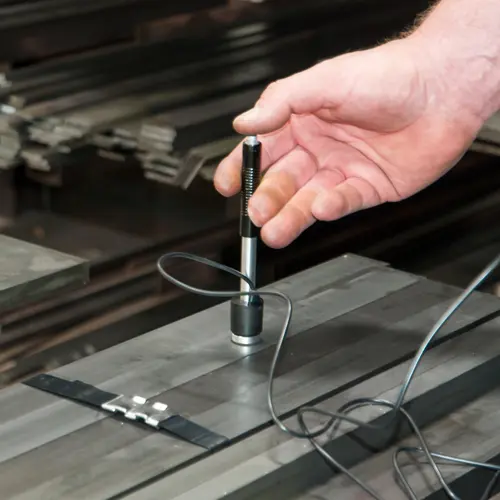

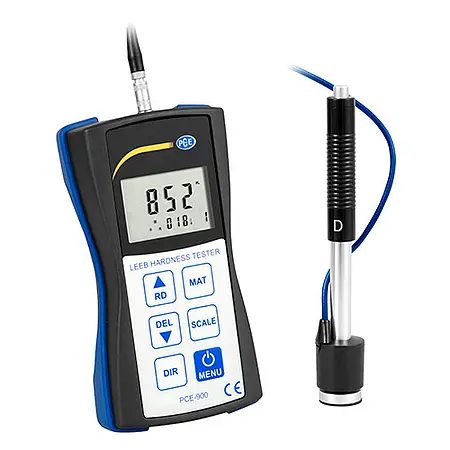

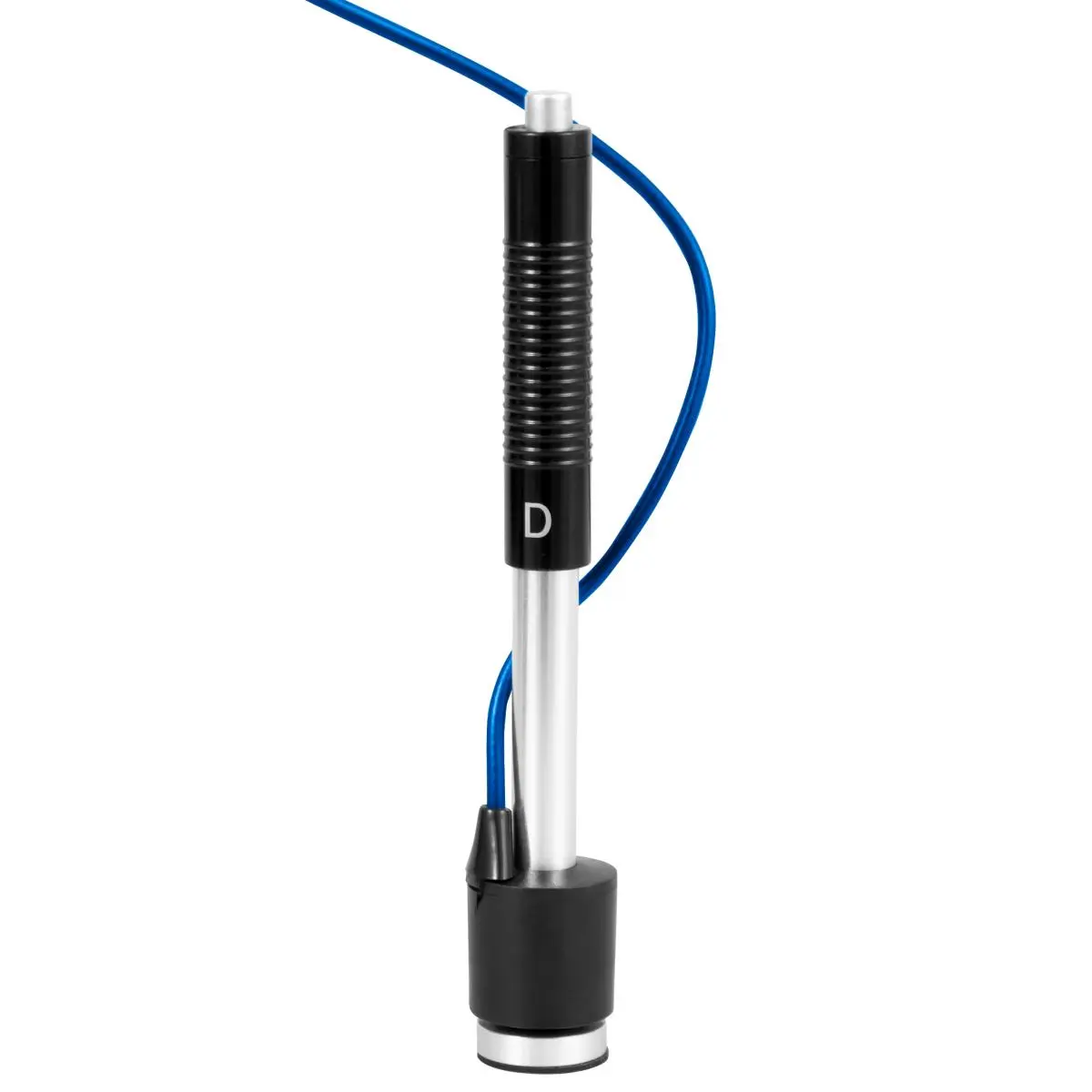

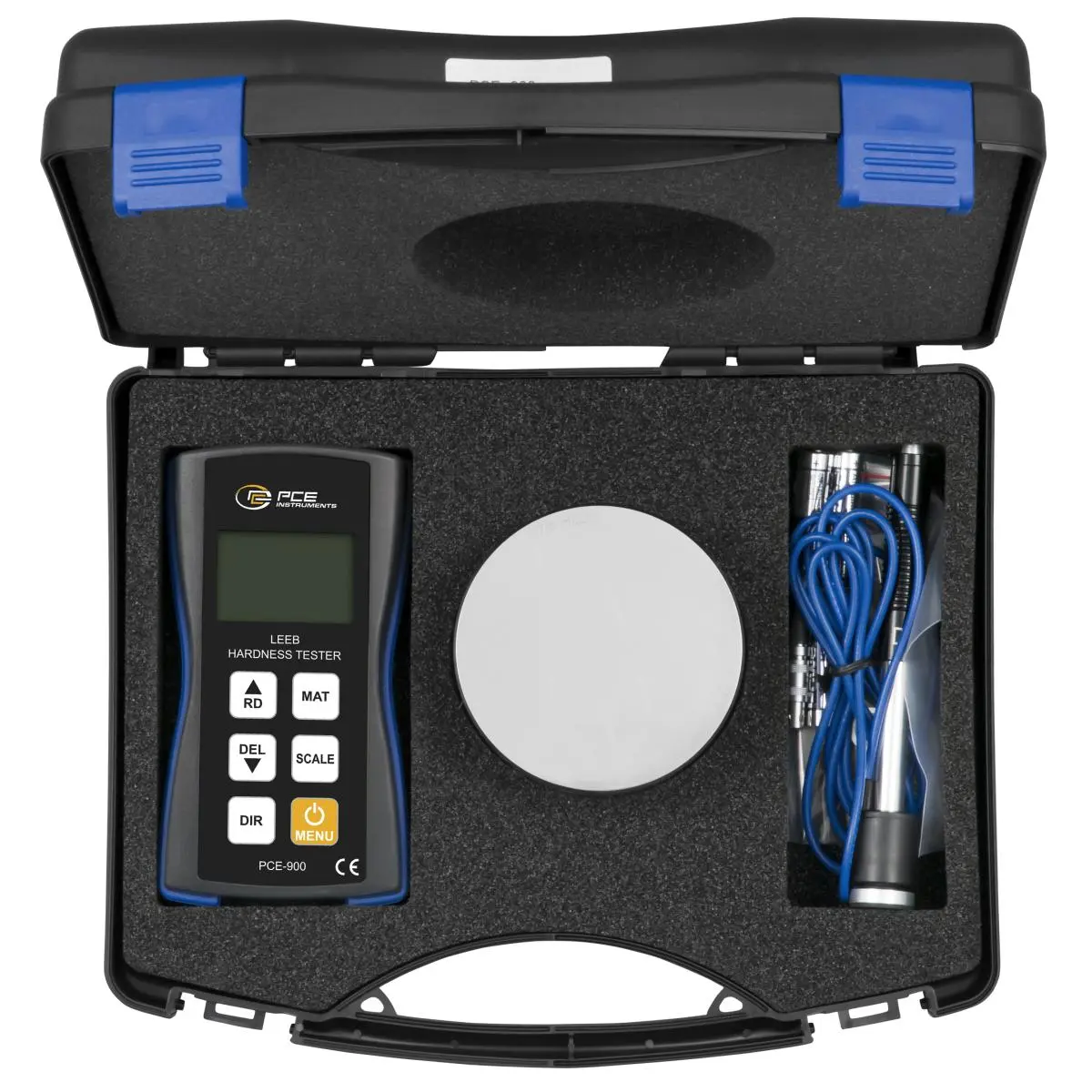

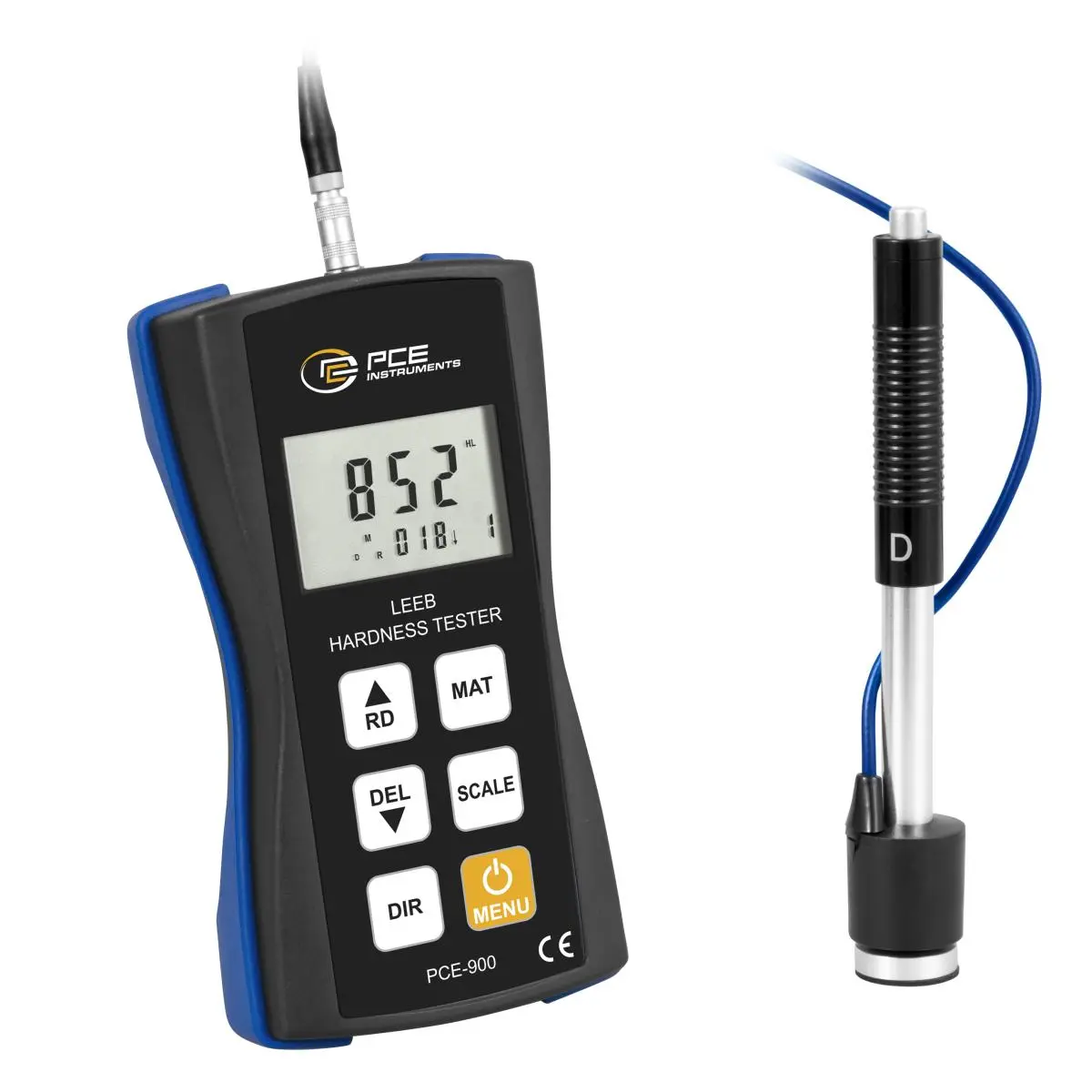

The Leeb hardness tester PCE-900 comes with a type D impact probe as standard. This probe can be used for many measurements. Via the optional software, the measured values can be transmitted live to the PC. This makes the PCE-900 Leeb hardness tester an important instrument in the field of material inspection in goods control.
| Hardness | |
| Measuring range | 200 ... 900 HL |
| Resolution | 1 HL |
| Accuracy | ±0.8% with HLD =900 |
| General technical data | |
| Display type | LCD with backlight |
| Display size | 2 Inch |
| Storage medium | Internal memory |
| Storage capacity | 50 Data records |
| Materials | Cast steel, Stainless steel, Grey cast iron, Spheroidal graphite cast iron, Brass, Bronze, Copper, Cast aluminium, Cold work steel |
| Automatic power-off | 3 min |
| Impact device | D-type |
| Hardness scales | HRC, HRB, HB, HV, HSD, HL |
| (Rechargeable) battery | 3 x 1,5 V AAA battery , Alkali-manganese |
| Capacity | 1200 mAh |
| Performance | 1,8 Wh |
| Operating conditions | -10 ... 50 °C , 0 ... 90 % RH |
| Storage conditions | -30 ... 60 °C , 0 ... 90 % RH |
| Dimensions ( L x W x H ) | 142 x 77 x 40 mm |
| Weight | 130 g |
| Other weights | Impact device: 75 g |
