Material Thickness Meter PCE-CT 80-FN2D5

Order no.: PCE-CT 80-FN2D5
£ 778.00
£ 933.60
4250348730763
PCE-CT 80-FN2D5
price ex. (VAT / delivery)
Ferrous & Non-ferrous metals
Coating
0 ... 2500 µm
Yes (integrated)
Yes (USB)
Delivery time: 1-2 working days

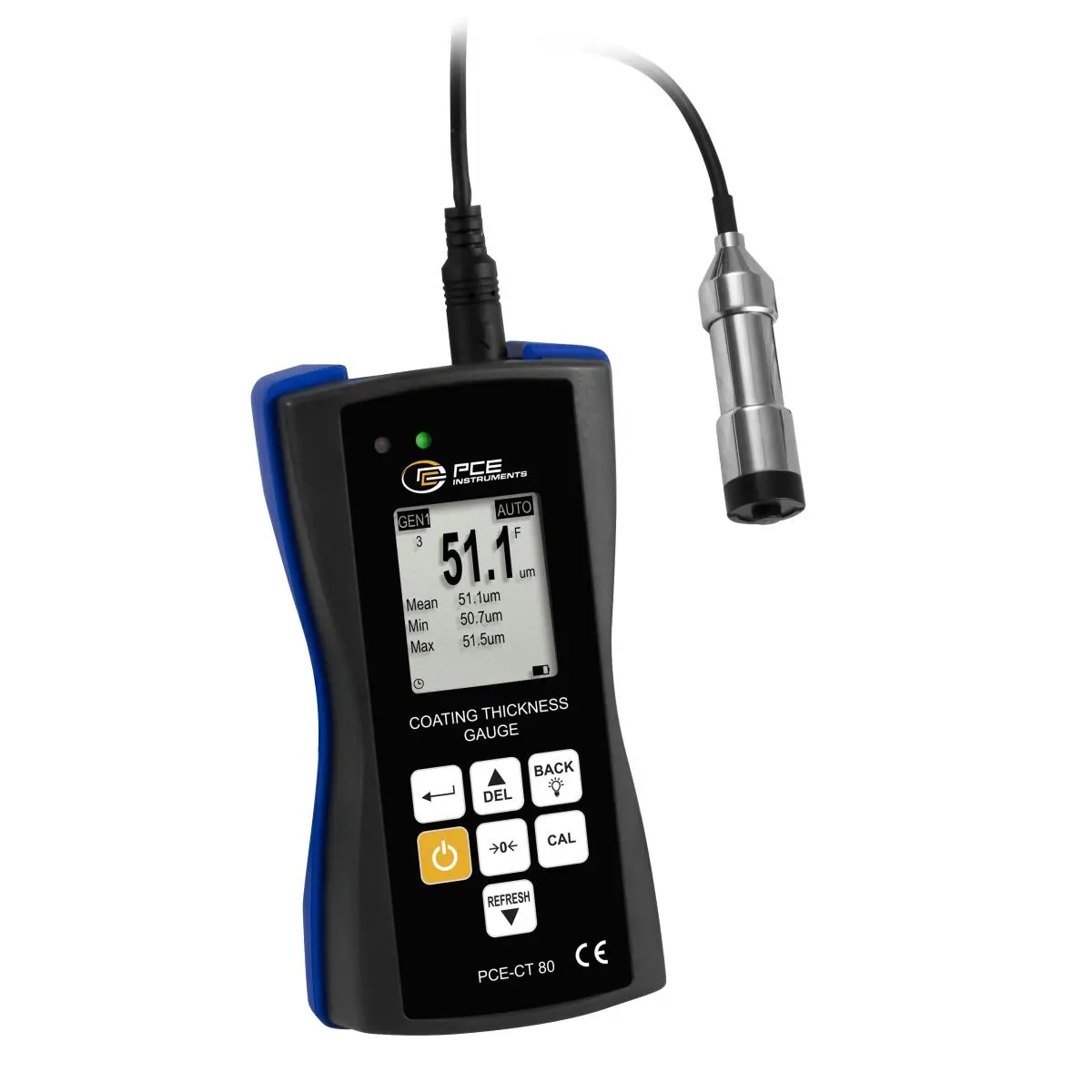

Material thickness meter for Fe and NFe / USB interface / Battery operation /
Integrated data storage

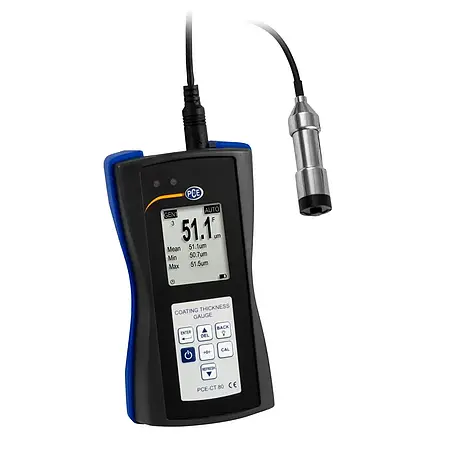

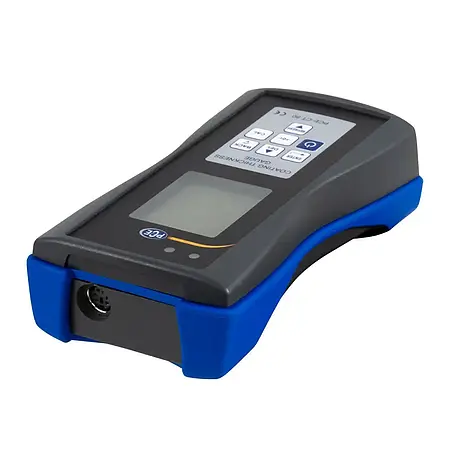

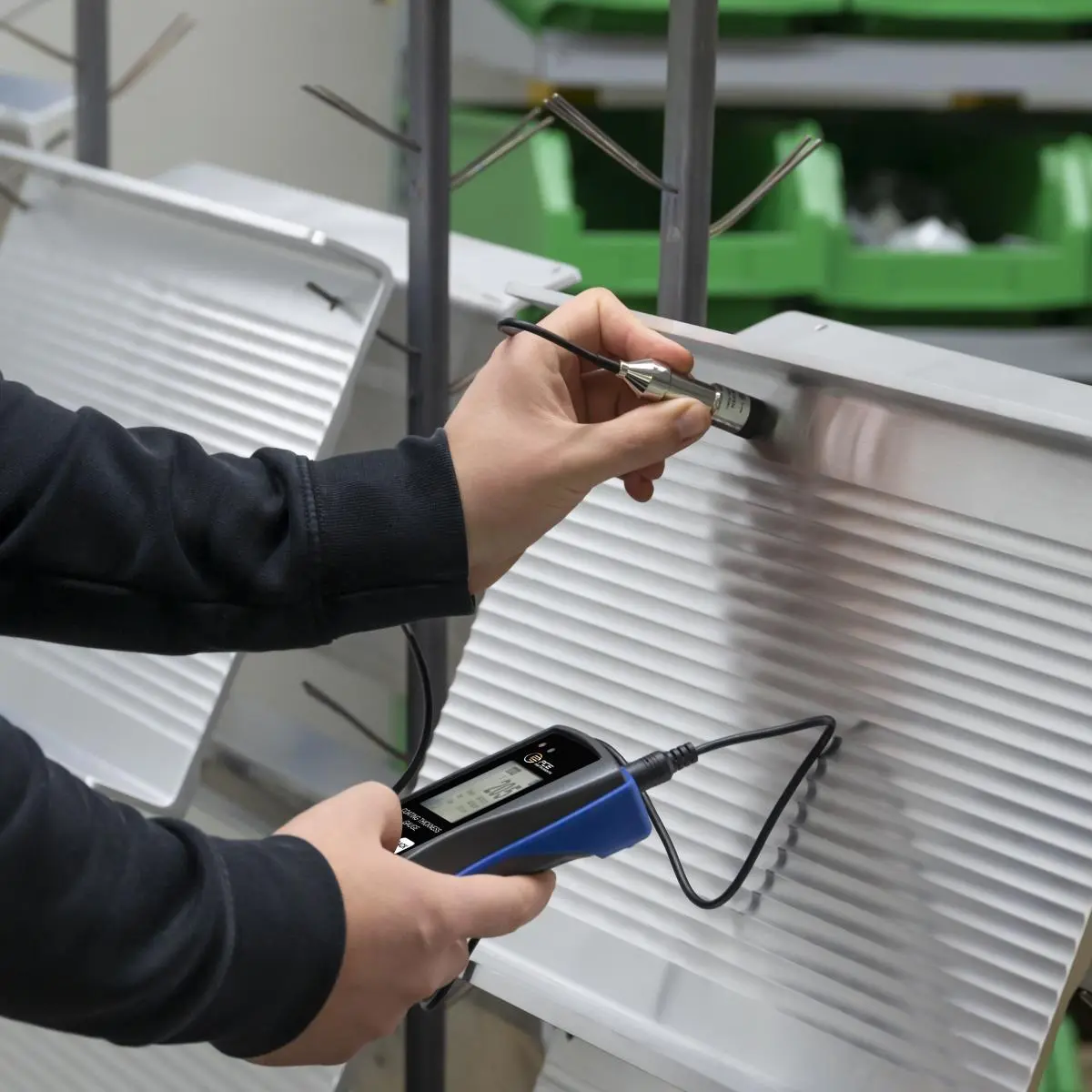

The material thickness meter is a measuring device for the non-destructive measurement of coatings (varnishes, paints, plastics ...) on steel / iron and non-ferrous metals. Thanks to the externally connected sensor on the coating thickness gauge, measuring points that are difficult to access can also be easily reached. The menu navigation of the coating thickness gauge allows easy adjustment and setting to new parameters and makes this handy coating thickness gauge an indispensable measuring device for control measurements in production, workshop and quality assurance.

The material thickness meter is also ideal for immediately determining and assessing accident damage to vehicles, for example, but the coating thickness gauge can also be used optimally in the industrial sector for incoming and outgoing inspection and material testing in production.

The ergonomically designed material thickness meter with external sensor allows you to rapidly determine measurement results with high accuracy. The coating thickness gauge measures non-magnetic layers such as paint, plastic, chrome, copper, zinc, enamel, etc. on steel/iron, as well as non-conductive layers such as paint, plastic, enamel, paper, glass, rubber, etc. on copper, aluminum , brass and stainless steel, as well as anodized aluminum.

- For measurements on iron/steel and non-ferrous metals
- Measurements cannot be influenced by vibrations
- Practical V-groove on the measuring heads
- Ergonomic design
- Warning message for measurements outside the maximum measuring range

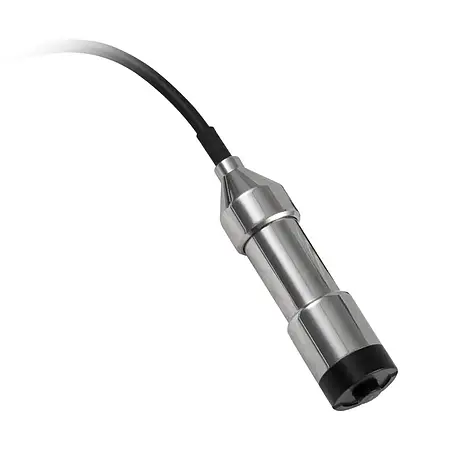

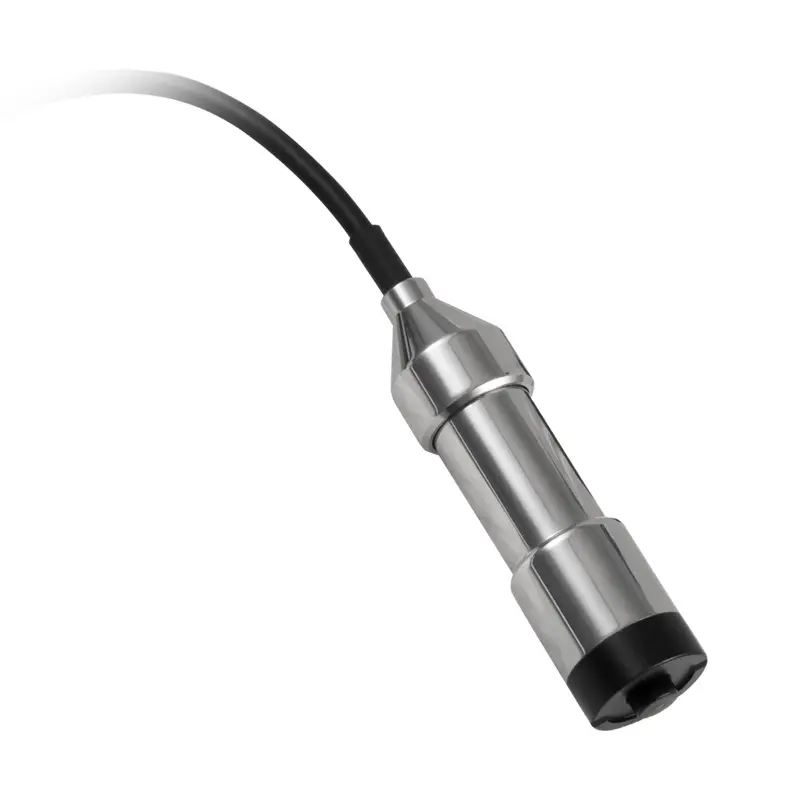

- Wear-resistant, spring-mounted measuring head for precise measuring results
Measuring range Fe: 0 ... 2500 µm
  NFe: 0 ... 2500 µm
Accuracy ±(2 % of reading + 1 µm)
Resolution 0.1 µm (<100 µm)
  1 µm (>100 µm)
Measurable materials For measurements on iron/steel and non-ferrous metals
Min. radius of curvature convex 5 mm / 0.19"
Min. radius of curvature concave  25 mm / 0.98"
Min. measuring surface Ø17 mm / 0.67"
Min. substrate thickness 0.2 mm / 0.008" (on magnetic materials)
  0.05 mm / 0.002" (on non-magnetic materials)
Probe mode Autom. mode with material detection (Fe + NFe)
  Magnetic mode (Fe)
  Eddy current mode (NFe)


Calibration Multipoint calibration (1 ... 4 points for each group)
  Zero-point calibration
Units µm, mm, mils

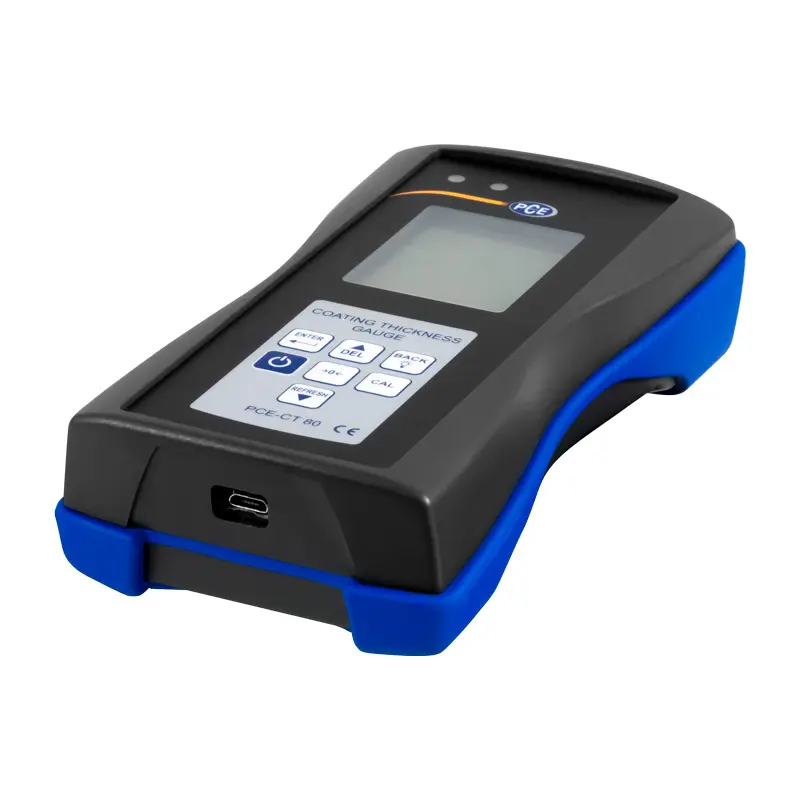

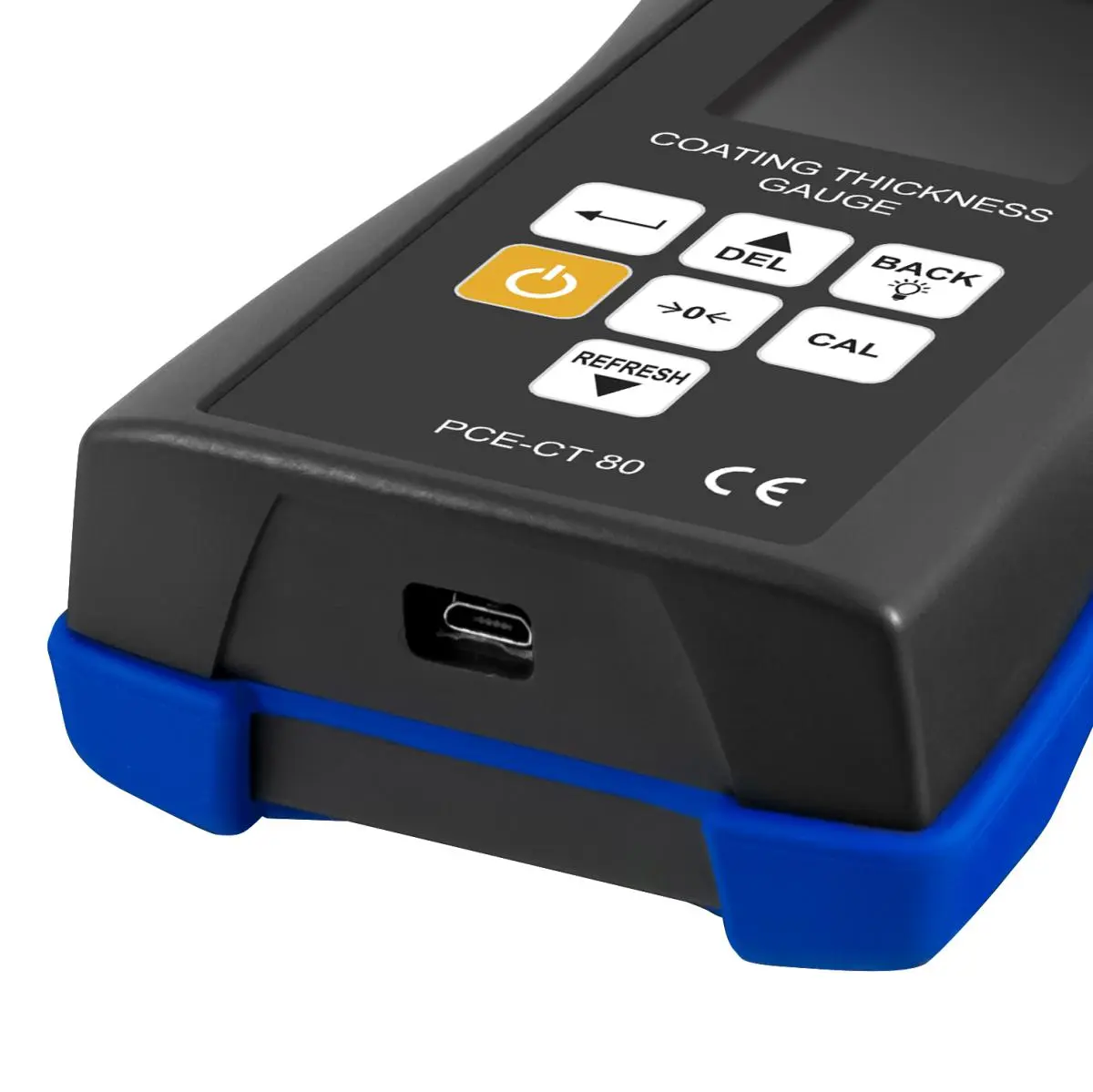

Data transfer USB 2.0
Memory A volatile measuring group (DIR mode)
  Four measuring groups with autom. storage and max. 2000 readings (GEN mode)
Statistical functions Number of measured values, mean, minimum, maximum, standard deviation
Alarm Display when the adjustable upper and lower alarm limits are exceeded
Operating time Autom. shutdown mode (3 min.)
Power supply 3 x 1.5 V AAA batteries

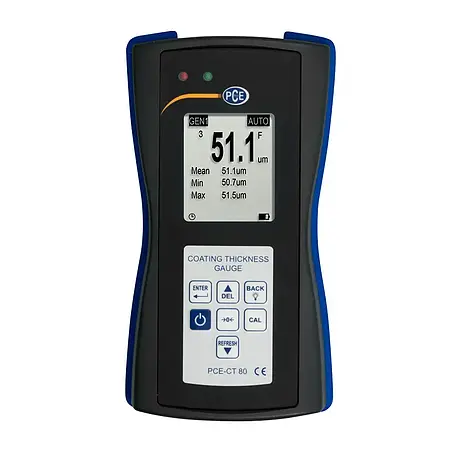

Display 128 x 128 px LCD display
Indicators Battery status
  Fault detection
Operating conditions 0 ... +50 °C / 32 ... 122 °F
  20 ... 90 % RH non-condensing
Storage conditions -10 ... +60 °C / 14 ... 140 °F
  20 ... 90 % RH non-condensing
Dimensions 143 x 71 x 37 mm / 5.6 x 2.8 x 1.5" (L x W x H)
Weight With sensor and batteries: ca. 271 g / 9.5 oz

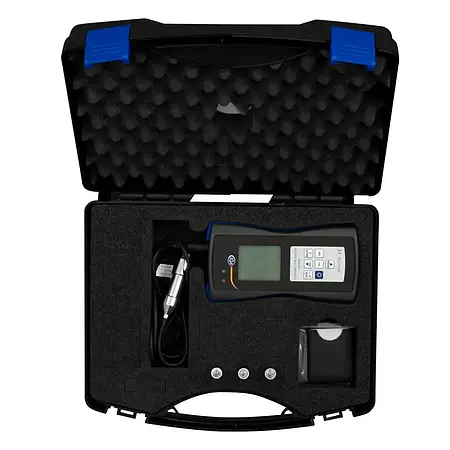

1 x Material thickness meter PCE-CT 80-FN2D5
3 x AAA batteries
1 x Instruction manual
1 x Carrying case
1 x Set of standard foils
1 x Calibration plates (Fe and NFe)
