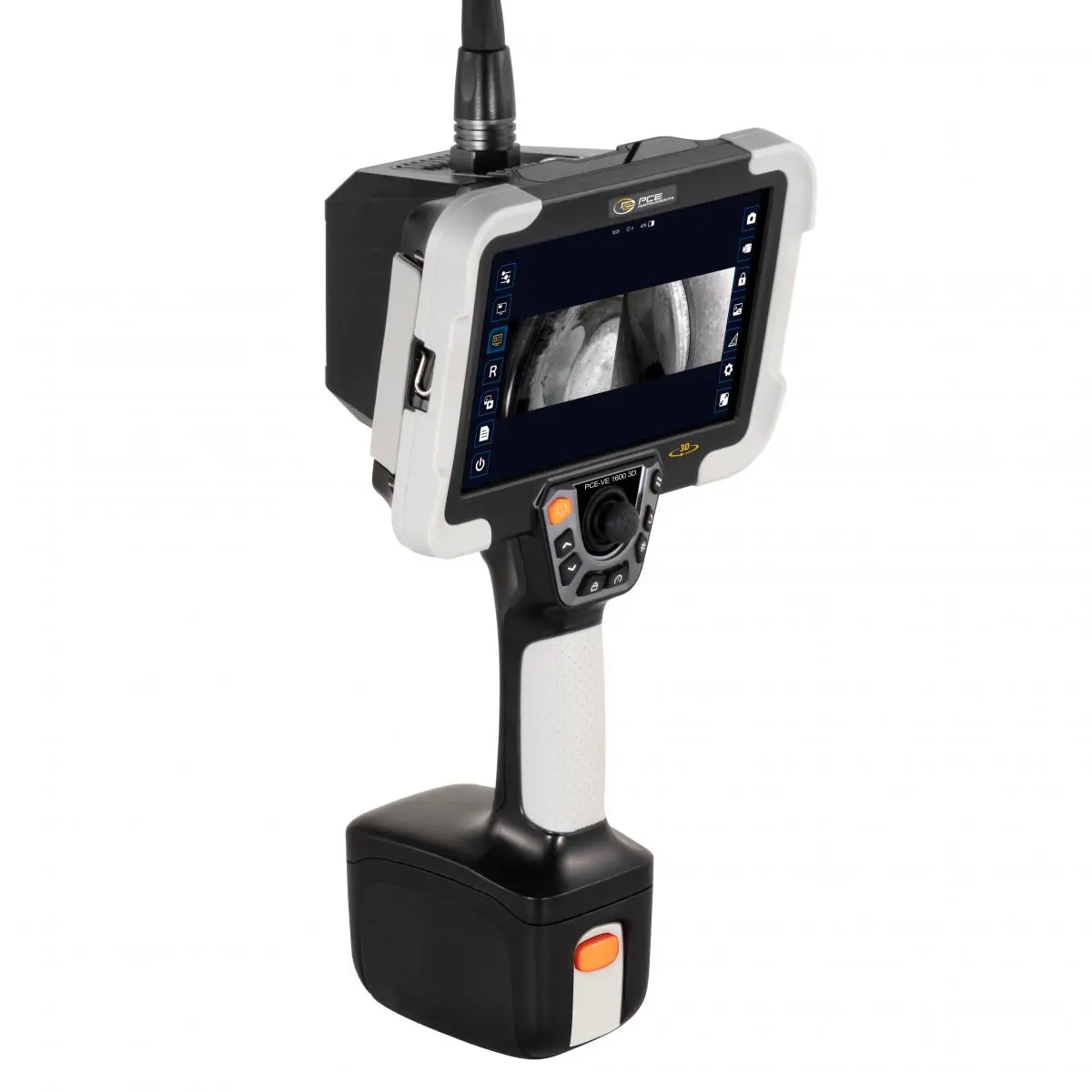

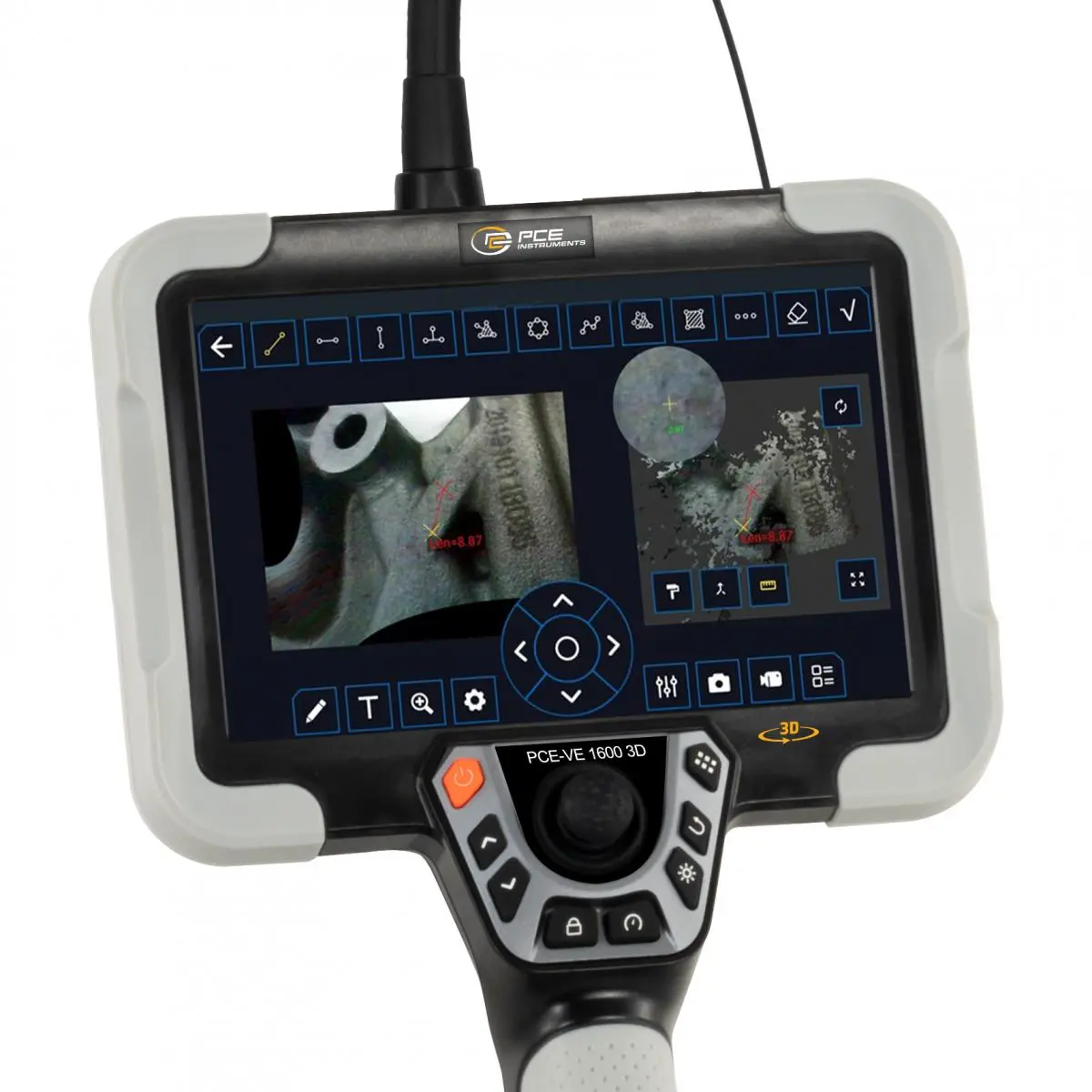

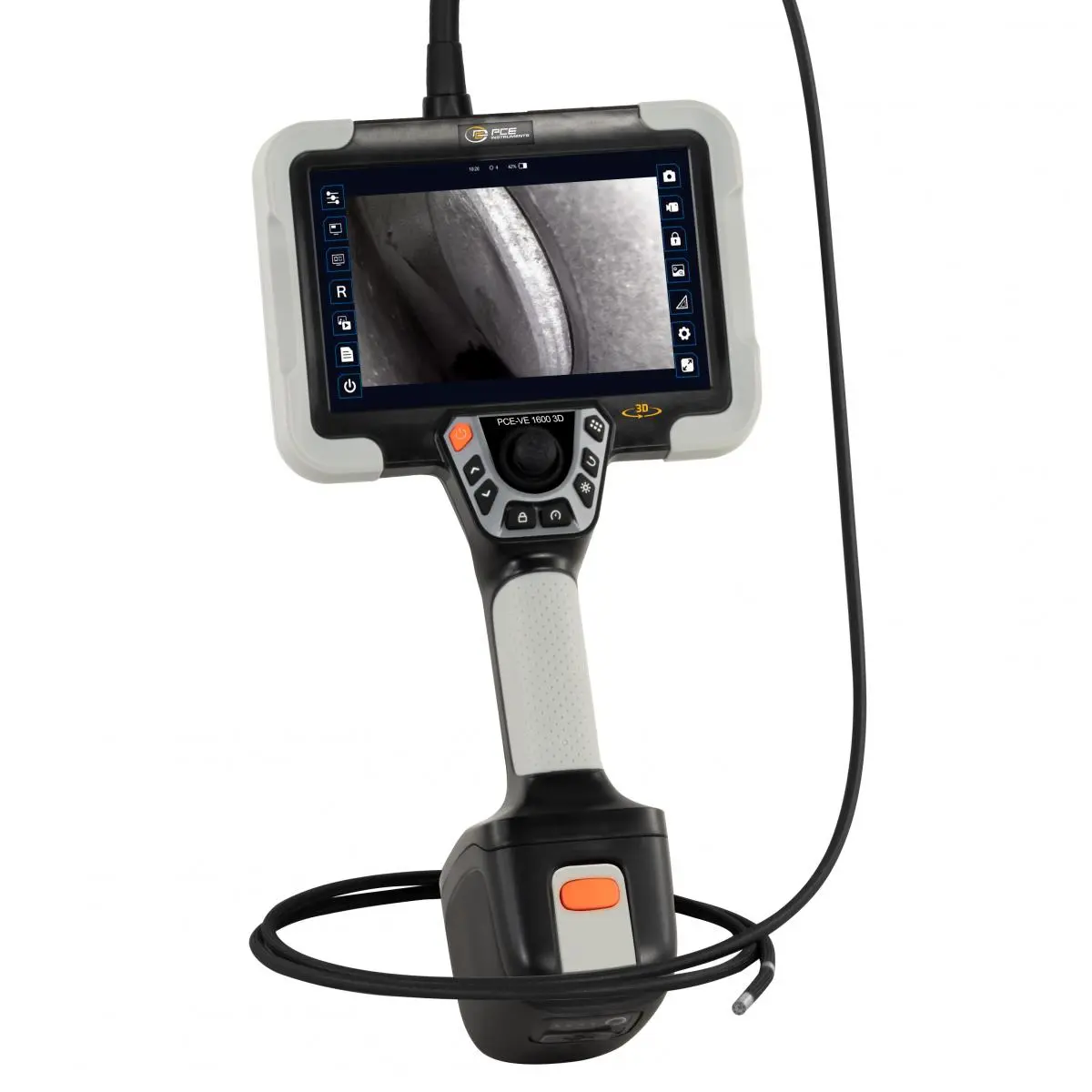

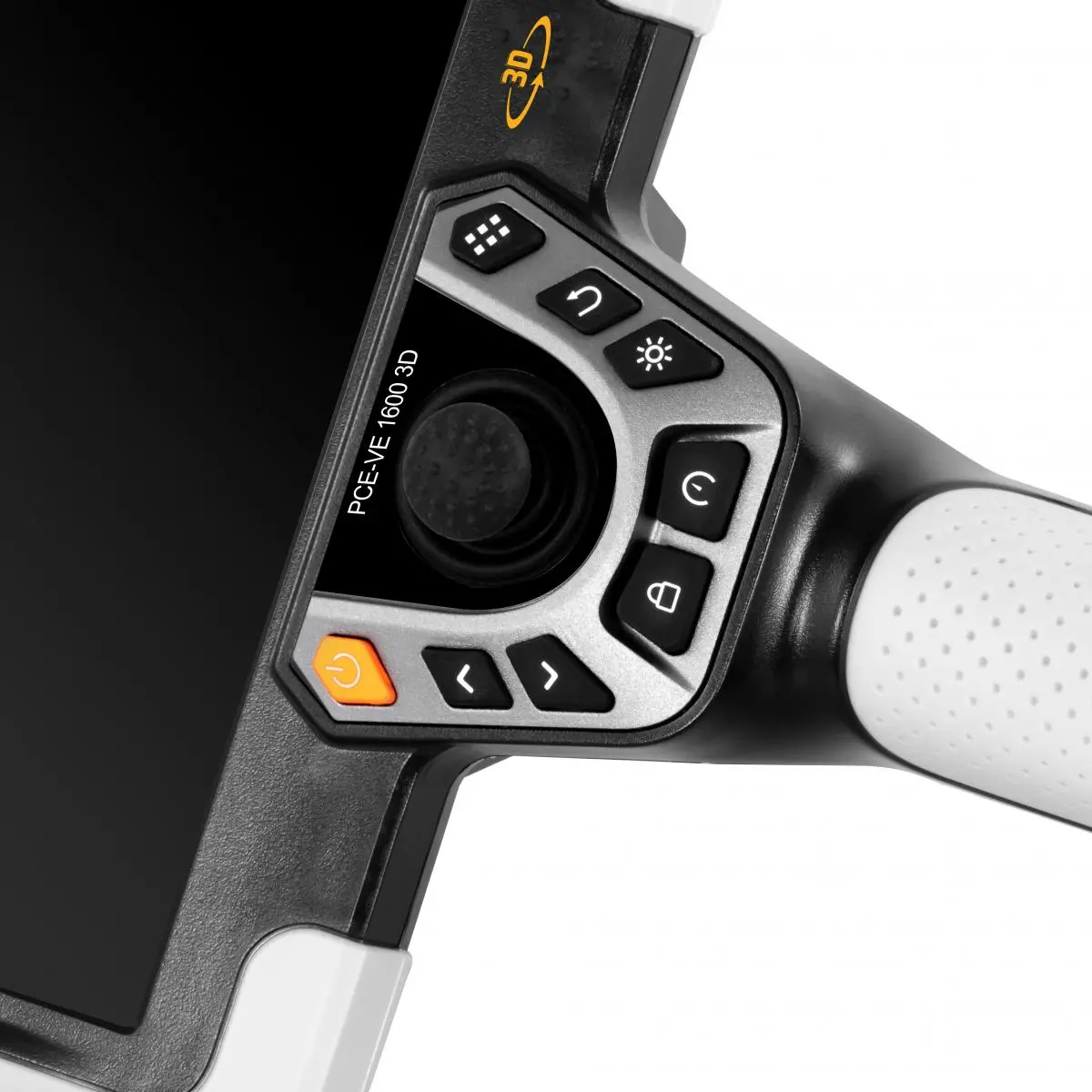

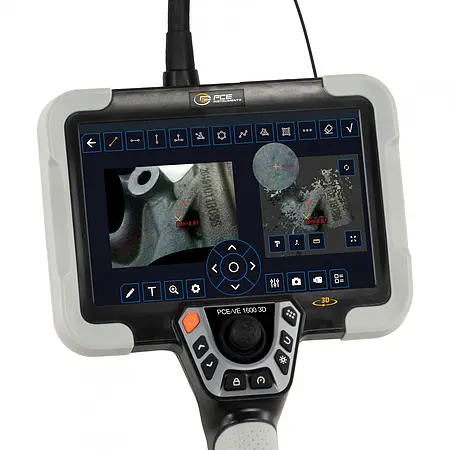

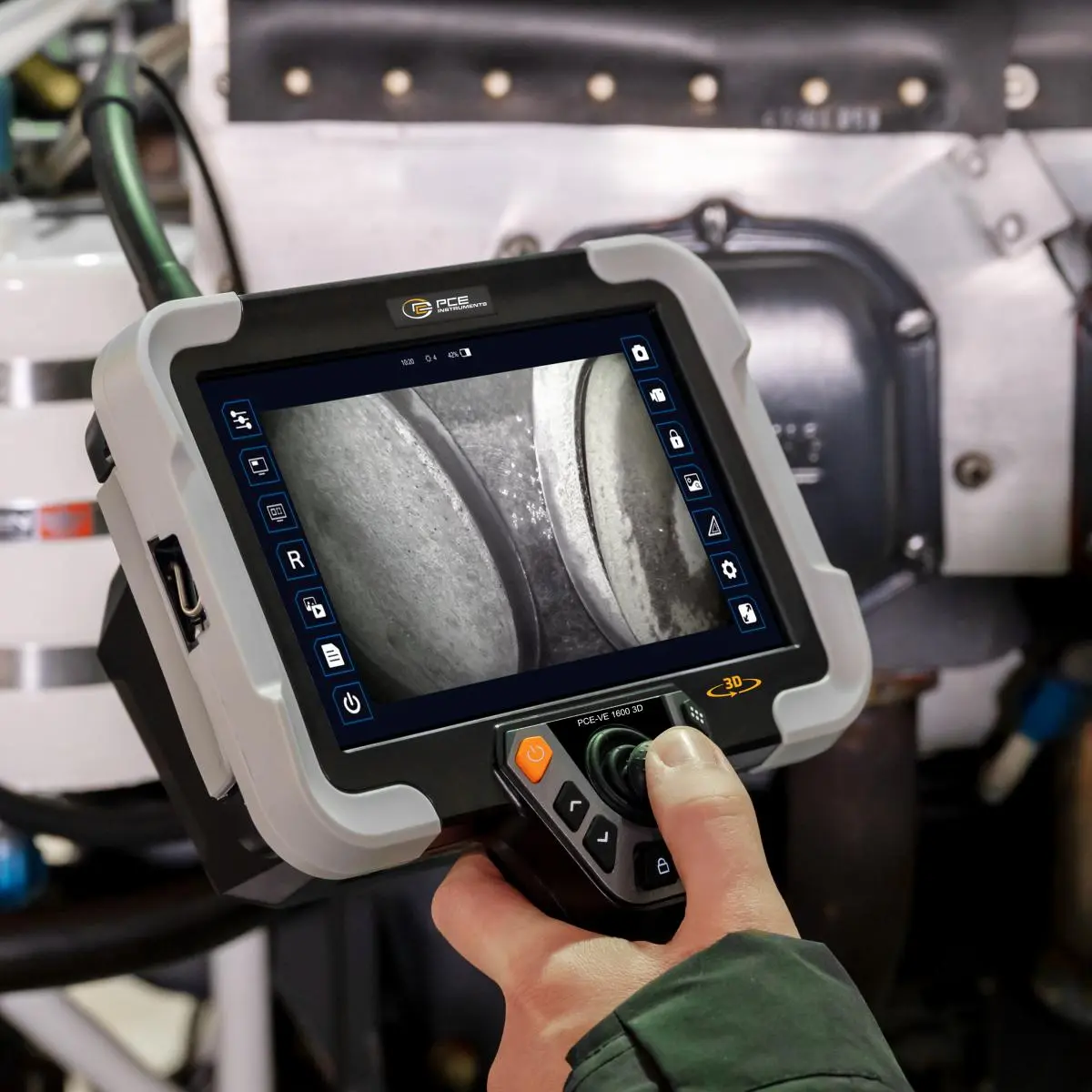

The Material Tester is a versatile inspection system for precise visual inspection and 3D measurement in industrial applications. Equipped with a high-resolution image sensor and a 7-inch IPS touch display, the Material Tester delivers detailed images and videos in real time. The 3D measurement function enables various measurement methods such as linear distances, areas, circumferences and sections directly on the object. The Material Tester offers an image resolution of 1280 × 720 pixels and a standard accuracy of 0.1 mm, with a minimum accuracy of 0.01 mm. The brightness of the LED lighting is adjustable in 5 levels and reaches up to 50,000 lx. The Material Tester supports image and video recording in JPG and MP4 format as well as the creation of PDF test reports directly on the device. The picture-in-picture function, dual camera preview and image rotation allow for flexible inspections. Operation is convenient via an electric joystick and the touch display. An internal 16 GB flash memory and an SD card with up to 128 GB are available for data storage. Interfaces such as HDMI, USB-A and USB-C enable easy export and display of data on external devices. The Material Tester is suitable for applications in aerospace, automotive engineering, energy supply, special inspections, industrial manufacturing and maintenance.
| General technical data | |
| Cable length | 3 m |
| Display type | LCD touchscreen |
| Display size | 7 Inch |
| Display resolution | One thousand nine hundred and twenty by one thousand two hundred |
| Storage medium | Internal memory, SD card |
| Storage capacity | 16 GB |
| Memory capacity (additional information) | Possible via SD card up to 128 GB |

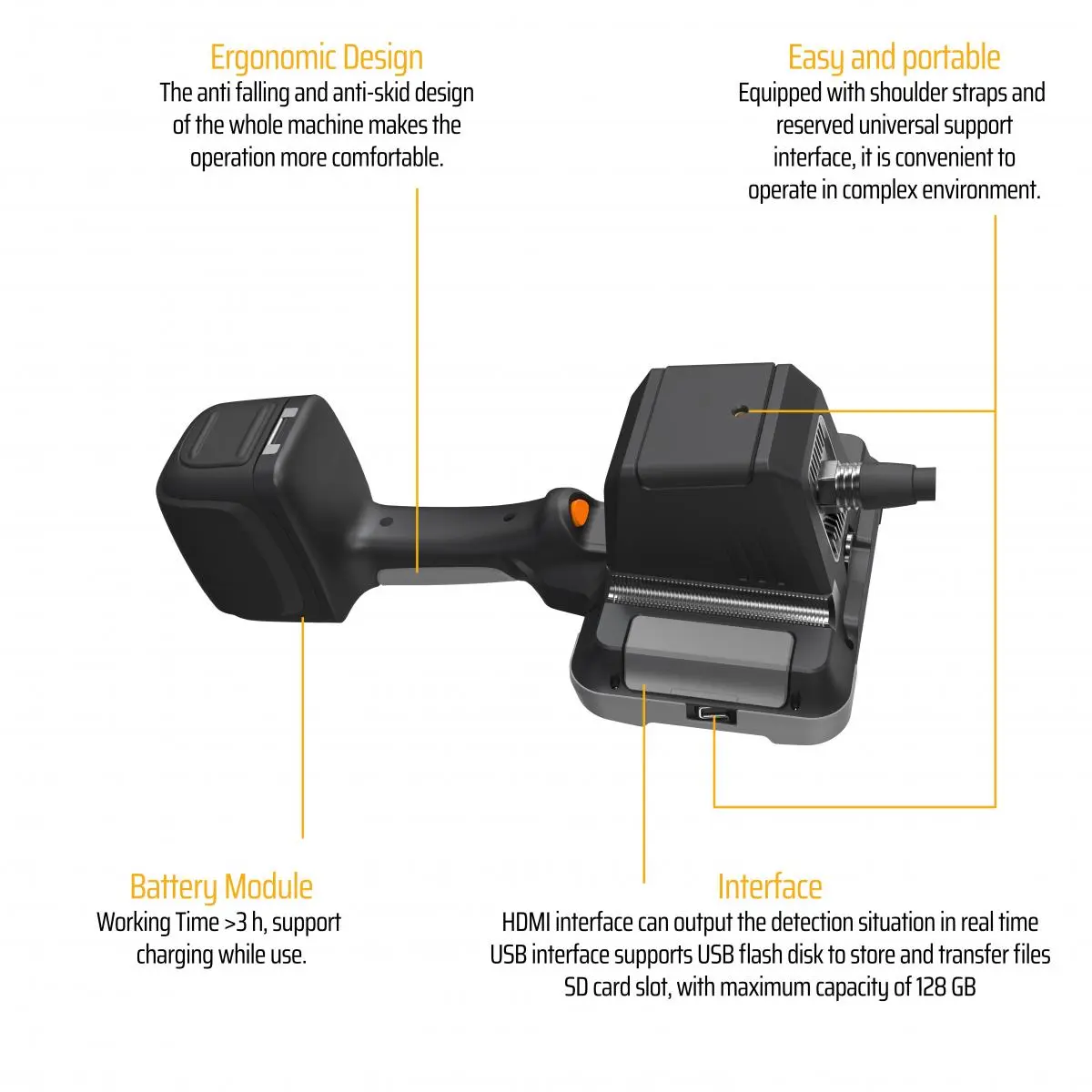

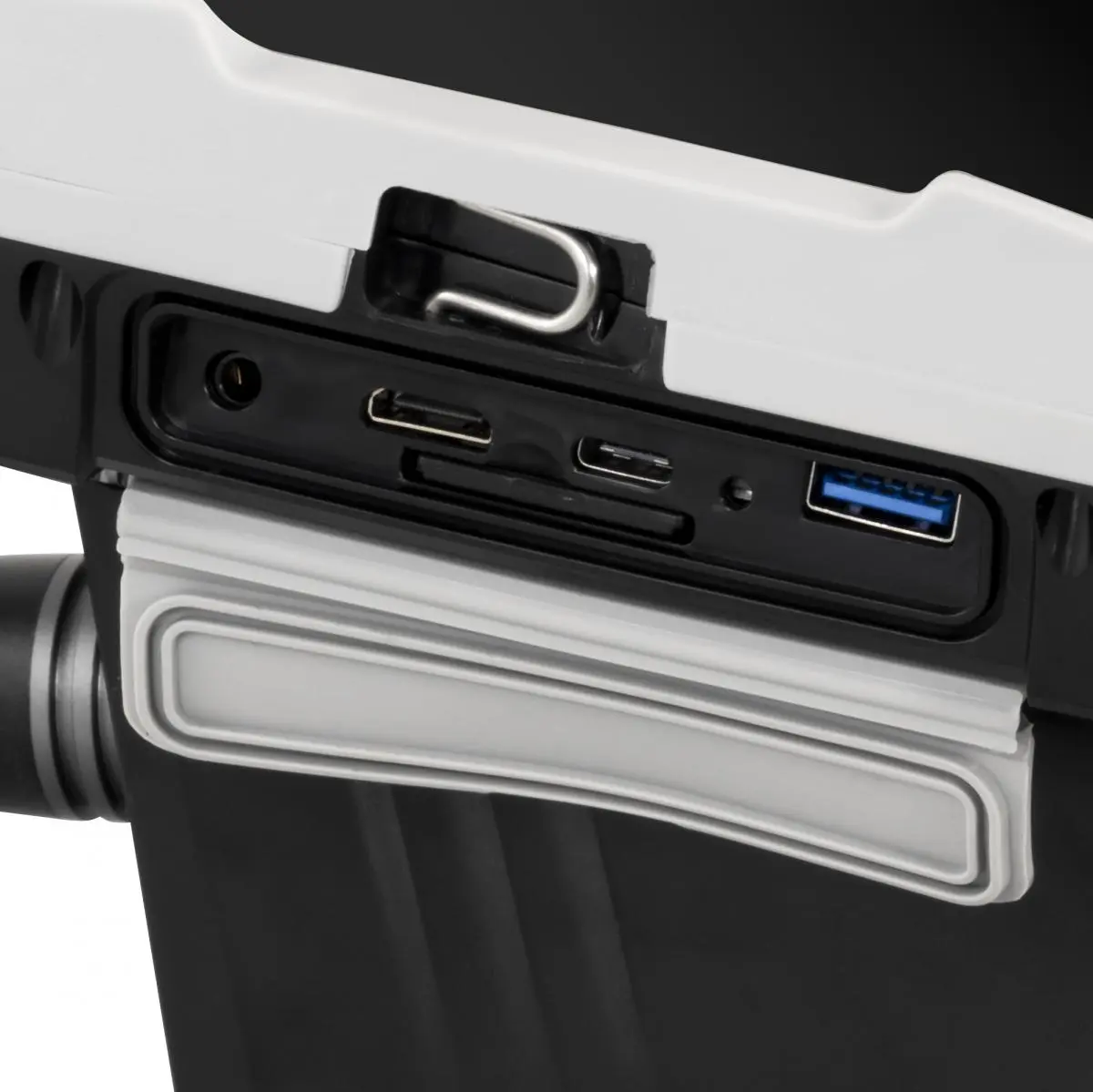

| Interface | Mini-HDMI, USB-C, USB, 3.5 mm jack, WLAN |
| Camera resolution | 1000000 pixels |
| Resolution | Image: 1280x720 Video: 1280x720 |
| Operating time | 4 h |
| Camera head diameter | 6 mm |
| Camera probe material | Braided tungsten |

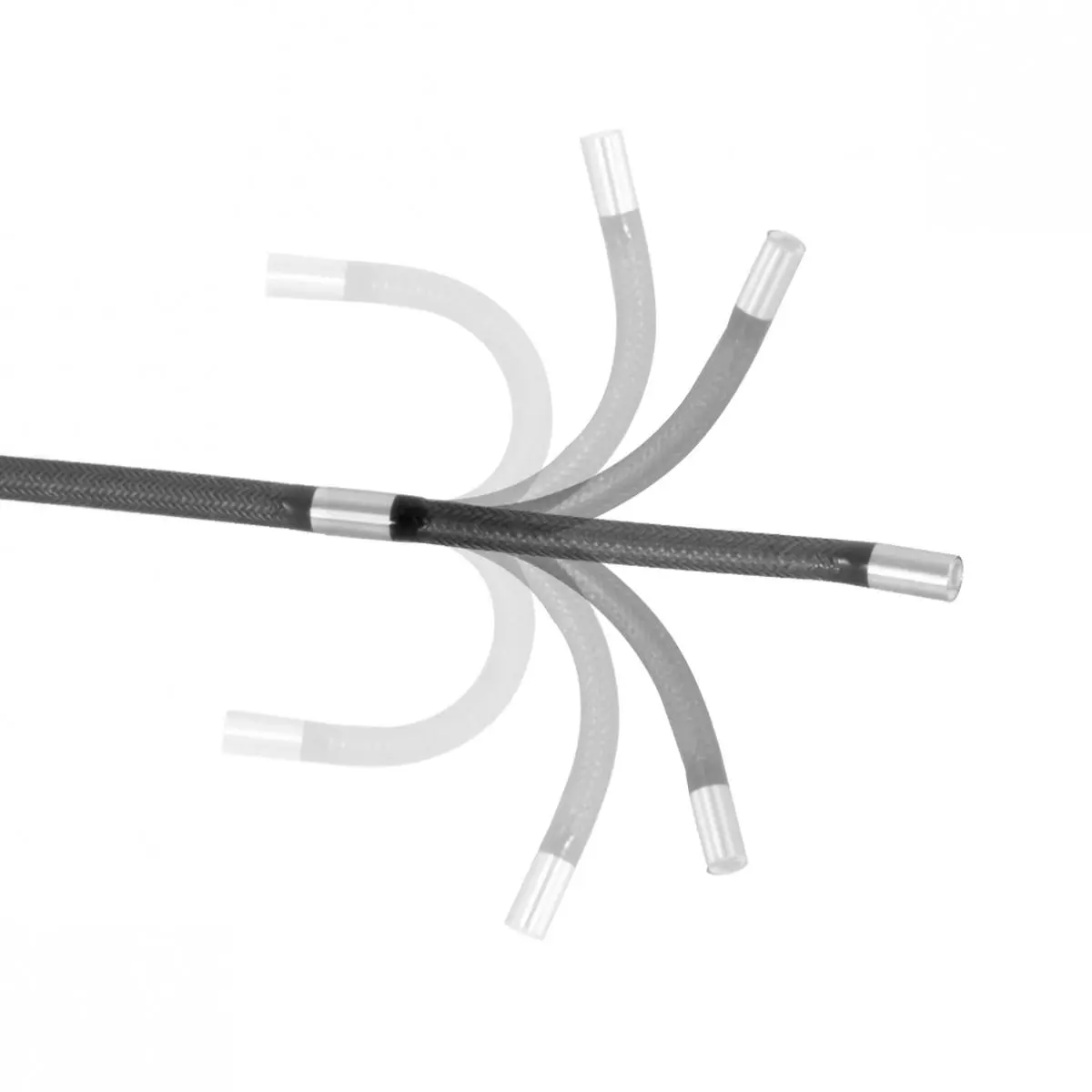

| Camera probe movement | 360 ° |
| Protection class camera probe | IP67 |
| Temperature range of camera probe | -25 ... 80 °C |
| Field of vision | 120 ° |
| Depth of field of vision | 10 ... 100 mm |

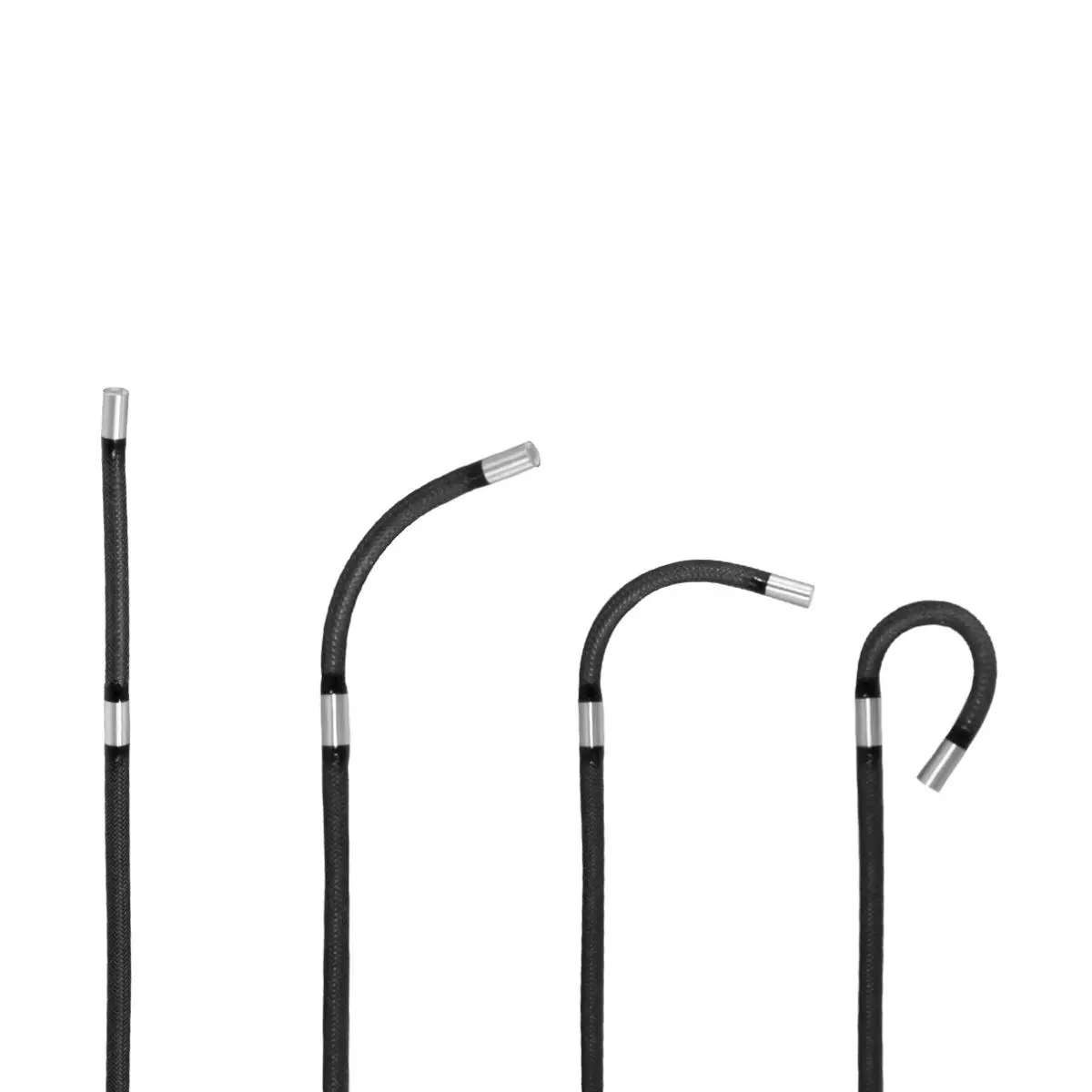

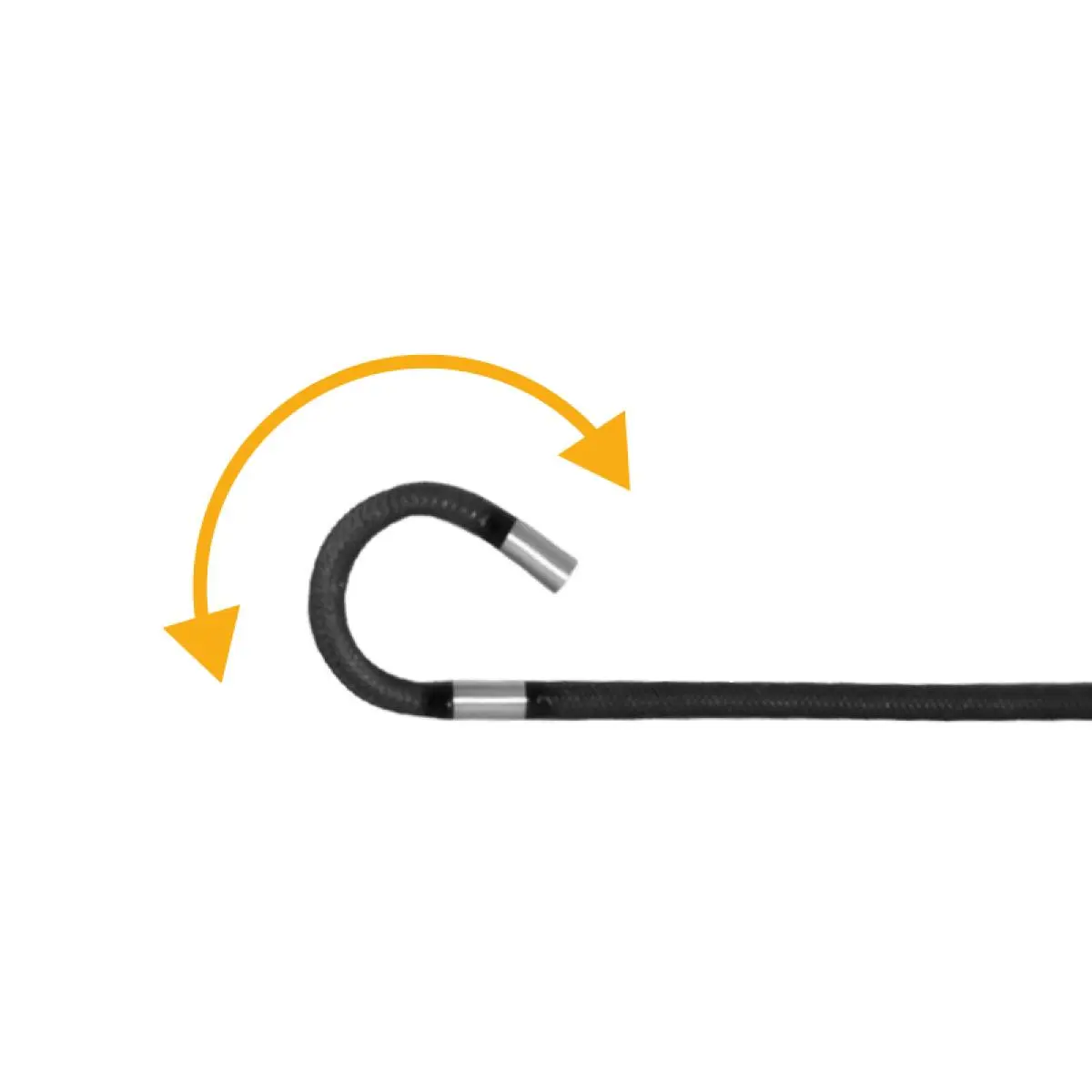

| Bending angle | 190 ° |
| Luminous intensity | 50,000 lux |
| Image / video format | PNG |
| Menu language | German, English (GB), English, French, Italian, Russian, Spanish, Polish, Korean, Japanese, Chinese |
| Protection class (device) | IP65 |
| Power supply | 100 ... 240V AC (power supply unit) |
| Connector type | Euro plug |

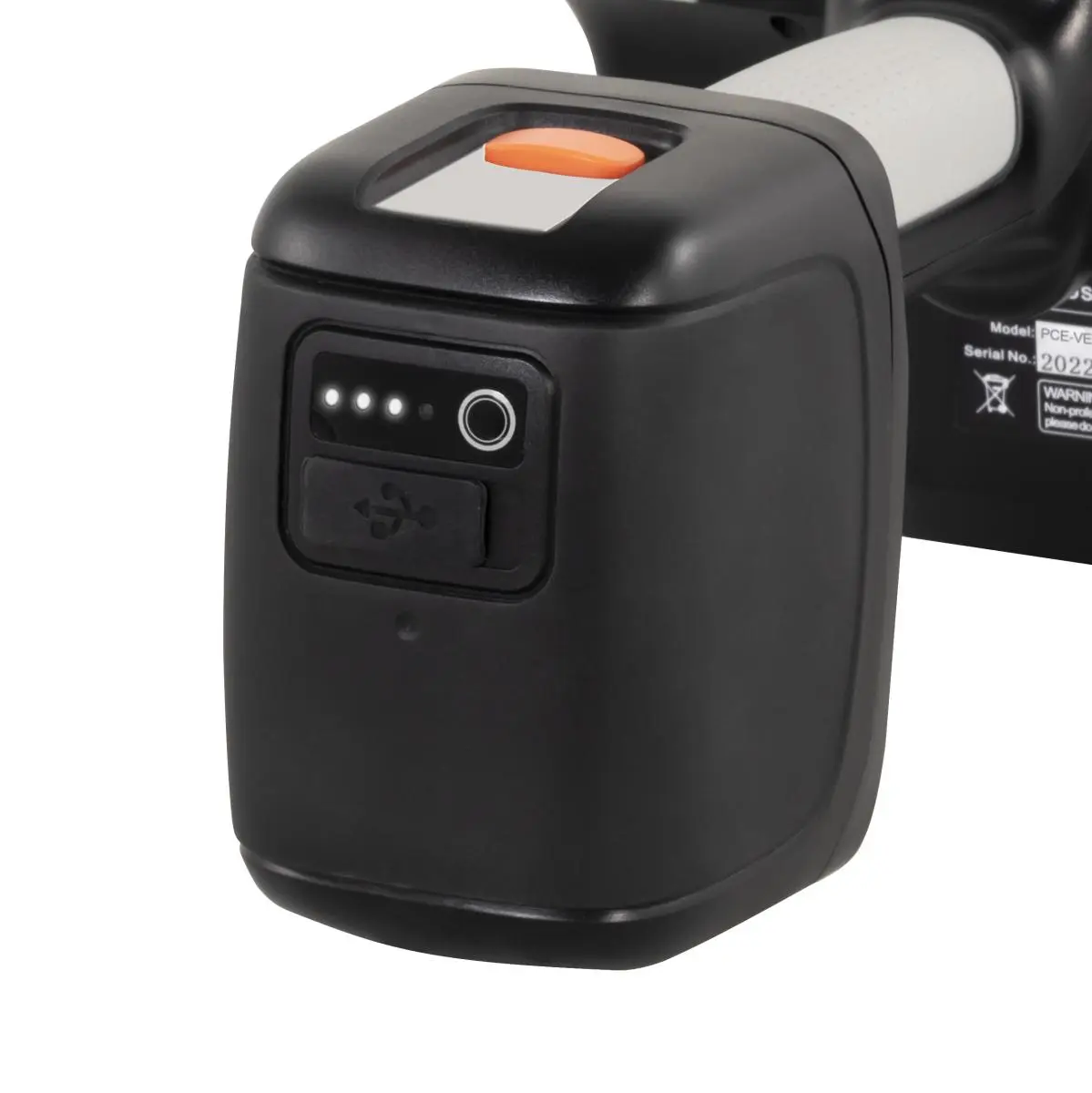

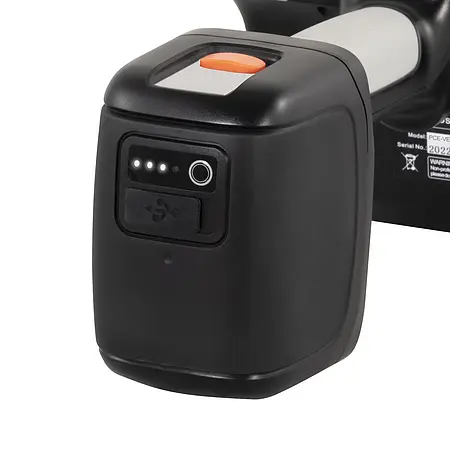

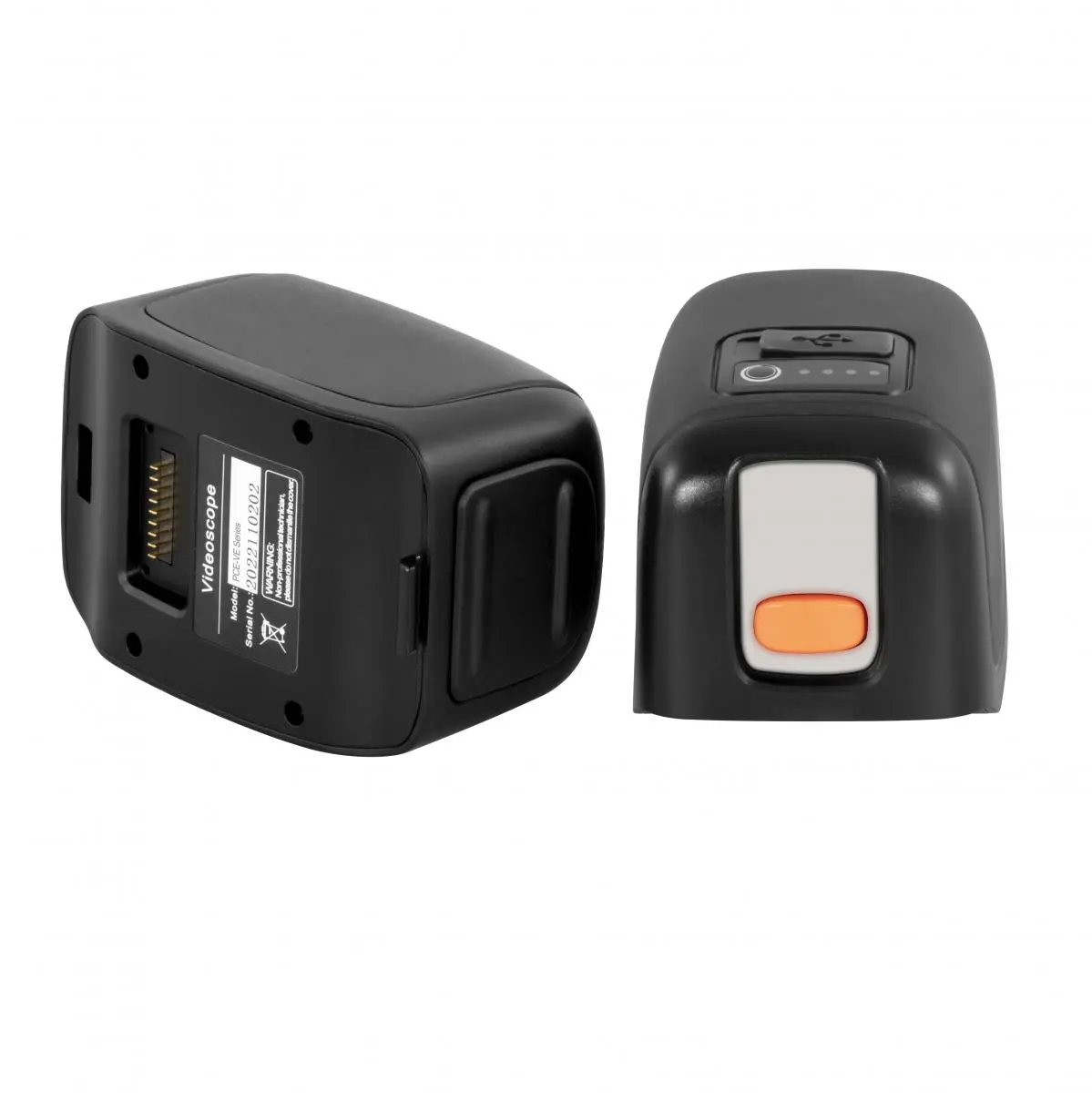

| (Rechargeable) battery | 1 x 7,4 Battery pack , Lithium-ion battery |
| Capacity | 6400 mAh |
| Operating conditions | -15 ... 50 °C , 0 ... 92 % RH |
| Storage conditions | -23 ... 63 °C , 0 ... 92 % RH |
| Dimensions ( L x W x H ) | 370 x 195 x 150 mm |
| Weight | 1013 g |
