Material Tester PCE-RT 11-ICA Incl. ISO Calibration Certificate

Order no.: PCE-RT 11-ICA
ISO Calibration
£ 1,299.00
£ 1,558.80
price ex. (VAT / delivery)
Delivery time: 10 - 14 days

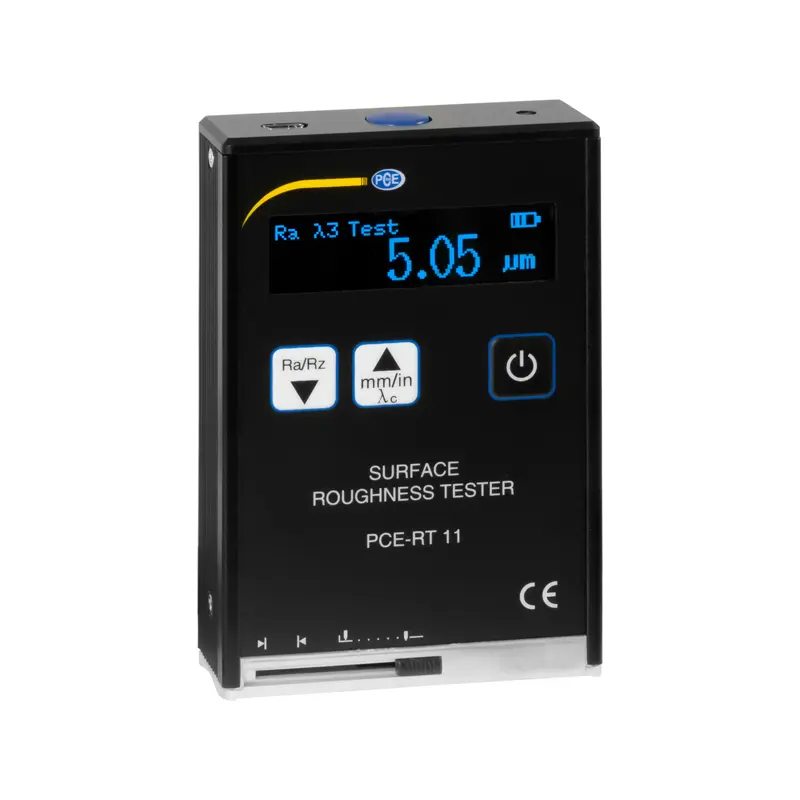

Material Tester PCE-RT 11-ICA incl. ISO calibration certificate
Material tester for accurate determination of roughness according to Ra, Rz, Rq and Rt / With piezoelectric probe / Big OLED display with backlight

The Material Tester PCE-RT 11-ICA is a portable measuring instrument for determination of surface roughness according to Ra, Rz, Rq and Rt in just one device. The small roughness tester is especially designed for fast measuring of roughness. The roughness is a term of surface physics that describes unevenness of surface height. The roughness tester works according to the same piezoelectric micro probe principle like the highly accurate laboratory measuring instruments. The easy handling of the roughness tester as well as the high repetitive accuracy characterizes this device. After touching the button the piezoelectric micro probe of the roughness tester scans the surface within seconds and shows digitally, according to the preselected cut-off length, either the value Ra, Rz, Rq or Rt.

Calibration certificates are issued specifically for the customer and are excluded from the right of return.
- With real time battery display
- USB interface
- Simple calibration
- Also for cylinder and inclined area

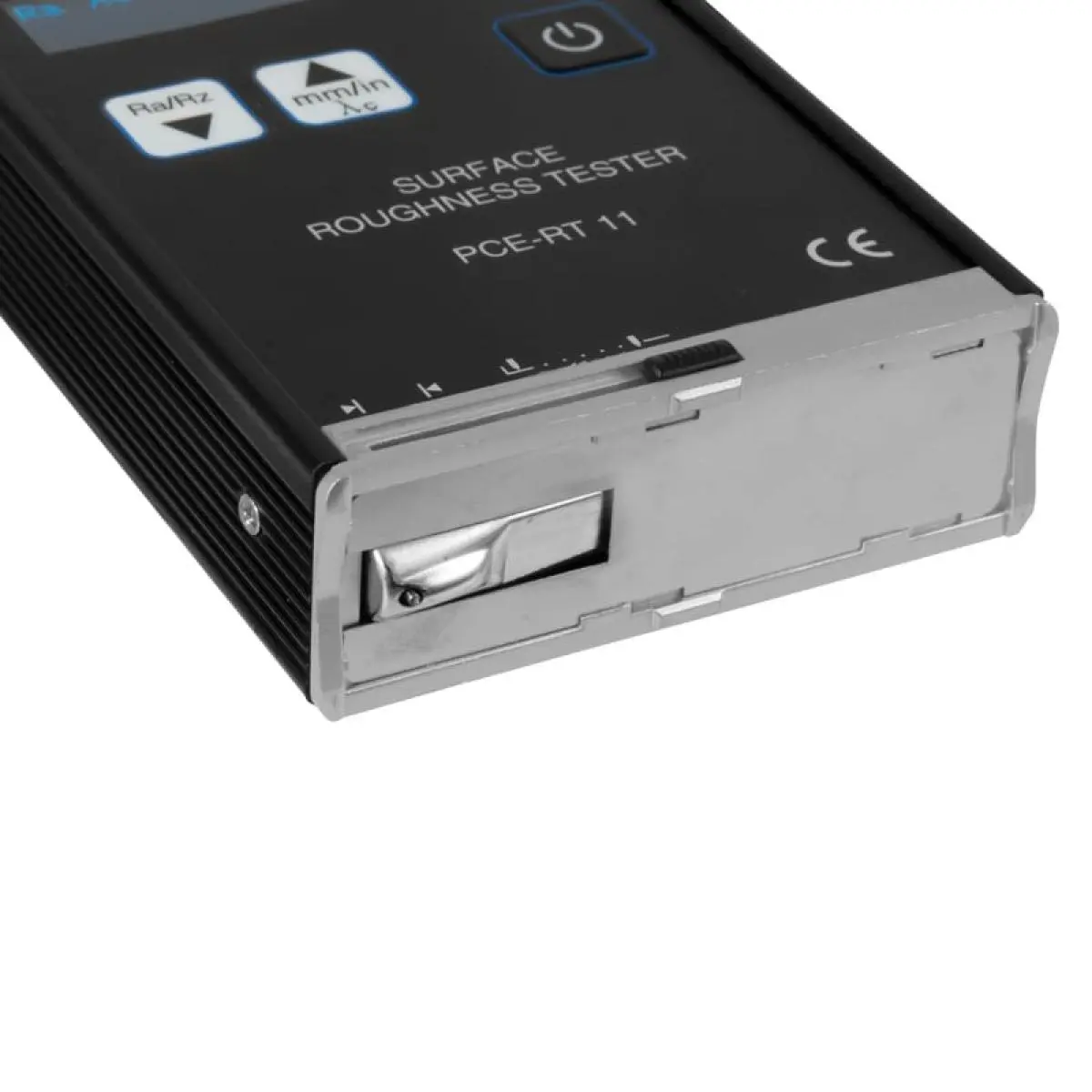

- With slider to protect the probe
- Wide measuring area
- OLED display
- With roughness standard
- Piezoelectric probe
- With backlight

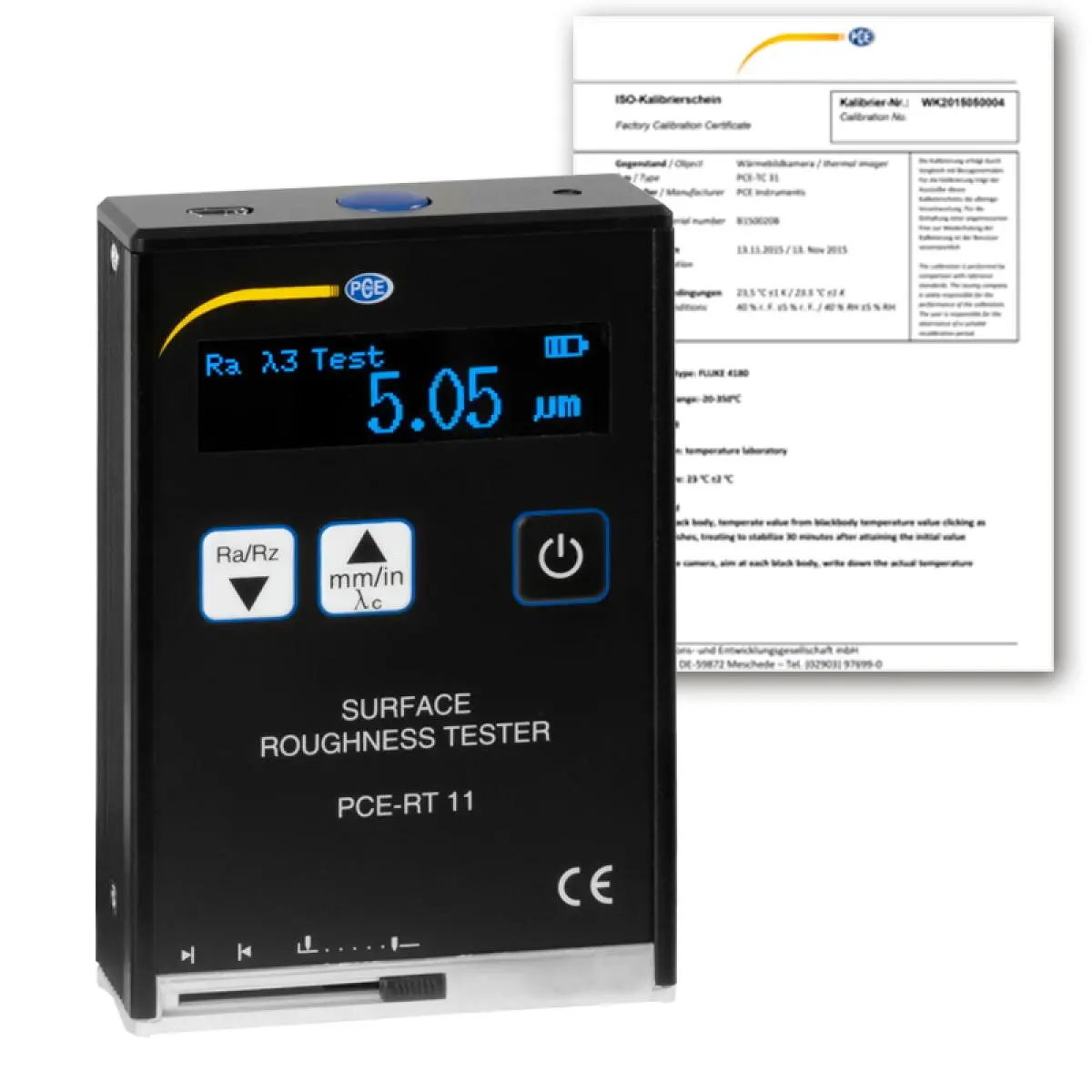

- Incl. ISO calibration certificate

Roughness parameters    Ra, Rz, Rq, Rt
Accuracy ± 15%
Repeatability < 12%
Measuring area Rz, Rt0.1 … 50 µm
Measuring area Ra, Rq0.05 … 10 µm
Cut-off lengthf0.25 mm, 0.8 mm, 2.5 mm
Scanning path in total6 mm
Probing speed1 mm / s
Probe systemPiezoelectric probe
Probe diameter 10 µm ± 1 µm tip radius
Inclination angleOLED display
Ambient temperature-20 … 40°C / -4 ... 104°F
Humidity< 90 %
Power supply3.7 V Li-Ion battery
Load-time3 hours
Dimension 106 x 70 x 24 mm / 4.2 x 2.8 x 1 in
Weight 200 g / < 1 lb

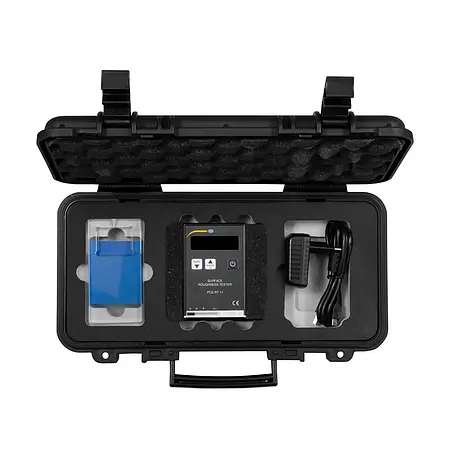

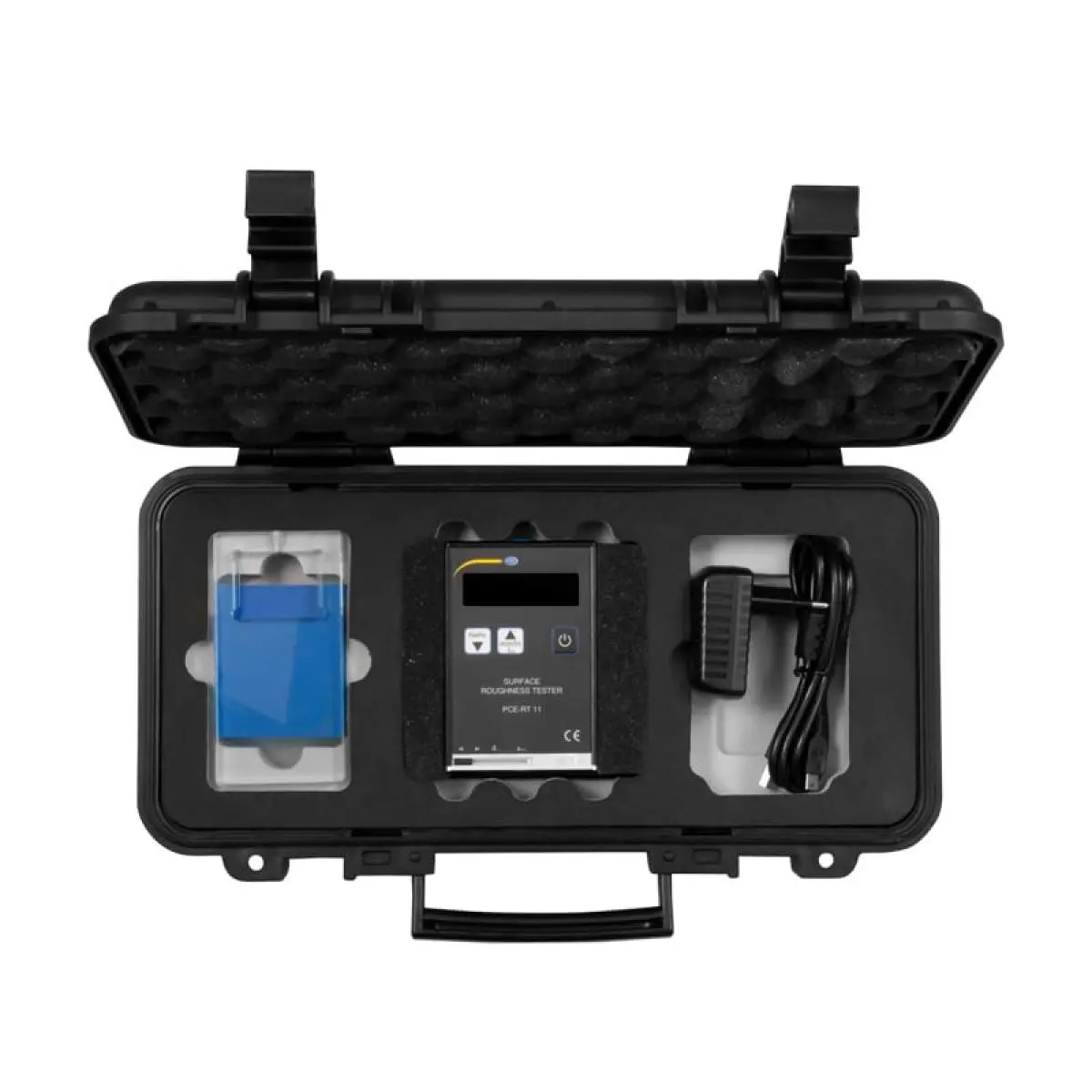

1 x Material Tester PCE-RT 11-ICA
1 x Roughness standard
1 x Charger
1 x Case
1 x User’s manual
1 x ISO calibration certificate
