Order no.: PCE-HT 225E

Material Tester PCE-HT 225E

£ 1,957.00
£ 2,348.40
PCE-HT 225E
price ex. (VAT / delivery)
Delivery time: 1-2 working days

Description

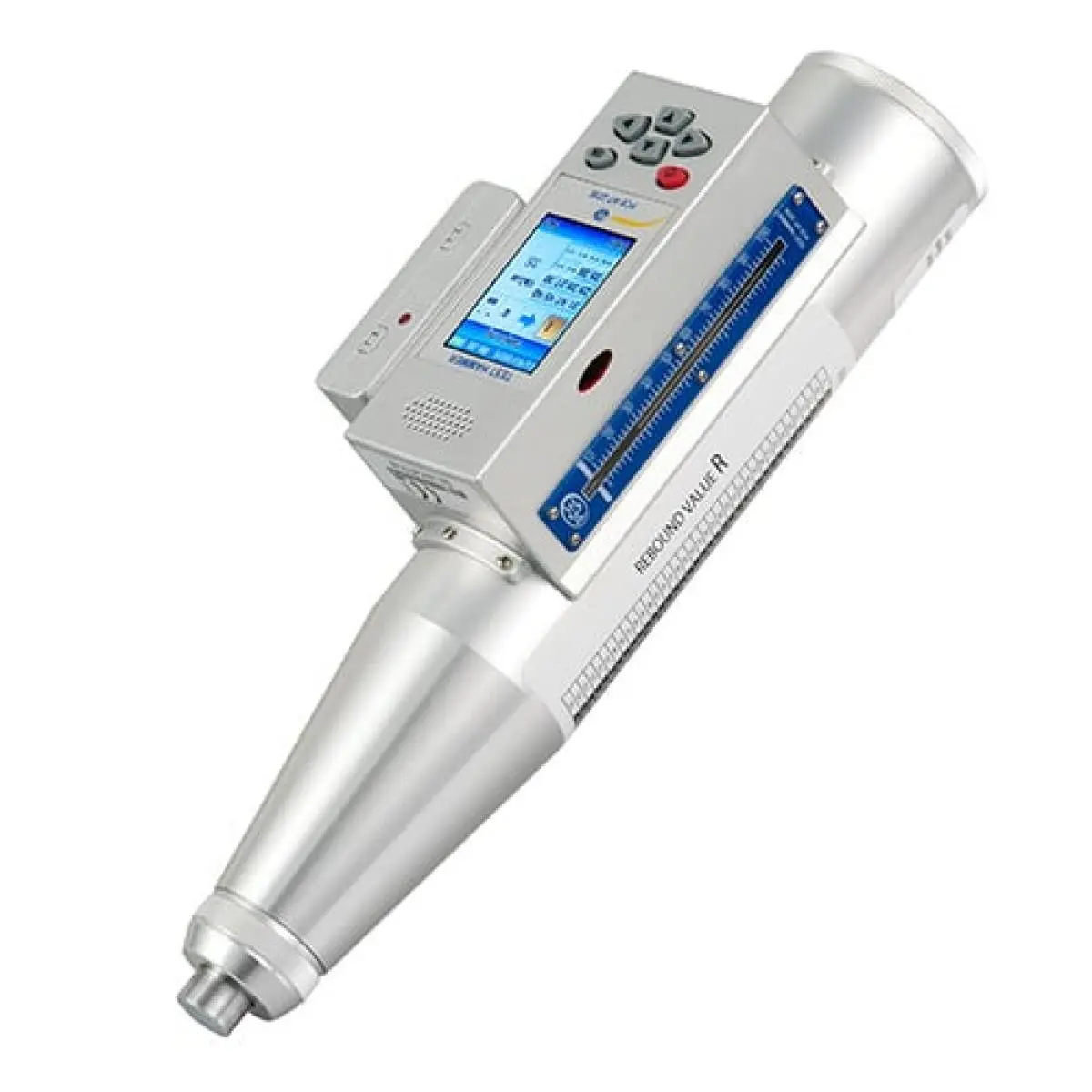

PCE-HT 225E Material Tester
Features a direct digital display, voice functionality and internal memory

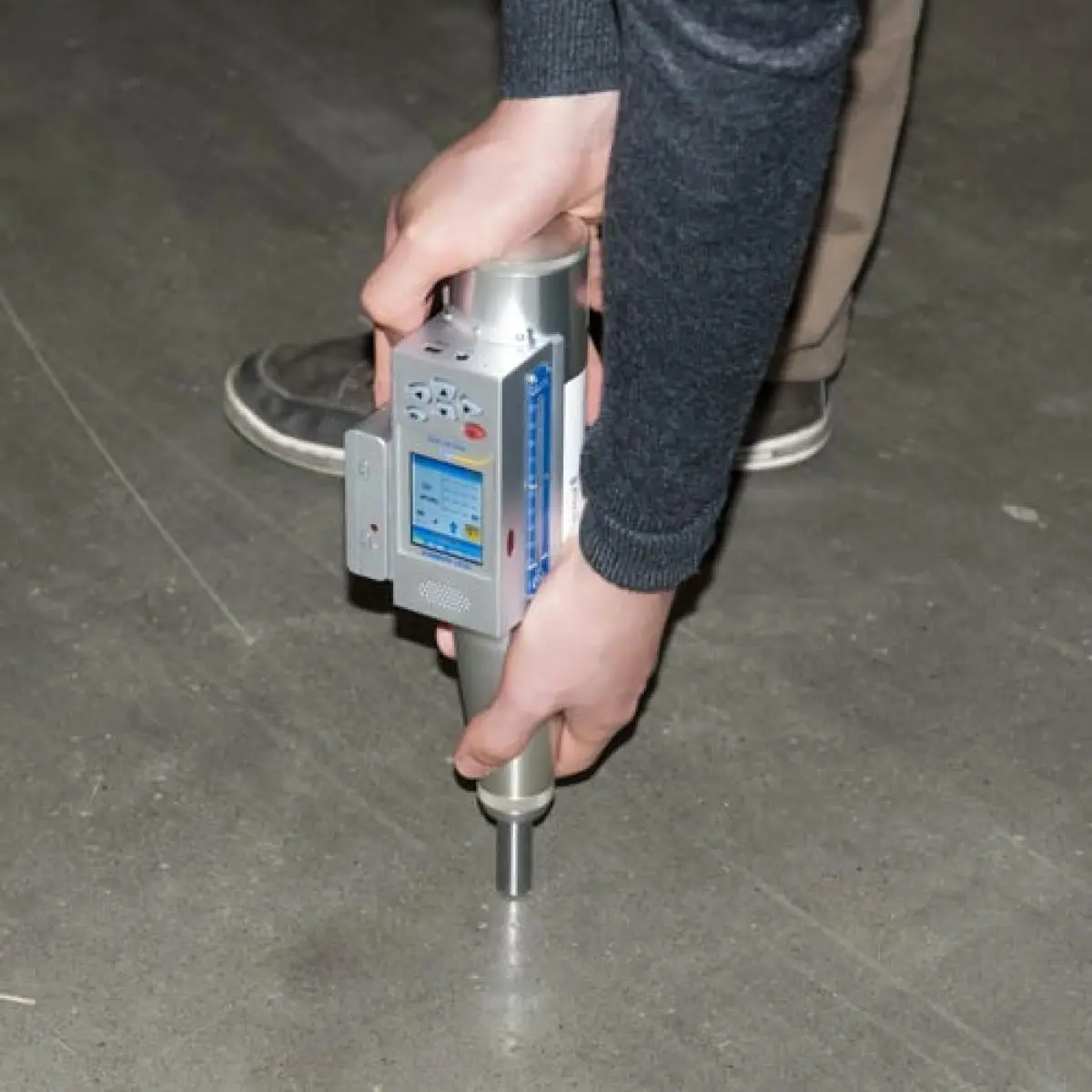

PCE-HT 225E is a material tester or concrete test hammer, also called a concrete rebound hammer or Swiss hammer, used for non-destructive measurements of surface hardness and compression strength. Suitable for use with concrete, rock and building materials, this rebound hammer features a direct digital display, voice functionality, USB port data interface and memory for storing up 200 measurement values.

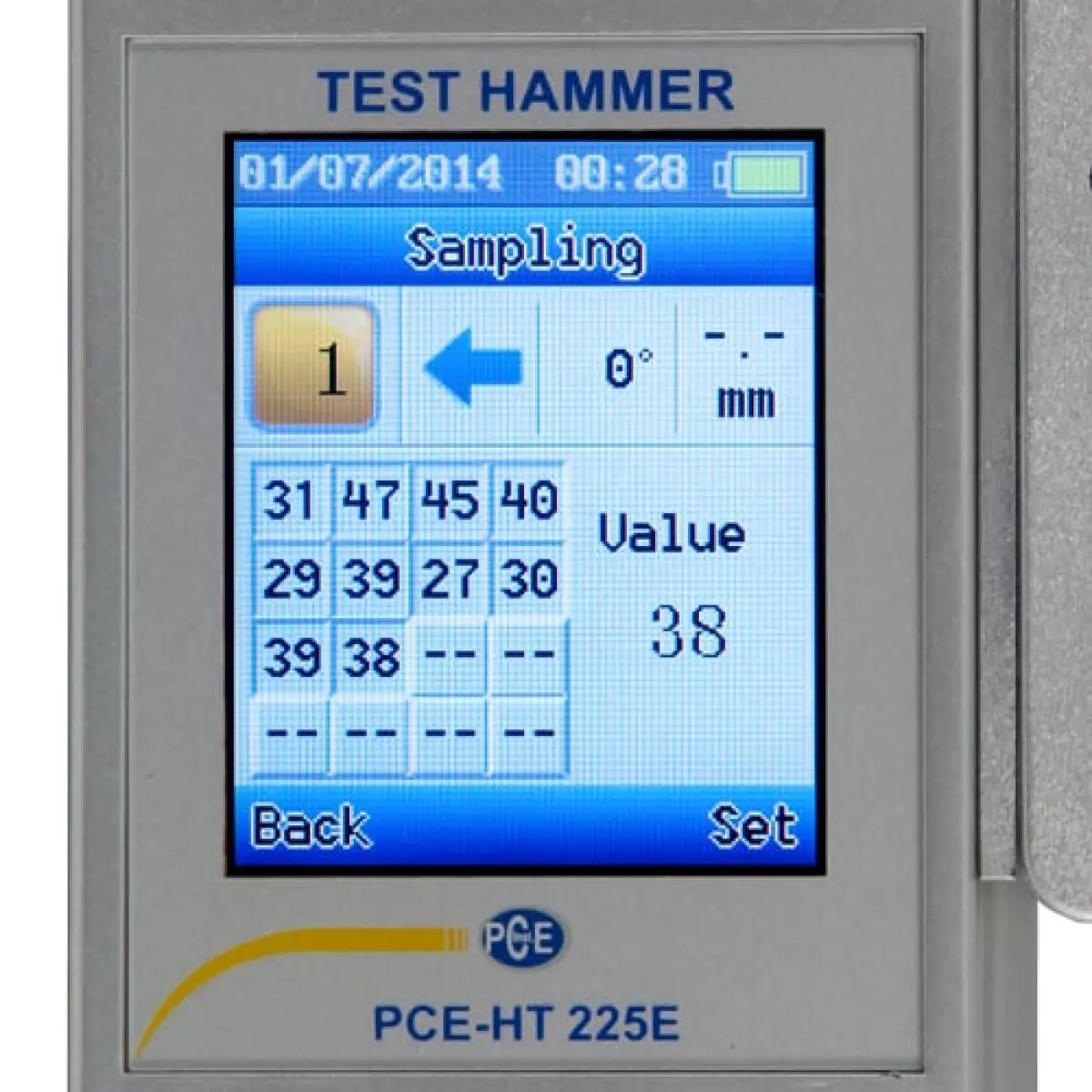

The manufacturer-calibrated concrete test hammer clearly shows the measured values directly on the attached LCD screen, making the results easy to read. The USB port allows for data transfer to a PC or printer. PC software for data processing is included in the delivery contents.


Highlights

- Non-destructive
- Manufacturer calibrated
- Direct digital display
- Voice functionality
- USB port data interface
- Memory for up to 200 values
- Includes software for data processing
- Adjustable backlight brightness and energy-saving automatic power off
- Pump marking, measuring curve, carbonation depth and upper / lower permissible value limit settings

Specification

Test range10 ... 60 MPa or 100 ... 600 kg/cm² / 1450.38 ... 8702.26 psi
Impact energy2.207 J or N-m / 1.6278 ft-lb
Impact stroke75 ± 0.3 mm / 2.95 ± 0.012 in
Spring rigidity785 J or N-m / 578.99 ft-lb
Average rebound value (for calibration)80 ± 2
Radius of spherical tip25 ± 1 mm / 0.99 ± 0.04 in
Adhesion of the measurement tip0.65 ... 0.15 N
Data interfaceUSB 2.0 port
Data storage or memory capacityUp to 200 measurement values
DisplayLCD, 176 x 220 mm / 6.9 x 8.7 in
Power supply4 x AAA alkaline batteries
WeightApprox. 1.1 kg / 2.4 lbs
DimensionsApprox. 54 x 280 mm / 2.13 x 11.02 in

*** Note: Measurement values displayed and recorded in MPa only ***

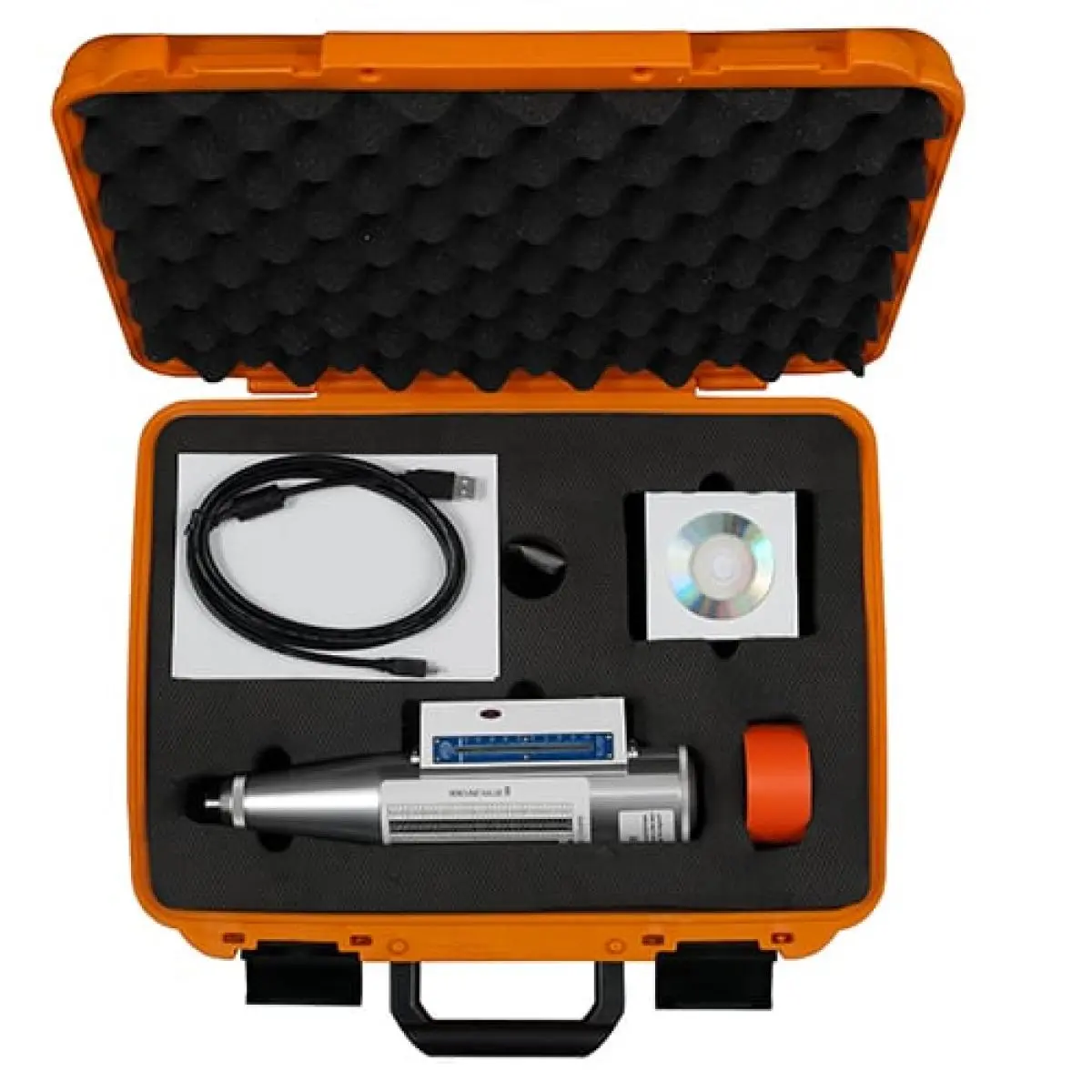

Delivery Scope

1 x PCE-HT 225E material tester
1 x USB cable
1 x PC software
1 x Grindstone for rough surfaces
1 x User manual
1 x Carrying case
