Order no.: PCE-DDD 10-ICA

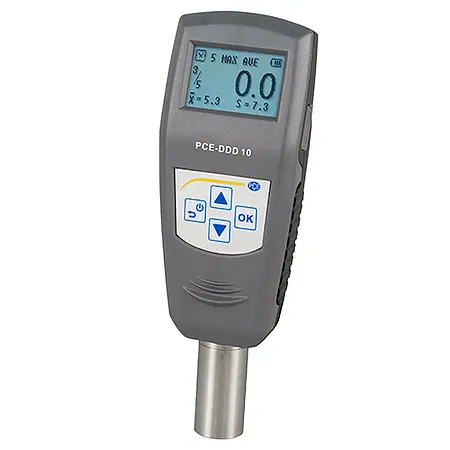

Material Tester PCE-DDD 10-ICA incl. ISO Calibration Certificate

ISO Calibration
£ 694.00
£ 832.80
price ex. (VAT / delivery)
Delivery time: 10 - 14 days


Digital Material Tester to measure Shore D hardness in materials such as hard rubber and thermoplastic with USB port and downloadable software

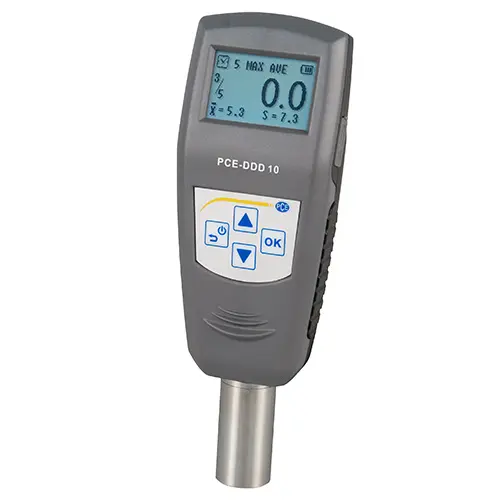

The PCE-DDD 10 Material Tester is an ergonomic device to check Shore D hardness in materials such as hard rubber and thermoplastic. It has been designed with a very high quality. If the material thickness is not enough, it should be tightened on the back with the same material in order to increase its thickness.


- Handheld device
- Digital display
- Plastic case included
- For Shore D measurements

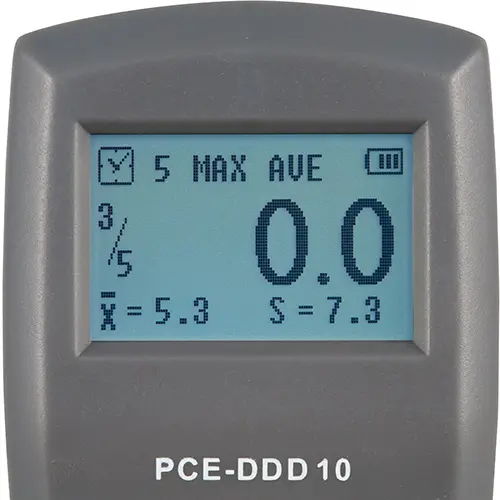

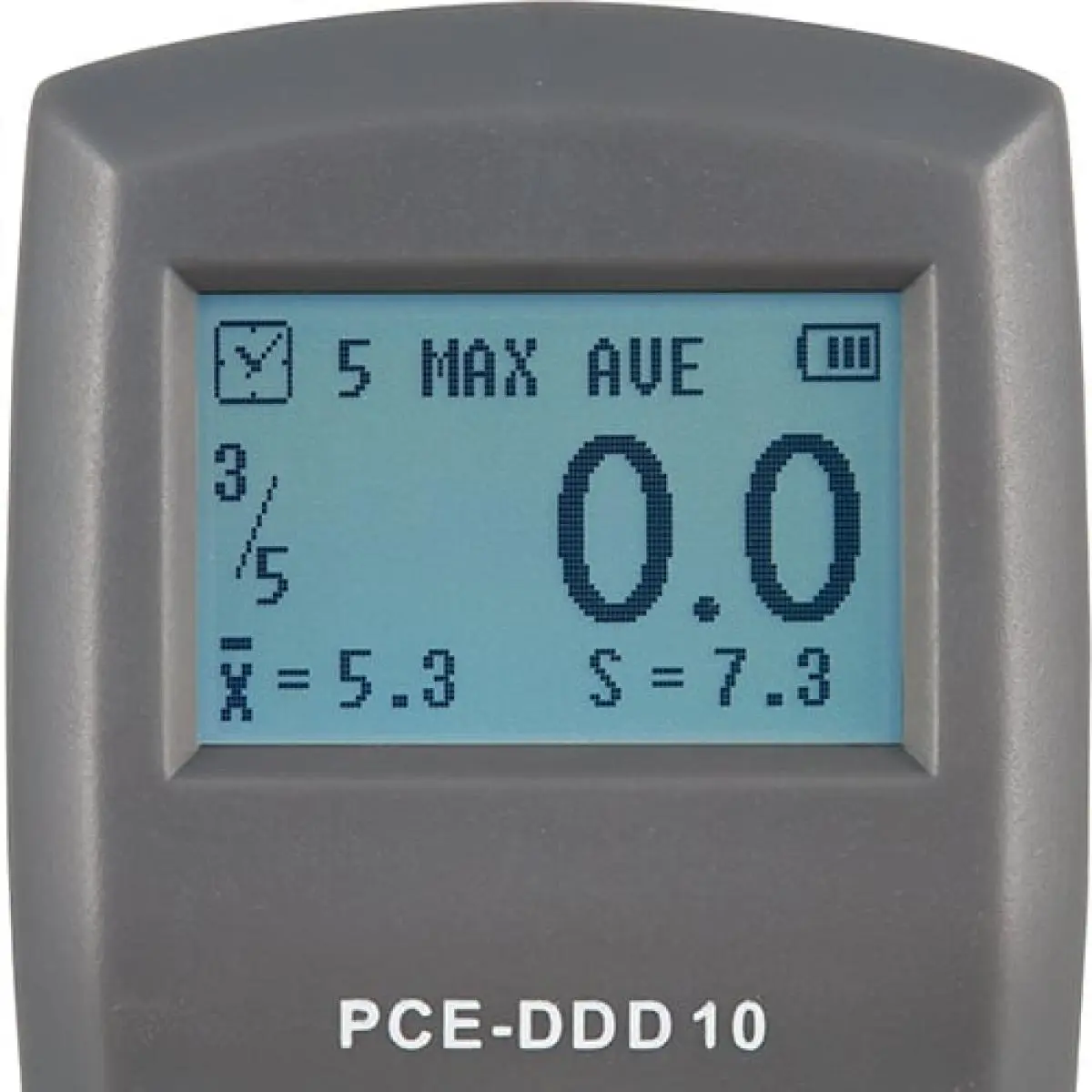

- Large display
- Single and Serial Measurements

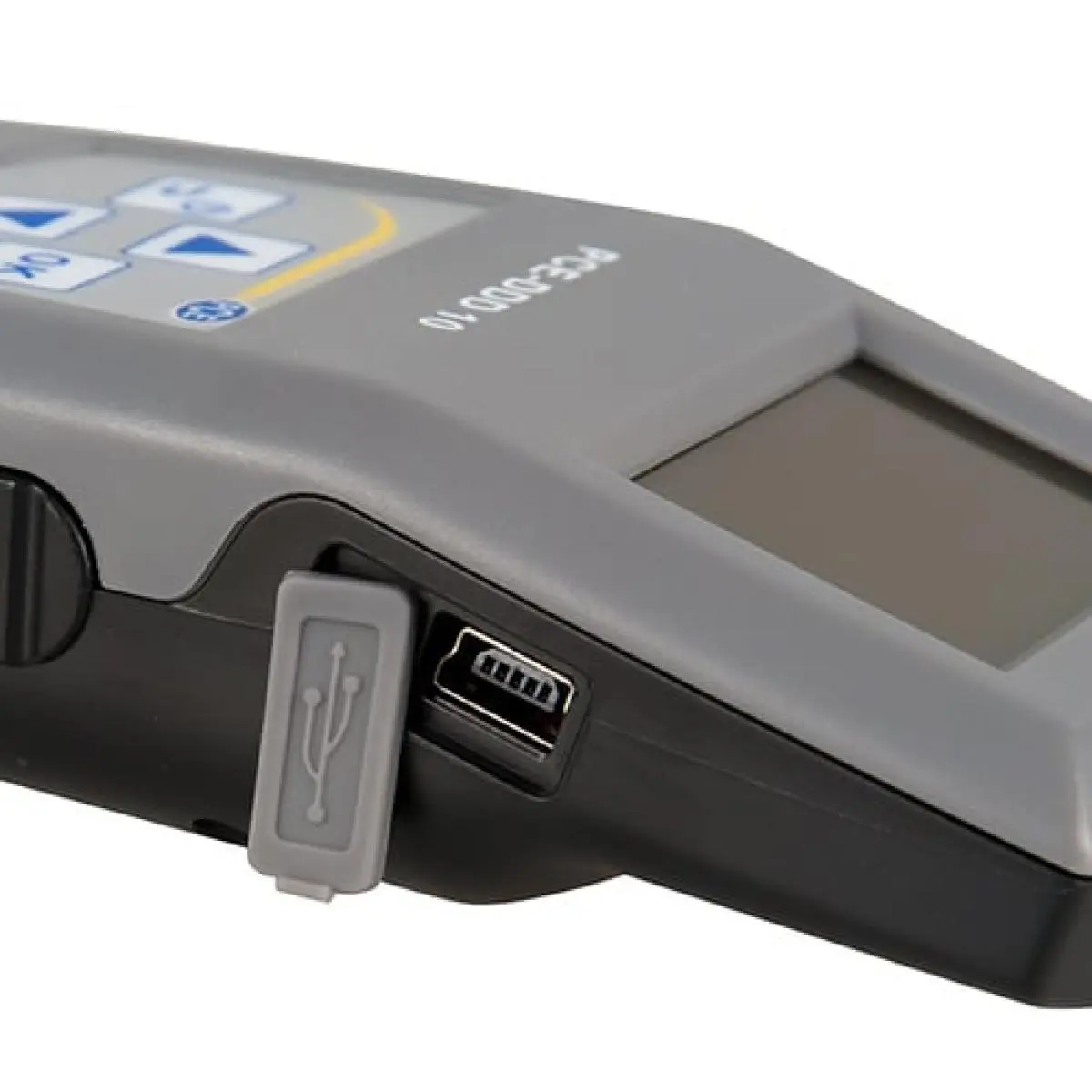

- Data transfer to pc

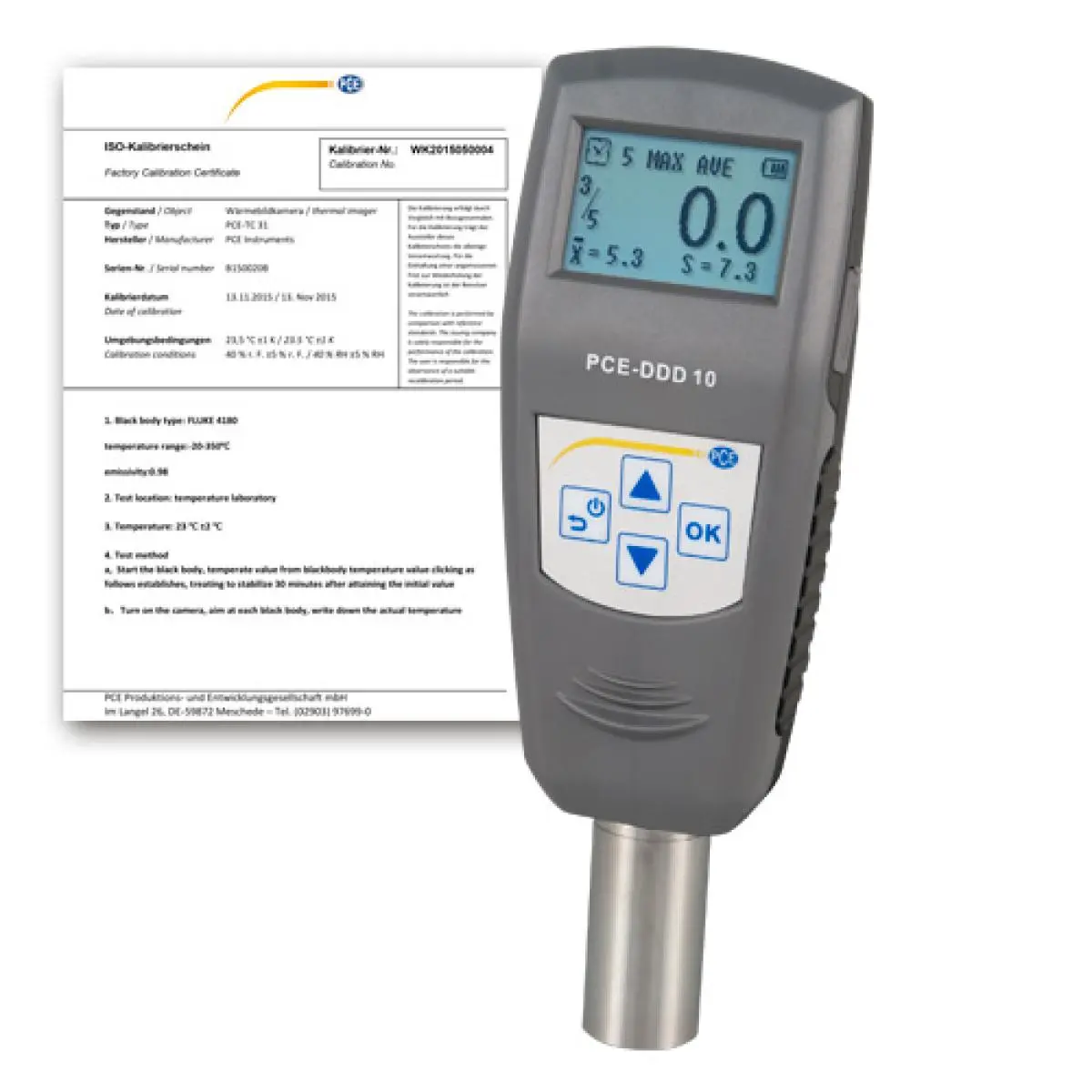

- Incl. ISO Calibration Certificate


Measurement range  0 ... 100 Shore D
Resolution  0.1
Accuracy  < ± 1

 35°± 0.25°

Memory  Saves up to 500 measurements
Dimensions  153 x 50 x 29 mm / 6 x 1.9 x 1.1 in (main body)
Weight  Approx. 300 g / < 1 lb
Power supply  3.6V rechargeable Ni-MH battery
Max. operating time    Up to 20 h continuous use at full charge
Charging time  Approx. 3 h
Standards  GB/T 531.1, ISO7619-1, ASTM D 2240

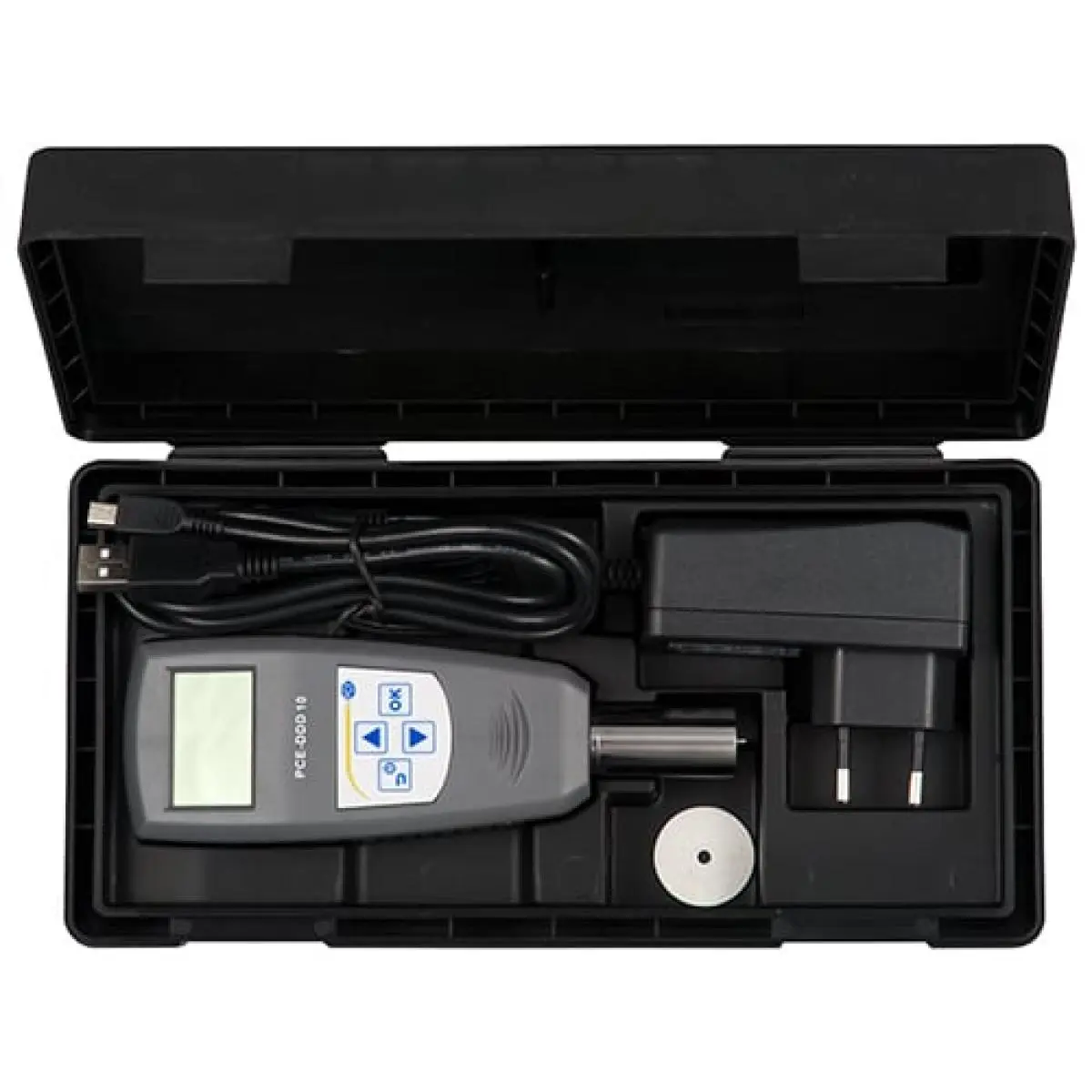

Delivery Scope

1 x PCE-DDD 10 Material Tester
1 x Power supply
1 x Storage case
1 x Standard calibration plate
1 x Mini USB cable
1 x User's manual
1 x ISO Calibration Certificate

Calibration certificates are issued specifically for the customer and are excluded from the right of return.
