Material Tester PCE-RT 1200-ICA

[zoom]

Material Surface Roughness Tester PCE-RT 1200-ICA Incl. ISO Calibration Cert.

Order no.: PCE-RT 1200-ICA

GTIN (EAN): 4250348726612

Accessory

Test Stand for Roughness Tester

£ 754.00

Groove Sensor PCE-RT2000-RP131

£ 1,131.00

Curvature Sensor PCE-RT2000-RP110

£ 989.00

Spare Sensor for Roughness-Tester PCE-RT2000-RP200

£ 692.00

Re-Calibration Certificate RE-CAL-PCE-RT for Roughness

£ 225.00

Description

Material Surface Roughness Tester PCE-RT 1200-ICA incl. ISO calibration
Portable roughness tester for fast detection of Ra, Rz, Rq and Rt /
Large OLED display / Micro-USB interface / With calibration plate and roughness standard / Measuring software / Permanently installed li-ion battery

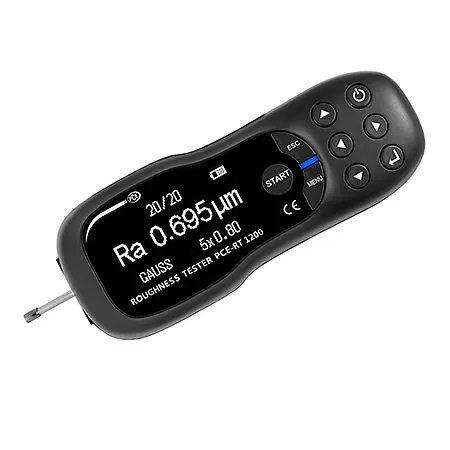

The Material Surface Roughness Tester PCE-RT 1200-ICA is used to determine surface roughness. The compact roughness tester is a handheld device for mobile use. Due to the power supply via a powerful battery, it can be used directly on site. The roughness tester is used in the laboratory, in production and everywhere where the roughness of surfaces is to be determined. The measured values are displayed on the clear and user-friendly OLED display directly on the measuring device. In addition, the roughness tester has a storage option for up to 20 measured values, which can later be read out via the micro USB interface. For this purpose, the measurement software can be used, and a USB cable is included in the delivery. The built-in rechargeable battery is also charged via the micro USB interface. The above mentioned measurement software is particularly suitable when measurement series are pending. The data is then transferred to the software and can be evaluated directly on the screen.

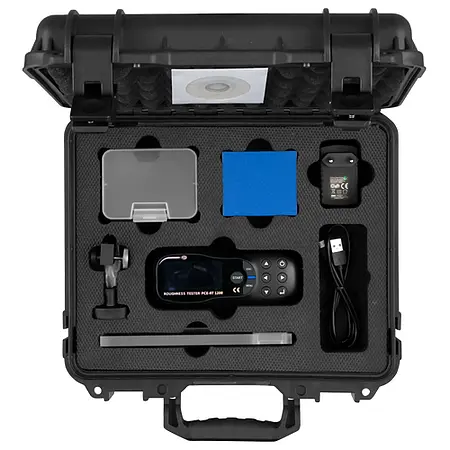

The roughness meter has a protective cap for the sensor, which protects it from external influences and can be easily screwed to the device. A calibration plate with roughness standard is also part of the standard equipment and serves to check the correctness of the measurement results.

Rz = average roughness
The average roughness Rz is the arithmetic mean of the largest single roughness depths of several adjacent individual measuring sections.
Ra = arithmetic centers roughness
Ra is the generally recognized and internationally applied roughness parameter. It is the arithmetic mean of the absolute values of the profile deviations within the reference line. The measured value Ra is always smaller than the Rz value determined on the same roughness profile.

Calibration certificates are issued specifically for the customer and are excluded from the right of return.

Highlights

- Very compact

- Easy to handle

- A large OLED display

- 4 measurable parameters of roughness

- The probe of the roughness meter consists of a high-quality diamond

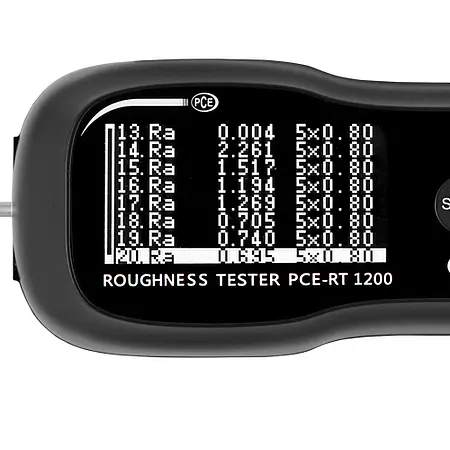

- The display of the roughness meter outputs the measured values in tabular

form

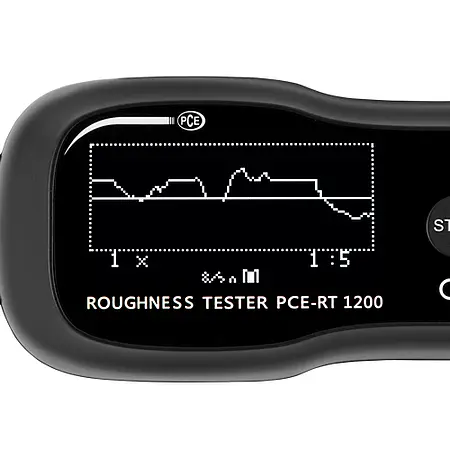

- The measured values can also be output by the roughness meter as a graph

- A micro-USB interface for online data transmission to a PC (for example

useful for serial measurement or

laboratory measurement)

- An internal rechargeable battery (3000 measurements with one battery charge

(Li-ion))

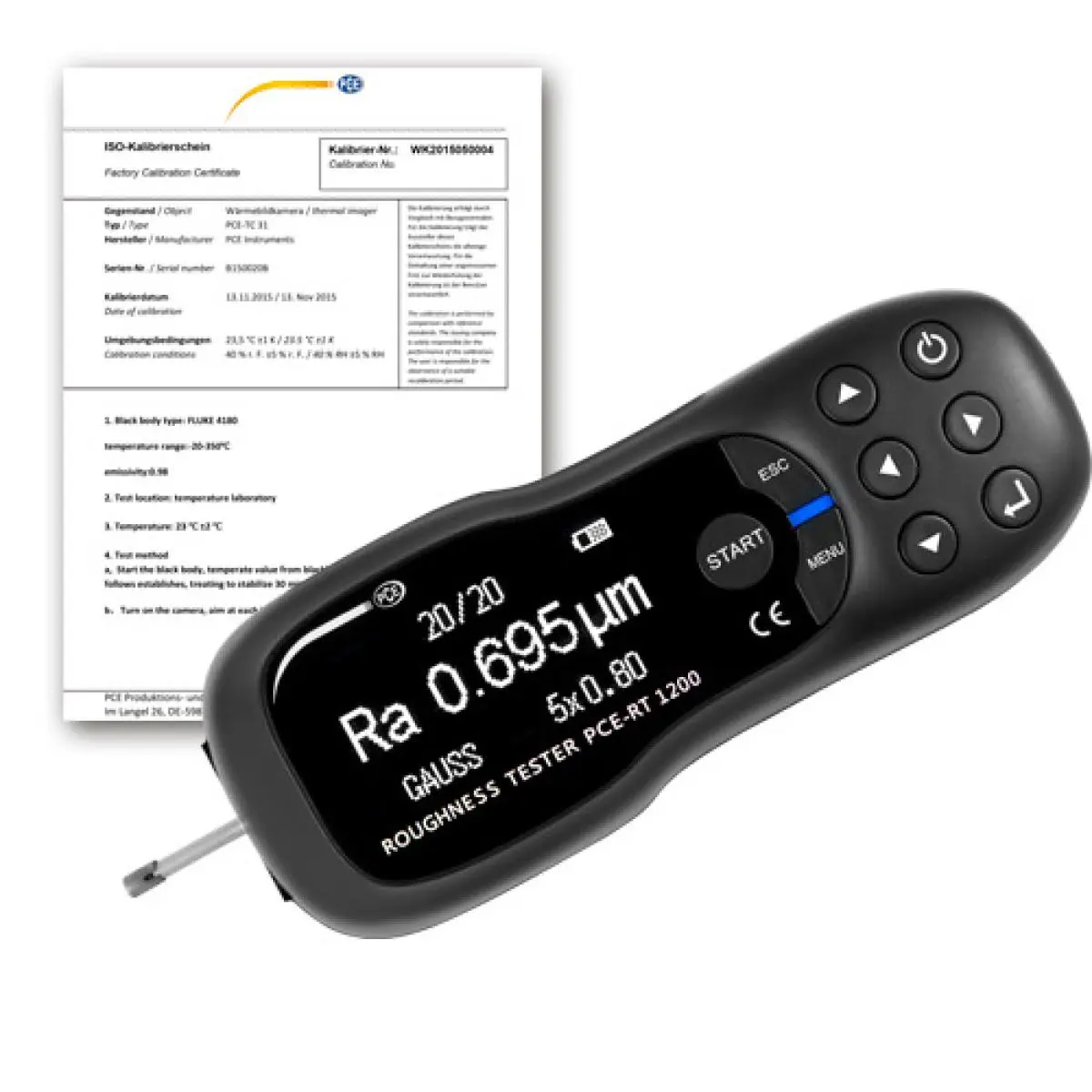

- incl. ISO-Calibration Certificate

Specification

Roughness
Roughness value	Ra, Rq
Measuring range	0,005 ... 16 µm
Resolution	0,001 µm
Accuracy	<±10 %

Roughness
Roughness value	Rz, Rt
Measuring range	0,02 ... 200 µm
Resolution	0,01 µm
Accuracy	<±10 %

General technical data
Repeat accuracy	<6 %
Measuring functions	Ra, Rz, Rq, Rt
Measuring functions (additional information)	Ra / Rq - 0.005 µm ... 16 µm Rz / Rt - 0.02 µm ... 200 µm
Units	µm, μinch
Display type	OLED
Storage medium	Internal memory
Storage capacity	20 Values

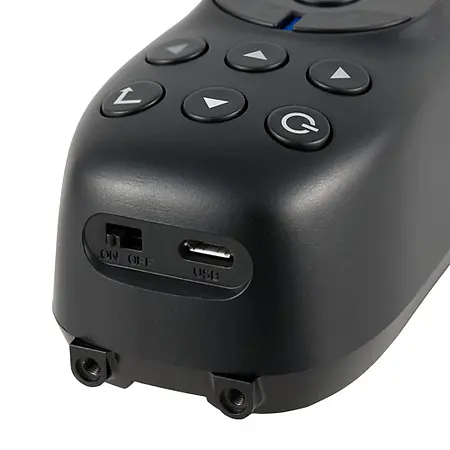

Interface	Micro-USB
Standard(s)	ANSIB46.1/ASMEB46.1, DIN EN ISO 4287, ASMEB46.1
Sensor	inductive
Operating time	3000 Measurements
Automatic power-off from...to	1 ... 30 min.
Cut-off wavelength	0.25 mm / 0.8 mm / 2.5 mm
Key	- Probe tip radius - 5 µm - Probe tip material - diamond, 90° angled - Probing speed: 0.135 mm/s at limit wavelength: 0.25 mm 0.5 mm/s at limit wavelength: 0.8 mm 1 mm/s at limit wavelength: 2.5 mm - Return speed: 1 mm/s
Maximum traverse distance	15 mm
Menu language	English, English (GB)
Protection class (device)	IP31
Power supply	3.7 V
Connector type	Device-europlug
(Rechargeable) battery	1 x 3,7 V internal , Lithium-ion polymer battery
Capacity	1500 mAh
Operating conditions	0 ... 50 °C , 10 ... 90 % RH
Storage conditions	0 ... 50 °C , 10 ... 90 % RH
Dimensions ( L x W x H )	150 x 60 x 43 mm
Weight	370 g
