Order no.: PCE-2900-ICA

Material Hardness Tester PCE-2900-ICA incl. ISO Calibration Certificate

ISO Calibration
£ 1,776.00
£ 2,131.20
price ex. (VAT / delivery)
Delivery time: 10 - 14 days

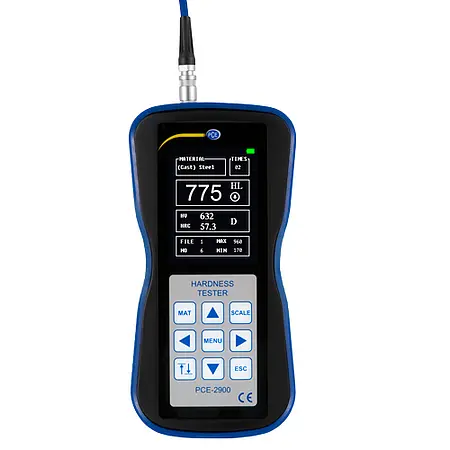

Material Hardness Tester PCE-2900
Modern, dynamic hardness tester with colour display / Memory / For metallic materials with hardness scales such as Vickers, Rockwell, Brinell, Leeb, Shore and Tensile

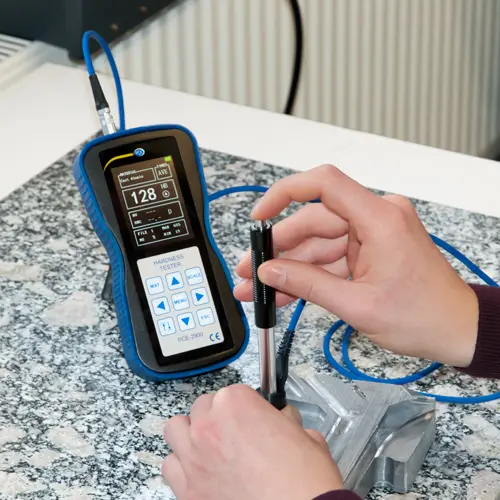

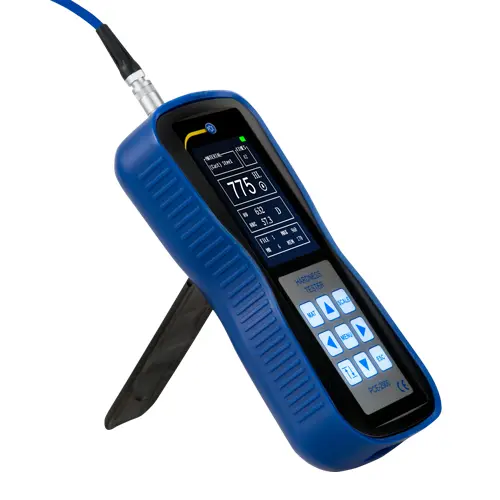

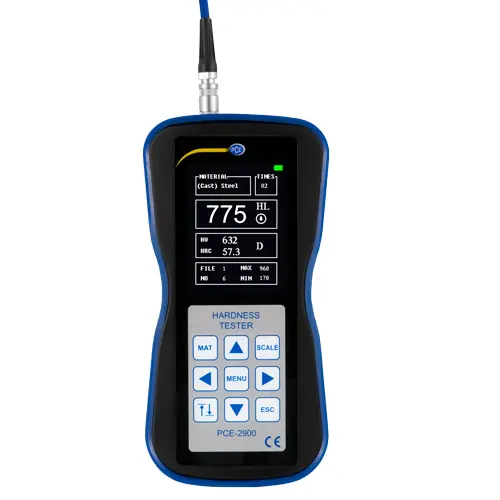

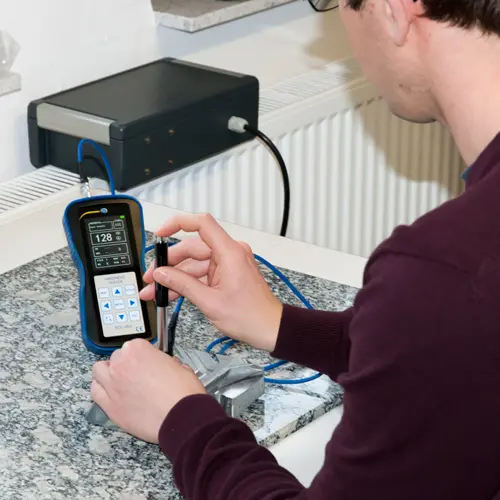

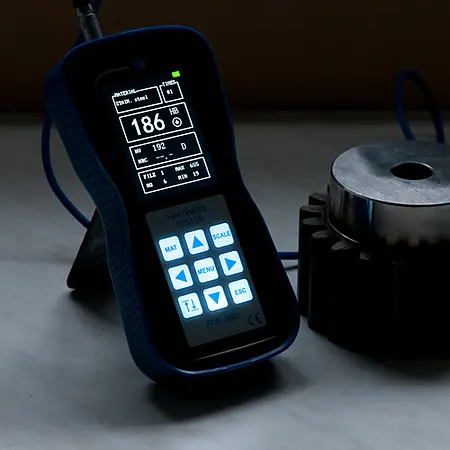

The material hardness tester PCE-2900 has been developed for hardness measurements on metallic materials. The material hardness tester measures the material hardness in Vickers, Brinell, Rockwell, Leeb and Shore. The material hardness tester PCE-2900 measures the hardness according to the Leeb rebound principle. An impactor bounces on the workpiece via a firing pin and the metal hardness is measured via the rebound. The PCE-2900 material hardness meter is equipped with a backlit colour display.

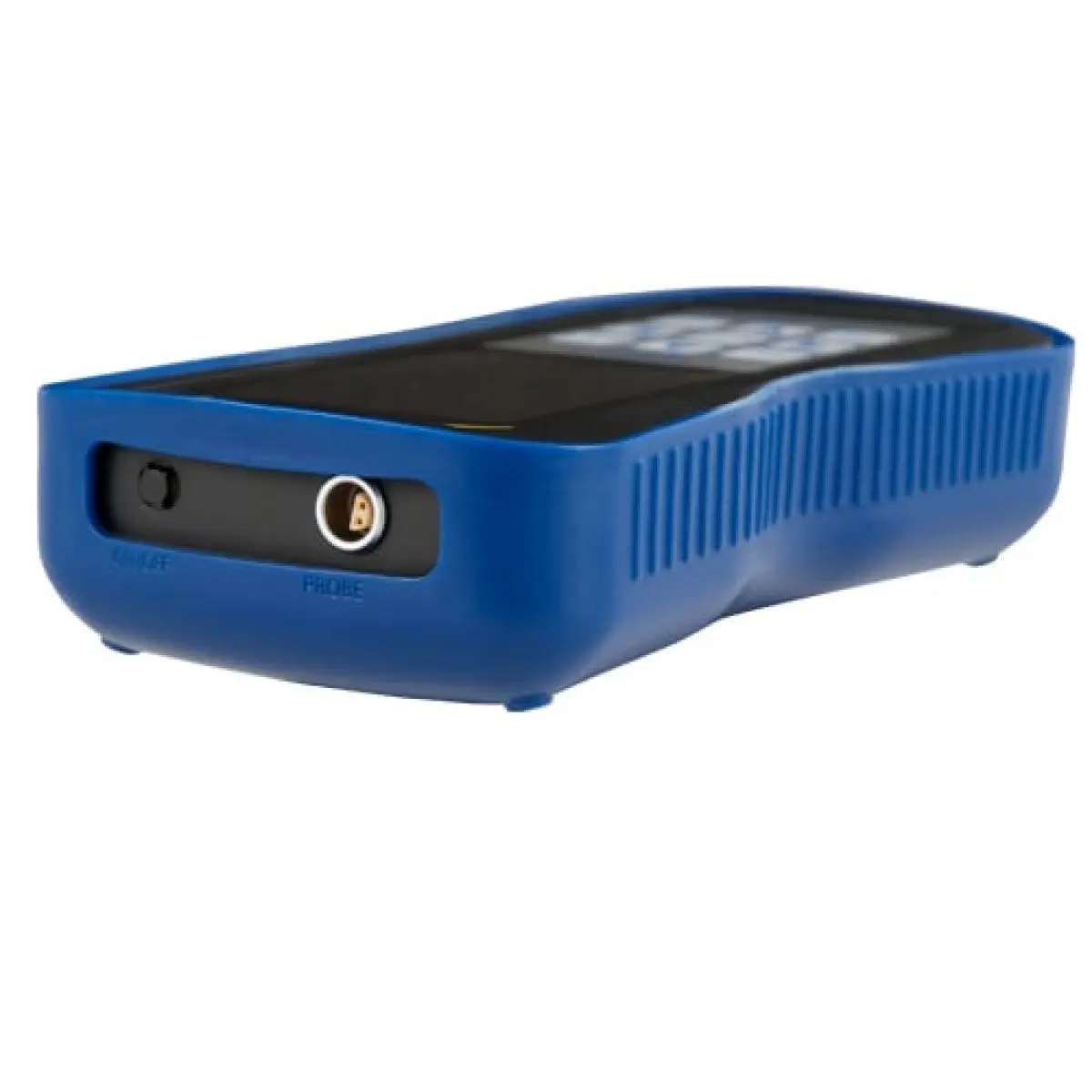

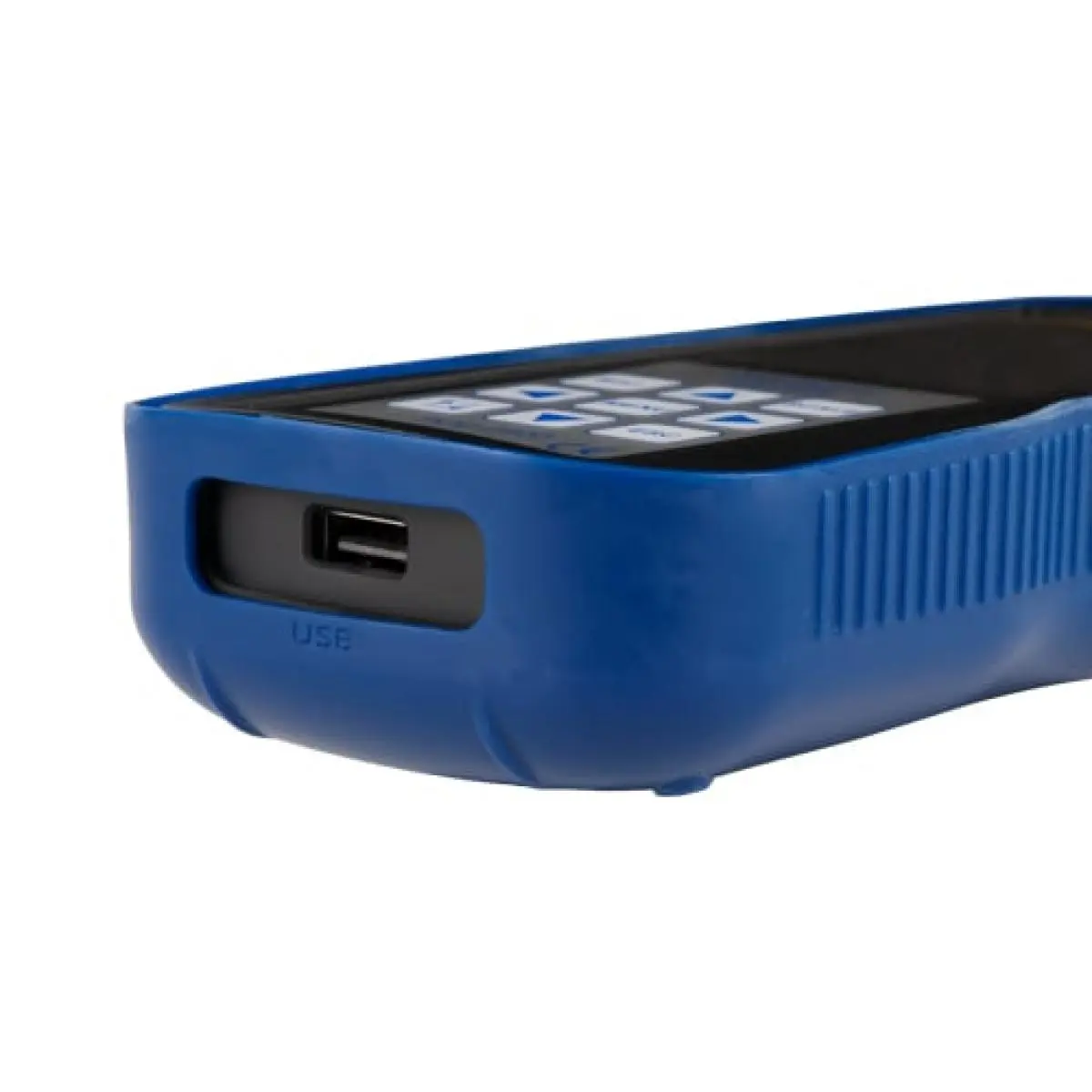

Likewise, the buttons on the PCE-2900 are illuminated. Thus, the display can be read well even in low light conditions. The impact device is connected to the material hardness tester via a cable. The material hardness tester PCE-2900 has an internal memory of 6 x 100 measurement sets. The memory thus allows a documentation of the measured values. Via the integrated USB and WiFi interface, the measured values can be transferred from the material hardness tester via software to a PC. The material hardness tester is powered by commercially available 1.5V AA batteries and has a battery life of about 50 hours.


- USB and WiFi for data transmission
- Large, bright touch-screen LCD display
- Large measuring range
- Measurement possible in every position
- Hardness scales (HRC, HRB, HV, HB, HS)
- For all metallic materials
- Incl. ISO Calibration Certificate


Measuring range

170 ... 960 HLD

Reproducibility ± 6 HLD

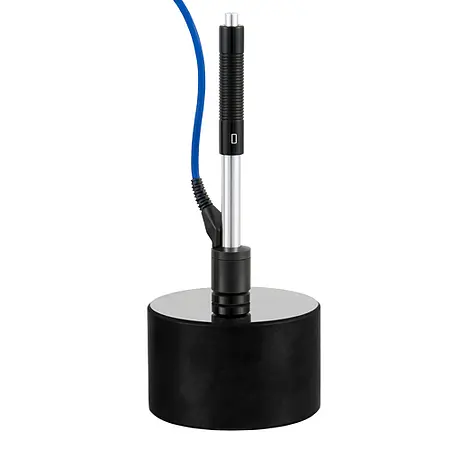

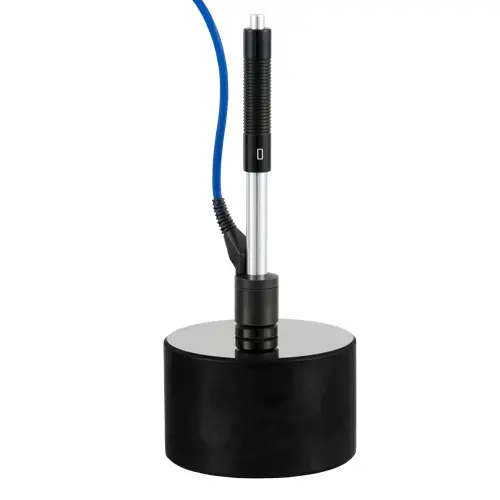

Impactor Type D
Measuring direction 360°
Adjustable scales Leeb, Brinell, Rockwell A, Rockwell B, Rockwell C, Vickers, Shore
Surface quality Ra of the workpiece 2 µm
Minimum weight of the workpiece Direct measurement: 5 kg / 11 lbs
Tied measurement: 2 ... 5 kg / 4.4 ... 11 lbs
With coupling gel: 0.05 ... 2 kg / 0.1 ... 4.4 lbs
Minimum thickness of the workpiece Direct measurement: > 5 mm / > 0.19 in
With coupling gel: 0.8 ... 5 mm / 0.03 ... 0.19 in

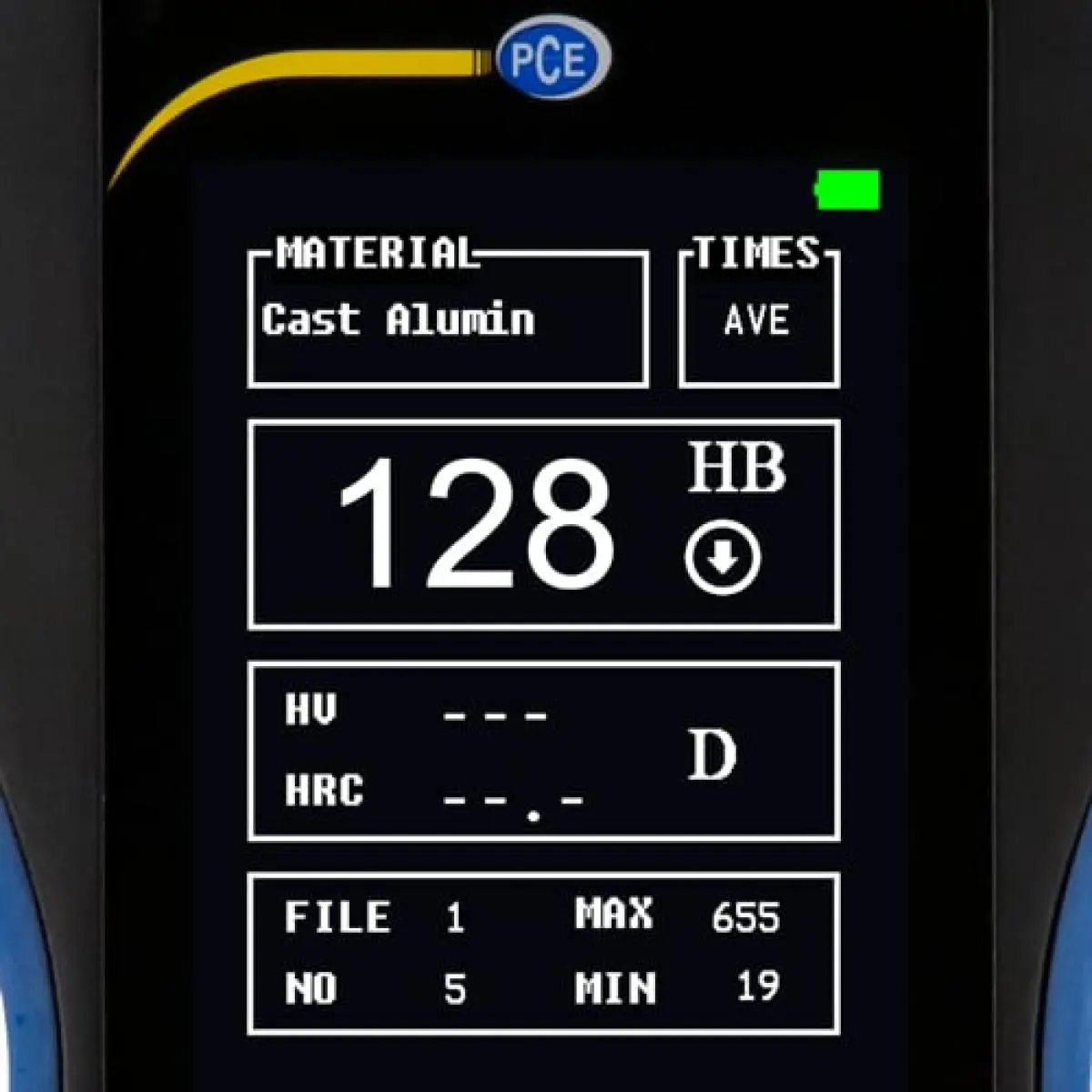

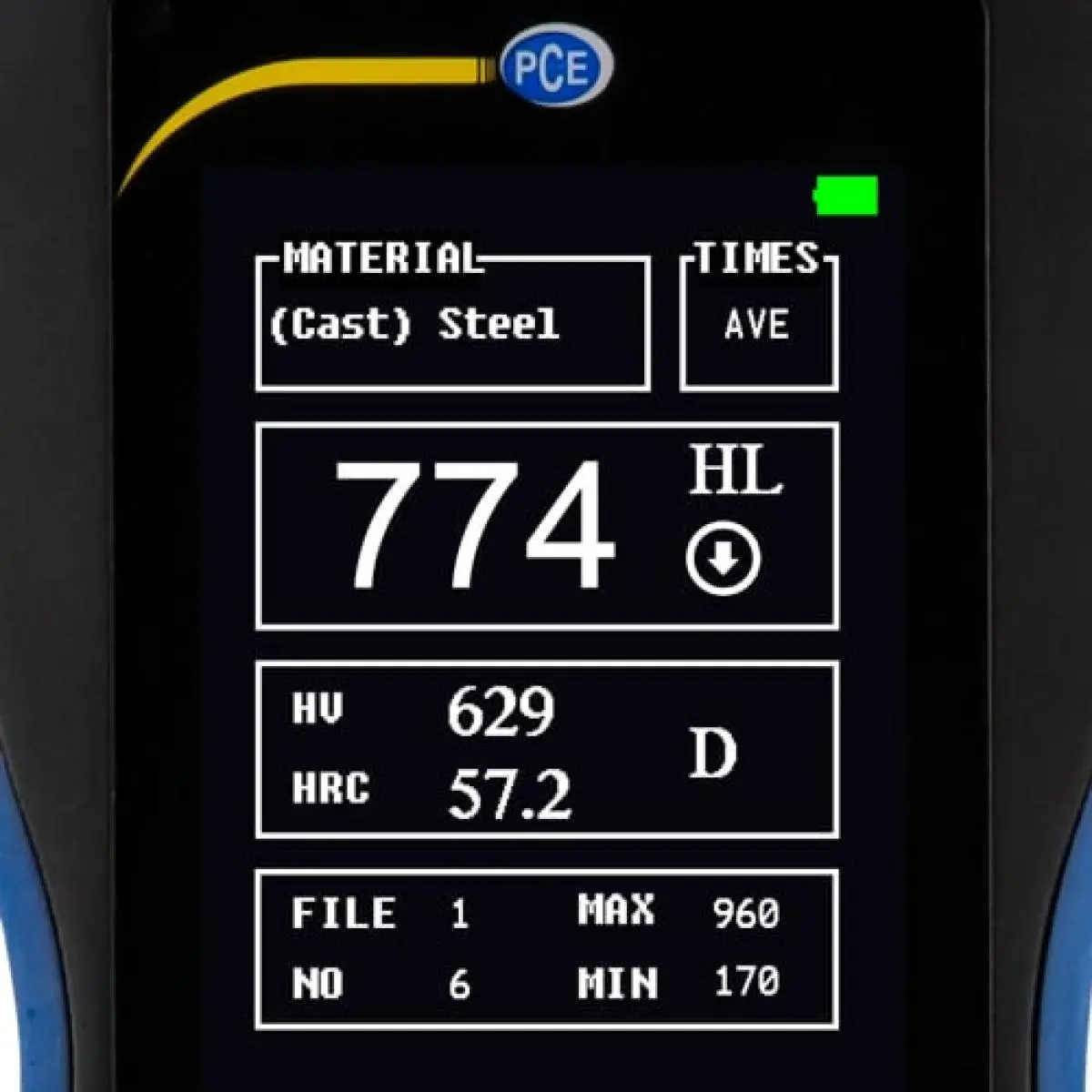

Display Colour LCD
Internal measured value memory 600 records in 6 files
Interface USB, WiFi
Power supply 2 x 1.5V AA batteries
Operating time ca. 50 hours
Operating conditions 10 ... 50°C / 50 ... 122°F  max. 90% r.H.
Storage conditions -30 ... 60°C / -22 ... 140°F  max. 90% r.H.
Dimensions 160 x 80 x 35 mm / 6.3 x 3.1 x 1.3 in
Weight 350 g / < 1 lb

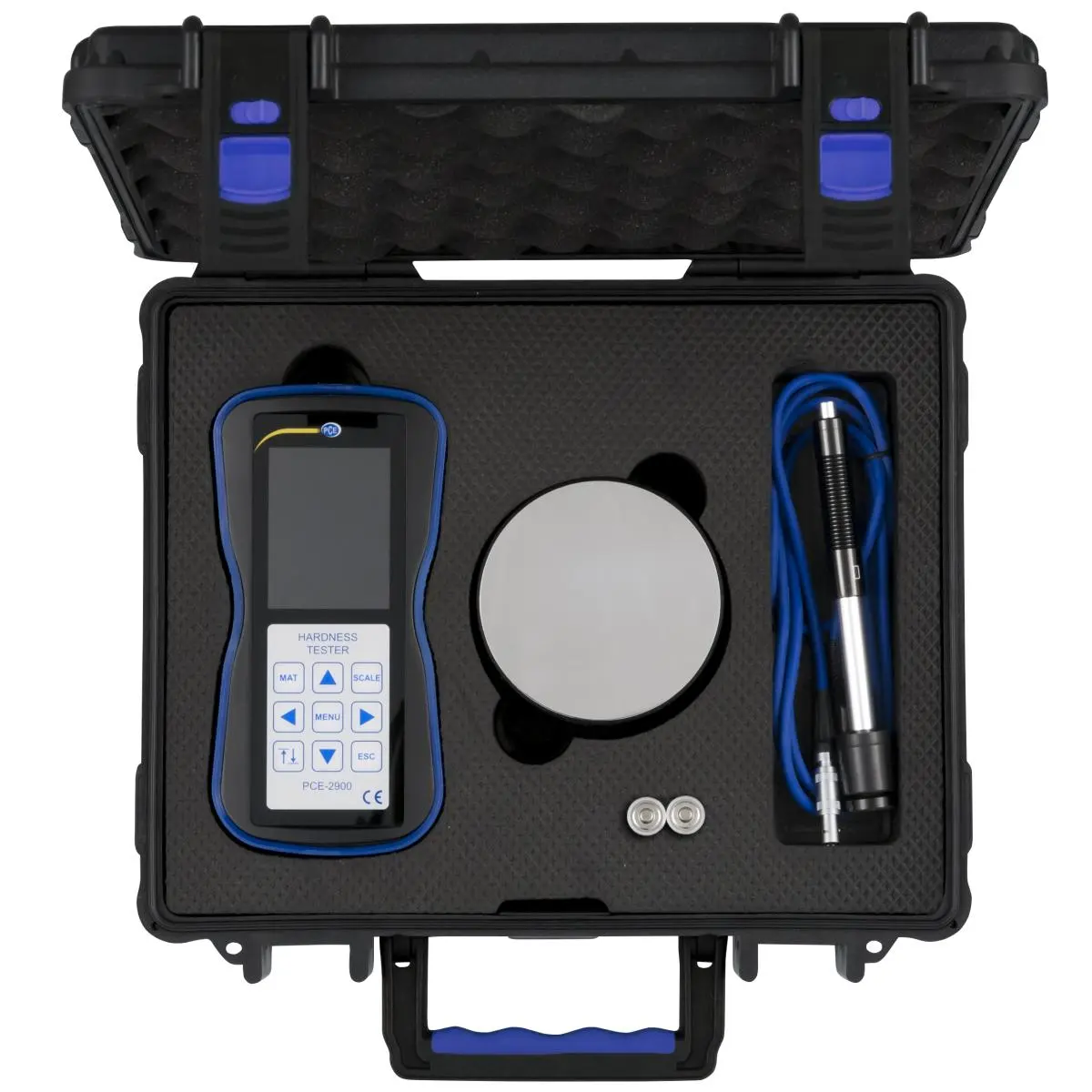

Delivery Scope

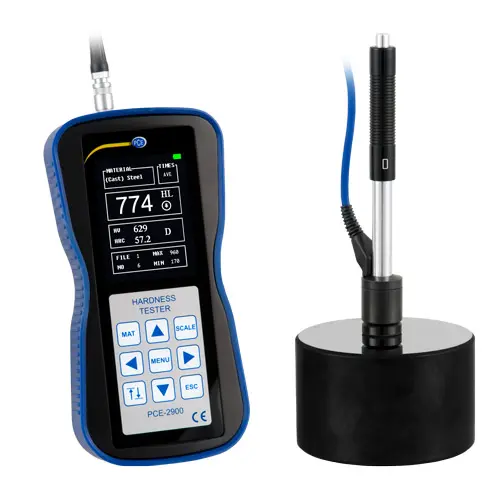

1 x Material Hardness Tester PCE-2900

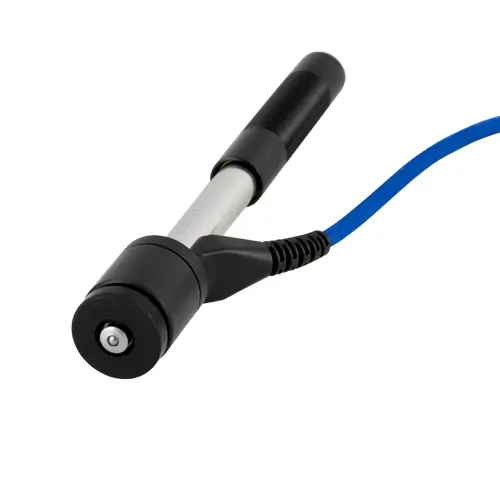

1 x Impactor D
1 x Test block
2 x 1.5V AA batteries
1 x User manual
1 x Carry case

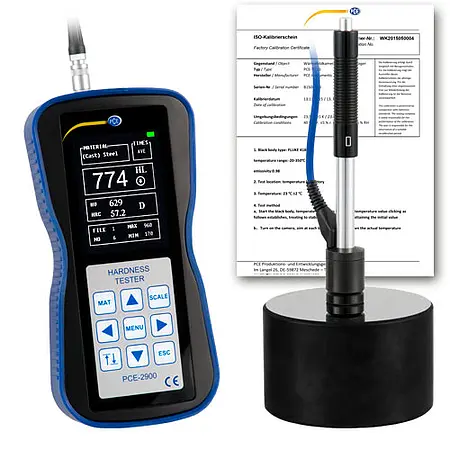

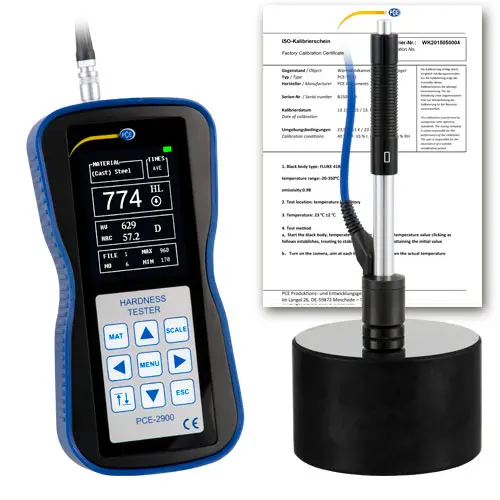

1 x ISO Calibration Certificate

Calibration certificates are issued specifically for the customer and are excluded from the right of return.
