£ 239.00

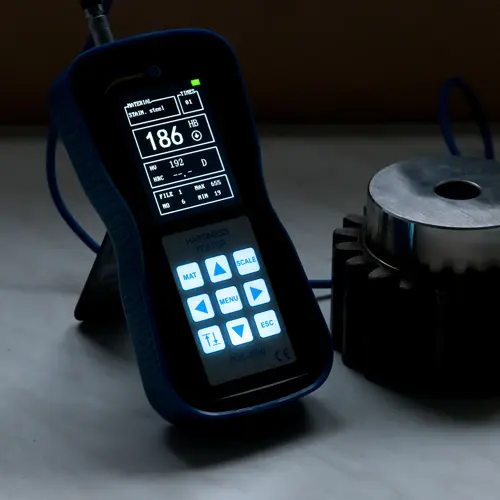

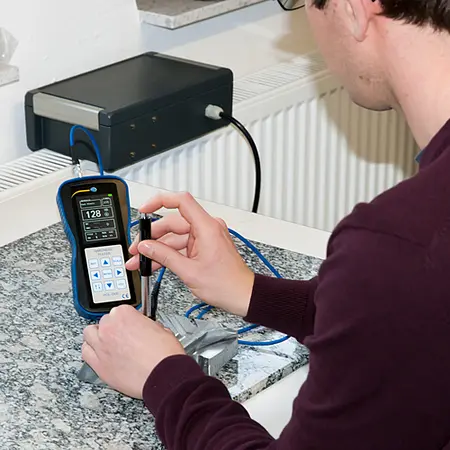

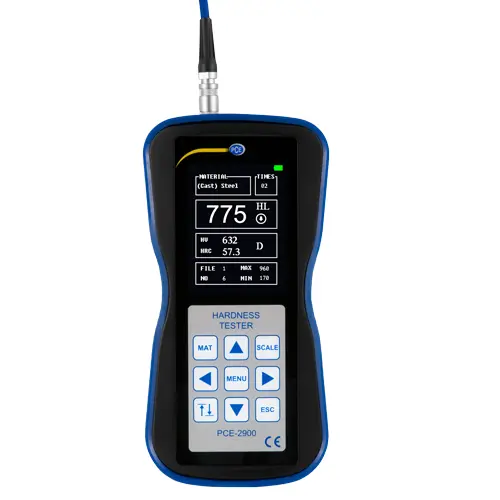

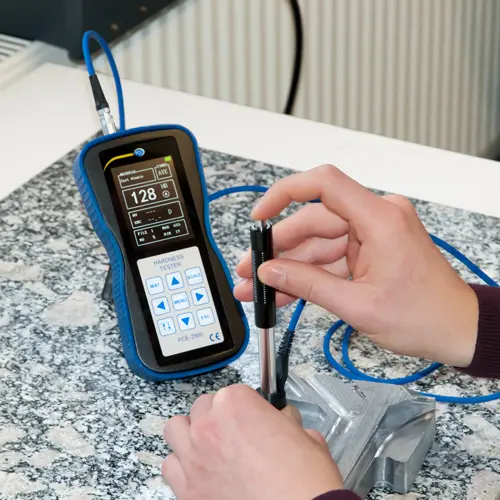

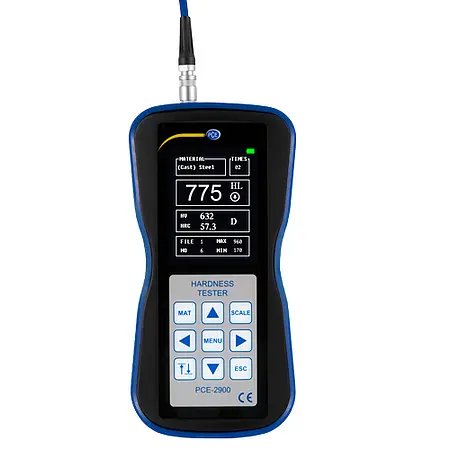

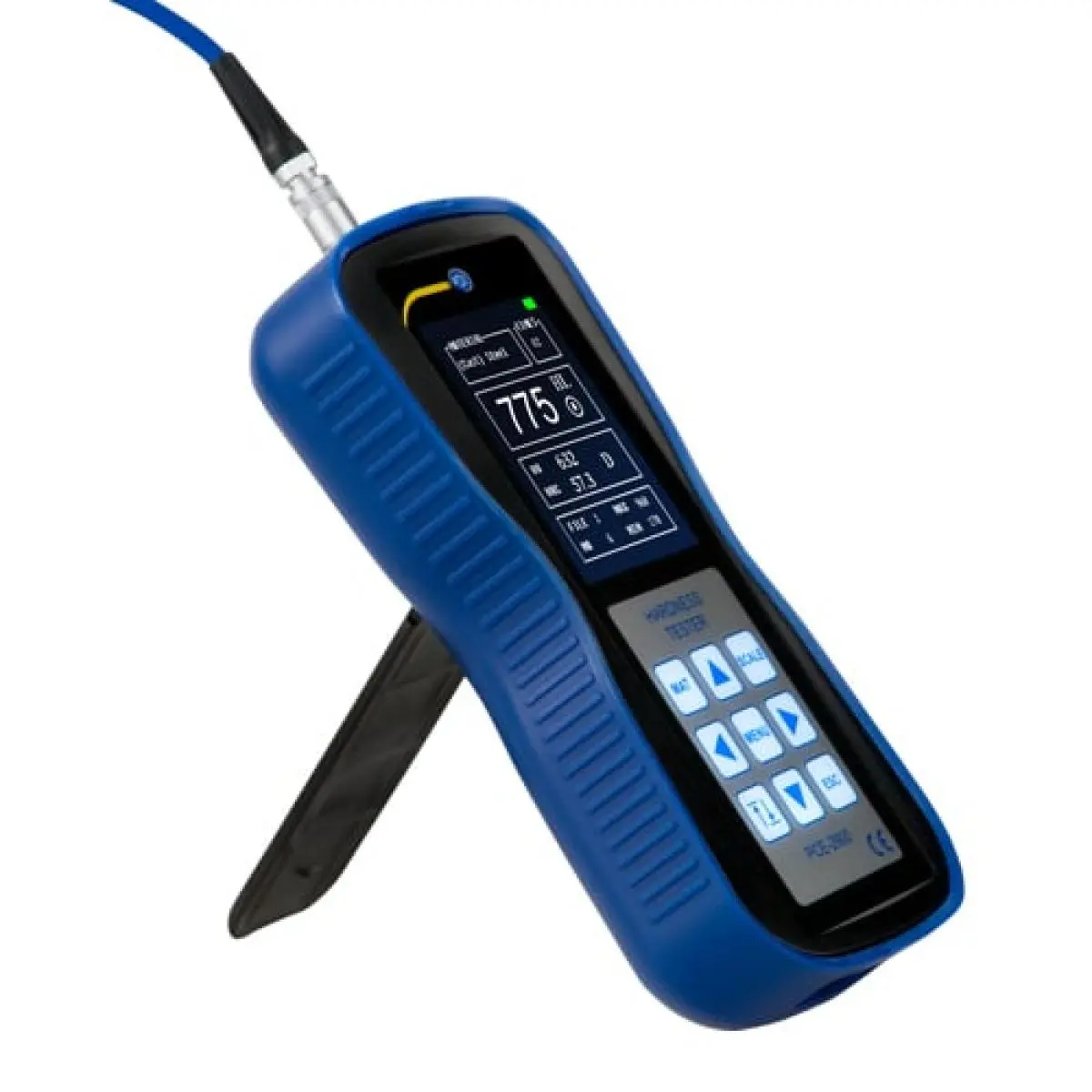

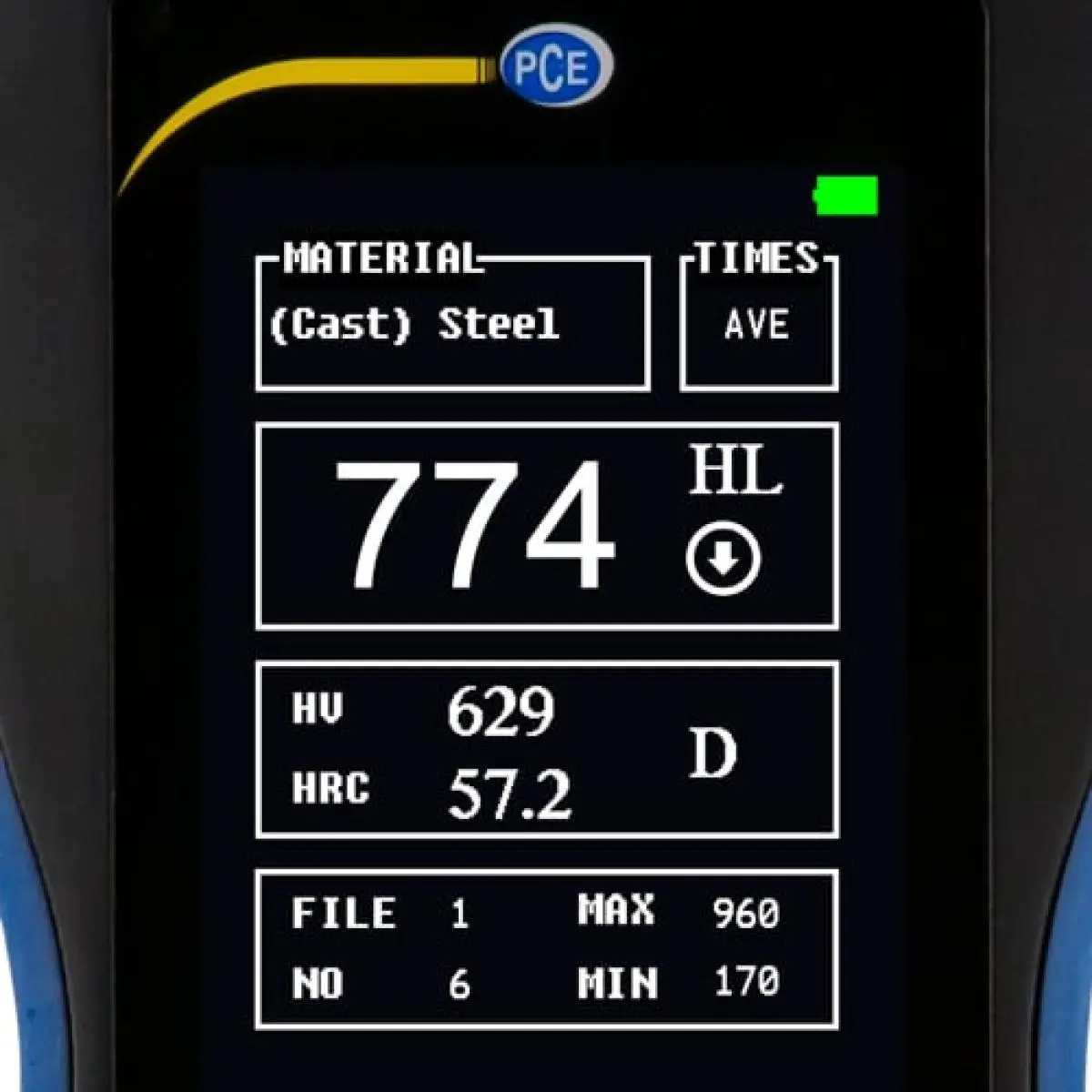

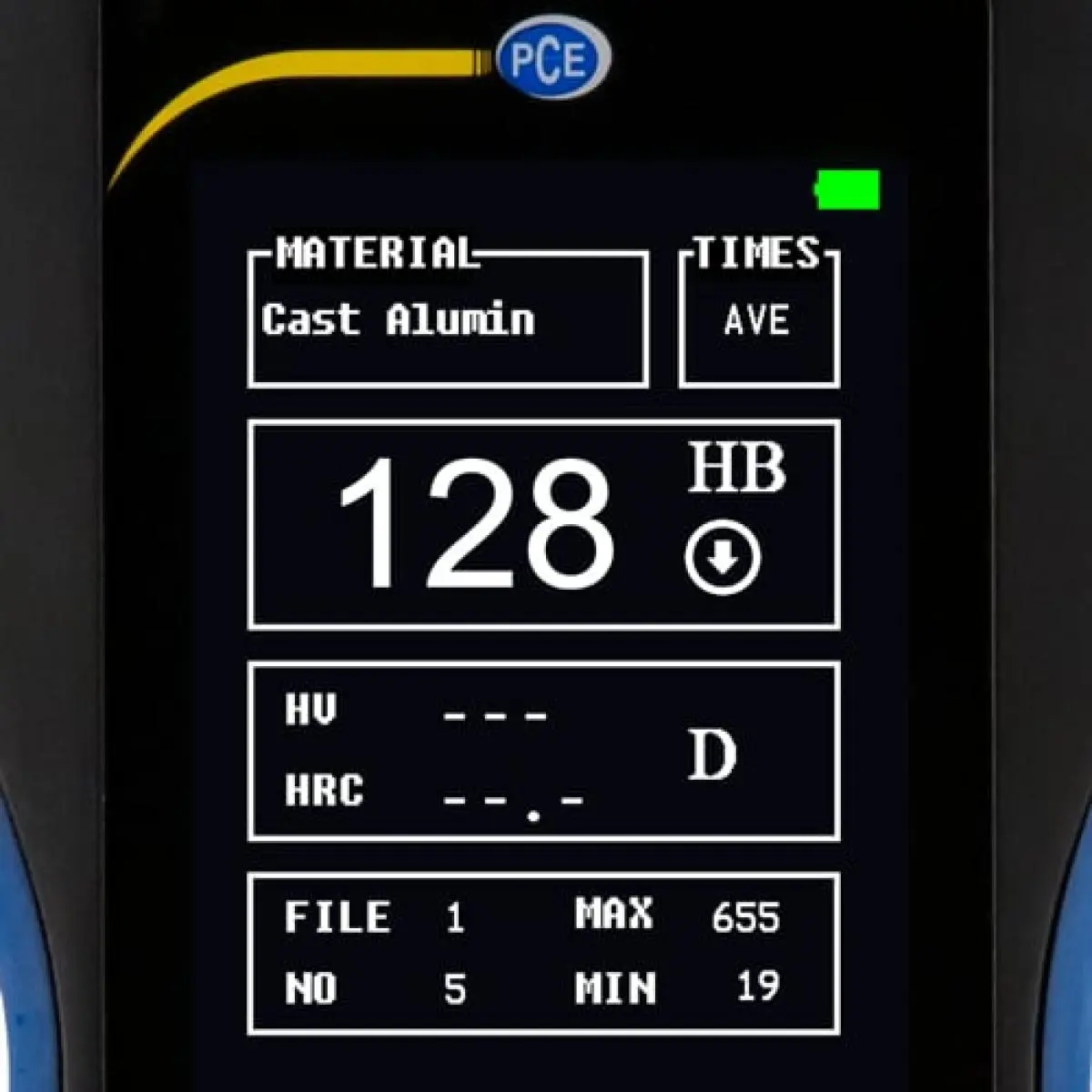

The material hardness tester PCE-2900 has been developed for hardness measurements on metallic materials. The material hardness tester measures the material hardness in Vickers, Brinell, Rockwell, Leeb and Shore. The material hardness tester PCE-2900 measures the hardness according to the Leeb rebound principle. An impactor bounces on the workpiece via a firing pin and the metal hardness is measured via the rebound. The PCE-2900 material hardness meter is equipped with a backlit colour display.

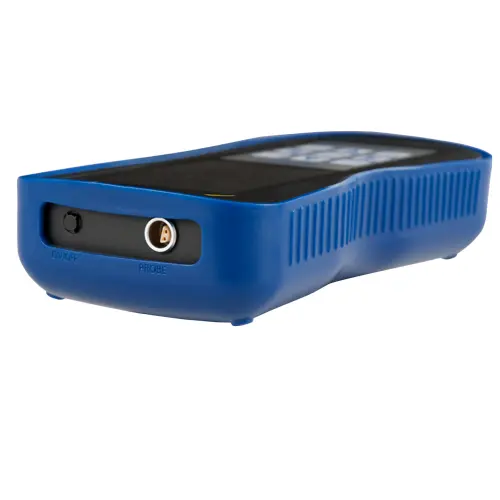

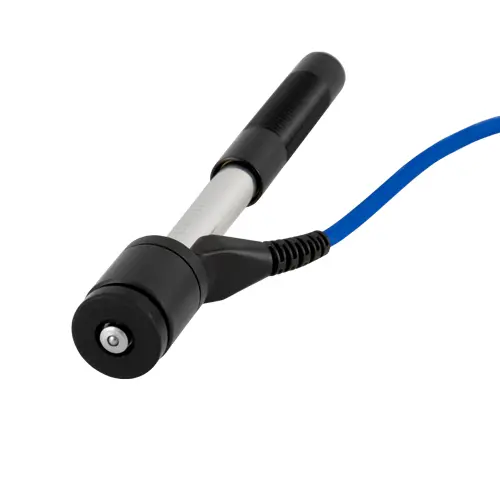

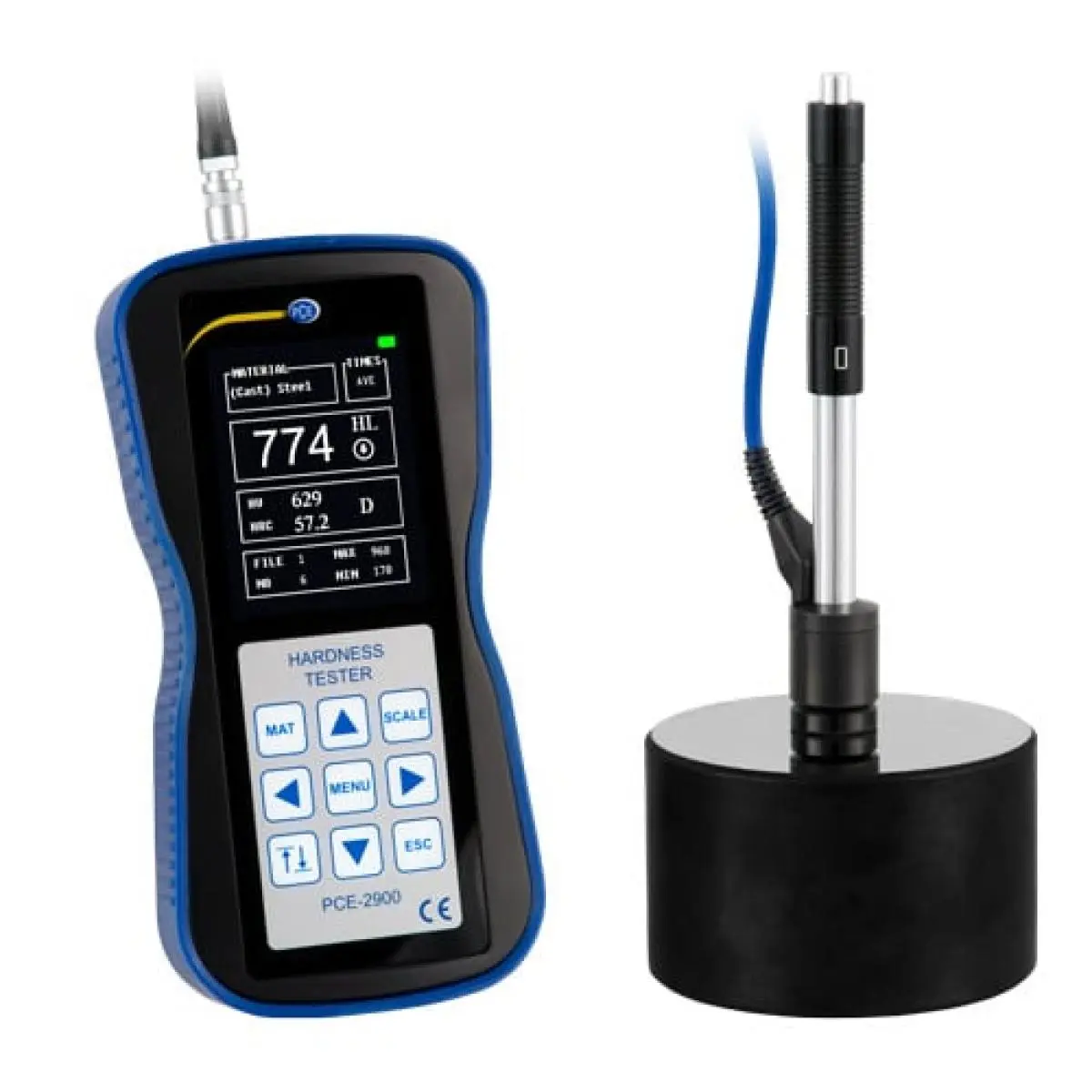

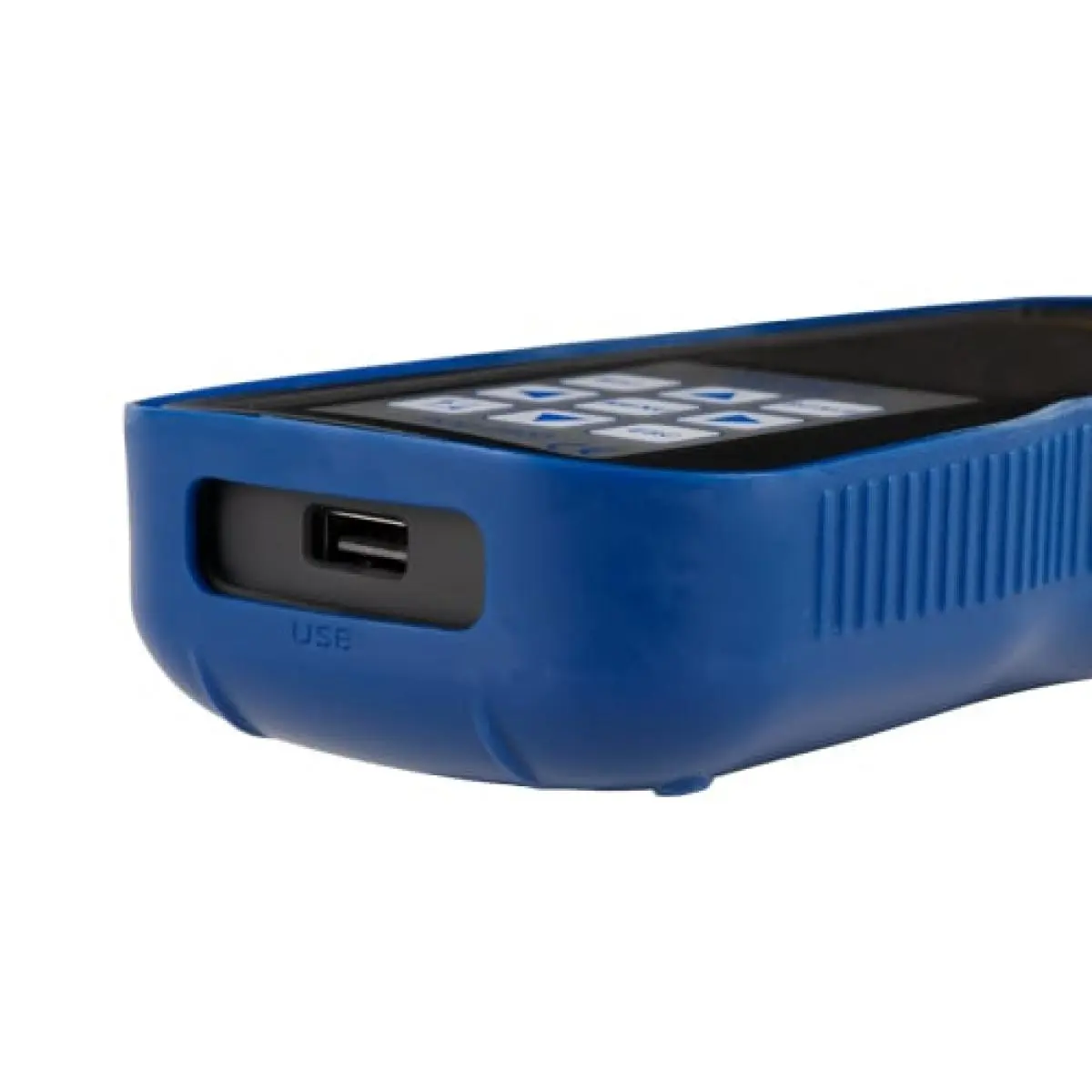

Likewise, the buttons on the PCE-2900 are illuminated. Thus, the display can be read well even in low light conditions. The impact device is connected to the hardness tester via a cable. The material hardness tester PCE-2900 has an internal memory of 6 x 100 measurement sets. The memory thus allows a documentation of the measured values. Via the integrated USB and WiFi interface, the measured values can be transferred from the material hardness tester via software to a PC. The material hardness tester is powered by commercially available 1.5V AA batteries and has a battery life of about 50 hours.
| Hardness | |
| Measuring range | 170 ... 960 HLD |
| Resolution | 1 HLD |
| Accuracy | ± 0.5% |
| General technical data | |
| Measuring principle | Rebound method |
| Measuring direction | 360 ° |
| Display type | LC colour display |
| Display size | 2,8 Inch |
| Storage medium | Internal memory |
| Storage capacity | 600 Data records |
| Interface | USB, WiFi |
| Materials | Steel, Cast steel, Stainless steel, Spheroidal graphite cast iron, Grey cast iron, Brass, Bronze, Copper, Aluminium, alloy steel |
| Operating time | 50 h |
| Automatic power-off from...to | 1 ... 15 min. |
| Reproducibility | ±6 HLD |

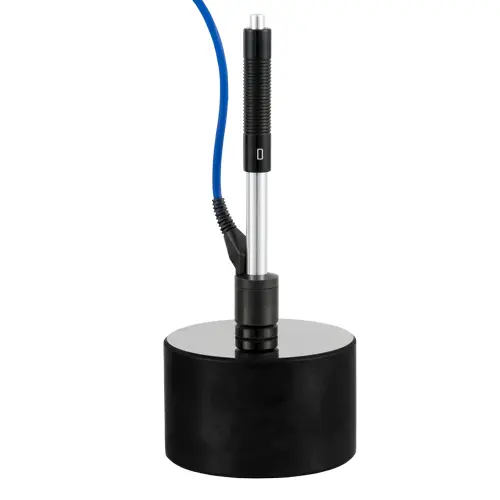

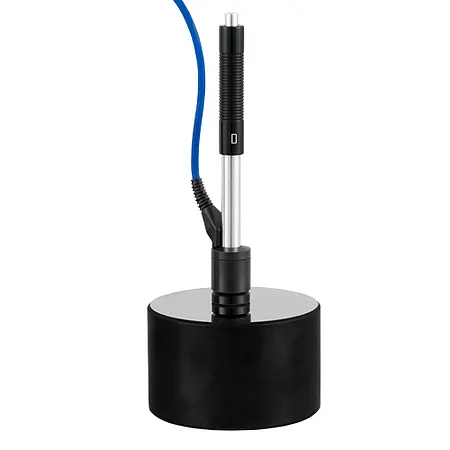

| Impact device | D-type |
| Hardness scales | HL, HB, HRA, HRB, HRC, HV, HS |
| Minimum mass of the sample | Direct measurement: 5 kg Connected measurement: 2 ... 5 kg With coupling gel: 0.05 ... 2 kg |
| Minimum thickness of the sample | Direct measurement: > 5mm With coupling gel: 0.8 ... 5 mm |
| Menu language | English, German, Chinese |
| Protection class (device) | IP20 |
| (Rechargeable) battery | 2 x 1,5 V AA battery , Alkali-manganese |
| Capacity | 2970 mAh |
| Operating conditions | 10 ... 50 °C , 0 ... 90 % RH |
| Storage conditions | -30 ... 60 °C , 0 ... 90 % RH |
| Dimensions ( L x W x H ) | 160 x 80 x 35 mm |
| Weight | 210 g |
