Order no.: PCE-2500N

Material Hardness Tester for Metals PCE-2500N

£ 585.00
£ 702.00
:
4250348716064
PCE-2500N
price ex. (VAT / delivery)
Delivery time: 1-2 working days

Description

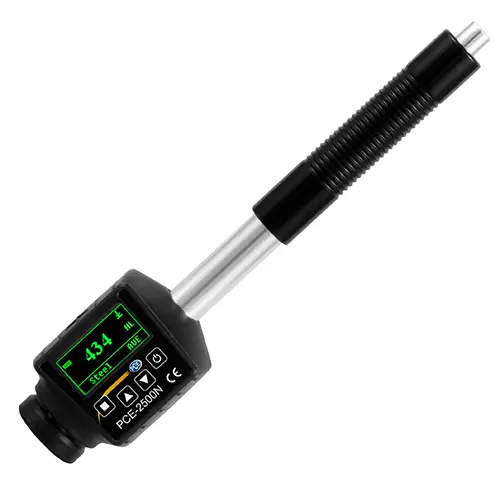

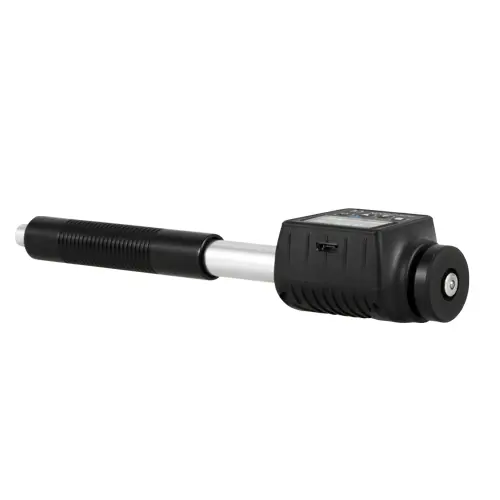

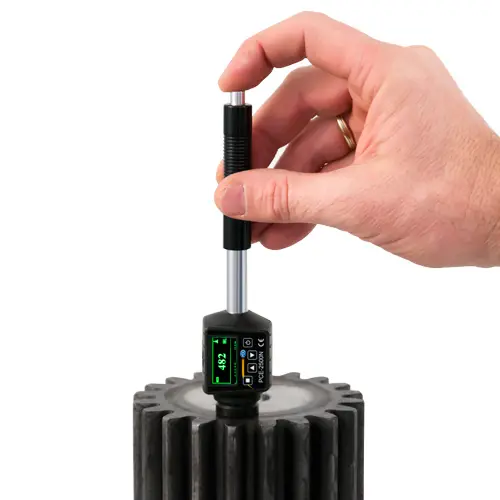

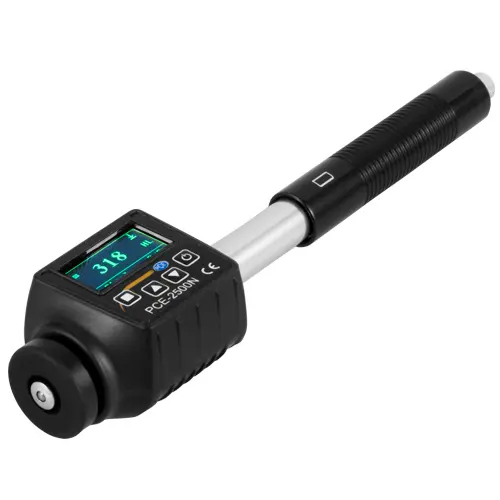

PCE-2500N Material Hardness Tester for Metals
Portable handheld pen-sized durometer for use with steel, iron, aluminum, brass, bronze, copper and more

PCE-2500N is a portable handheld pen-sized digital material hardness tester, rebound hammer or durometer for use with metals. This high-accuracy hardness tester quickly and accurately measures the surface hardness of 10 common metal materials including steel, cast steel, alloy tool steel, stainless steel, cast iron, ductile iron, cast aluminum alloy, brass, bronze and copper.


Highlights

- Displays measurements in Rockwell A, B or C (HRA, HRB or HRC), Brinell (HB), Vickers (HV), Shore (HS) or Leeb (HLD)
- Measurement ranges: 170 ... 960 HLD, 17.9 ... 69.5 HRC, 3.5 ... 101.7 HRB, HB 19 ... 683 HB,
   80 ... 1042 HV, 30.6 ... 102.6 HS, 59.1 ... 88 HRA
- Accuracy: ± 0.5 HLD
- Type D impact device
- Measuring principle: Rebound method
- For use with metal materials
- Pocket-sized design
- Rechargeable Li-ion battery
- Internal read-only memory

Specification

Measuring ranges HLD: 170 ... 960
HRC: 17.9 ... 69.5
HB: 19 ... 683
HV: 80 ... 1042
HS: 30.6 ... 102.6
HRA: 59.1 .. 88
HRB: 3.5 ... 101.7
Measurement accuracy        HLD: ± 0.5%
Measuring principle Rebound method
Impact device Type D striker

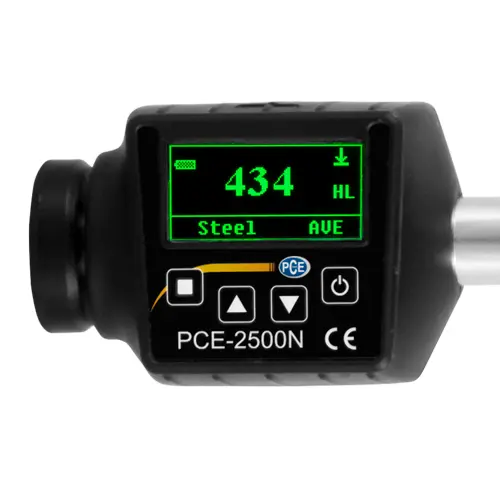

Display 128 x 64 OLED
Repeatability HLD: ± 0.8%
Hardness max. 1042 HV
Measurement units HLD, HRC, HB, HV, HS, HRA, HRB
Running time Approx. 10 hours of continuous use at full charge
Power supply Rechargeable Li-ion battery
Storage conditions -30 ... 60°C / -22 ... 140°F, <90% RH
Operating conditions -10 ... 50°C / 14 ... 122°F, <90% RH
Dimensions 148 x 32 x 25 mm / 5.83 x 1.26 x 0.99 in
Limit alarm Yes
Automatic shutdown    Yes
Weight 650 g / 1.44 lbs
Materials Steel
  Cast steel
  Alloyed tool steel
  Stainless steel
  Cast iron
  Ductile iron
  Cast aluminum alloy
  Brass
  Bronze
  Copper
Measuring ranges on various material surfaces
Steel  HRC: 17.9 ... 68.5
HRB: 59.6 ... 99.6
HRA: 59.1 ... 85.8
HB: 127 ... 651
HV: 83 ... 976
HS: 32 , 2 ... 99.5
Tool steel HRC: 17.9 ... 68.5
HRB: 59.6 ... 99.6
HRA: 59.1 ... 85.8
HB: 127 ... 651
HV: 83 ... 976
HS: 32 , 2 ... 99.5
Stainless steel HRB: 46.5 ... 101.7
HB: 85 ... 655
HV: 85 ... 802
Cast iron HB: 93 ... 334
Brass HRB: 13.5 ... 95.3
HB: 40 ... 173
Bronze HB: 60 ... 290
Copper HB: 45 ... 315

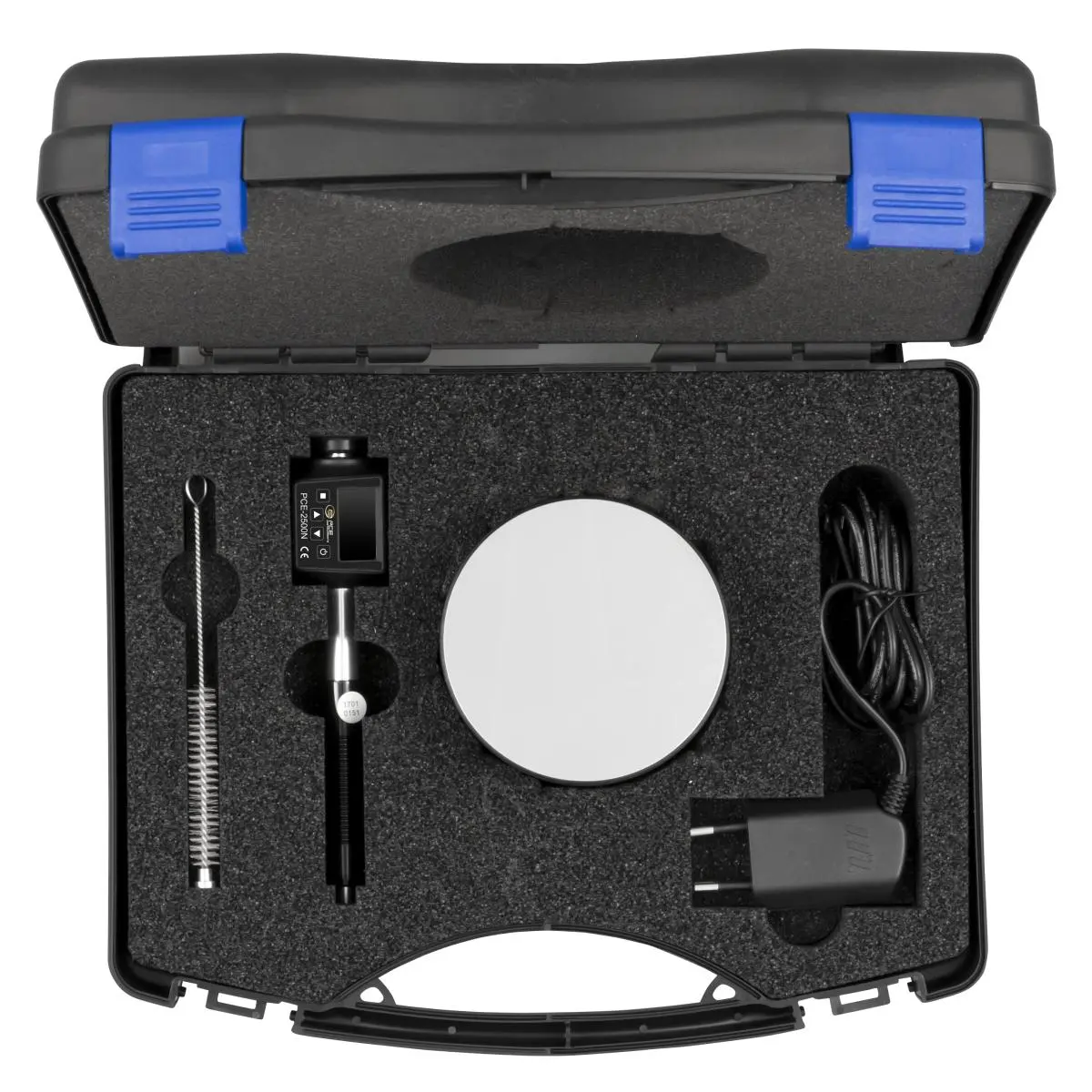

Delivery Scope

1 x PCE-2500N material hardness tester for metals
1 x Charging cable
1 x Test block
1 x Cleaning brush
1 x User manual
1 x Carrying case


Downloads

Accessories

Accessories

Hardness Tester
Adapter set for hardness measuring instruments with Impact D impactor
£ 296.00

Price excl. VAT &. delivery
2 year Warranty

Consisting of:

HZ12.5-17 Mounting adapter concave, 12.5 … 17 mm (inside)
HZ11-13 Mounting adapter concave, 11 … 13 mm (inside)
HZ16.5-30 Mounting adapter concave, 16.5 … 30 mm (inside)

Z10-15 Mounting adapter convex, 10 … 15 mm (outside)
Z14.5-30 Mounting adapter convex, 14.5 … 30 mm (outside)
Z25-50 Mounting adapter convex, 25 … 50 mm (outside)

HK11-13 Ball mounting adapter ball, 11 … 13 mm (inside)
HK12.5-17 Ball mounting adapter ball, 12.5 … 17 mm (inside)
HK16.5-30 Ball mounting adapter ball, 16.5 … 30 mm (inside)

K14.5-30 Mounting adapter ball, 14.5 … 30 mm (outside)
K10-15 Mounting adapter ball, 10 … 15 mm (outside)


UN Universal Holder
Test Instruments manufacturer
Calibration certificate CAL-HT-2
£ 238.00

Price excl. VAT &. delivery
2 year Warranty

Calibration certificate for our hardness testers. This is often required to comply with DIN ISO 9000.

ISO calibration certificate for hardness testers with rebound hardness test according to Leeb / 3 measuring points (about 490 HLD, 660 HLD, 780 HLD)


N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
Test Instruments manufacturer
