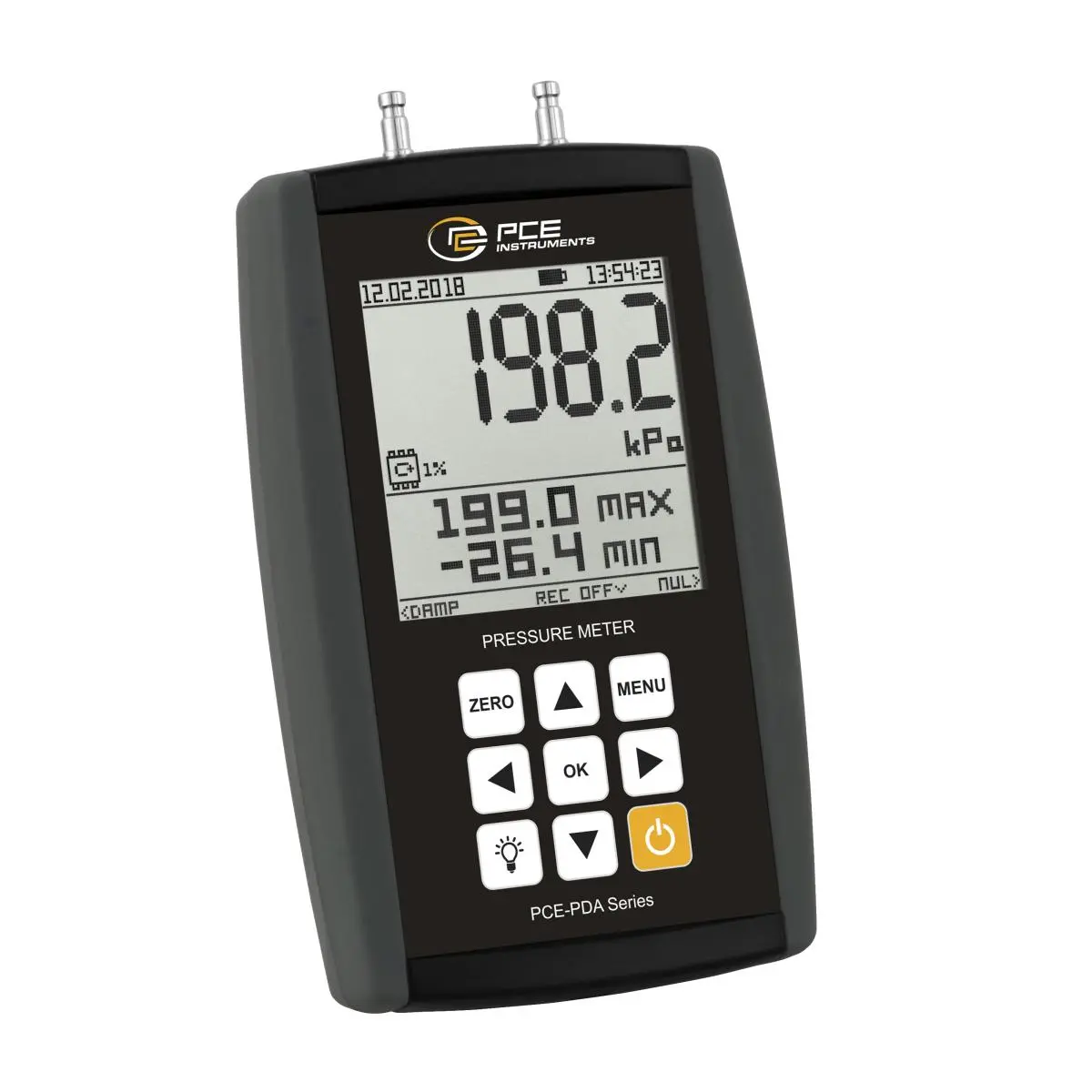

Manometer PCE-PDA 01L

Order no.: PCE-PDA 01L

£ 702.00
£ 842.40
price ex. (VAT / delivery)
0 to 200 Pa
Delivery time: 1-2 working days

PCE-PDA Series Manometer
Pressure gauge for relative and differential pressure / Pitot tube adaptable to differential pressure gauge / MAX MIN function / Data logger

The differential pressure gauges of the PCE-PDA series are reliable differential pressure gauges for pressure measurement of gases in the range of ± 200 Pa, ± 2kPa and 20 kPa depending on the model. The differential pressure gauge has many different pressure measuring functions. This gives the user more than 16 units. Furthermore, the differential pressure gauge measures in addition to the differential pressure, the temperature, flow velocity and volume flow. In addition, the maximum and minimum differential pressure can be displayed in the two-part graphic display. The resolution of the differential pressure can optionally be switched. The differential pressure gauge incorporates a high-precision mode that increases the resolution tenfold.

The PCE-PDA differential pressure gauge has a data logger function. This makes it possible to carry out a leak test on pressure lines in addition to the continuous storage of the measured values. In the data logger mode, it is possible to set the differential pressure gauge to a duration in which the data is stored at a previously selected interval. In the leakage measurement mode, the user must specify the measurement duration and the differential pressure level. After the measurement, the differential pressure gauge then displays the deviation from the set point. In addition to these two functions, the differential pressure gauge, with optionally available Pitot tubes, can determine the flow velocity or the volume flow in pipes.

- Graphic display with lighting
- Min and Max value memory
- Datalogger and leak test
- Quick coupling connection
- Temperature, flow and leakage measurement
- High precision measuring mode
- Simple operation (voice-controlled)
- Units switchable (Pa, kPa, hPa, ...)
Measuring range temperature

0 ... 50°C / 32 ... 122°F

Resolution 0.1°C / 0.18°F
Accuracy ± 1°C / 1.8°F
Measuring range pressure ± 200 Pa
Resolution 0.01 / 0.1 Pa
Accuracy ± 1% of final value
Nominal pressure 200 Pa
Overpressure 1 kPa
Burst pressure 20 kPa
Media air
Measuring rate 10 Hz
Measurement units Pa, hPa, kPa, MPa, mbar, bar, ATM, kg / cm², mmH2O, cmH2O, inH2O, mmHg, inHg, Torr, PSI, PSF
Pressure Differential
Pressure relative pressure (if neg. Pressure connection open)
Pressure connections 5 mm nipple for quick connectors
Max, Min and Hold function Yes
Data logger 1024 memory slots
1 s ... 255 h Recording time per memory location
1 s ... 24h recording interval
Medium For air and non-explosive gasses
Zero correction Yes, with a zero key
Averaging Yes, between 0.1 ... 9.9 s
Display Graphic LCD with backlight
Protection IP41
Power supply 2 x 1.5V AA battery / 1.2V NiMh battery
5V / 500-mA USB power adapter
Current consumption 50-mA (with backlight)
10-mA (without backlight)
Operating temperatur 0 ... 50°C / 32 ... 122°F
Storage temperature 10 ... 55°C / 50 ... 131°F
Dimensions 145 x 85 x 35 mm / 5.7 x 3.3 x 1.4 in
Weight About 285 g / < 1 lb

1 x Manometer PCE-PDA 01L
2 x 1.2V AA NiMh batteries
1 x USB power supply
1 x Micro USB cable
1 x User manual
