Order no.: PCE-CT 22BT

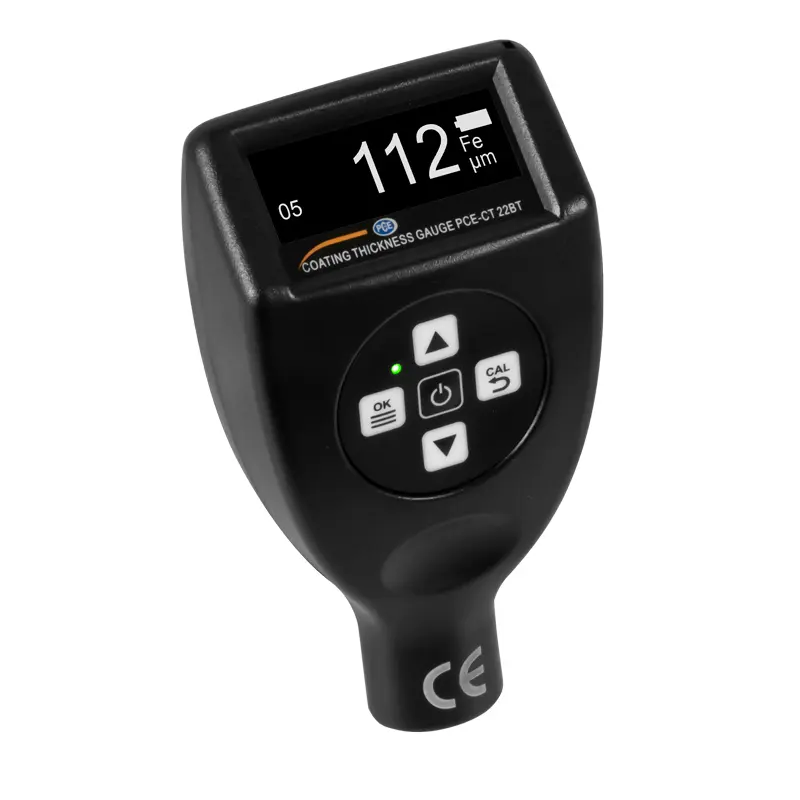

IoT Sensor PCE-CT 22BT

Wireless
£ 324.00
£ 388.80
:
4250348722201
PCE-CT 22BT
price ex. (VAT / delivery)
Delivery time: 1-2 working days

Description

IoT Sensor PCE-CT 22BT with 5-point calibration / various interfaces /
for measurement on ferrous and non-ferrous metals / app connection /
 internal probe / data storage

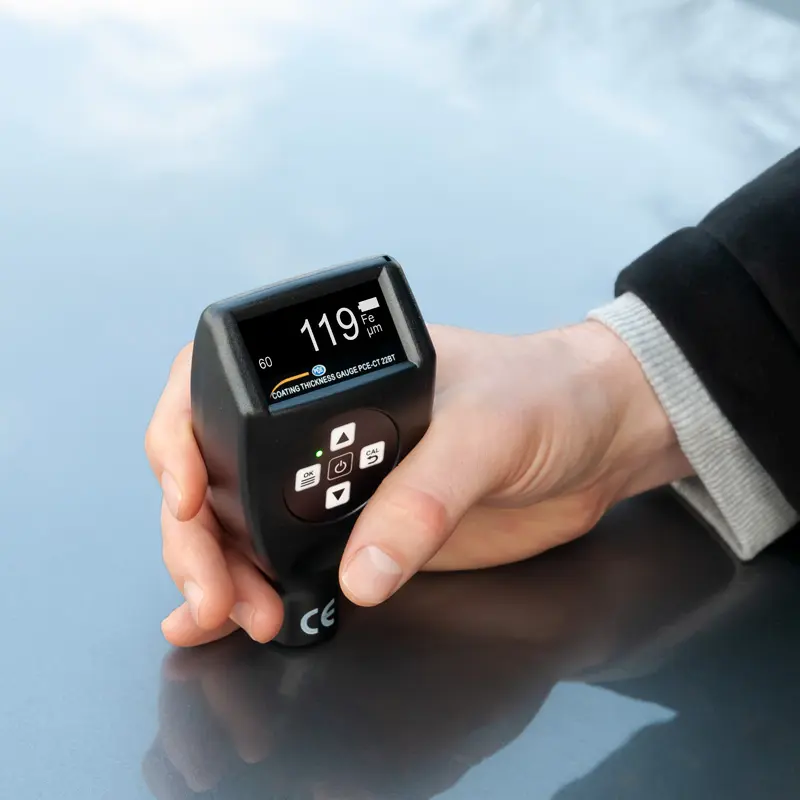

With this IoT sensor, layer thicknesses on metallic surfaces can be reliably determined. The IoT sensor has a measuring range of 1500 µm. This means that the IoT sensor is used, for example, in a paint shop, for incoming goods inspection or for an expert. With the Bluetooth interface on the IoT sensor, all data can be transferred to a mobile iOS or Android device and exported as a CSV, PDF or TXT file. A live view with analysis of the measured values ​​is also possible via the free app with the IoT sensor.

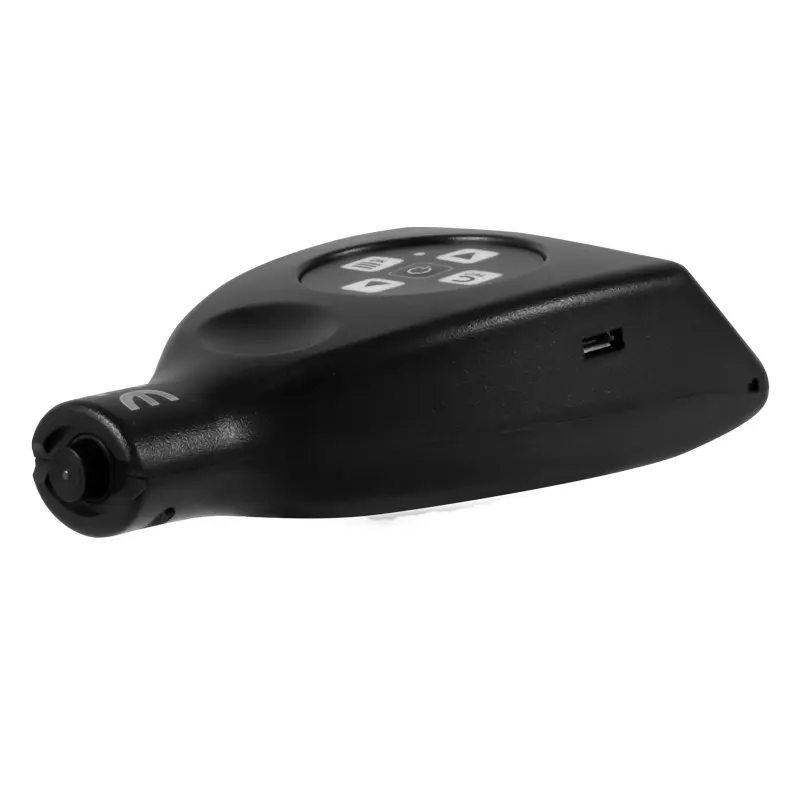

In addition to the Bluetooth interface, the IoT sensor has a micro USB interface. All data can also be transferred to the PC and analyzed via this interface in the IoT sensor. Another special feature of this interface is that the IoT sensor can also be operated without batteries via this interface. As a result, many measurement processes are no longer dependent on the battery charge level.

Highlights

- Micro USB and Bluetooth interface
- Calibration foils included
- Adjustable alarm gene values

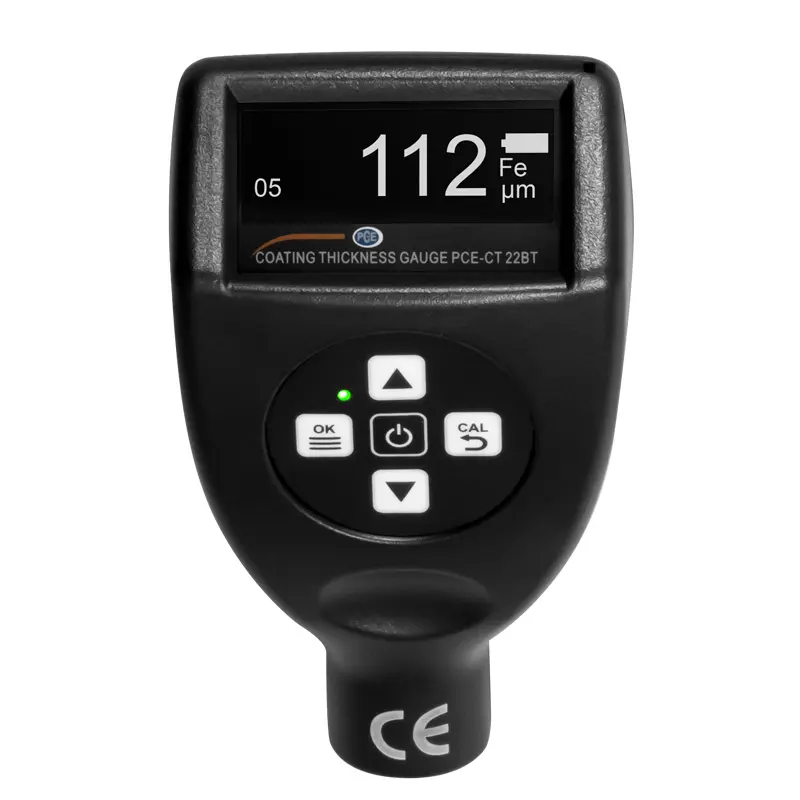

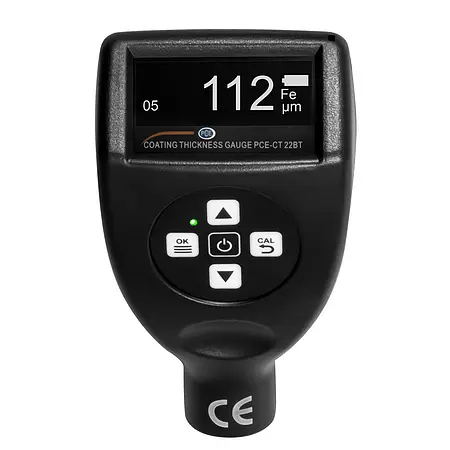

- Backlit display
- Data storage for up to 600 measured values
- Measuring range up to 1500 µm

Specification

Measurable substratesFe, NFe
probeinternal

measuring range0… 1500 µm
resolution0.1 µm (in the measuring range 0… 99.9 µm)
 1 µm (in the measuring range 100… 1500 µm)
accuracy± (1 µm + 2% of the layer thickness)
unitsµm, mil
Smallest curvatureconvex 5 mm, concave 5 mm
Smallest measuring area10 x 10 mm
Minimum thickness of the substrate   0.4 mm
interfaceBluetooth, micro USB
memory10 groups with 60 measurements each
power supply2 x 1.5 V AA batteries, 5 V USB interface
Environmental conditions-10… 50 ° C, 10… 85% RH
Dimensions126 x 69 x 35 mm (without sensor)
Weightapprox. 97 g (without batteries)

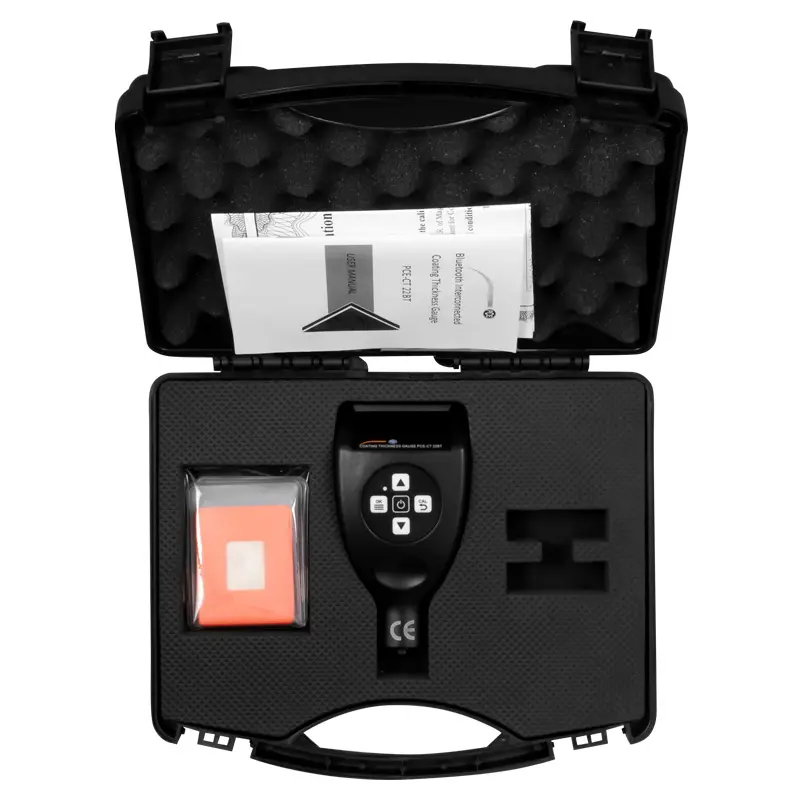

Delivery Scope

1 x IoT Sensor PCE-CT 22BT
5 x calibration foil reference
1 x Fe zero standard
1 x NFe zero standard
1 x transport loop
2 x 1.5 V AA batteries
1 x carrying case
1 x instruction manual
