PCE-VE 350HR Inspection Camera

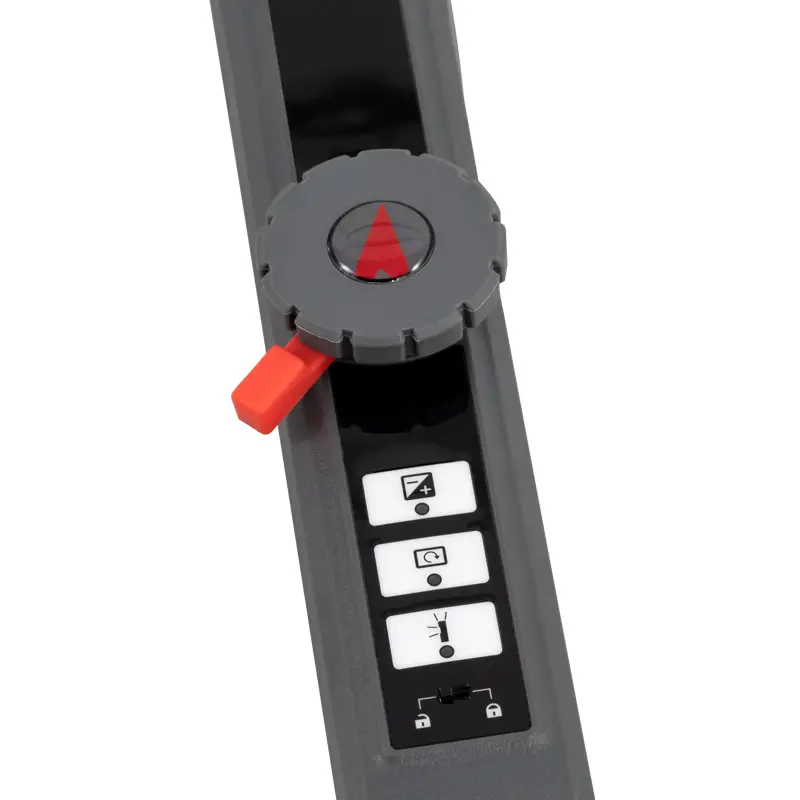

Two-way articulating industrial endoscope, borescope or videoscope with IP67 ingress protection rating, boost functionality and 6 LED lights (4 front, 2 side) for optimal illumination

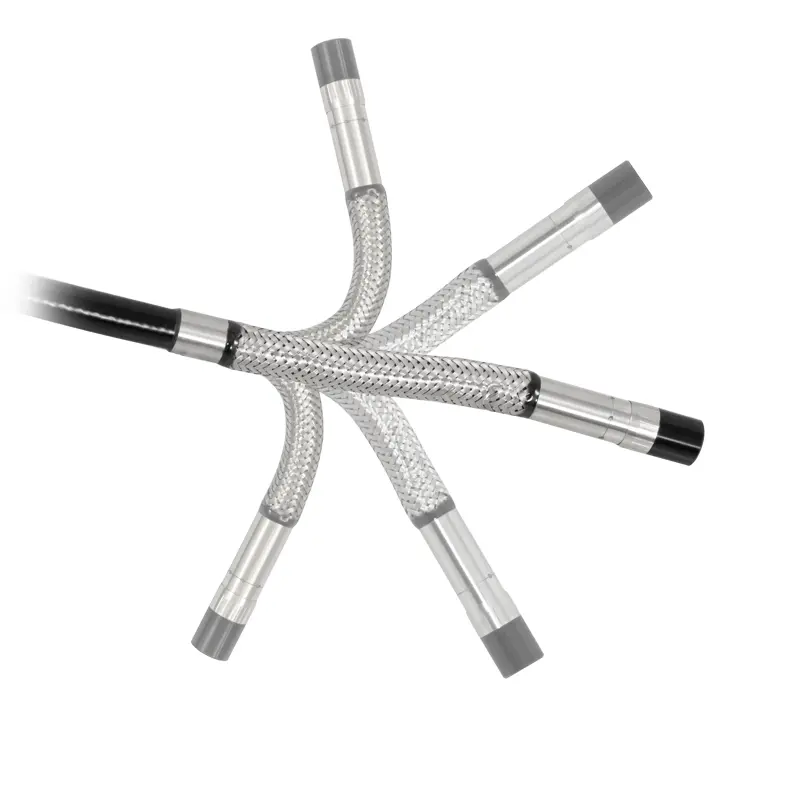

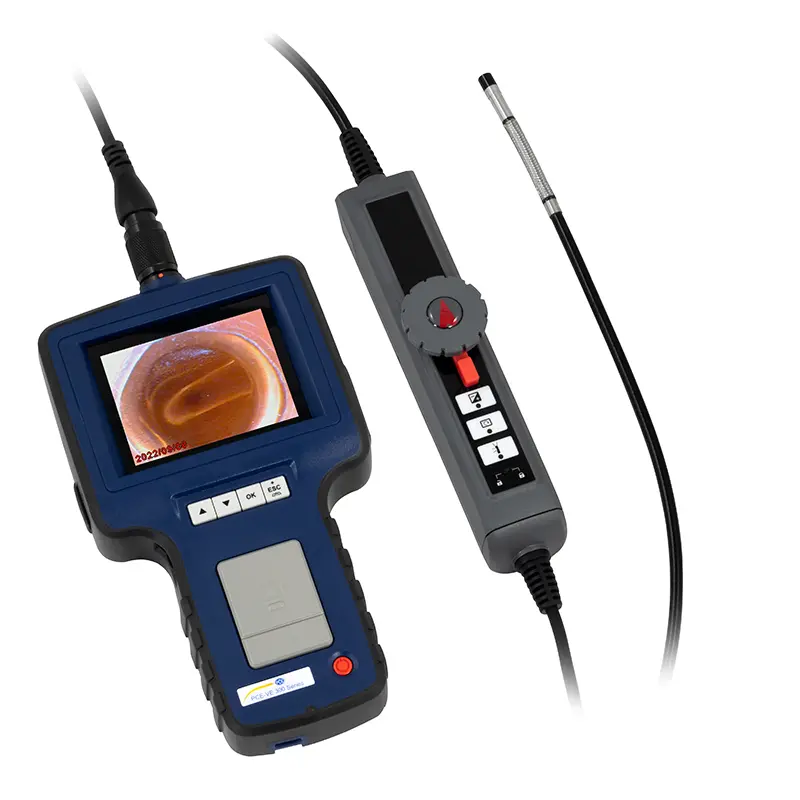

PCE-VE 350HR is a two-way articulating inspection camera, industrial endoscope, borescope or videoscope for the non-destructive inspection (NDI) of machines, equipment and more. This inspection camera is an ideal tool for diagnosing issues in hard-to-reach places. The waterproof camera head features 6 LED lights (4 front, 2 side) for optimal illumination. In addition, digital image magnification or zoom of up to 2 times is available, plus boost functionality for improved image quality in the dark.

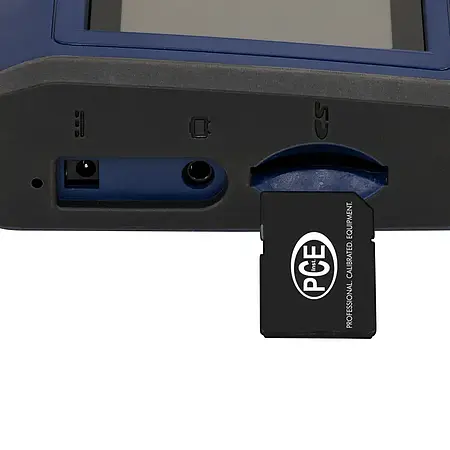

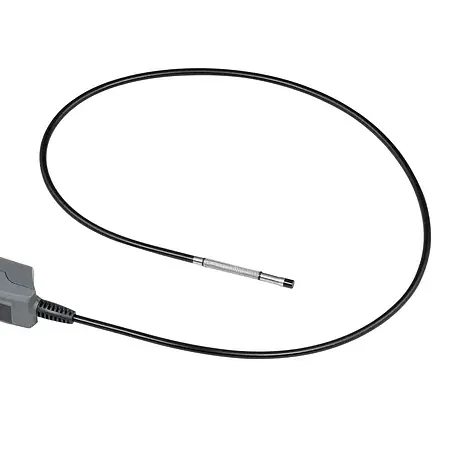

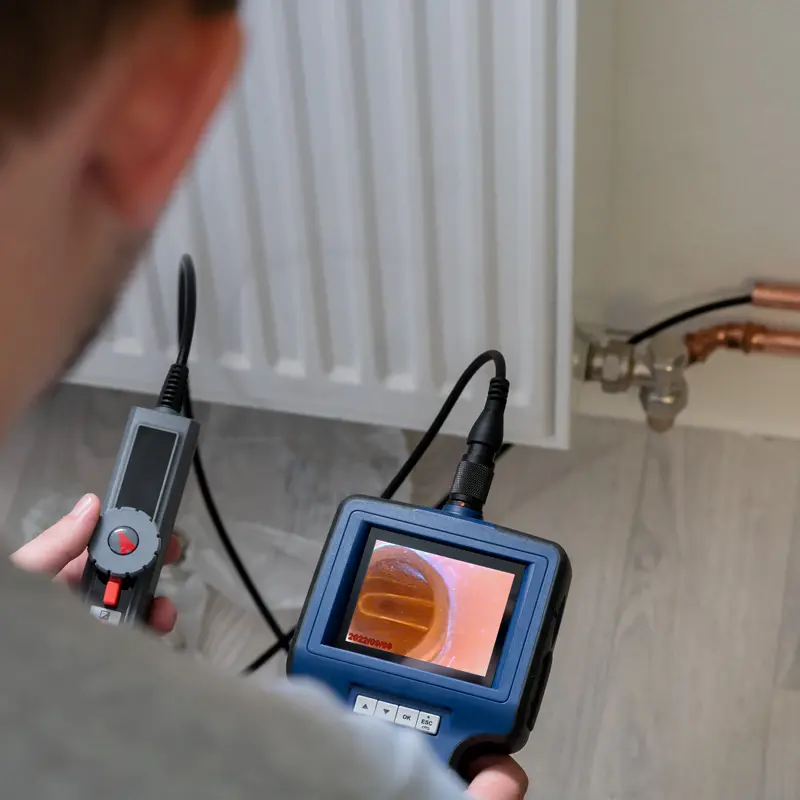

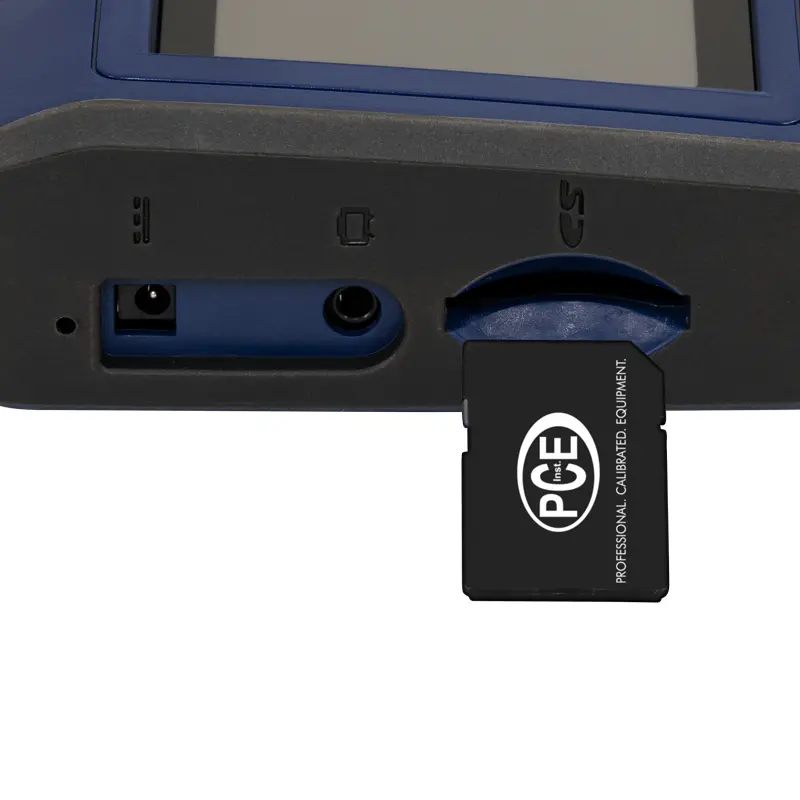

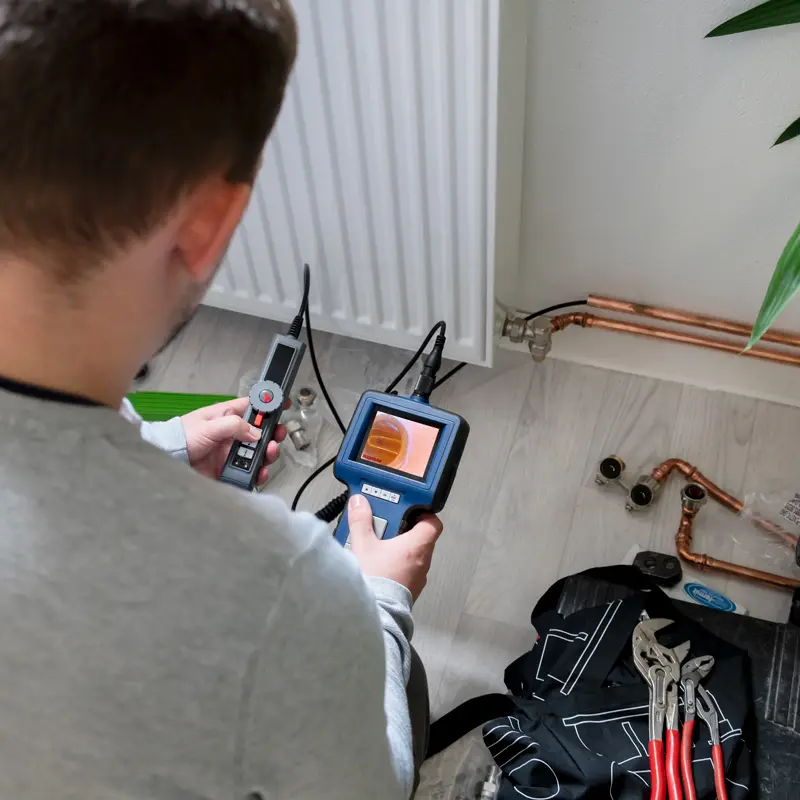

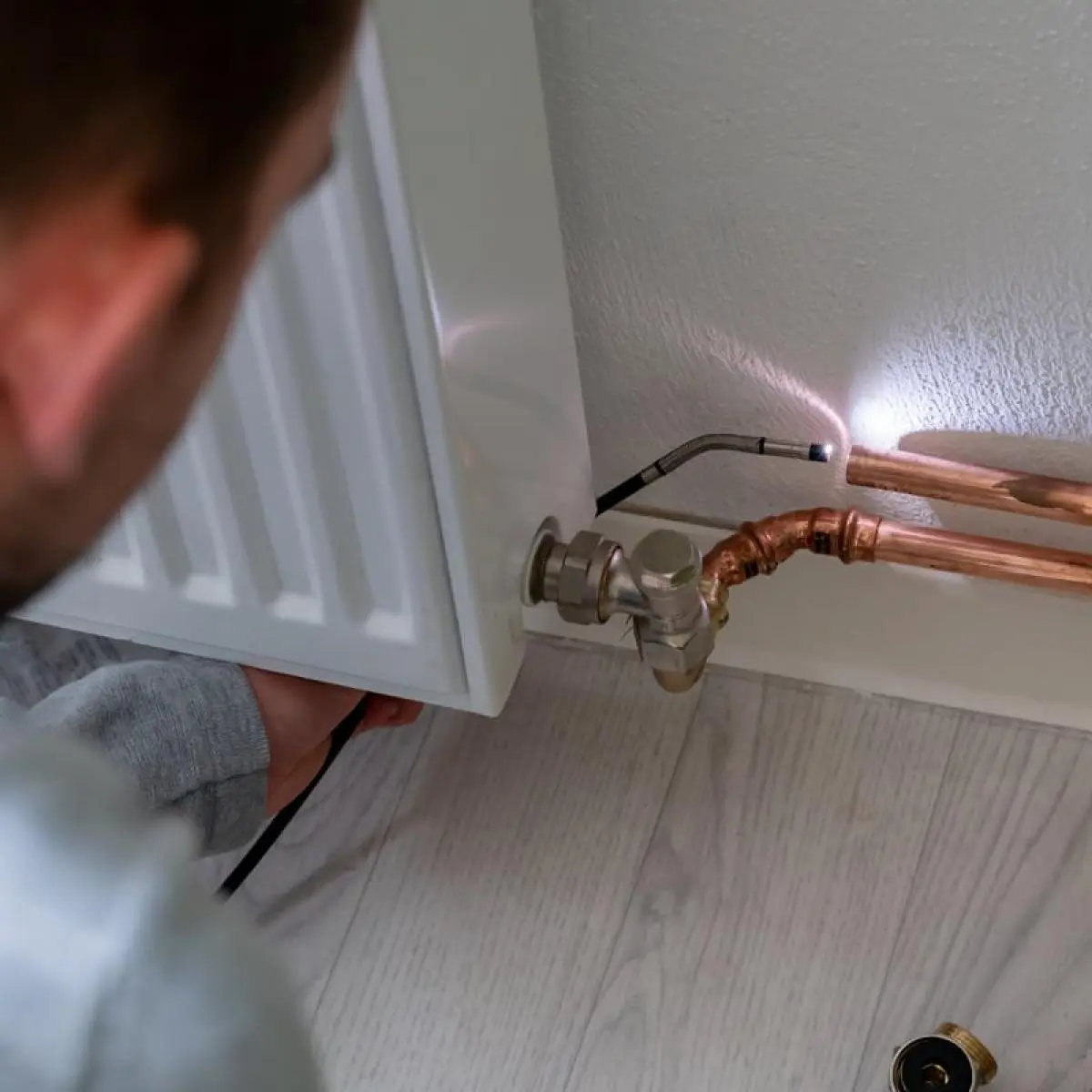

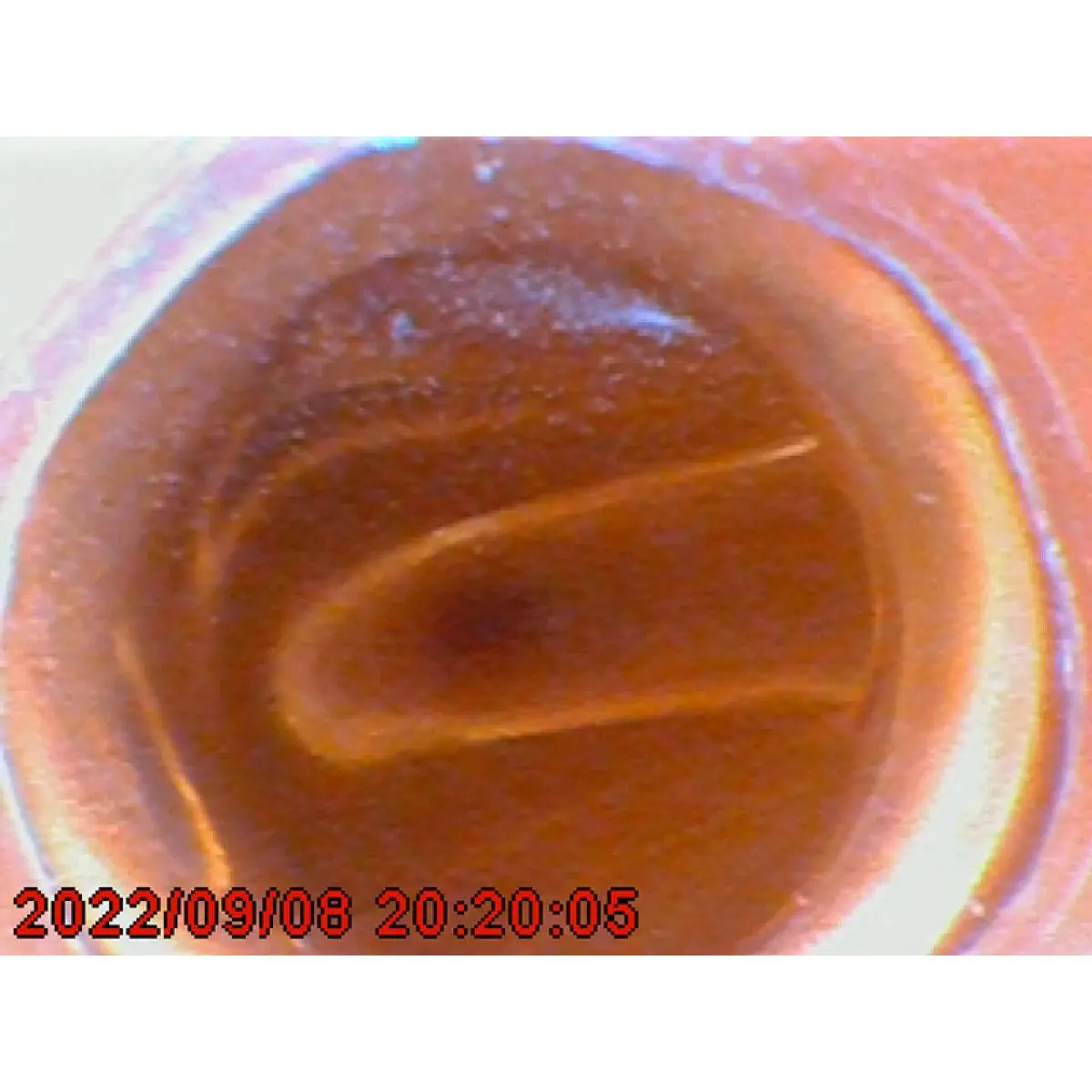

The inspection camera stores the recorded images and videos directly to an SD card memory (included), allowing easy transfer to a PC. The 1 m / 3.28 ft cable length and 6.0 mm / 0.24 in diameter allow the inspection camera unique access to view the insides of walls, pipes, vents, ducts, engines and machinery, thus eliminating the need for costly and time-consuming dismantling. Mechanical engineering, manufacturing, automotive, aviation, construction, plumbing and heating, ventilation, air conditioning and refrigeration (HVACR) professionals alike find this inspection camera useful in a variety of applications.
***Not for medical use***
Cable diameter |
6.0 mm / 0.24 in |
Cable length |
1 m / 3.28 ft |
Depth of field |
1.5 … 10 cm / 0.59 ... 3.94 in |
Field of view |
67° |
Bending radius | 90 mm / 3.54 in |
Illumination | 6 LEDs (4 front, 2 side), automatic |
Boost function | For improved image quality in the dark |
Image sensor | CMOS |
Picture rate | 30 frames per second (fps) |

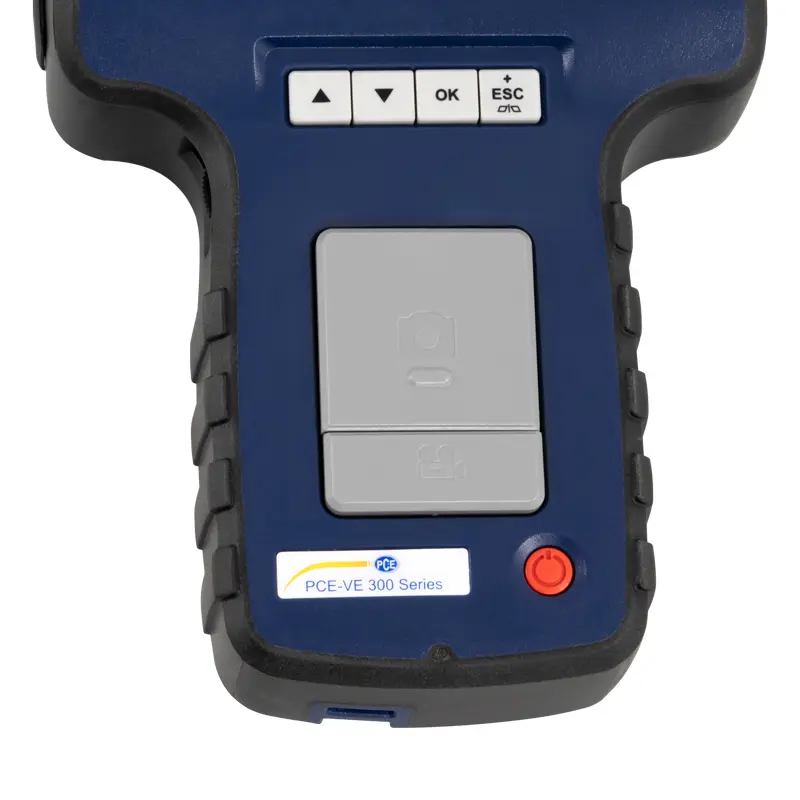

Display |
88.9 mm / 3.5 in TFT LCD monitor |

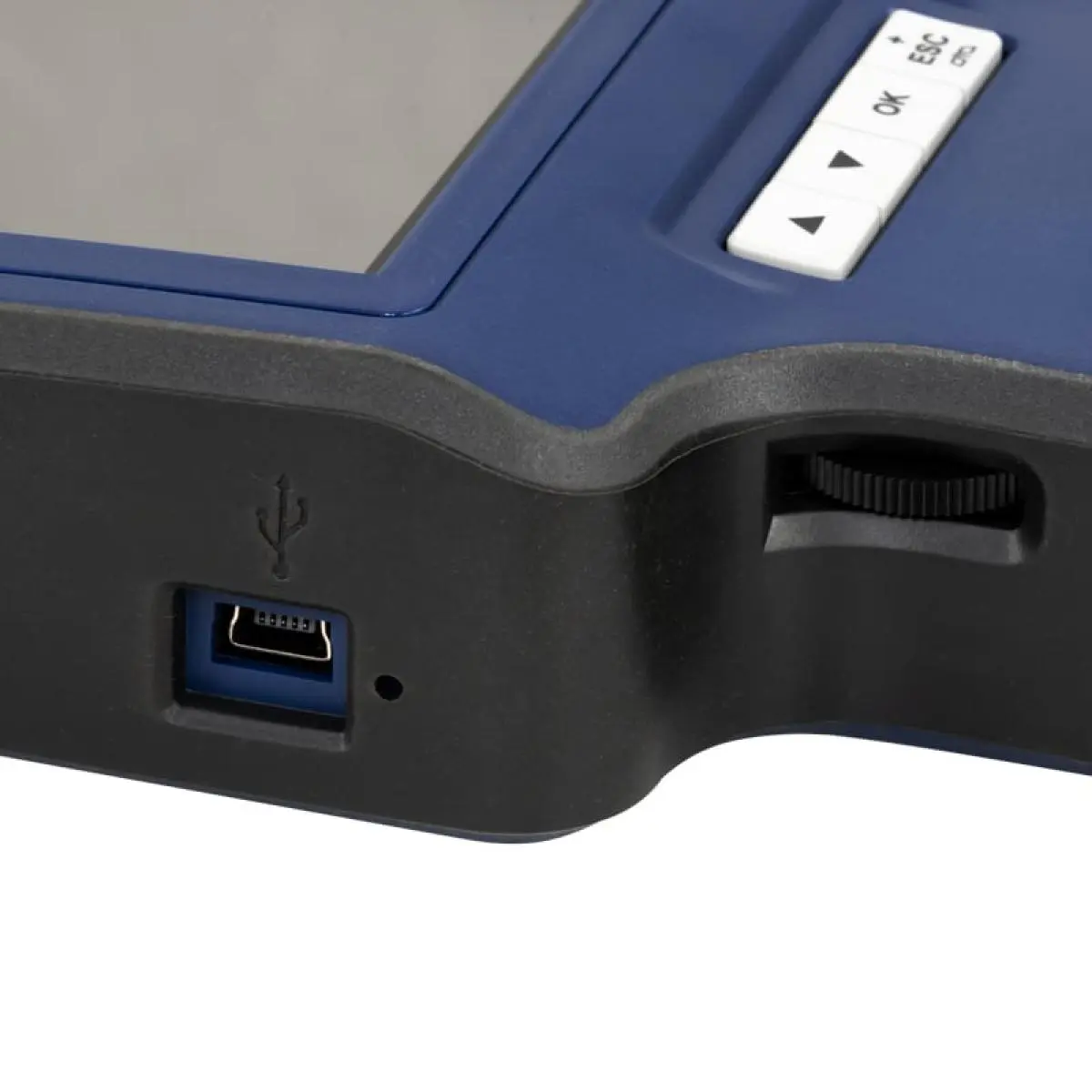

Interface | Mini USB 1.1 / AV out |
Storage options | Image or video |
Storage | 8 GB memory card (can be increased to 32 GB) |
Compression format | MPEG 4 |
Picture format | JPEG (640 x 480 pixel resolution) |
Video output format | NTSC / PAL |
Video format | ASF (320 x 240) |
Operation and storage temperature | -10 ... 50°C / 14 ... 122°F |
Voltage supply | Rechargeable 3.7V lithium-ion battery |
Dimensions, handheld device | 207 x 118 x 37 mm / 8.15 x 4.65 x 1.46 in |
Weight, incl. carrying case | 450 g / 1 lb |
Protection type, camera | IP 67 = Dust tight, no ingress of dust, complete protection against contact. Protected against liquid immersion up to 1 m / 3.28 ft, ingress of water in harmful quantity shall not be possible when the enclosure is immersed in water under defined conditions of press and time (up to 1 m / 3.28 ft of submersion). |
|
|

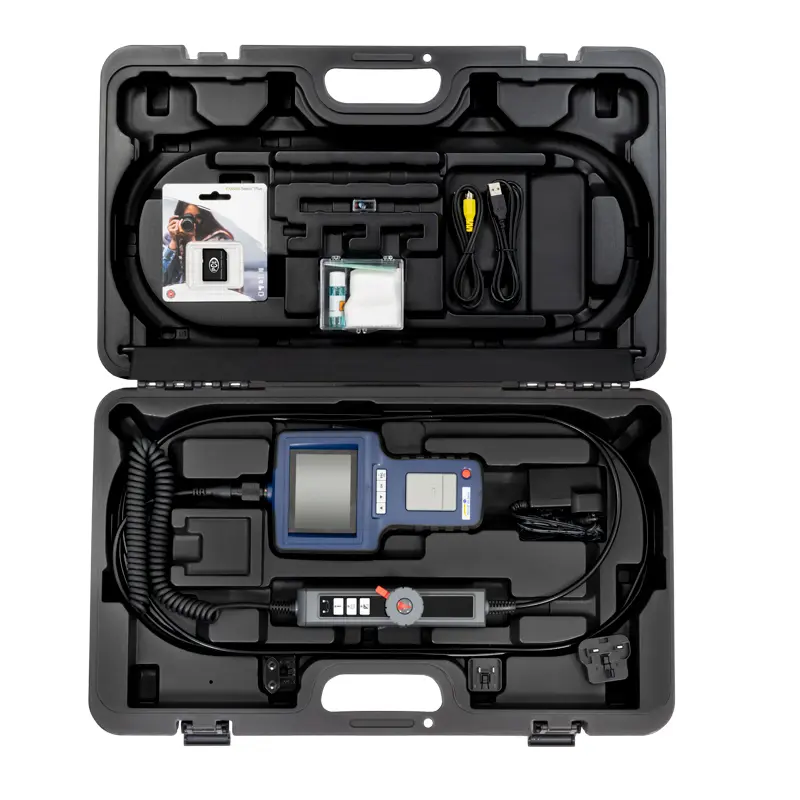

1 x Inspection Camera PCE-VE 350HR
1 x 8GB SD memory card
1 x USB cable
1 x Mains power adapter
1 x Carrying case
1 x
User manual
Please note: Not to be used for medical applications!
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
***Attention: NOT compatible with the VE 200 Series!***
Price excl. VAT &. delivery
2 year Warranty
***Attention: NOT compatible with the VE 200 Series!***
Price excl. VAT &. delivery
2 year Warranty
***Attention: NOT compatible with the VE 200 Series!***
Price excl. VAT &. delivery
2 year Warranty
***Attention: NOT compatible with the VE 200 Series!***
Price excl. VAT &. delivery
2 year Warranty
***Attention: NOT compatible with the VE 200 Series!***
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
***Attention: NOT compatible with the VE 200 Series!***
Price excl. VAT &. delivery
2 year Warranty
***Attention: NOT compatible with the VE 200 Series!***
Price excl. VAT &. delivery
2 year Warranty
***Attention: NOT compatible with the VE 200 Series!***
Price excl. VAT &. delivery
2 year Warranty
***Attention: NOT compatible with the VE 200 Series!***
Price excl. VAT &. delivery
2 year Warranty
PCE-VE-N-SCS includes two semi-flexible camera cables for PCE VE Series industrial endoscopes, borescopes, videoscopes and inspection cameras.
- 3.9 mm diameter
- 1 meter long
- 320 x 240 pixel resolution
- 1 cable with front view camera
- 1 cable with side view camera
***Attention: NOT compatible with the VE 200 Series!***
Price excl. VAT &. delivery
2 year Warranty
***Attention: NOT compatible with the VE 200 Series!***
Price excl. VAT &. delivery
2 year Warranty
***Attention: NOT compatible with the VE 200 Series!***
Price excl. VAT &. delivery
2 year Warranty
***Attention: NOT compatible with the VE 200 Series!***
Price excl. VAT &. delivery
2 year Warranty
PCE-VE-N-SC10 is a flexible camera cable for PCE VE Series industrial endoscopes, borescopes, videoscopes and inspection cameras.
- 5.5 mm diameter
- 10 meters long
- 320 x 240 pixel resolution
- Integrated LED light
