Order no.: PCE-VE 200-S3

Inspection Camera PCE-VE 200-S3

£ 552.00
£ 662.40
PCE-VE 200-S3
price ex. (VAT / delivery)
1600 x 1200 pixels
Video borescope
Image, Video
Yes (Micro SD)
Yes (Micro USB, TV out)
Delivery time: 1-2 working days

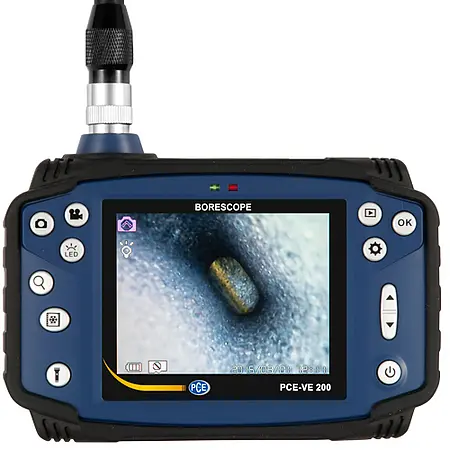

PCE-VE 200-S3 Inspection Camera
Extra small diameter (ø 3.7 mm) industrial endoscopic video inspection camera with 3 m / 9.8 ft longer length cable provides excellent image quality at an affordable price


PCE-VE 200-S is an industrial inspection camera, endoscope or borescope for the non-destructive evaluation (NDE) of engines, machines and more. This industrial borescope provides excellent image quality at an affordable price. An ideal tool for diagnosing issues in hard-to-reach places, the waterproof camera head features 6 LED lights with adjustable intensity for optimal illumination. In addition, digital image magnification or zoom of up to 4 times is available.

The borescope stores the recorded images and videos directly to a micro SD card memory. The 3 m / 9.8 ft cable length and 3.7 mm / 0.14 in diameter allow the video inspection camera unique access to view the insides of walls, pipes, vents, ducts, engines and machinery, thus eliminating the need for costly and time-consuming dismantling. Mechanical engineering, manufacturing, automotive, aviation, construction, plumbing and heating, ventilation, air conditioning and refrigeration (HVACR) professionals alike find this video inspection camera useful in a variety of applications.

***Not for medical use***


- Waterproof camera head (IP67 protection class)
- 3.7 mm / 0.14 in diameter
- 3 m / 9.8 ft cable length
- 180° screen rotation
- 3.5" LCD display
- CMOS chip image sensor
- 1600 x 1200 pixels JPEG image / 640 x 480 pixels AVI video resolution
- Micro SD card memory
- Micro USB 2.0 and TV outputs

Customer review
"I received my PCE-VE 200-S3 borescope this past Thursday. To say I was quite pleased with it would be an understatement. I was unsure how good the resolution would be, but I needn’t have worried: it was great! It was easy to use without even reading the instructions. It is one of the best values I have seen. I have already used it to find a small part that had fallen (twice) into the nether regions of my car while I was working on it. ... I will look to PCE in the future to fulfill similar needs."
- Tom Treue, McAlester, Oklahoma, USA



LCD, 3.5"


1600 x 1200 pixels JPEG image / 640 x 480 pixels AVI video

Screen rotation


Freeze functionality



Up to 4 times digital image magnification

Menu languages

English, Spanish, French, German, Russian, Japanese, Simplified Chinese, Traditional Chinese

Cable diameter

3.7 mm / 0.14 in cable diameter

Cable length

3 m / 9.8 ft

Cable rigidity

Semi-flexible (semi-rigid spiral)

Image sensor

CMOS chip


6 white LEDs (adjustable intensity)

Field of view / angle / perspective


Sight depth

15 ... 100 mm / 0.59 ... 3.94 in

Storage medium

Micro SD card

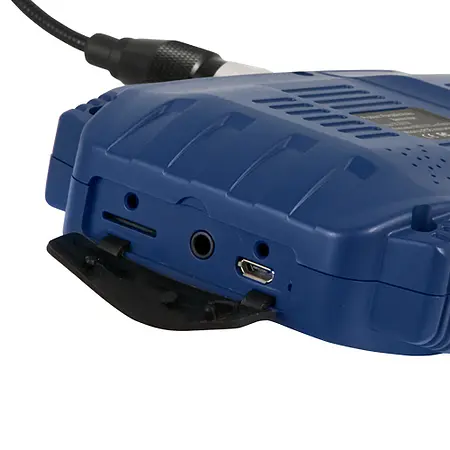

Micro USB 2.0, TV output (PAL), Micro SD card slot

Power supply

Rechargeable 18650 Li-ion battery

Battery capacity

2600 mAh

Battery life

Up to 5 hours from full charge

Operating conditions

Main unit and probe, in air:
-10 ... 50°C / 14 ... 122°F, rel. humidity 15 ... 90%
Probe, in water:
5 ... 50°C / 41... 122°F

Fluid resistance

Main unit and probe:
Machine oil, light oil or 5% saline

Protection against

Main unit:
Blowing rain (battery compartment must be closed), not underwater
Water, oil and dust, according to protection class IP67

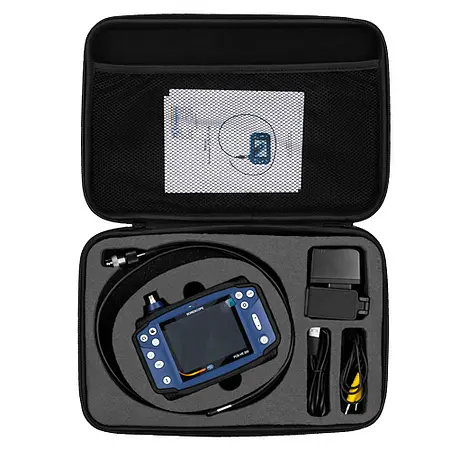

Delivery Scope

1 x PCE-VE 200-S3 Inspection Camera
1 x Wall charger with detachable USB to Micro USB cable
1 x Video output cable
1 x User manual
