Order no.: PCE-VE 200-S

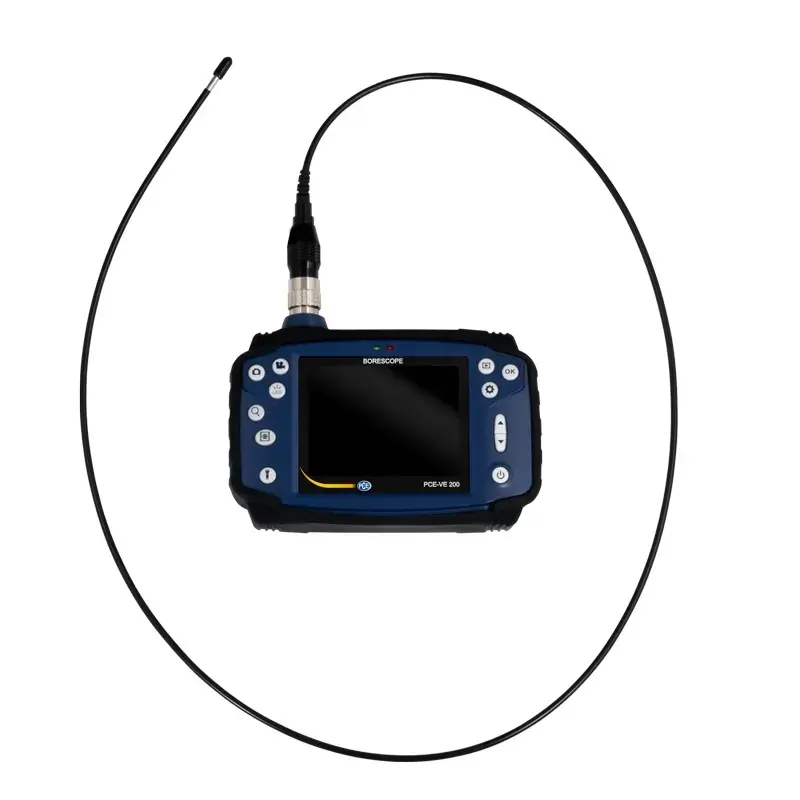

Inspection Camera PCE-VE 200-S

£ 481.00
£ 577.20
:
4250348715937
PCE-VE 200-S
price ex. (VAT / delivery)
1600 x 1200 pixels
Video borescope
Image, Video
Yes (Micro SD)
Yes (Micro USB, TV out)
Delivery time: 1-2 working days

Description

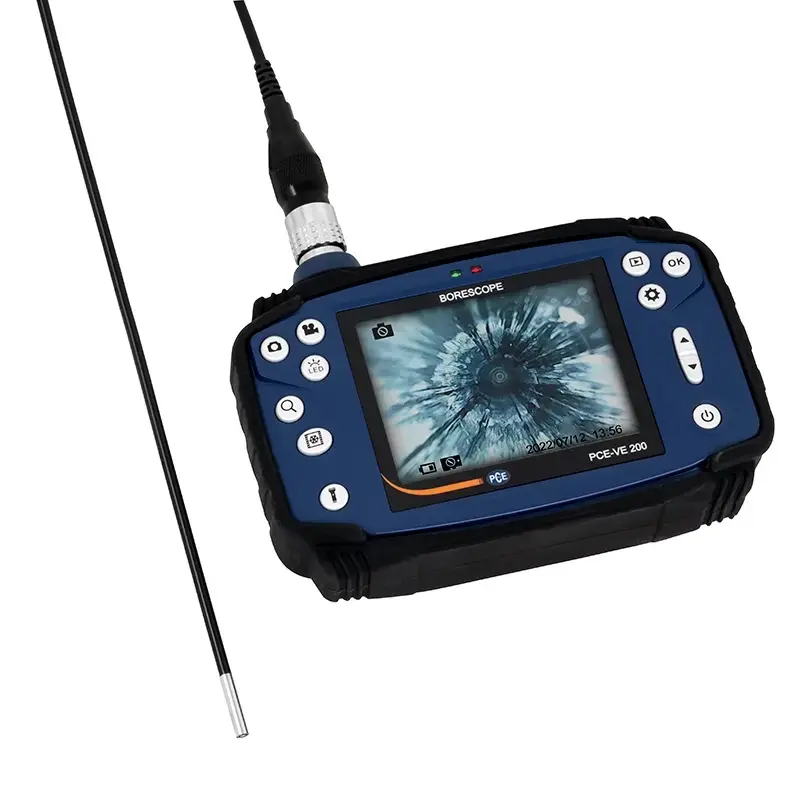

PCE-VE 200-S is an industrial inspection camera, endoscope or borescope for the non-destructive evaluation (NDE) of engines, machines and more. This industrial borescope provides excellent image quality at an affordable price. An ideal tool for diagnosing issues in hard-to-reach places, the waterproof camera head features 6 LED lights with adjustable intensity for optimal illumination. In addition, digital image magnification or zoom of up to 4 times is available.

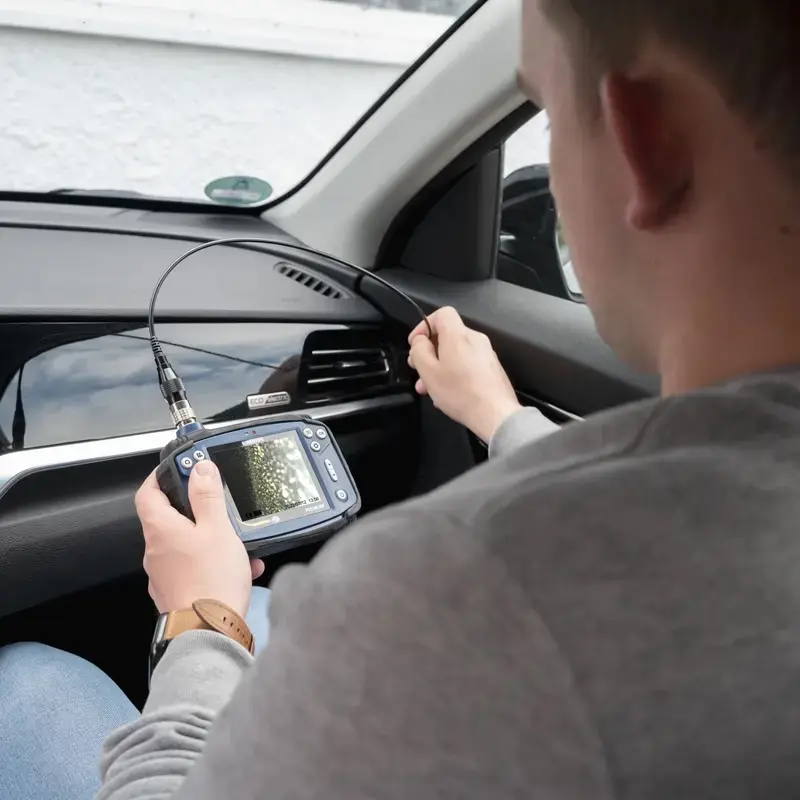

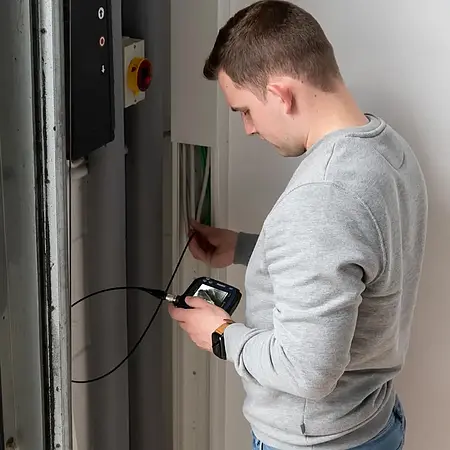

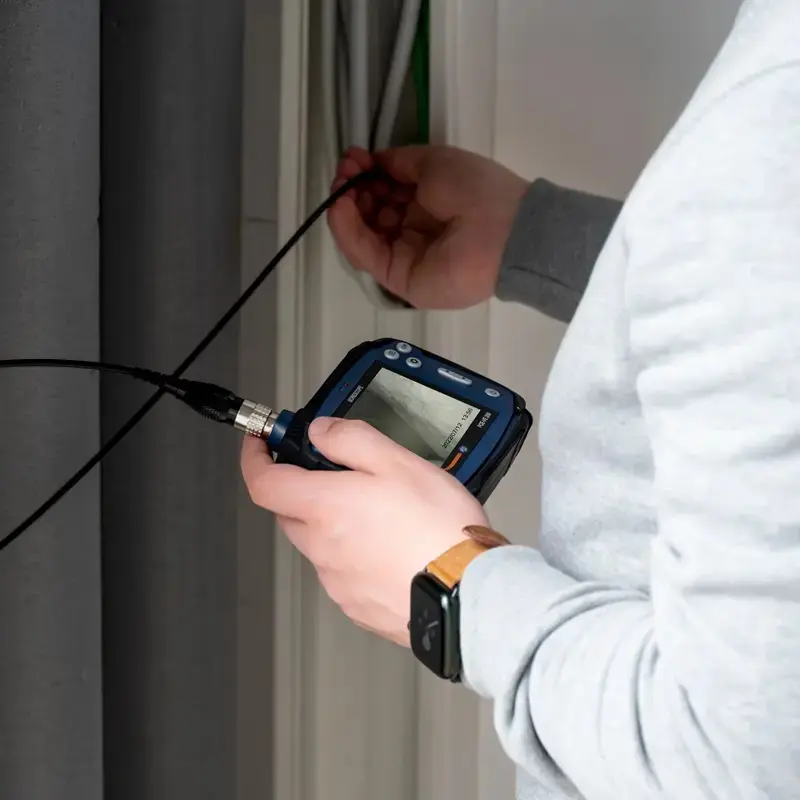

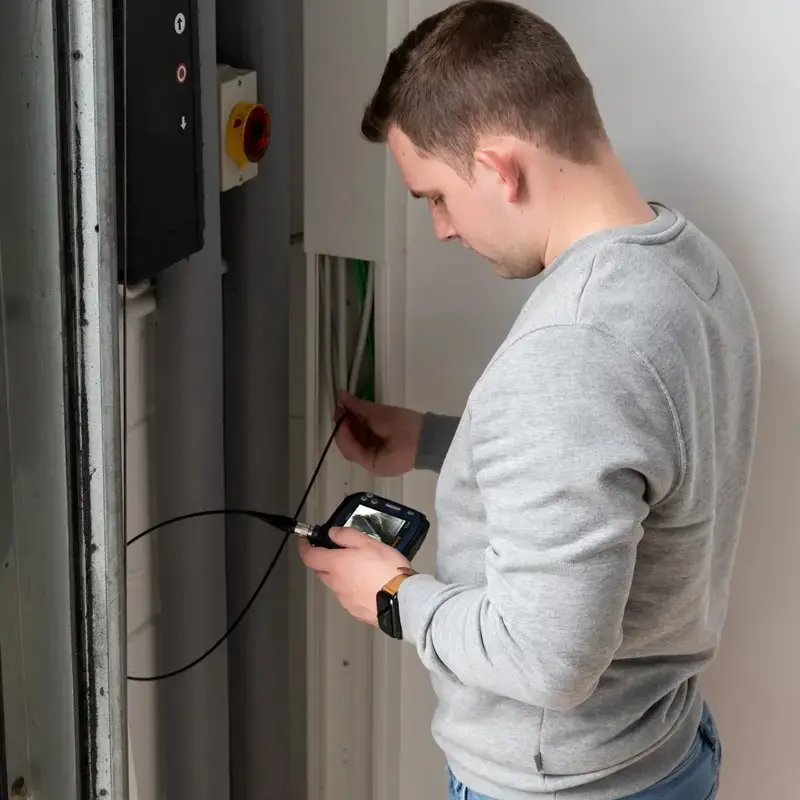

The borescope stores the recorded images and videos directly to a micro SD card memory. The 1 m / 3.28 ft cable length and 3.7 mm / 0.14 in diameter allow the video inspection camera unique access to view the insides of walls, pipes, vents, ducts, engines and machinery, thus eliminating the need for costly and time-consuming dismantling. Mechanical engineering, manufacturing, automotive, aviation, construction, plumbing and heating, ventilation, air conditioning and refrigeration (HVACR) professionals alike find this video inspection camera useful in a variety of applications.

***Not for medical use***

Highlights

- Waterproof camera head (IP67 protection class)
- 3.7 mm / 0.14 in diameter
- 1 m / 3.28 ft cable length
- 180° image rotation

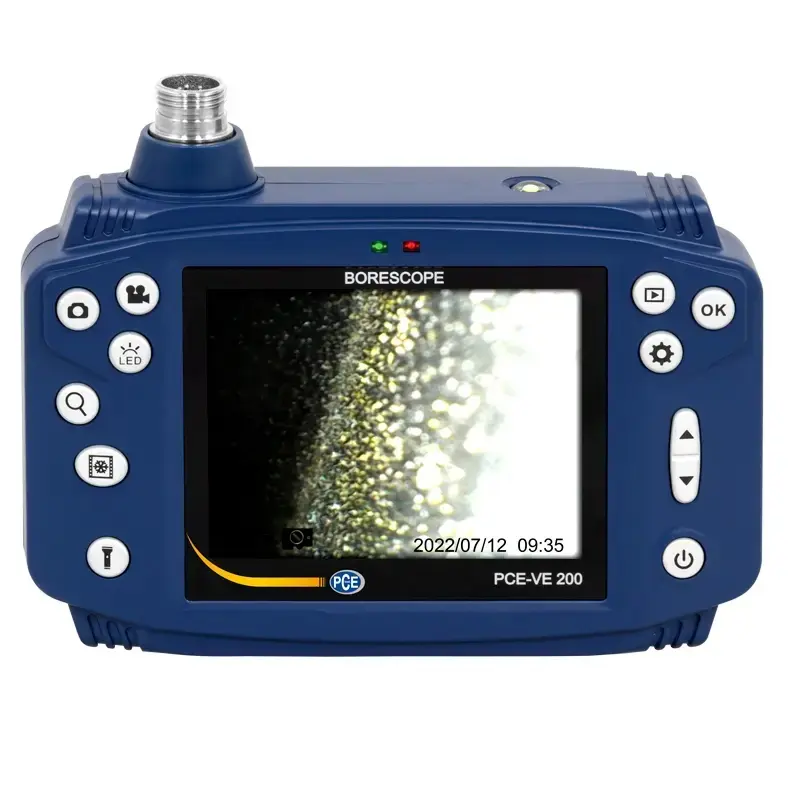

- 3.5" LCD display
- CMOS chip image sensor
- 1600 x 1200 pixels JPEG image / 640 x 480 pixels AVI video resolution
- Micro SD card memory

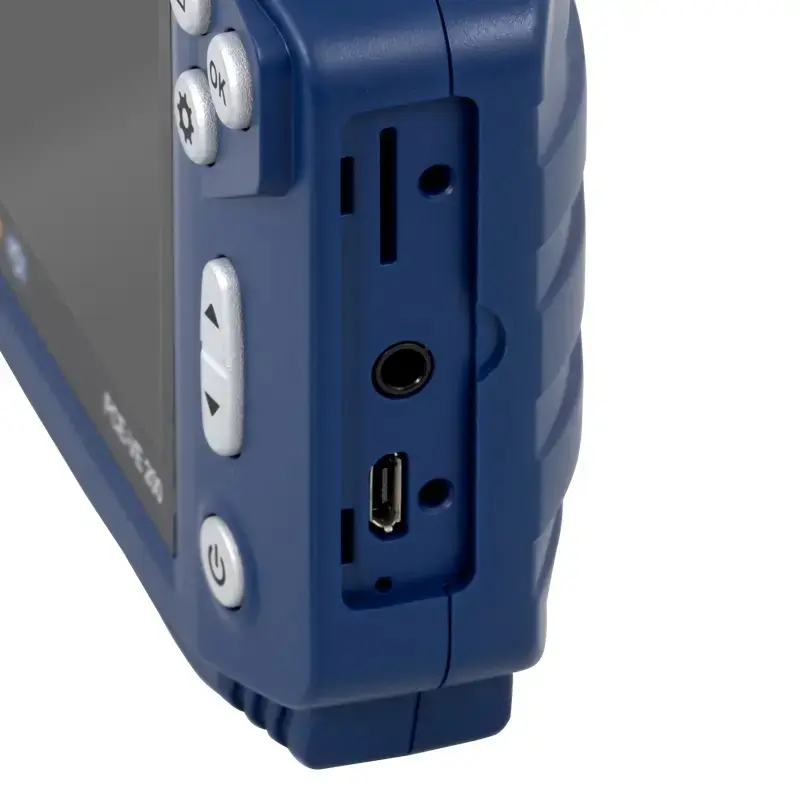

- Micro USB 2.0 and TV outputs

Specification

Display

LCD, 3.5"

Resolution

1600 x 1200 pixels JPEG image / 640 x 480 pixels AVI video

Image rotation

180°

Freeze functionality

Yes

Zoom

Up to 4 times digital image magnification

Menu languages

English, Spanish, French, German, Russian, Japanese, Simplified Chinese, Traditional Chinese

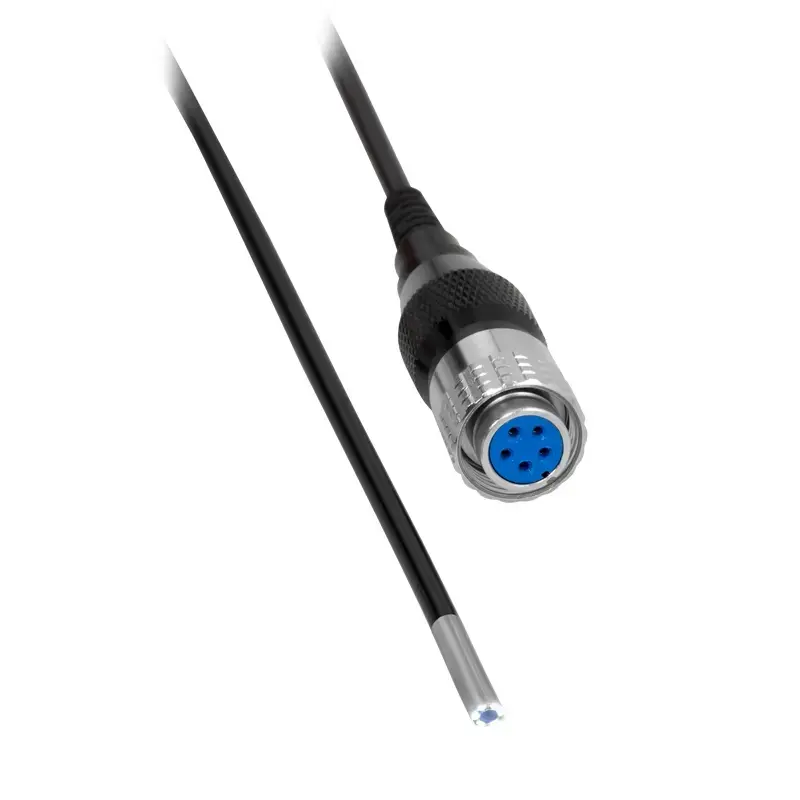

Cable diameter

3.7 mm / 0.14 in cable diameter

Cable length

1 m / 3.28 ft

Cable rigidity

Semi-flexible (semi-rigid spiral)

Image sensor

CMOS chip

Lighting

6 white LEDs (adjustable intensity)

Field of view / angle / perspective

90°

Sight depth

15 ... 100 mm / 0.59 ... 3.94 in

Storage medium

Micro SD card

Interfaces

Micro USB 2.0, TV output (PAL), Micro SD card slot

Power supply

Rechargeable 18650 Li-ion battery

Battery capacity

2600-mAh

Battery life

Up to 5 hours from full charge

Operating conditions

Main unit and probe, in air:
-10 ... 50°C / 14 ... 122°, rel. humidity 15 ... 90%
Probe, in water:
5 ... 50°C / 41... 122°F

Fluid resistance

Main unit and probe:
Machine oil, light oil or 5% saline

Protection against

Main unit:
Blowing rain (battery compartment must be closed), not underwater
Probe:
Water, oil and dust, according to protection class IP67

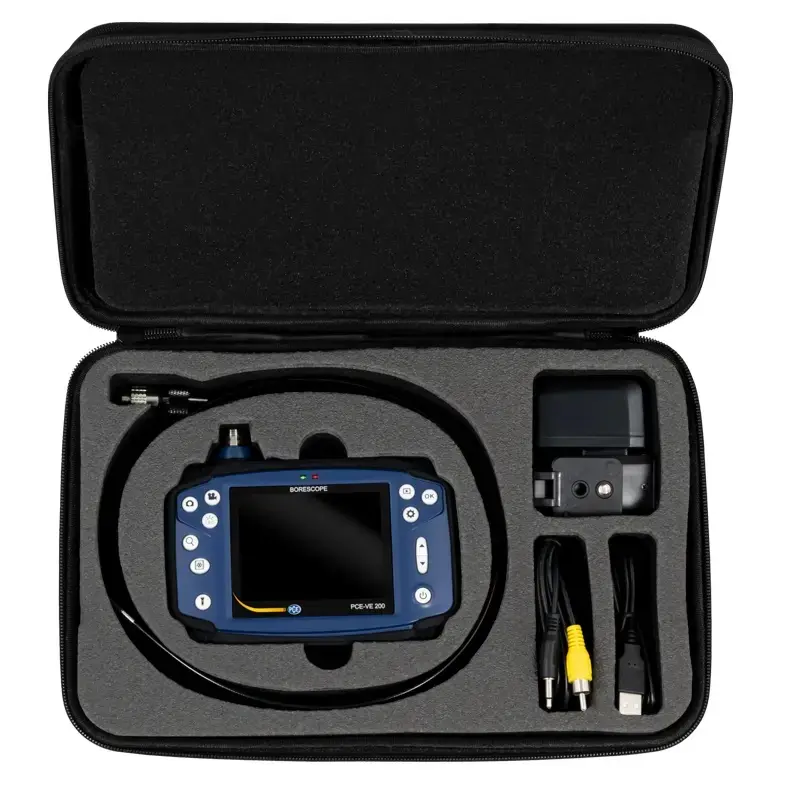

Delivery Scope

1 x PCE-VE 200-S Inspection Camera
1 x Wall charger with detachable USB to Micro USB cable
1 x Video output cable
1 x User manual
