Order no.: PCE-VE 1500-28200

Inspection Camera PCE-VE 1500-28200


£ 17,795.00
£ 21,354.00
PCE-VE 1500-28200
price ex. (VAT / delivery)
Video borescope
Image, Video, Audio
Delivery time: 1-2 working days


Inspection camera with 4-way camera head / Replaceable battery / 7" touchscreen /
Plug and play system / Lighting adjustable in 5 levels / Image and video recording /
120° viewing angle / Battery life of at least 3 hours / Picture in picture function

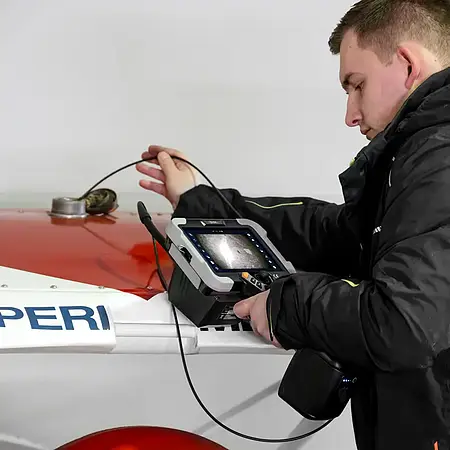

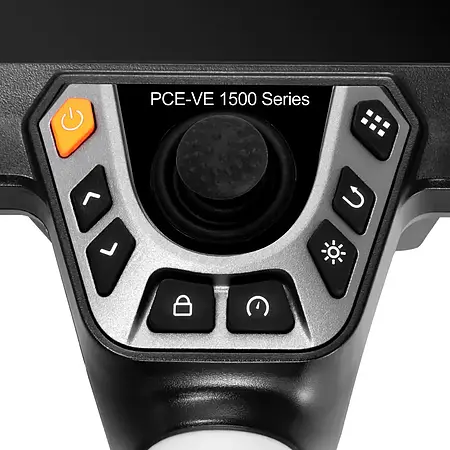

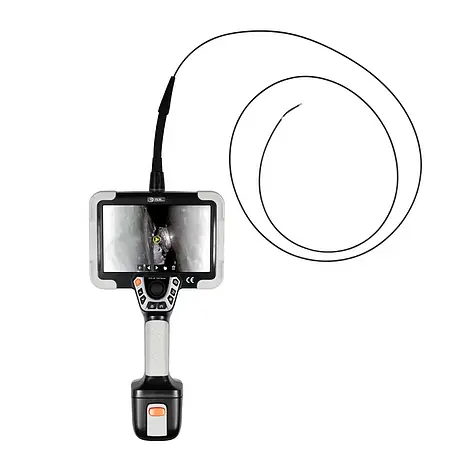

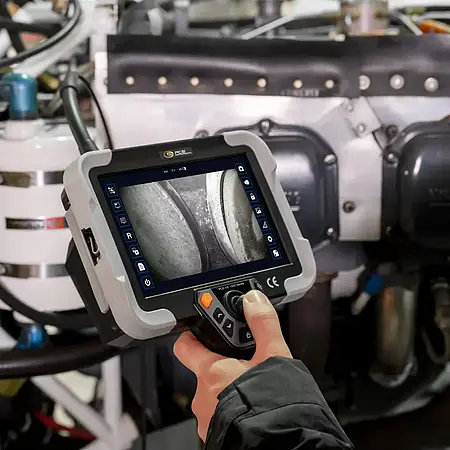

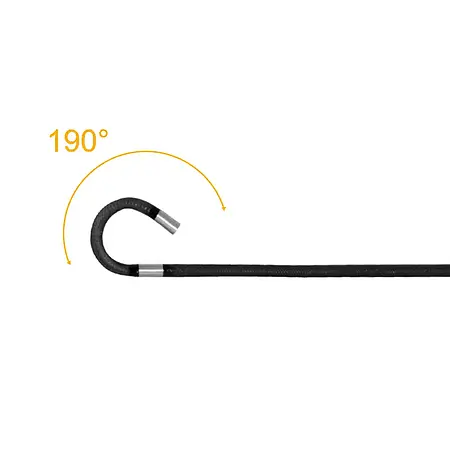

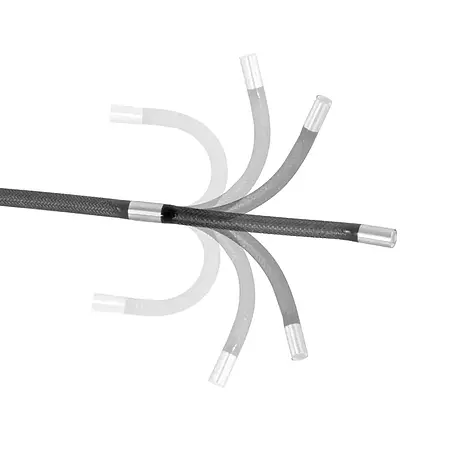

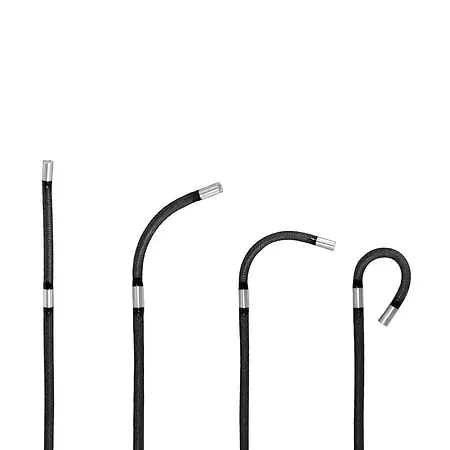

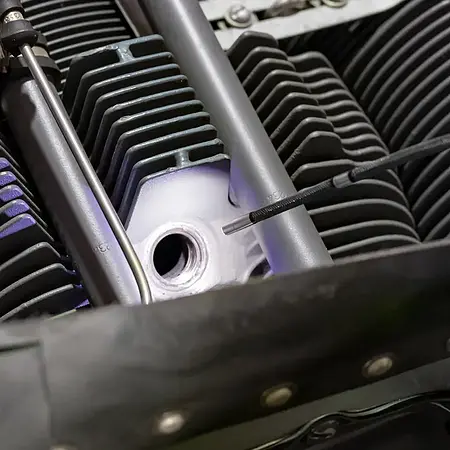

The 4-way system makes it possible to move the camera head from the inspection camera in a 190° bending radius. The viewing angle of the borescope is 120°. It is controlled via a joystick, which controls the electric motors on the boroscope. Thanks to the particularly narrow camera head with a diameter of between 2.2 and 6 mm, the borescope can be used for endoscopy in engines, firearms, bores and other narrow openings, for example. This means that weld seams, wear and tear and damage can be assessed quickly and easily with the boroscope in order to make quick diagnoses. The sheathing of the endoscope cable from the borescope consists of braided tungsten. The borescope camera head is made of titanium alloy. This makes the endoscope cable from the borescope particularly robust. The boroscope is therefore used in engineering offices, quality control and for expert opinions.

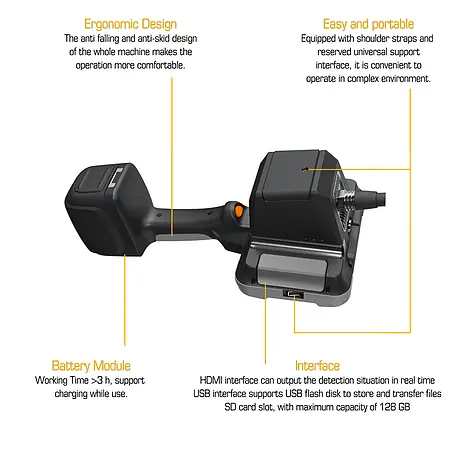

The touch screen of the inspection camera has a size of 7". The resolution of the borescope display is 1920 x 1200 pixels. Thanks to the touchscreen, easy operation of the borescope is guaranteed. If required, the live image from the borescope can be transmitted to an external screen or beamer via the HDMI interface. In addition, approx. 285,000 images or 1500 minutes of video recording with the borescope can be saved on an SD card. In this way, the recordings from the borescope can be examined again at a later point in time or entered into documentation.

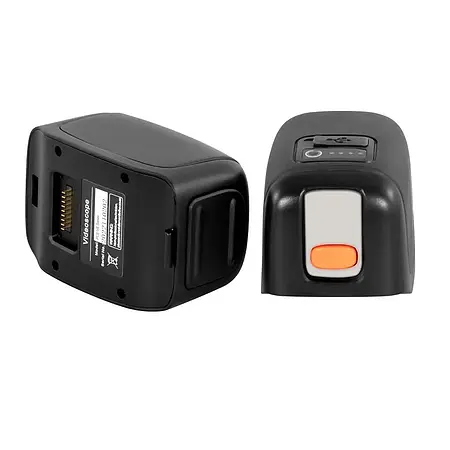

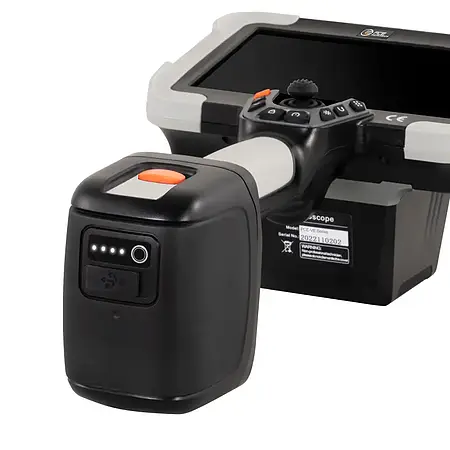

The battery for the inspection camera has a capacity of 6400 mAh. This means that the borescope can be used for endoscopy for more than 3 hours. The current battery charge can be read on the battery itself, independently of the borescope, via a five-point diagram. If the battery in the borescope is discharged, it can be connected to a USB-C (PD) interface. The borescope can still be used while charging. Alternatively, the battery can be removed and replaced with a new one so that the boroscope is immediately ready for use again.

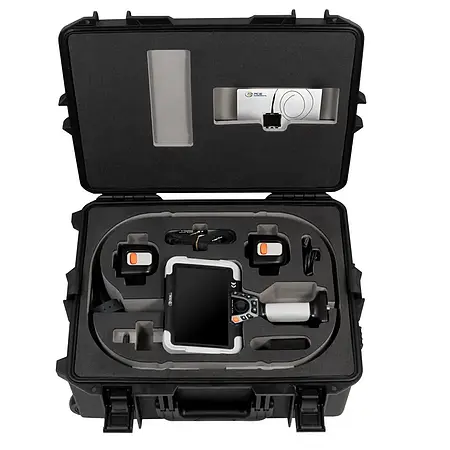

The transport case is designed to protect the inspection camera during transport to minimize damage. Thanks to the fourfold locking and the rubber coating on the lid, the transport case protects the boroscope from water ingress. For easy transport of the boroscope, there are also wheels on the transport case so that it can be pulled.


- 4-way camera head with electric motors
- 7" touch screen for easy operation
- replaceable battery with status display
- Storage of recording on SD card

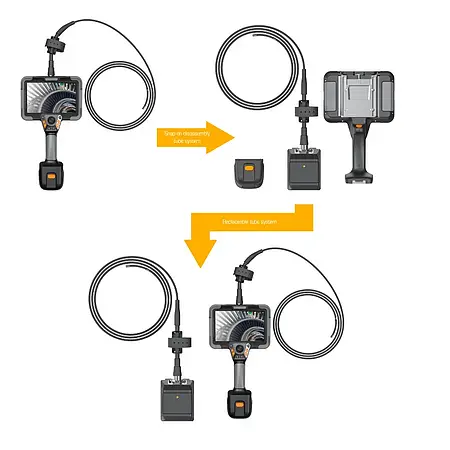

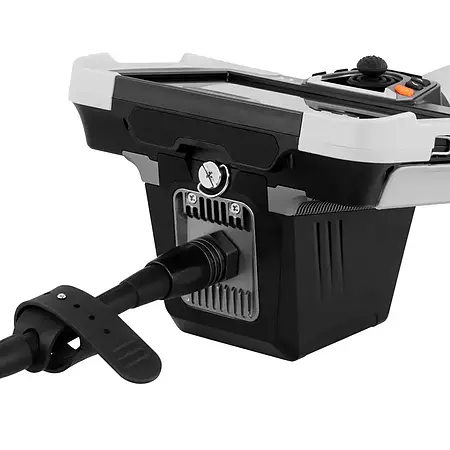

- Motor with endoscope cable can be changed quickly
- HDMI connection for direct image transmission
- Brightness adjustable in 5 levels
- 120° viewing angle and 190° bending radius


Diameter Ø2.8 mm / 0.11"
Cable length 2 m / 6.5 ft
Camera direction
Resolution 160,000 pixels
Focusing range 5 ... 50 mm / 0.19 ... 1.96"
Further specifications
Material camera head
titanium alloy
Material camera hose braided tungsten
Material camera lens glass
Field of view 120°
Illuminance 50,000 lux
Bending direction 360° (4-way camera head)
Bending angle 190°
Display 7" LCD touchscreen
Display resolution 1920 x 1200 pixels
Image format JPG
Video format MP4
Image resolution 1280 x 720 pixels
Video resolution 1280 x 720 pixels
Digital magnification 8 times
Memory (internal) 16 GB
Memory (external) expandable up to 128 GB for ca. 285,000
  pictures or 1500 minutes of video recording
Interface Mini HDMI, USB-A, USB-C (only for data transfer)

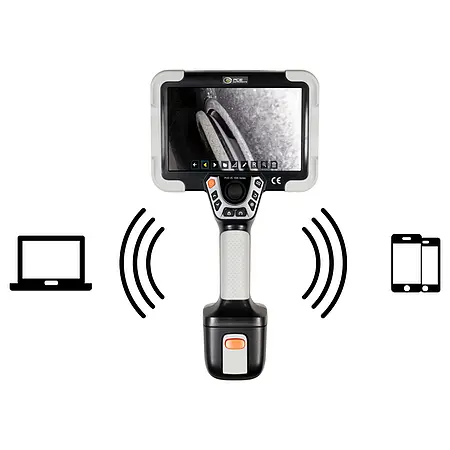

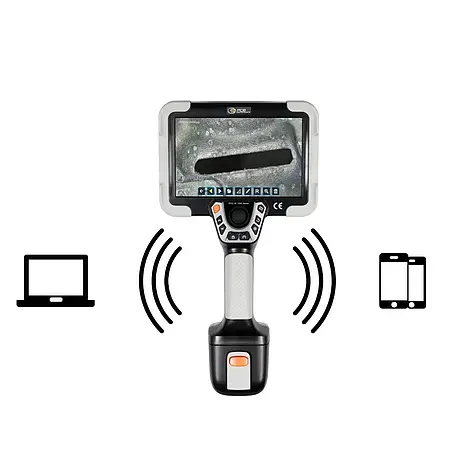

  audio interface, WiFi
Power consumption (endoscope)    10 W
Operating time >3 hours
7.4 V (4 x 18650), 6400 mAh, removable
Battery (charging) 12 VDC, 3 A
Mains adapter primary: 100 … 240 VAC 50/60 Hz, 1.5 A
  secondary: USB-C (PD) 65 W maximum
  5 VDC, 3 A
  9 VDC, 3 A
  12 VDC, 3 A
  15 VDC, 3 A
  20 VDC, 3.25 A
  PPS1: 3.6 … 11 VDC, 3 A
  PPS2: 3.6 … 20 VDC, 3 A
Operating conditions (hand-held device) 5 ... 50 °C / 41 ... 122 °F, <92 % RH, non-condensing
Operating conditions (endoscope cable)
5 ... 80 °C / 41 ... 176 °F, <92 % RH, non-condensing
Storage conditions 5 ... 63 °C / 41 ... 145 °F, <92 % RH, non-condensing
Dimensions 366 x 194 x 137 mm / 14.4 x 7.6 x 5.3"
Weight handset weight: 1017 g / 35.8 oz
  endoscope cable with electric motor: ca. 600 g / 21.1 oz
  battery 550 g / 19.4 oz

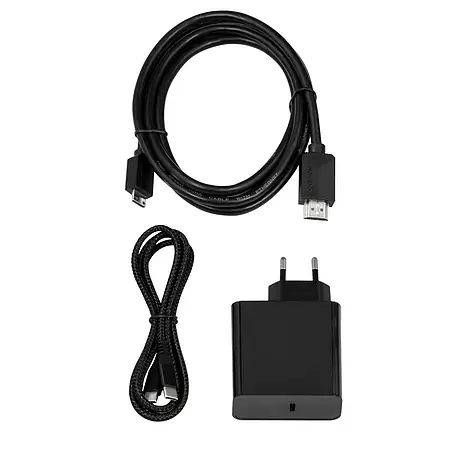

Delivery Scope

1 x Inspection camera PCE-VE 1500-28200
2 x 7.4V 6400mAh battery
1 x 64GB memory card
1 x USB-C cable
1 x HDMI to Mini HDMI cable
1 x SD card reader
1 x Carrying case
1 x Instruction manual
