Inspection Camera PCE-VE 1030N

Order no.: PCE-VE 1030N

£ 1,985.00
£ 2,382.00
PCE-VE 1030N
price ex. (VAT / delivery)
800 x 400 pixels
Video borescope
Image, Video, Audio
Yes (SD card)
Yes (USB)
Delivery time: 1-2 working days

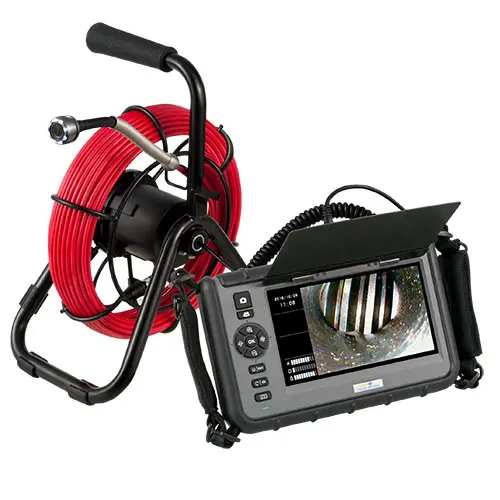

PCE-VE 1030N Inspection Camera
Borescope with 30 m / 98 ft long, 28 mm / 1.1 in diameter waterproof semi-flexible push-pull cable on reel / Captures and stores pictures and audio-enabled videos to included SD card memory

PCE-VE 1030N is a versatile borescope inspection camera with a large 7" high-resolution display. This borescope inspection camera captures both picture and video. Video recordings are accompanied by audio for a more immersive inspection experience.

All files are saved to the included SD card memory for quick and easy transfer to a PC. The borescope accommodates an SD card with a maximum capacity of up to 32 GB. For example, an 8 GB SD card would store more than 60,000 images or 530 minutes of video.

The borescope inspection camera comes with a 30 m / 98 ft long, 28 mm / 1.1 in diameter semi-flexible push-pull cable on a reel. The included camera cable is waterproof and the head is equipped with 8 bright LED lights for optimal illumination. In addition, various cables with different lengths, diameters and special features can be connected to accommodate myriad applications. Additional cables are optional and sold separately - see accessories for details.


- 28 mm / 1.1 in diameter waterproof camera head with 8 bright LED lights for optimal illumination
- 30 m / 98 ft long semi-flexible push-pull cable on reel
- Captures and stores pictures and audio-enabled videos
- 360° on-screen image rotation (in 90° steps)
- SD memory card included

Cable diameter

28 mm / 1.1 in

Cable length

30 m / 98 ft

Depth of field

10 mm … ∞ / 0.4 in to infinity

Field of view

150.8°

Bending radius 90 mm / 3.54 in
Illumination 8 LEDs
Image sensor CMOS / 640 x 480
Picture rate 30 / sec.
Display 7" LCD (800 x 480)
Image Resolution 640 x 480 JPEG
Video Recording 640 x 480 MPEG (with sound recording)
drop test 1 m / 3.2 ft
Power Supply Li-Ion battery
Interface USB
Picture and Video Memory To SD card (up to 32 GB)
AV Output NTSC / PAL
Audio Input built-in microphone
Brightness Setting 10-step adjustable on the main unit
Runtime per Battery Charge 5 hours
Charging Time Battery 3 hours
Charging Temperature 10 ... 40°C / 50 ... 104°F
Operating Temperature 0 ... 60°C / 32 ... 140°F
Storage Temperature 0 ... 60°C / 32 ... 140°F
Protection type, camera IP 68 = No ingress of dust; complete protection against contact (dust tight) and waterproof; meaning it can be underwater for 30 minutes at depths of up to 1.5 m / 4.9 ft

1 x PCE-VE 1030N inspection camera
1 x Semi-flexible waterproof push-pull cable on reel
1 x Centering star
1 x SD memory card
1 x USB cable
1 x Power adapter
1 x Video cable
1 x Carrying case

***Not suitable for medical use***
