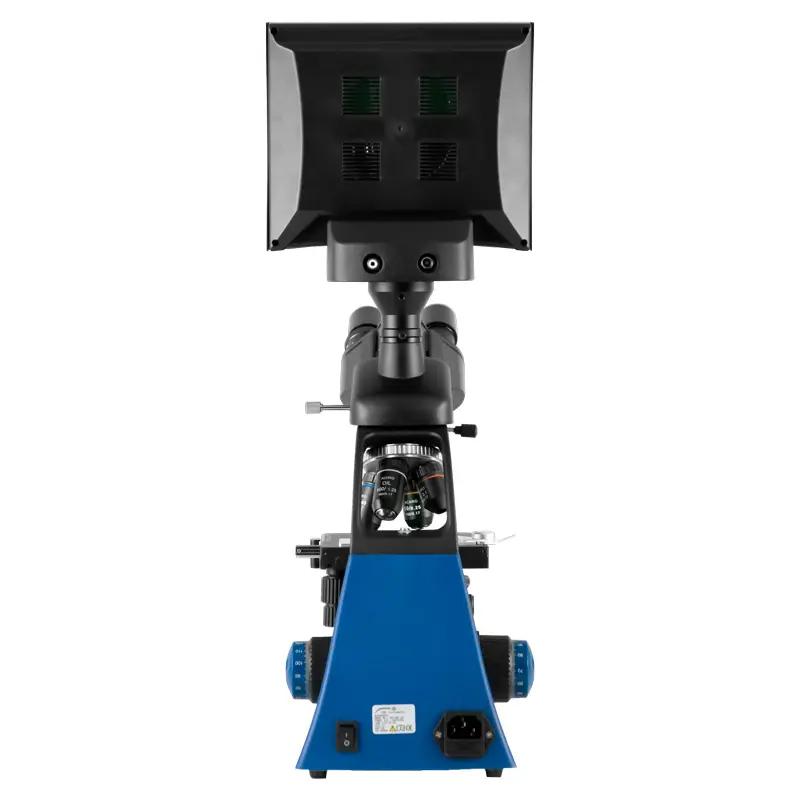

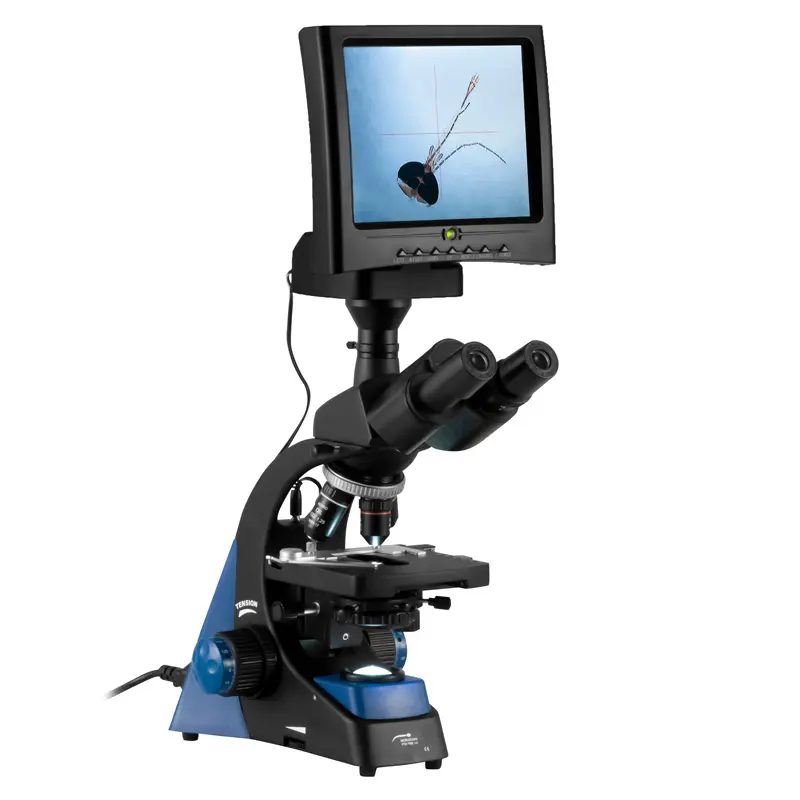

Inspection Camera PCE-PBM 100

Order no.: PCE-PBM 100
£ 1,597.00
£ 1,916.40
price ex. (VAT / delivery)
Delivery time: 1-2 working days
Inspection Camera
High quality digital microscope / Modern and ergonomic tripod / Trinocular /
360° rotating head with adjustable eye relief / Diopteradjustment / LC display

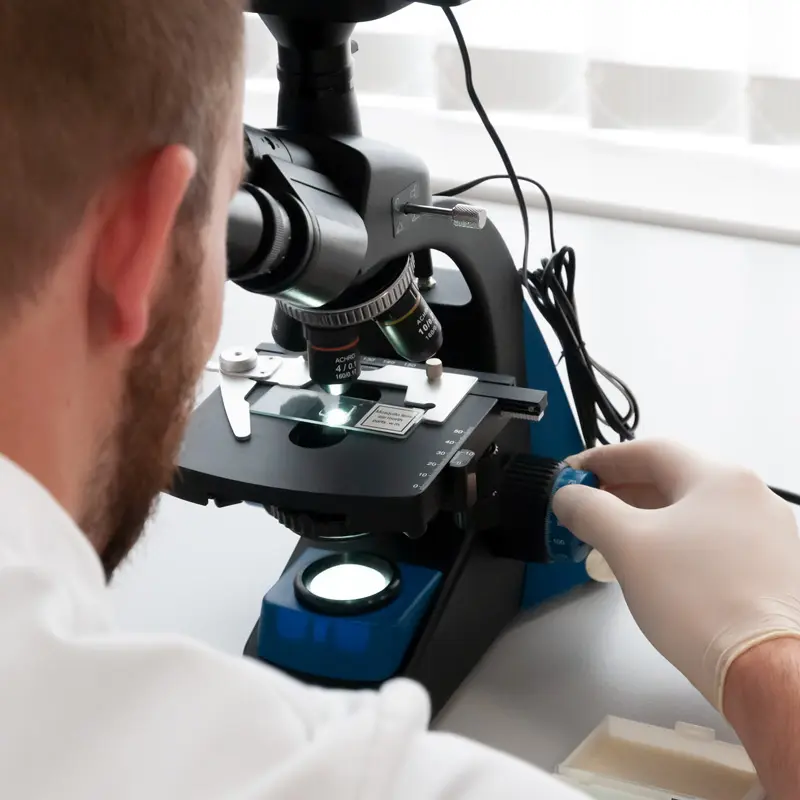

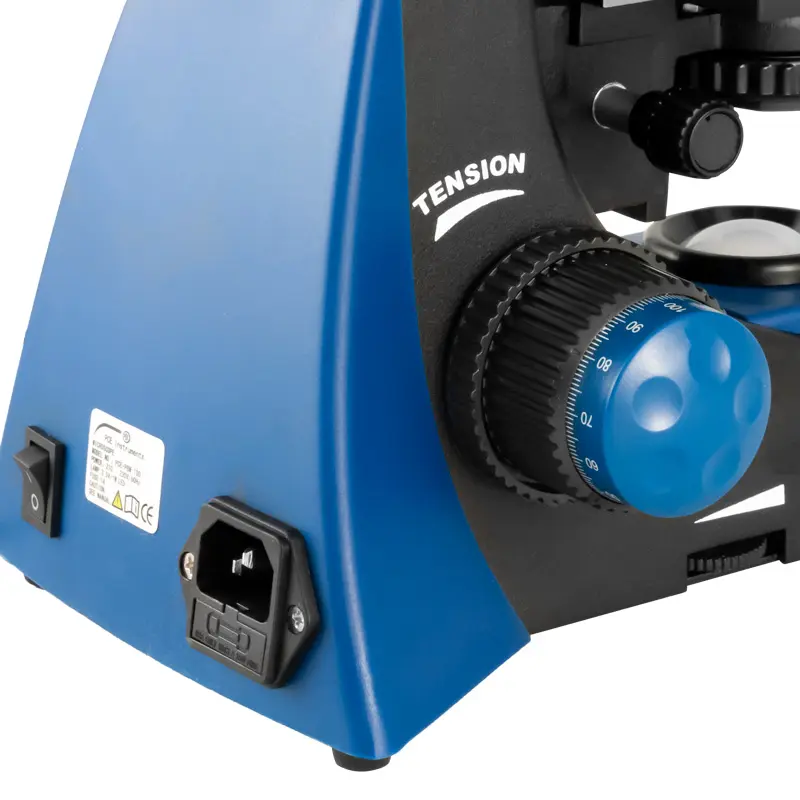

The inspection camera impresses with its diverse application options in teaching and laboratory operations. Due to the technical equipment and great reliability, the inspection camera is particularly well suited to be used in advanced teaching facilities as well as in laboratories. The tripod from the inspection camera consists of the light yet strong material, aluminum, and is modern and ergonomically shaped. The eyepieces are very user-friendly, since both the diopter and the eye relief can be adjusted. This makes it easy for people who wear glasses to work with the inspection camera. There is also a rheostat on the side of our inspection camera with which the brightness can be easily adjusted. The LED light from the inspection camera is very durable and requires little maintenance. The color temperature is similar to that of sunlight, so an examination under the inspection camera is possible that is comparable to that under daylight.

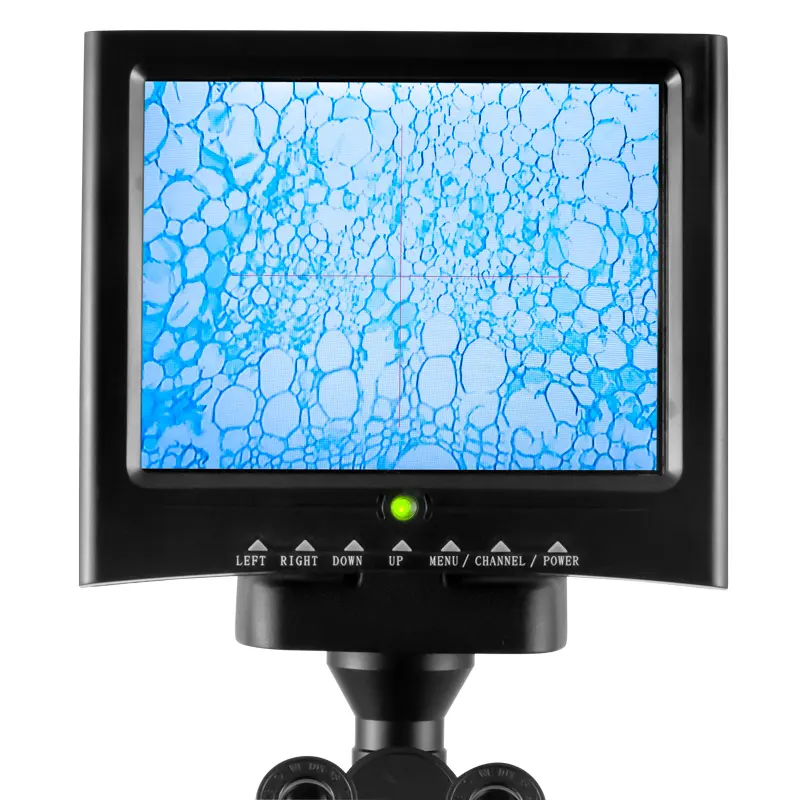

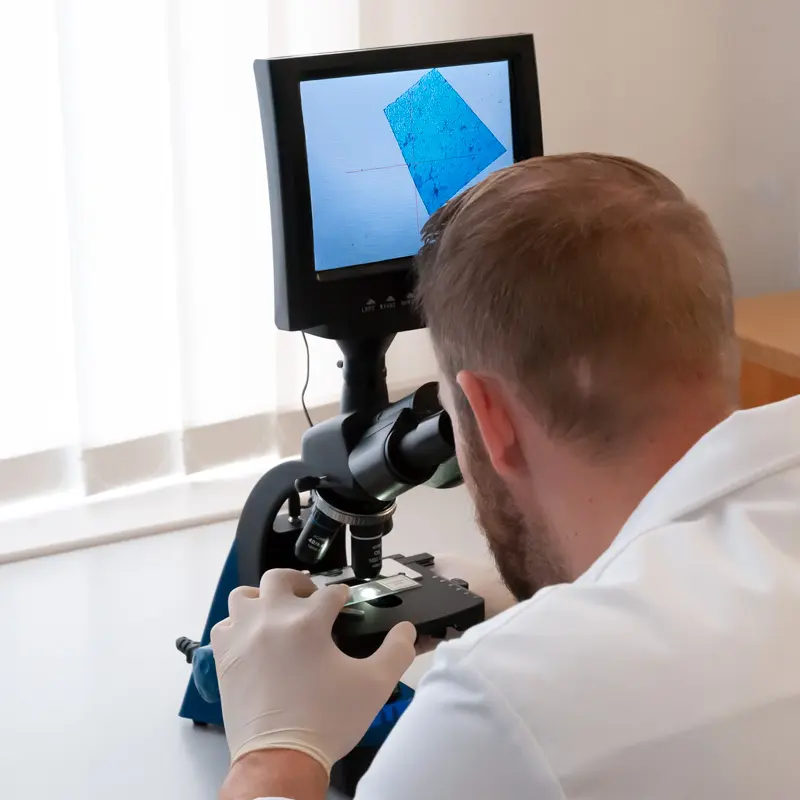

The LCD screen built on the 3rd eyepiece enables viewing of the specimen through the eyepieces and simultaneously on the screen. This allows e.g. when used in schools, the teacher to quickly check the settings and the preparation. As a further option, the screen offers an output option to an external imaging device such as a large screen or projector.

- Abbe condenser with adjustable iris
- Diopter adjustment on the right eyepiece
- Adjustable eye relief
- Trinocular
- With cross table 125 x 125 mm
- 4 lenses up to 100x magnification
- LC Display 800 x 600 pixels
- Video output

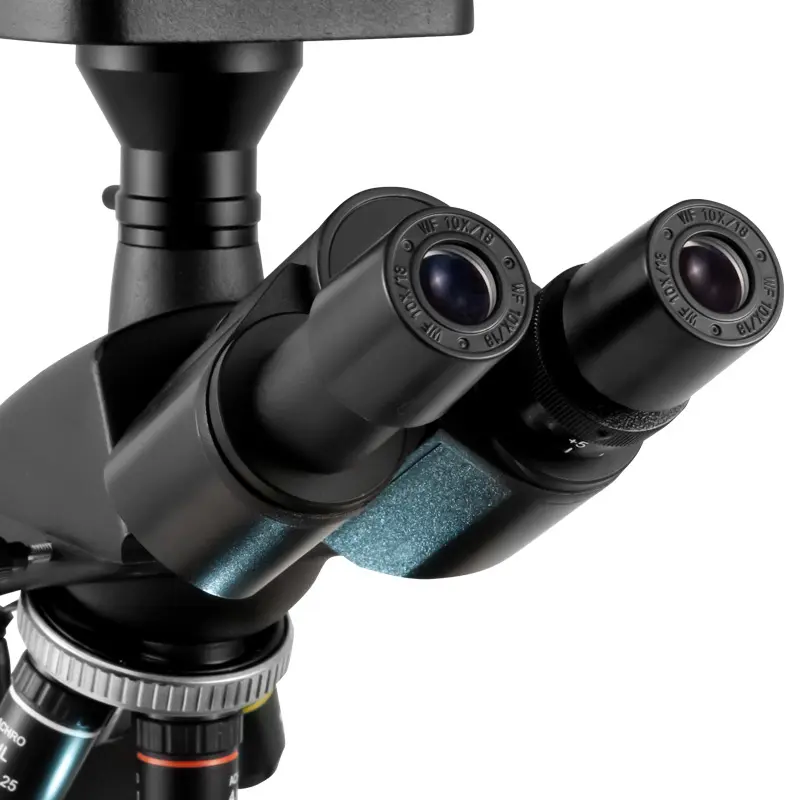

Eyepieces WF 10x wide field eyepieces
Head Trinocular
  360° rotatable
  30° angled view
  Right diopter adjustment
  Interpupillary distance adjustable 55 ... 75 mm
Lenses 4
Magnification 4x, 10x, 40x, 100x
Numerical aperture 0.1 mm, 0.25 mm, 0.65 mm, 1.25 mm
Focal length 31.04 mm, 17.13 mm, 4.65 mm, 2.906 mm
Working distance 37.50 mm, 7.316 mm, 0.632 mm, 0198 mm
Coverslip 0.17 mm
Total magnification eyepiece + lens    40, 100, 400, 1000
Tube length 160 mm
Conjugate distance 195 mm

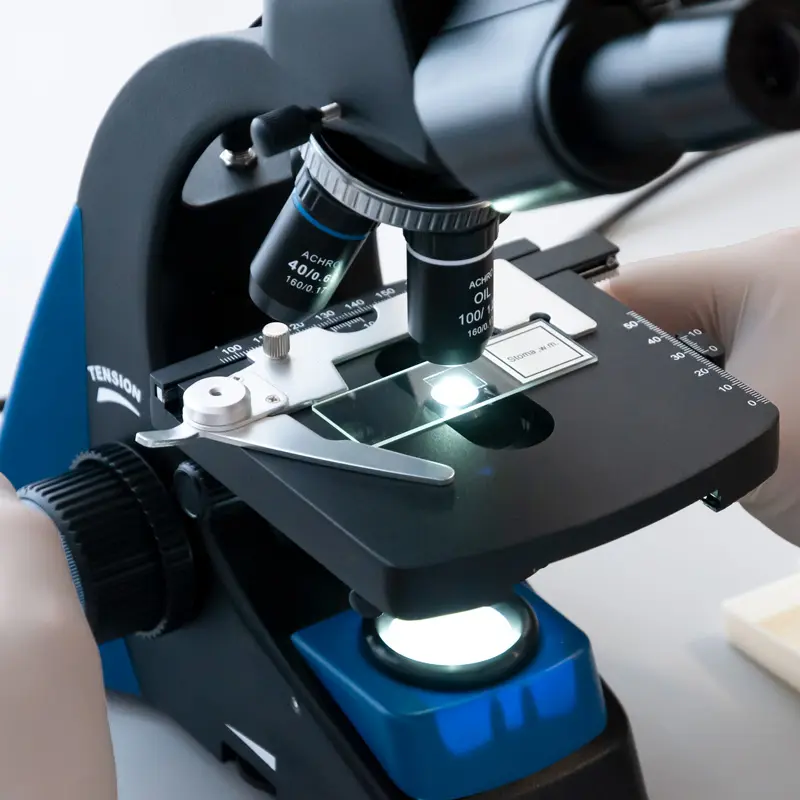

Cross table 125 x 125 mm
Shift 40 x 60 mm
Hub 14 mm
Cover yes
Adjustment yes
yellow, green, blue
Lighting 3.5 V 1 W LED
Dimmable yes
Technical Data Camera / Display
Size 13"
Horizontal resolution 700 lines
976 x 582 pixels
LCD Display
Resolution 800 x 600 pixels
Colours 16777216
Video output highest resolution 1024 x 768 at 75 Hz
Video Format PAL, NTSC4.43, NTSC3.58, SECAM
General Technical Data
Power supply 230 VAC 50 Hz
Environmental conditions 0 ... 40 °C / 85 % RH. max.
Dimensions 550 x 320 x 210 mm
Weight 5100 g

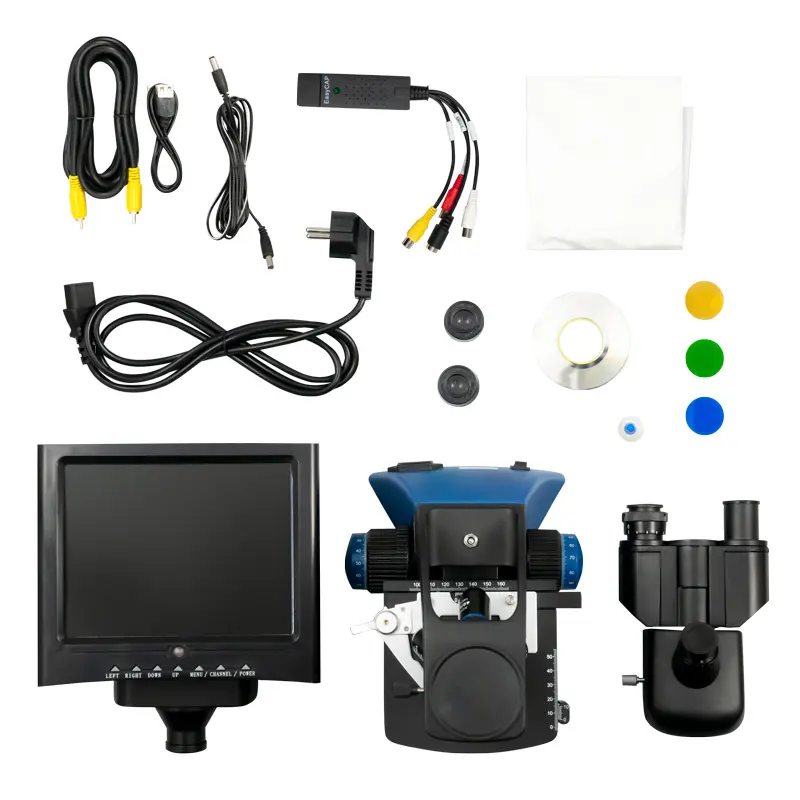

1 x Inspection Camera PCE-PBM 100
1 x Connection cable
1 x Screen connection cable
3 x Colour filter
1 x LC display with camera
1 x Cinch video cable
1 x Video Cinch-USB converter
1 x Video software
1 x USB extension
1 x Cover hood
1 x User manual
