PCE-MM 200UV UV USB Inspection Camera
UV inspection camera with up to 200 x magnification connects to computer via USB port

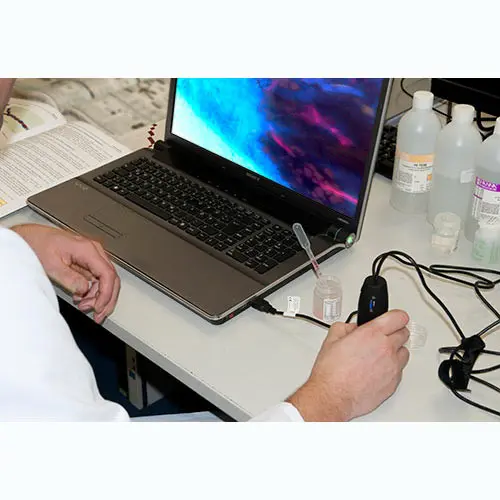

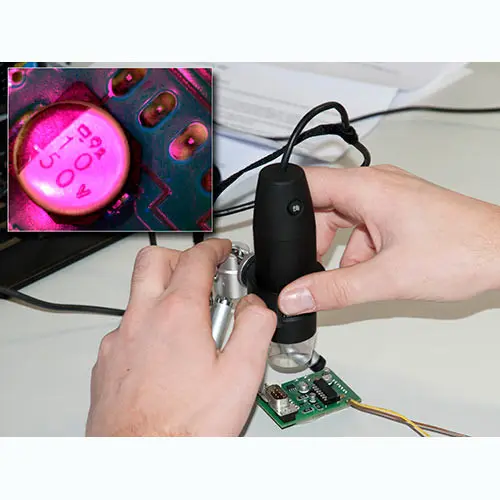

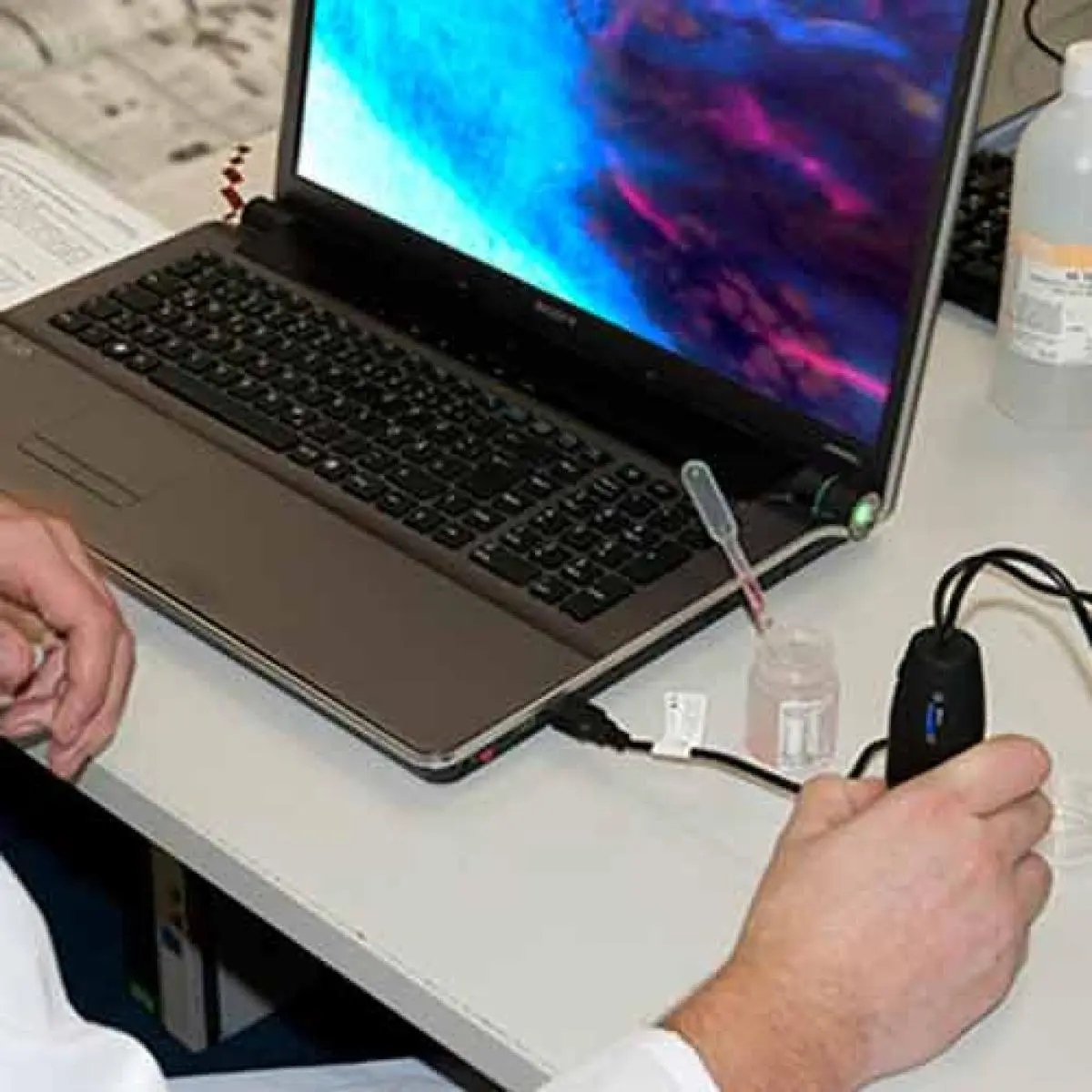

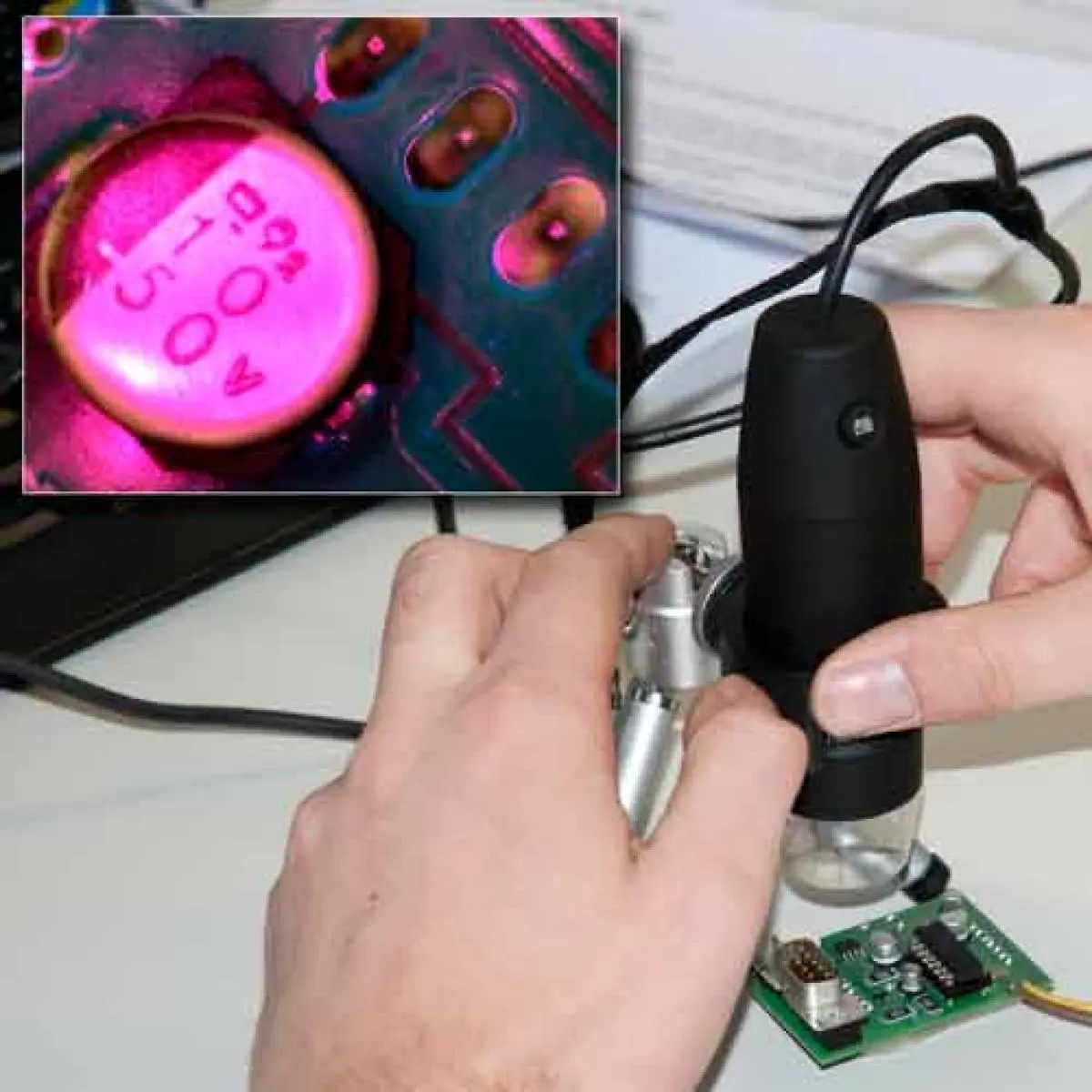

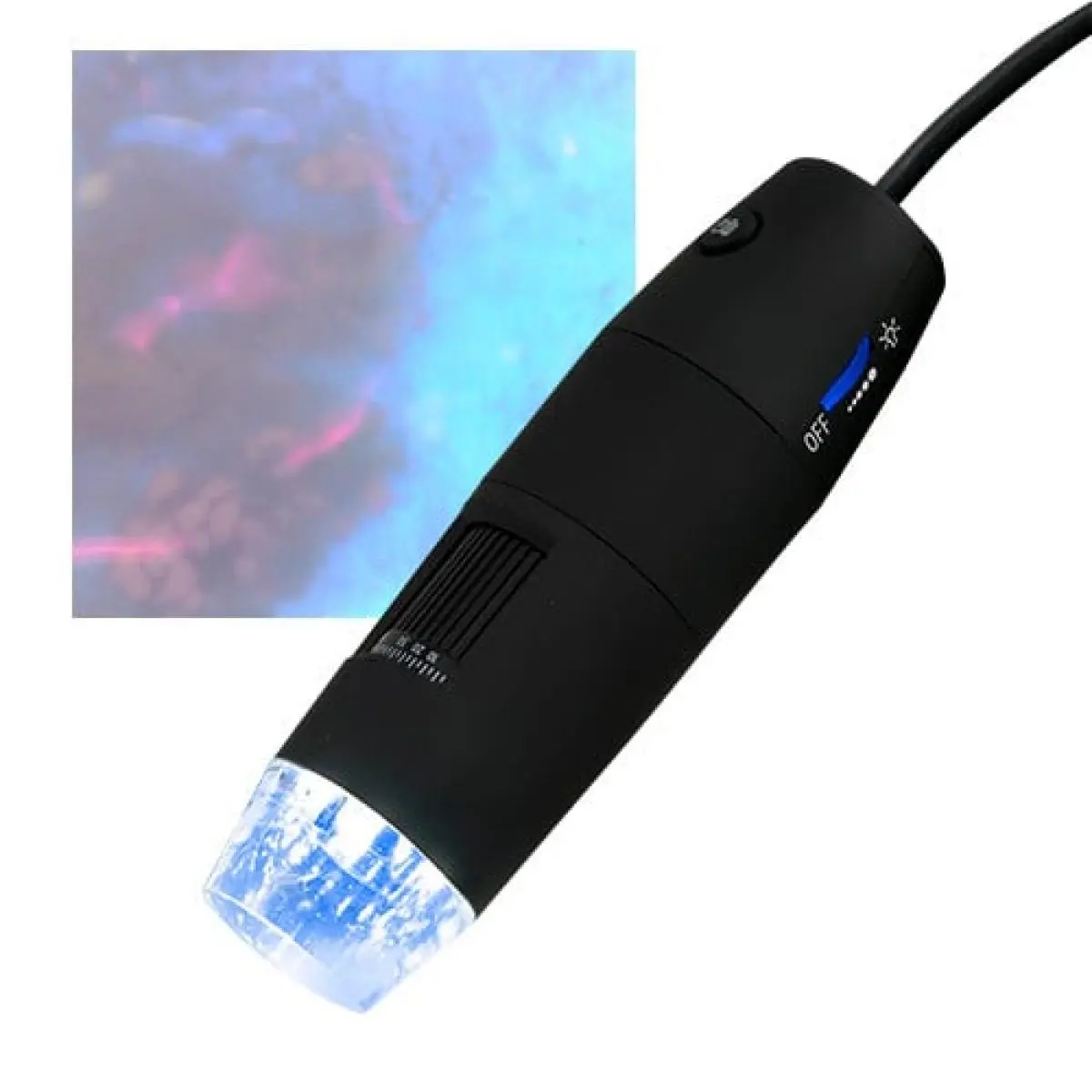

PCE-MM 200UV is a UV USB inspection camera, or UV USB microscope, that magnifies objects up to 200 times. This UV inspection camera uses 8 UV LEDs with a wavelength of 365 nm for illumination. The inspection camera captures photos and videos as well as displays magnified objects in real time on your computer screen.
The included software allows you to add text and draw lines, squares and circles in a photo. The software also facilitates calibration for accurate measurement.
| General technical data | |
| Cable length | 2 m |
| Display type | without display |
| Interface | USB 2.0 |
| Camera resolution | 1600 x 1200 pixels |
| Light source | 8 x UV LED 400 nm |
| Magnification | 10 ... 200 x |
| Image / video format | AVI |
| Frame rate | 30 Images per second |
| Menu language | German |
| Protection class (device) | IP20 |
| Power supply | 5V (from USB port) |
| Connector type | USB-A |
| Operating conditions | 0 ... 40 °C , 45 ... 85 % RH |
| Storage conditions | 0 ... 40 °C , 45 ... 85 % RH |
| Dimensions ( L x W x H ) | 110 x 33 x 33 mm |
| Weight | 90 g |
