Order no.: PCE-VE 900N4

Industrial Borescope PCE-VE 900N4 1.2 m / 4-way-head / Ø 2 mm

£ 9,979.00
£ 11,974.80
PCE-VE 900N4
price ex. (VAT / delivery)
2 mm
1.2 m
Delivery time: 1-2 working days


Industrial borescope diameter 2 mm / For inspection of machine parts, cavities ... / Dimmable LED lighting / 4-way camera head / Data storage / IP58

The industrial borescope has a 1.2 m / 3.9 ft long endoscope cable. With a diameter of only 2 mm, cavities with the smallest access can be viewed with the help of this inspection camera. The camera head of the inspection camera can move freely in 4 directions. Especially in the maintenance of engines, turbines, etc., the high-resolution display from the inspection camera offers a good view of cavities and hard-to-reach places. The moveable camera has a resolution of 400 x 400 pixels. The field of view is 80°, which means that with a relatively short distance to the object to be inspected, very large images can still be taken with the inspection camera. All recordings from the inspection camera can be saved as an image or video. This helps to document damage to components precisely.

The inspection camera is supplied with a Li-Ion battery and can optionally also be operated with a power pack. The degree of protection from the camera cable is IP58. As a result, the inspection camera can also be used under difficult and harsh industrial environments.

General information about the inspection camera:

The inspection camera was developed in 1806 by the German doctor Philipp Bozzini for medical diagnostics. The first version was rigid and used a candle as a light source. Over the years, the inspection camera has become an important component in many different areas due to continuous further development. A very important area of ​​application is still medicine, here the inspection camera is not only used for examination, it is possible to insert micro-tools through built-in channels, which makes the inspection camera a multifunctional tool and enables operations in difficult to access areas.

Another very important area of ​​application for the inspection camera is the technical area, whether in the automotive industry for checking engines, in the sanitary area for examining drains or in building protection for checking houses for pests, in all of these areas the inspection camera is essential. The inspection camera owes its great popularity to the many different versions available on the market today. The basic types are the rigid inspection camera or the flexible inspection camera.


- 2 mm camera head
- 1.2 m / 3.9 ft endoscope cable
- 4-way camera
- 5" monitor
- Image and video memory
- IP58 camera cable
- 400 x 400 pixel image resolution
- 3 ... 30 mm focus distance


Cable / head diameter2 mm

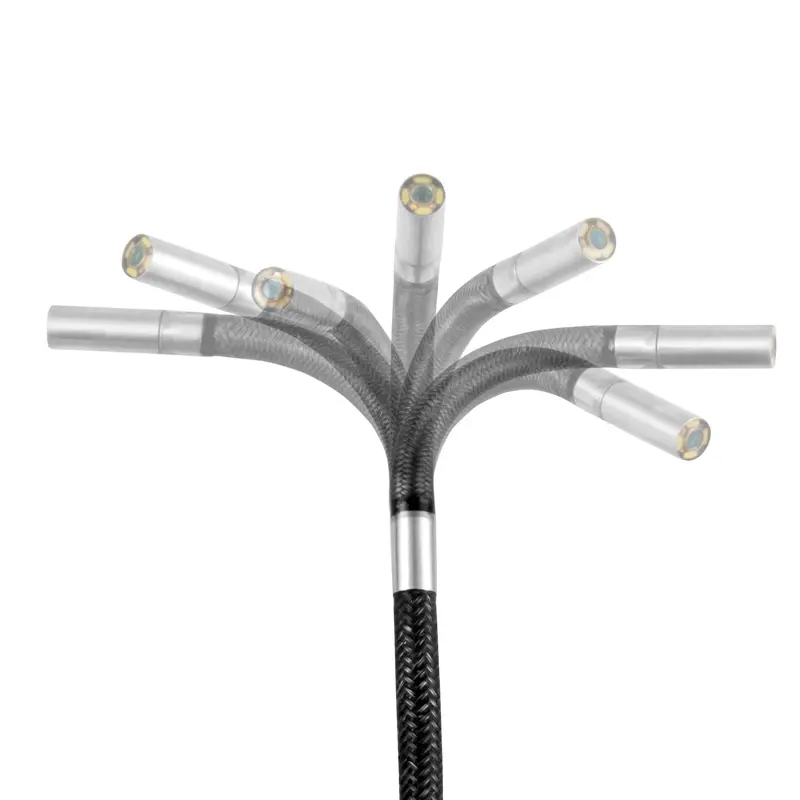

Direction of movement camera head4-way
Length of camera head7 mm
Bending radius6 mm
Camera head materialTitanium alloy
Camera lens materialGlass
Line of sight
Focus area3 ... 30 mm
Image sensor1/18" color
Resolution160000 pixels
Refresh rate30 Hz
Endoscope cable length1.2 m / 3.9 ft
Endoscope cable materialTungsten
Degree of protection endoscope cable   IP58
Operating conditionsMain unit: 0 ... 45°C / 32 ... 113°F, 15 ... 90% rH
 Cable: 0 ... 60°C / 32 ... 140°F
DisplayLCD 5" 16: 9 display

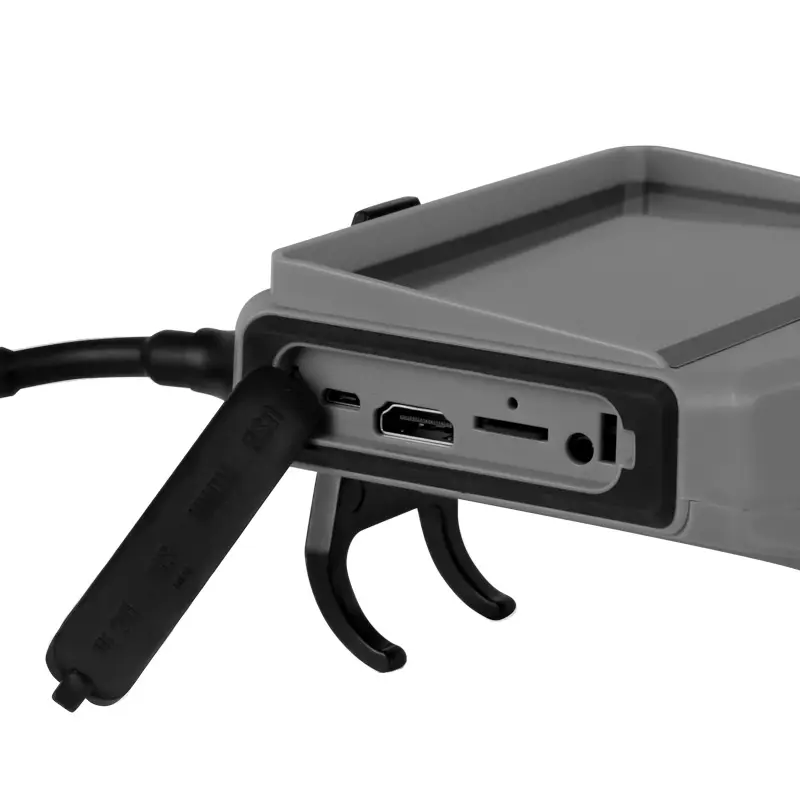

InterfaceMicro USB
Video outputHDMI
StorageSDHC memory card up to 64 GB
Power supplyLi-ion battery 3350-mAh
 5V power supply
Dimensions33.5 x 14.5 x 8 cm
WeightApprox. 700 g / 1.5 lbs

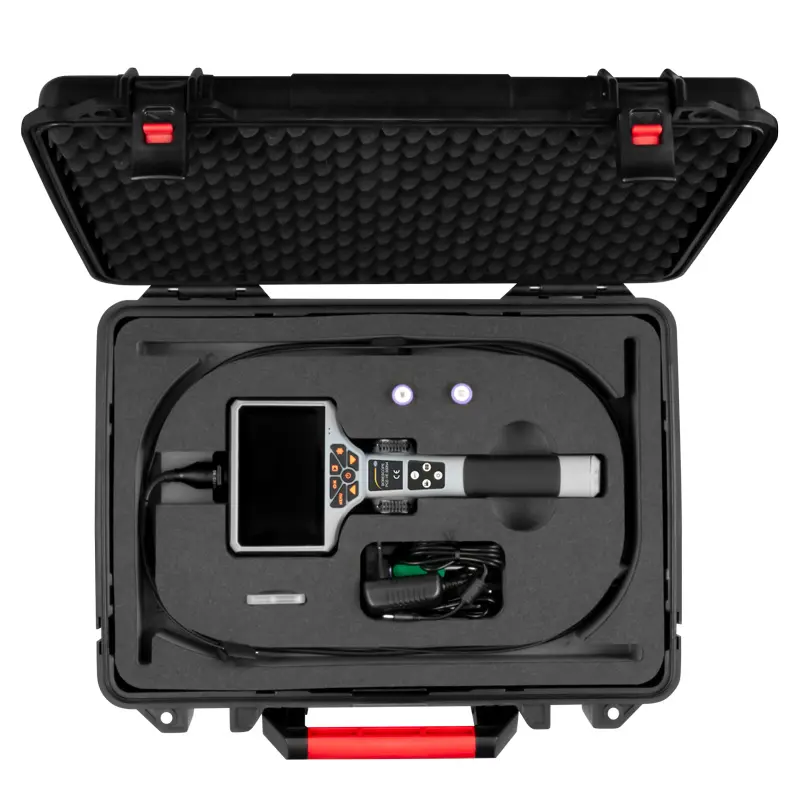

Delivery Scope

1 x Industrial Borescope PCE-VE 900N4
1 x Power supply including charger
1 x Carrying case
1 x Card reader
1 x Memory card
2 x Li-ion batteries
1 x HDMI cable
1 x Cleaning set
1 x Operating instructions

Please note: This borescope is not suitable for medical purposes!
