Humidity Detector PCE-OD 10

Humidity Detector PCE-OD 10

Order no.: PCE-OD 10
GTIN (EAN): 4250348738660
£ 43.00
£ 51.60
price ex. (VAT / delivery)
:
4250348738660
PCE-OD 10
Delivery time:1-2 working days

Description

Humidity Detector / 3 in 1 measures ozone, temperature and humidity / Audible alarm / Mobile device

An Humidity Detector is used to monitor the ozone concentration in the air and to measure temperature and humidity. The Humidity Detector detects ozone in the range of 0 ... 9.9 ppm with an accuracy of ±15% of the measured value. The temperature is measured between 0 ... 50°C / 32 ... 122°F with ±1°C / 1.8°F accuracy, the humidity in the range of 5 ... 95% with ±5% accuracy. The device has an audible alarm when the preset alarm value of 3 ppm is exceeded and displays all values on a 0.9 inch LCD display. Other features include standby mode, rechargeable lithium battery via USB-C, compact size and a wrist strap for mobile use.

The Humidity Detector is suitable for mobile use in homes, offices, workshops, small production areas or private applications where ozone pollution needs to be monitored. With its compact design, measurements can be taken directly on site, making the Humidity Detector a practical instrument for reliable monitoring of ozone, temperature and humidity. By combining the three measuring functions, the Humidity Detector provides all relevant information for fast and standardized environmental monitoring.


Highlights

- Ozone, temperature, humidity
- Audible alarm
- Alarm value 3 ppm
- LCD display 0.9 inch
- Standby mode

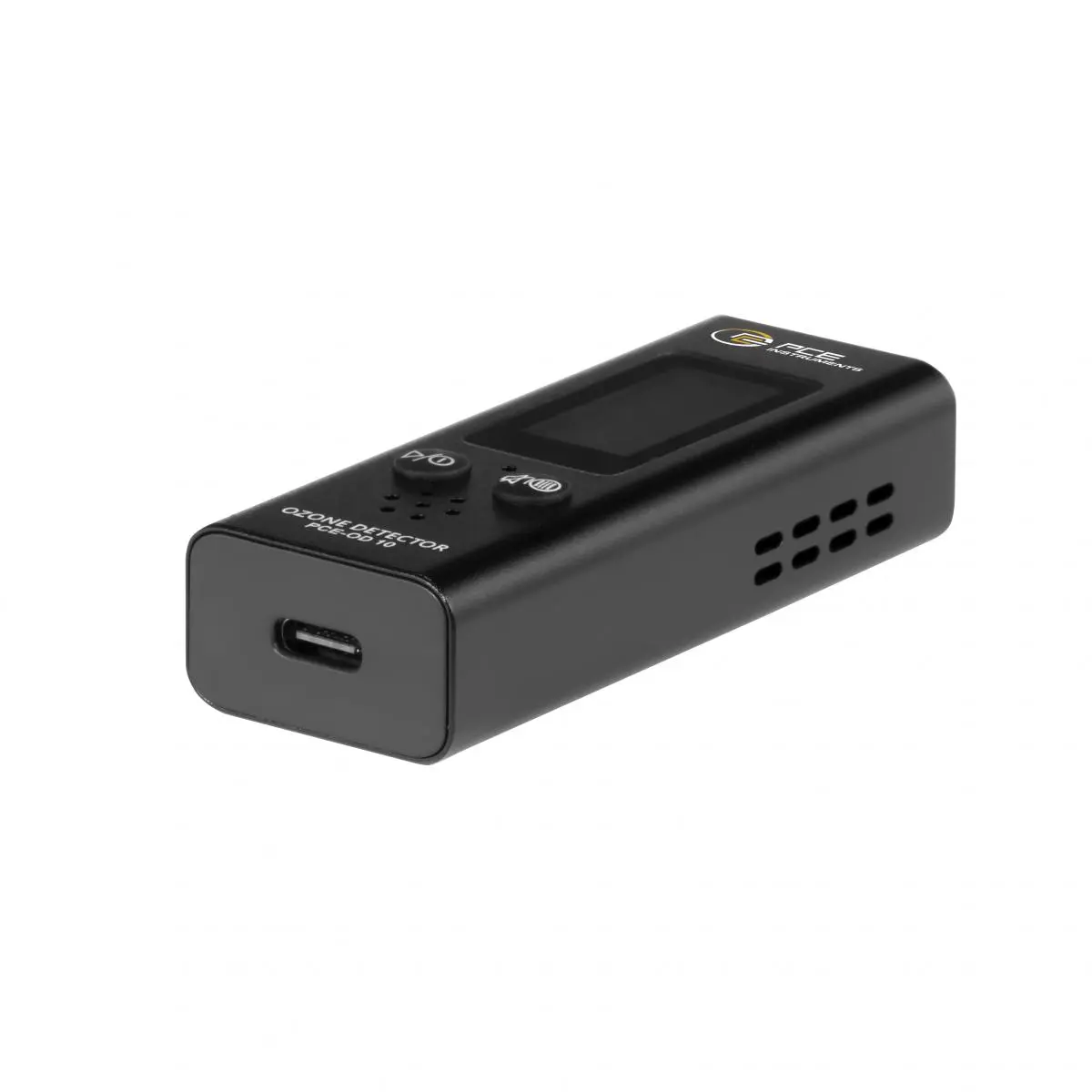

- Rechargeable battery via USB-C

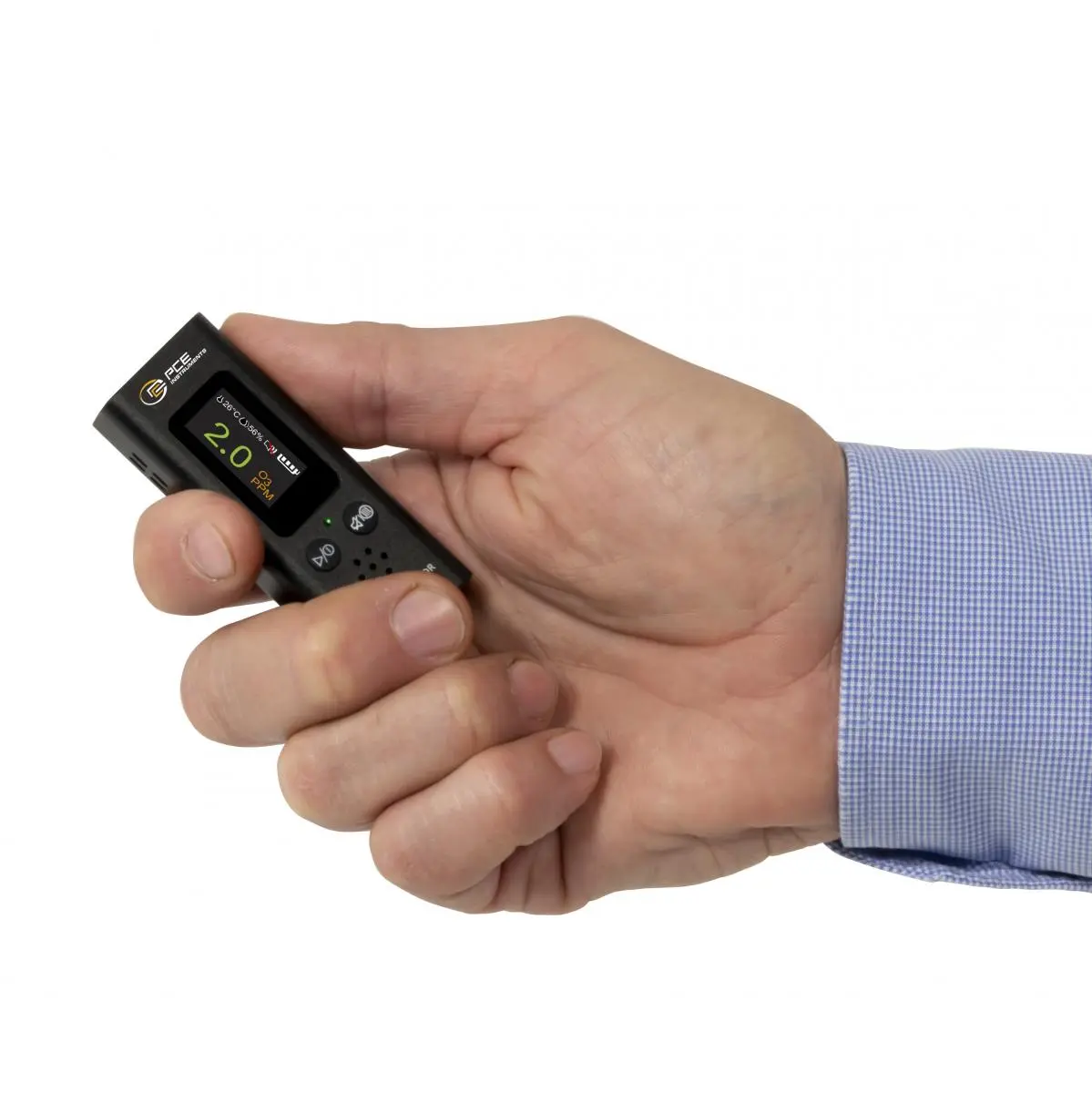

- Compact size

Specification

Relative humidity
Measurement range up to  5 ... 95 %
Resolution  1 %
Accuracy  ±5 %

Ozone
Measurement range up to  0 ... 9,9 ppm
Resolution  0,1 ppm
Accuracy  ±15% FS

Temperature
Measurement range up to  0 ... 50 °C
Resolution  1 °C
Accuracy  ±1 °C

General technical data
Display type  LCD
Display size  0,9 Inch
Service life  approx. 2 years
Operating time  24 h
Alarm  Acoustic
Alarm value  3 ppm
Alarm volume  85 dB
Menu language  English, English (GB)
Protection class (device)  IP20
Power supply  5 V DC
(Rechargeable) battery  1 x 3,7 V internal , Lithium-ion polymer battery
Capacity  400 mAh
Operating conditions  0 ... 50 °C , 0 ... 95 % RH
Storage conditions  -10 ... 60 °C , 0 ... 80 % RH
Dimensions ( L x W x H )  70 x 26 x 16 mm
Weight  32 g

Delivery Scope

1 x PCE-OD 10 Humidity Detector
1 x USB-C cable
1 x Wrist strap
1 x Instruction manual
