Humidity Detector PCE-G 2-ICA incl. ISO-Calibration Certificate

Order no.: PCE-G 2-ICA

GTIN (EAN): 4250348740168

Description

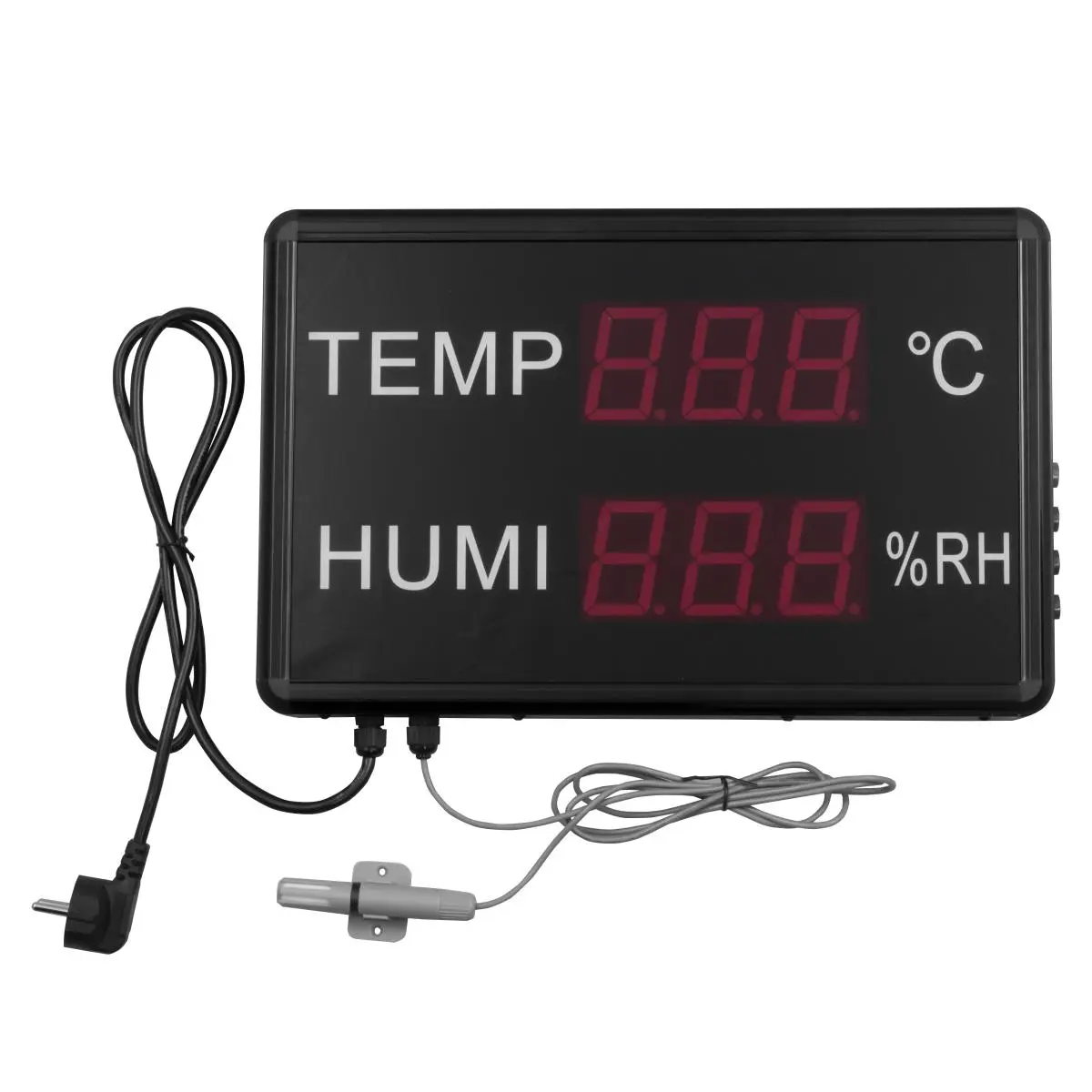

Humidity Detector PCE-G 2 Large display for temperature and humidity / 55 mm character height / up to 30 m reading distance / external sensor / 230 V mains operation

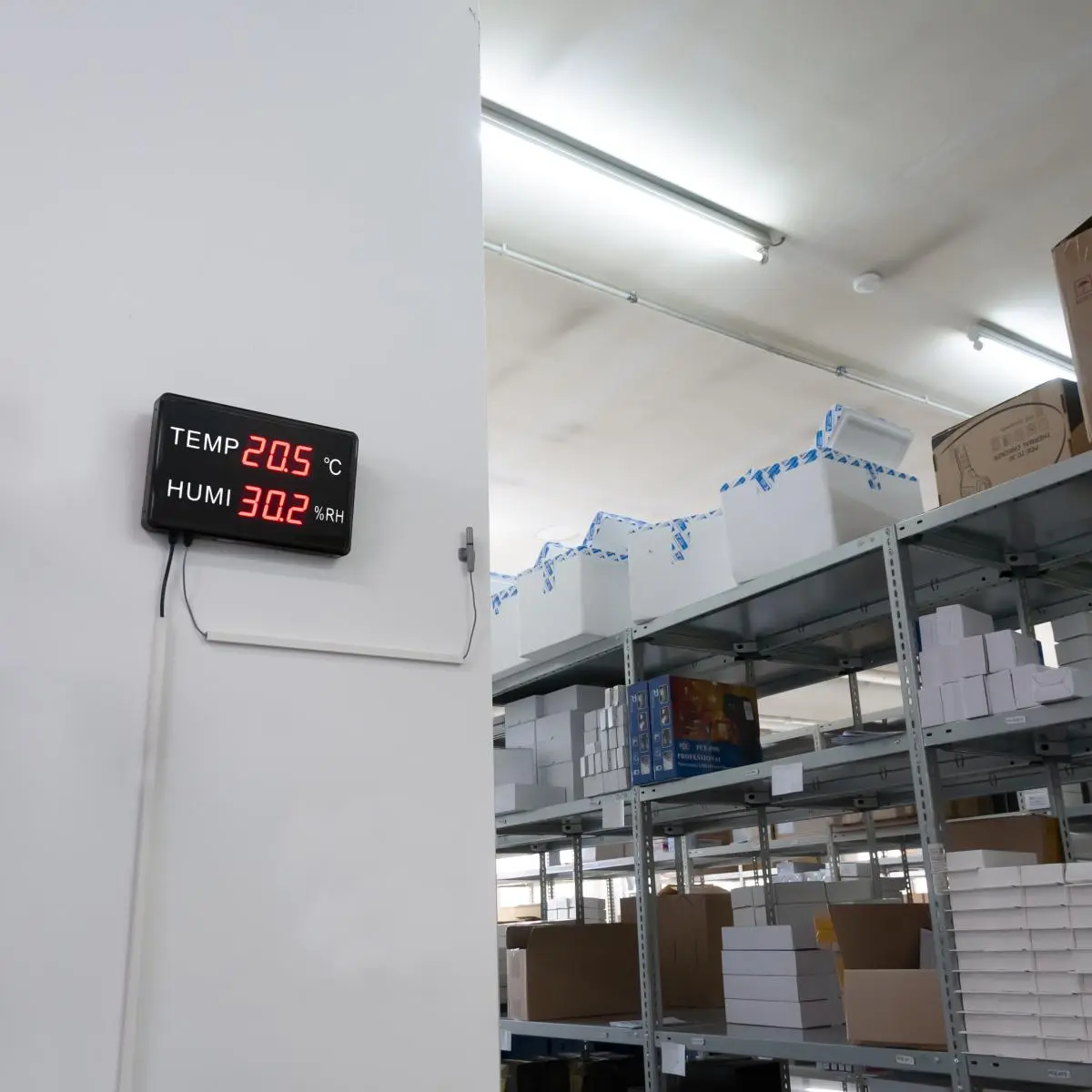

The Humidity Detector is used to measure the environmental parameters of temperature and humidity. The Humidity Detector finds its application in warehouses, open-plan offices, schools, etc. The Humidity Detector has 55 mm-high digits that indicate the temperature and humidity.

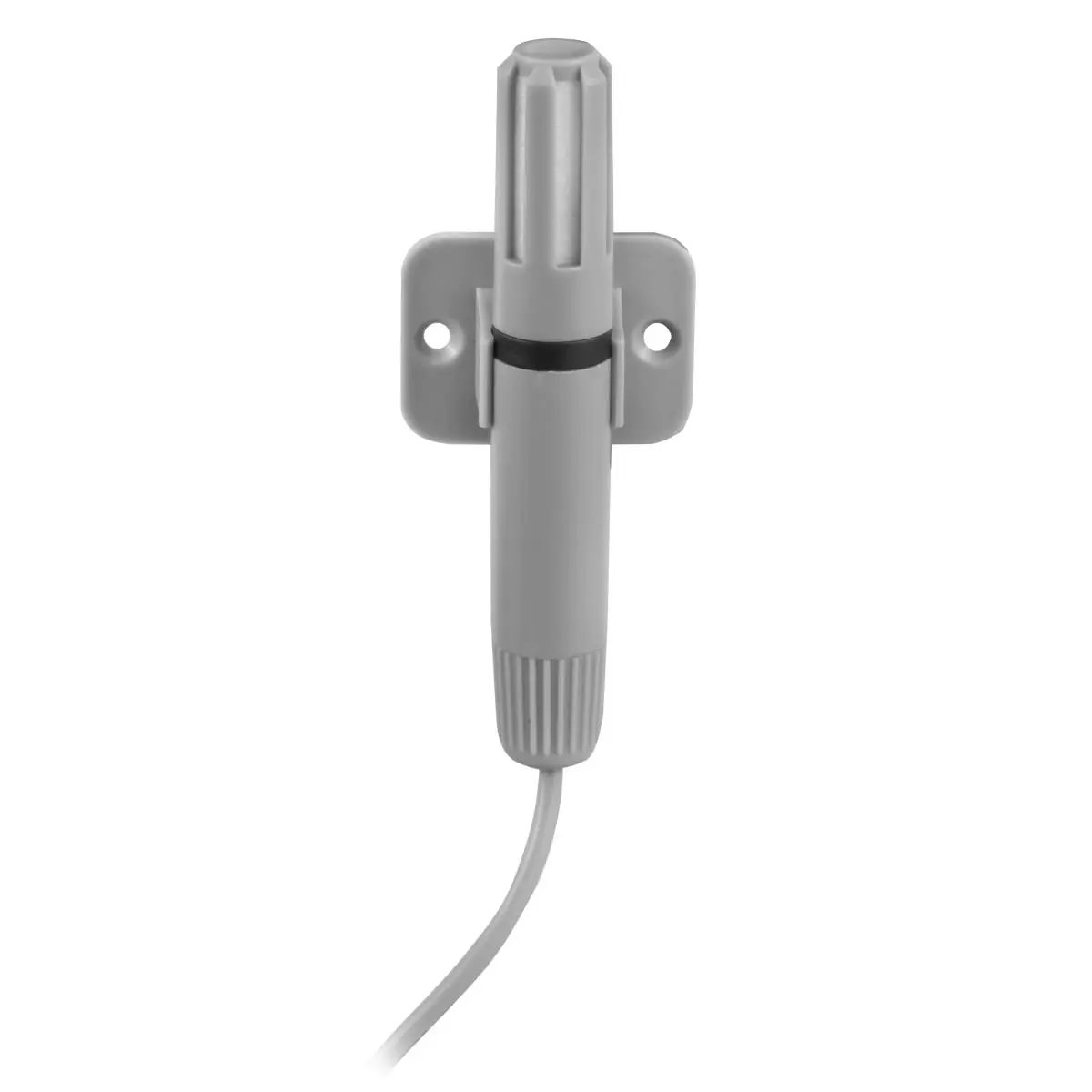

Due to the large size of the digits, the Humidity Detector display can be read from distances up to 30 m. The temperature and humidity sensor of the Humidity Detector is connected by a 2 m long cable. The Humidity Detector is operated with 230 V AC mains voltage. Via the side-mounted buttons, alarm levels can be set on the Humidity Detector.

Highlights

- Temperature and air measurement

- Wall mounted

- 230 V AC power supply

- 55 mm character height

- Up to 30 m reading distance

- External sensor (wired)

- incl. ISO-Calibration Certificate

Specification

Relative humidity
Measuring range	0 ... 99 % RH
Resolution	0,1 % RH
Accuracy	±3 % RH

Temperature
Measuring range	-40 ... -10 °C
Resolution	1 °C
Accuracy	±0.3 °C

General technical data
Display type	LCD
Alarm	Acoustic
Dimensions	Sensor cable: approx. 2 m Power supply cable: approx. 1 metre
Visibility	30 m
Protection class (device)	IP54
Power supply	Primary: 100 ... 240 V AC 50/60 Hz Secondary: 12 V DC, 0.5 A
Connector type	Schuko plug
Operating conditions	-20 ... 70 °C , 0 ... 85 % RH
Storage conditions	-20 ... 70 °C , 0 ... 85 % RH
Dimensions ( L x W x H )	395 x 255 x 50 mm
Weight	2500 g
